Toyota Dyna/Toyoace
1999-05 → 2011-06 · chassis BU4##,BZU410,XZU3##,4## · catalogue 771130 · Japan
Discontinued model
Data version 2012-01

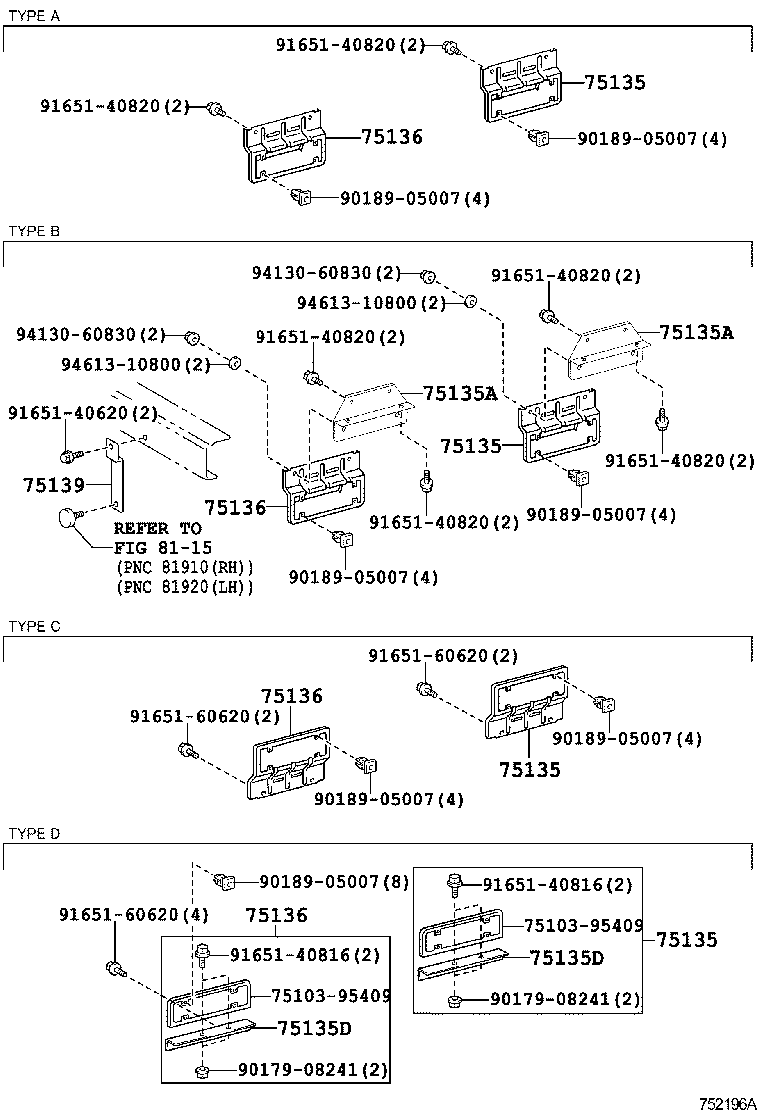

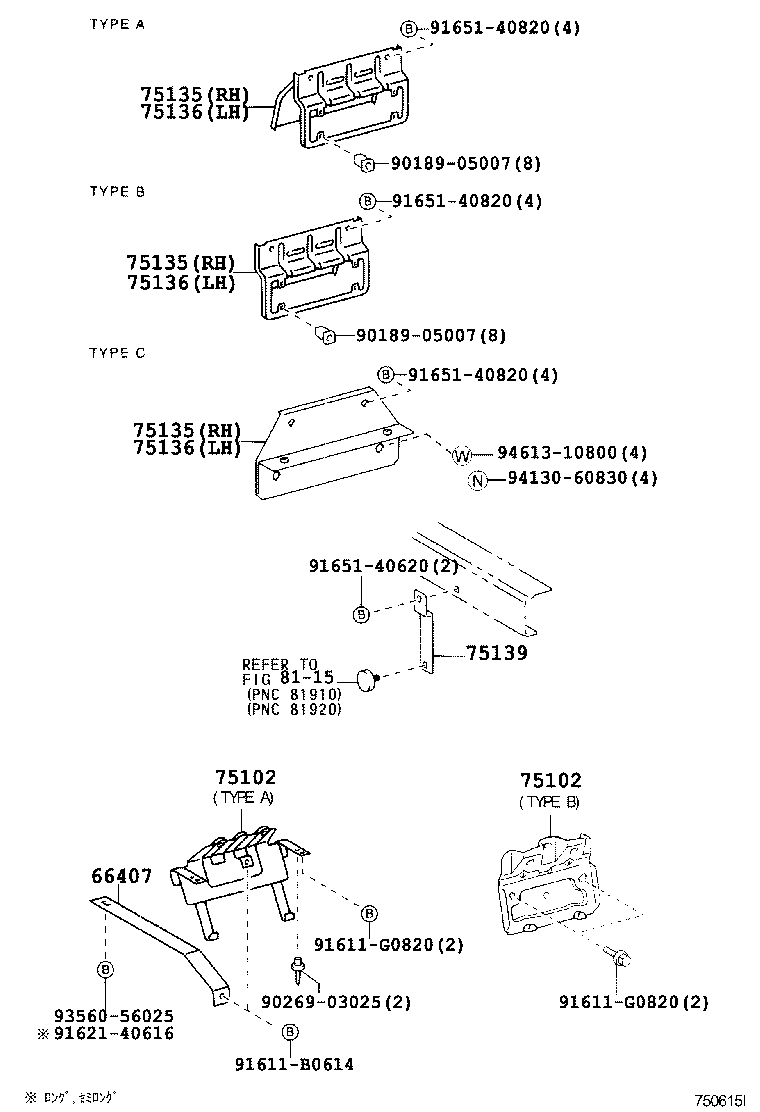

Tool Box & License Plate Bracket
17 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 47379 | Spacer, Brake Tube, NO.1 |
| 47379A | Spacer, Brake Tube, NO.2 |
| 58705 | Band Sub-assy, Tool Bag |
| 58794B | Support, Jack Handle |
| 58797B | Band, Jack Clamp |
| 66407 | Stay Sub-assy, License Plate Bracket |
| 75102 | Bracket Sub-assy, Rear License Plate |
| 75135 | Bracket, Combination Rear Lamp, RH |
| 75135A | Stay, Combination Rear Lamp Bracket |
| 75135D | Bracket, Combination Rear Lamp |
| 75136 | Bracket, Combination Rear Lamp, LH |
| 75139 | Bracket, Reflex Reflector |
| 75201 | Box Sub-assy, Tool W/Stay |
| 75221A | Bracket, Tool Box, RH |
| 75222 | Bracket, Tool Box, LH |
| 75298 | Plate, Jack Holder |
| 75299 | Base, Jack Holder |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
