Toyota Dyna/Toyoace

1999-05 → 2011-06 · chassis BU4##,BZU410,XZU3##,4## · catalogue 771130 · Japan

Discontinued model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Abs & Vsc

12 part groups · 9 illustrations

Illustrations

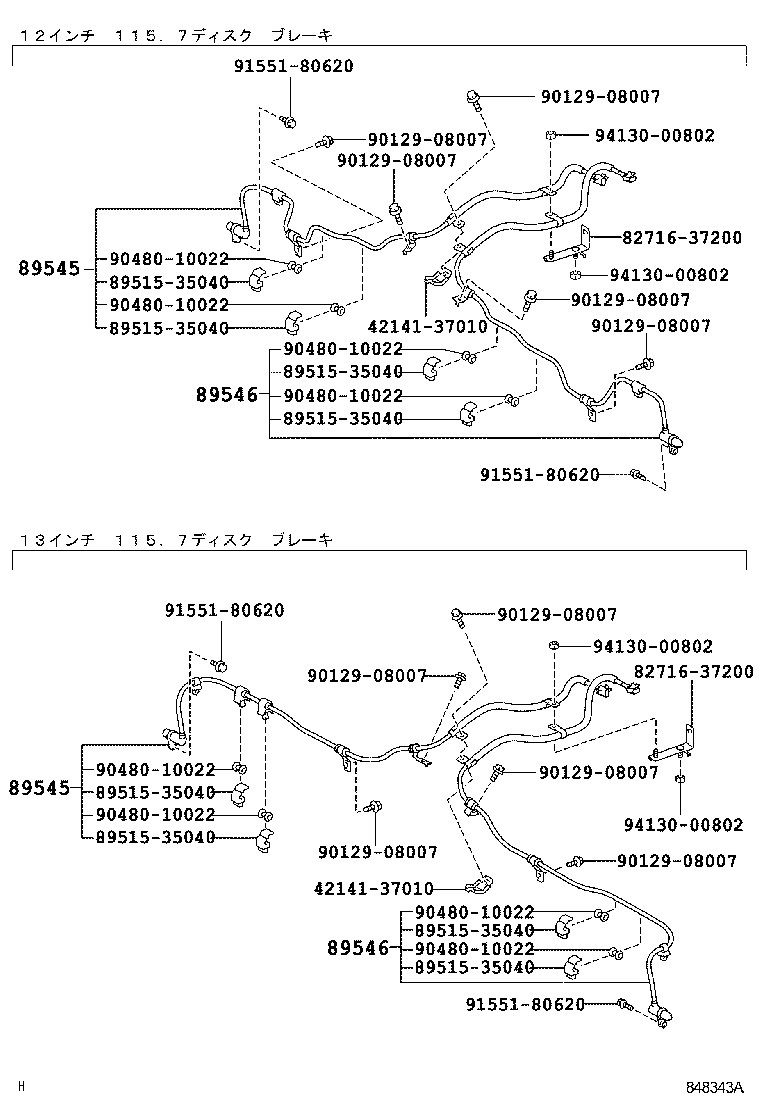

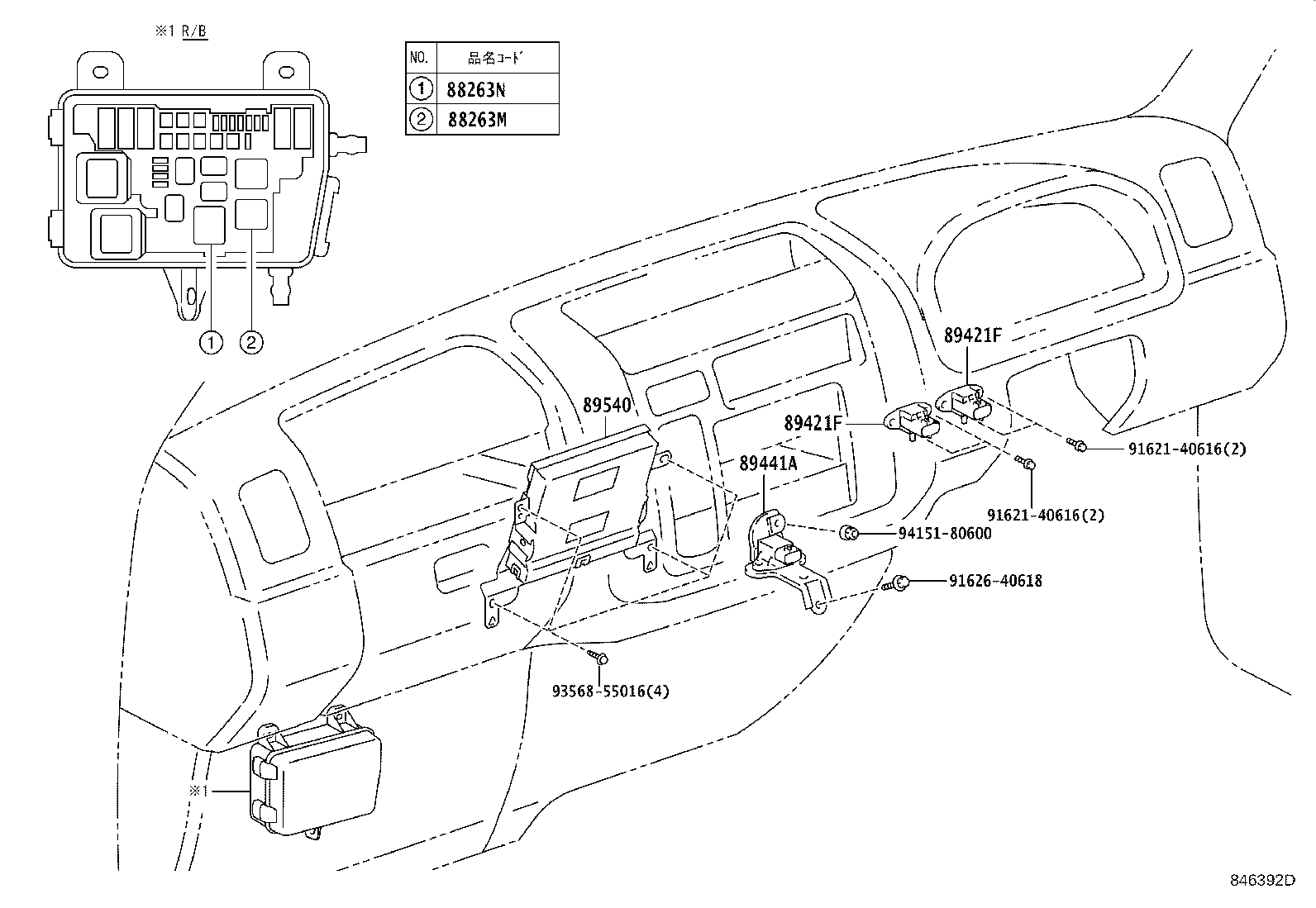

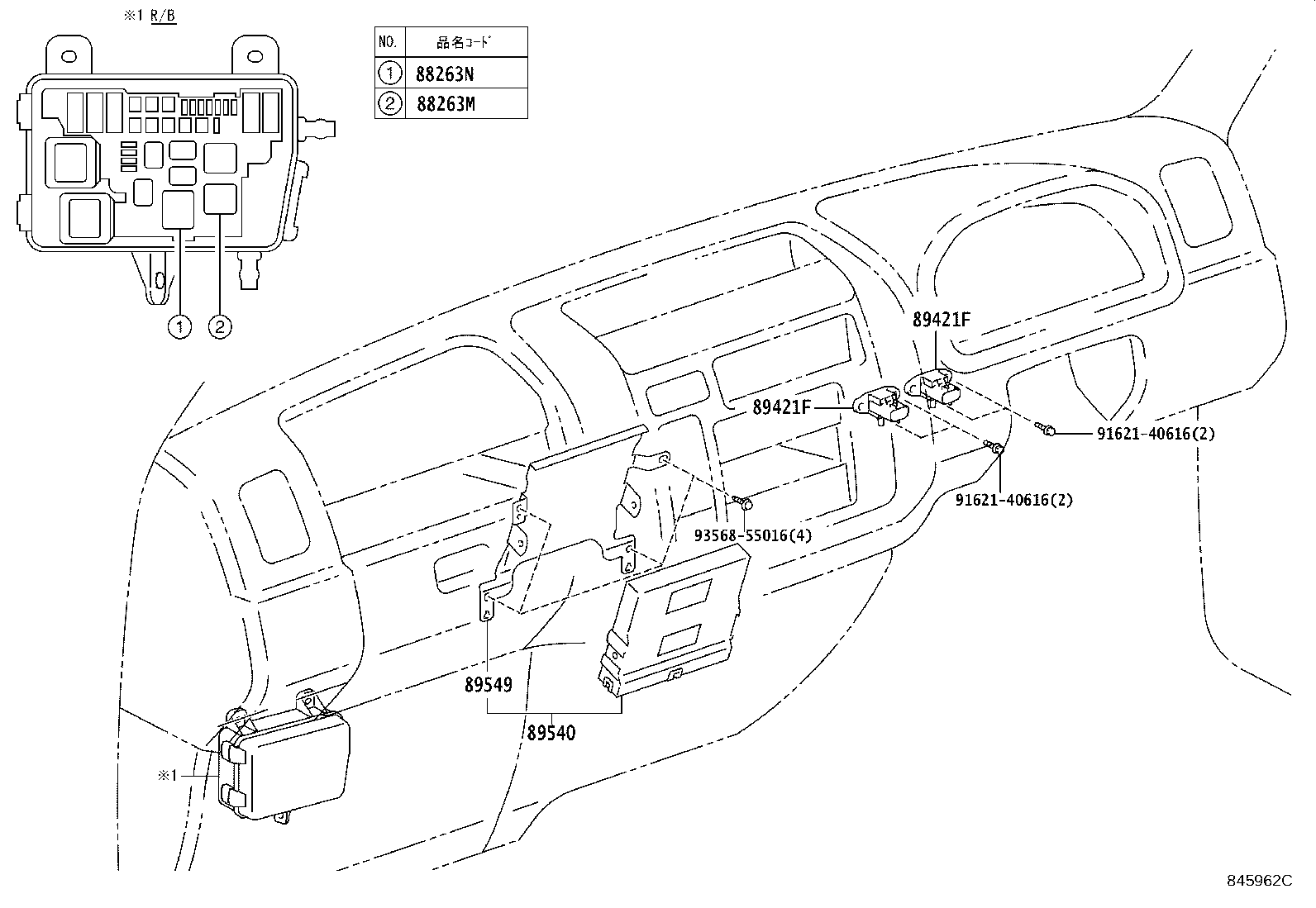

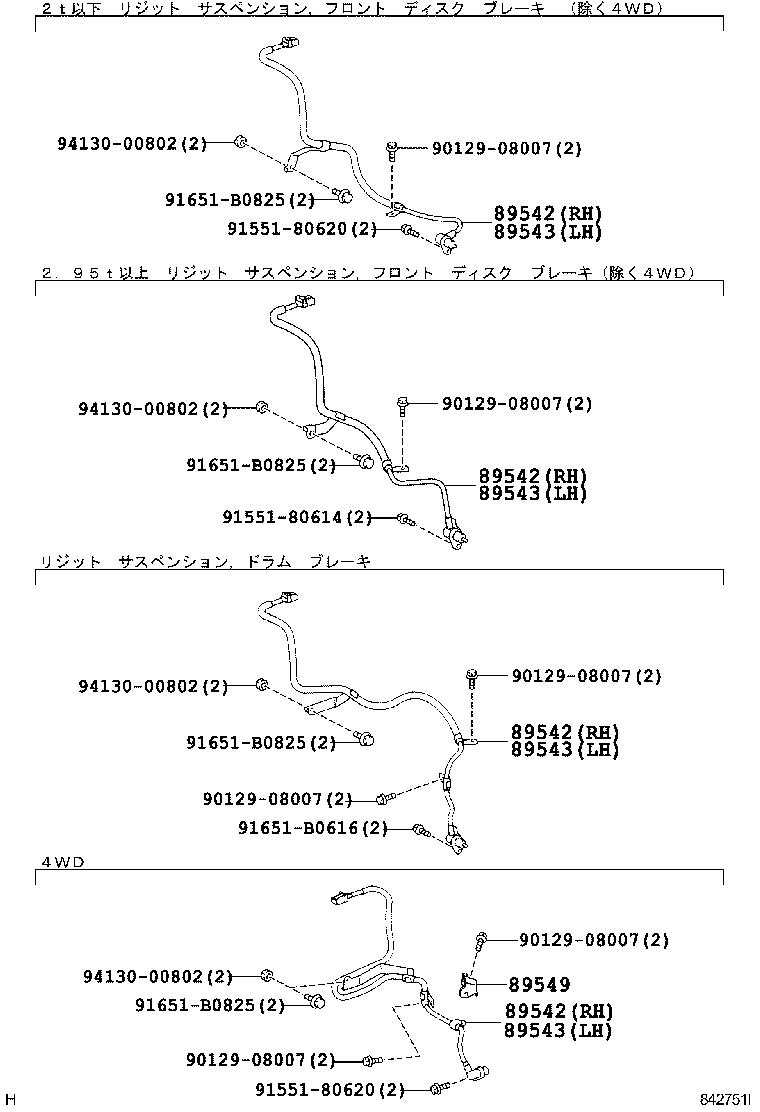

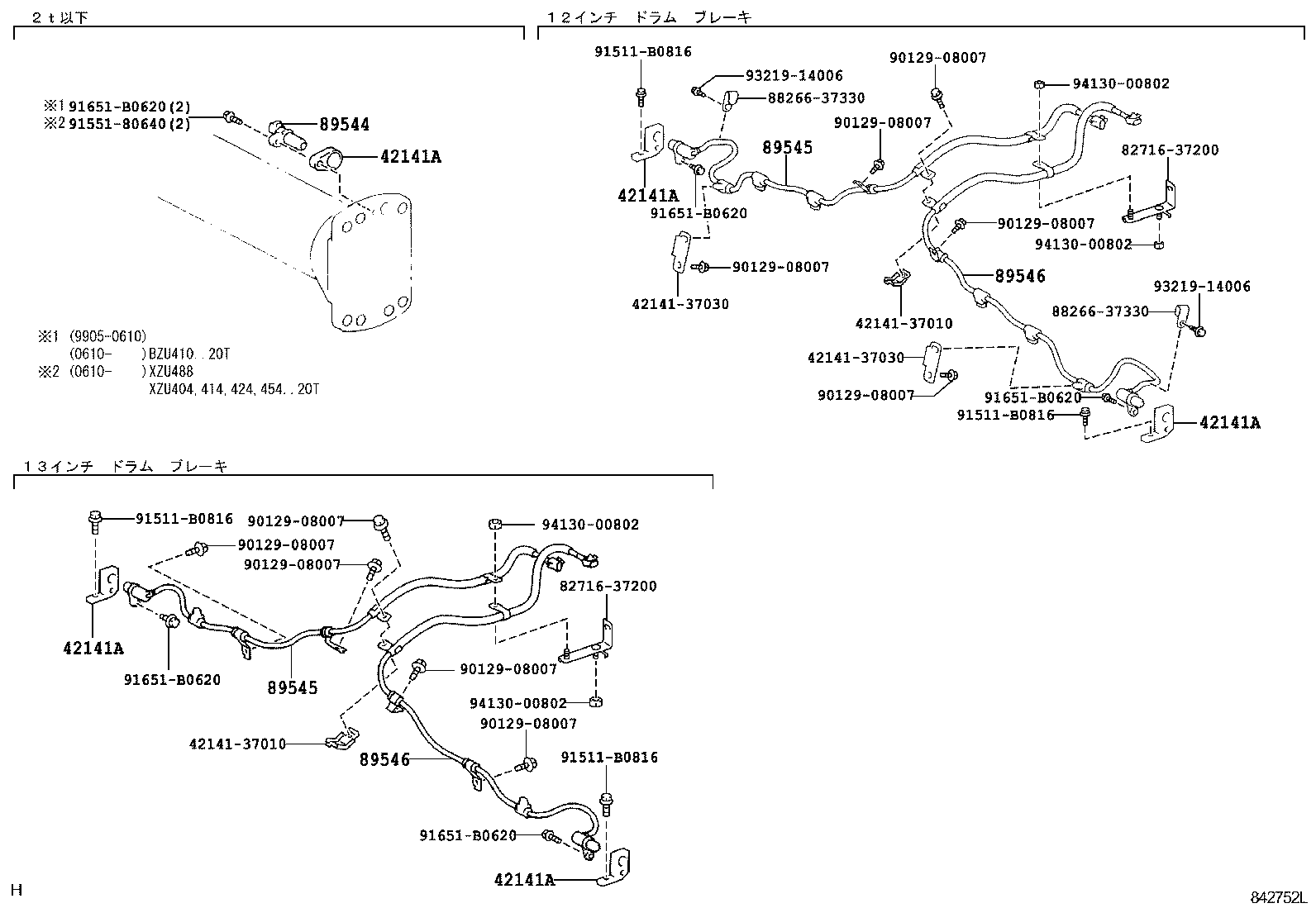

Figure 842750F 842750F 1999-05 → 2004-06 Figure 845962C 845962C 2003-10 → 2004-06 Figure 846392D 846392D 2004-06 → — Figure 842751I 842751I 1999-05 → — Figure 842752L 842752L 1999-05 → 2004-06 Figure 842752L 842752L 2004-06 → — Figure 842752L 842752L 2004-06 → — Figure 848343A 848343A 2003-10 → 2004-06 Figure 848343A 848343A 2004-06 → —

Part groups

PNCDescription
42141A Attachment, Skid Control Wire, NO.1
88263M Relay, Abs Solenoid
88263N Relay, Abs Motor
89421F Sensor, Vacuum (FOR SKID CONTROL)
89441A Sensor, Deceleration
89540 Computer Assy, Skid Control
89542 Sensor, Speed, Front RH
89543 Sensor, Speed, Front LH
89544 Sensor, Skid Control
89545 Sensor, Speed, Rear RH
89546 Sensor, Speed, Rear LH
89549 Bracket, Skid Control Computer
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
