Toyota Dyna/Toyoace

1999-05 → 2011-06 · chassis BU4##,BZU410,XZU3##,4## · catalogue 771130 · Japan

Discontinued model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

49 part groups · 20 illustrations

Illustrations

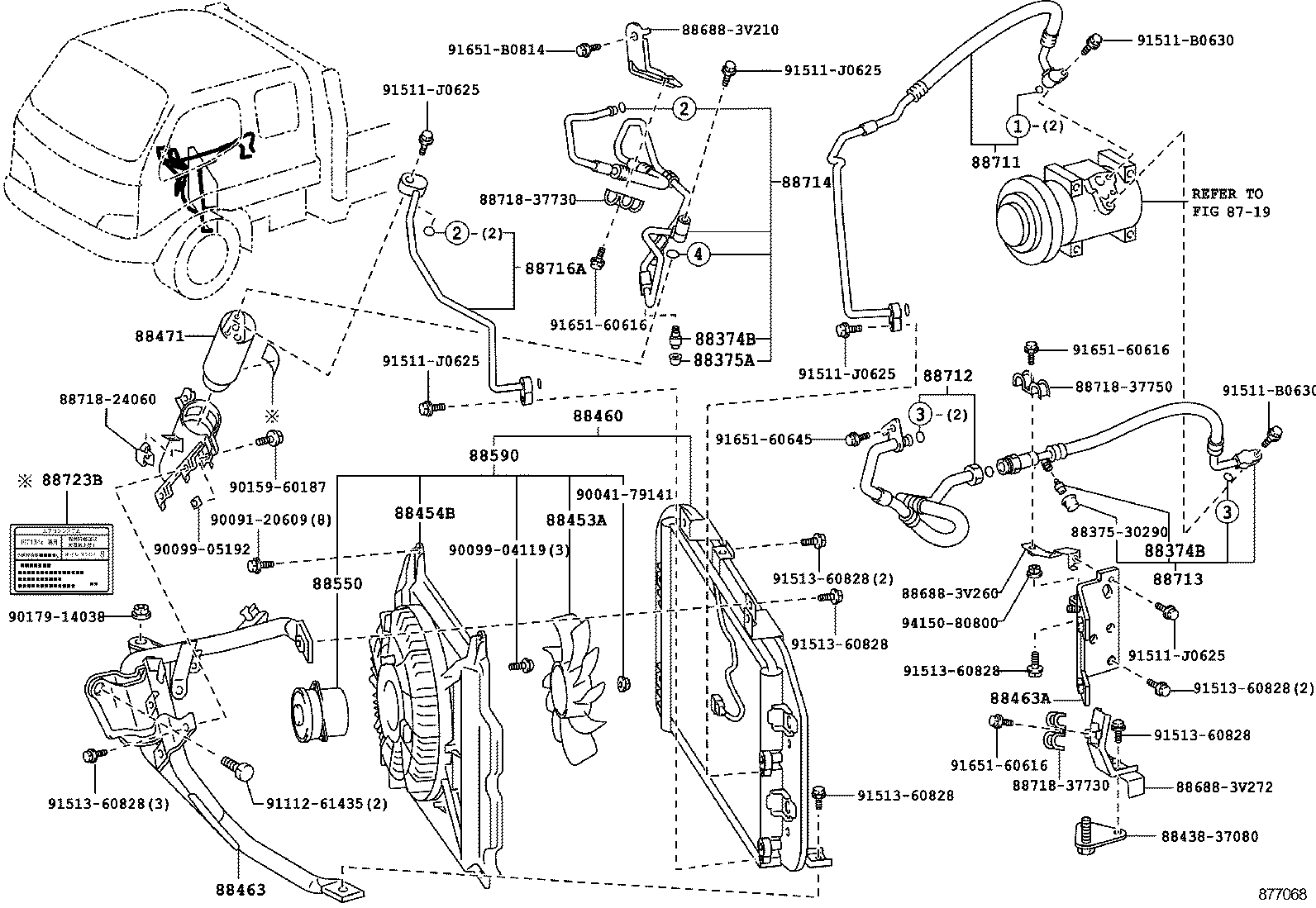

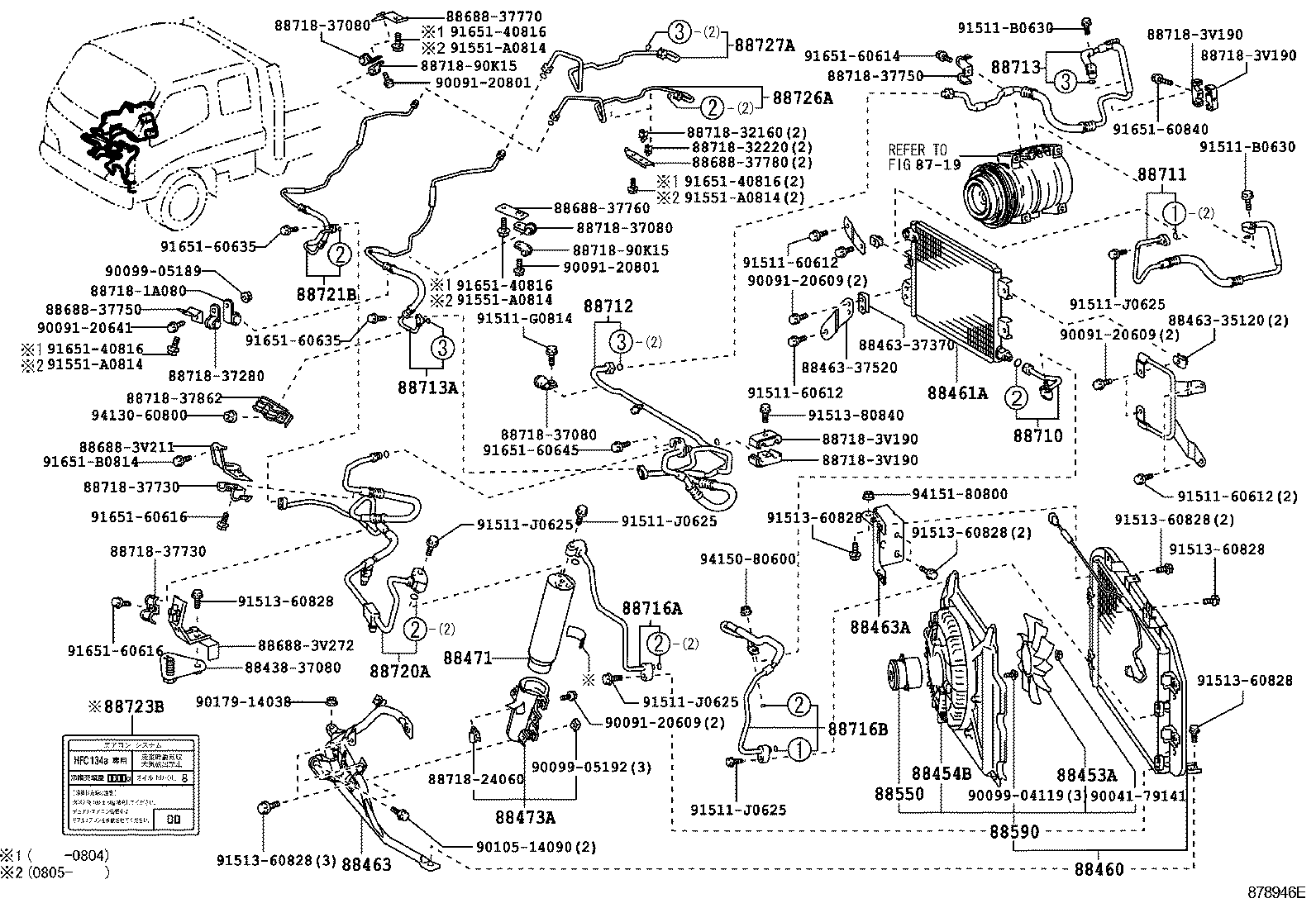

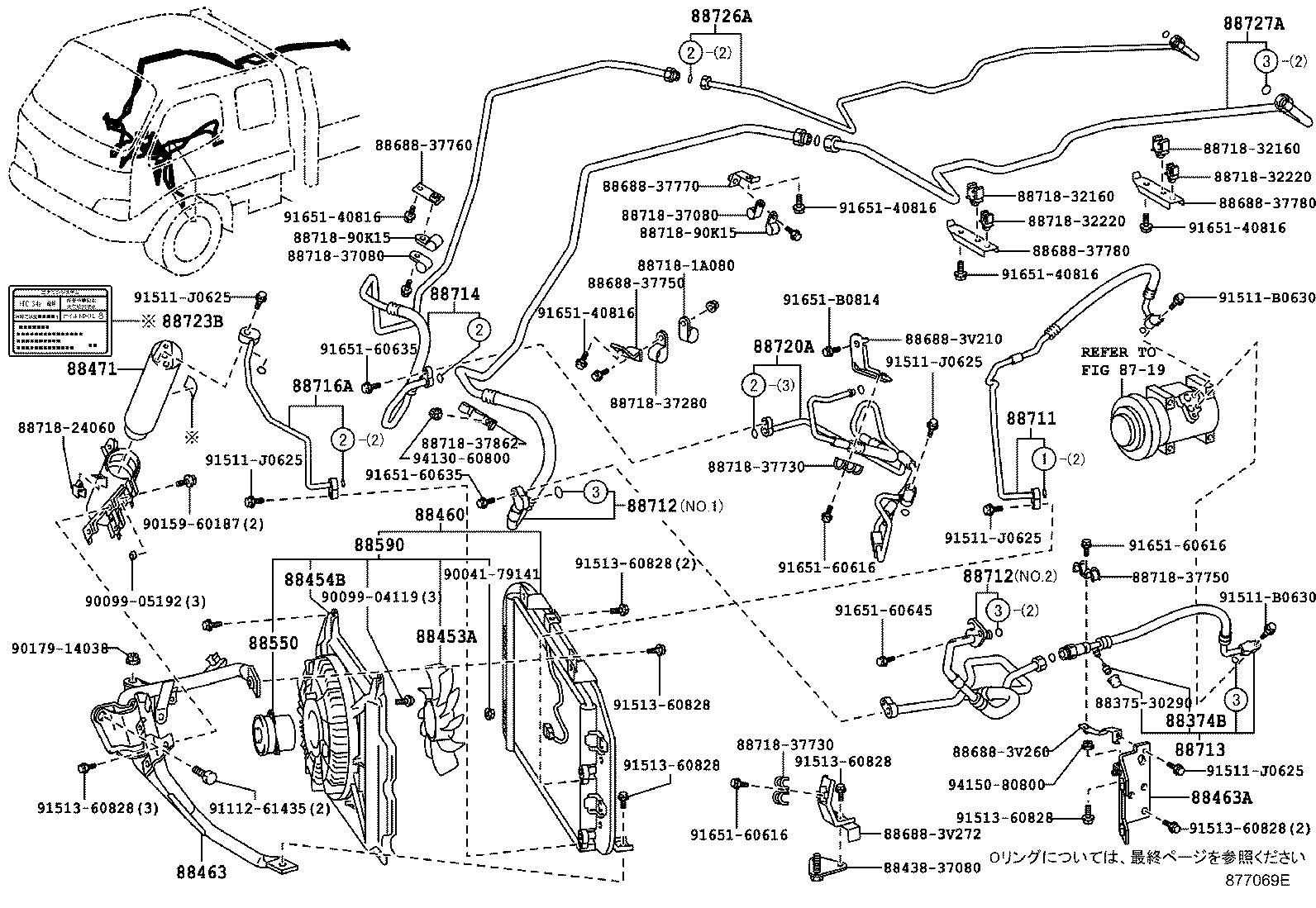

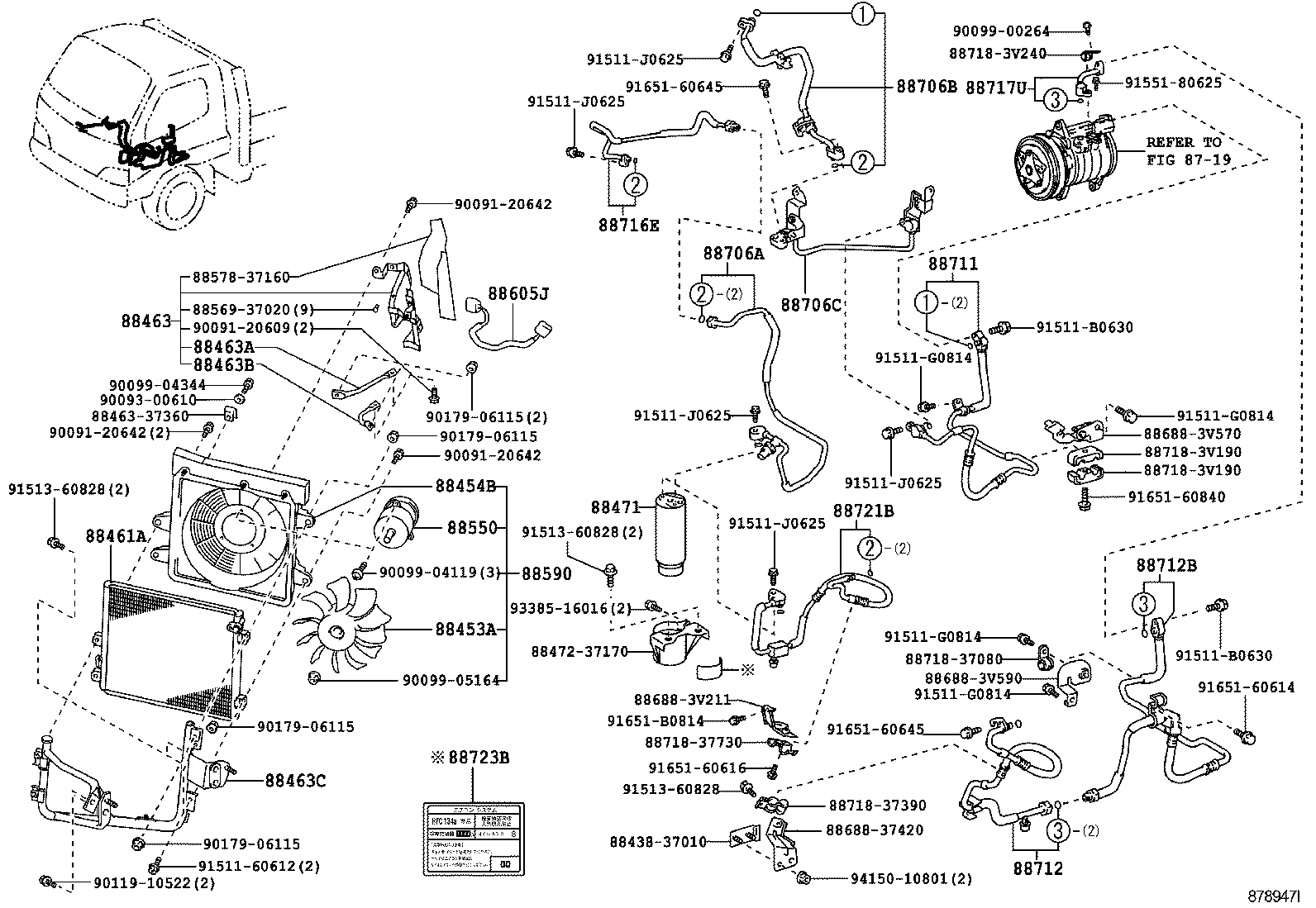

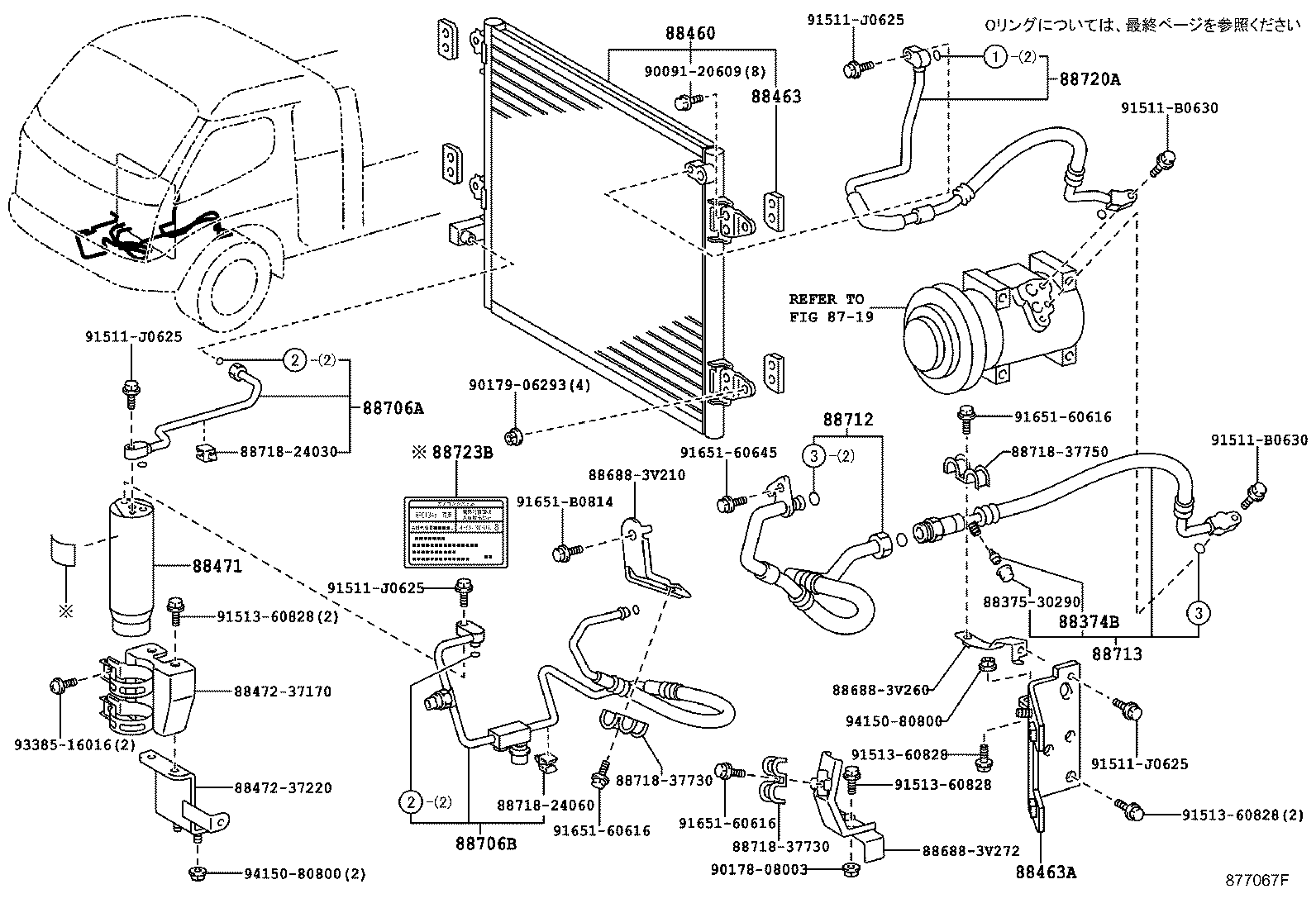

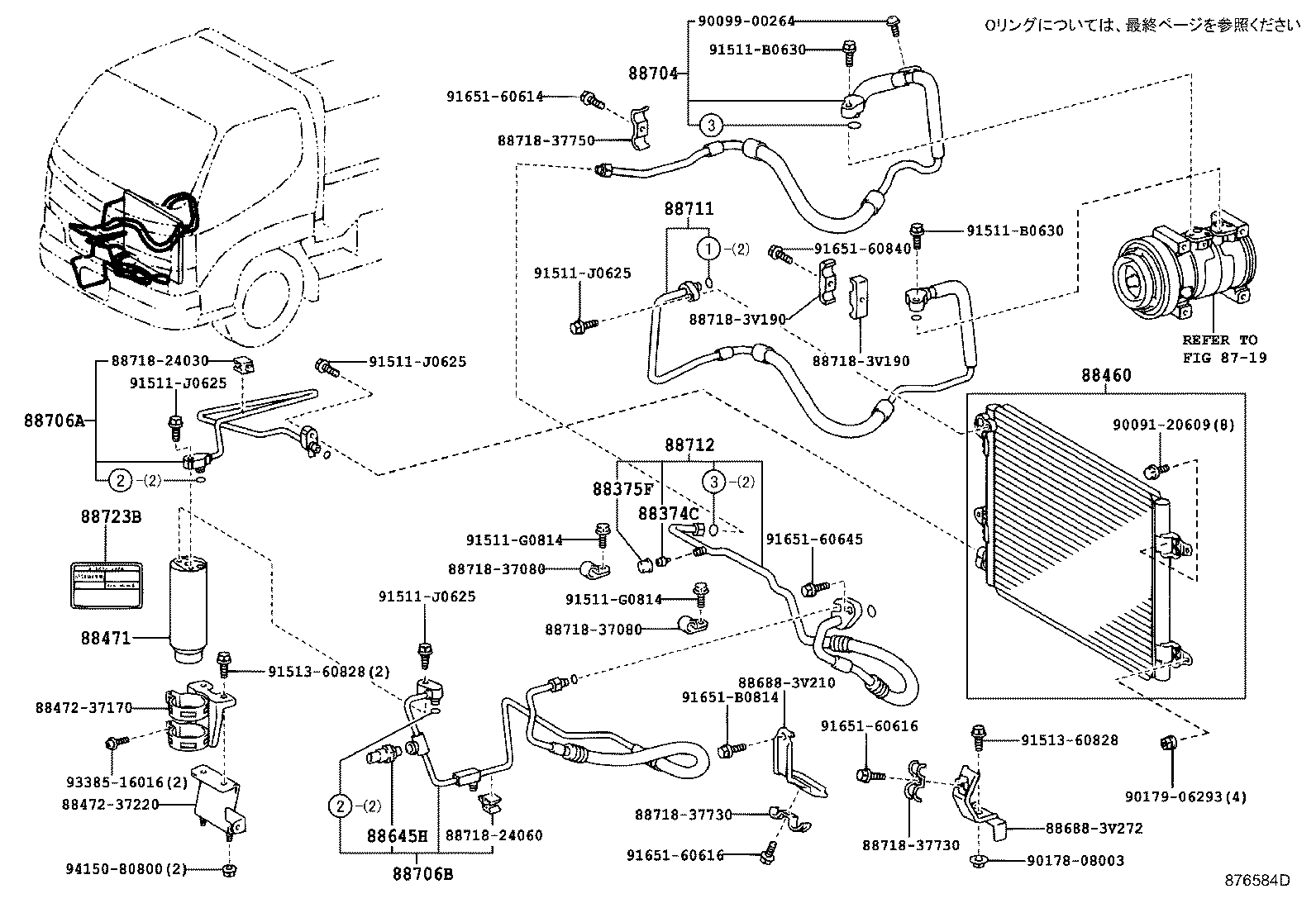

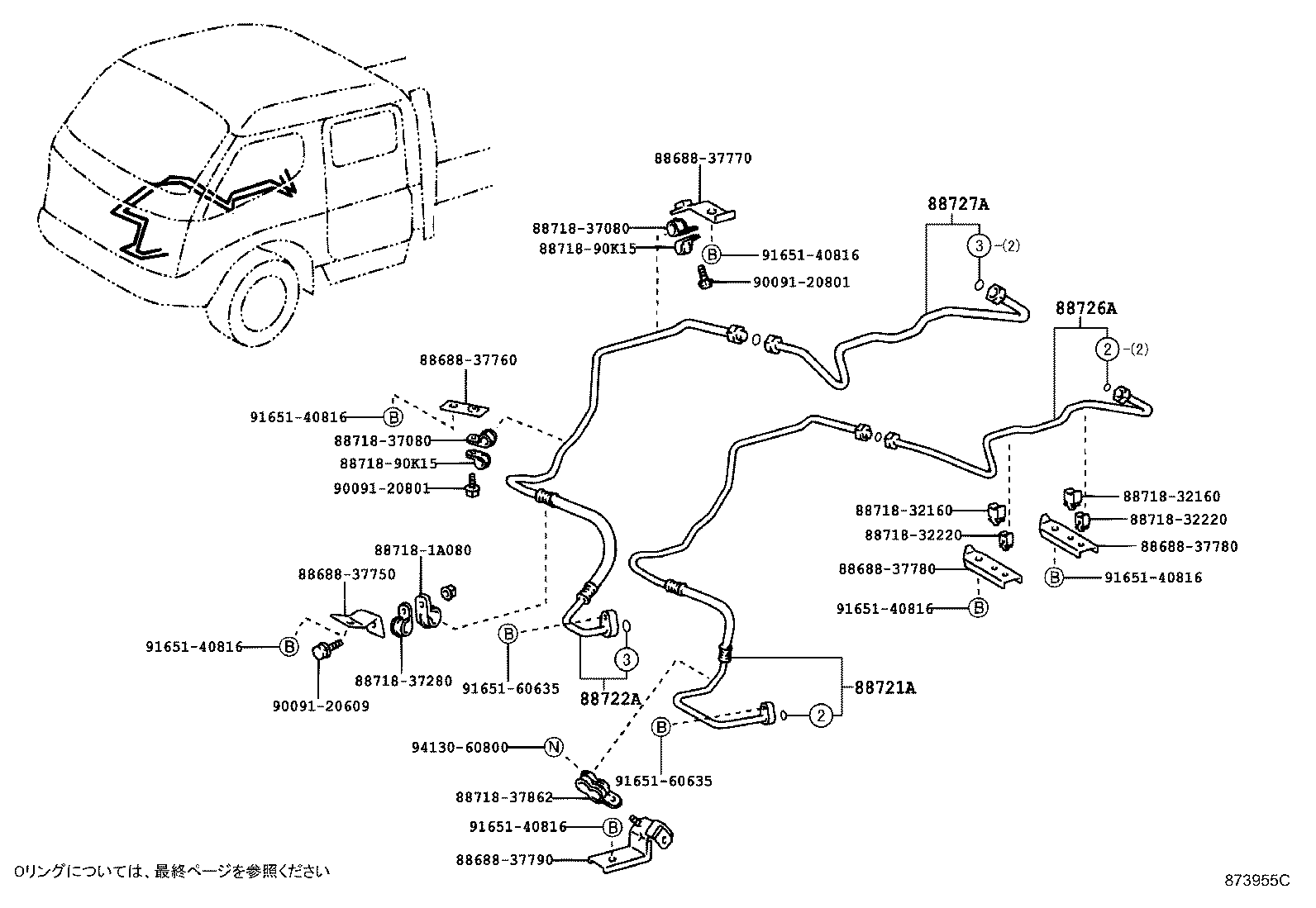

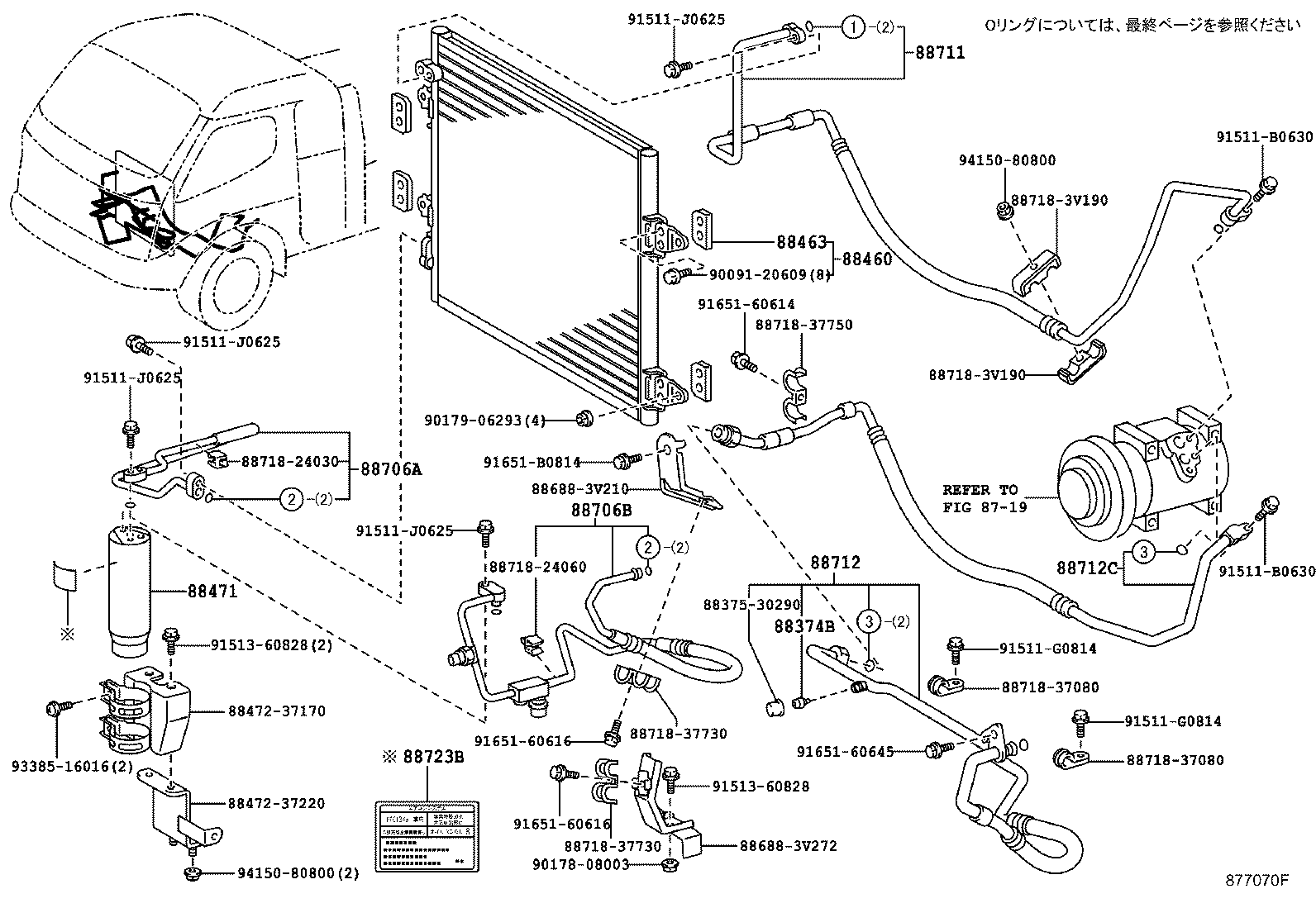

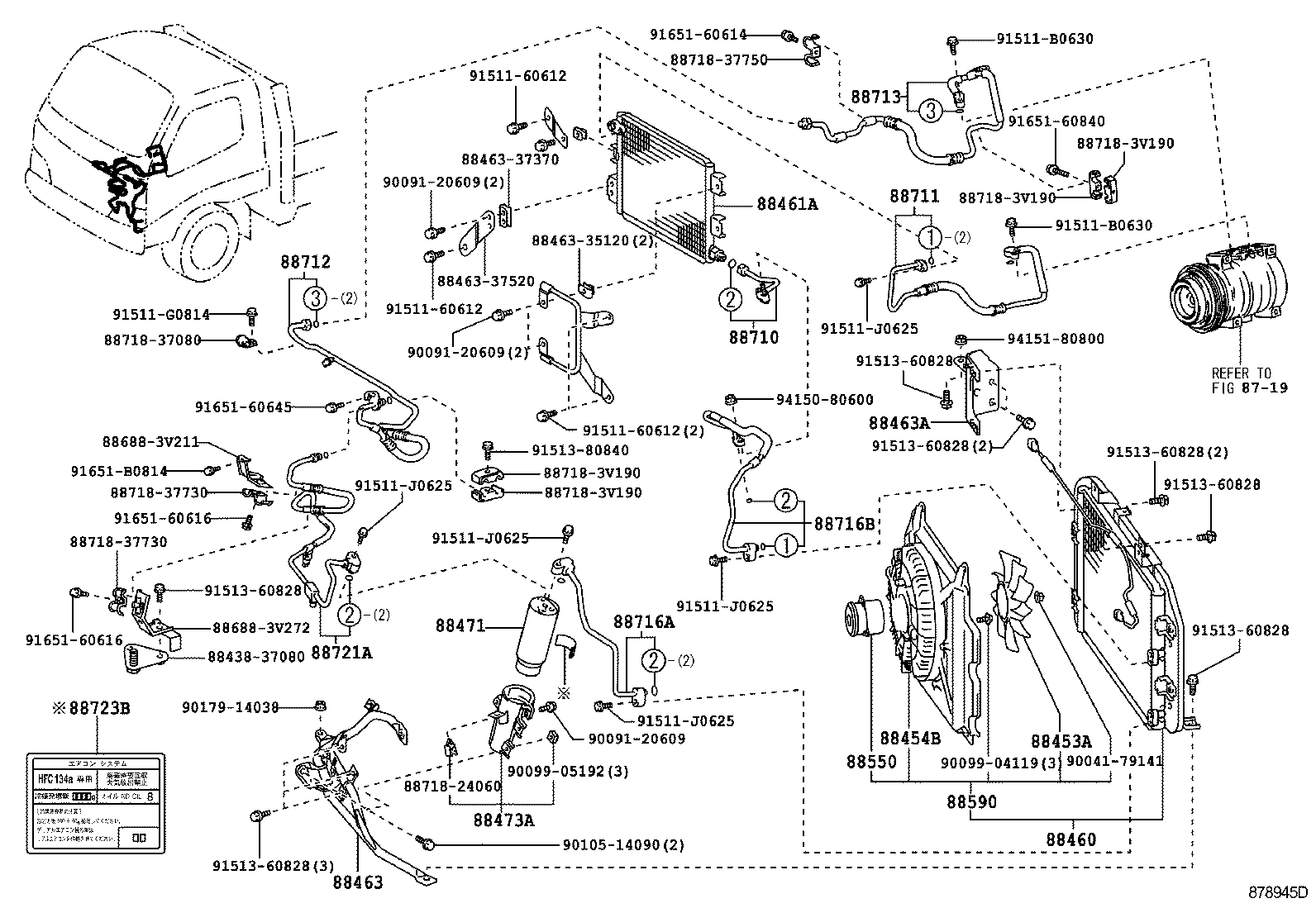

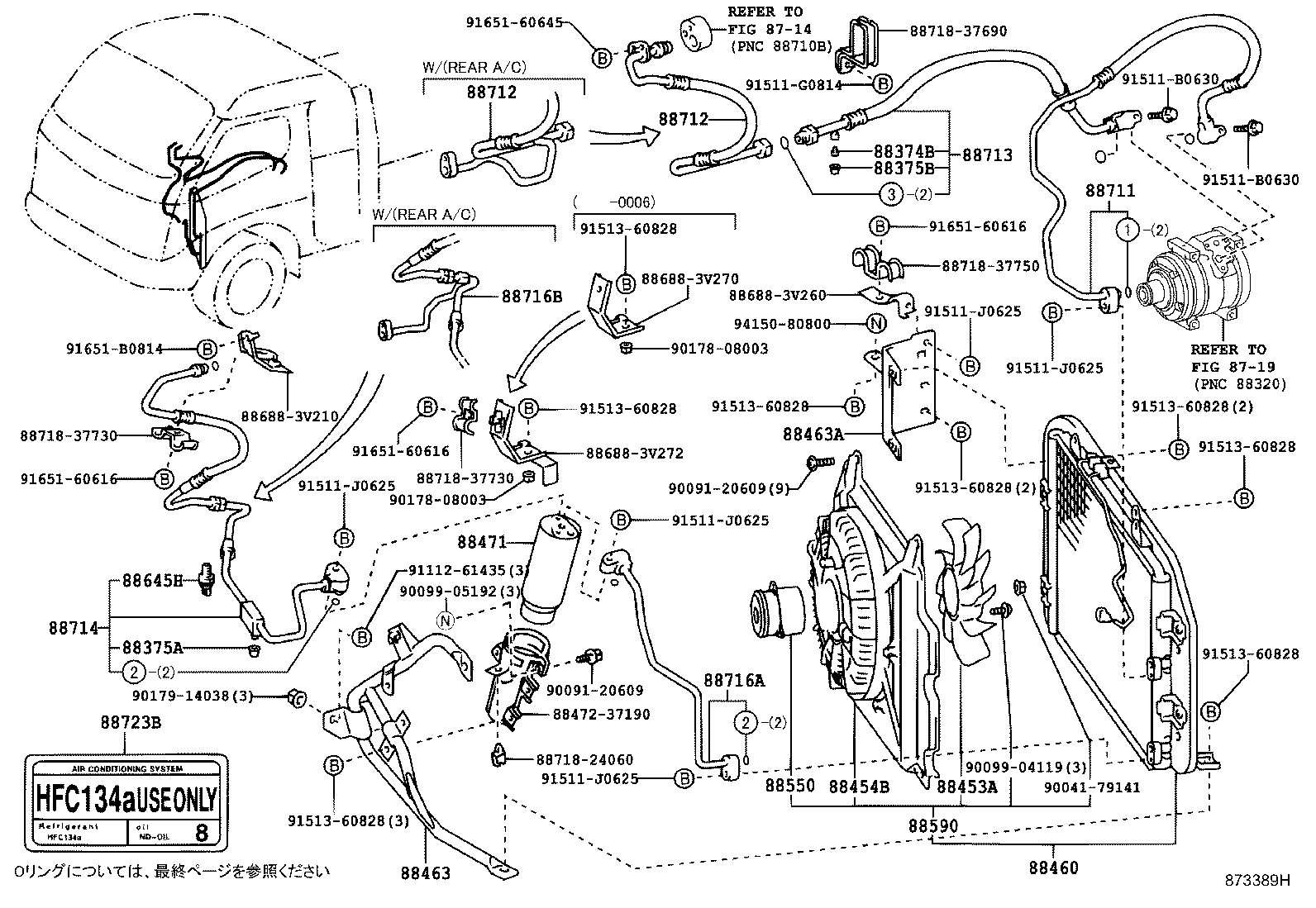

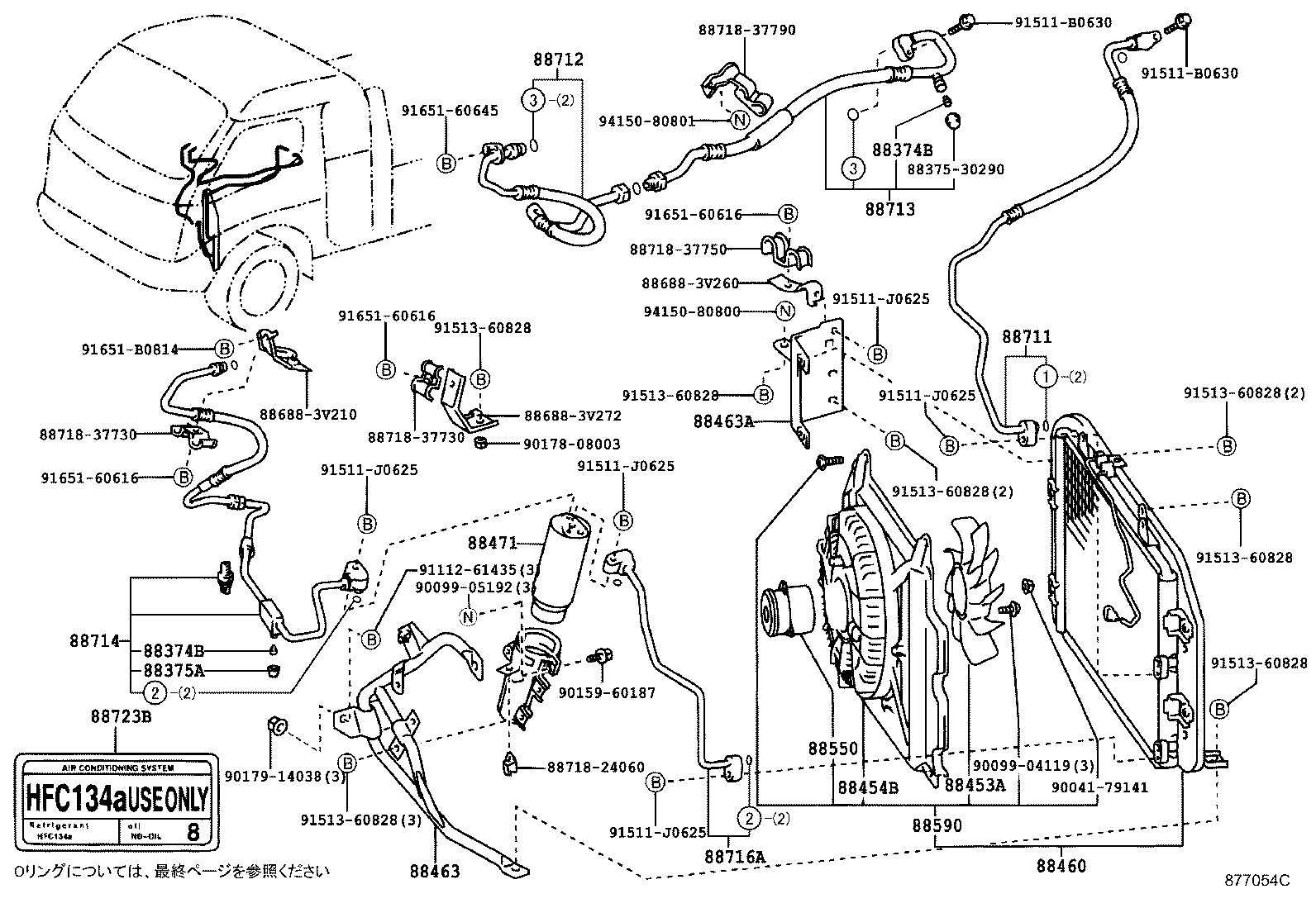

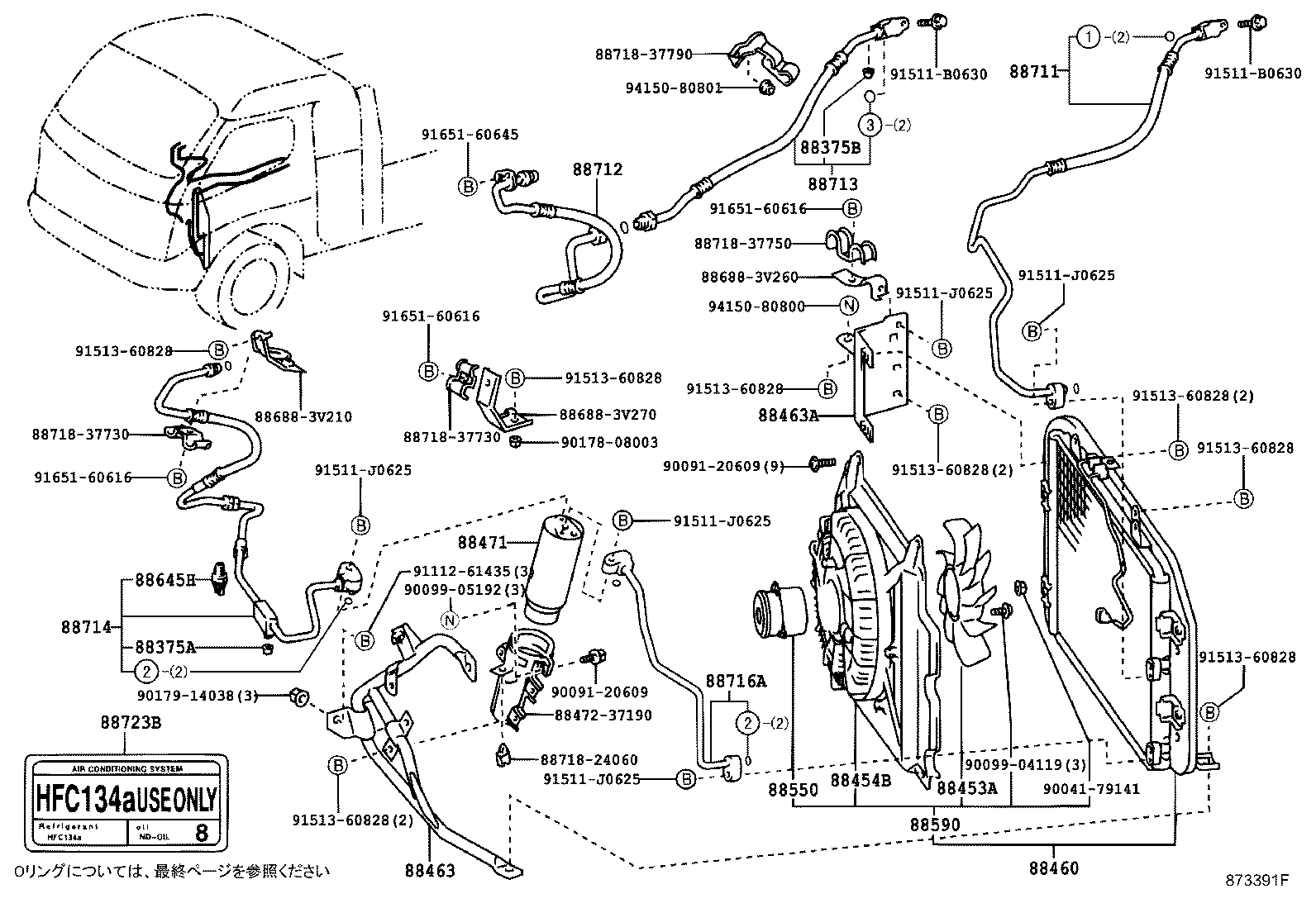

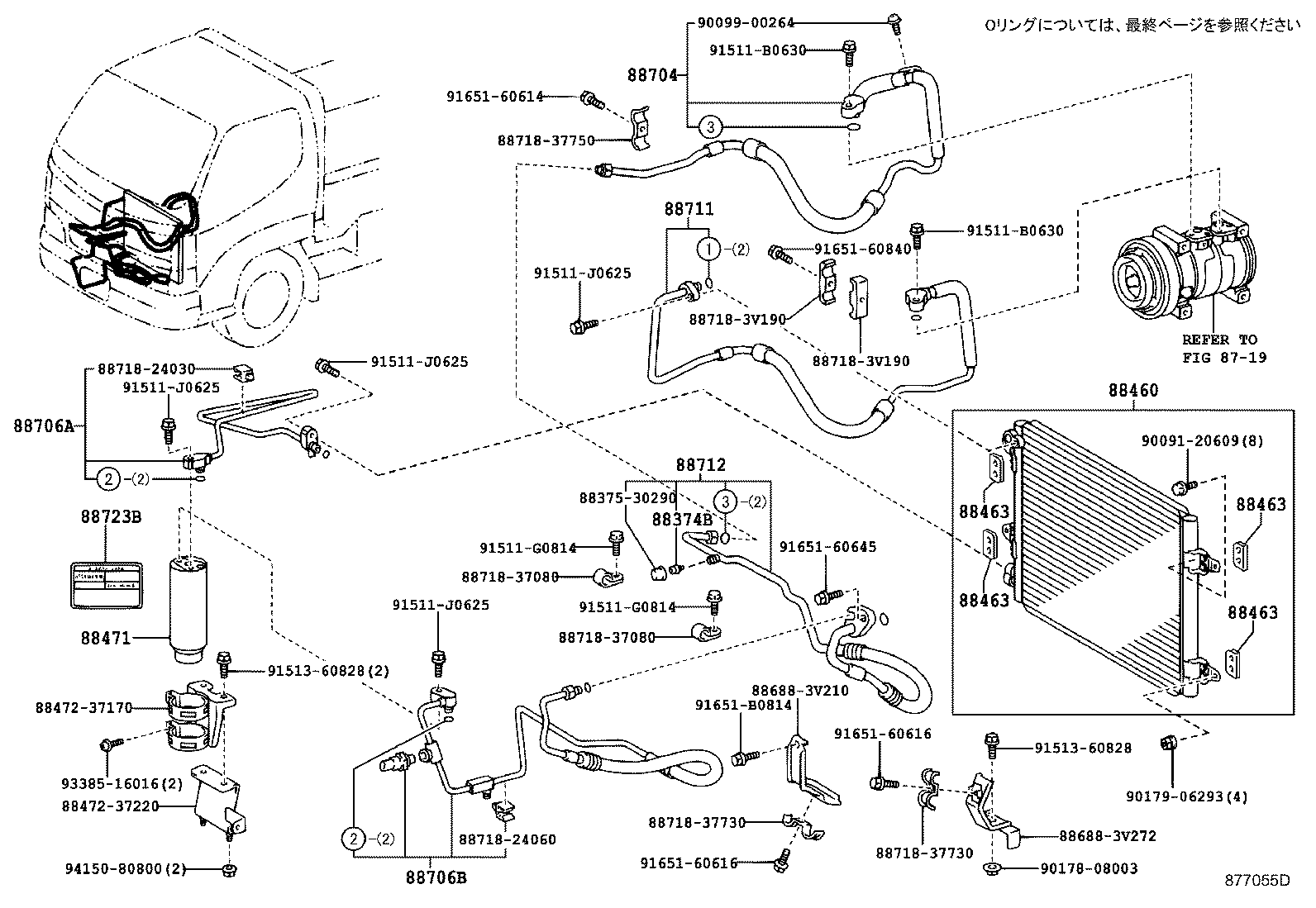

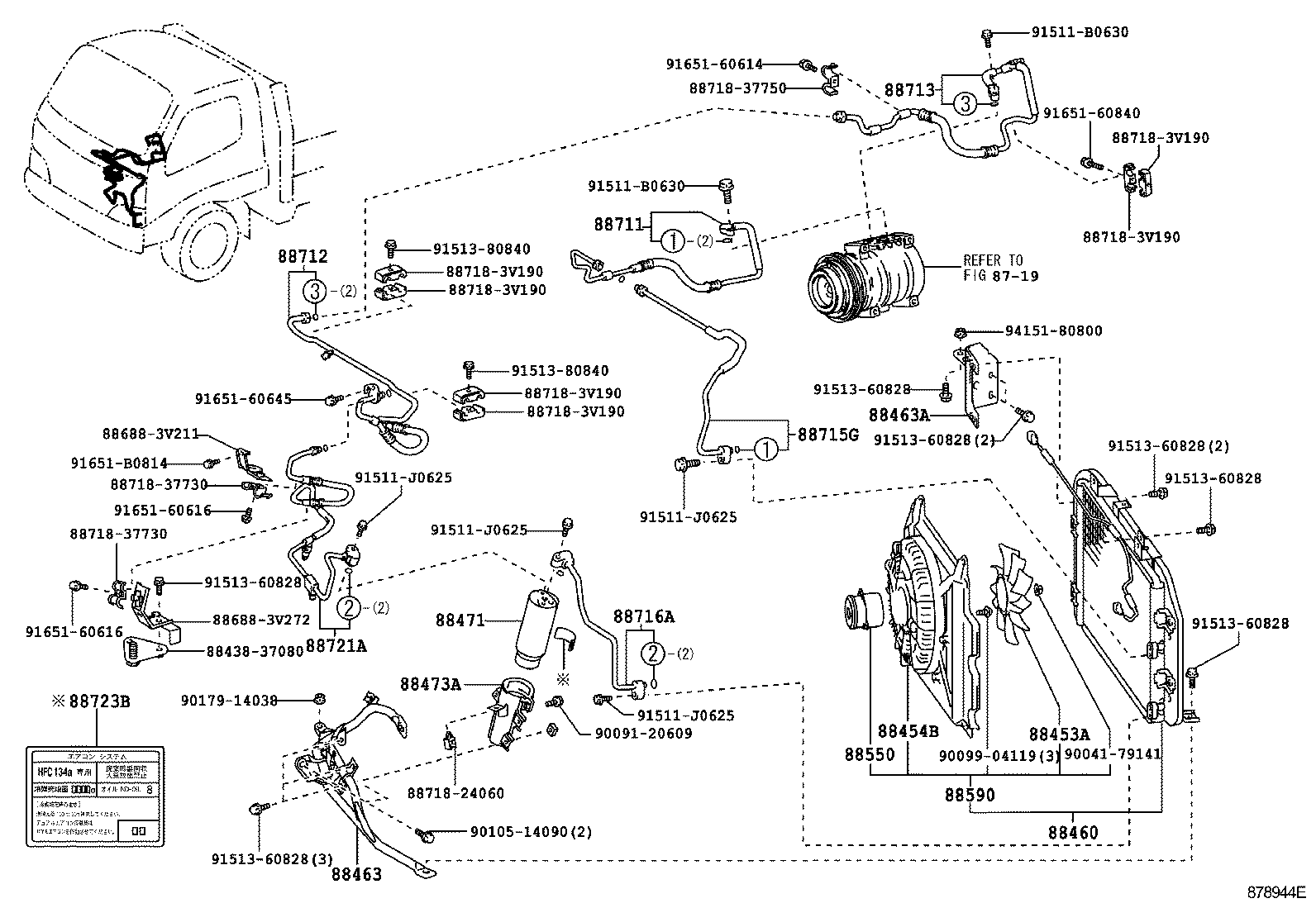

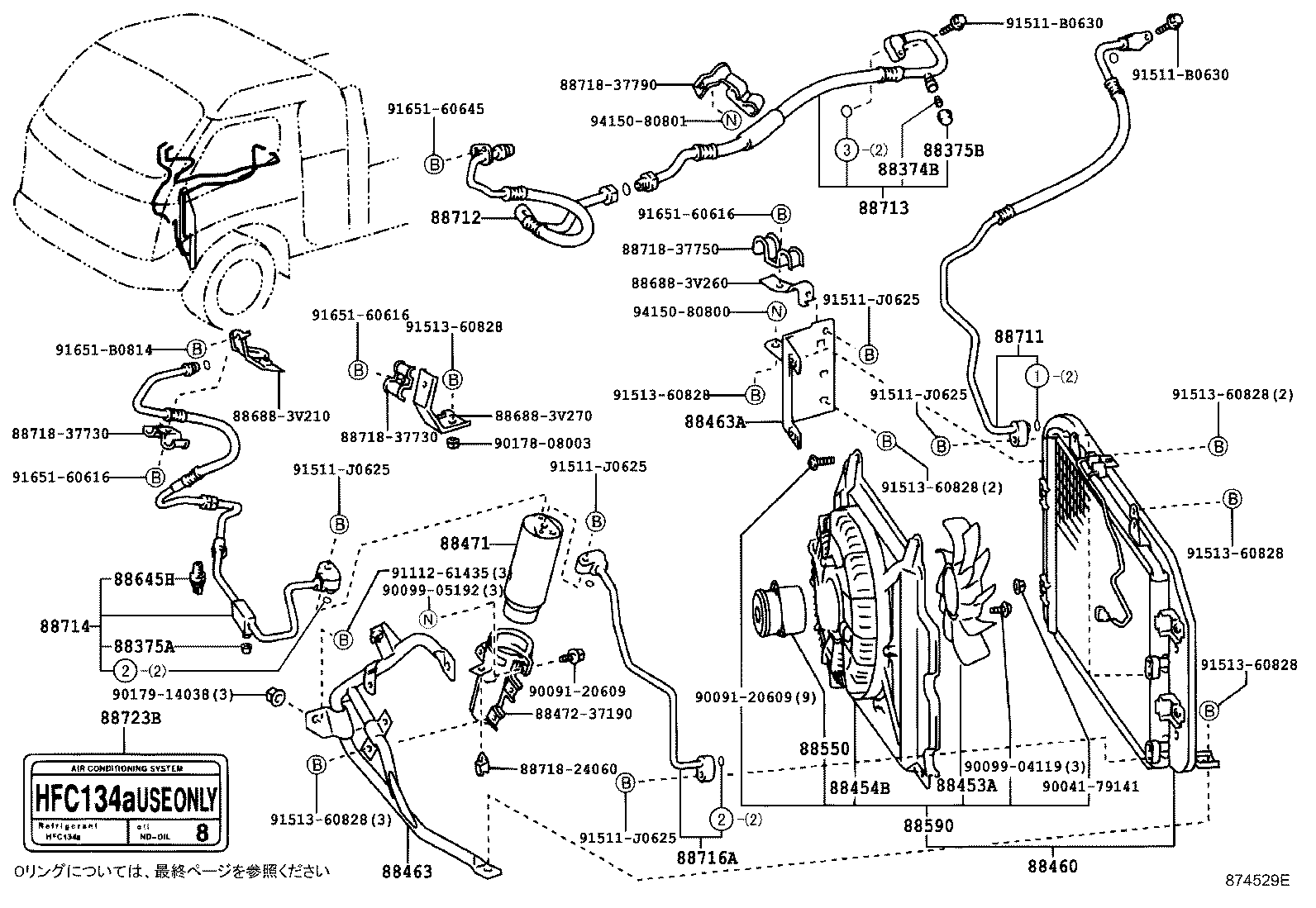

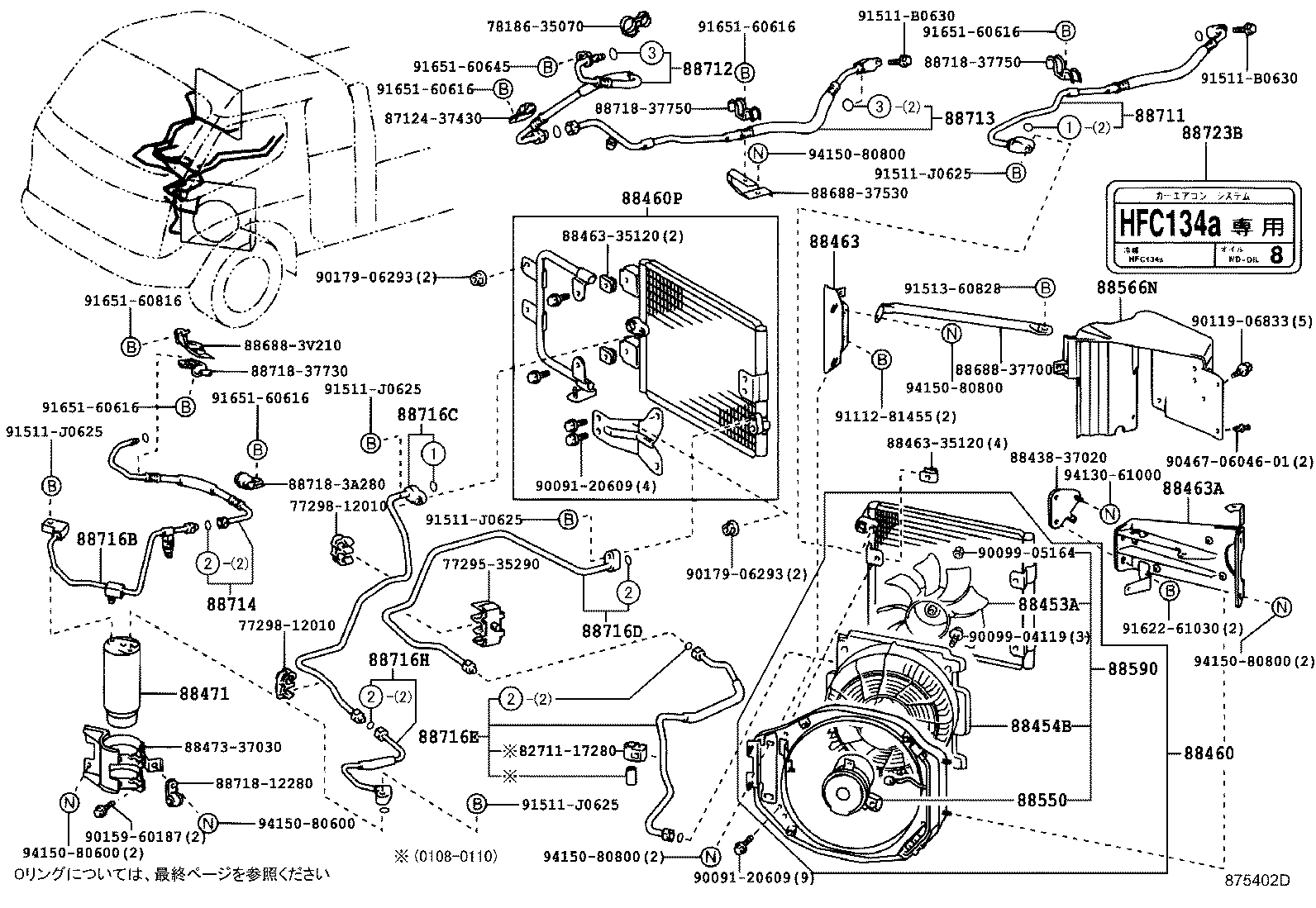

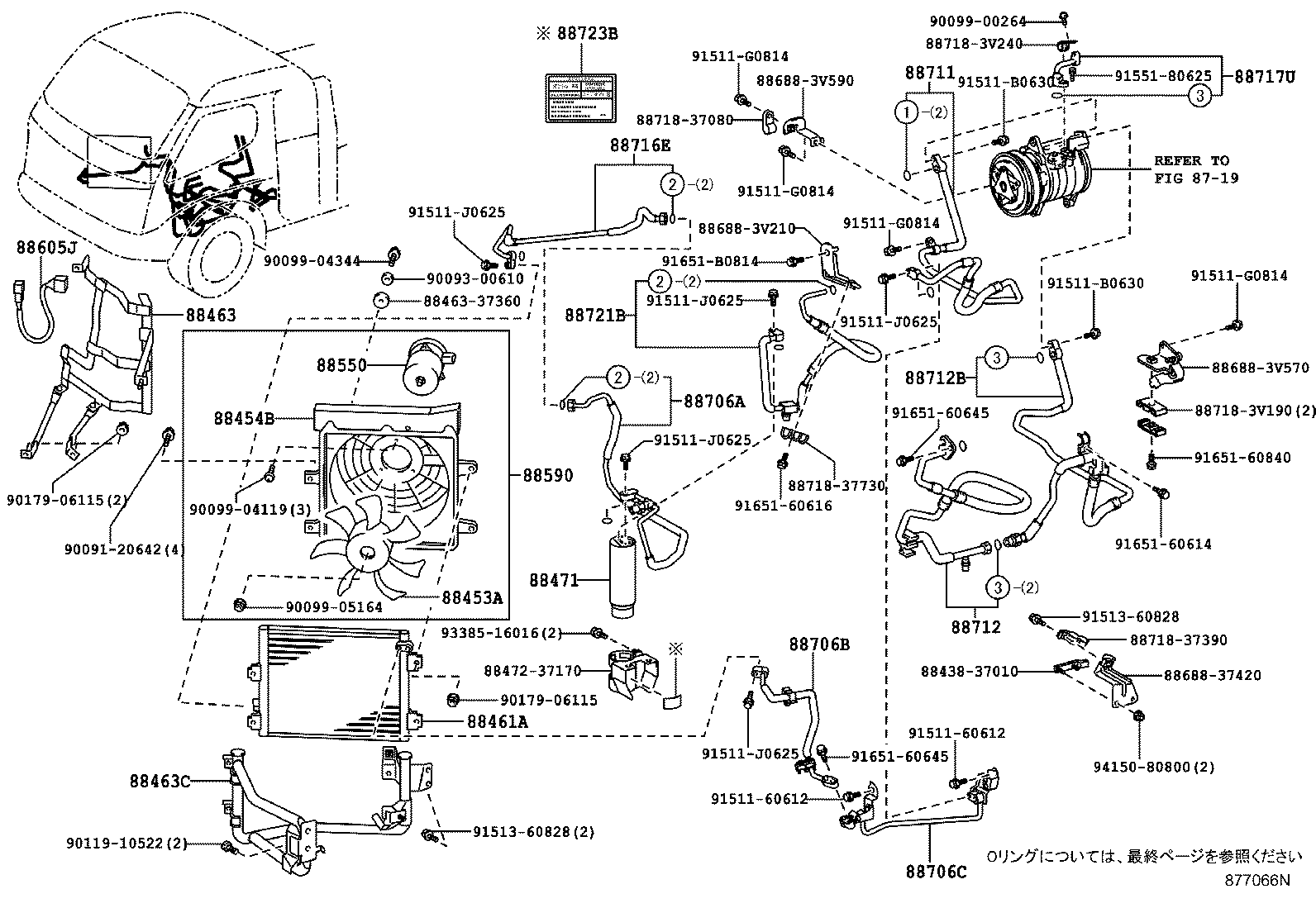

Figure 873953G 873953G 1999-08 → 2001-08 Figure 873389H 873389H 1999-05 → 2004-06 Figure 873955C 873955C 1999-08 → 2004-06 Figure 873391F 873391F 1999-08 → 2004-06 Figure 874529E 874529E 2000-11 → 2004-06 Figure 875402D 875402D 2001-08 → 2004-06 Figure 876584D 876584D 2003-10 → 2004-06 Figure 877066N 877066N 2004-06 → 2006-10 Figure 877067F 877067F 2004-06 → 2006-10 Figure 877068D 877068D 2004-06 → 2006-10 Figure 877069E 877069E 2004-06 → 2006-10 Figure 877070F 877070F 2004-06 → 2006-10 Figure 877054C 877054C 2004-06 → — Figure 877055D 877055D 2004-06 → — Figure 878943D 878943D 2006-10 → — Figure 878944E 878944E 2006-10 → — Figure 878945D 878945D 2006-10 → — Figure 878946E 878946E 2006-10 → — Figure 878947I 878947I 2006-10 → — Figure 870233H 870233H 1999-05 → —

Part groups

PNCDescription
88374B Valve, Service, NO.1
88374C Valve, Service, NO.2
88375A Cap, Service Valve (FOR COOLER PIPE)
88375B Cap, Service Valve, NO.1
88375F Cap, Service Valve, NO.3
88453A Fan, Cooling
88454B Shroud, Fan
88460 Condenser Assy, Cooler
88460P Condenser Assy, Cooler NO.2
88461A Core, Cooler Condenser
88463 Bracket, Cooler Condenser, NO.1
88463A Bracket, Cooler Condenser, NO.2
88463B Bracket, Cooler Condenser, NO.3
88463C Bracket, Cooler Condenser, NO.4
88471 Tank, Receiver Air Conditioner
88473A Holder, Receiver
88474 Dryer, Cooler
88550 Motor Assy, Blower (FOR CONDENSER)
88566N Duct, Cooler Air, NO.1
88590 Blower Assy, W/Shroud
88605J Harness Sub-assy, Air Conditioner Wiring
88645H Switch, Pressure NO.1
88704 Hose Sub-assy, Suction
88706A Tube Sub-assy, Liquid, A
88706B Tube Sub-assy, Liquid, B
88706C Tube Sub-assy, Liquid, C
88710 Tube Assy, Air Conditioner
88711 Hose, Cooler Refrigerant Discharge, NO.1
88712 Hose, Cooler Refrigerant Suction, NO.1
88712B Hose, Cooler Refrigerant Suction
88712C Hose, Suction
88713 Hose, Cooler Refrigerant Suction, NO.2
88713A Hose, Cooler Refrigerant Suction, NO.3
88714 Hose, Cooler Refrigerant Liquid, NO.1
88715G Tube, Discharge, G
88716A Pipe, Cooler Refrigerant Liquid, A
88716B Pipe, Cooler Refrigerant Liquid, B
88716C Pipe, Cooler Refrigerant Liquid, C
88716D Pipe, Cooler Refrigerant Liquid, D
88716E Pipe, Cooler Refrigerant Liquid, E
88716H Pipe, Cooler Refrigerant Liquid, H
88717U Tube, Suction, NO.1
88720A Hose & Accessory, Air Conditioner
88721A Hose, Liquid, A
88721B Hose, Liquid, B
88722A Hose, Suction, A
88723B Label, Cooler Service Caution
88726A Pipe, Cooler Refrigerant Liquid, A
88727A Pipe, Cooler Refrigerant Suction, A
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
