Toyota Dyna/Toyoace

2011-07 → present · chassis XZC710,XZU7## · catalogue 771140 · Japan

Supported model Data version 2022-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Oil Cooler

7 part groups · 8 illustrations

Illustrations

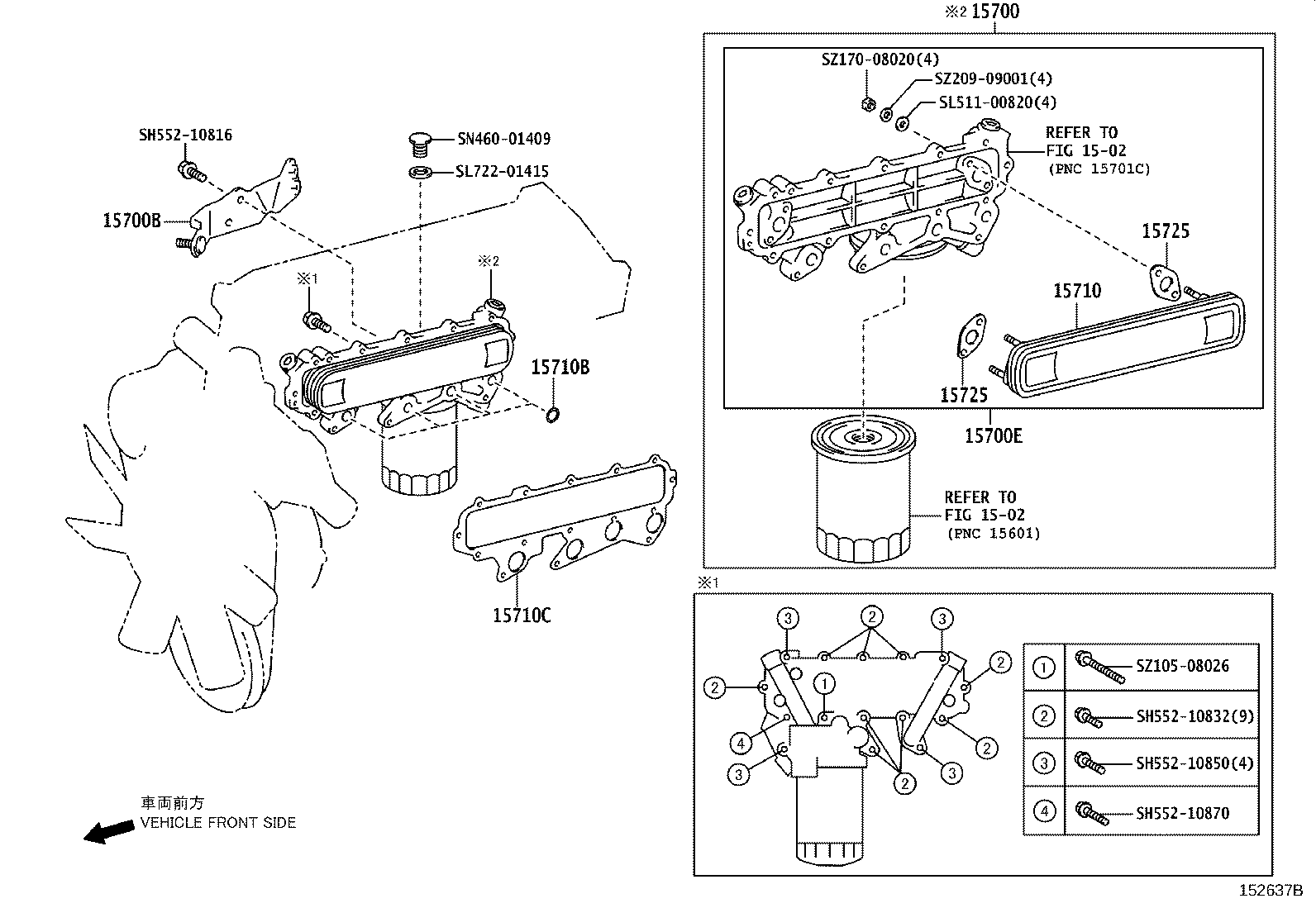

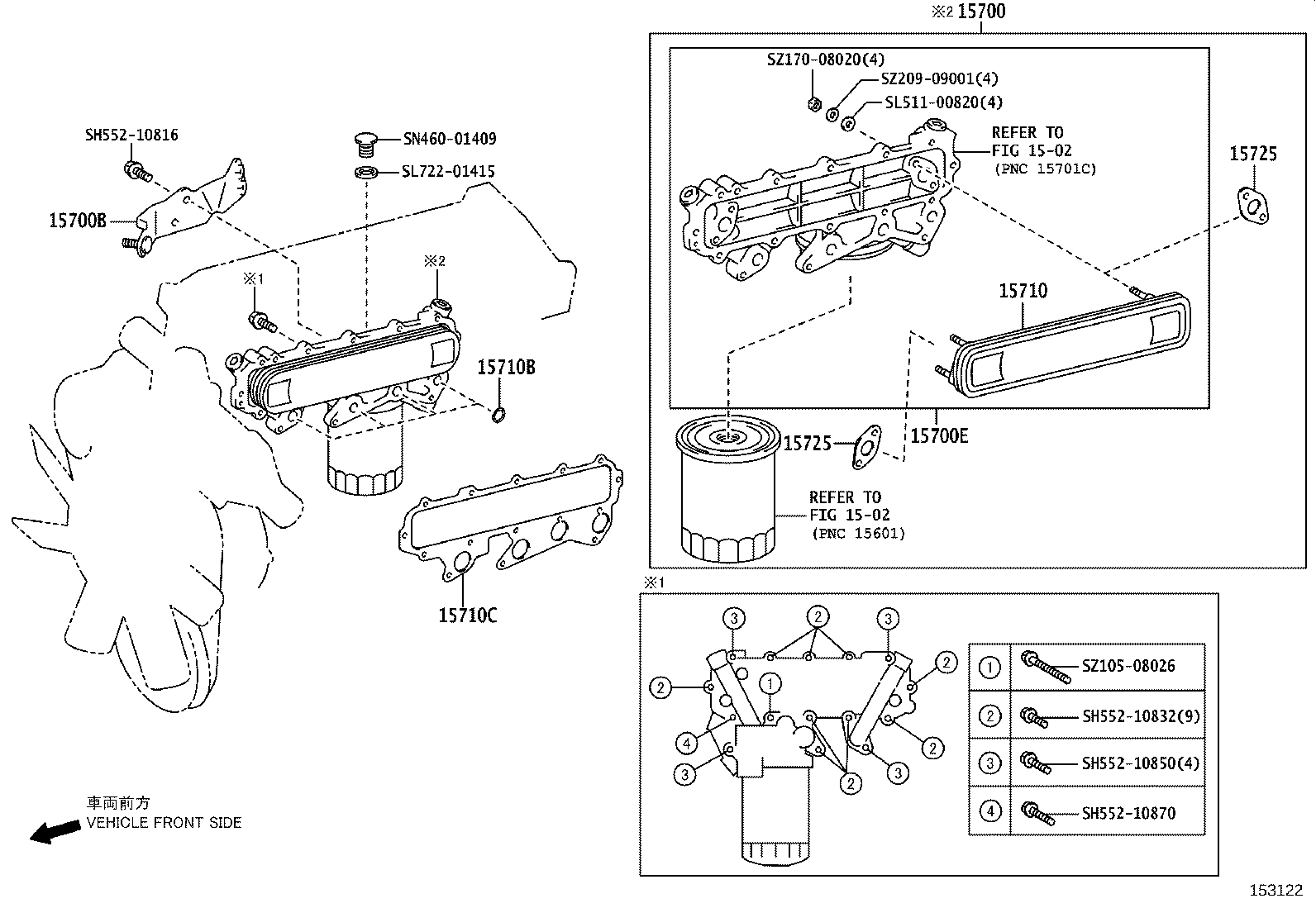

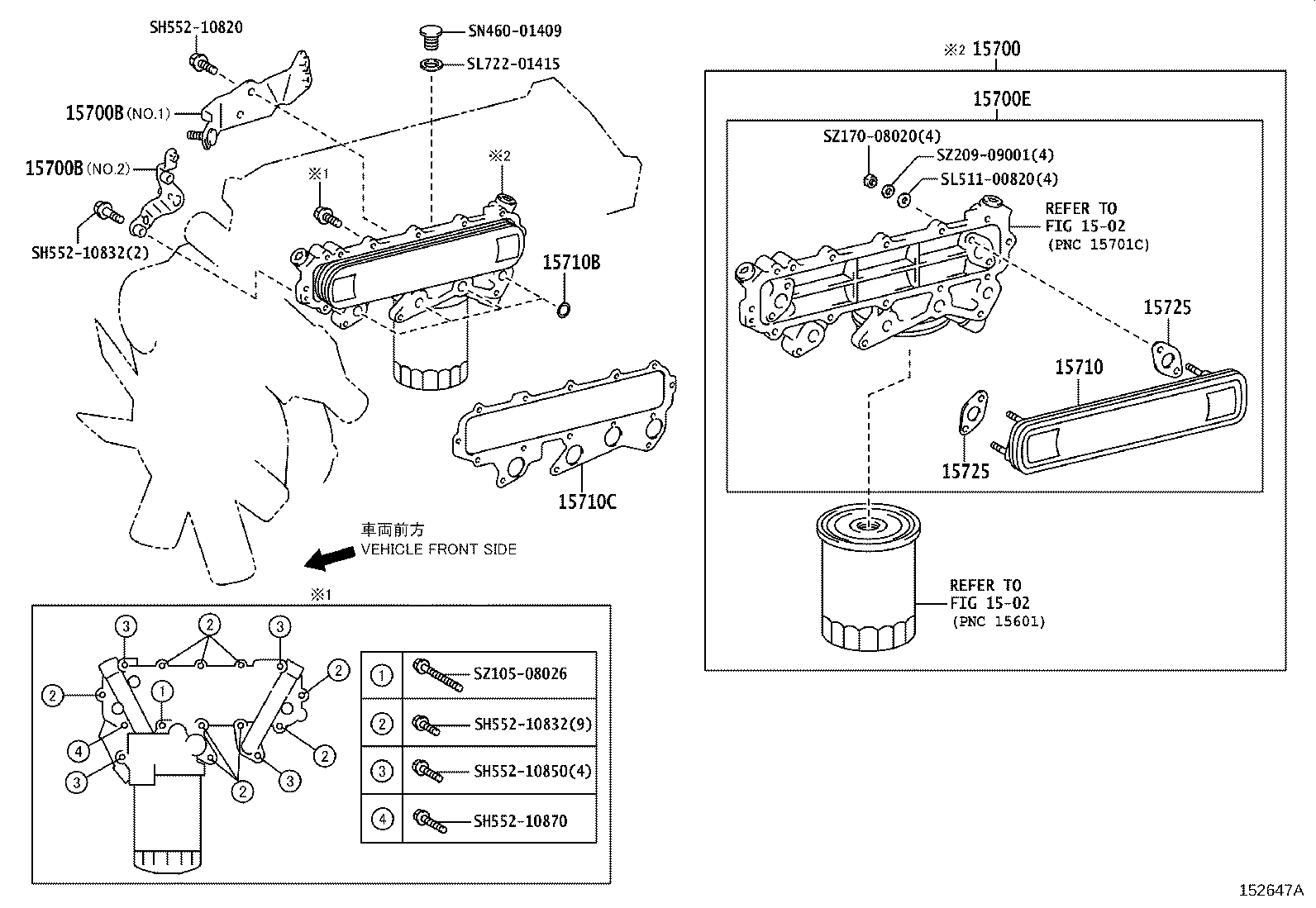

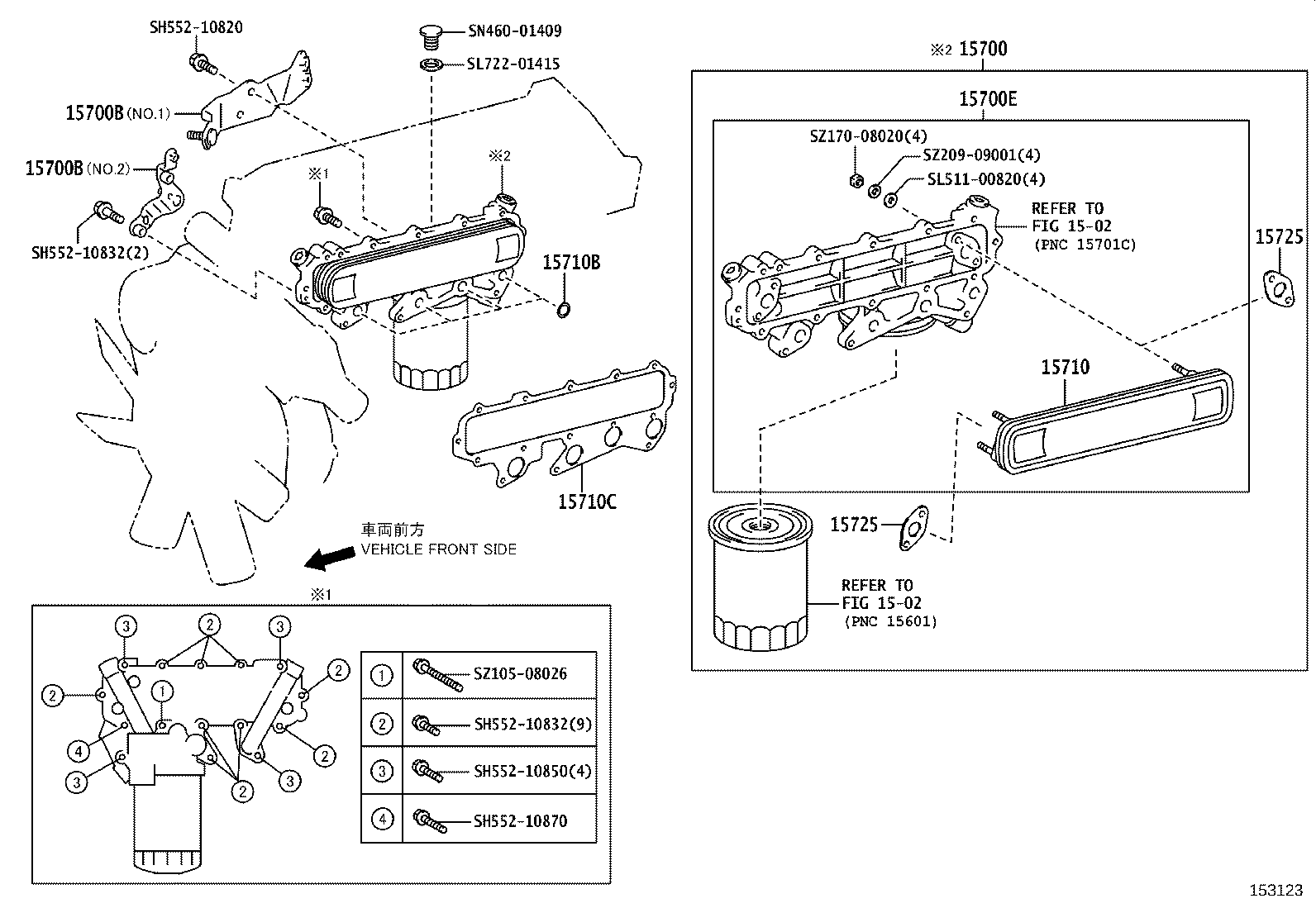

Figure 152252B 152252B 2011-07 → 2016-05 Figure 152637B 152637B 2016-05 → 2019-02 Figure 152637B 152637B 2019-02 → — Figure 153122 153122 2019-02 → — Figure 152647A 152647A 2017-05 → 2019-02 Figure 152647A 152647A 2019-02 → — Figure 153123 153123 2019-02 → — Figure 153152 153152 2019-05 → —

Part groups

PNCDescription
15700 Cooler Assy, Oil W/Bracket
15700B Bracket(FOR OIL COOLER)
15700E Cooler Sub-assy, Oil, W/O Oil Filter
15710 Cooler Assy, Oil
15710B Ring, O(FOR OIL COOLER)
15710C Gasket(FOR OIL COOLER)
15725 Gasket, Oil Cooler Cover
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
