Toyota Dyna/Toyoace

2011-07 → present · chassis XZC710,XZU7## · catalogue 771140 · Japan

Supported model Data version 2022-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Tube & Clamp

67 part groups · 26 illustrations

Illustrations

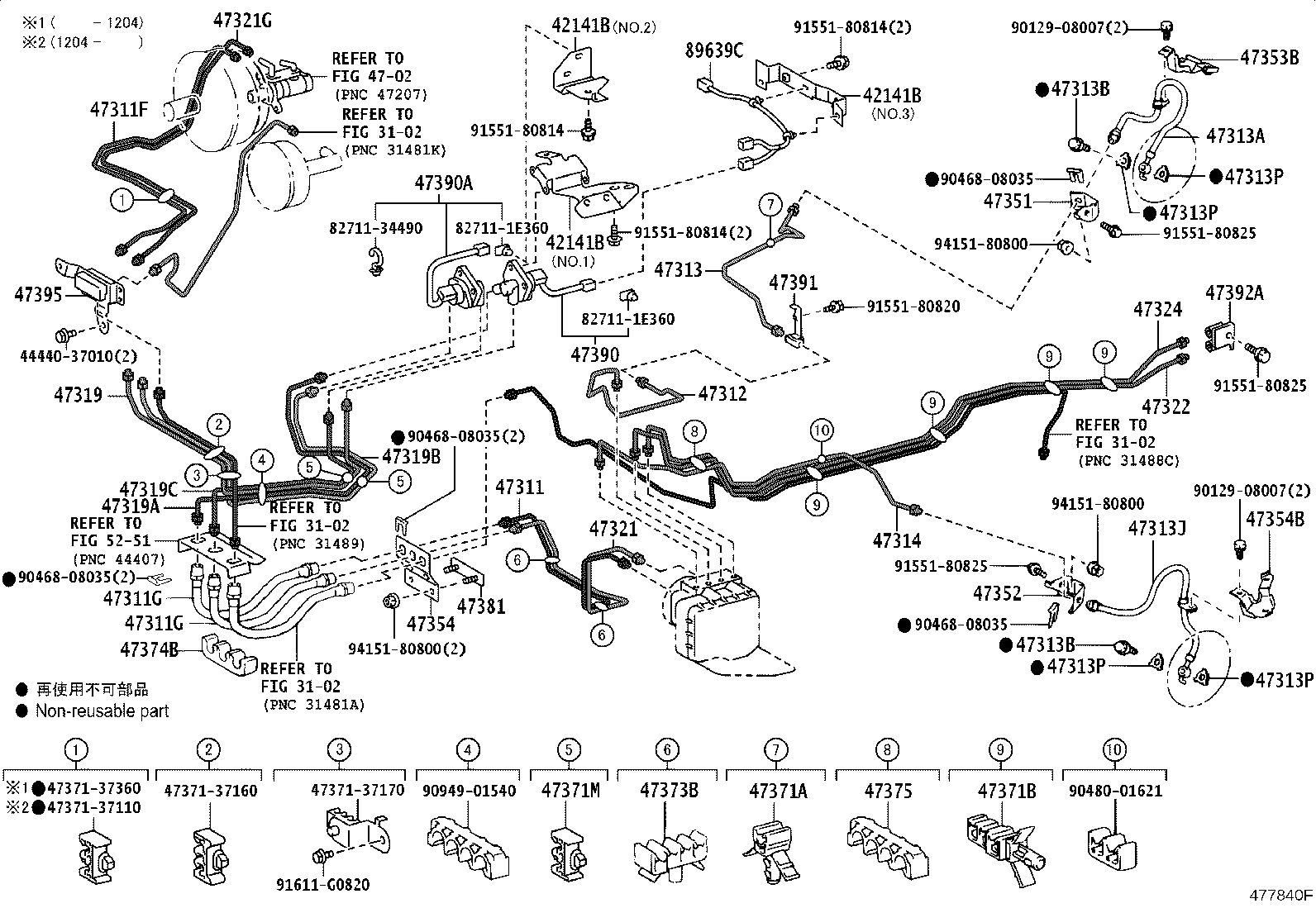

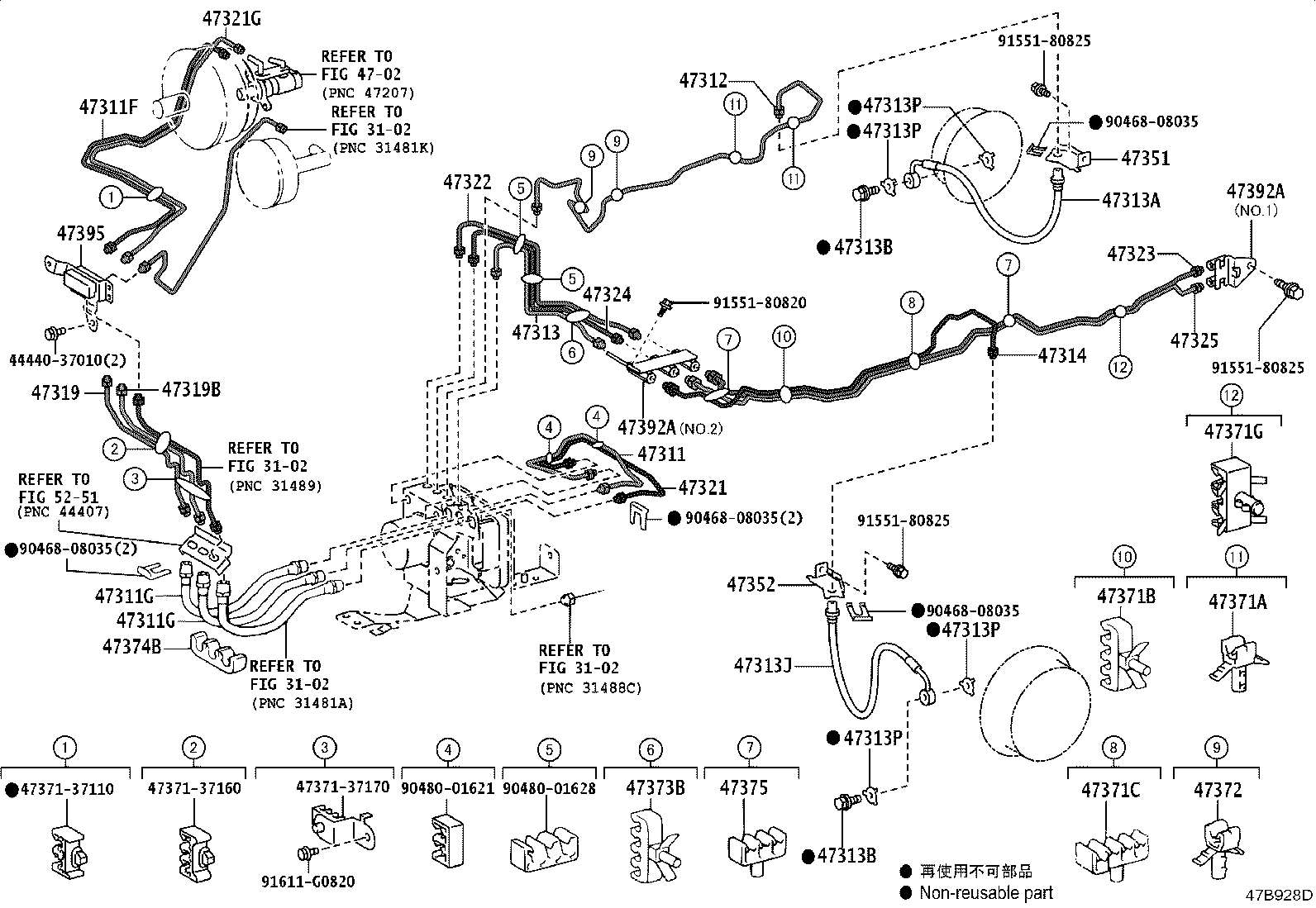

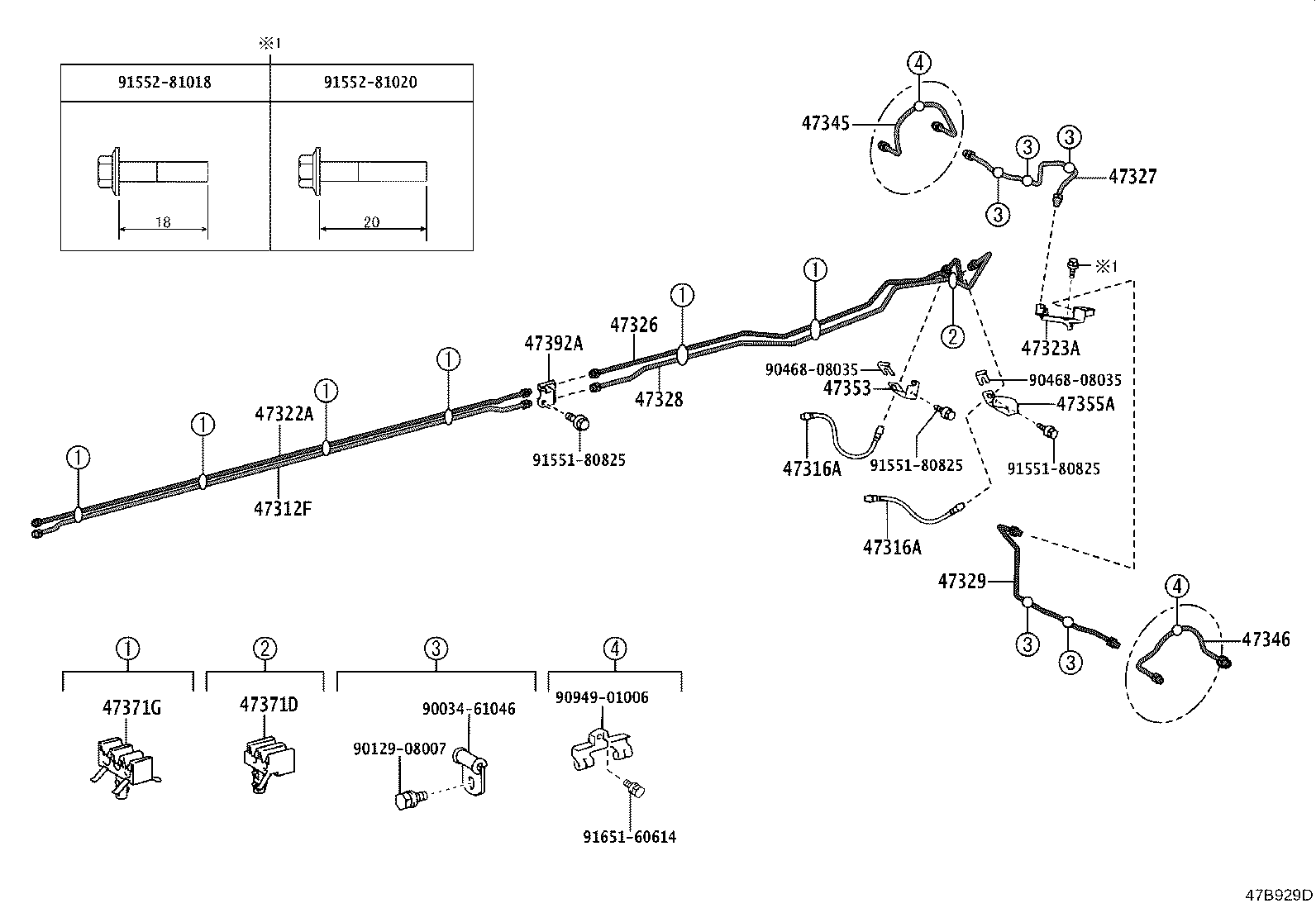

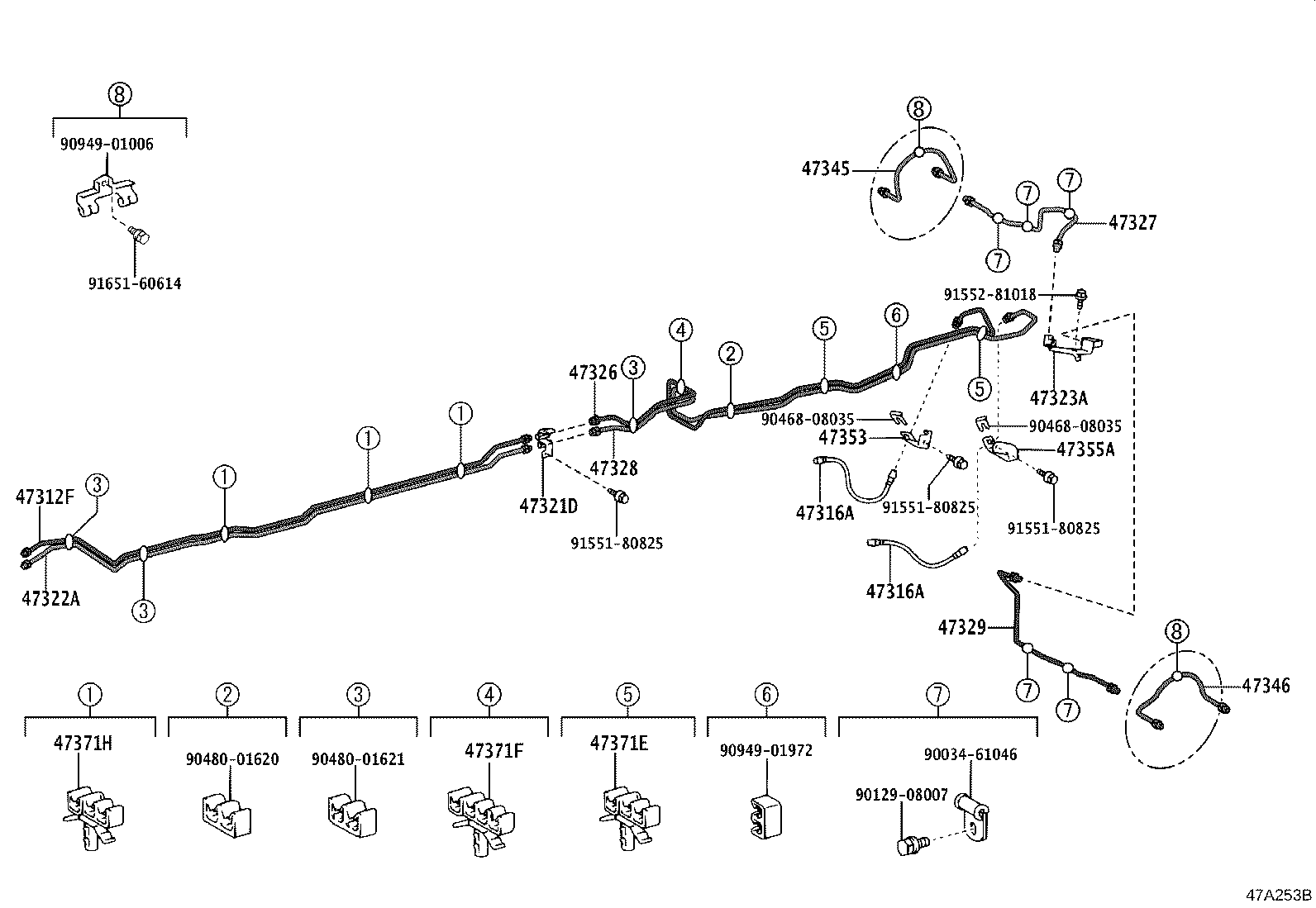

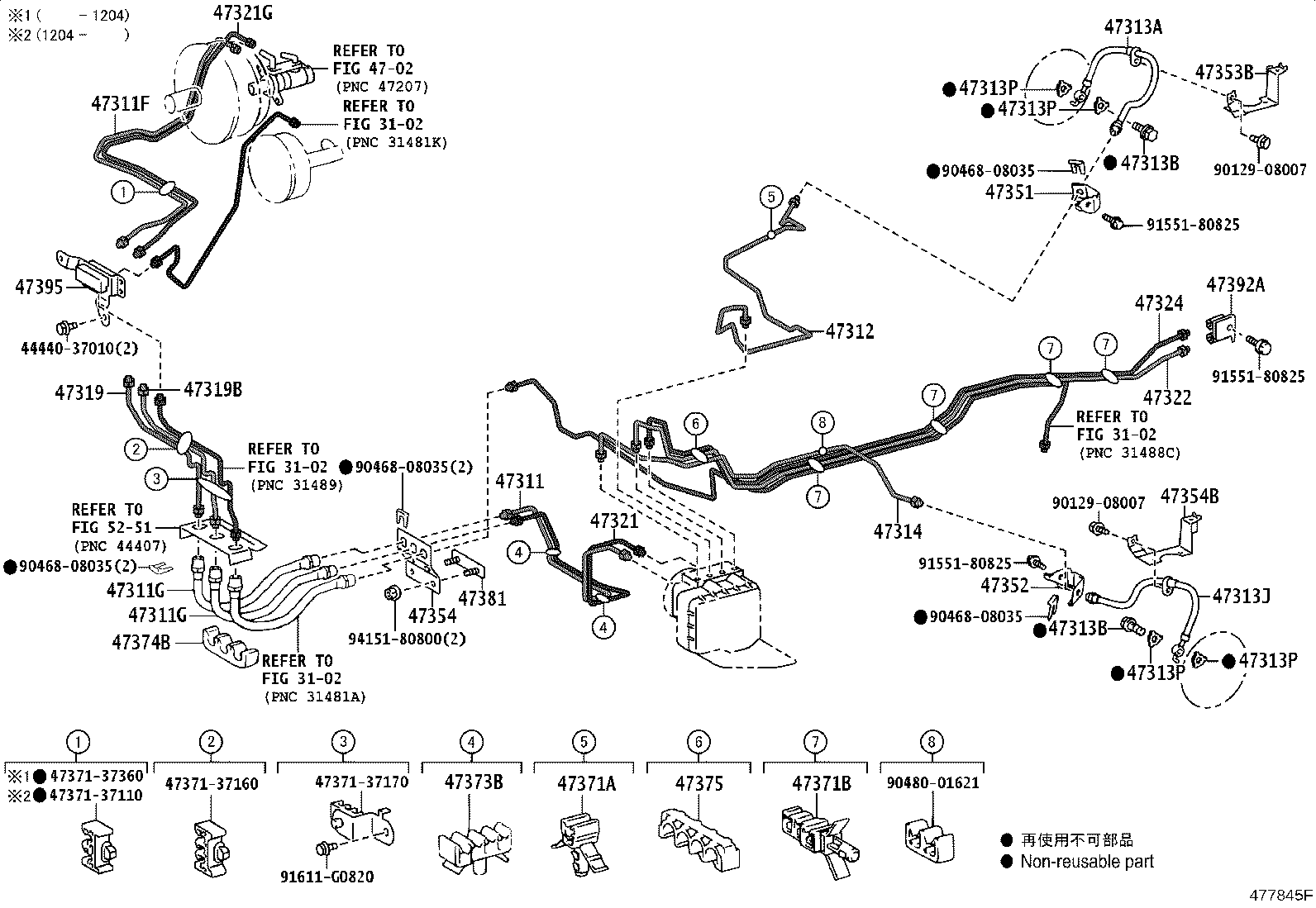

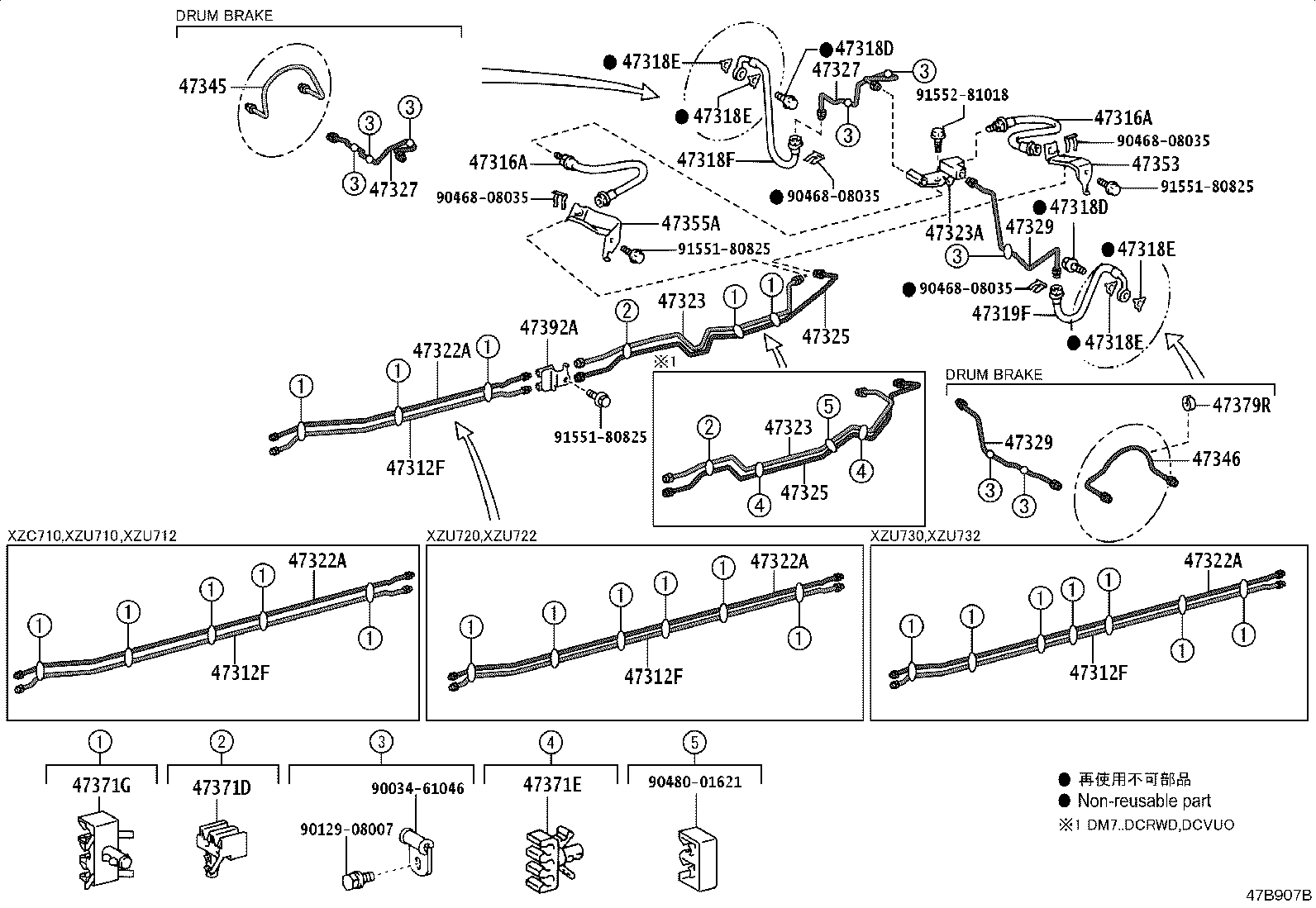

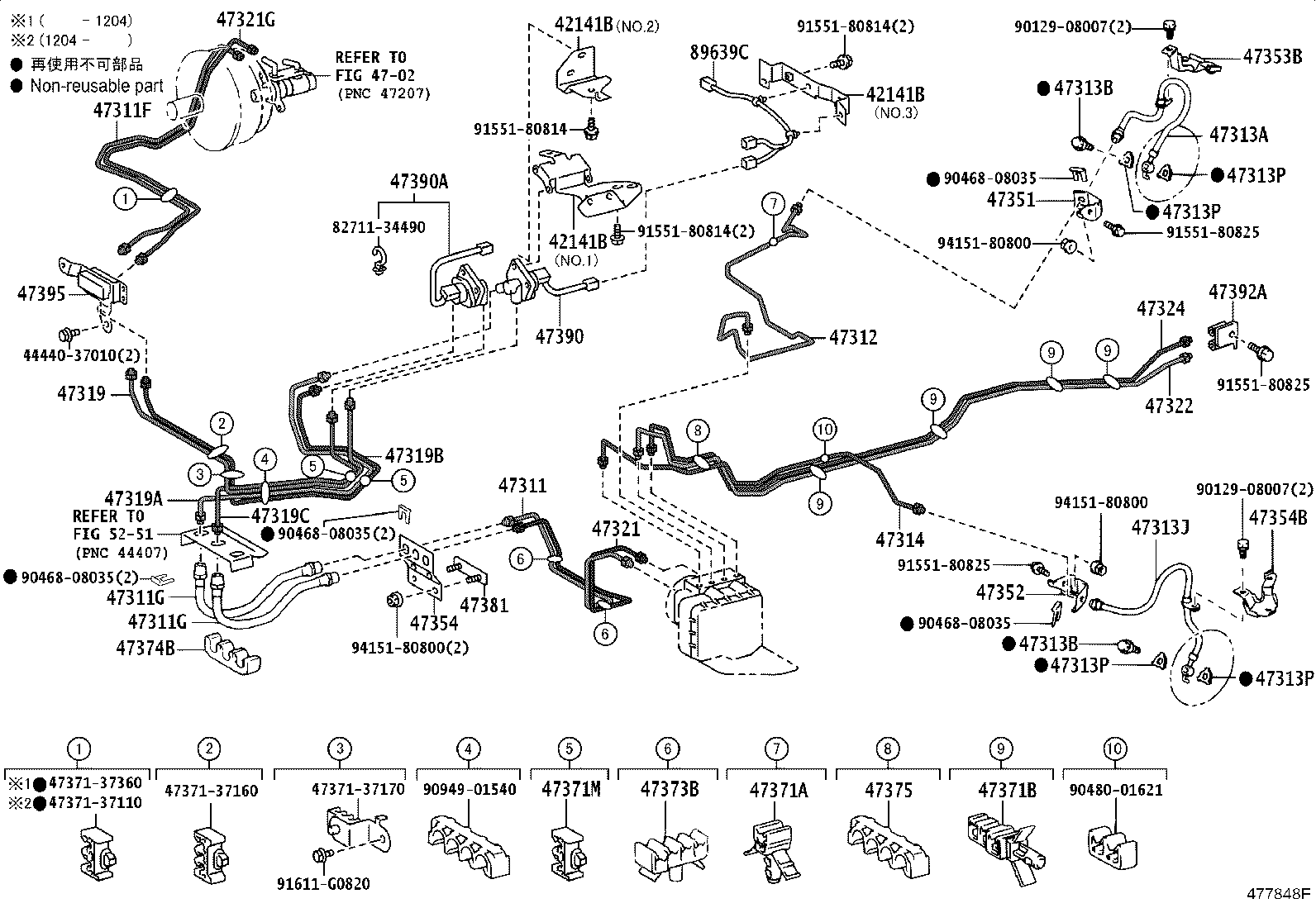

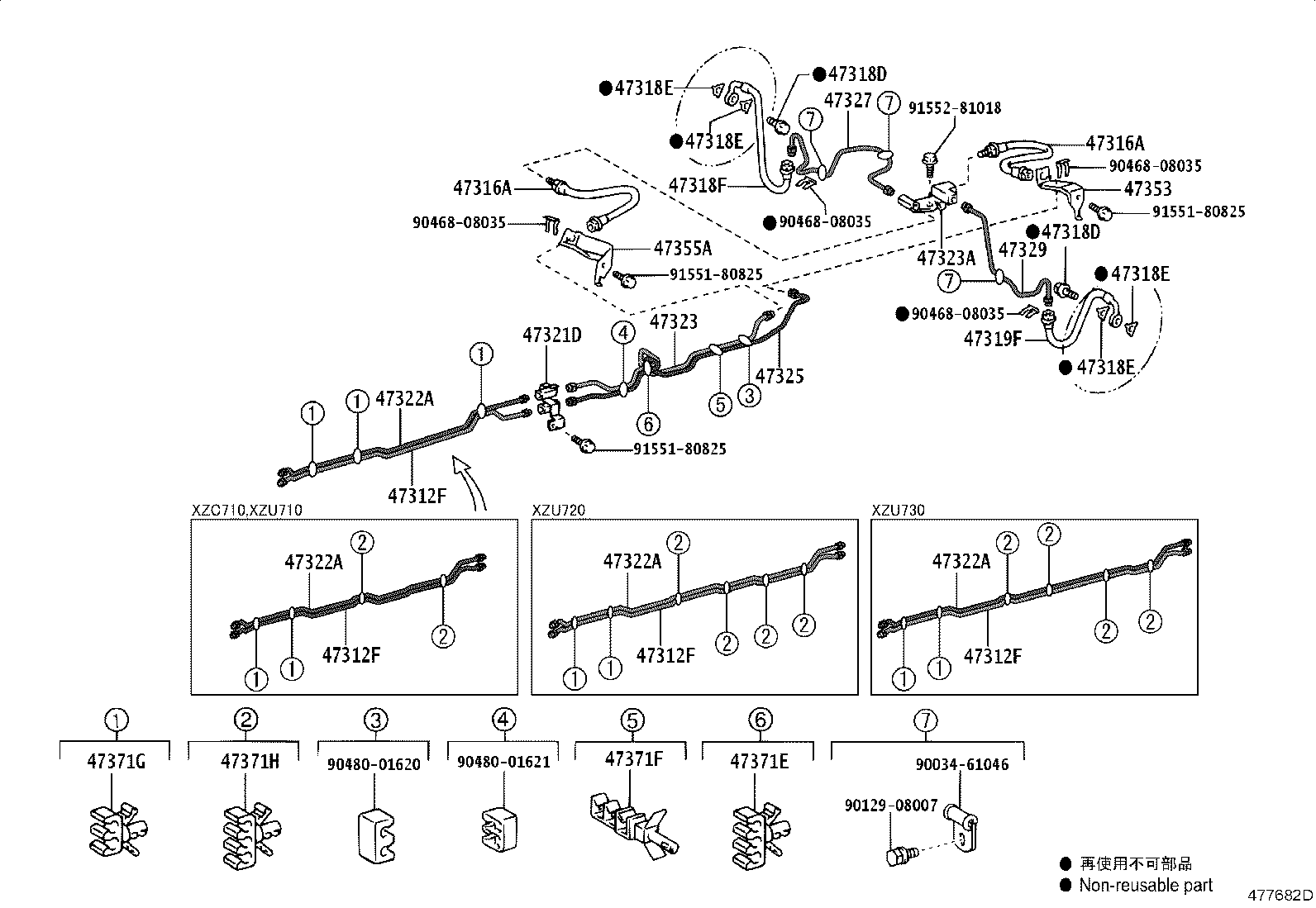

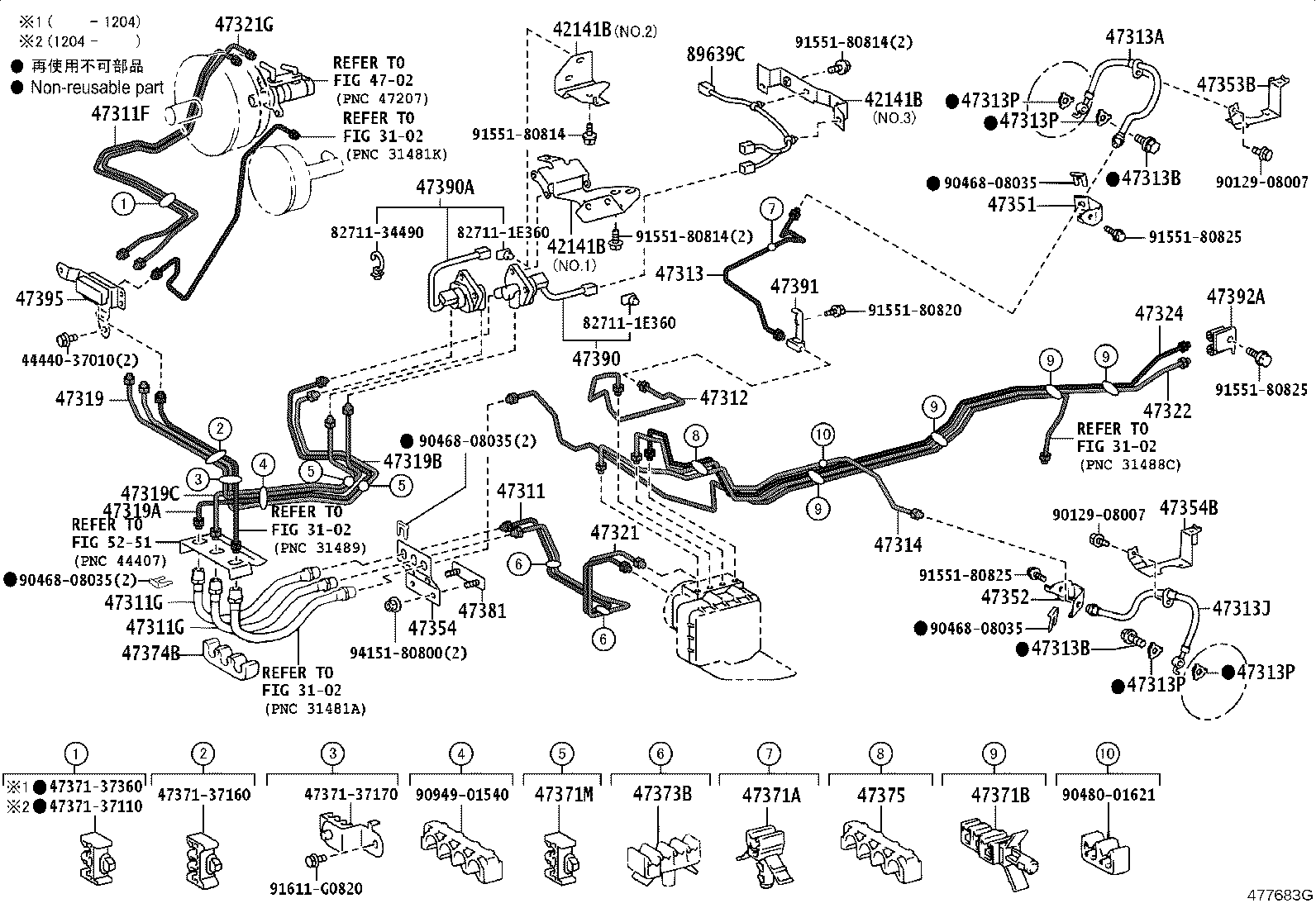

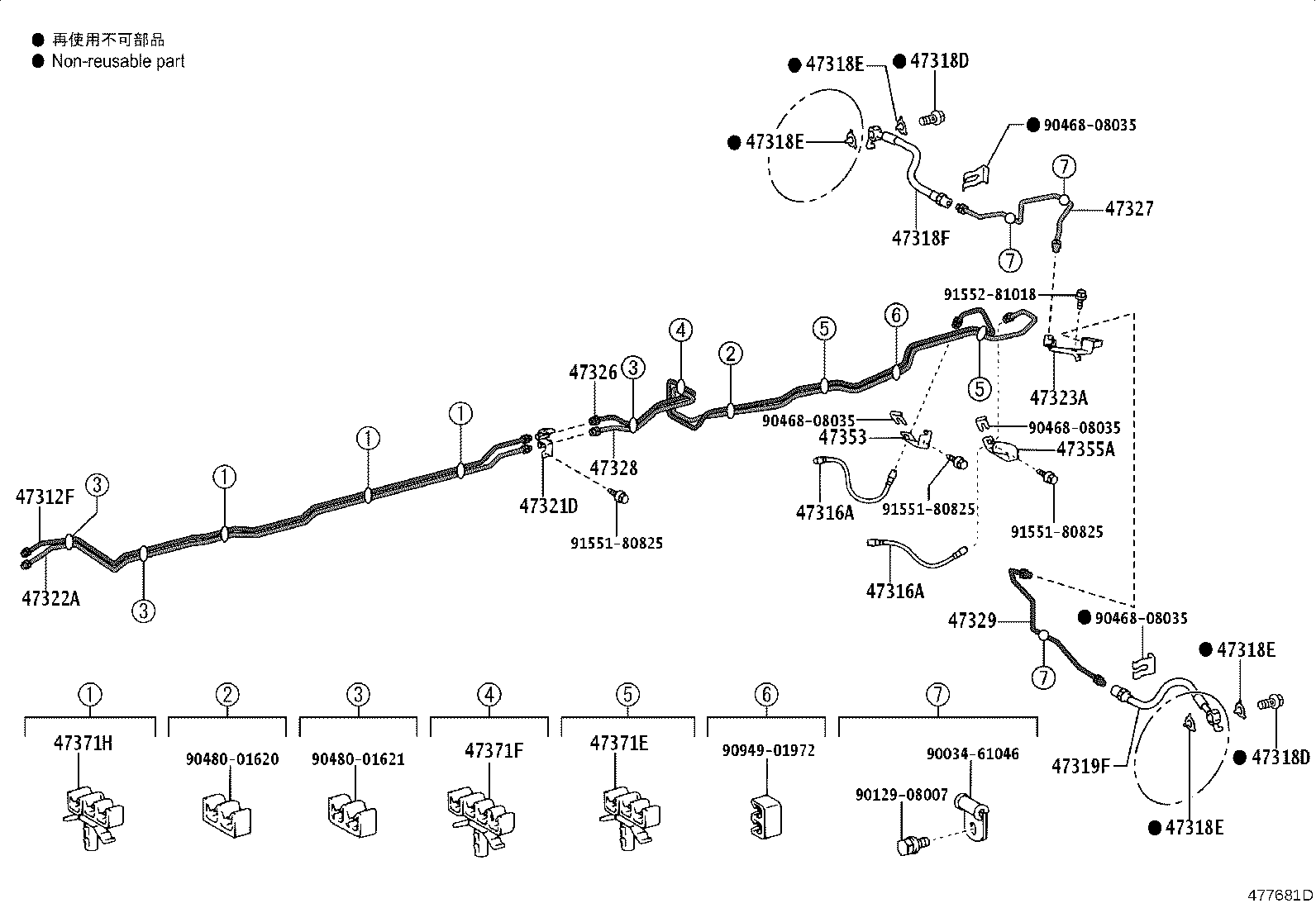

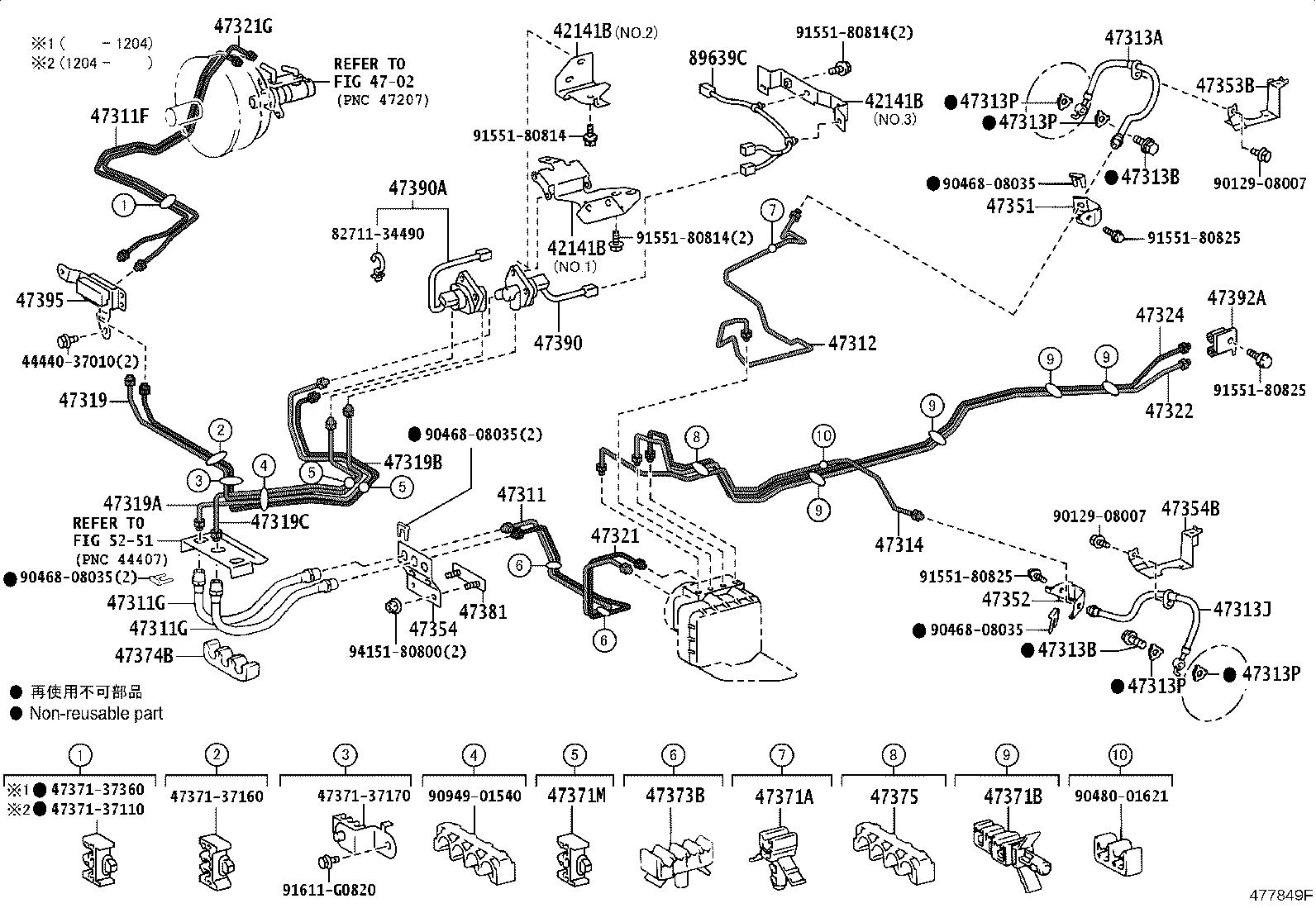

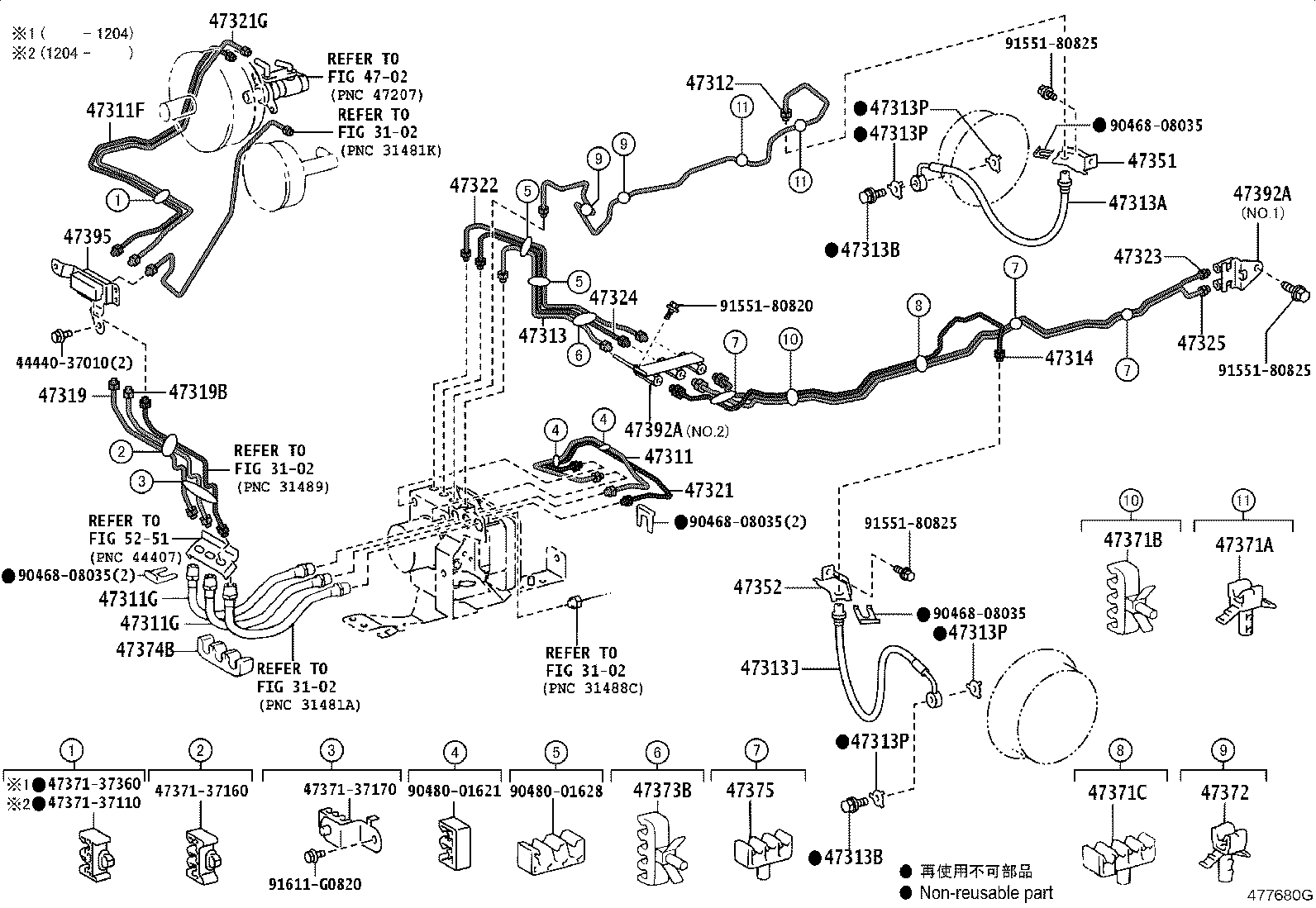

Figure 477841F 477841F 2011-07 → 2019-05 Figure 477841F 477841F 2019-05 → — Figure 477841F 477841F 2021-03 → — Figure 477845F 477845F 2011-07 → 2019-05 Figure 477845F 477845F 2019-05 → — Figure 477845F 477845F 2021-03 → — Figure 477848F 477848F 2011-07 → 2019-05 Figure 477848F 477848F 2019-05 → — Figure 477848F 477848F 2021-03 → — Figure 477849F 477849F 2011-07 → 2019-05 Figure 477849F 477849F 2019-05 → — Figure 477849F 477849F 2021-03 → — Figure 477840F 477840F 2011-07 → — Figure 477683G 477683G 2011-07 → — Figure 477683G 477683G 2011-07 → — Figure 477683G 477683G 2019-05 → — Figure 477683G 477683G 2019-05 → — Figure 477680G 477680G 2011-08 → 2019-05 Figure 47B928D 47B928D 2019-05 → — Figure 477682D 477682D 2011-07 → 2019-05 Figure 47B907B 47B907B 2019-05 → — Figure 477681D 477681D 2011-08 → 2016-05 Figure 47A253B 47A253B 2016-05 → 2019-05 Figure 47B929D 47B929D 2019-05 → — Figure 477727 477727 2011-07 → — Figure 477728 477728 2011-08 → —

Part groups

PNCDescription
42141B Attachment, Skid Control Wire, NO.1
44510 Actuator Assy, Brake
44547B Cushion, Brake Actuator Bracket
44590 Bracket Assy, Brake Actuator
47311 Tube, Front Brake, NO.1
47311F Tube, Front Brake, Frame NO.1
47311G Hose, Flexible(FOR BRAKE TUBE)
47312 Tube, Front Brake, NO.2
47312F Tube, Front Brake, Frame, NO.2
47313 Tube, Front Brake, NO.3
47313A Hose, Flexible, NO.1(FOR FRONT)
47313B Bolt, Union(FOR FRONT FLEXIBLE HOSE)
47313J Hose, Flexible, NO.2(FOR FRONT)
47313P Gasket(FOR FRONT FLEXIBLE HOSE)
47314 Tube, Front Brake, NO.4
47316A Hose, Flexible(FOR REAR BRAKE TUBE)
47318D Bolt, Union(FOR REAR FLEXIBLE HOSE)
47318E Gasket(FOR REAR FLEXIBLE HOSE)
47318F Hose, Flexible(FOR REAR RH)
47319 Tube, Front Brake, NO.9
47319A Tube, Front Brake, NO.10
47319B Tube, Front Brake, NO.11
47319C Tube, Front Brake, NO.12
47319F Hose, Flexible(FOR REAR LH)
47321 Tube, Rear Brake, NO.1
47321D Way, NO.1(FOR REAR BRAKE TUBE)
47321G Tube, Rear Brake, Frame NO.1
47322 Tube, Rear Brake, NO.2
47322A Tube, Rear Brake, Frame NO.2
47323 Tube, Rear Brake, NO.3
47323A Way, NO.3(FOR REAR BRAKE TUBE)
47324 Tube, Rear Brake, NO.4
47325 Tube, Rear Brake, NO.5
47326 Tube, Rear Brake, NO.6
47327 Tube, Rear Brake, NO.7
47328 Tube, Rear Brake, NO.8
47329 Tube, Rear Brake, NO.9
47345 Tube, Wheel Cylinder, Rear RH
47346 Tube, Wheel Cylinder, Rear LH
47351 Bracket, Flexible Hose(FOR FRONT RH)
47352 Bracket, Flexible Hose(FOR FRONT LH)
47353 Bracket, Flexible Hose(FOR REAR)
47353B Bracket, Flexible Hose, NO.3
47354 Bracket, Front Flexible Hose
47354B Bracket, Flexible Hose, NO.4
47355A Bracket, Flexible Hose, NO.5
47371A Clamp, Brake Tube, NO.1
47371B Clamp, Brake Tube, NO.6
47371C Clamp, Brake Tube, NO.7
47371D Clamp, Brake Tube, NO.8
47371E Clamp, Brake Tube, NO.9
47371F Clamp, Brake Tube, NO.10
47371G Clamp, Brake Tube, NO.11
47371H Clamp, Brake Tube, NO.12
47371M Clamp, Brake Tube, NO.13
47372 Clamp, Brake Tube, NO.2
47373B Clamp, Brake Tube, NO.3
47374B Clamp, Brake Tube, NO.4
47375 Clamp, Brake Tube, NO.5
47379R Damper, Tube(FOR REAR)
47381 Bracket, Brake Tube Clamp NO.1
47390 Valve Assy, Hill Holder Brake Lock
47390A Valve Assy, Hill Holder Brake Lock, NO.2
47391 Way, Brake Tube
47392A Way, Brake Tube, NO.2
47395 Way, Brake Tube, NO.3
89639C Wire, Brake Control
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
