Spare Wheel Carrier

5 part groups · 11 illustrations

Illustrations

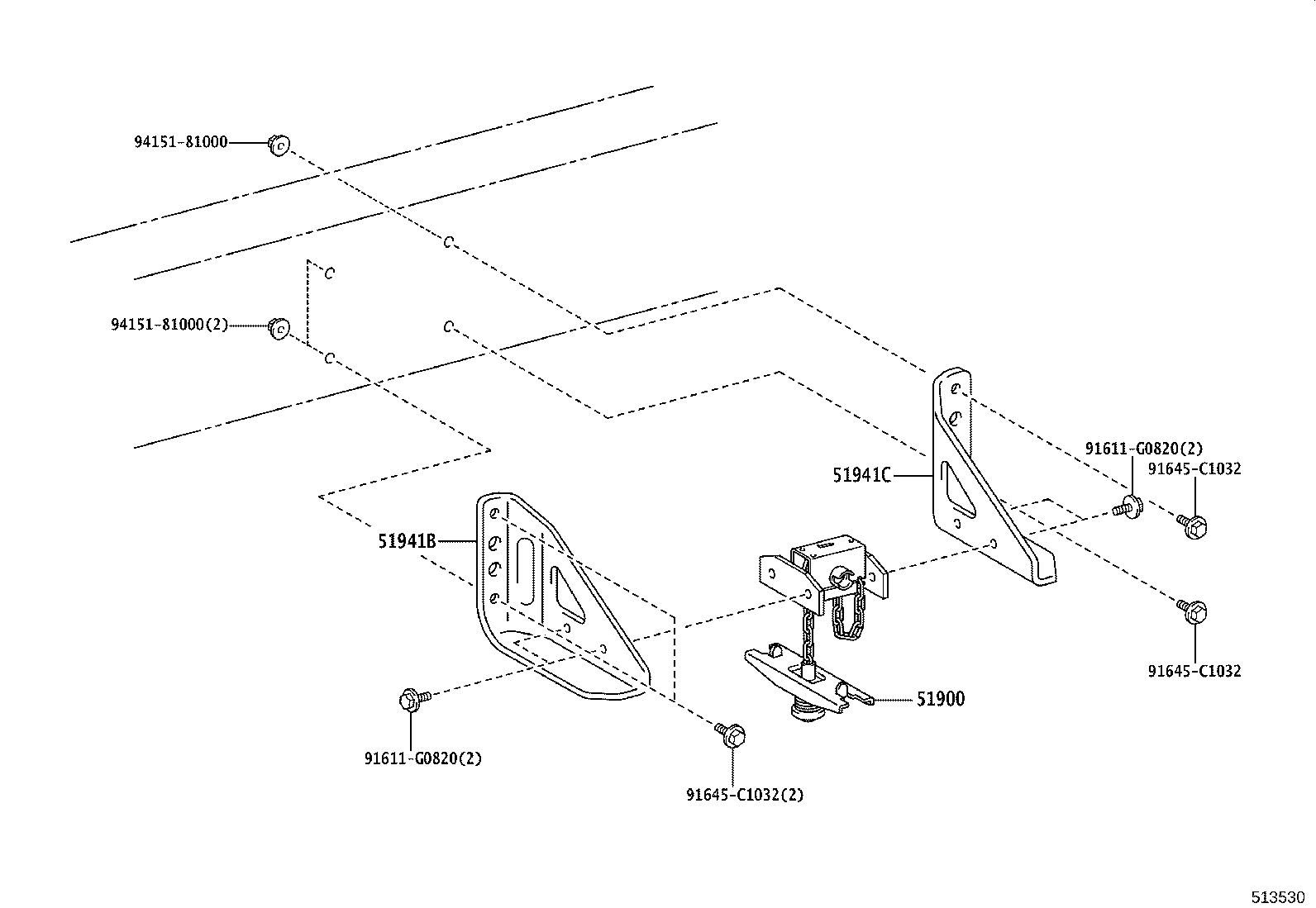

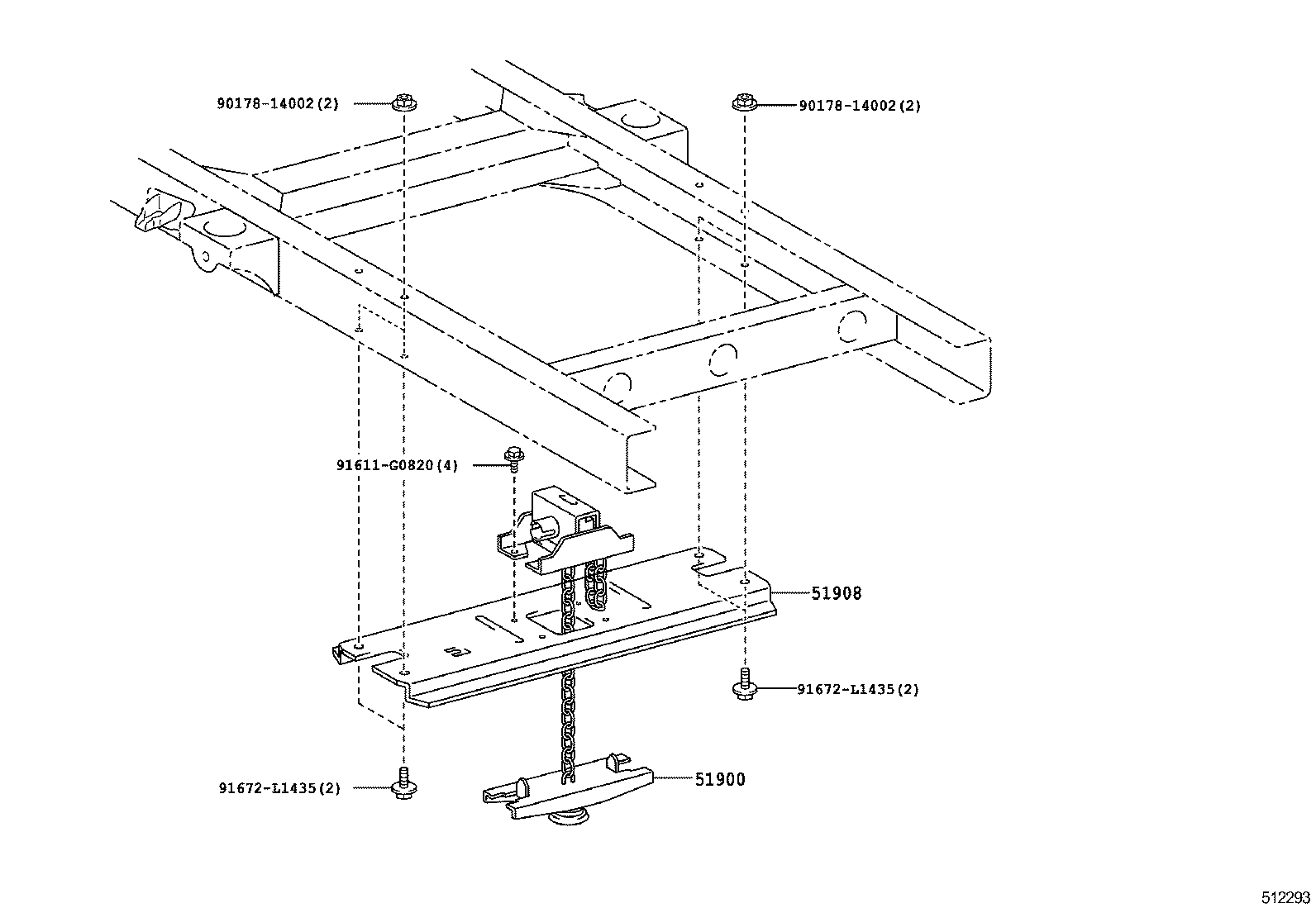

Figure 512290A 512290A 2011-07 → 2017-05 Figure 512290A 512290A 2017-05 → — Figure 513530 513530 2019-05 → — Figure 512292 512292 2011-07 → 2017-05 Figure 512292 512292 2017-05 → — Figure 512293 512293 2011-08 → — Figure 512291 512291 2011-07 → 2013-01 Figure 512590A 512590A 2013-01 → 2017-05 Figure 512590A 512590A 2017-05 → — Figure 512590A 512590A 2017-05 → — Figure 513537 513537 2019-05 → —

Part groups

PNCDescription
51900 Carrier Assy, Spare Wheel
51908 Bracket Sub-assy, Spare Wheel Carrier
51912 Bracket, Spare Wheel
51941B Bracket, Spare Wheel Carrier, NO.1
51941C Bracket, Spare Wheel Carrier, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
