Toyota Dyna/Toyoace

2011-07 → present · chassis XZC710,XZU7## · catalogue 771140 · Japan

Supported model Data version 2022-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator Grille

8 part groups · 2 illustrations

Illustrations

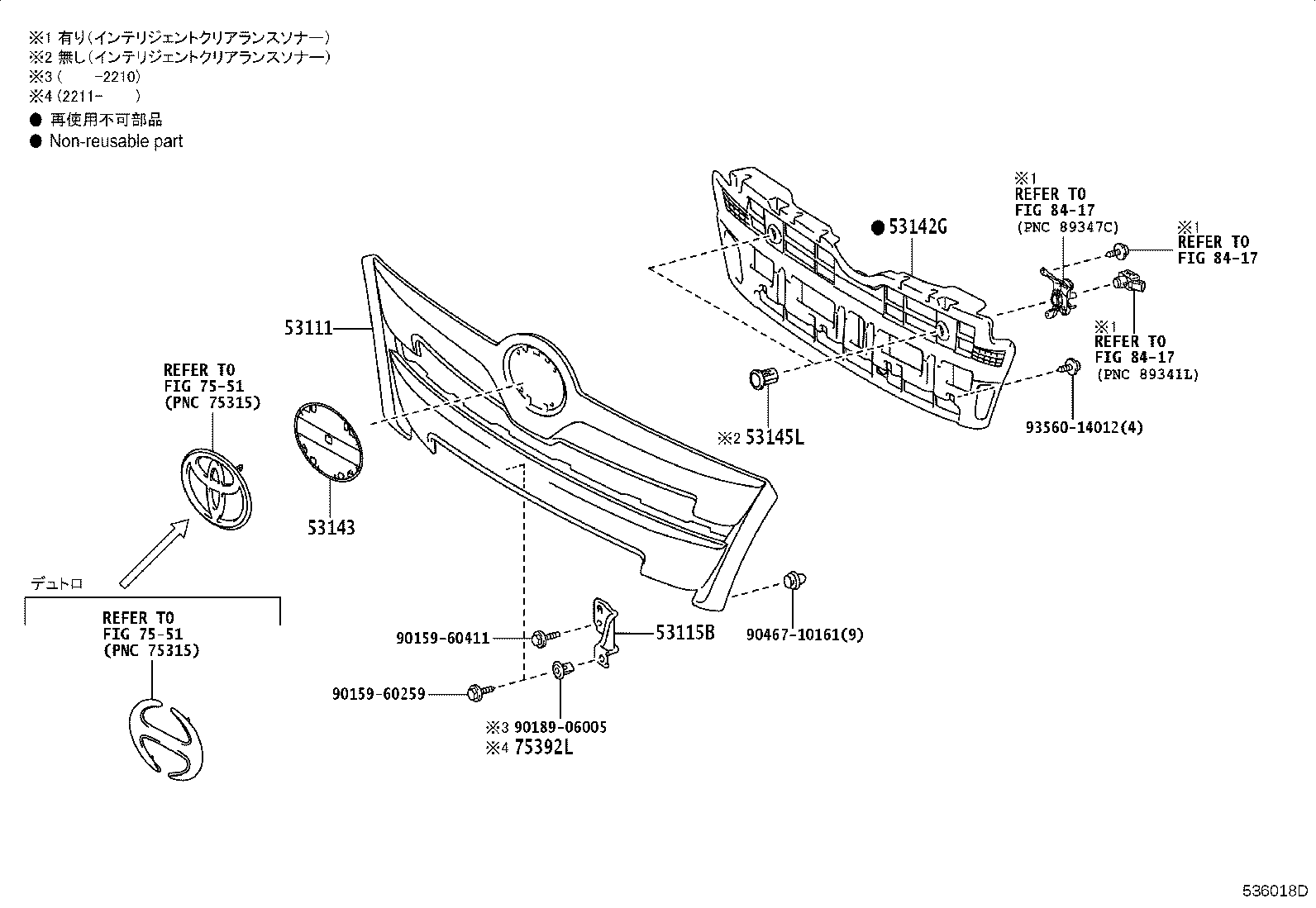

Figure 533486C 533486C 2011-07 → — Figure 536018D 536018D 2019-05 → —

Part groups

PNCDescription
53111 Grille, Radiator
53115B Bracket, Radiator Grille
53141E Cover, Radiator, NO.1
53142G Garnish, Radiator Grille, NO.2
53143 Garnish, Radiator Grille, NO.3
53145L Clip, Radiator Grille
53155D Seal, Radiator Grille, NO.1
75392L Retainer, Outside Moulding
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
