Toyota Dyna/Toyoace

2011-07 → present · chassis XZC710,XZU7## · catalogue 771140 · Japan

Supported model Data version 2022-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Body Mounting

15 part groups · 13 illustrations

Illustrations

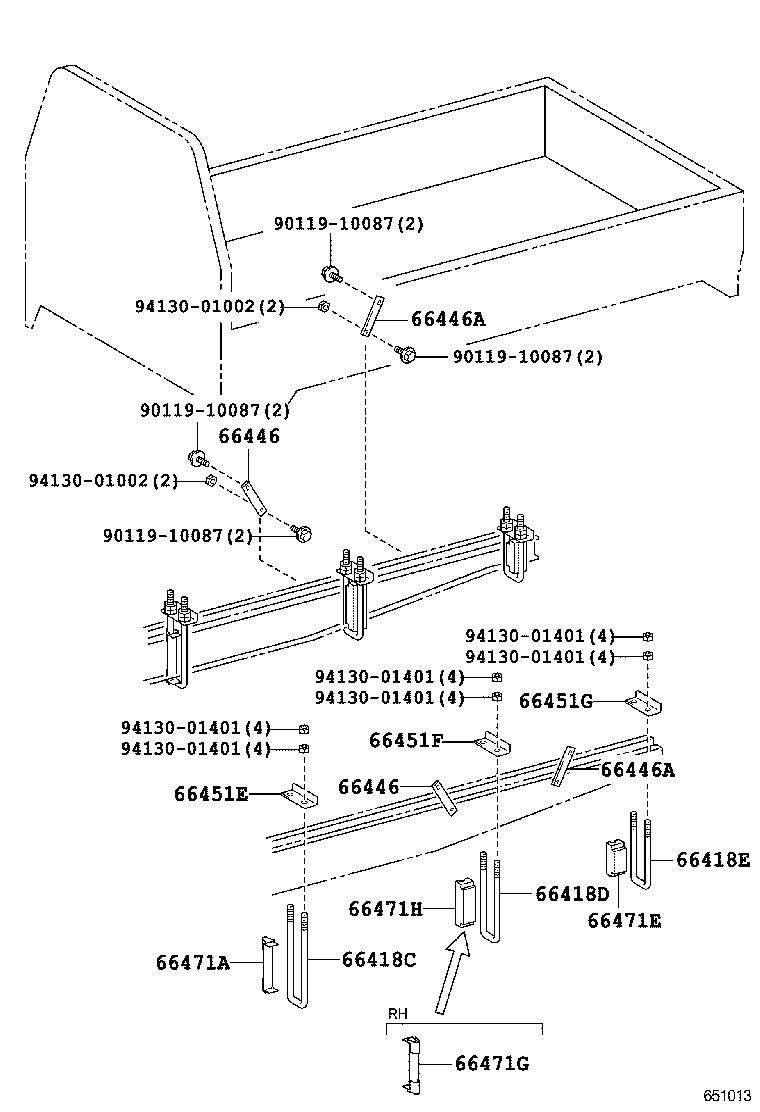

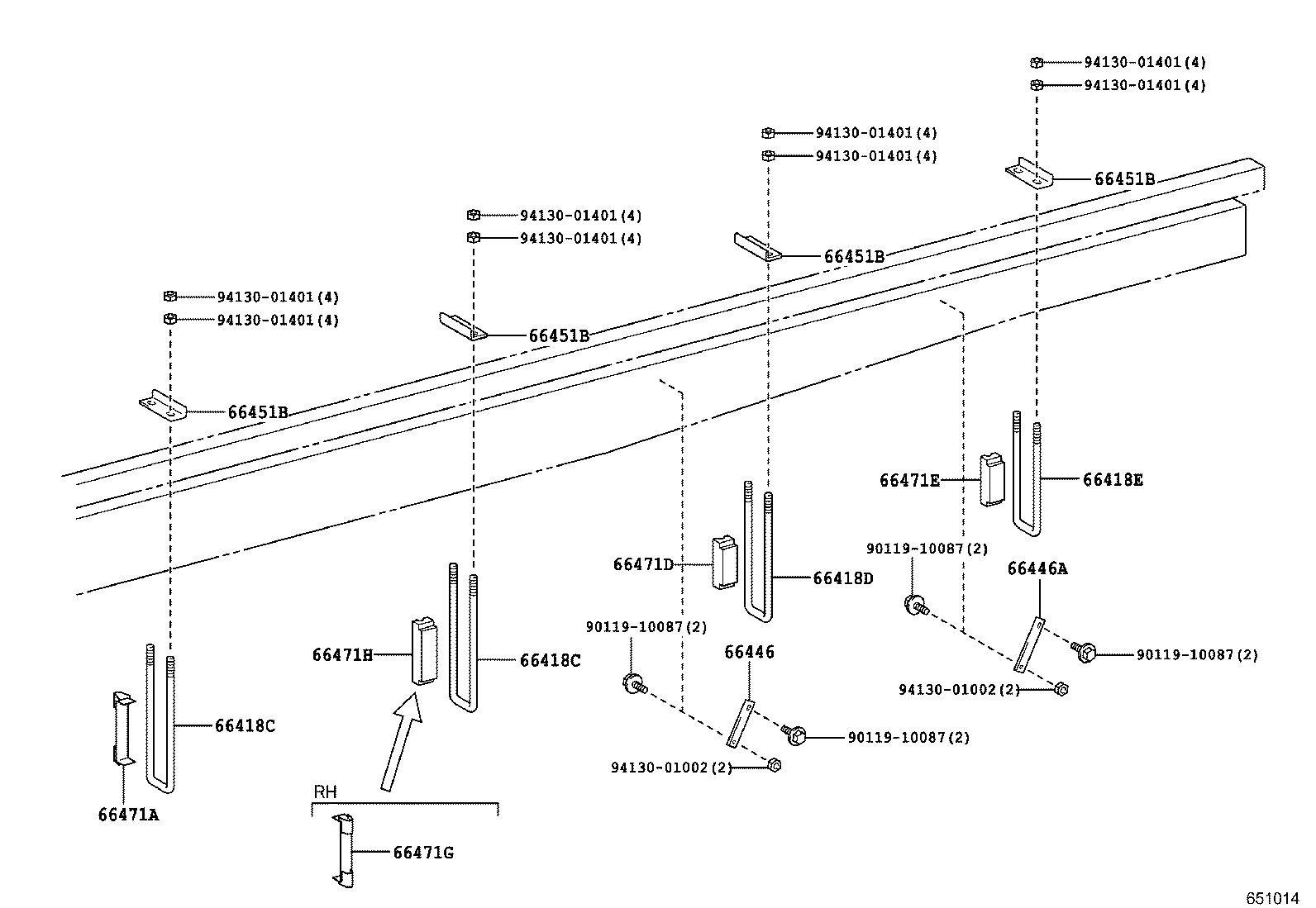

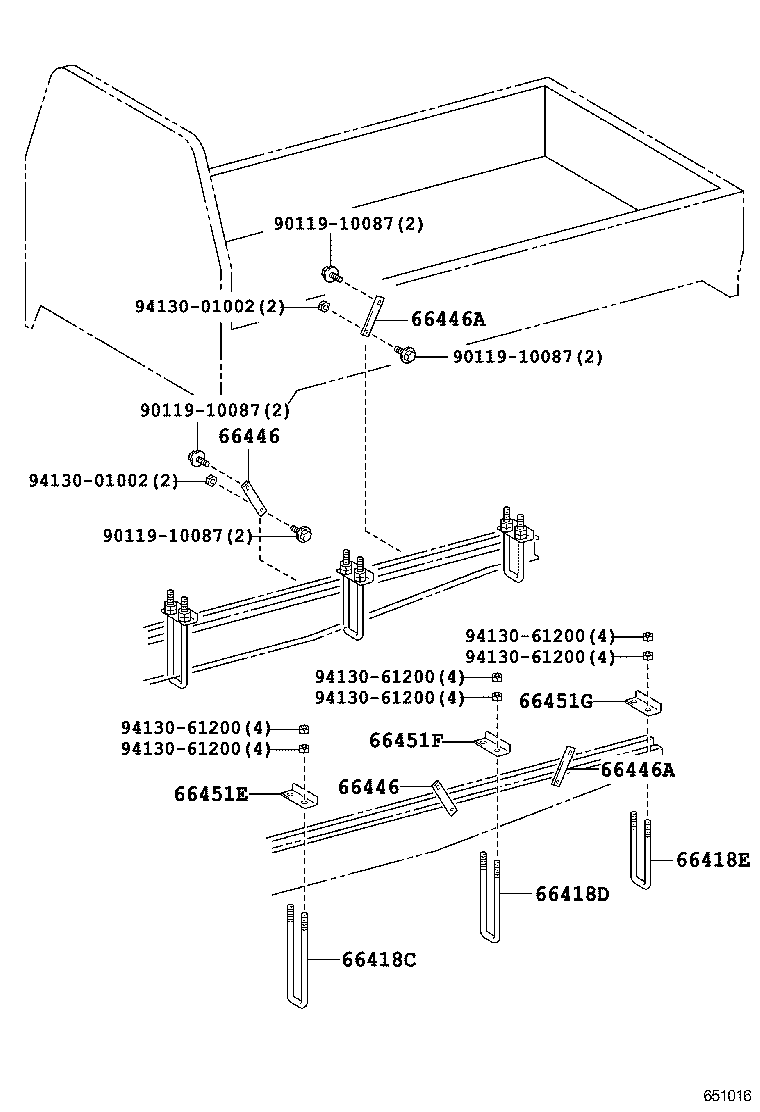

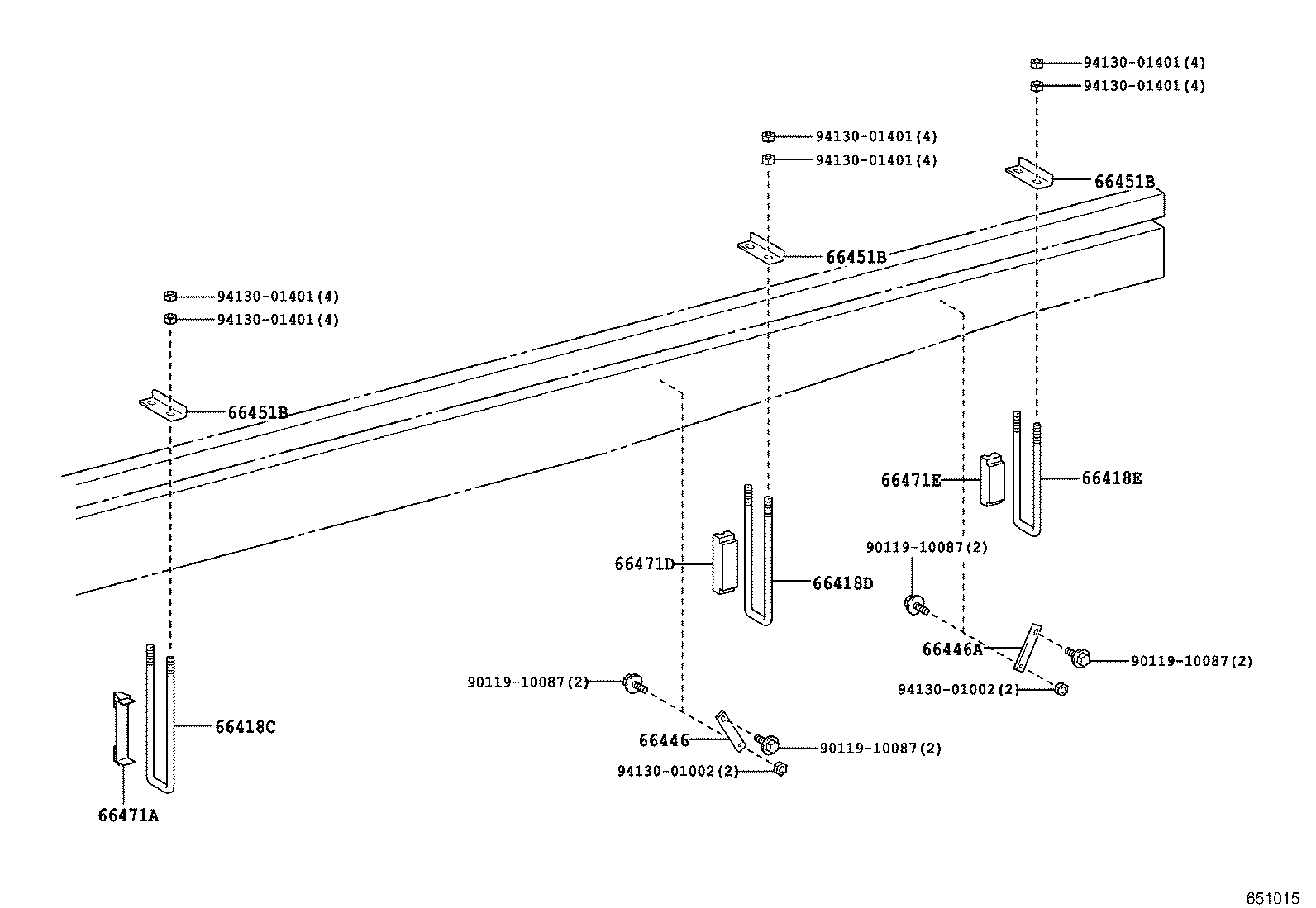

Figure 651012 651012 2011-07 → — Figure 651012 651012 2021-03 → — Figure 651015 651015 2011-07 → — Figure 651015 651015 2019-05 → — Figure 651015 651015 2021-03 → — Figure 651013 651013 2011-07 → — Figure 651013 651013 2021-03 → — Figure 651014 651014 2011-07 → — Figure 651016 651016 2011-08 → — Figure 651016 651016 2021-03 → — Figure 651017 651017 2011-07 → — Figure 651017 651017 2019-05 → — Figure 651017 651017 2021-03 → —

Part groups

PNCDescription
66418C Bolt, U, Front
66418D Bolt, U, Center
66418E Bolt, U, Rear
66441 Shim, Mounting, NO.1
66446 Brace, Frame Floor
66446A Brace, Frame TO Rear Body Floor
66451B Plate, U Bolt
66451E Plate, U Bolt, Front
66451F Plate, U Bolt, Center
66451G Plate, U Bolt, Rear
66471A Reinforcement, Frame U Bolt
66471D Reinforcement, Frame U Bolt
66471E Reinforcement, Frame U Bolt
66471G Reinforcement, Frame U Bolt, RH
66471H Reinforcement, Frame U Bolt, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
