Toyota Dyna/Toyoace

2011-07 → present · chassis XZC710,XZU7## · catalogue 771140 · Japan

Supported model Data version 2022-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Tool Box & License Plate Bracket

17 part groups · 5 illustrations

Illustrations

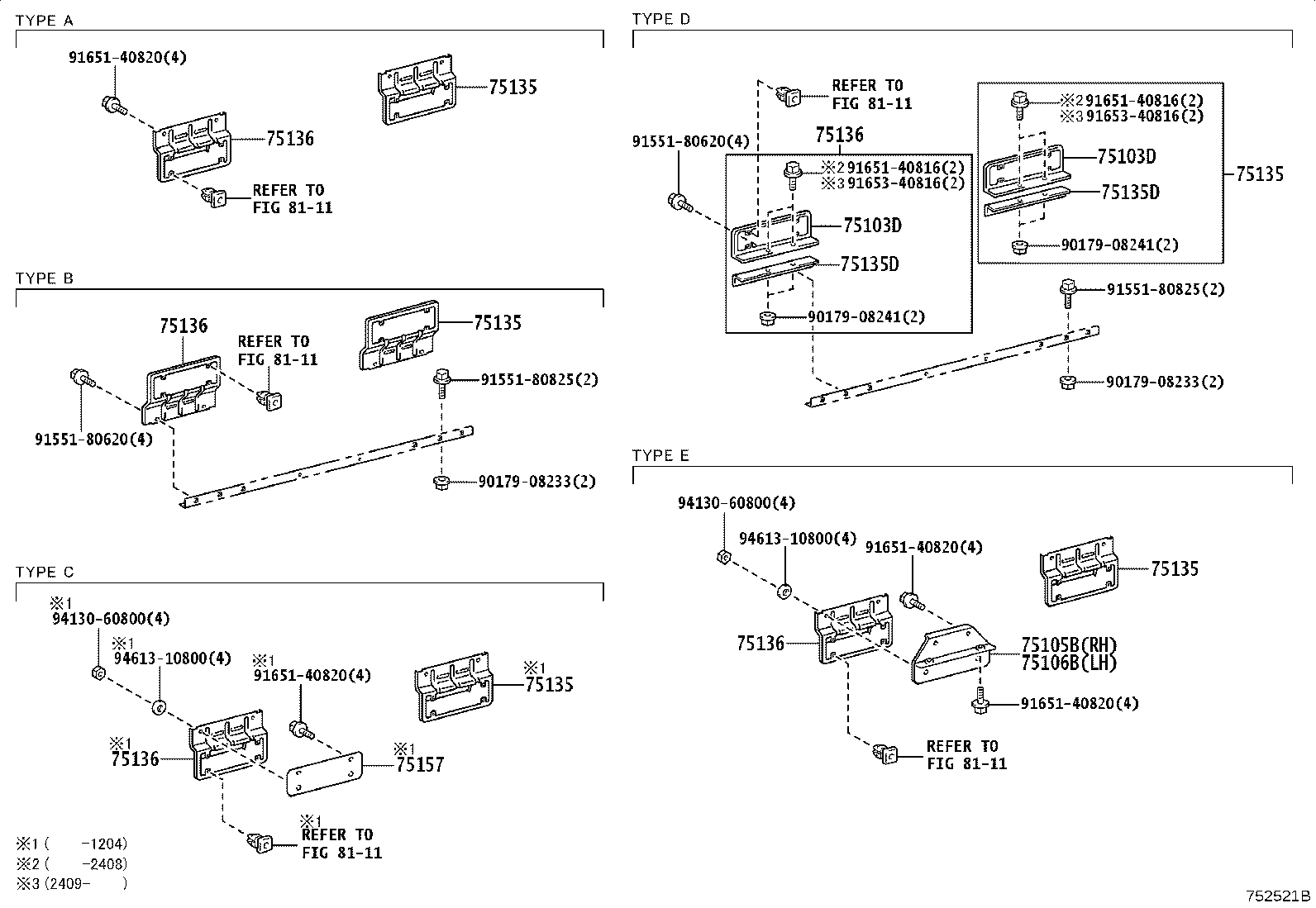

Figure 752516A 752516A 2011-07 → — Figure 753832 753832 2019-05 → — Figure 752517D 752517D 2011-07 → — Figure 752519C 752519C 2011-07 → — Figure 752521B 752521B 2011-07 → —

Part groups

PNCDescription
47379 Spacer, Brake Tube, NO.1
47379A Spacer, Brake Tube, NO.2
58705 Band Sub-assy, Tool Bag
58794B Support, Jack Handle
58797B Band, Jack Clamp
66490 Hanger Assy, License Plate Bracket
75102 Bracket Sub-assy, Rear License Plate
75103D Bracket Sub-assy, Combination Rear Lamp
75105B Bracket Sub-assy, Combination Rear Lamp, RH
75106B Bracket Sub-assy, Combination Rear Lamp, LH
75135 Bracket, Combination Rear Lamp, RH
75135D Bracket, Combination Rear Lamp
75136 Bracket, Combination Rear Lamp, LH
75157 Stay, Combination Rear Lamp, NO.1
75201 Box Sub-assy, Tool W/Stay
75204B Stay Sub-assy, Tool Box
75209A Base Sub Assy, Jack Holder
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
