Toyota Dyna/Toyoace HV

2011-07 → present · chassis XKU7## · catalogue 773120 · Japan

Supported model Data version 2021-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Frame

40 part groups · 29 illustrations

Illustrations

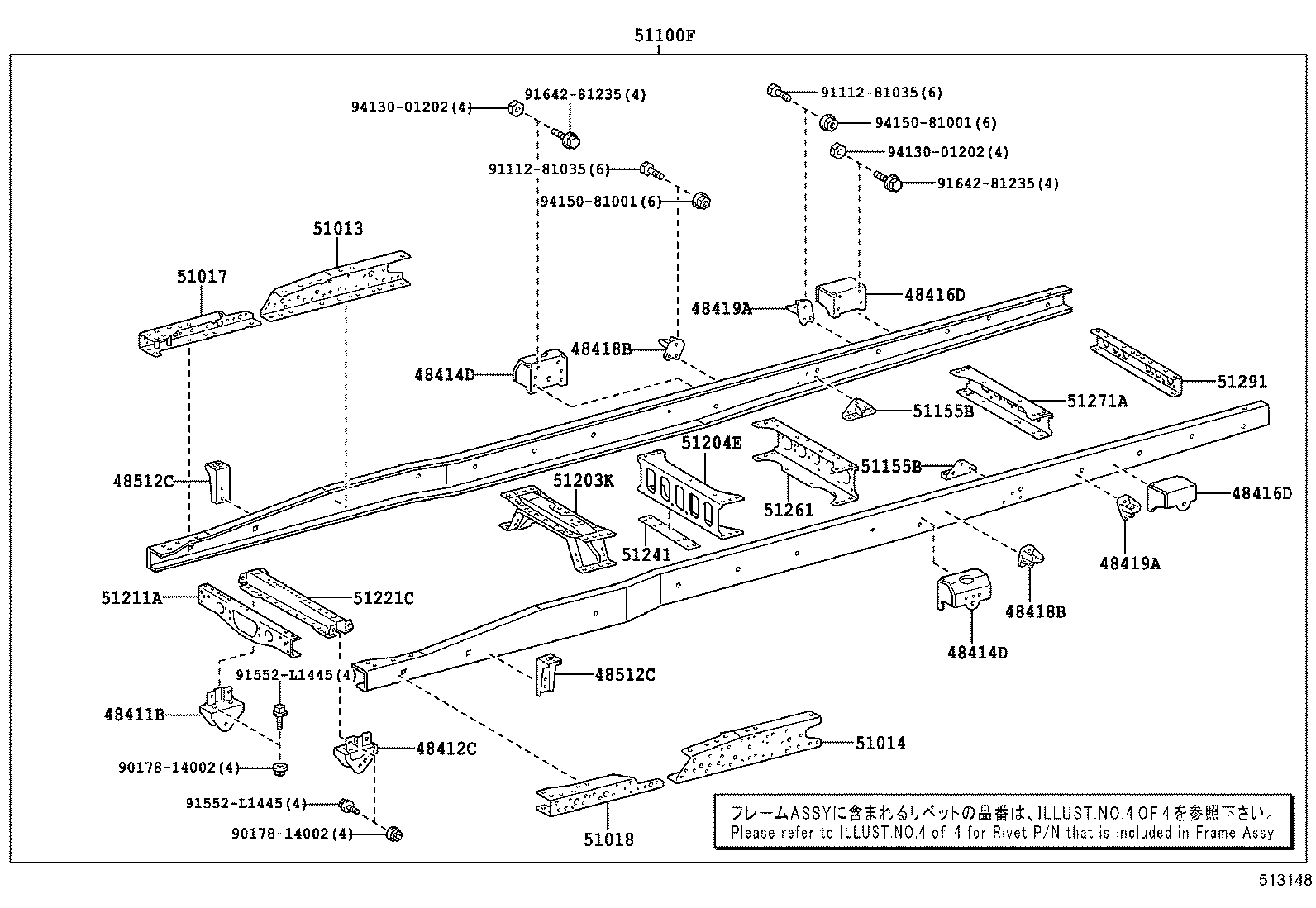

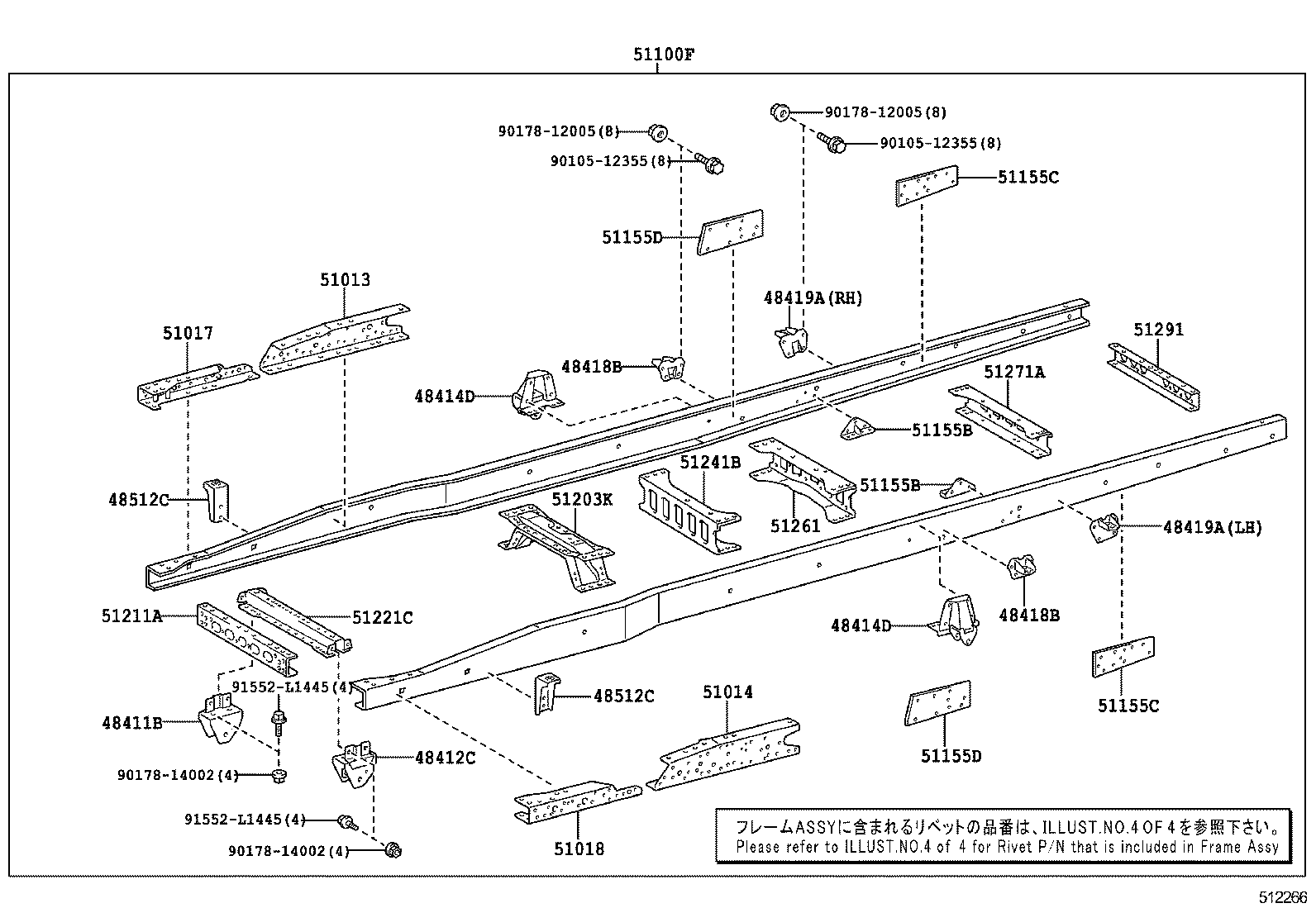

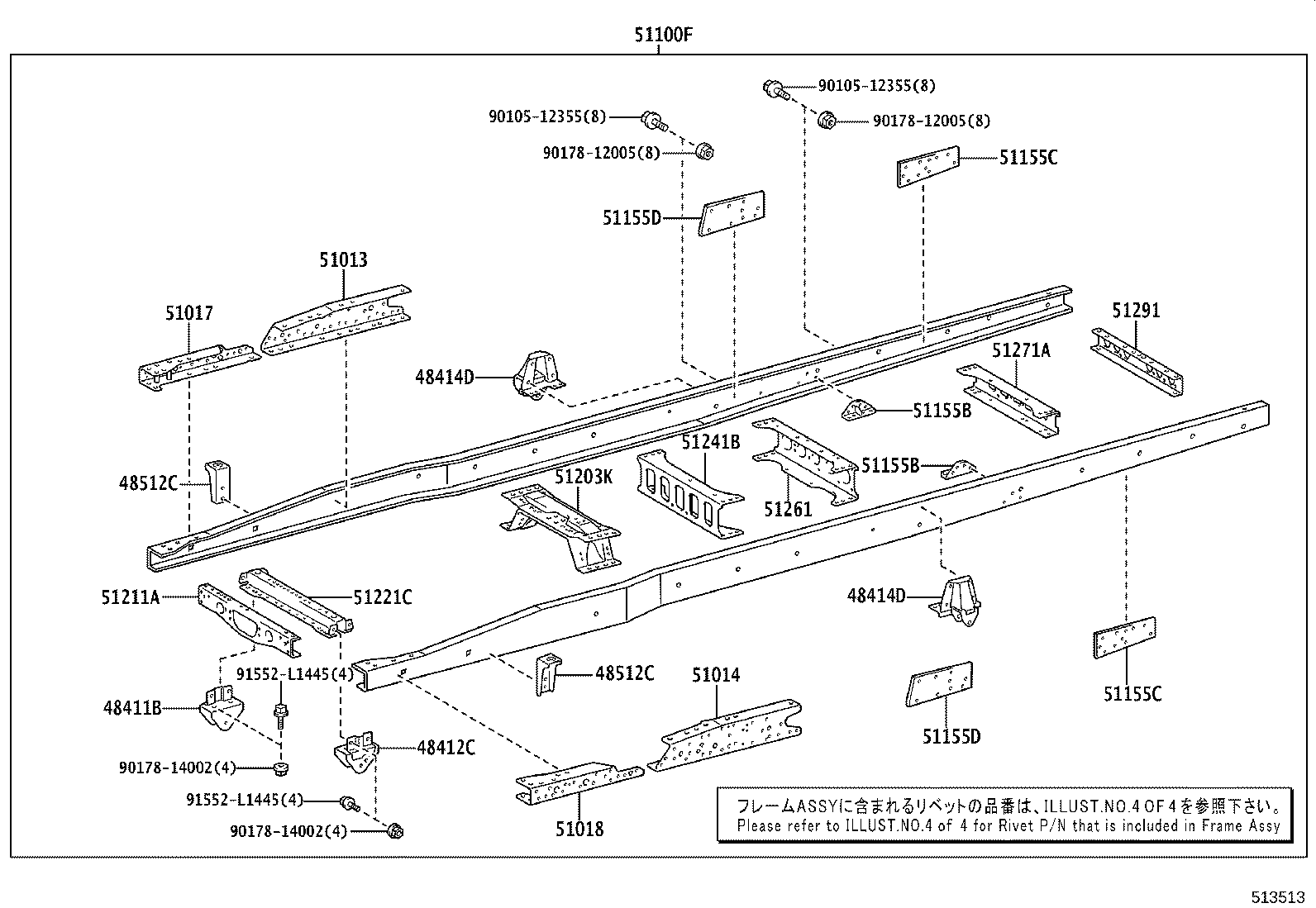

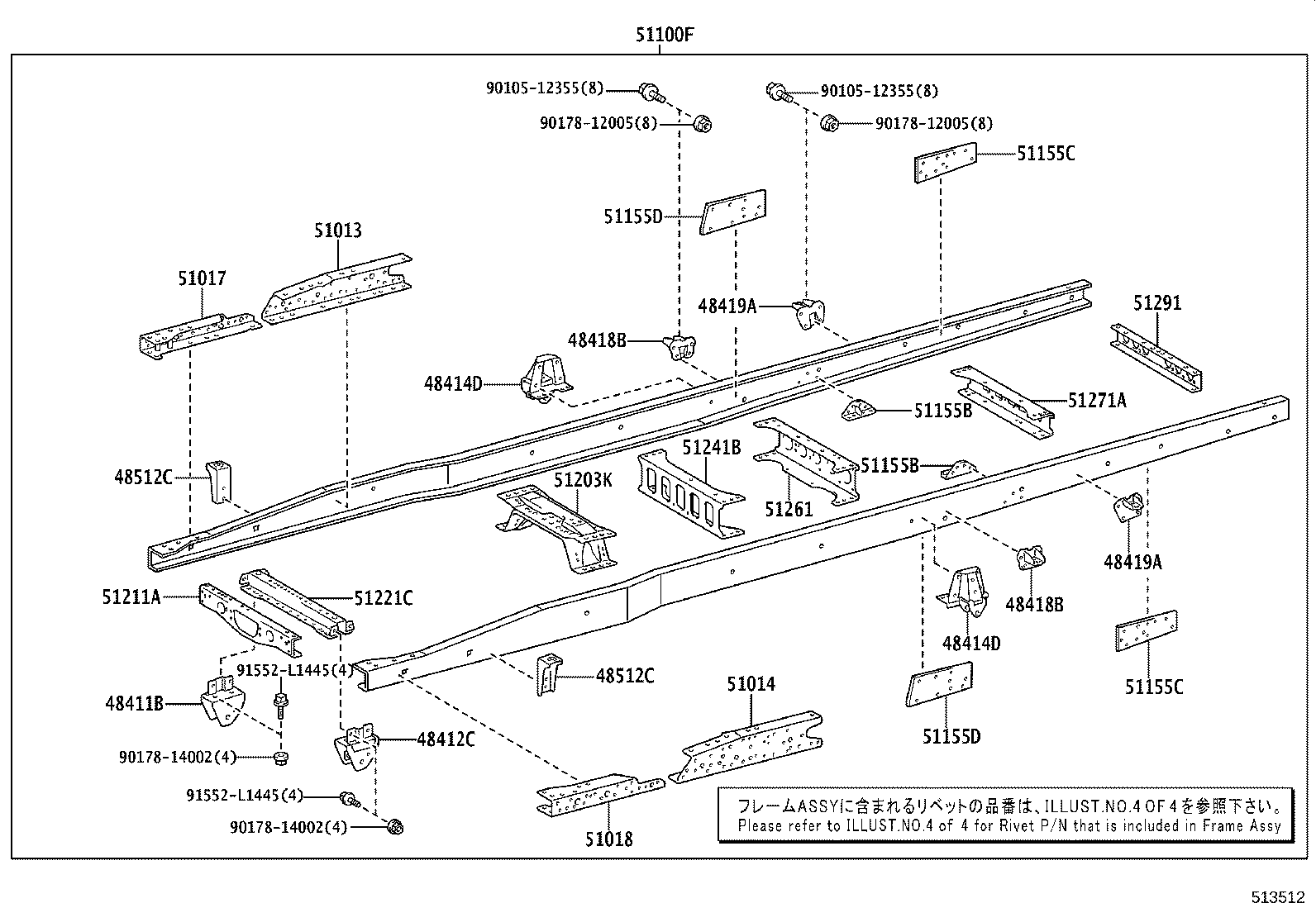

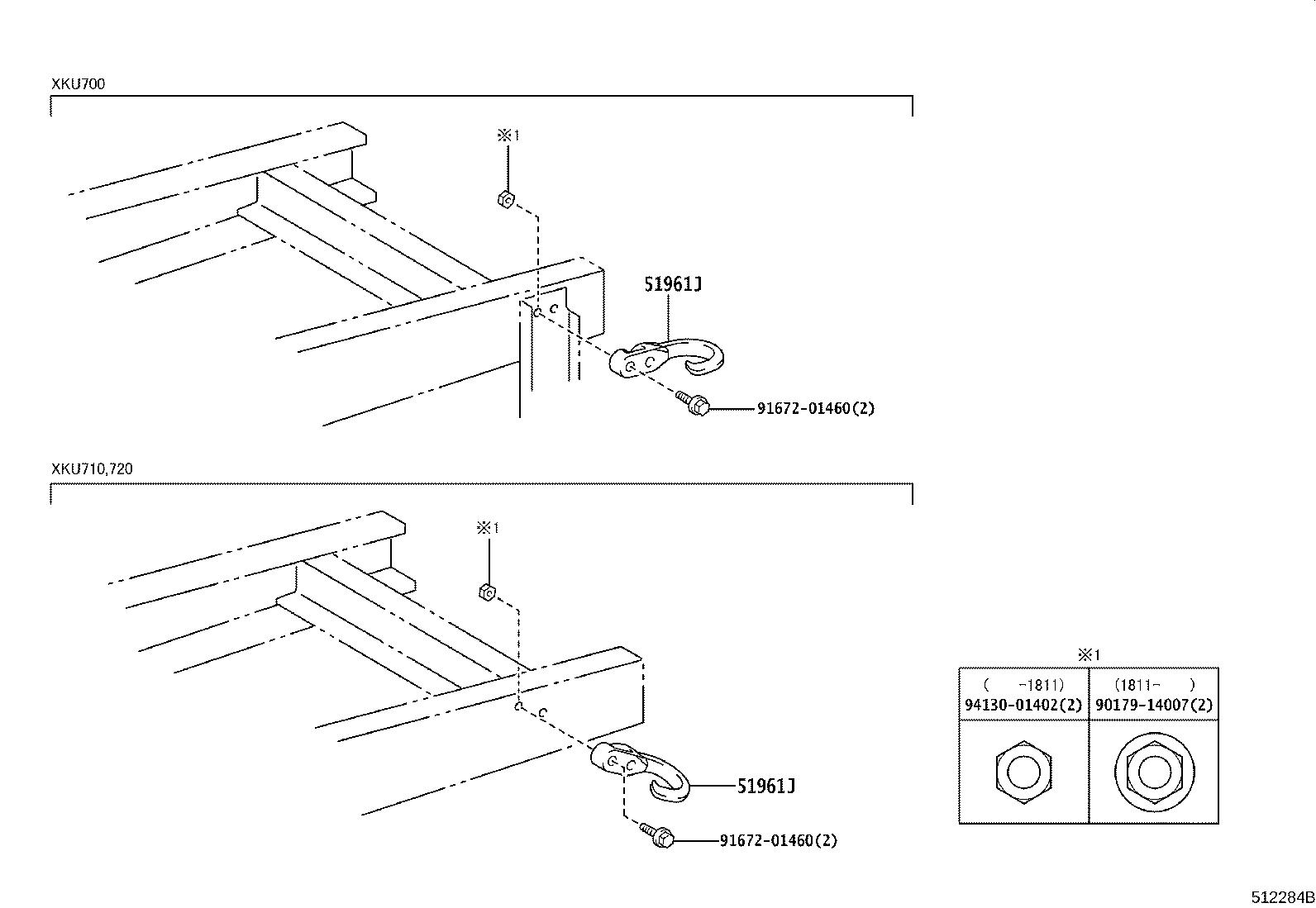

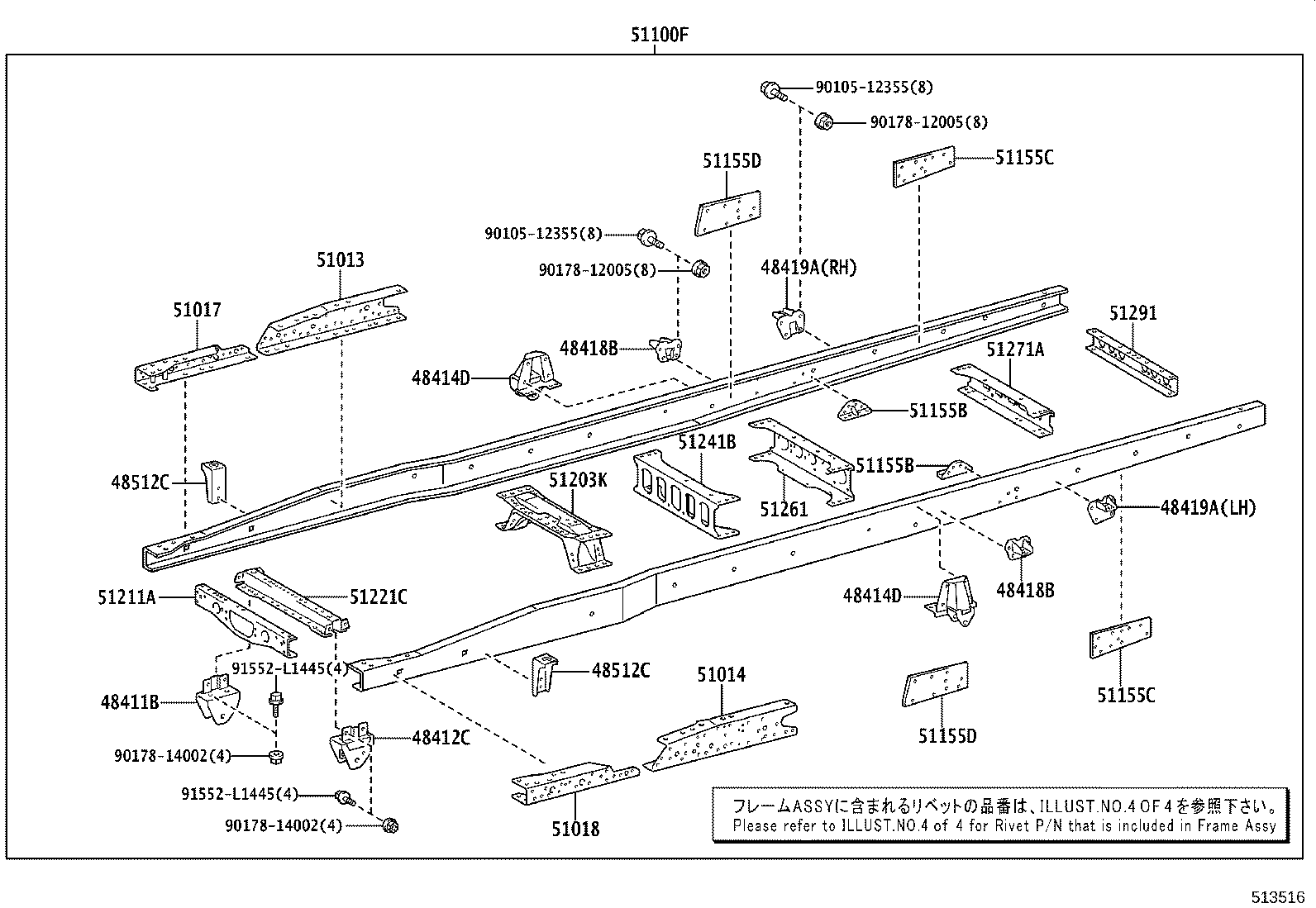

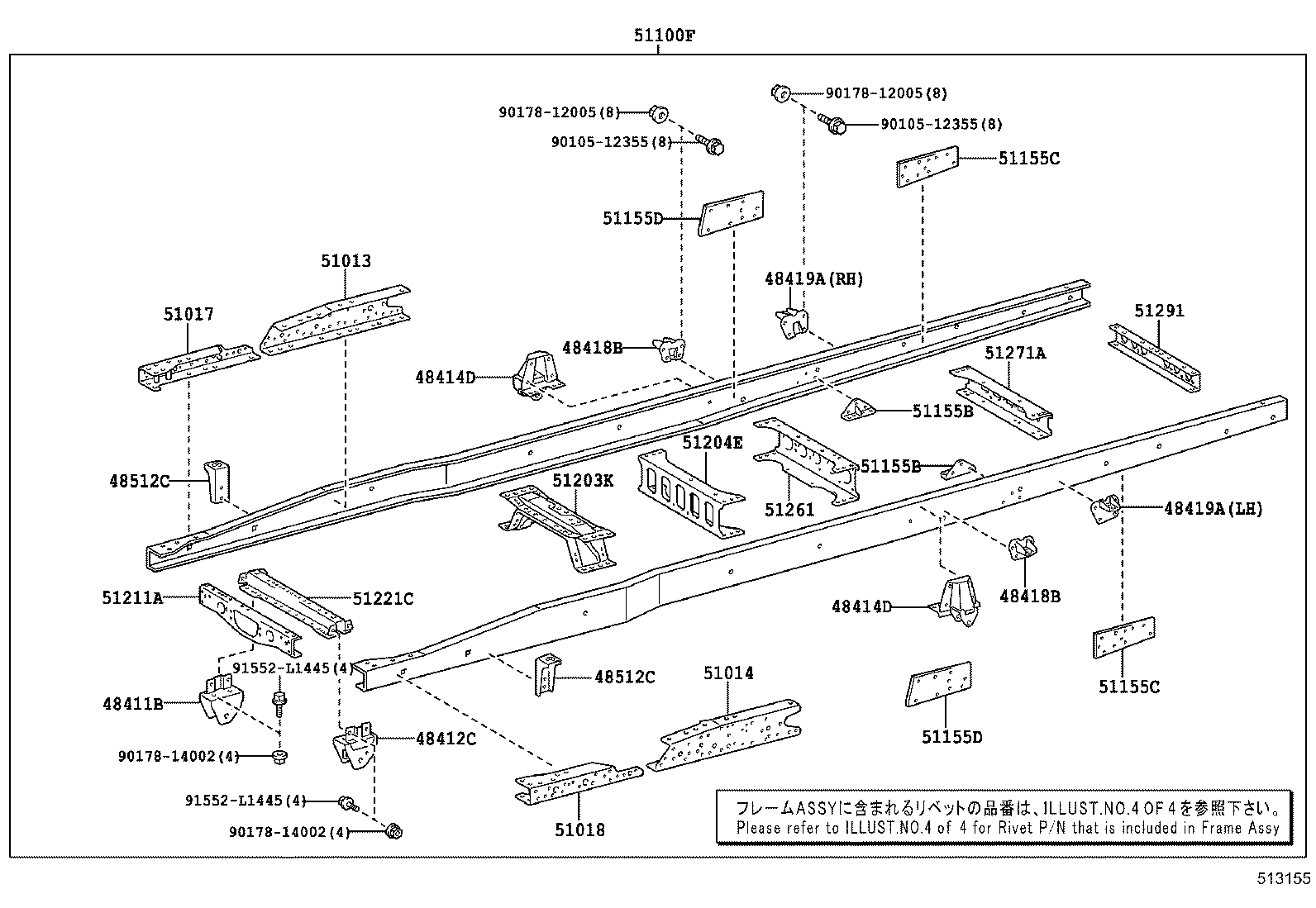

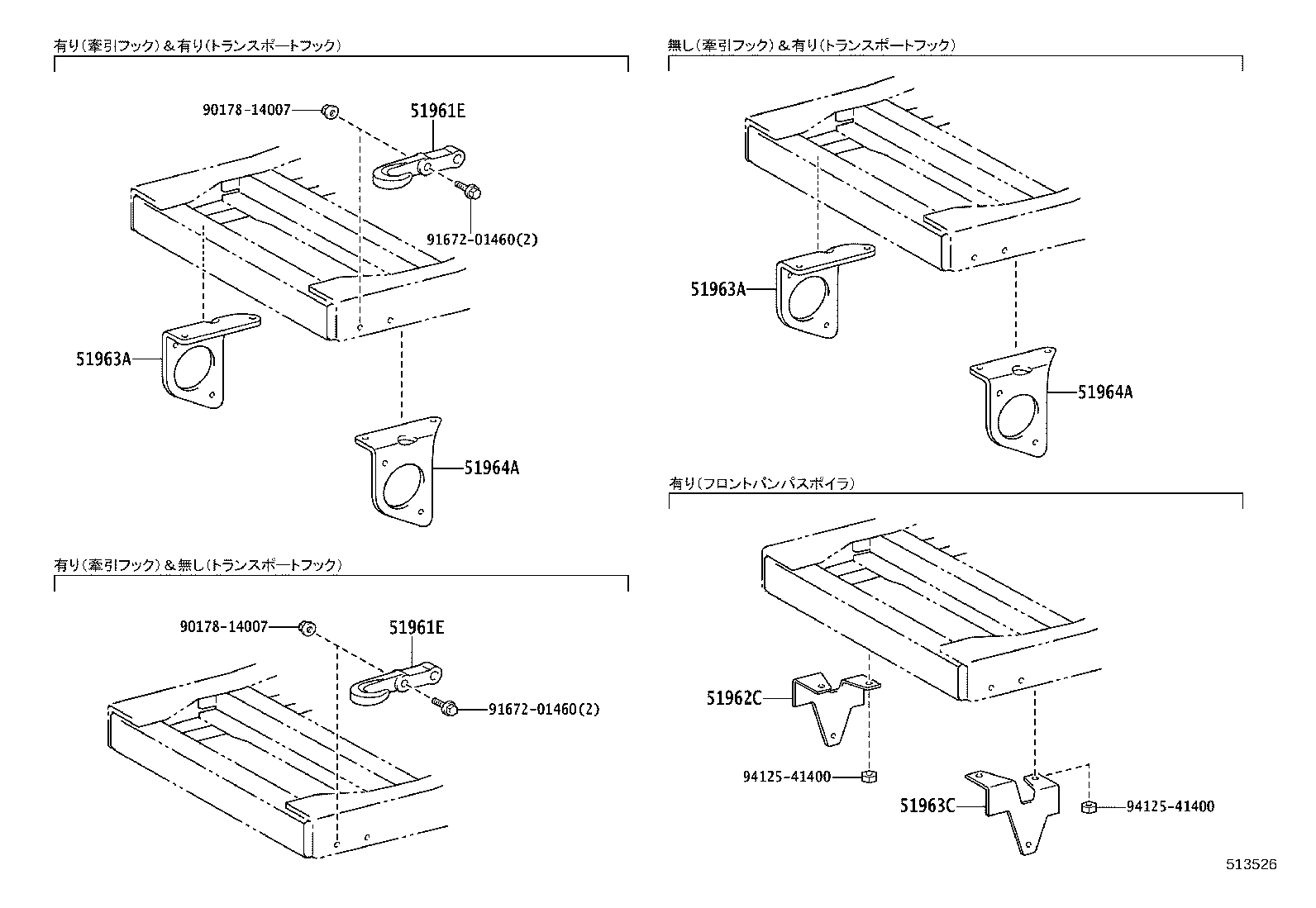

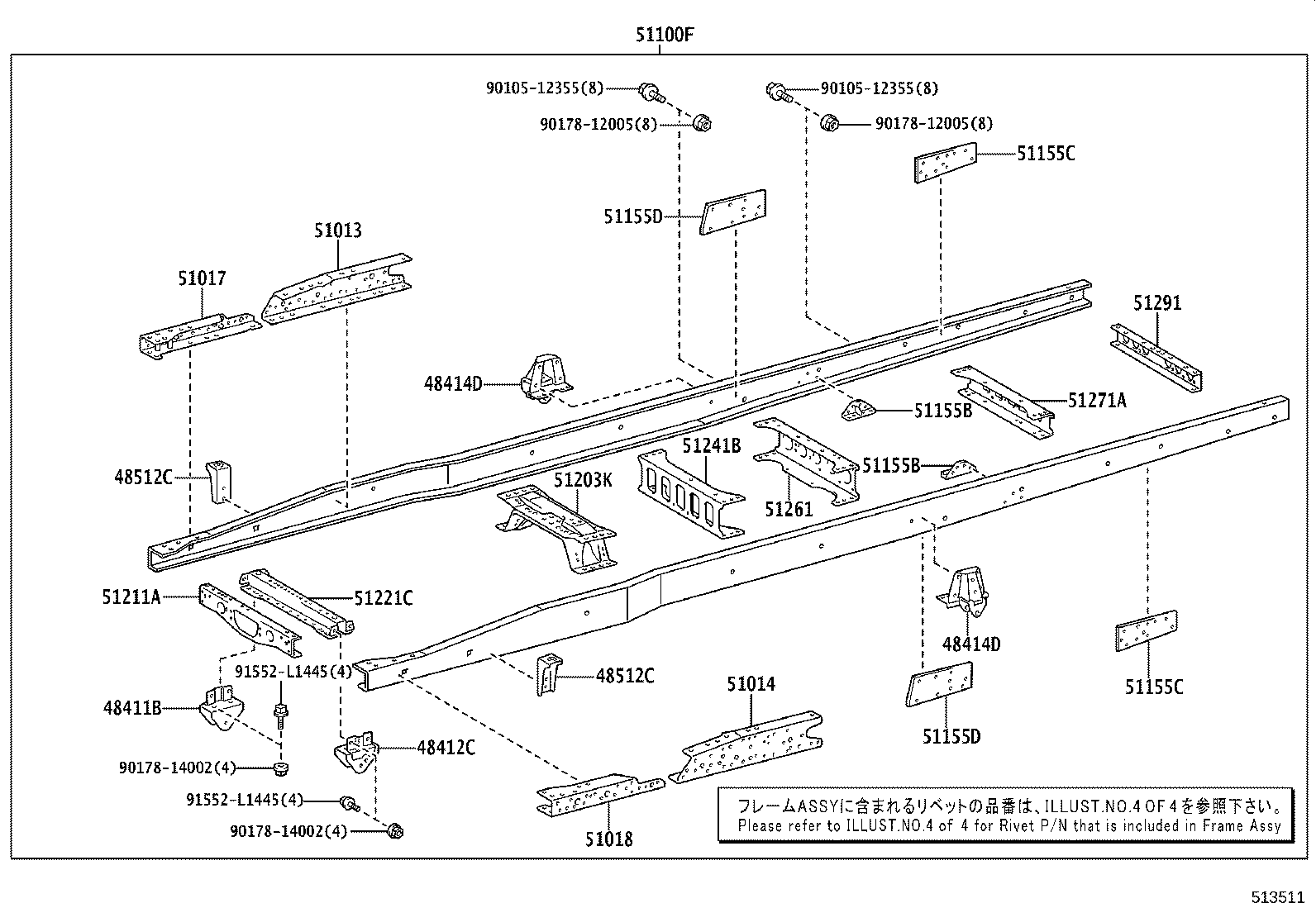

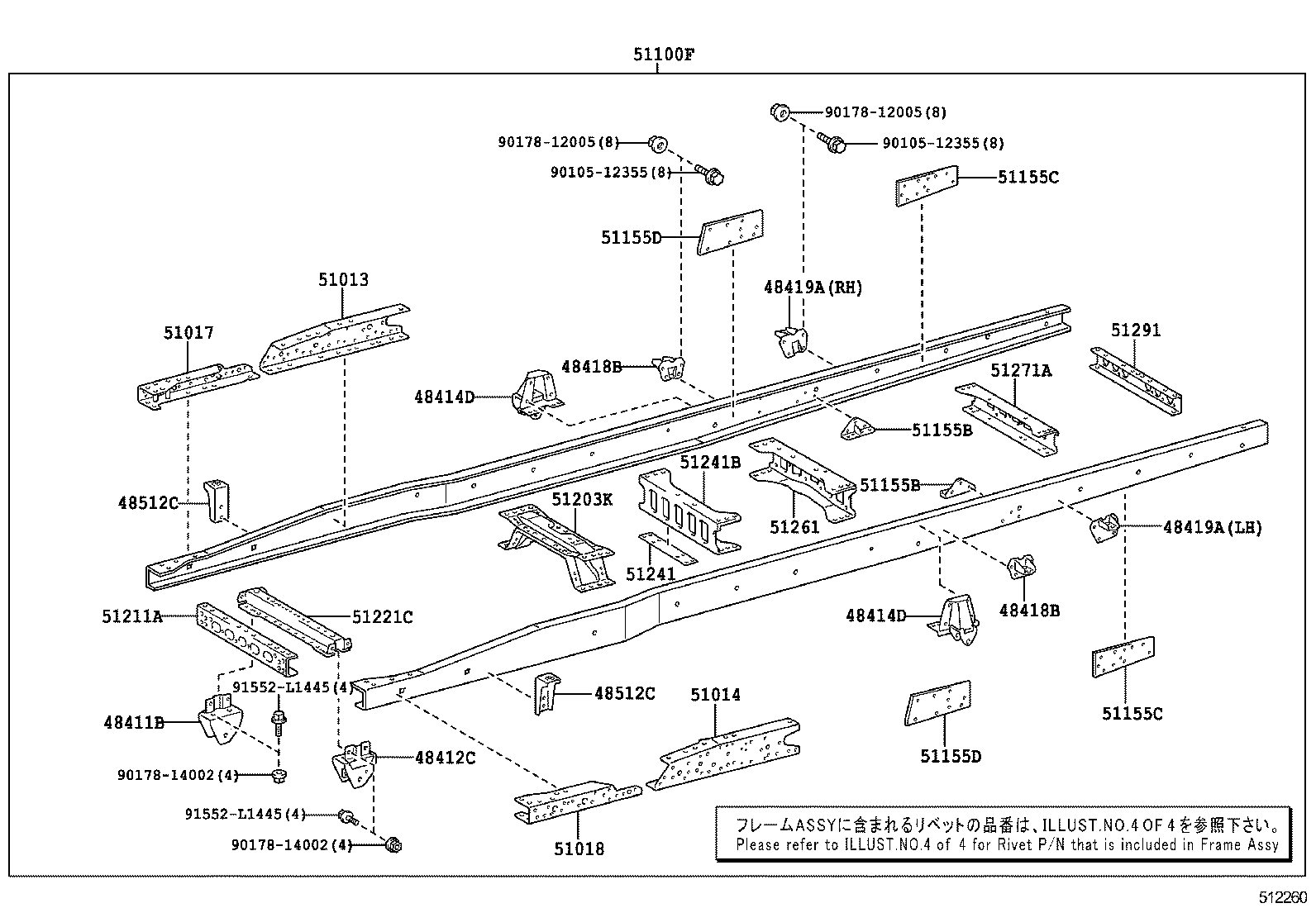

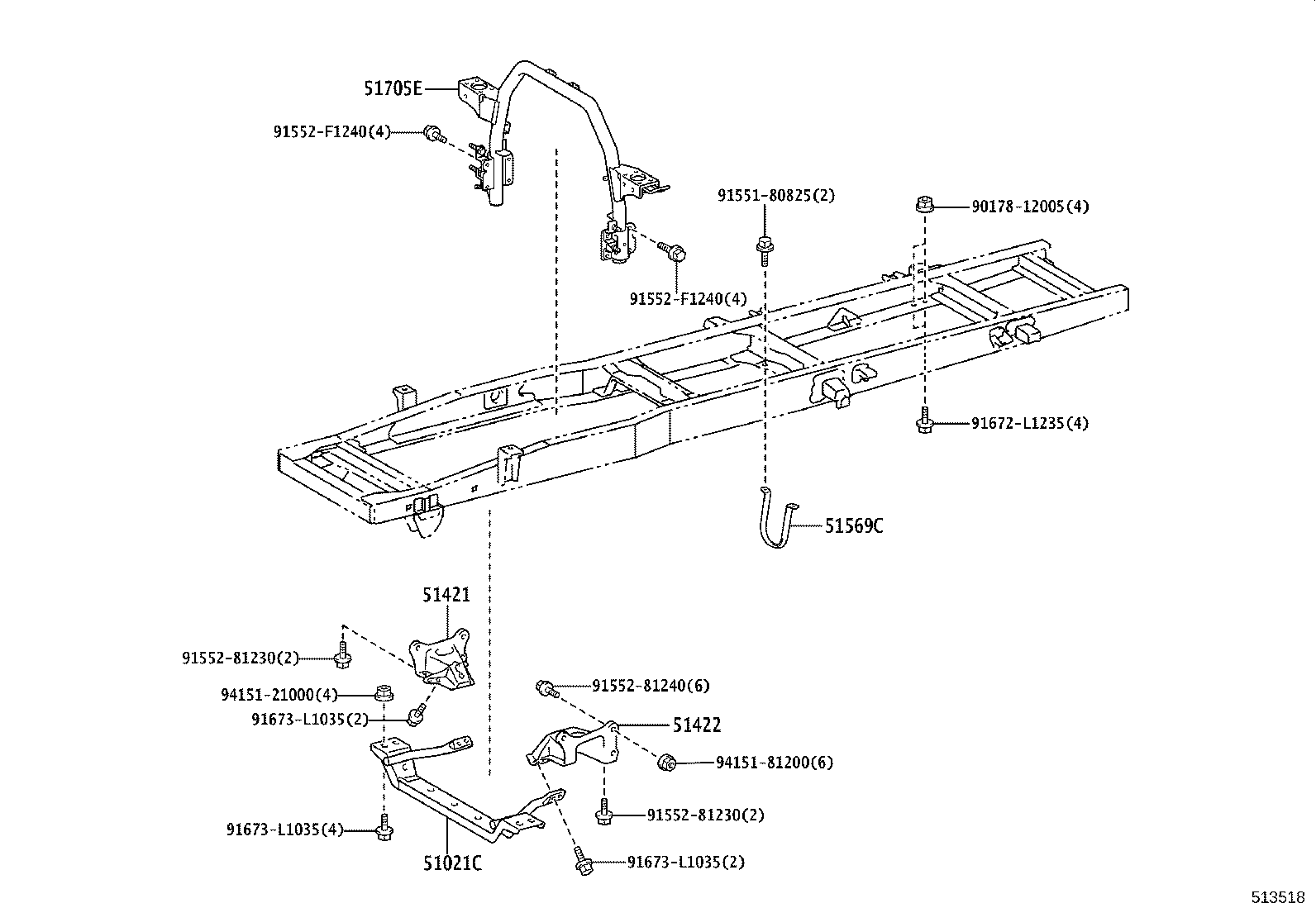

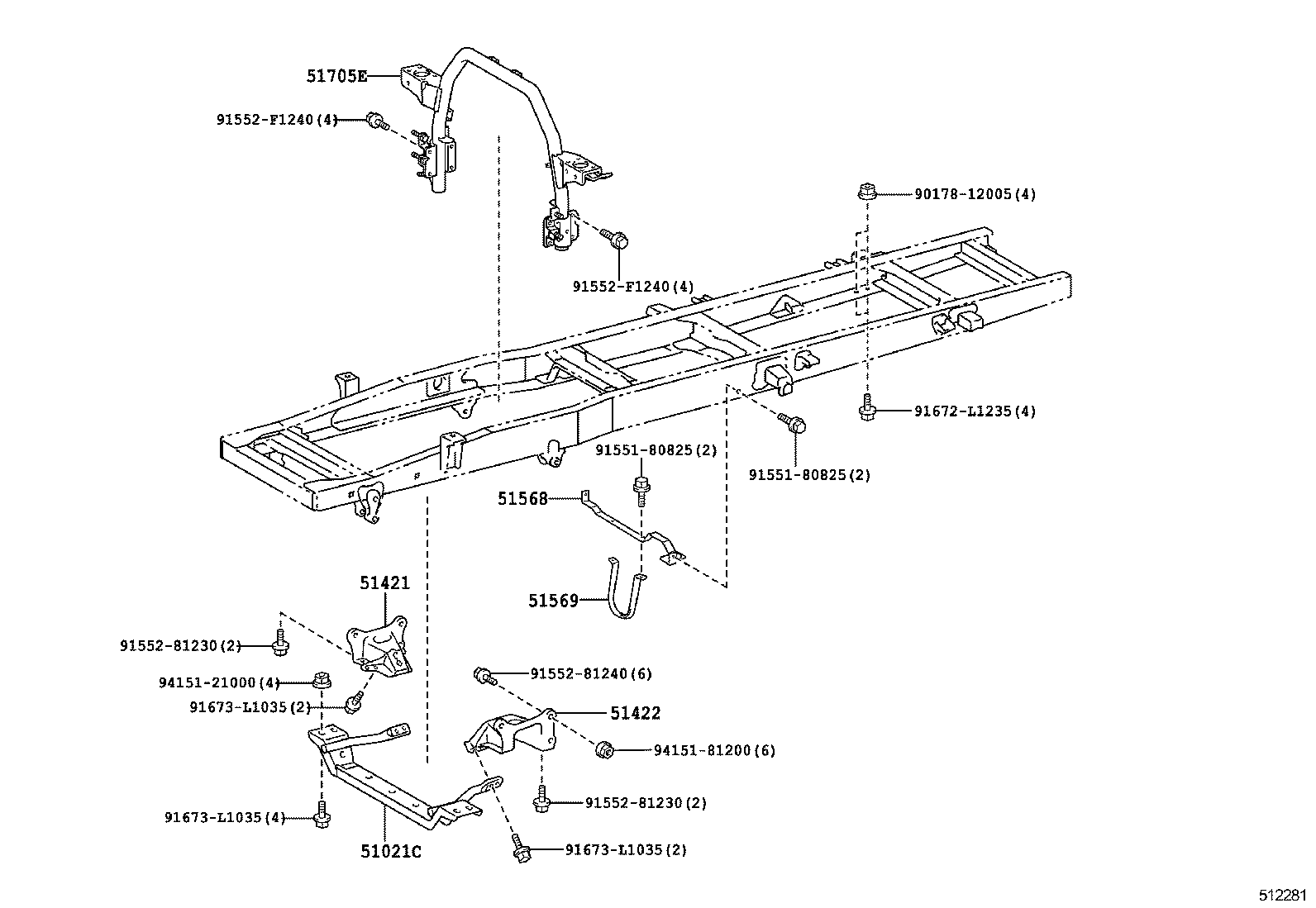

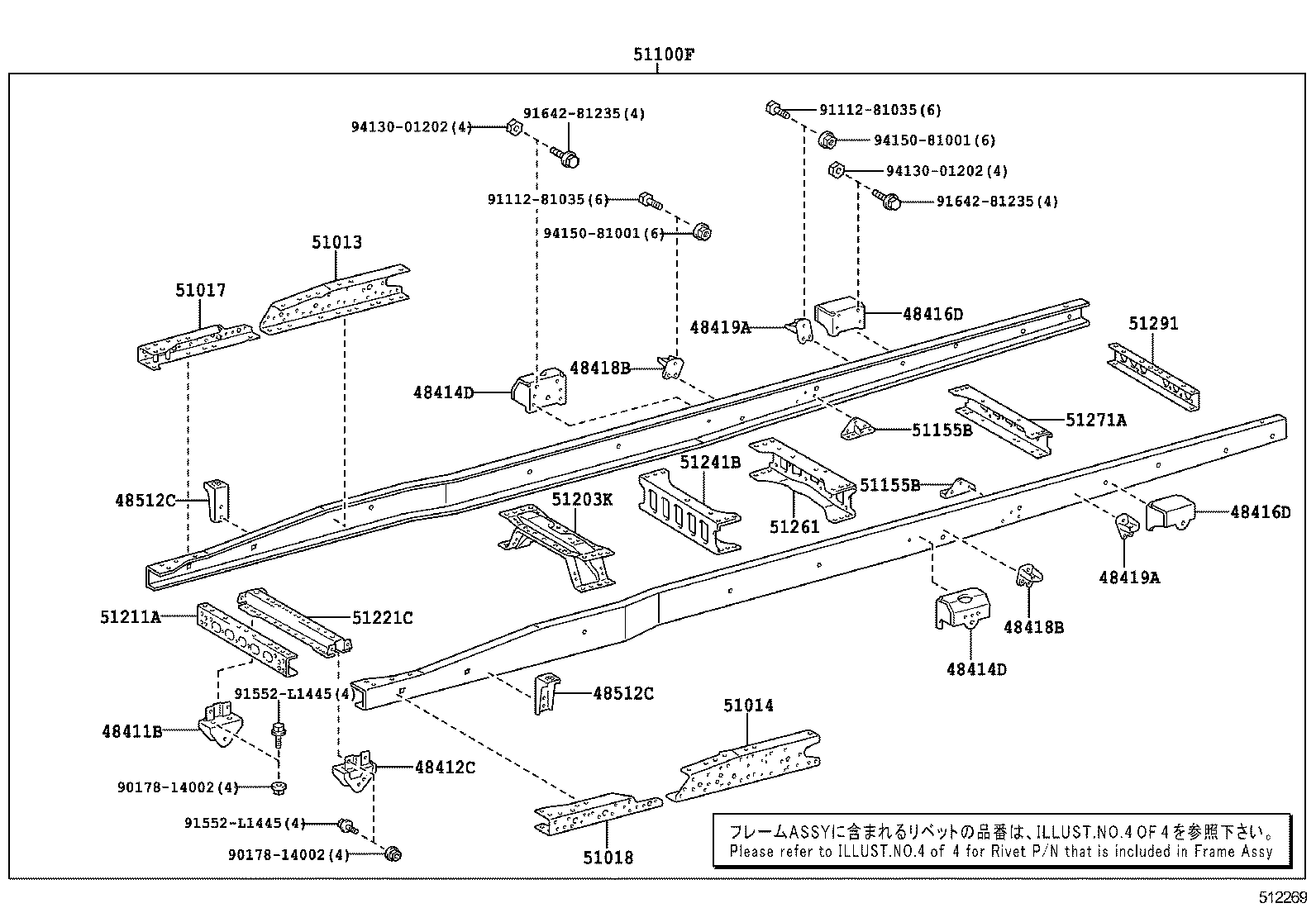

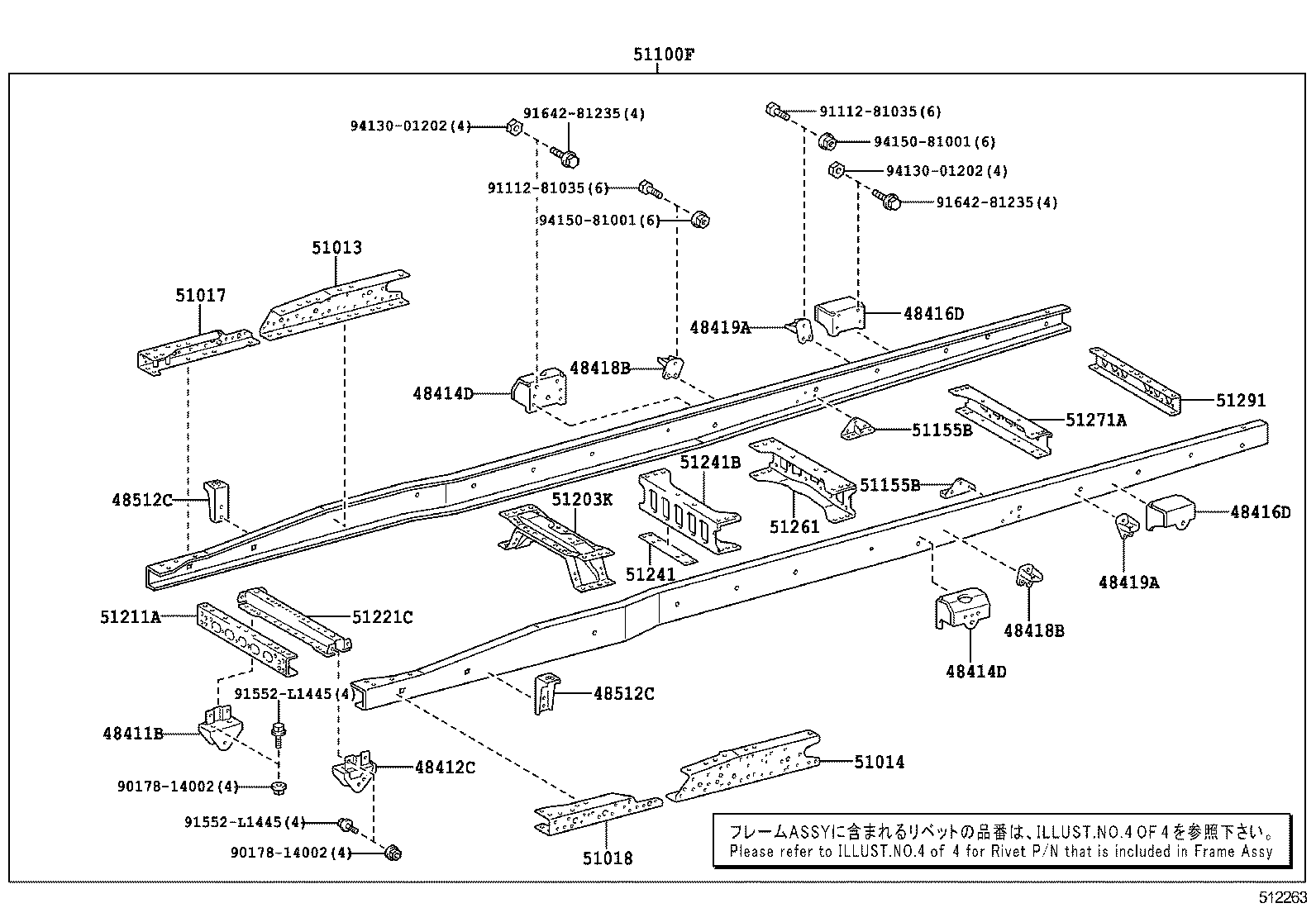

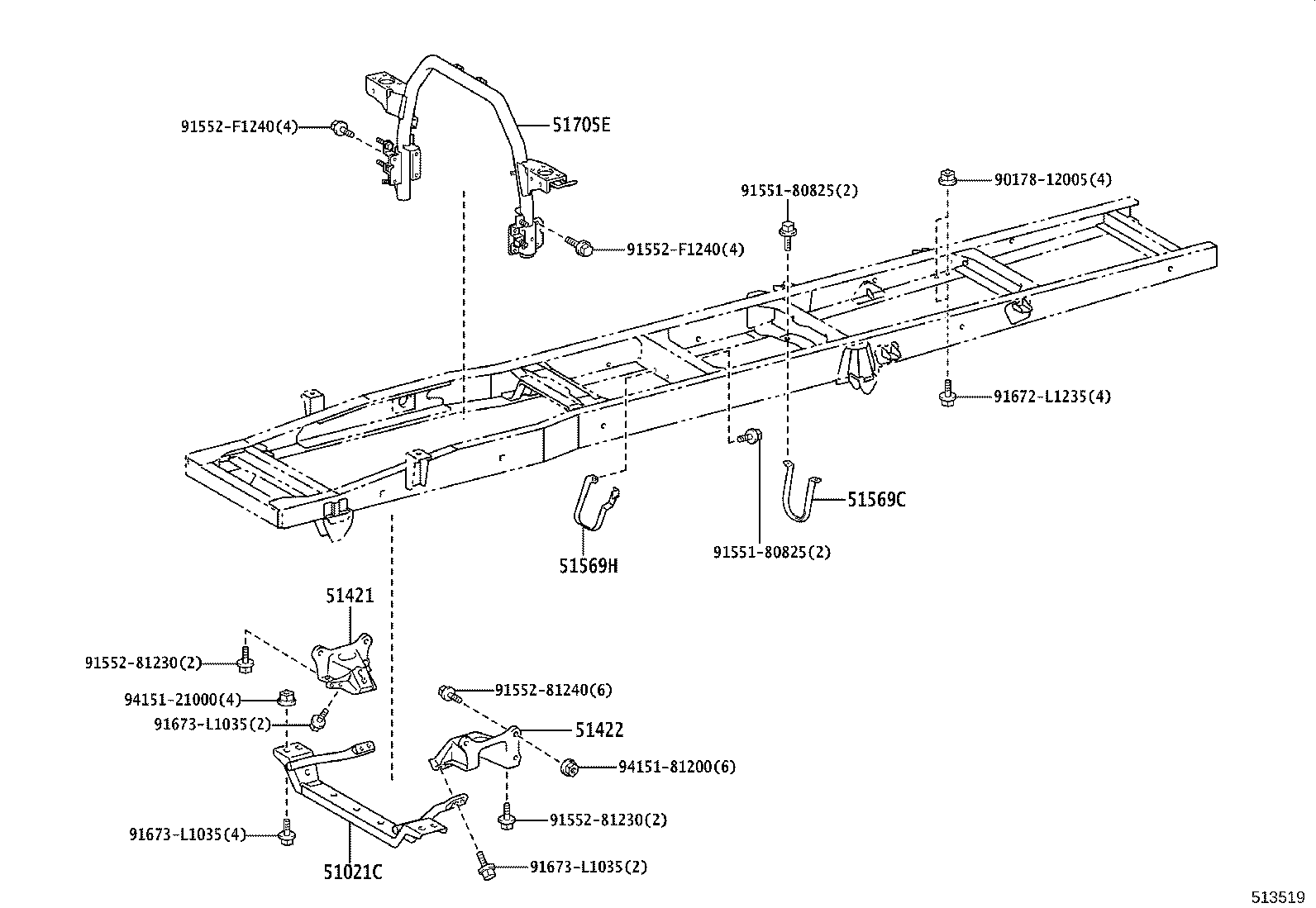

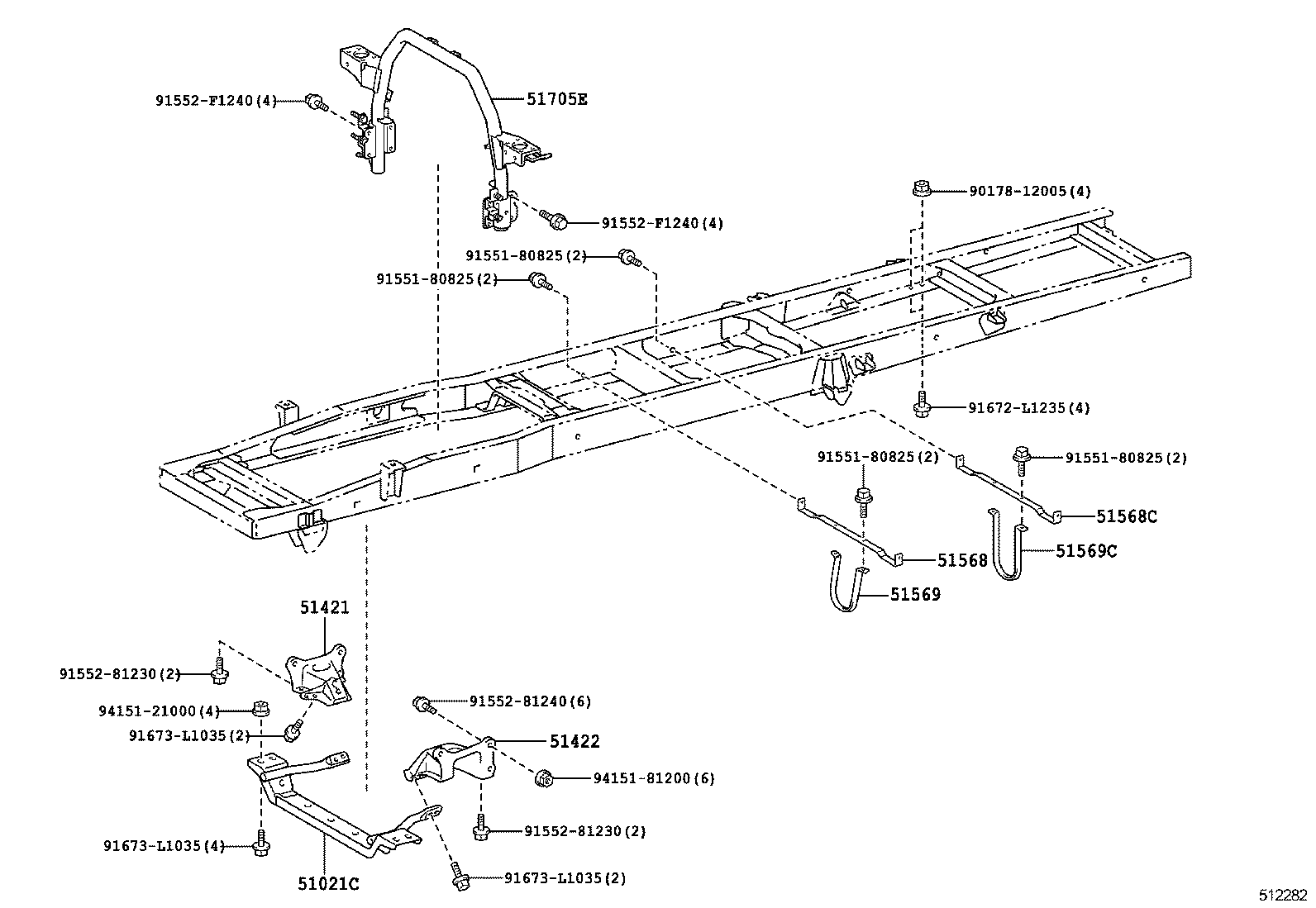

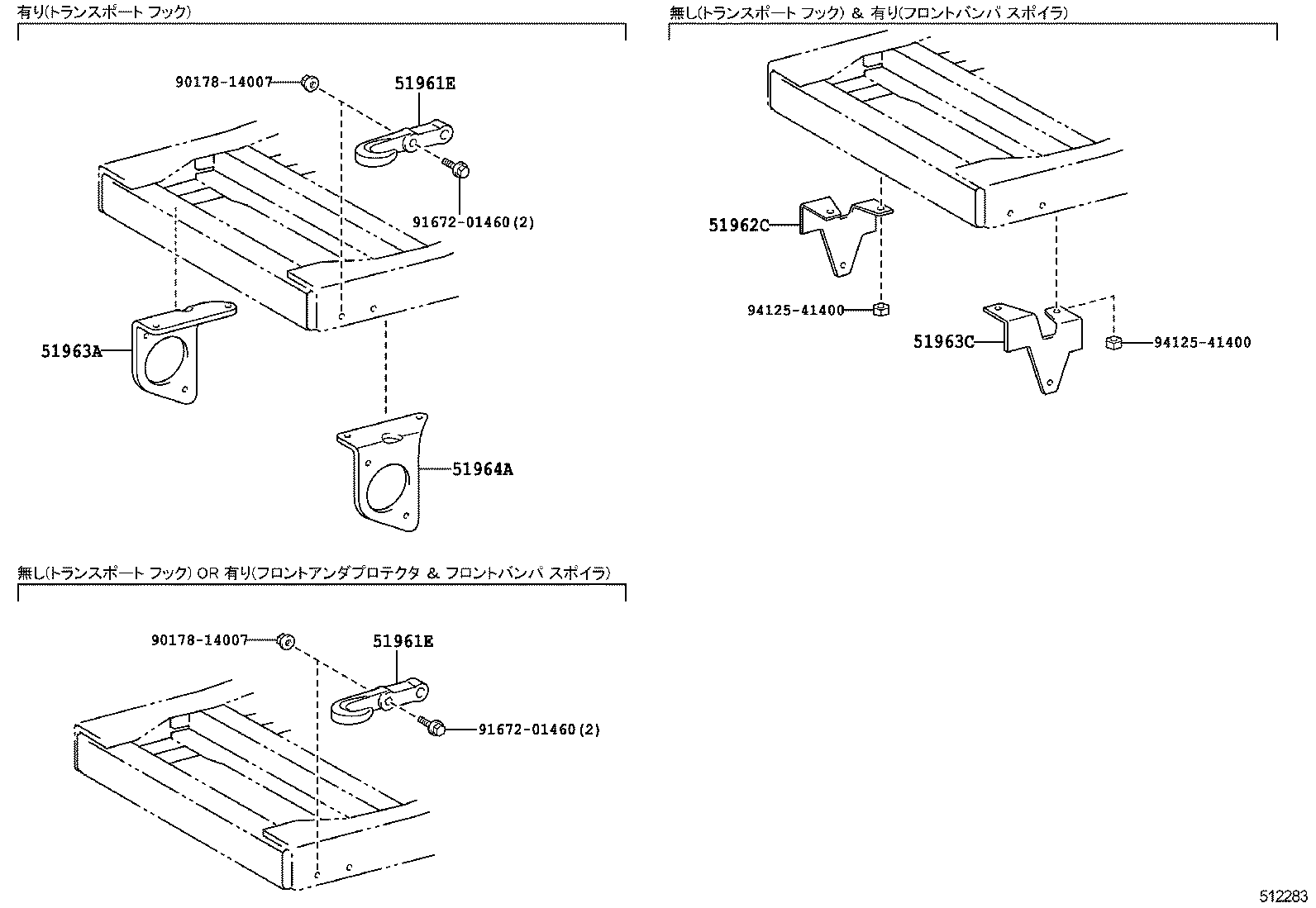

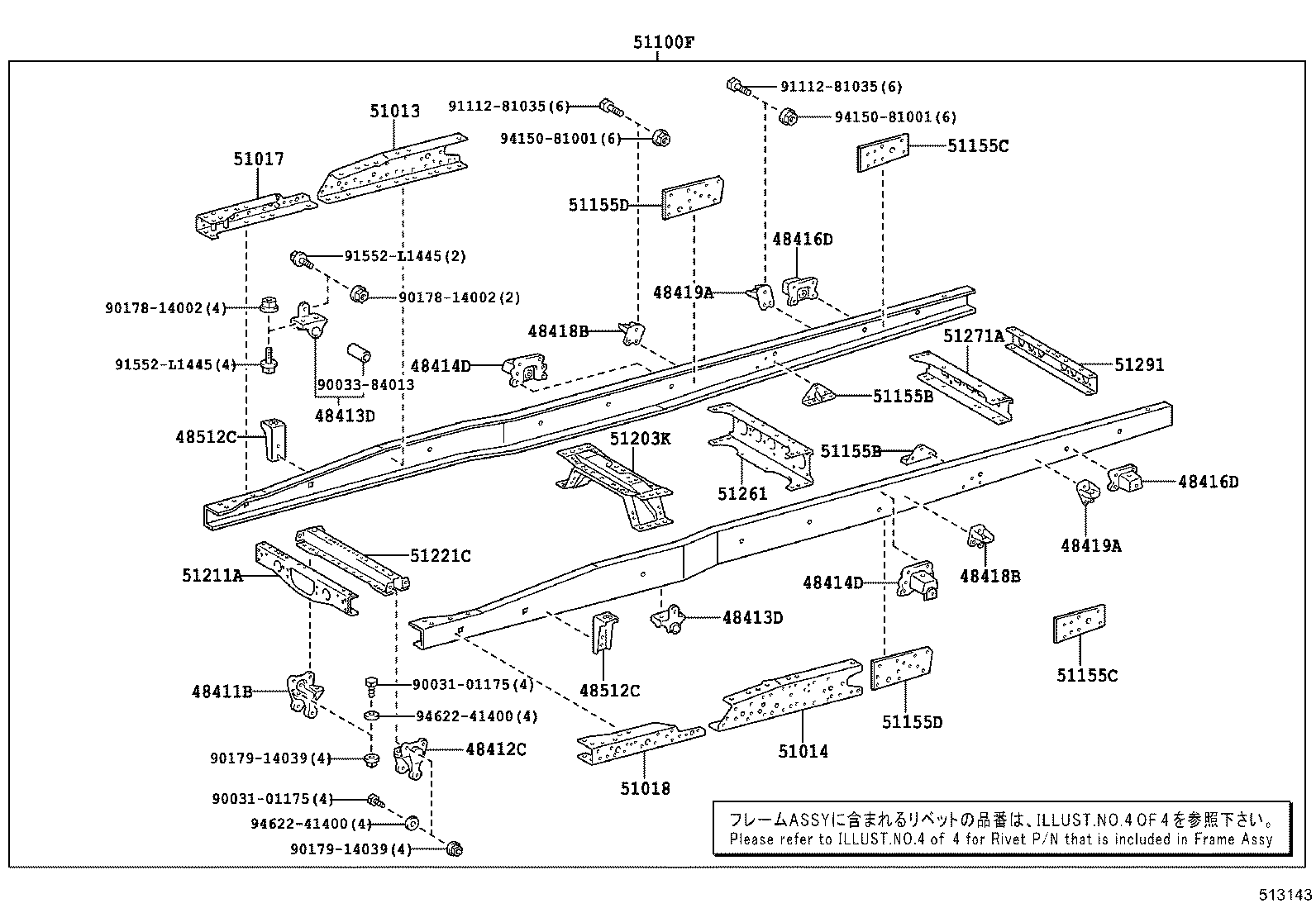

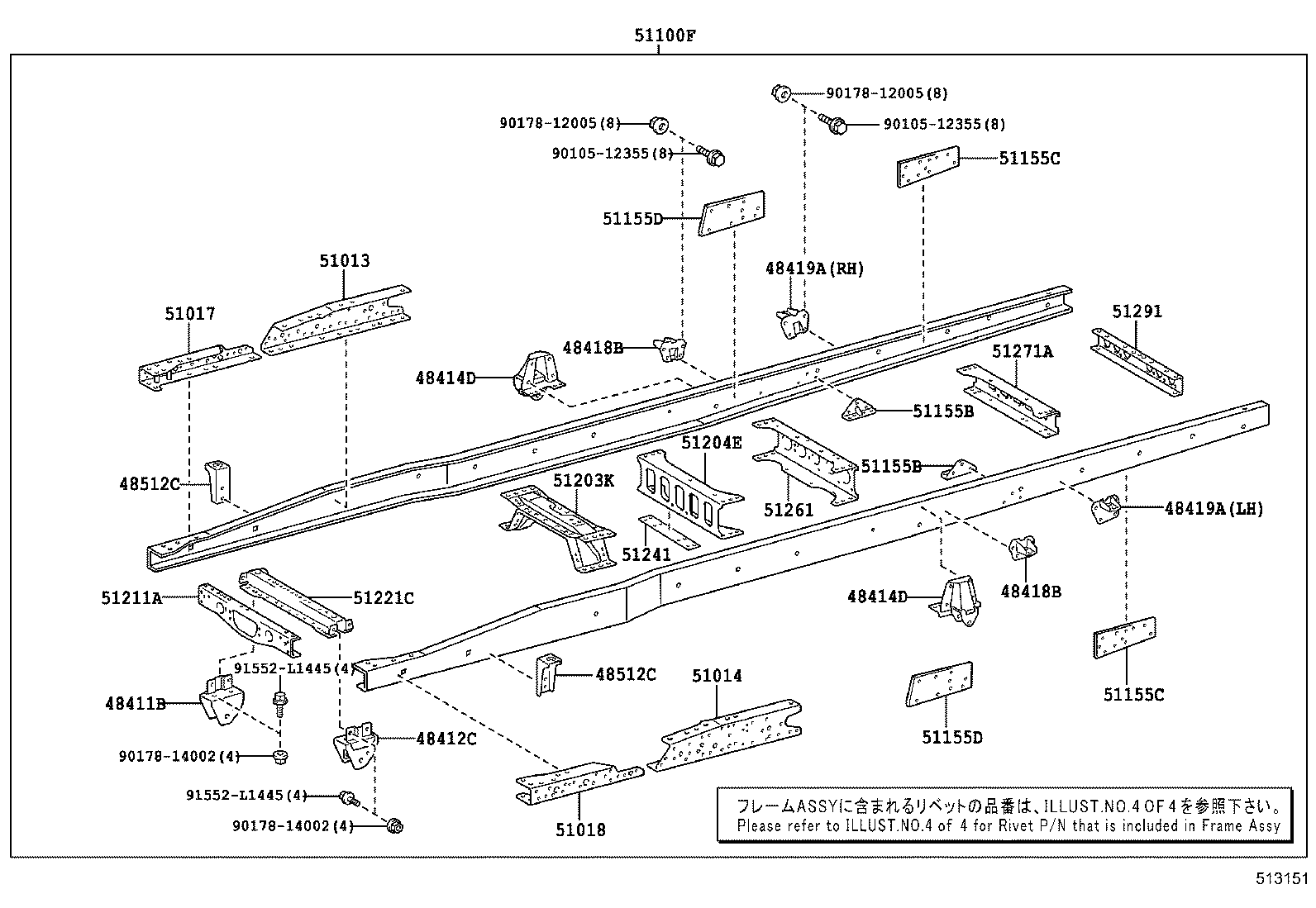

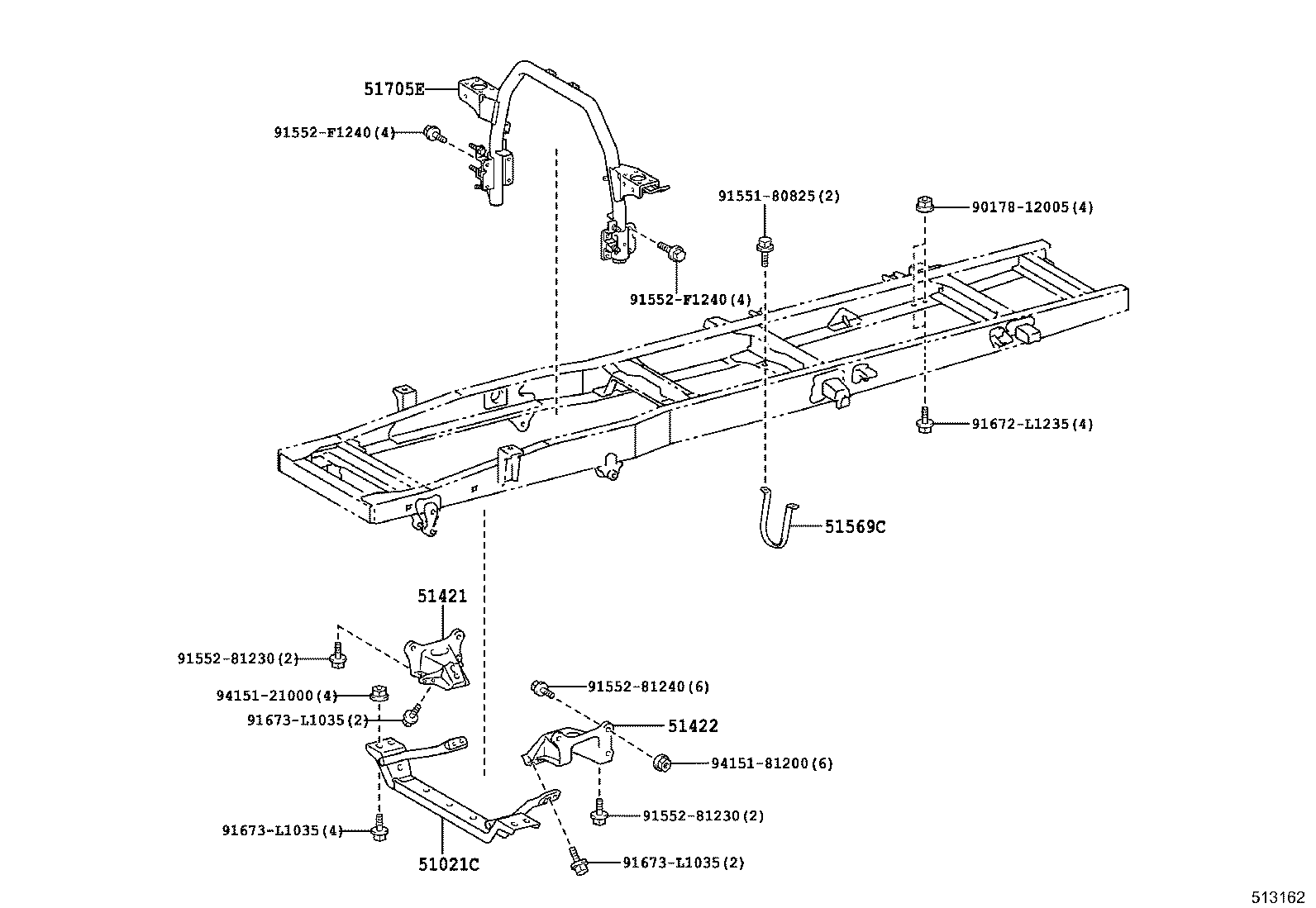

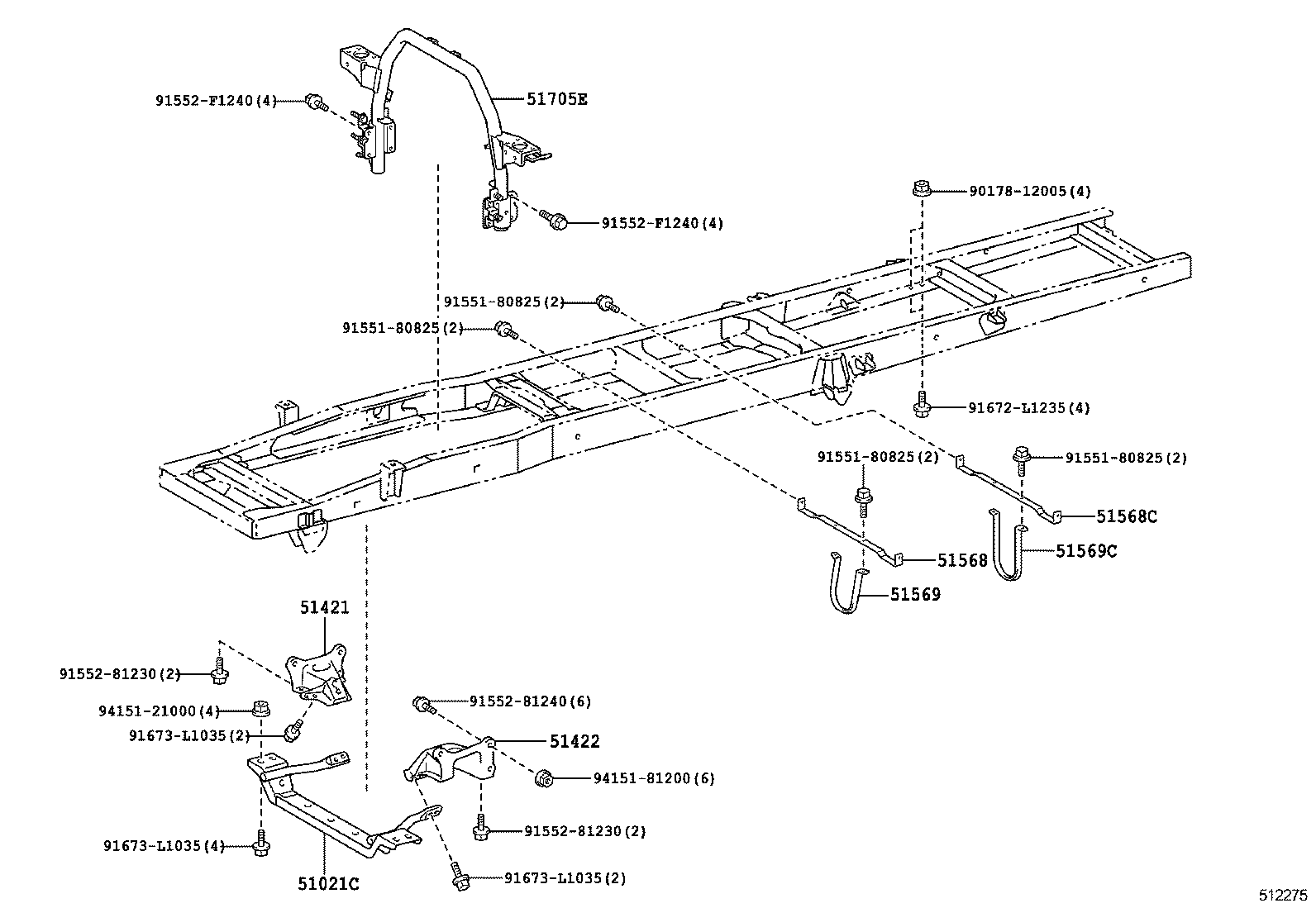

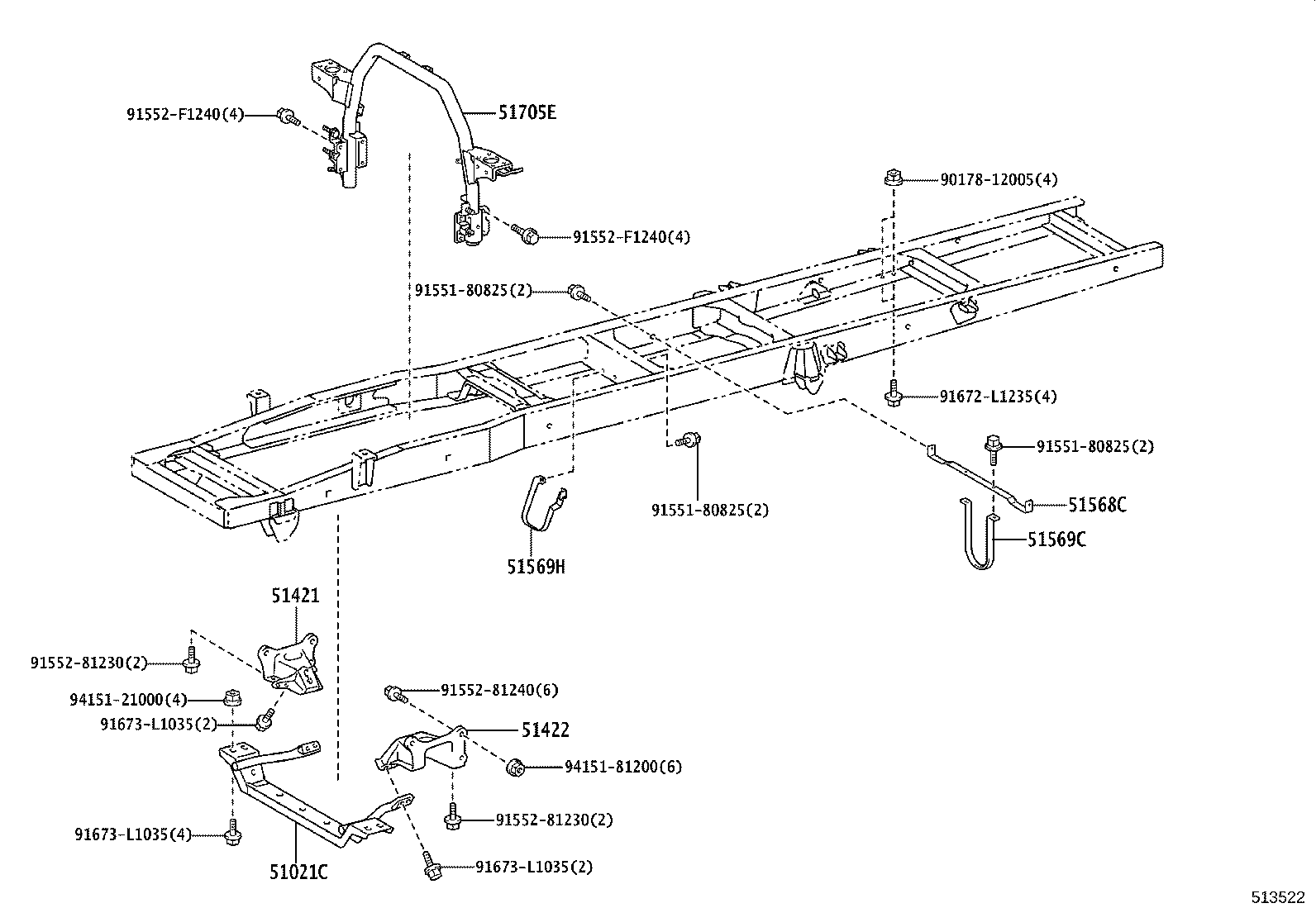

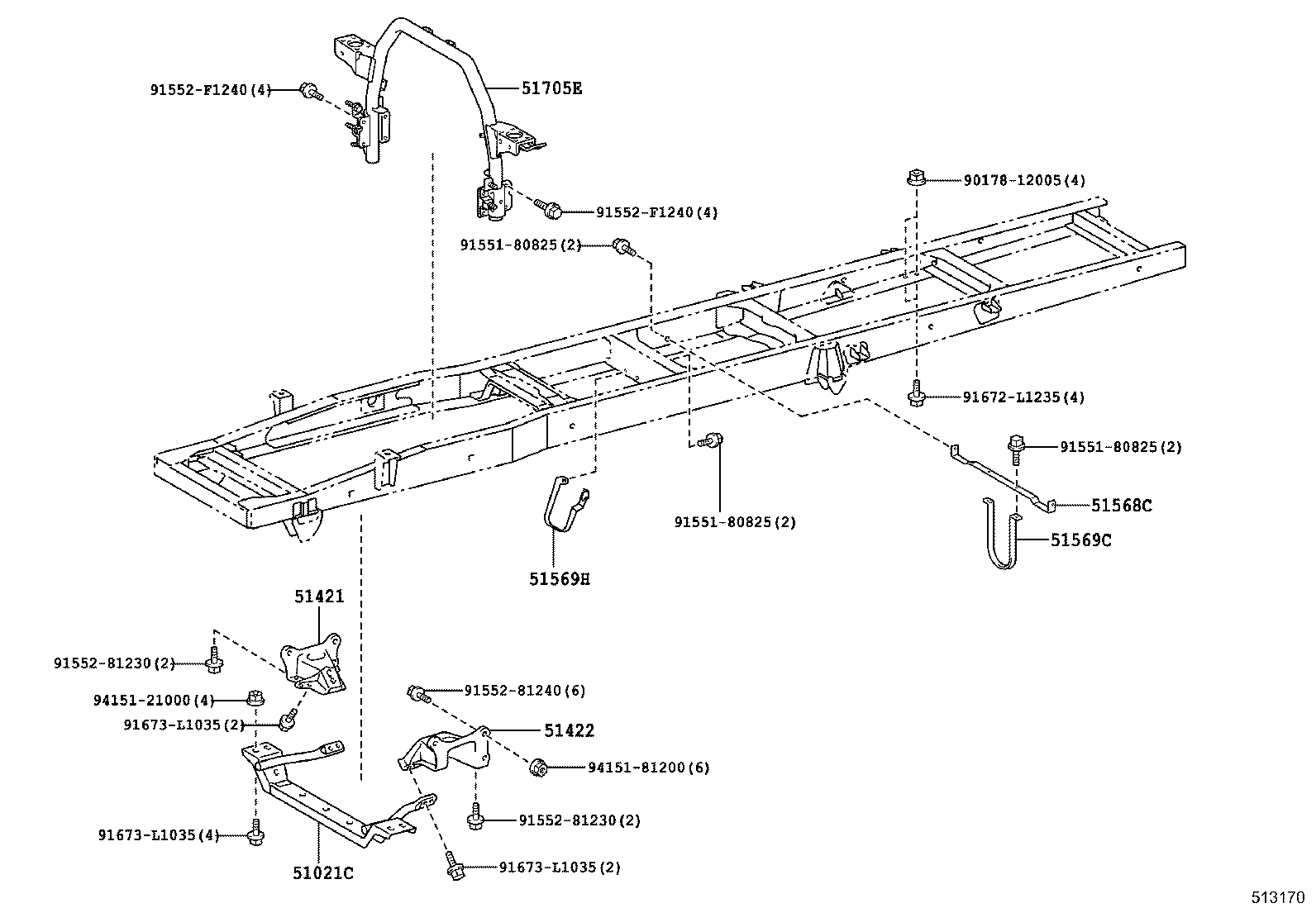

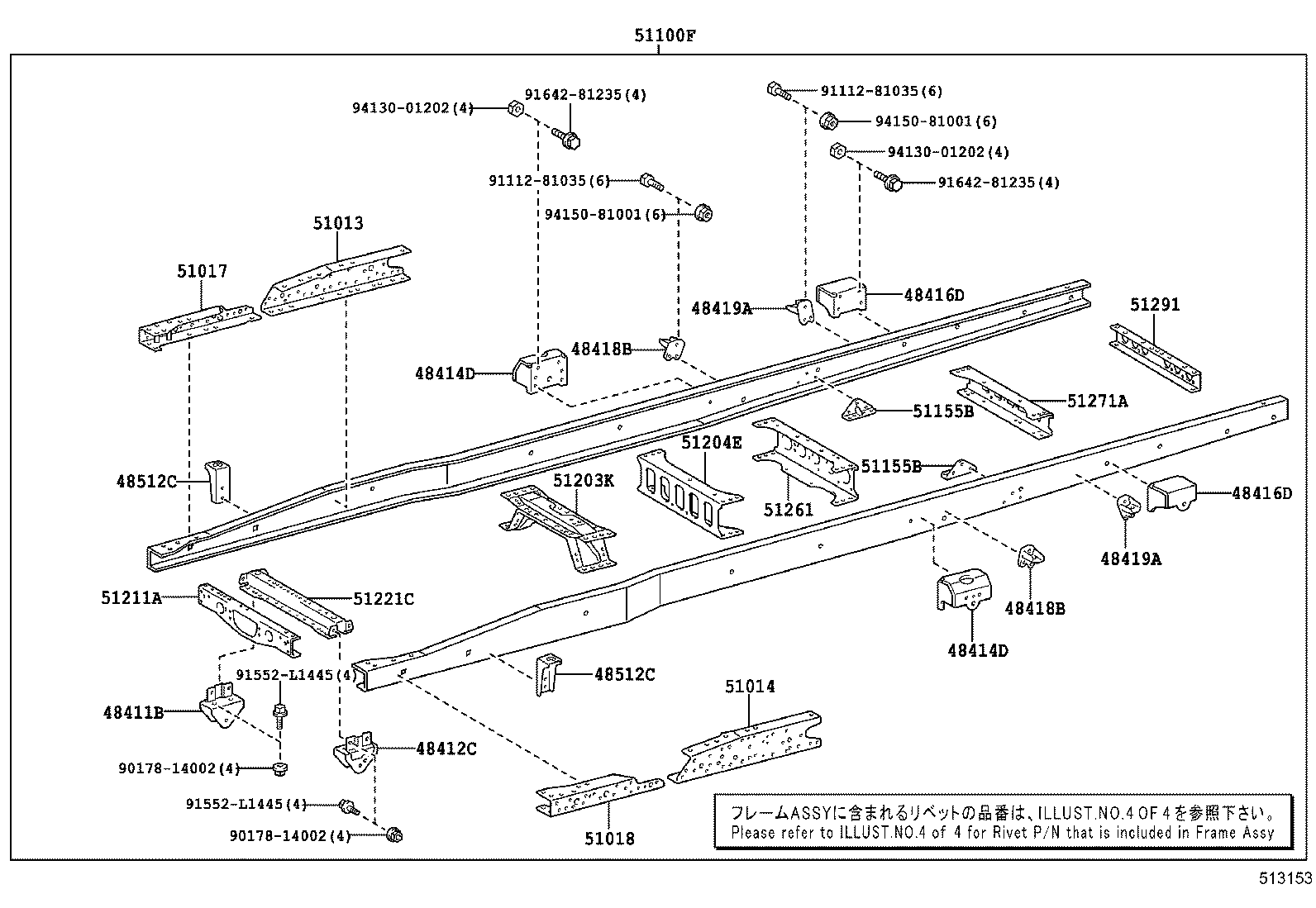

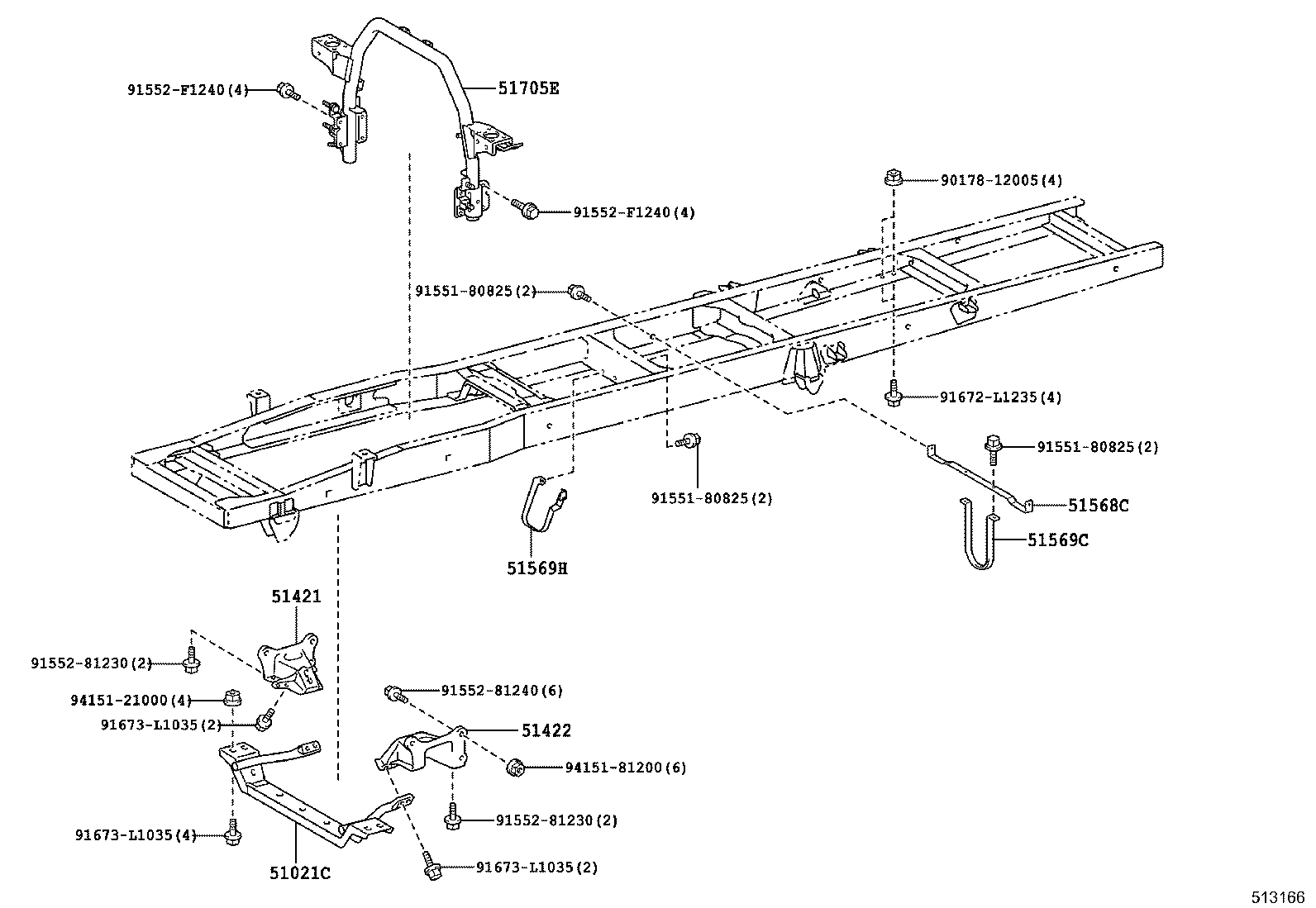

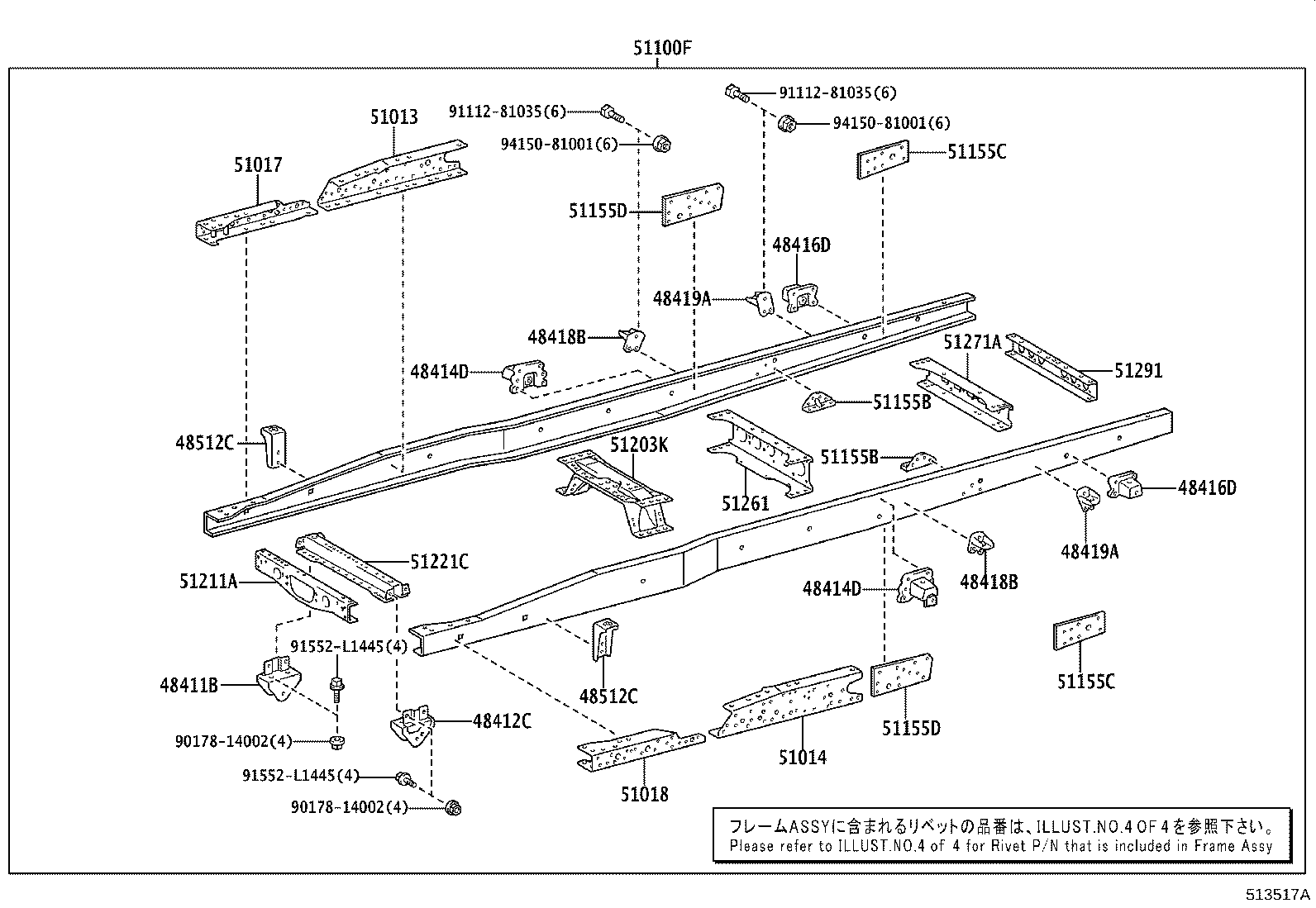

Figure 512256A 512256A 2011-07 → 2017-05 Figure 512263 512263 2011-07 → 2017-05 Figure 512260 512260 2011-07 → 2017-05 Figure 512269 512269 2011-07 → 2017-05 Figure 512266 512266 2011-07 → 2017-05 Figure 513143 513143 2017-05 → — Figure 513148 513148 2017-05 → — Figure 513151 513151 2017-05 → — Figure 513153 513153 2017-05 → — Figure 513155 513155 2017-05 → — Figure 513517A 513517A 2019-05 → — Figure 513513 513513 2019-05 → — Figure 513516 513516 2019-05 → — Figure 513511 513511 2019-05 → — Figure 513512 513512 2019-05 → — Figure 512281 512281 2011-07 → 2017-05 Figure 512282 512282 2011-07 → 2017-05 Figure 512275 512275 2011-07 → 2017-05 Figure 513162 513162 2017-05 → — Figure 513170 513170 2017-05 → — Figure 513166 513166 2017-05 → — Figure 513518 513518 2019-05 → — Figure 513519 513519 2019-05 → — Figure 513522 513522 2019-05 → — Figure 512283 512283 2011-07 → — Figure 512284B 512284B 2011-07 → — Figure 513526 513526 2019-05 → — Figure 513529 513529 2019-05 → — Figure 512285A 512285A 2011-07 → —

Part groups

PNCDescription
48411B Bracket, Spring, NO.1 RH
48412C Bracket, Spring, NO.1 LH
48413D Bracket, Spring, NO.2
48414D Bracket, Spring, NO.3
48416D Bracket, Spring, NO.4
48418B Bracket, Spring, NO.6
48419A Bracket, Spring, NO.7
48512C Bracket, Front Shock Absorber, Upper
51013 Channel Sub-assy, Side Rail, Inner Front RH
51014 Channel Sub-assy, Side Rail, Inner Front LH
51017 Reinforcement Sub-assy, Side Rail, NO.1 RH
51018 Reinforcement Sub-assy, Side Rail, NO.1 LH
51021C Member Sub-assy, Engine Front Support
51100F Frame Sub-assy
51155B Stiffener, Frame Side Rail, Rear NO.2
51155C Stiffener, Frame Side Rail, Rear NO.3
51155D Stiffener, Frame Side Rail, Rear NO.1
51203K Crossmember Sub-assy, Frame, NO.3
51204E Crossmember Sub-assy, Frame, NO.4
51211A Crossmember, Frame, Front
51221C Crossmember, Frame, NO.2
51241 Bracket, Center Bearing Support
51241B Crossmember, Frame, NO.4
51261 Crossmember, Frame, NO.6
51271A Crossmember, Frame, NO.7
51291 Crossmember, Frame, Rear
51421 Bracket, Engine Front Mounting, RH
51422 Bracket, Engine Front Mounting, LH
51568 Bracket, Propeller Shaft Guard
51568C Bracket, Propeller Shaft Guard
51569 Guard, Propeller Shaft
51569C Guard, Propeller Shaft
51569H Guard, Propeller Shaft
51705E Bracket Sub-assy, Cab Rear Mounting
51961E Hook, Front
51961J Hook, Rear
51962C Retainer, Front Hook
51963A Hook, Transport, Front RH
51963C Retainer, Front Hook, LH
51964A Hook, Transport, Front LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
