Toyota Dyna/Toyoace HV

2011-07 → present · chassis XKU7## · catalogue 773120 · Japan

Supported model Data version 2021-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator Grille

8 part groups · 3 illustrations

Illustrations

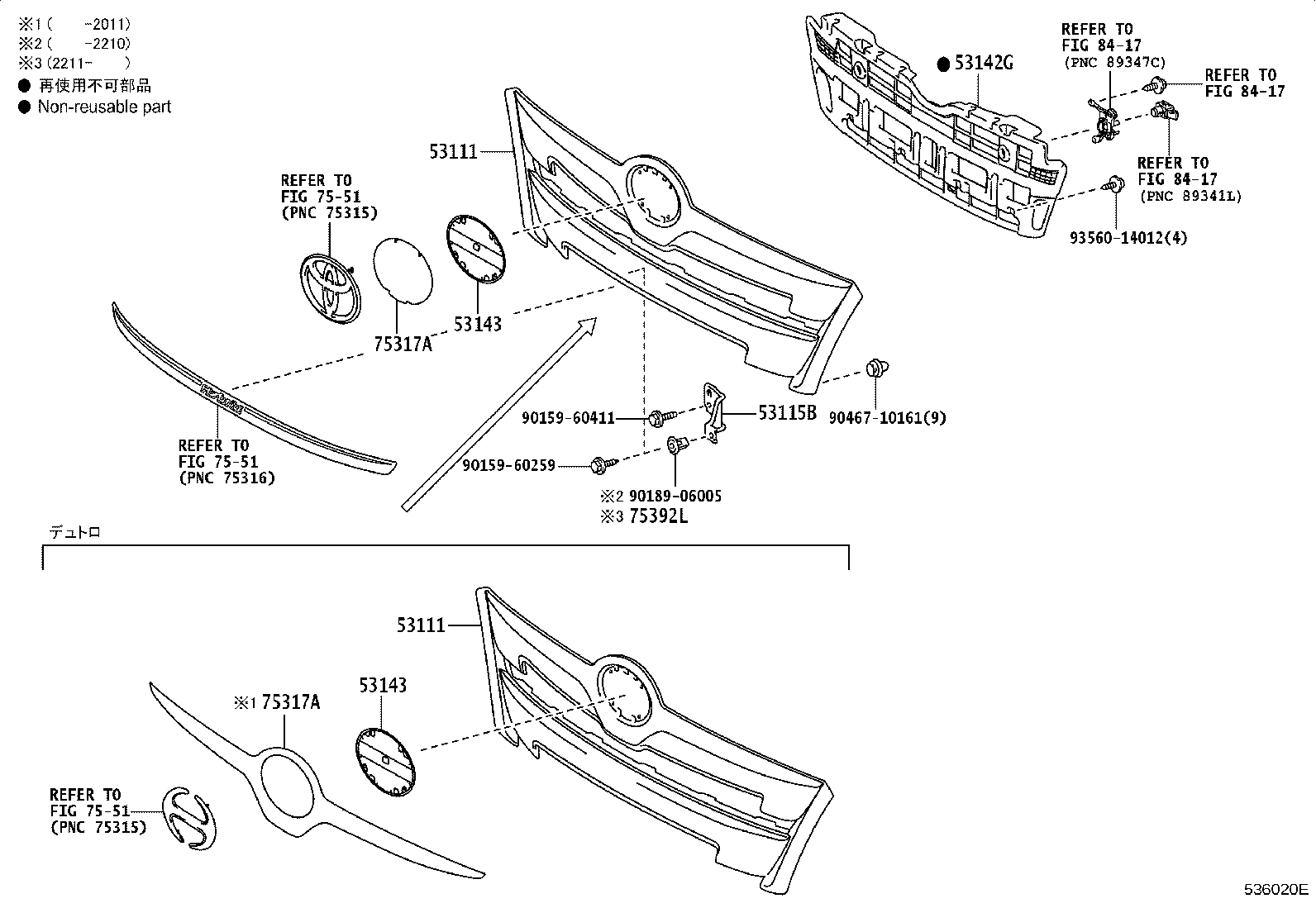

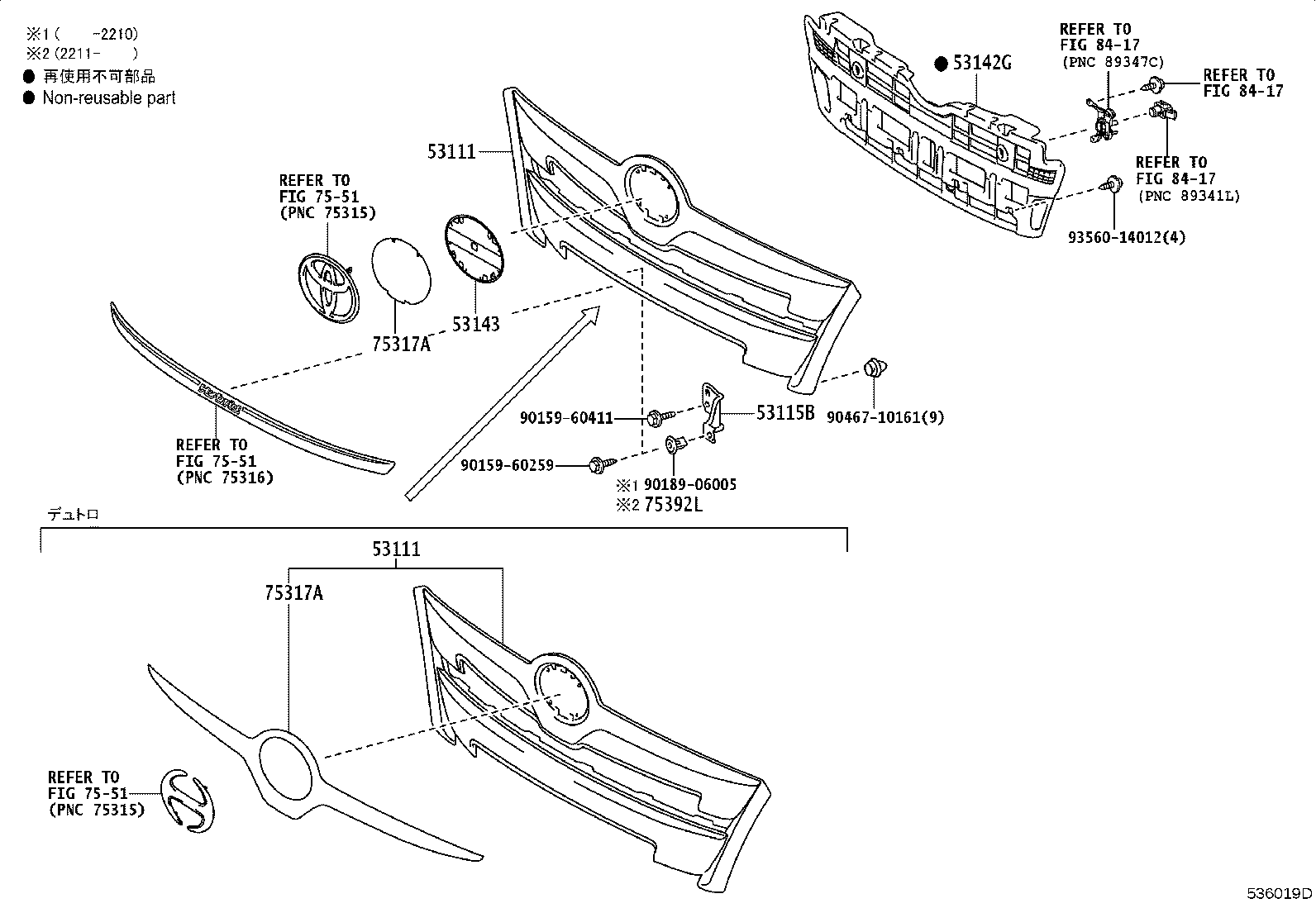

Figure 533487D 533487D 2011-07 → — Figure 536019D 536019D 2019-05 → — Figure 536020E 536020E 2019-05 → —

Part groups

PNCDescription
53111 Grille, Radiator
53115B Bracket, Radiator Grille
53141E Cover, Radiator, NO.1
53142G Garnish, Radiator Grille, NO.2
53143 Garnish, Radiator Grille, NO.3
53155D Seal, Radiator Grille, NO.1
75317A Plate, Radiator Grille Ornament
75392L Retainer, Outside Moulding
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
