Toyota Dyna/Toyoace HV

2011-07 → present · chassis XKU7## · catalogue 773120 · Japan

Supported model Data version 2021-03

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Body Floor & Fender

46 part groups · 5 illustrations

Illustrations

Figure 651094G

651094G 2011-07 → 2023-03

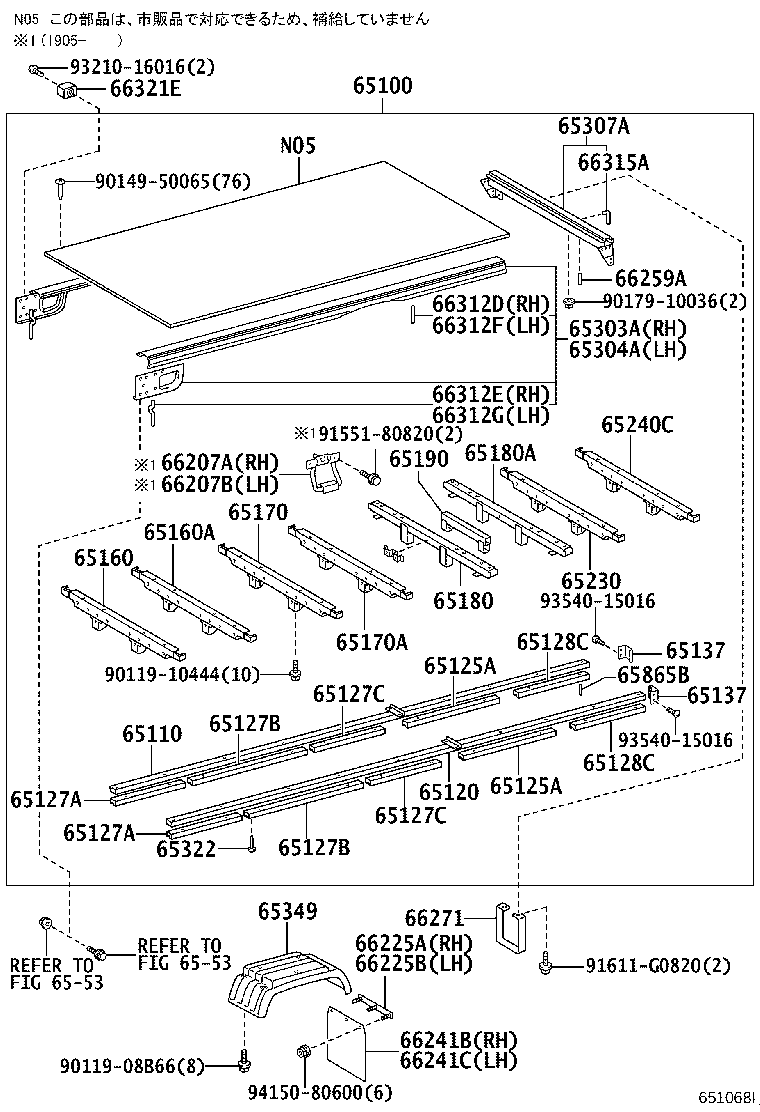

Figure 651068I

651068I 2011-07 → 2023-03

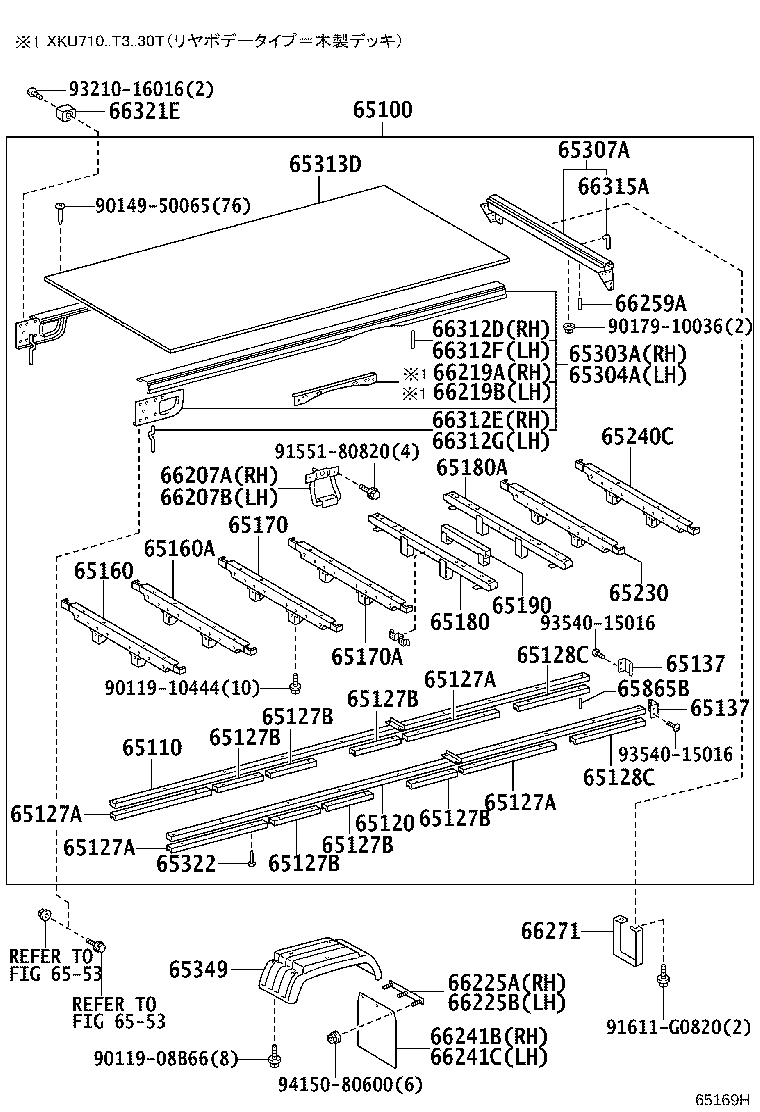

Figure 65169H

65169H 2023-03 → —

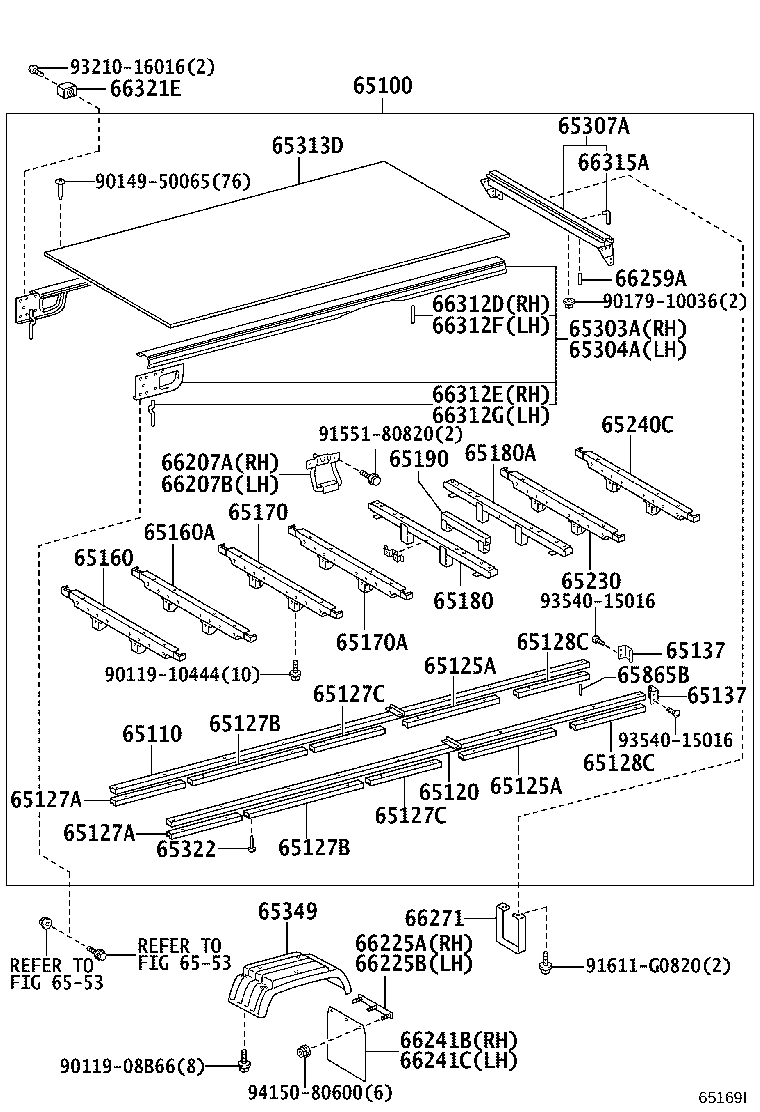

Figure 65169I

65169I 2023-03 → —

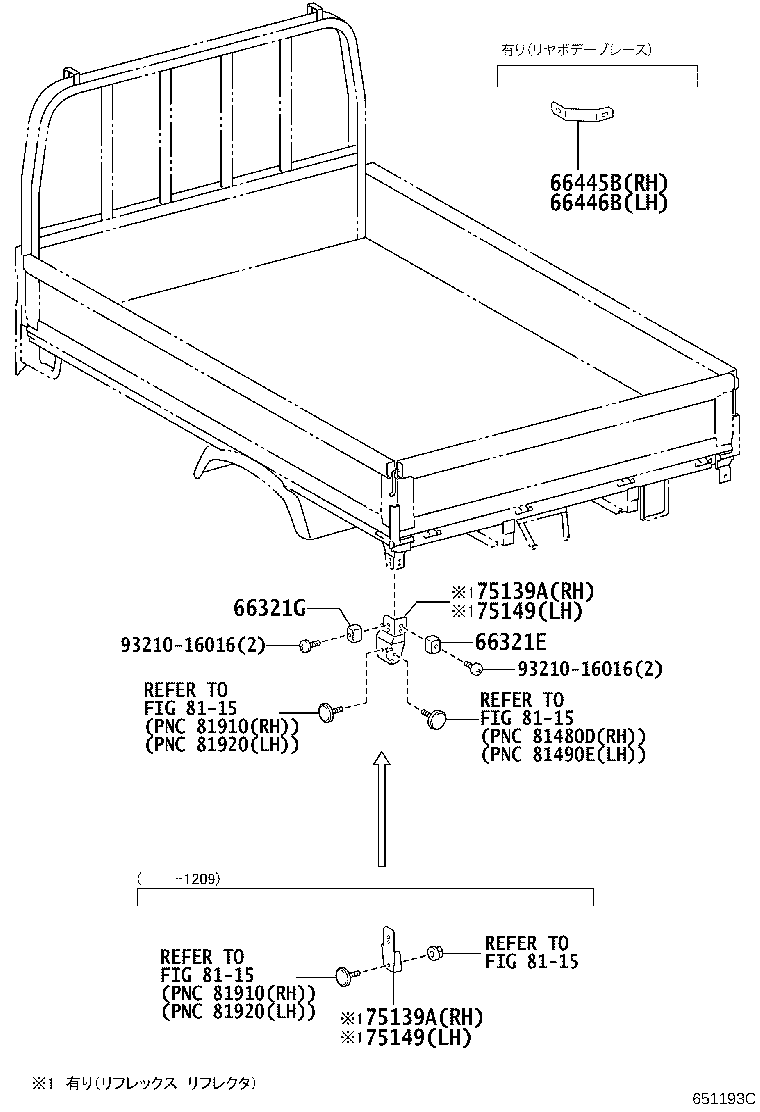

Figure 651193C

651193C 2011-07 → —

Part groups

PNC	Description
65100	Floor Assy, Rear Body
65110	Sill Assy, Main, RH
65120	Sill Assy, Main, LH
65125A	Shim, Main Sill, Lower NO.1
65127A	Shim, Main Sill, Lower NO.1
65127B	Shim, Main Sill, Lower NO.2
65127C	Shim, Main Sill, Lower NO.3
65128C	Shim, Main Sill, Lower NO.4
65137	Cover, Main Sill End
65160	Sill Assy, Cross, NO.2
65160A	Sill Assy, Cross, NO.2
65170	Sill Assy, Cross, NO.2
65170A	Sill Assy, Cross, NO.3
65180	Sill Assy, Cross, NO.4
65180A	Sill Assy, Cross, NO.6
65190	Sill Assy, Cross, NO.5
65230	Sill Assy, Cross, NO.8
65240C	Sill Assy, Cross, NO.9
65303A	Frame Sub-assy, Floor Side, RH
65304A	Frame Sub-assy, Floor Side, LH
65307A	Frame Sub-assy, Floor, Rear
65313D	Board, Floor
65322	Nail
65349	Fender, Floor Side
65865B	Pin, Cover Top Guide
66207A	Step Sub-assy, Rear Body, RH
66207B	Step Sub-assy, Rear Body, LH
66219A	Extension, Rear Fender
66219B	Extension, Rear Fender
66225A	Support, Baffle Rubber
66225B	Support, Buffle Rubber
66241B	Baffle, Rubber
66241C	Buffle, Rubber
66259A	Cover, Rear Body Floor, Rear
66271	Step, Rear Body
66312D	Hook, Rope, NO.2
66312E	Hook, Rope, NO.2
66312F	Hook, Rope, NO.2
66312G	Hook, Rope, NO.2
66315A	Hook, Rope
66321E	Bumper, Gate Rubber
66321G	Bumper, Gate Rubber
66445B	Brace, Frame TO Rear Body
66446B	Brace, Frame TO Rear Body, NO.2
75139A	Bracket, Reflex Reflector, RH
75149	Bracket, Reflex Reflector, LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
