Toyota Dyna/Toyoace HV

2011-07 → present · chassis XKU7## · catalogue 773120 · Japan

Supported model Data version 2021-03

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

40 part groups · 13 illustrations

Illustrations

Figure 827621D

827621D 2011-07 → 2019-05

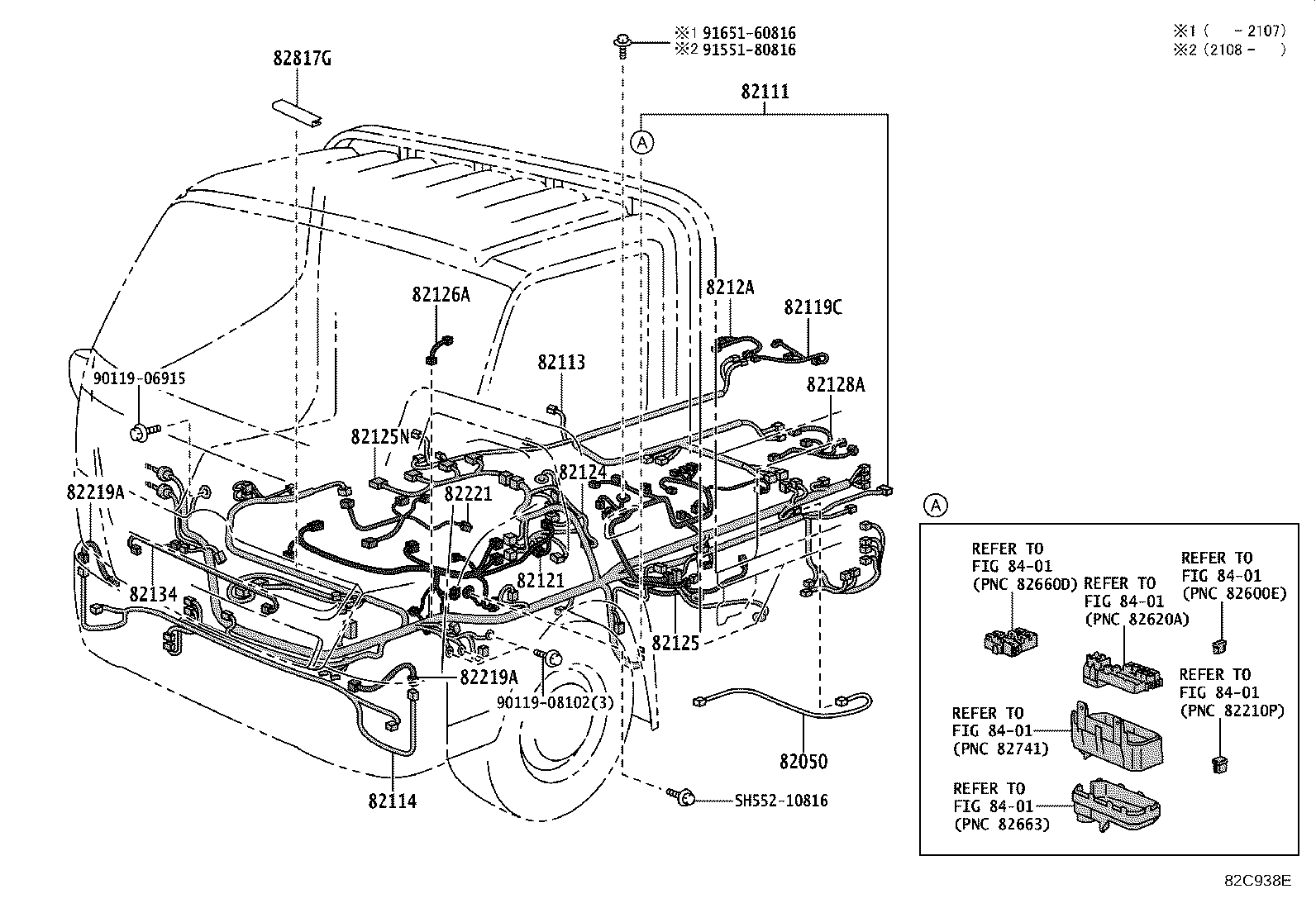

Figure 82C938E

82C938E 2019-05 → —

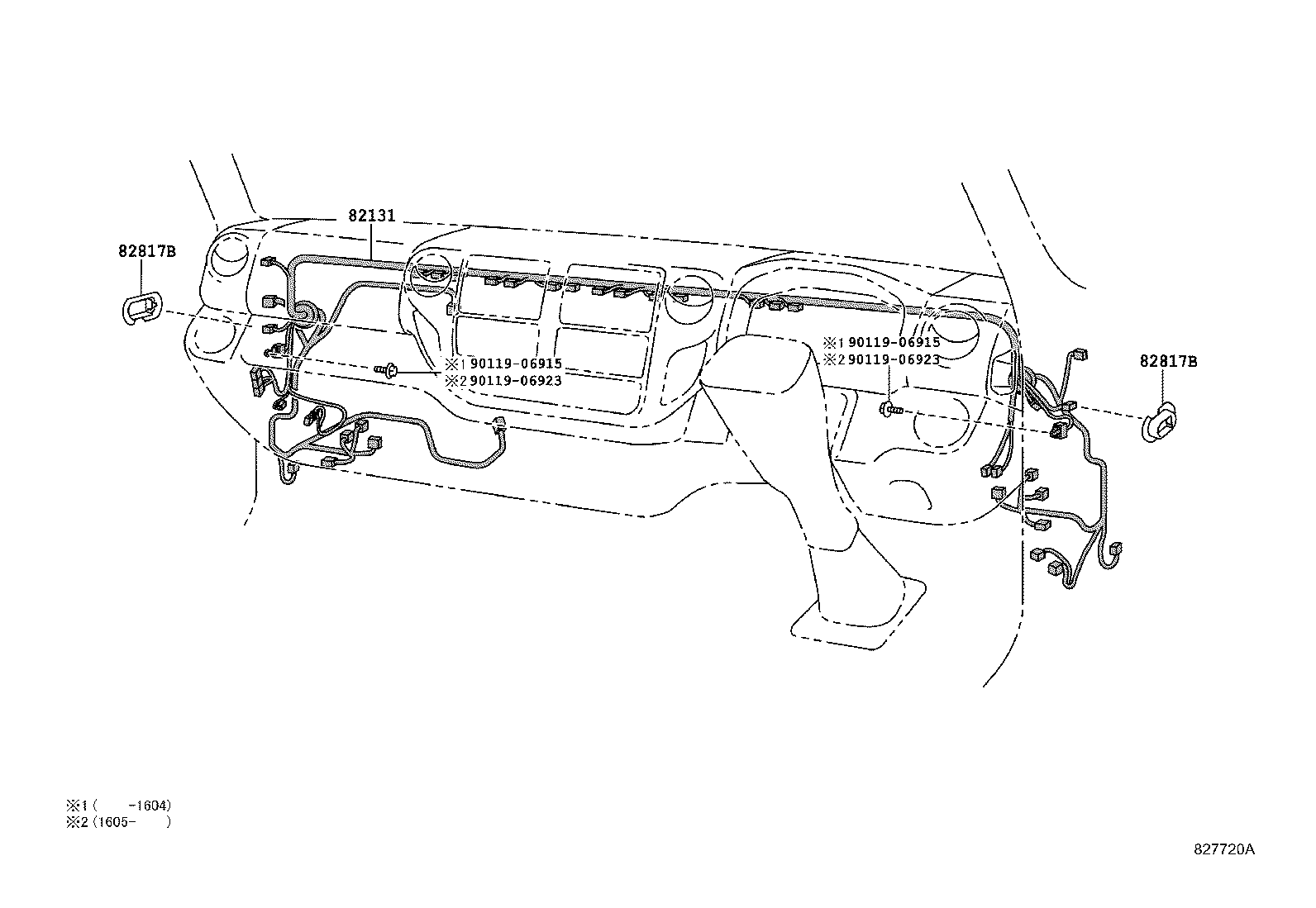

Figure 827720A

827720A 2011-07 → —

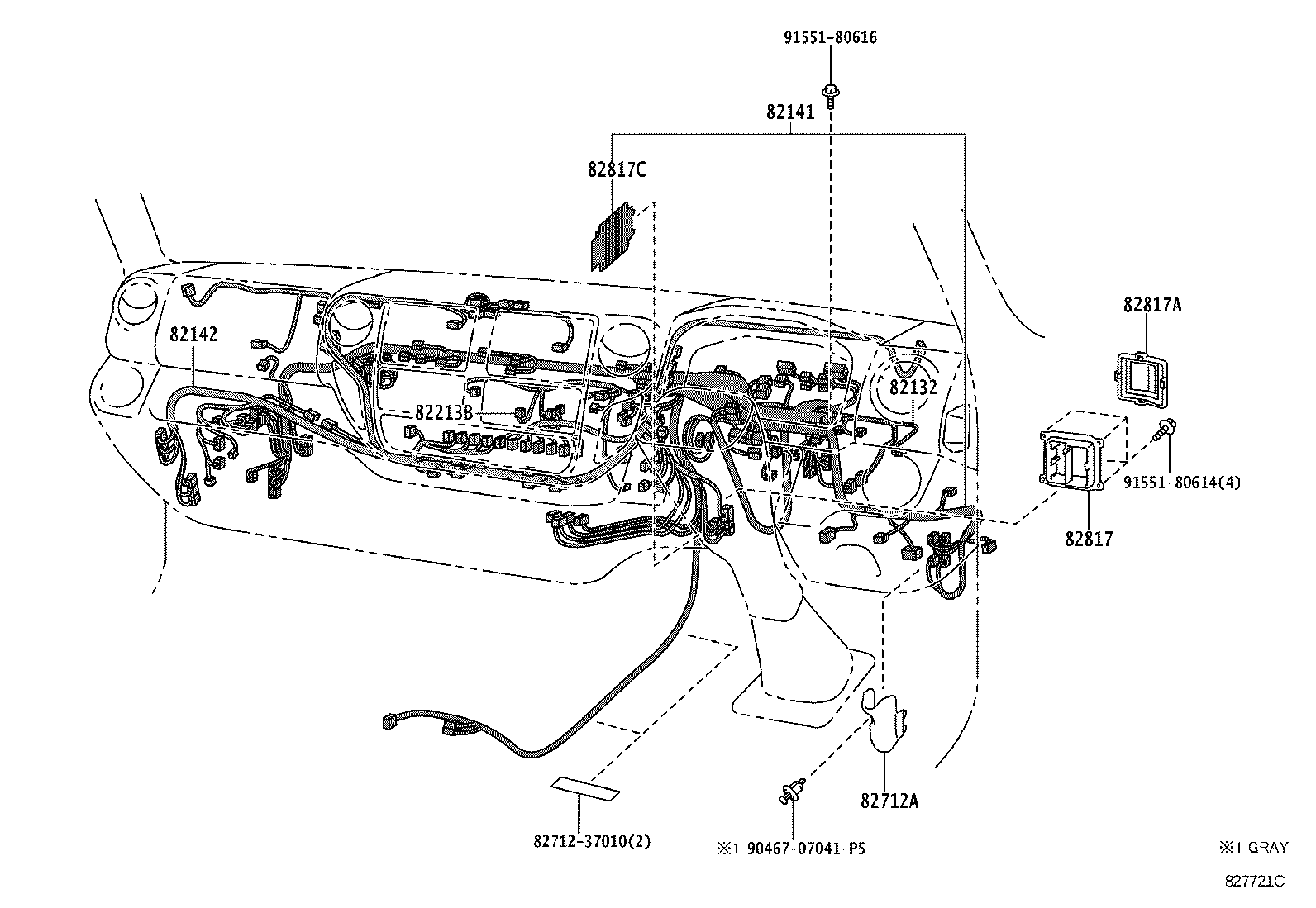

Figure 82B820

82B820 2011-07 → 2017-05

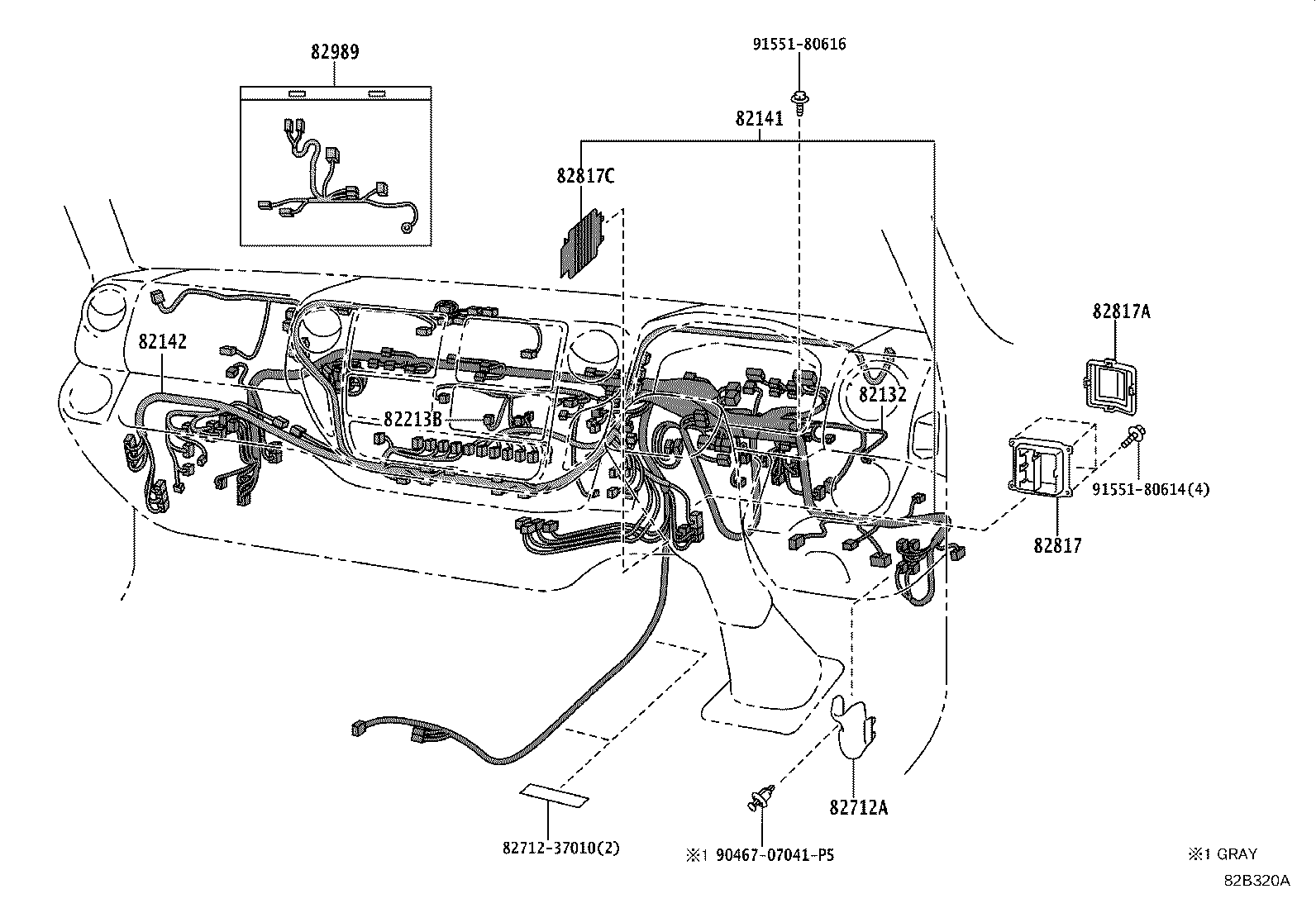

Figure 82B320A

82B320A 2017-05 → —

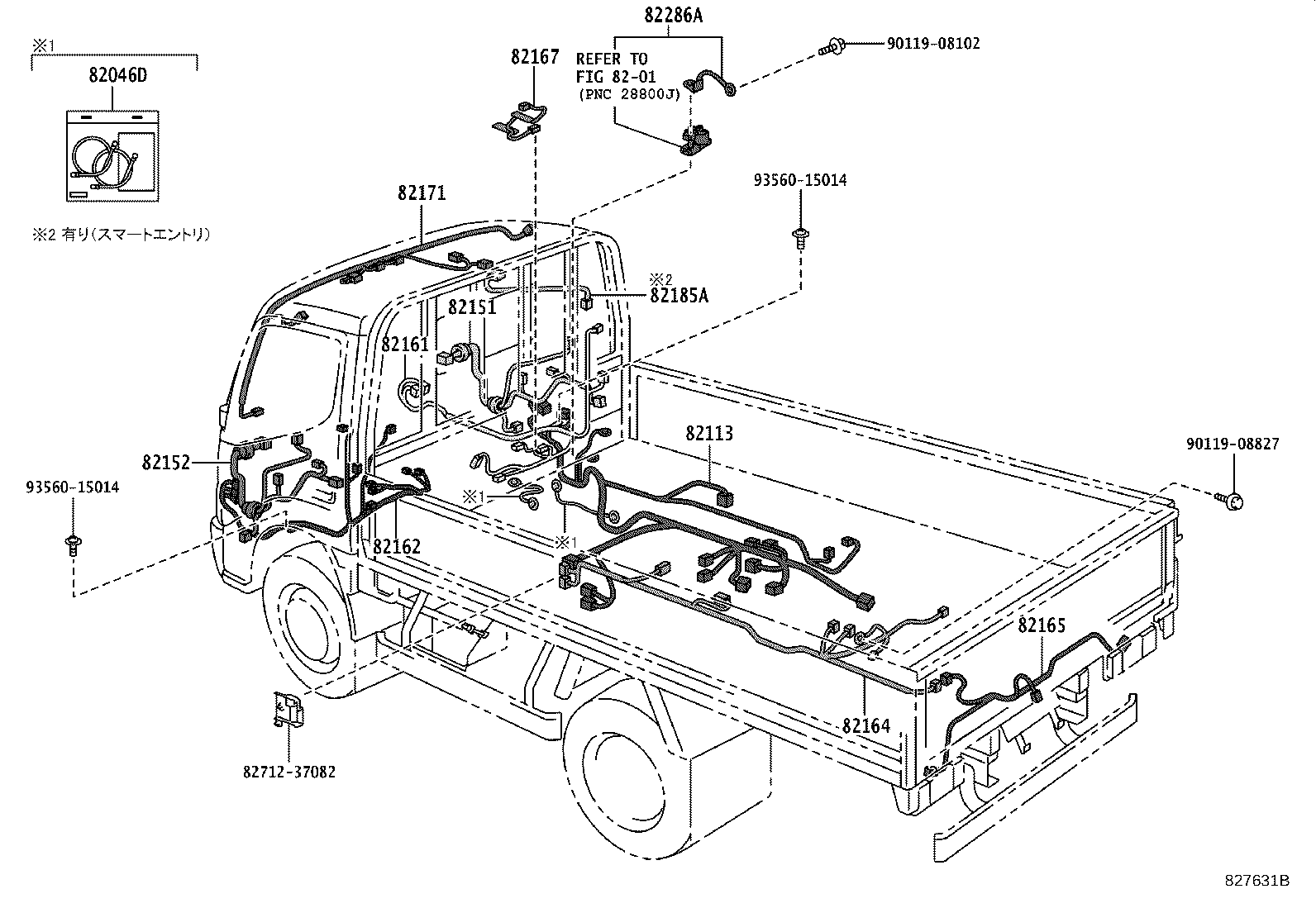

Figure 827631B

827631B 2011-07 → 2017-05

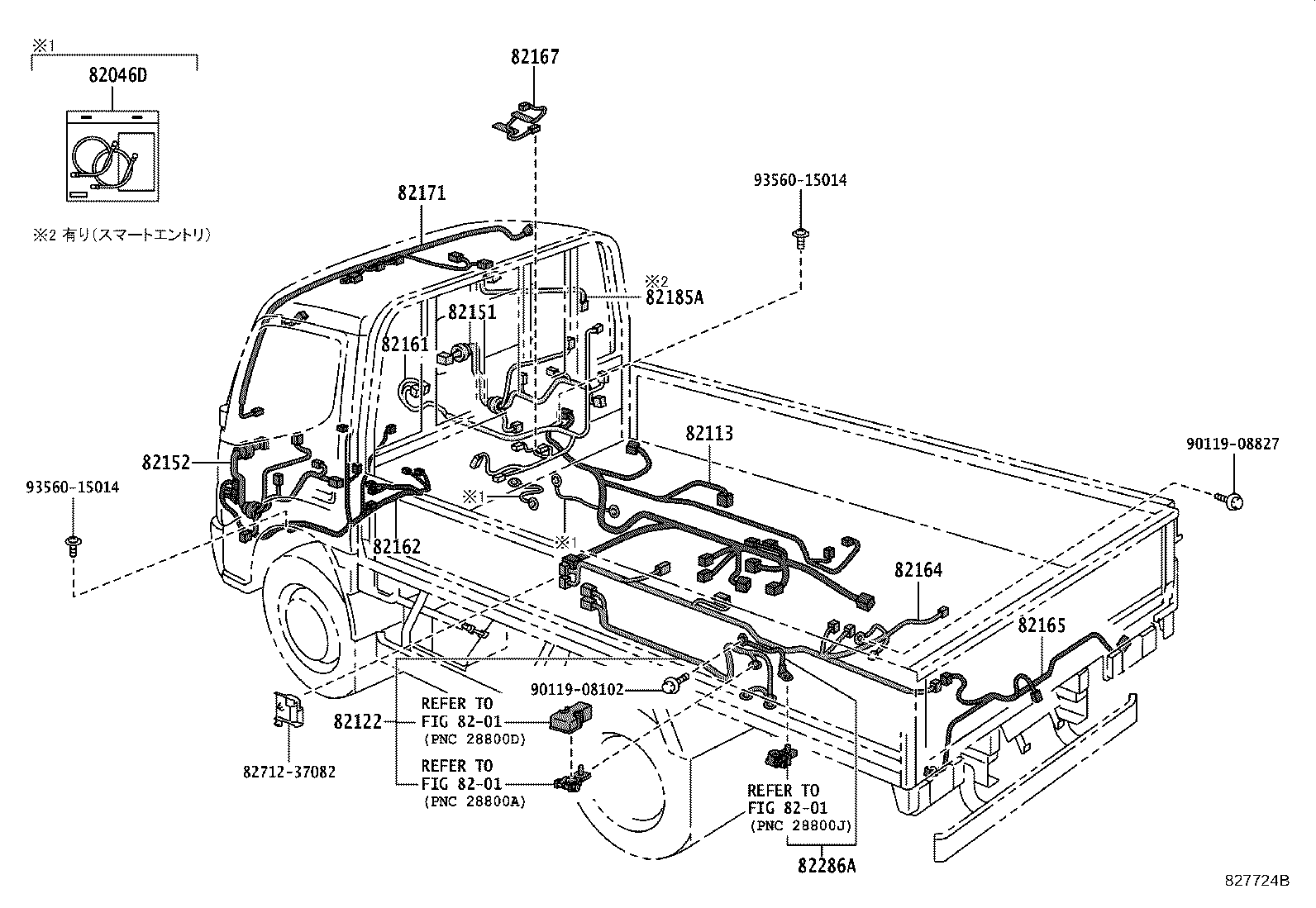

Figure 827724B

827724B 2011-07 → 2017-05

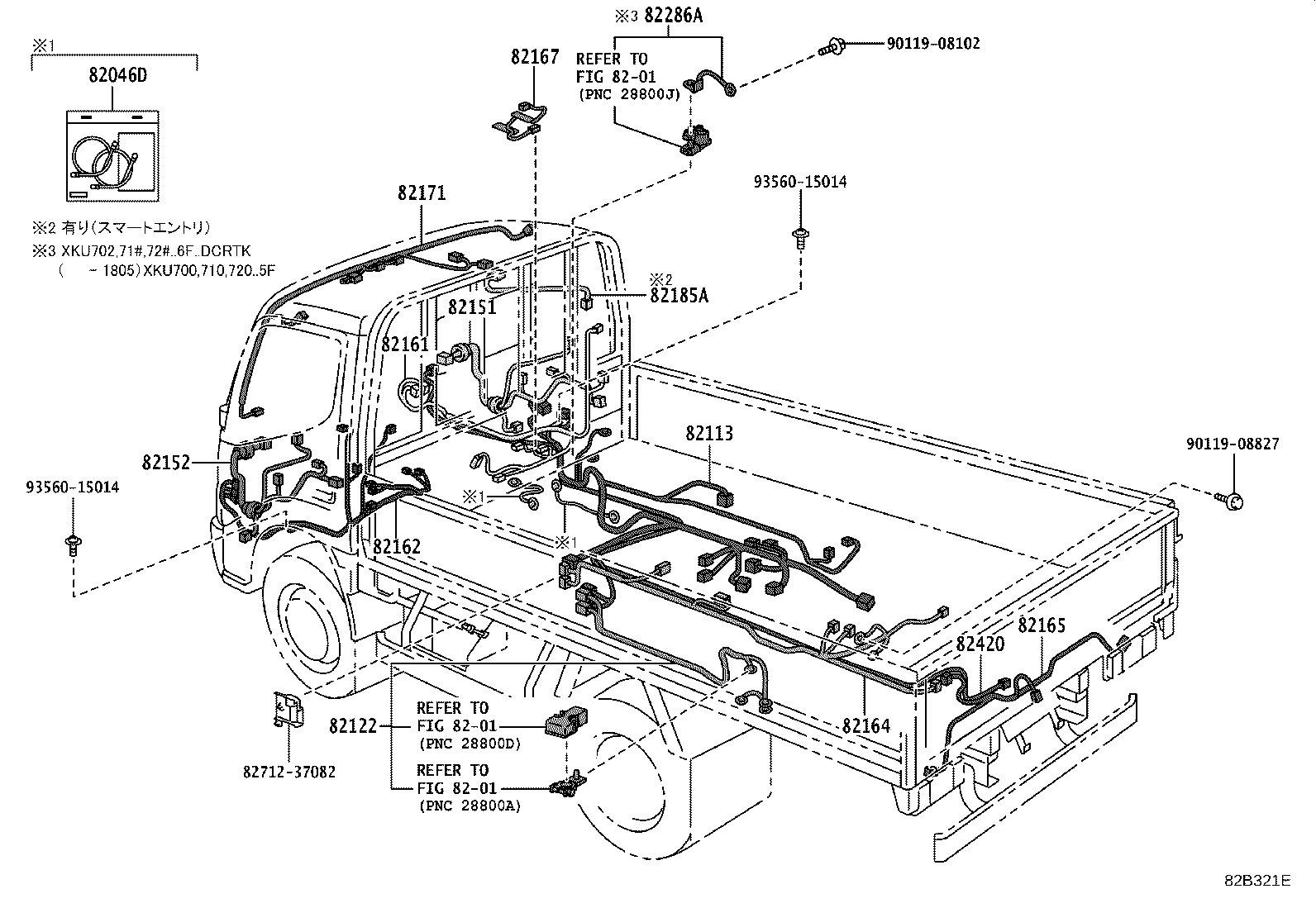

Figure 82B321E

82B321E 2017-05 → —

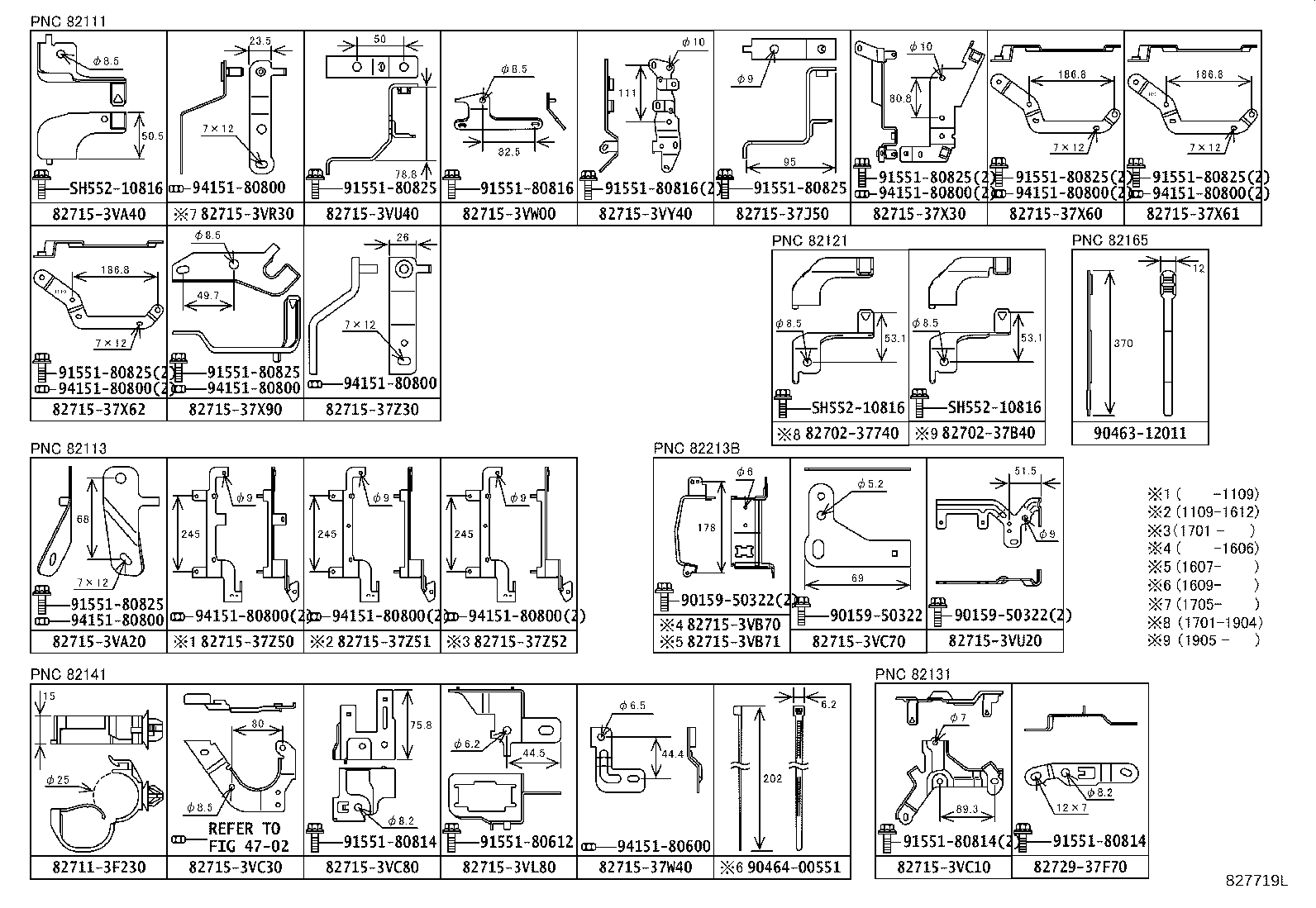

Figure 827719L

827719L 2011-07 → —

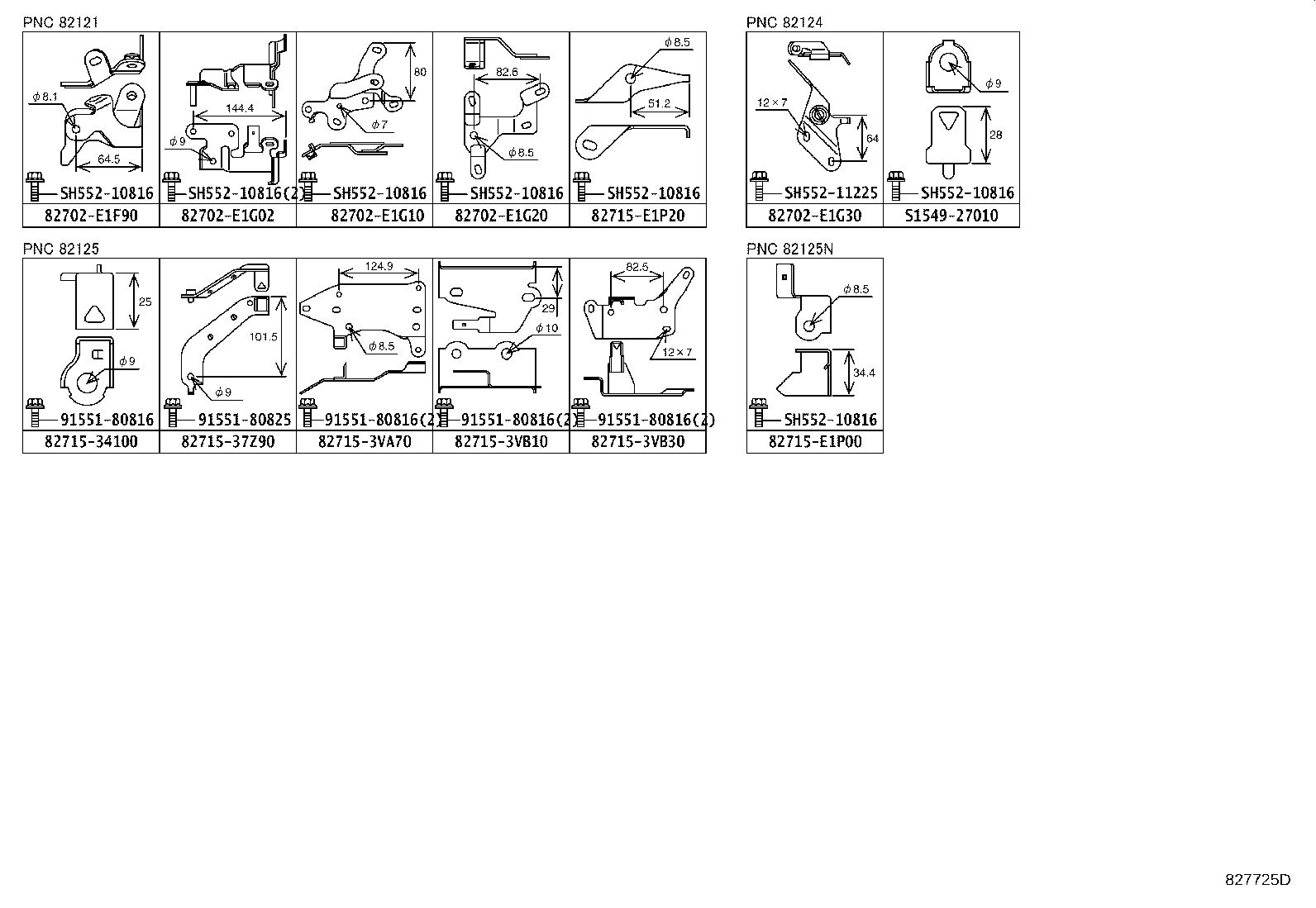

Figure 827725D

827725D 2011-07 → 2017-05

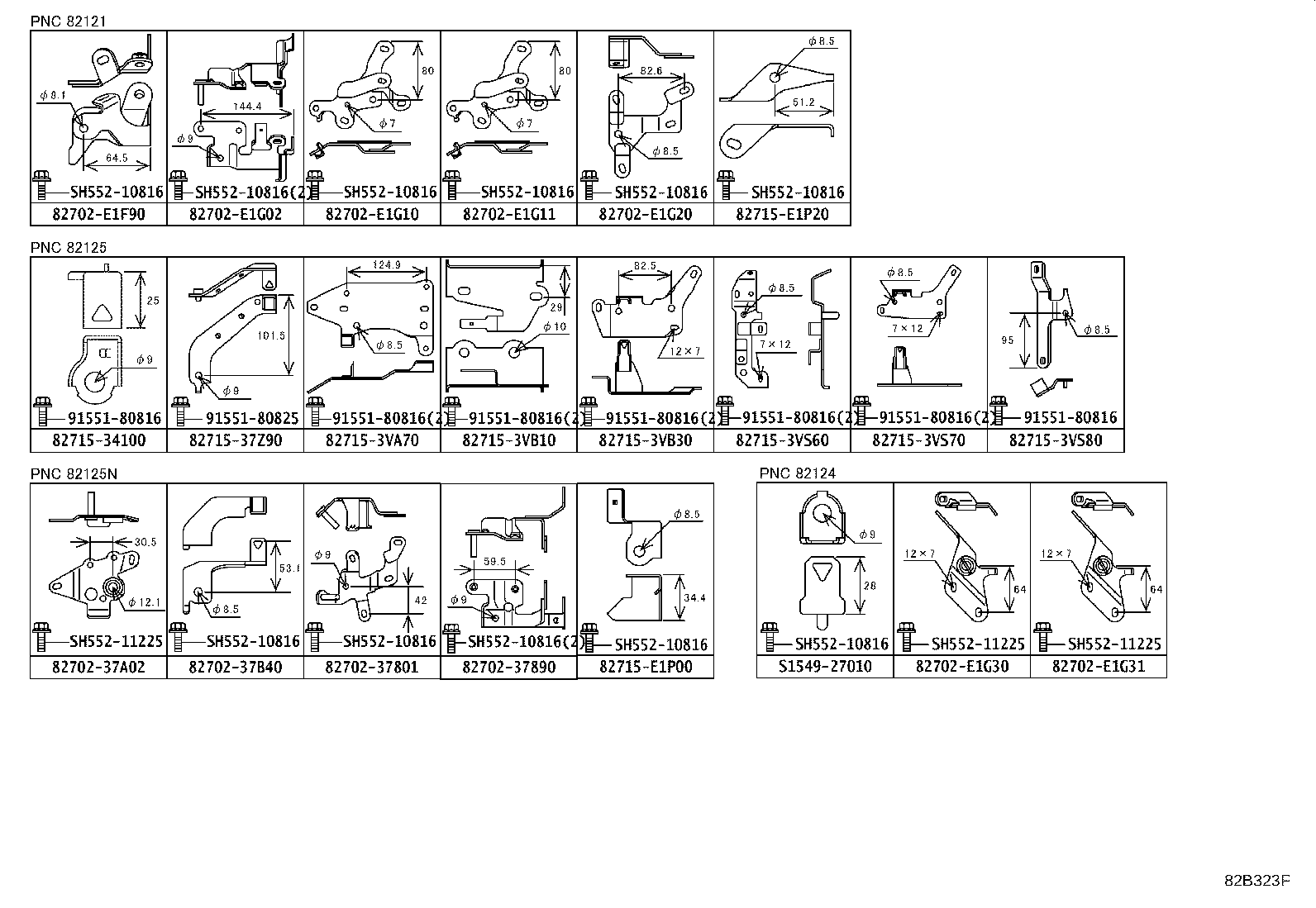

Figure 82B323F

82B323F 2017-05 → —

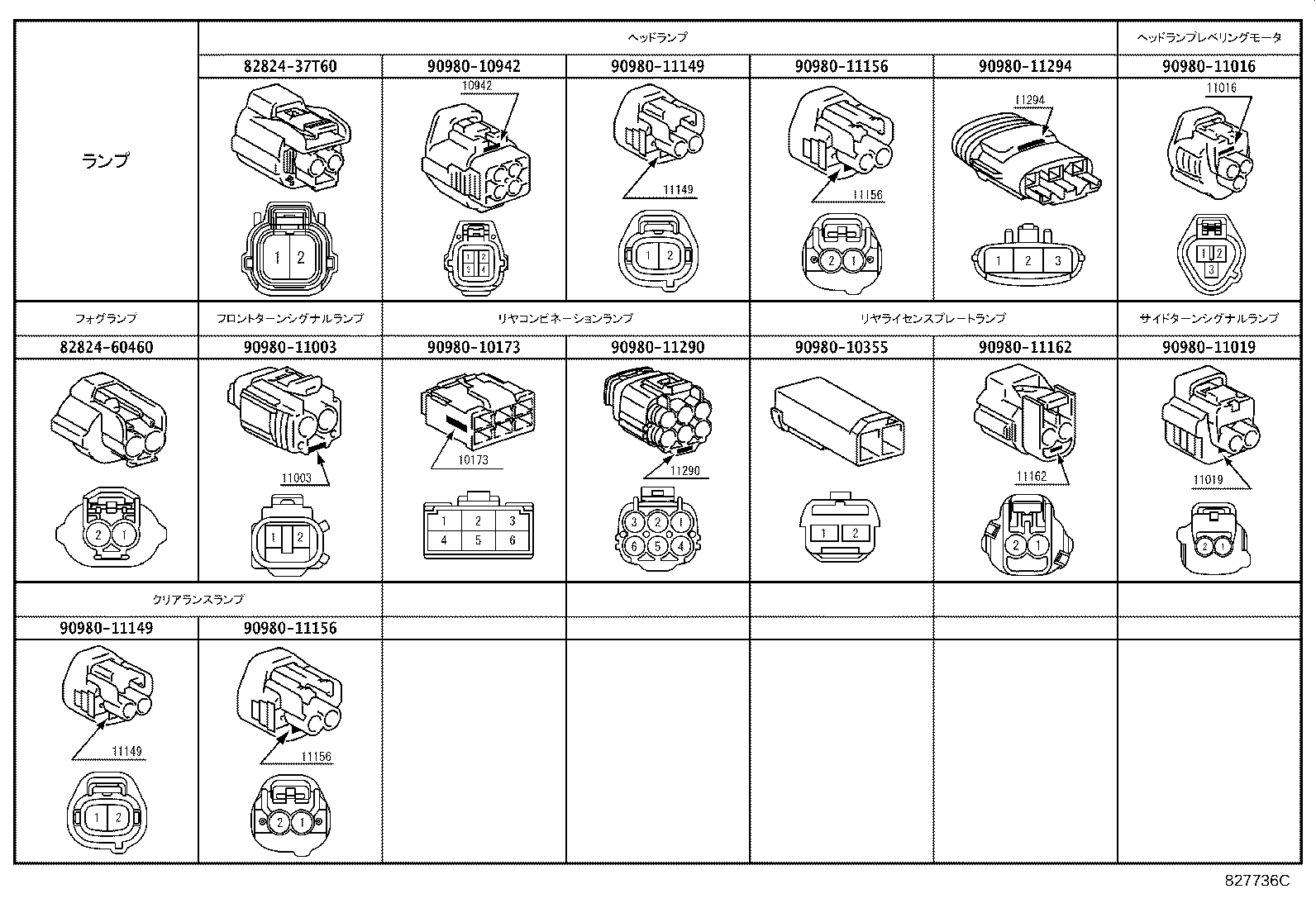

Figure 827736C

827736C 2011-07 → —

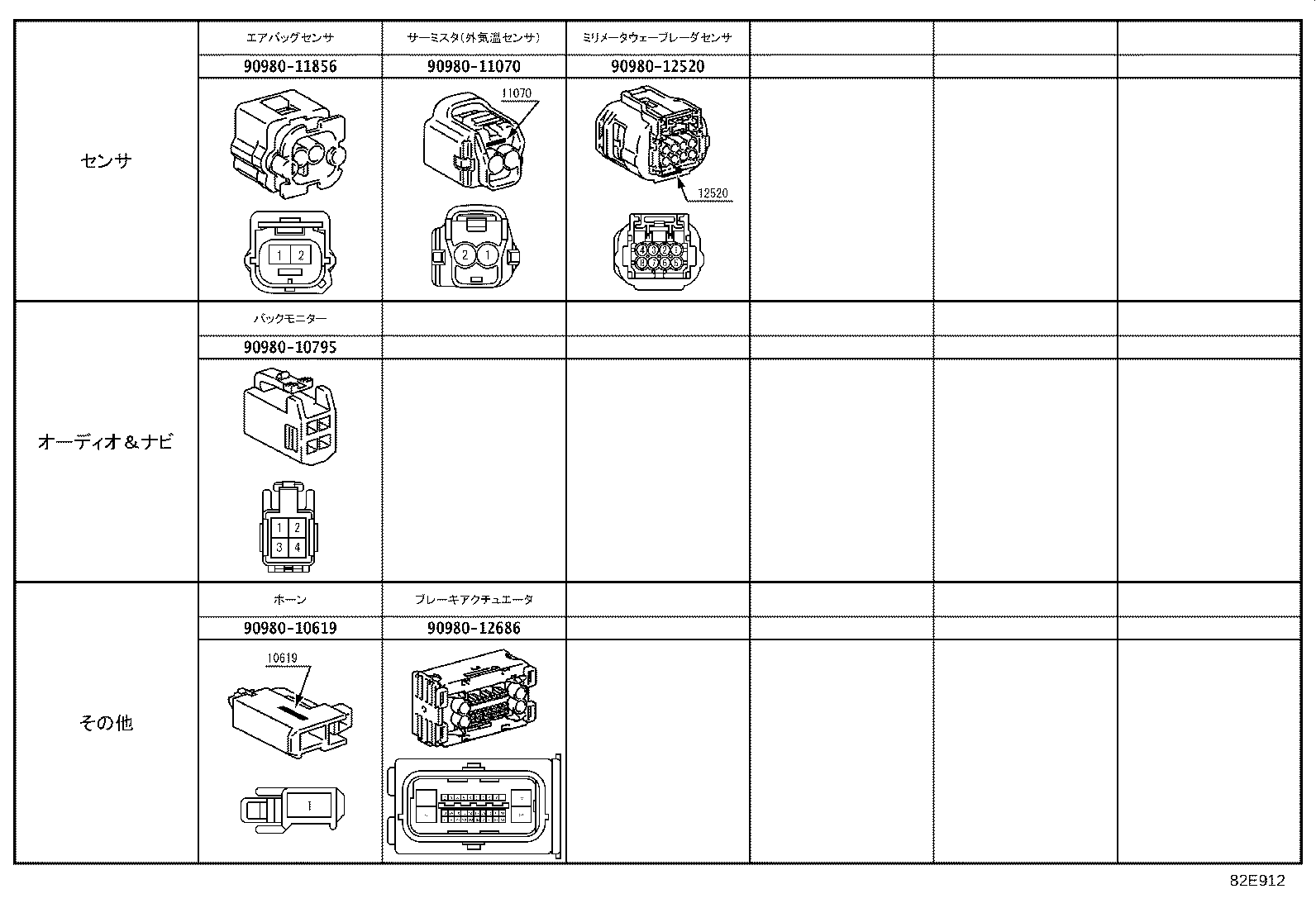

Figure 82E912

82E912 2011-07 → —

Part groups

PNC	Description
82046D	Wire, Body Ground
82050	Wire Assy, Engine
82111	Wire, Engine Room Main
82113	Wire, Engine Room, NO.3
82114	Wire, Engine Room, NO.4
82119C	Wire, Engine Room, NO.5
82121	Wire, Engine
82122	Wire, Engine, NO.2
82124	Wire, Engine, NO.4
82125	Wire, Transmission
82125N	Wire, Engine, NO.5
82126A	Wire, Engine, NO.6
82128A	Wire, Engine, NO.8
8212A	Wire, Engine, NO.9
82131	Wire, Cowl
82132	Wire, Cowl, NO.2
82134	Wire, Cowl, NO.4
82141	Wire, Instrument Panel
82142	Wire, Instrument Panel, NO.2
82151	Wire, Front Door, RH
82152	Wire, Front Door, LH
82161	Wire, Floor
82162	Wire, Floor, NO.2
82164	Wire, Frame
82165	Wire, Frame, NO.2
82167	Wire, Seat, NO.1
82171	Wire, Roof, NO.1
82185A	Wire, Smart Door, Front RH
82213B	Wire, Heater
82219A	Wire, Sensor
82221	Wire, Oil Pressure Switch
82286A	Wire, Earth, NO.2
82420	Wiring Assy, Chassis
82712A	Support, Wiring Harness
82817	Protector, Wiring Harness, NO.1
82817A	Protector, Wiring Harness, NO.2
82817B	Protector, Wiring Harness, NO.3
82817C	Protector, Wiring Harness, NO.4
82817G	Protector, Wiring Harness, NO.8
82989	Wire, Connecting Repair

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
