Toyota Dyna/Toyoace HV

2011-07 → present · chassis XKU7## · catalogue 773120 · Japan

Supported model Data version 2021-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Electronic Controled Diesel (ECD)

7 part groups · 2 illustrations

Illustrations

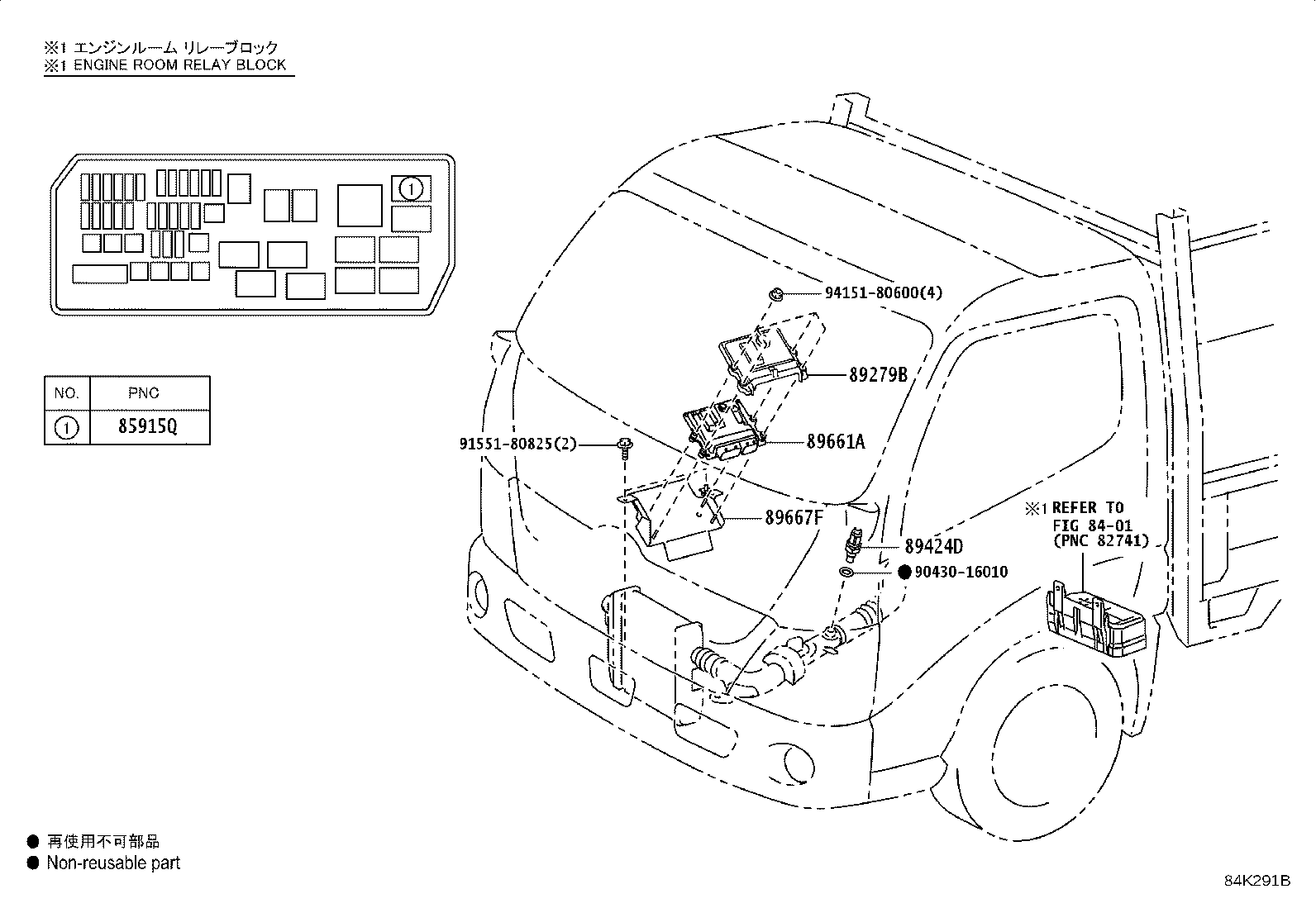

Figure 84C239A 84C239A 2011-07 → — Figure 84K291B 84K291B 2019-05 → —

Part groups

PNCDescription
85915Q Relay, Computer (FOR DIESEL)
89279B Cover, Diesel Engine Control Computor
89424D Sensor, Inlet Air Temperature
89661A Computer, Engine Control
89667F Bracket, Engine Control Computer, NO.1
89668A Bracket, Engine Control Computer, NO.2
89870A Driver Assy, Injector
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
