Toyota Dyna/Toyoace HV

2011-07 → present · chassis XKU7## · catalogue 773120 · Japan

Supported model Data version 2021-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mirror

29 part groups · 13 illustrations

Illustrations

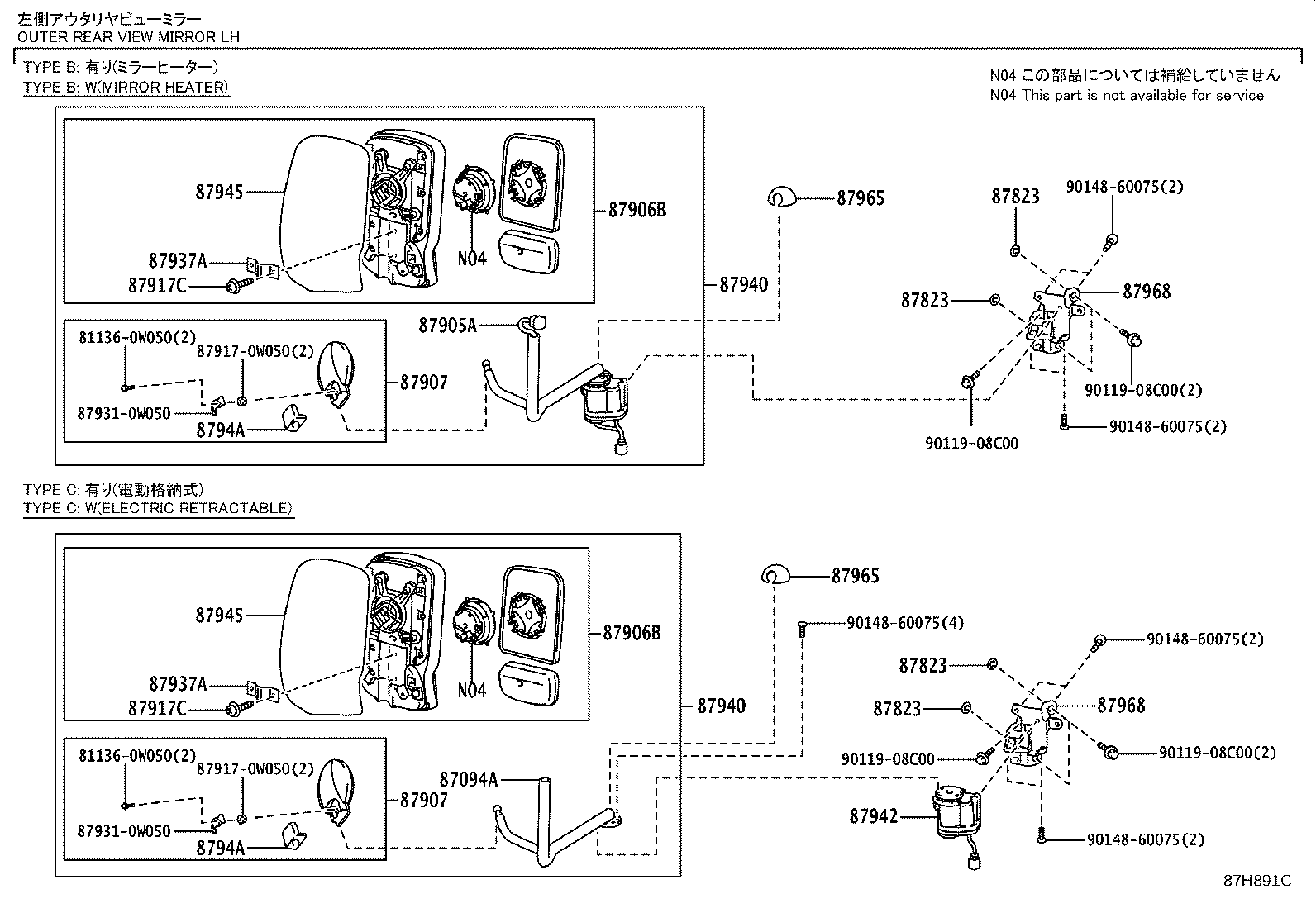

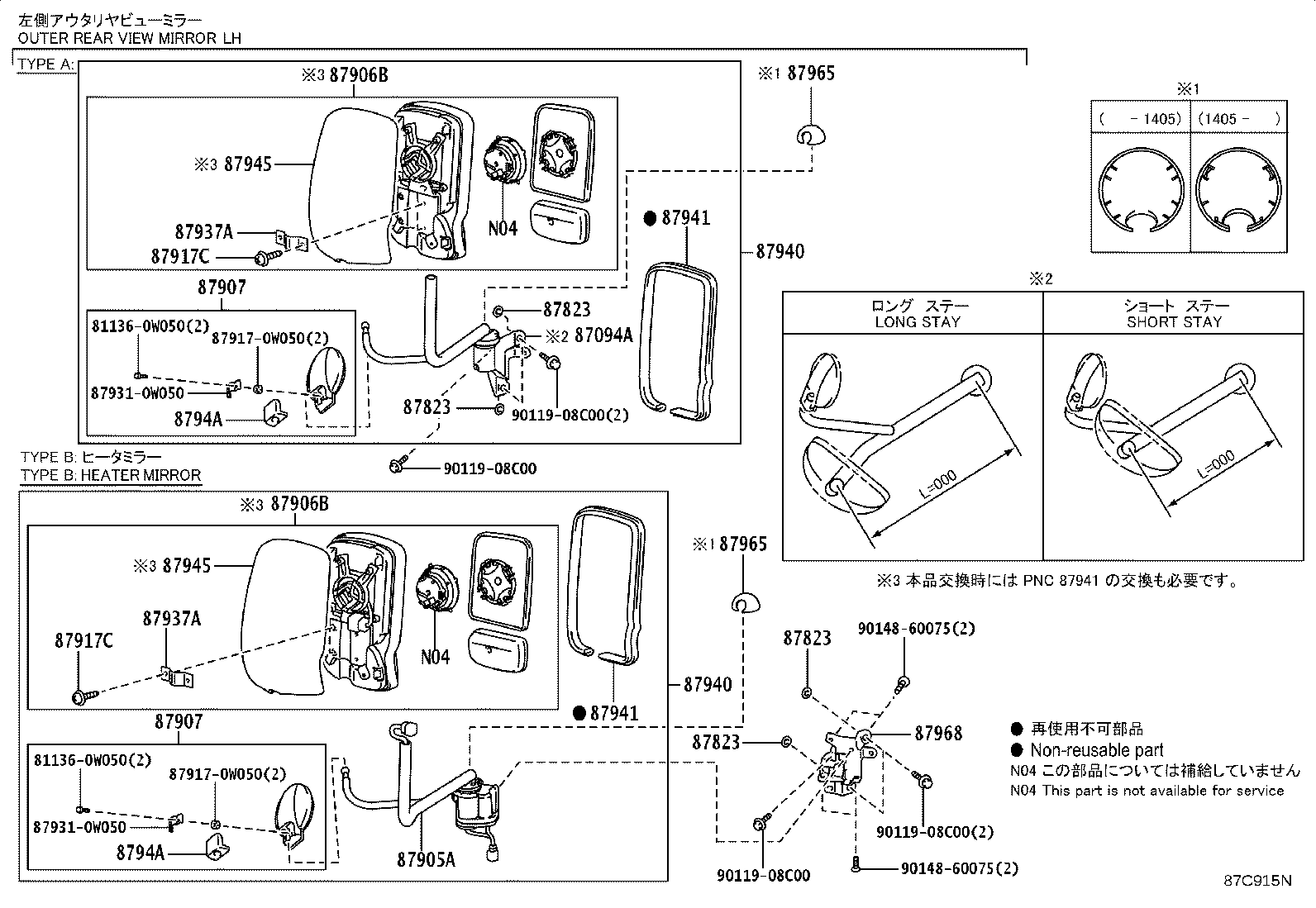

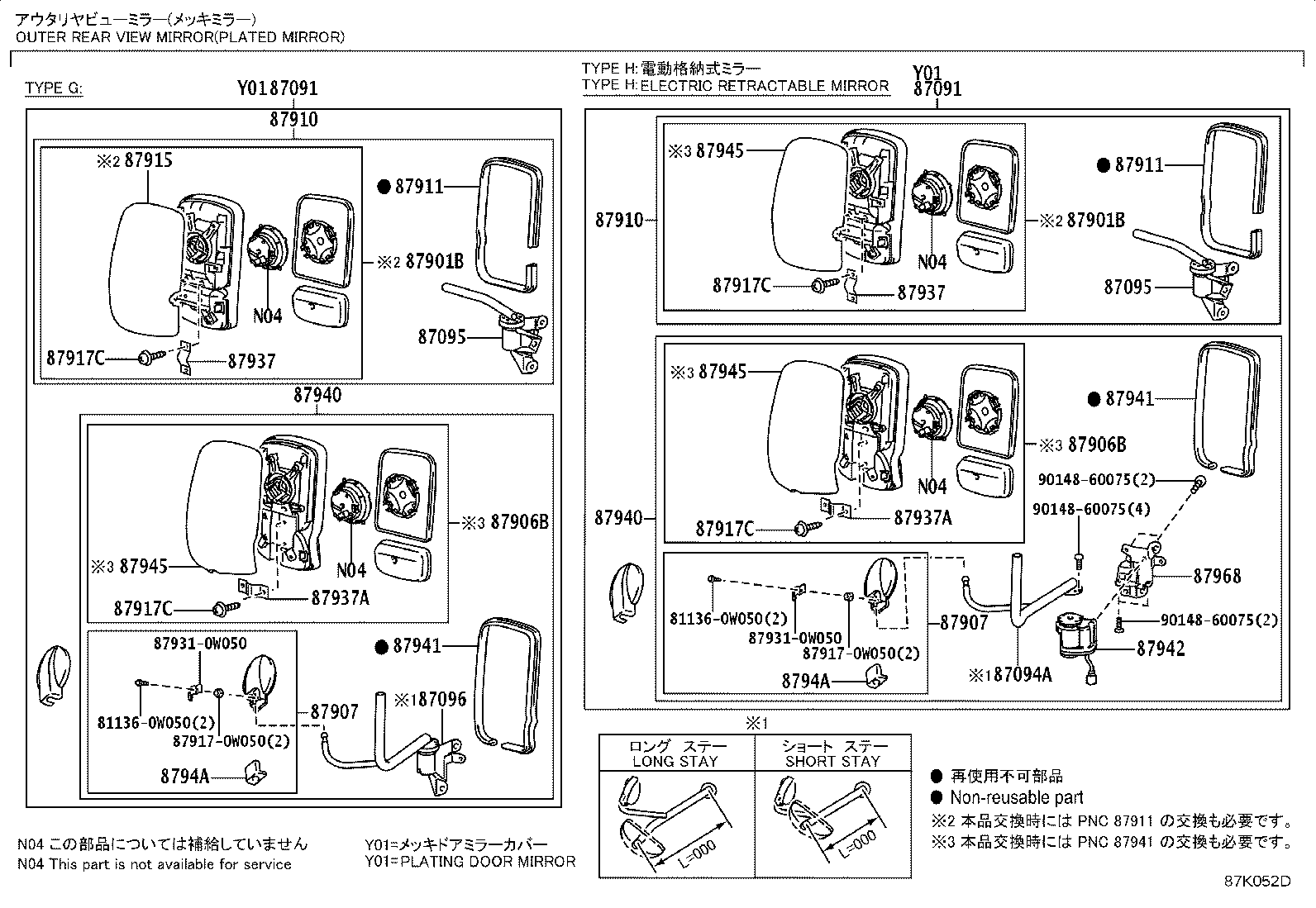

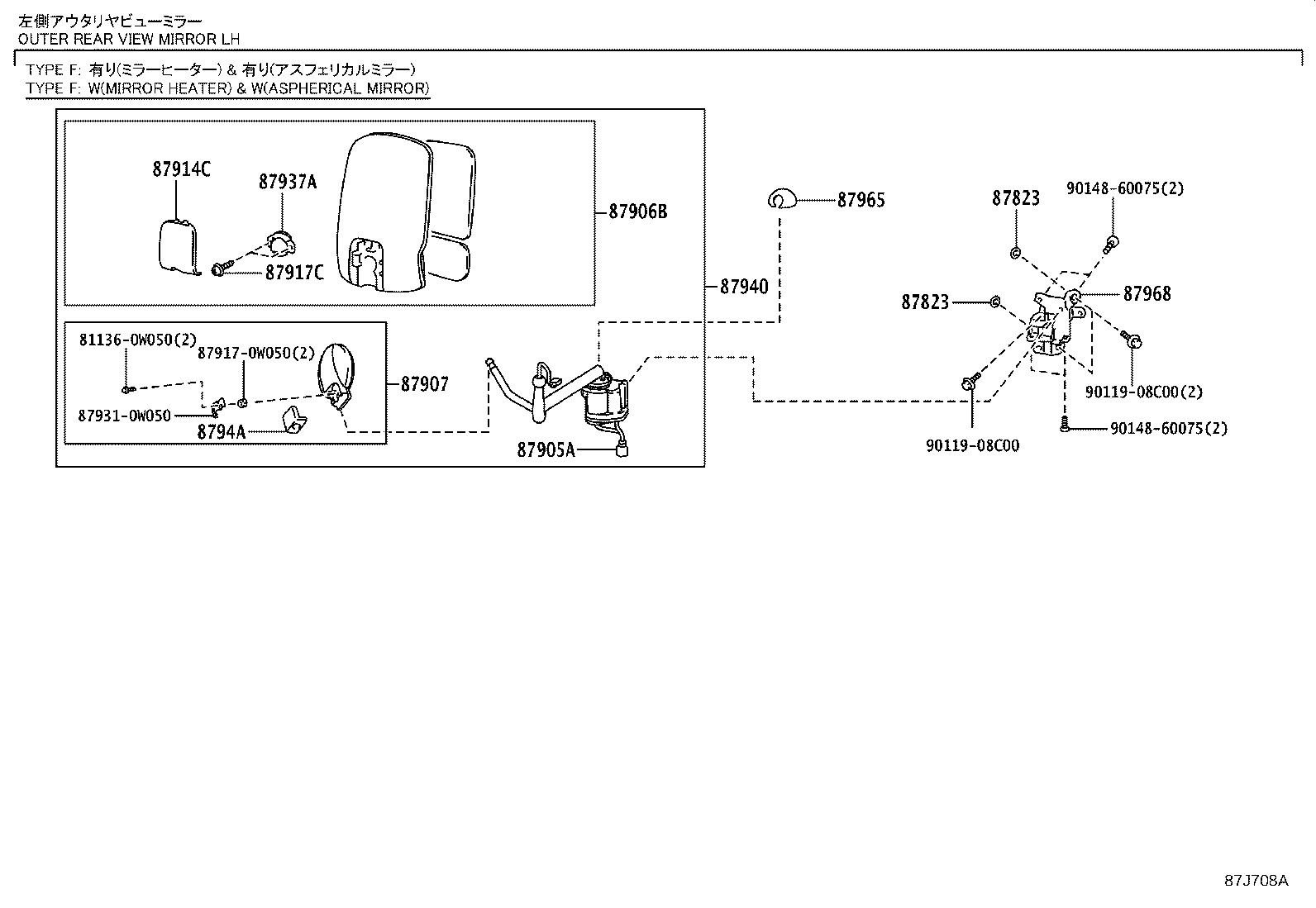

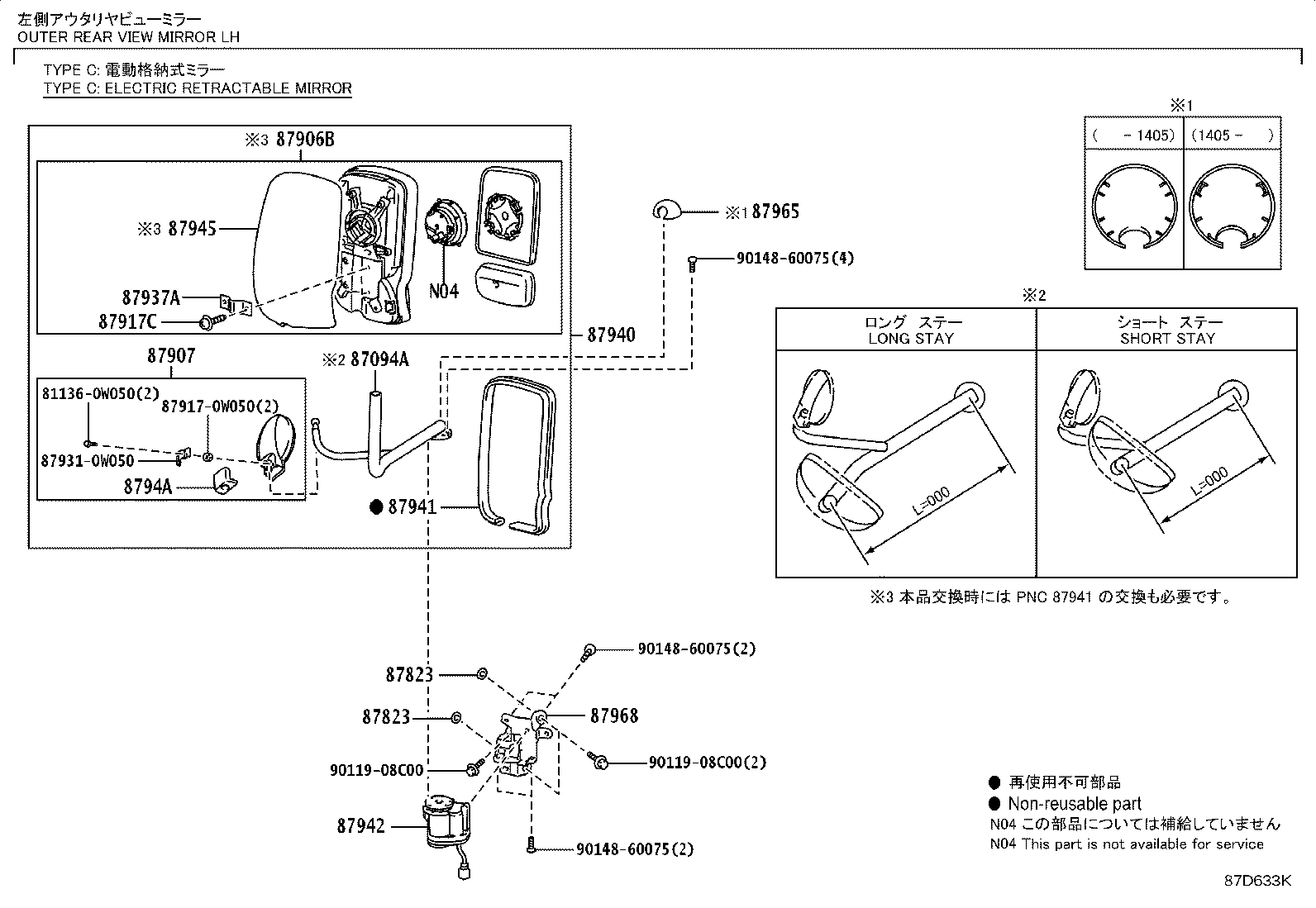

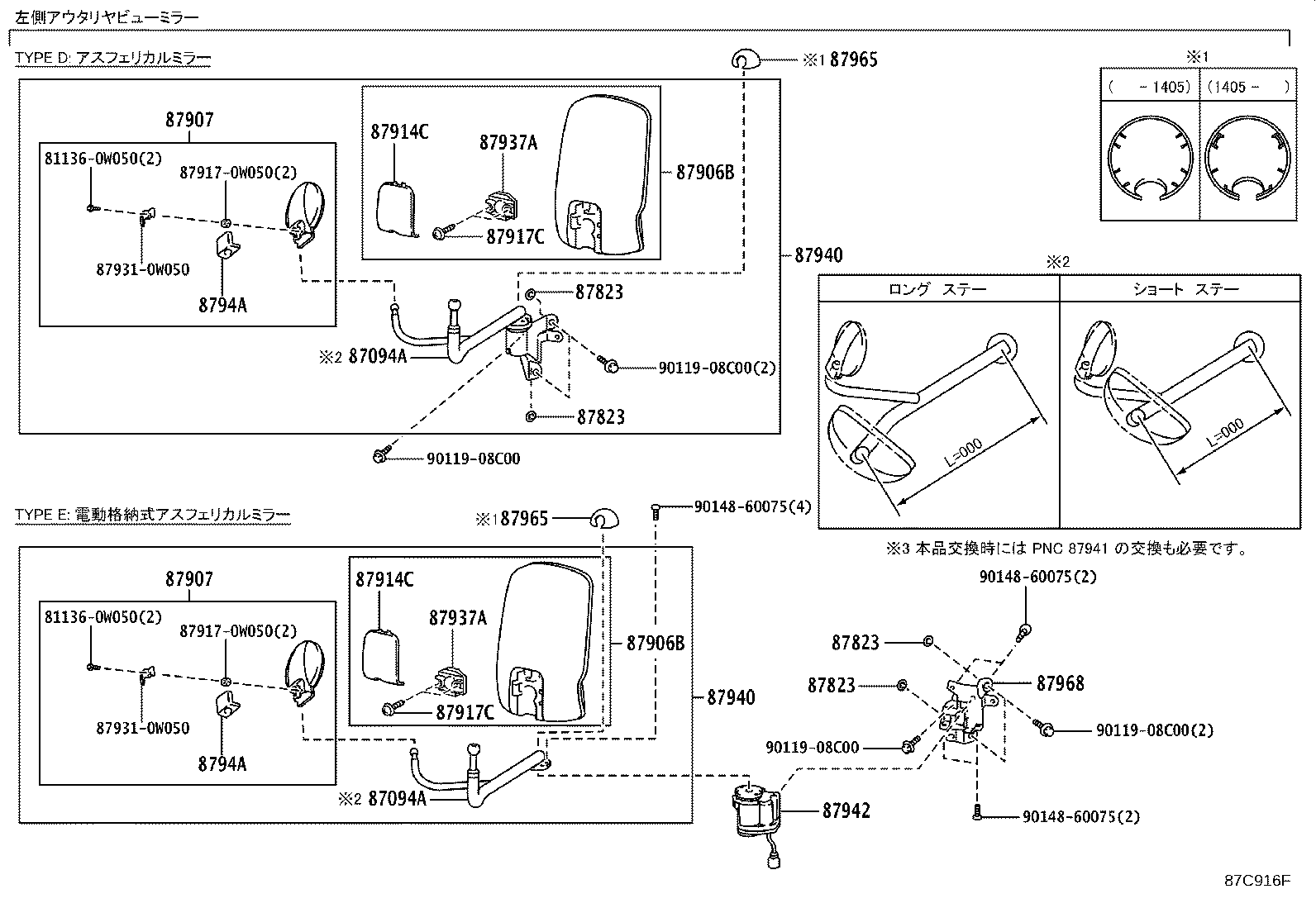

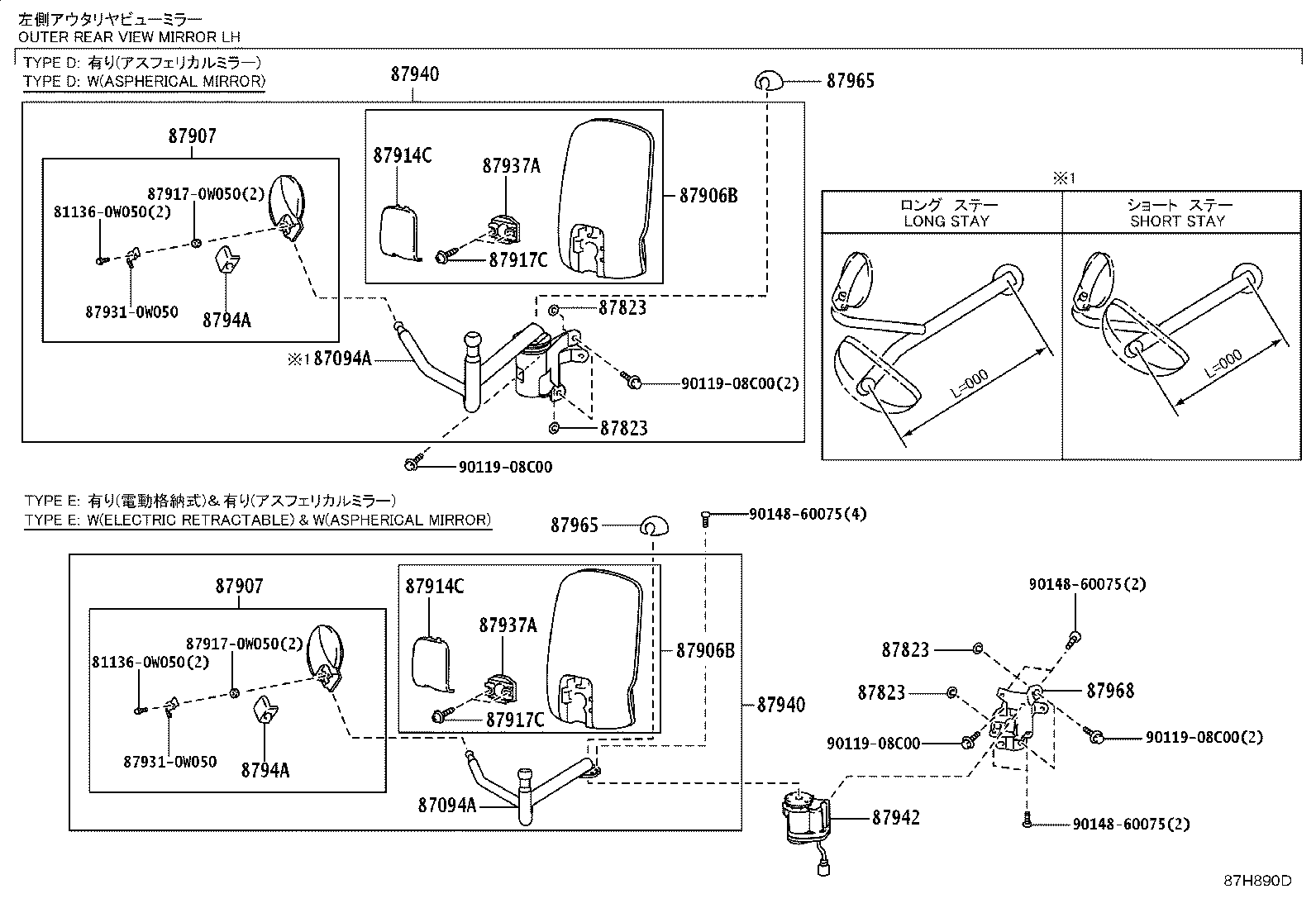

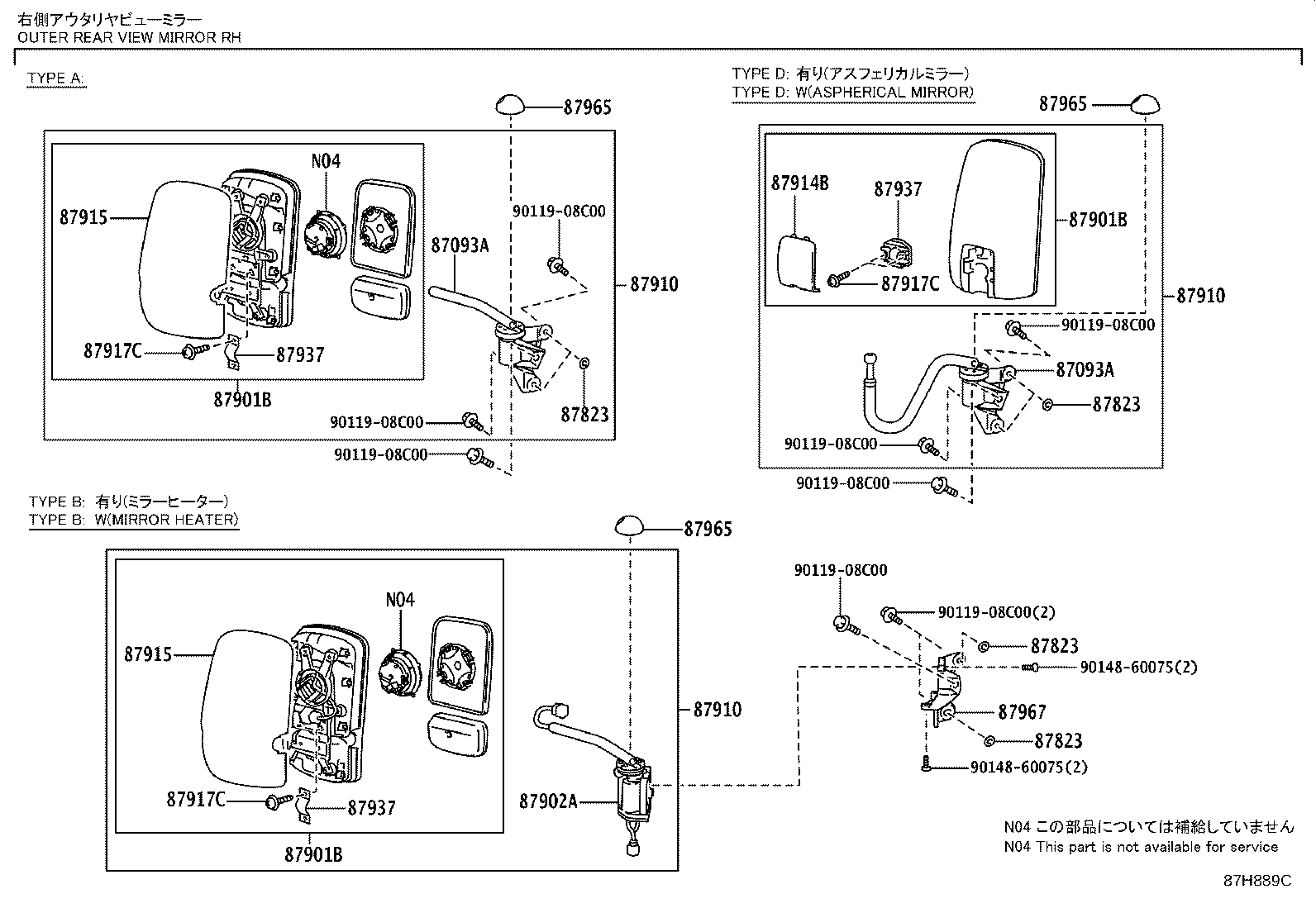

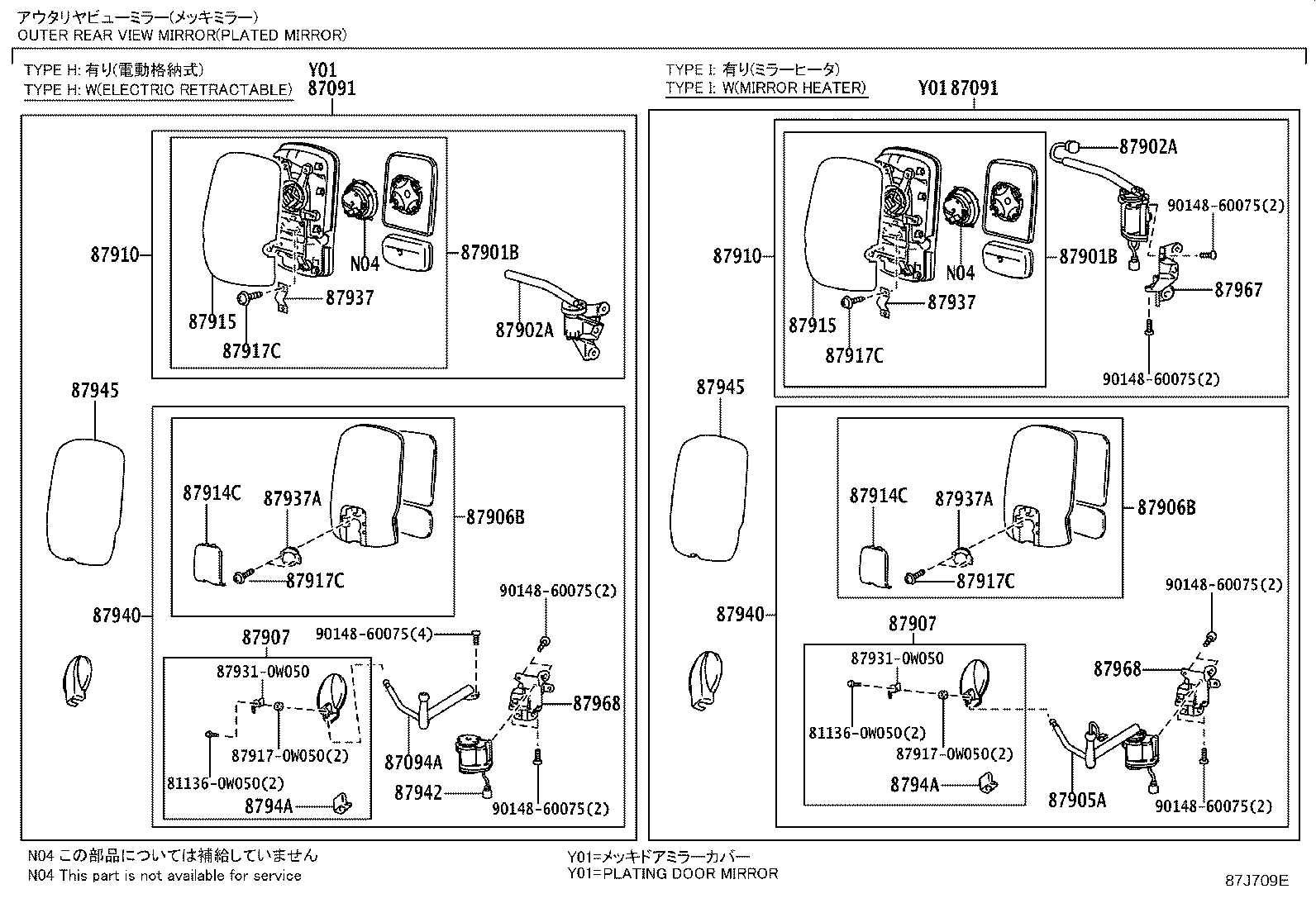

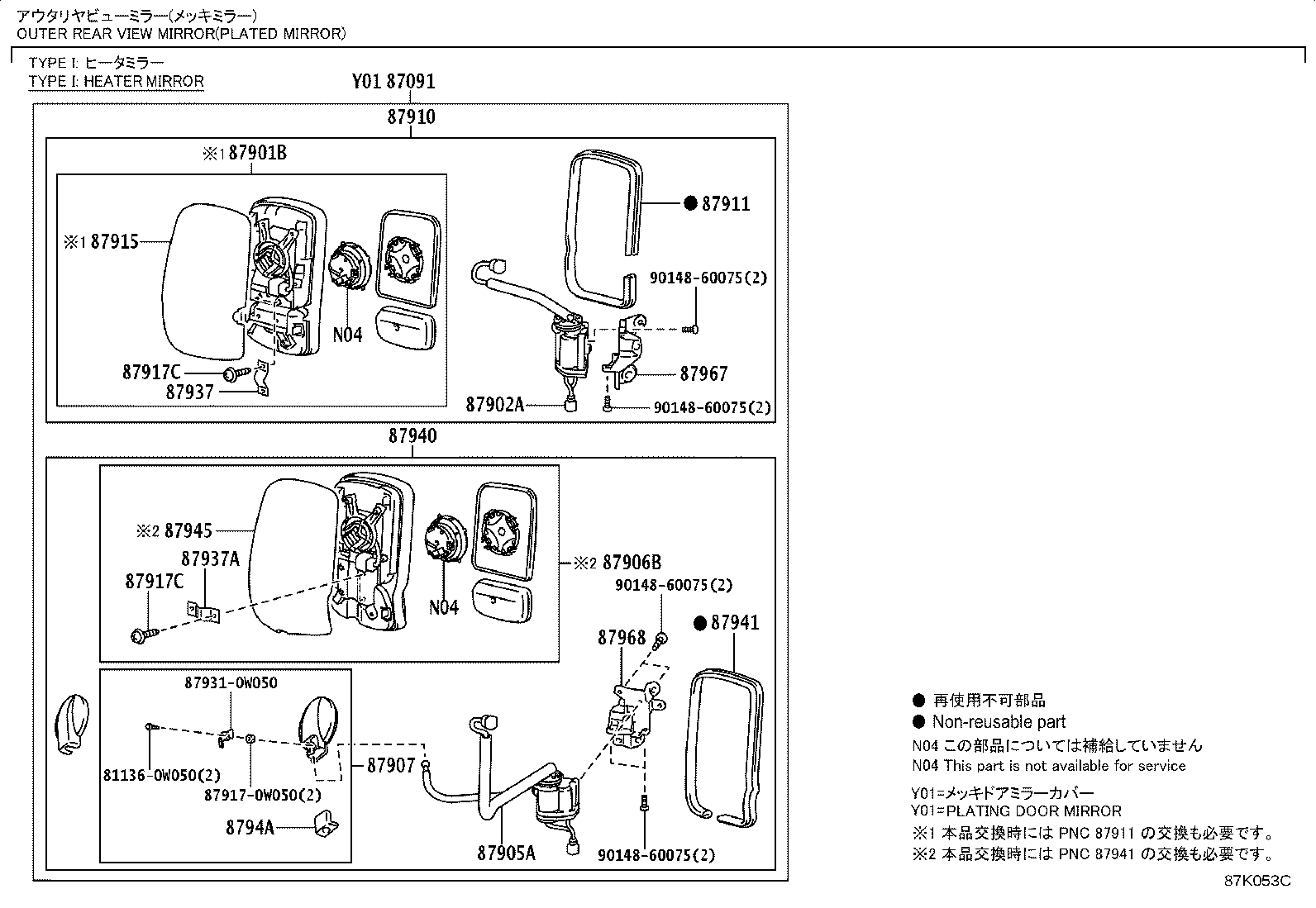

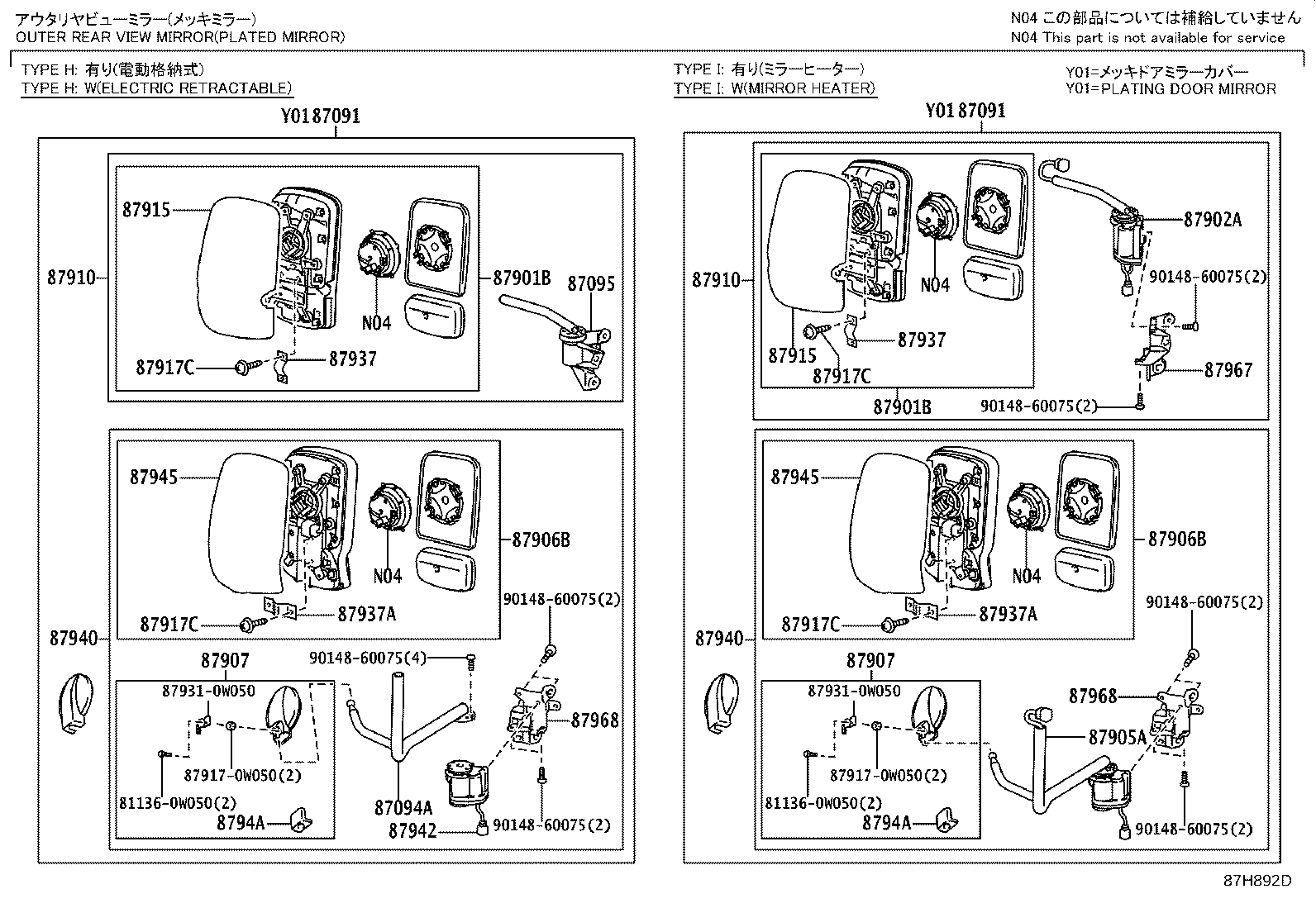

Figure 87C914J 87C914J 2011-07 → — Figure 87H889C 87H889C 2019-05 → — Figure 87C915N 87C915N 2011-07 → — Figure 87H891C 87H891C 2019-05 → — Figure 87D633K 87D633K 2011-07 → — Figure 87H890D 87H890D 2019-05 → — Figure 87C916F 87C916F 2011-07 → — Figure 87J708A 87J708A 2021-03 → — Figure 87K052D 87K052D 2011-07 → — Figure 87H892D 87H892D 2019-05 → — Figure 87J709E 87J709E 2021-03 → — Figure 87K053C 87K053C 2011-07 → — Figure 87H888A 87H888A 2011-07 → —

Part groups

PNCDescription
87091 Mirror Set, Outer Rear View, NO.1
87093A Stay Sub-assy, Outer Rear View Mirror, RH
87094A Stay Sub-assy, Outer Rear View Mirror, LH
87095 Stay Sub-assy, Outer Rear View Mirror, Lower RH
87096 Stay Sub-assy, Outer Rear View Mirror, Lower LH
87810 Mirror Assy, Inner Rear View
87823 Washer, Inner Rear View Mirror Body Joint
87844 Wire, Inner Mirror
87901B Mirror Sub-assy, Outer Rear View, RH
87902A Arm Sub-assy, Outer Rear View Mirror, RH
87905A Arm Sub-assy, Outer Rear View Mirror, LH
87906B Mirror Sub-assy, Outer Rear View, LH
87907 Mirror Sub-assy, Outer Under View
87910 Mirror Assy, Outer Rear View, RH
87911 Gasket, Outer Rear View Mirror, RH
87914B Cover, Outer Mirror Knob, RH
87914C Cover, Outer Mirror Knob, LH
87915 Cover, Outer Mirror, RH
87917C Screw, Outer Mirror
87937 Holder, Mirror, RH
87937A Holder, Mirror, LH
87940 Mirror Assy, Outer Rear View, LH
87941 Gasket, Outer Rear View Mirror, LH
87942 Motor, Mirror, LH
87945 Cover, Outer Mirror, LH
8794A Cover, Outer Mirror, LH NO.2
87965 Grommet, Outer Mirror
87967 Holder, Mirror, Outer RH
87968 Holder, Mirror, Outer LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
