Toyota Dyna/Toyoace HV
2011-07 → present · chassis XKU7## · catalogue 773120 · Japan
Supported model
Data version 2021-03

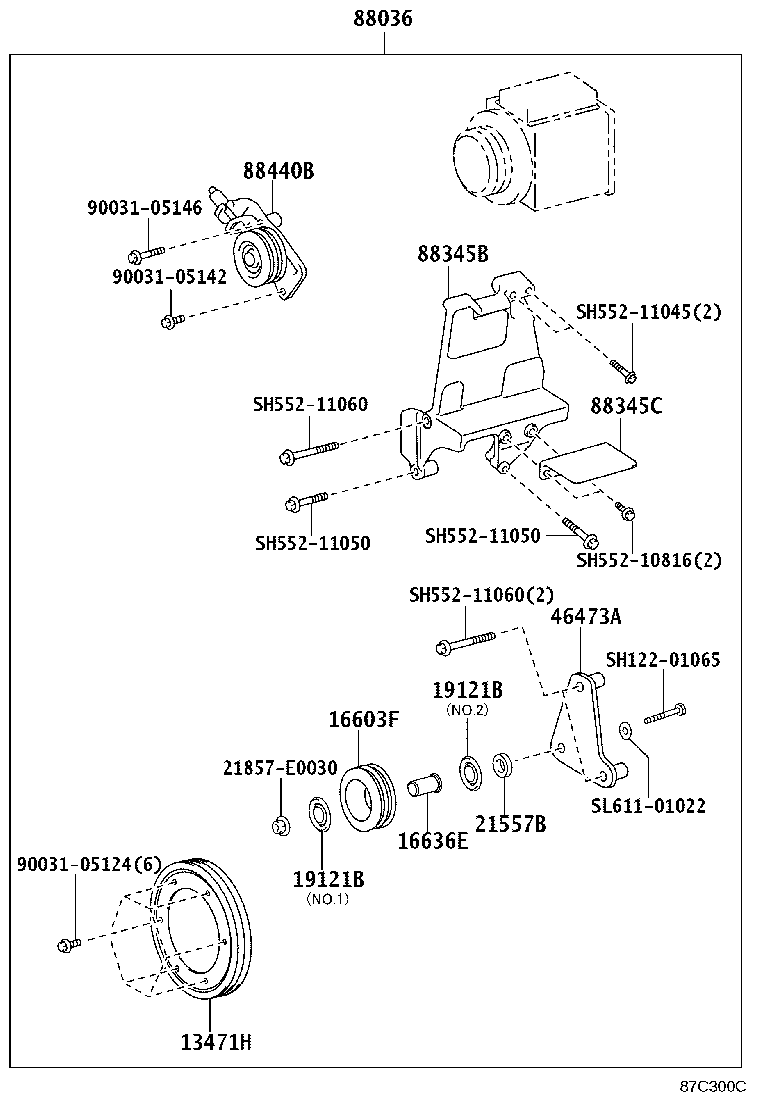

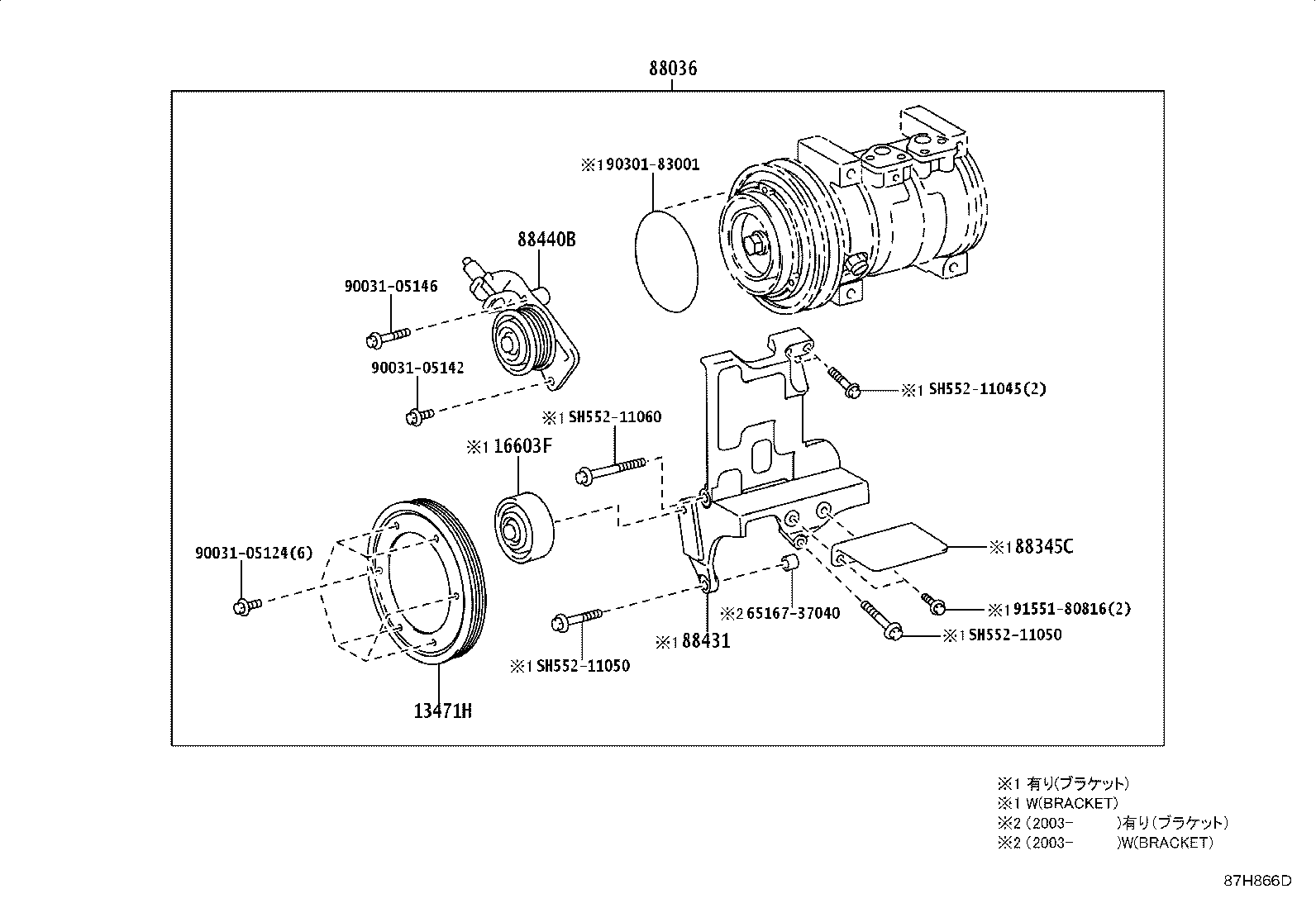

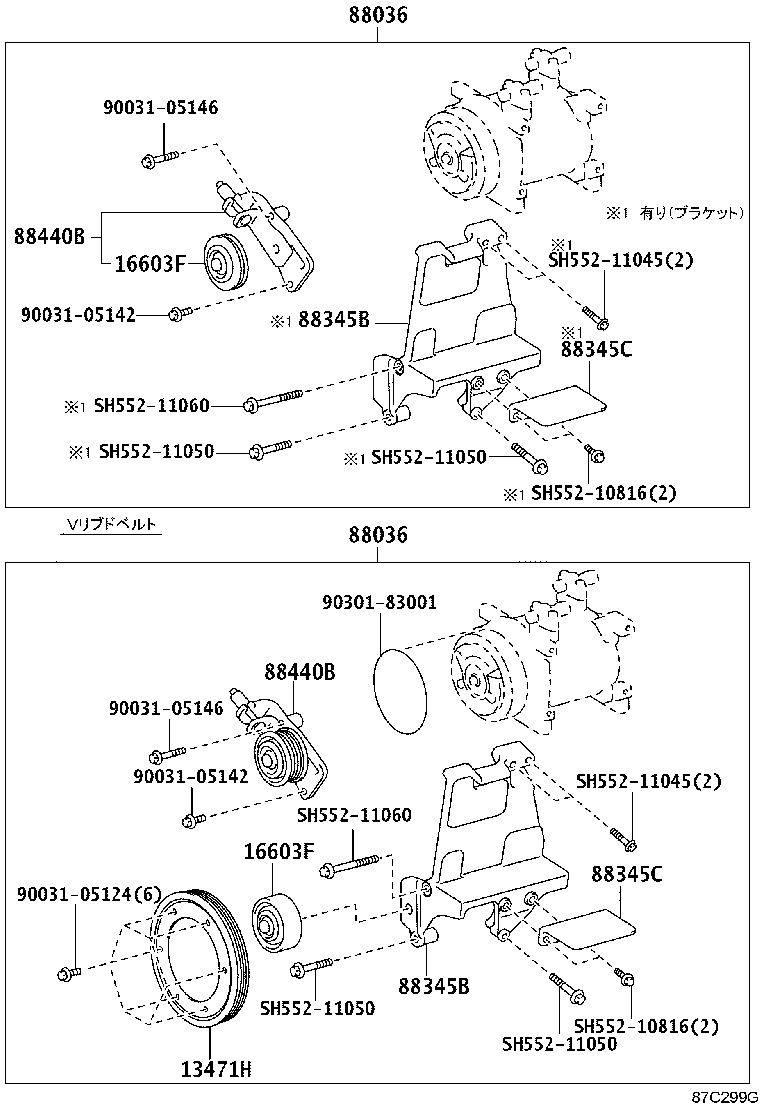

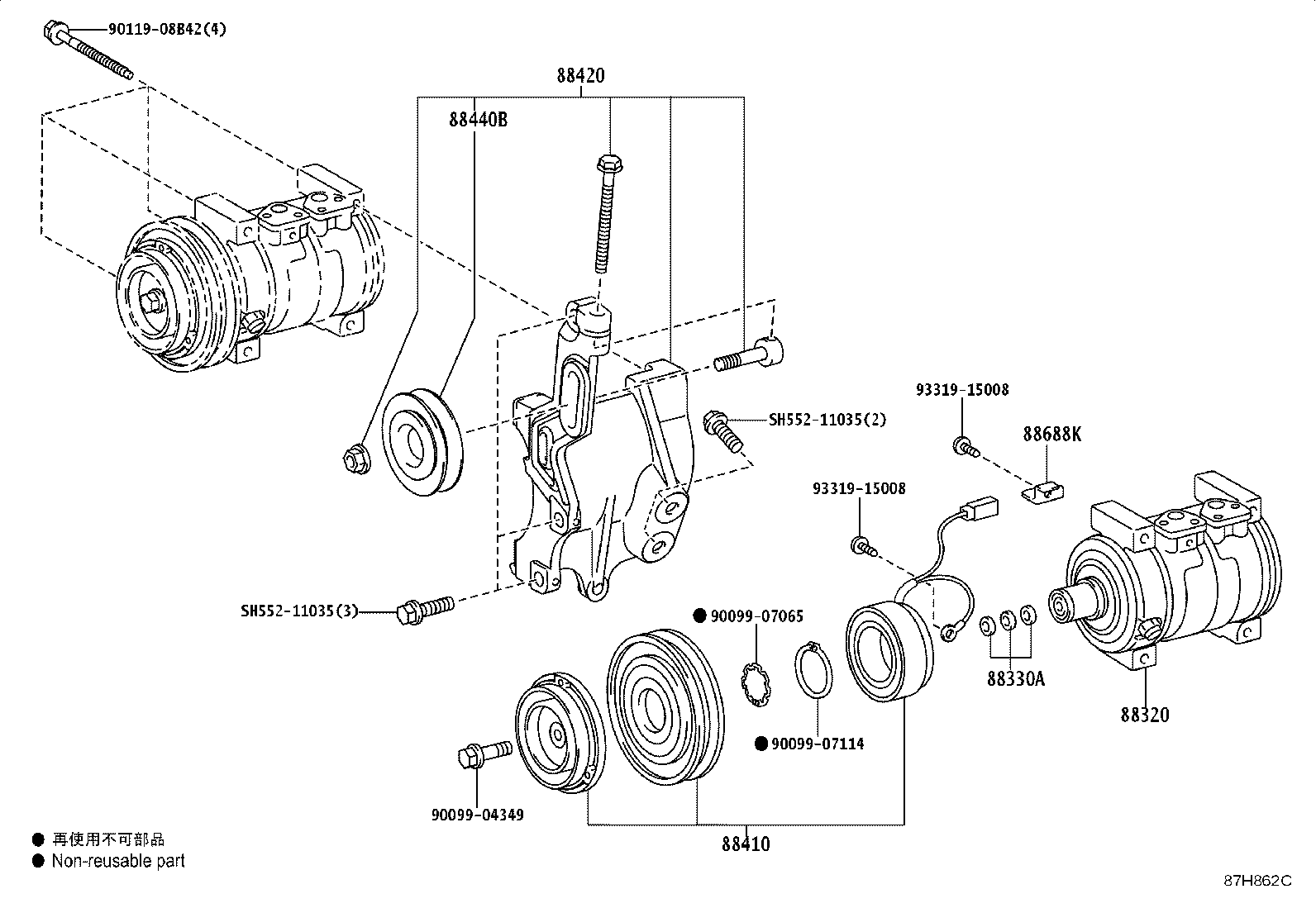

Heating & Air Conditioning - Compressor
17 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 13471H | Pulley, Crankshaft |
| 16603F | Pulley Sub-assy, Idler |
| 16636E | Shaft, Idler Pulley |
| 19121B | Cover, Dust Proof |
| 21557B | Spacer, NO.1 |
| 46473A | Bracket, Pulley |
| 88036 | Compressor Mounting Set |
| 88320 | Compressor Assy, Cooler |
| 88330A | Washer (FOR MAGNET CLUTCH) |
| 88345B | Bracket, Compressor Mounting, NO.1 |
| 88345C | Bracket, Compressor Mounting, NO.2 |
| 88410 | Clutch Assy, Magnet |
| 88420 | Pulley Assy, Idle, W/Bracket |
| 88431 | Bracket, Compressor Mounting, NO.1 |
| 88440B | Pulley Assy, Idle |
| 88444 | Bracket, Idle Pulley |
| 88688K | Bracket, Cooler Compressor |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
