Toyota Land Cruiser S/T,H/T

1980-08 → 1984-10 · chassis BJ4# · catalogue 781110 · Japan

Discontinued model Data version 1985-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Back Door Panel & Glass

26 part groups · 3 illustrations

Illustrations

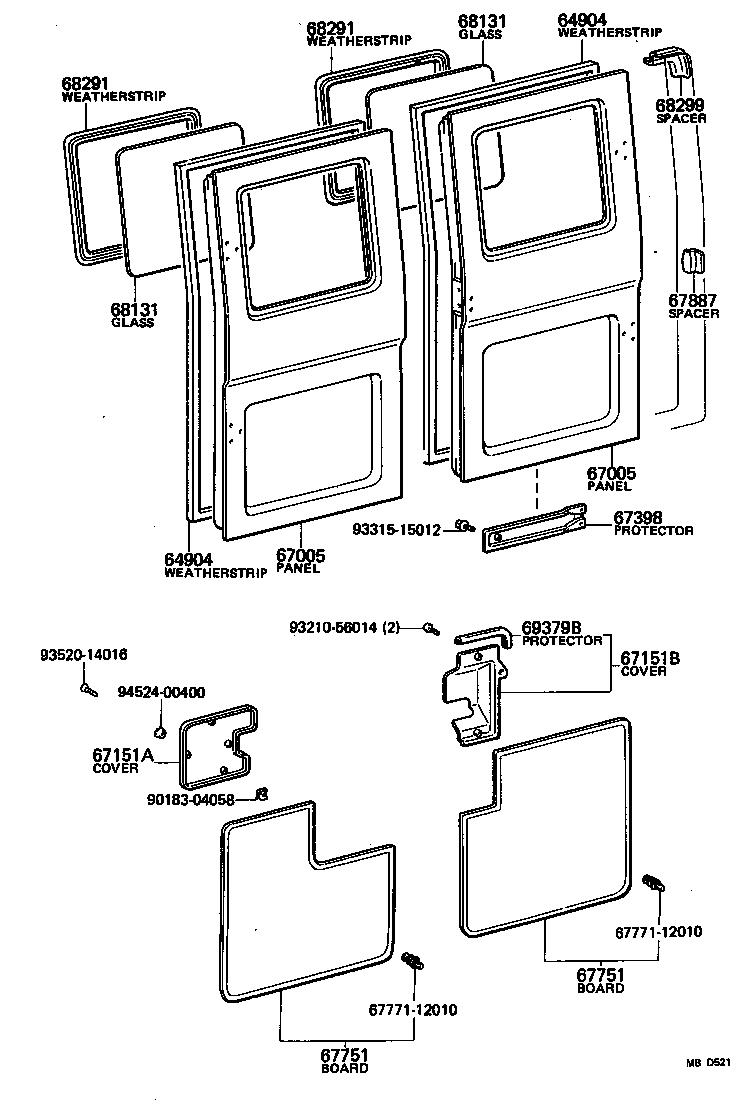

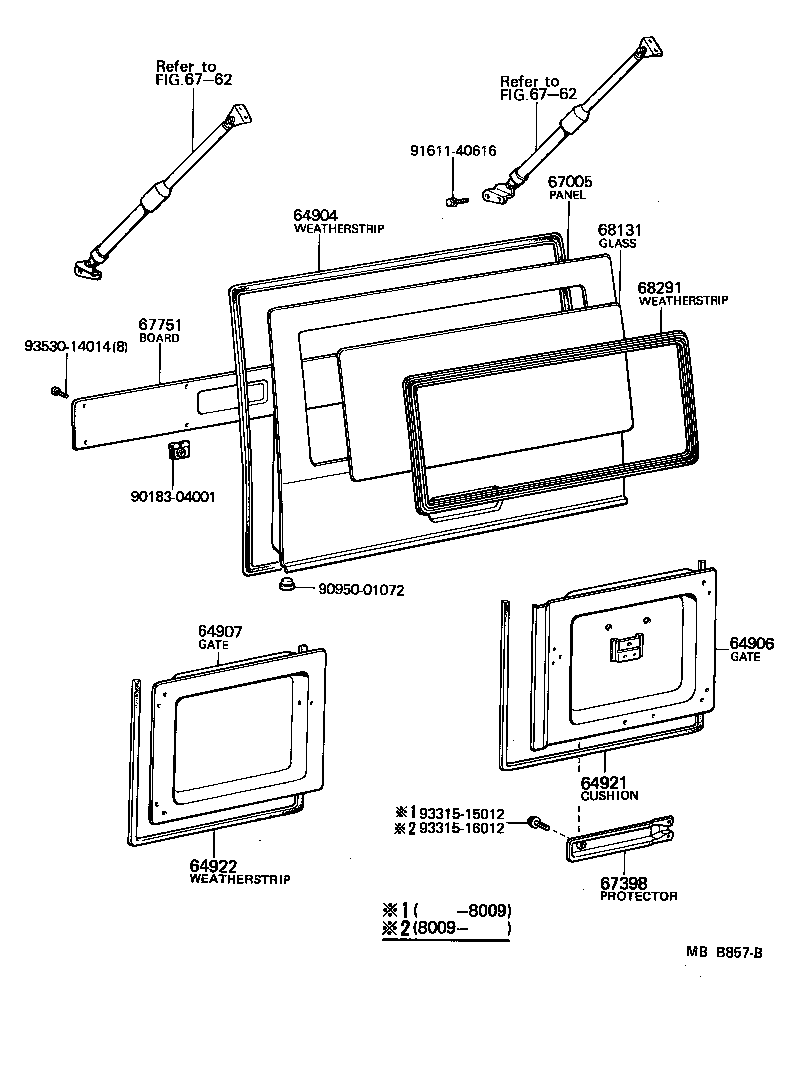

Figure MBB568 MBB568 1980-08 → — Figure MBB857B MBB857B 1980-08 → 1981-10 Figure MBD521 MBD521 1980-08 → —

Part groups

PNCDescription
64904 Weatherstrip Sub-assy, Back Door
64906 Gate Sub-assy, Rear Swing, RH
64907 Gate Sub-assy, Rear Swing, LH
64909 Plate Sub-assy, Rear Swing Door Tarpaulin
64921 Weatherstrip, Rear Swing Gate, RH
64922 Weatherstrip, Rear Swing Gate, LH
64963 Cushion, Rear Swing Gate, Lower
64970 Frame Assy, Rear Swing Door, RH
64980 Frame Assy, Rear Swing Door, LH
65909 Tarpaulin Sub-assy, Rear Swing Door
67005 Panel Sub-assy, Back Door
67151A Cover, Back Door Service Hole, NO.1
67151B Cover, Back Door Service Hole, NO.2
67398 Protector, Back Door Harness
67751 Board, Back Door Trim
67887 Spacer, Back Door Weatherstrip
68131 Glass, Back Door
68162 Weatherstrip, Rear Swing Door, RH
68163B Weatherstrip, Rear Swing Door, Center
68164 Weatherstrip, Rear Swing Door, LH
68291 Weatherstrip, Back Door Glass
68299 Spacer, Back Door Weatherstrip
68966 Channel, Rear Swing Door, Side
68967 Channel, Rear Swing Door, Upper
68968 Hinge Assy, Back Door, Upper
69379B Protector, Back Door Lock Cover
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
