Toyota Land Cruiser Prado
1996-04 → 2002-11 · chassis KDJ9#,KZJ9#,RZJ9#,VZJ9# · catalogue 781140 · Japan
Discontinued model
Data version 2003-04

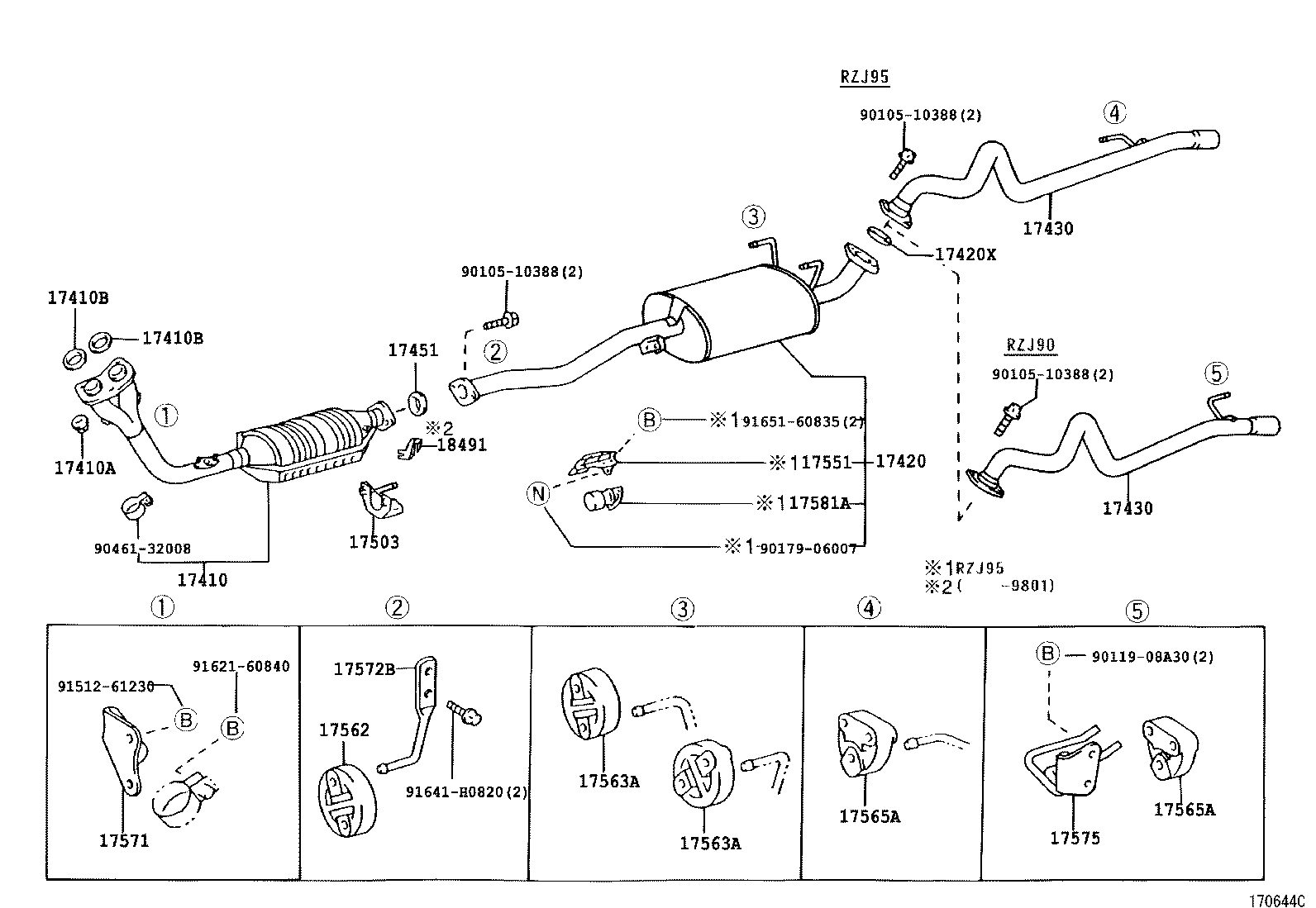

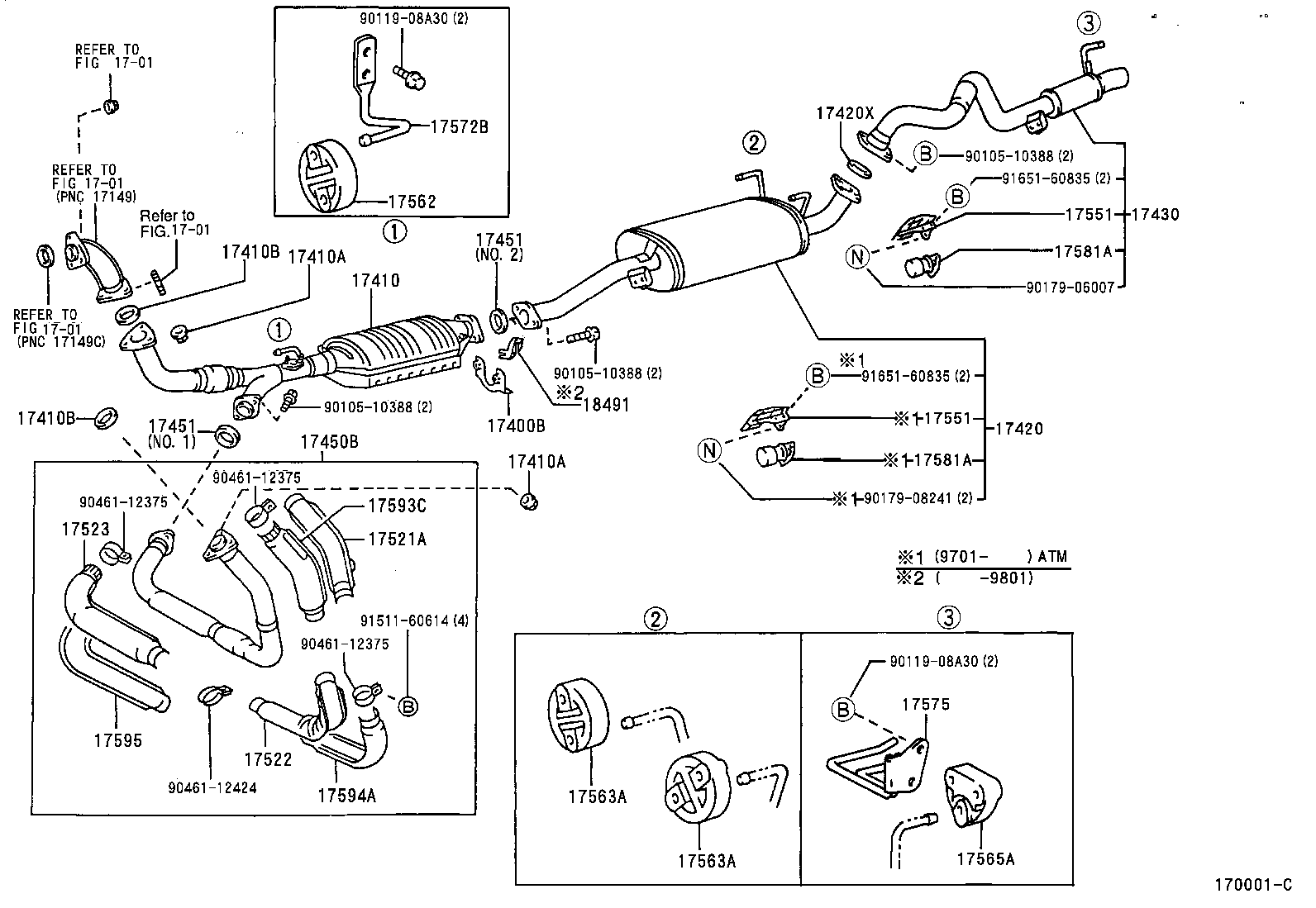

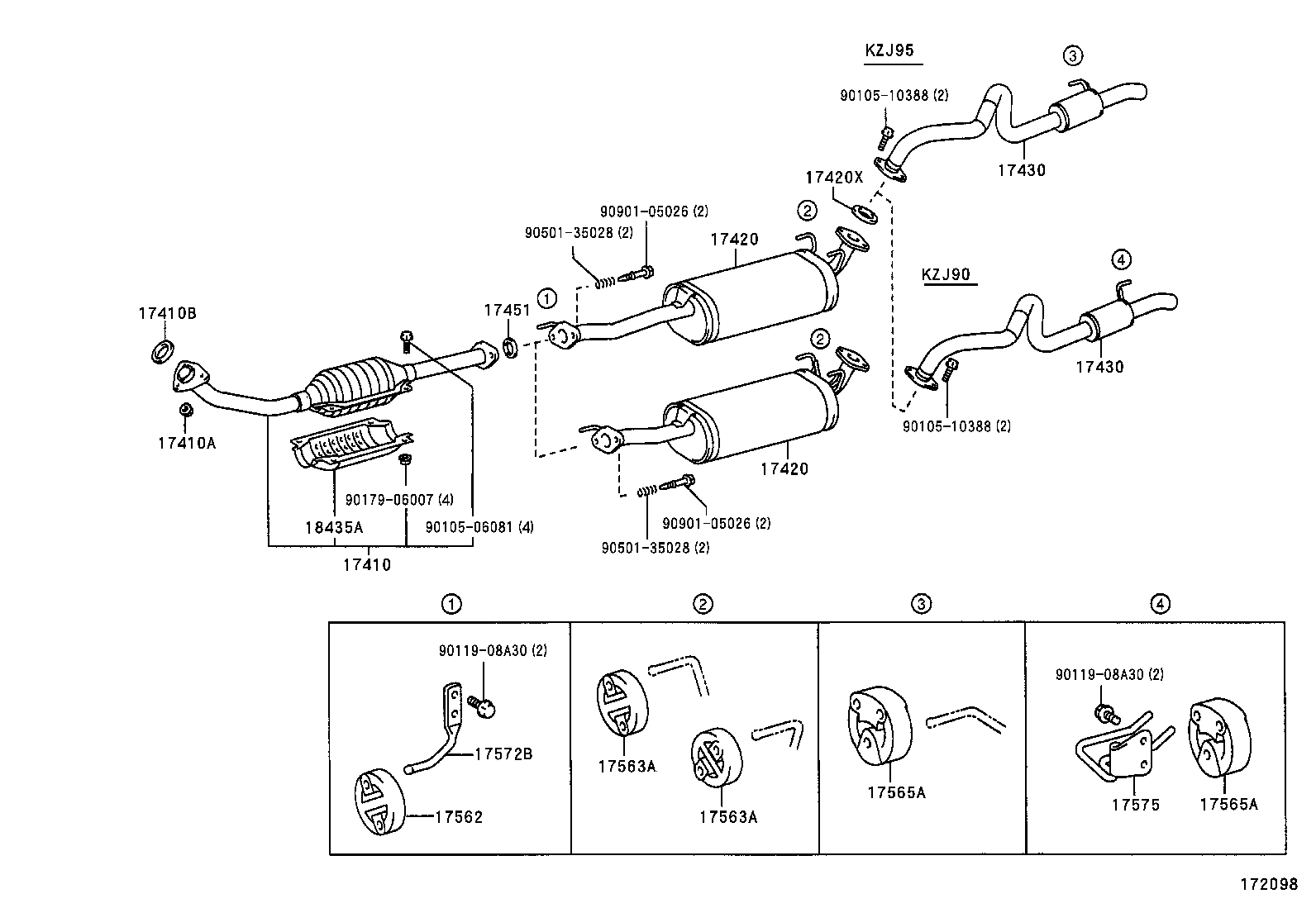

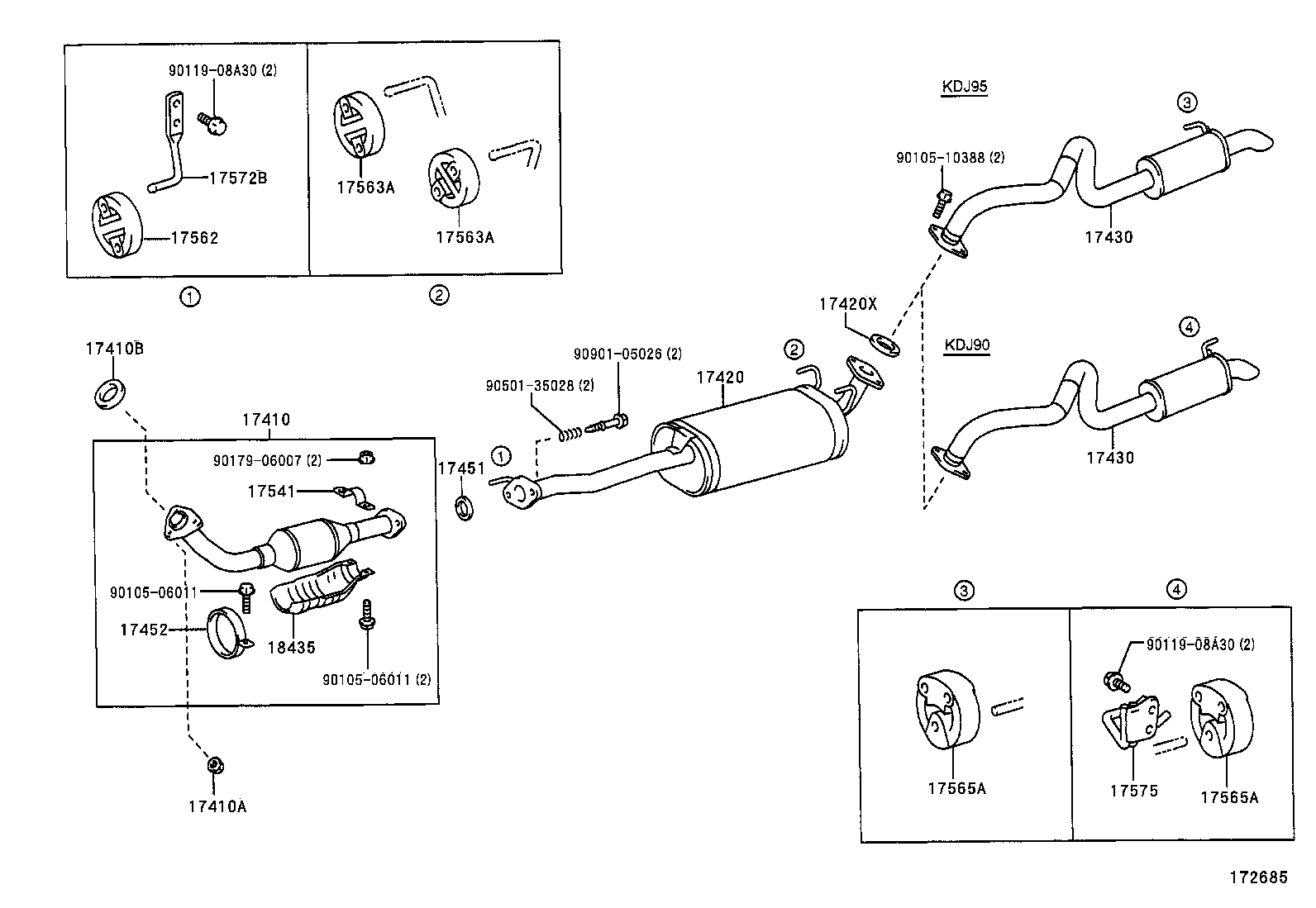

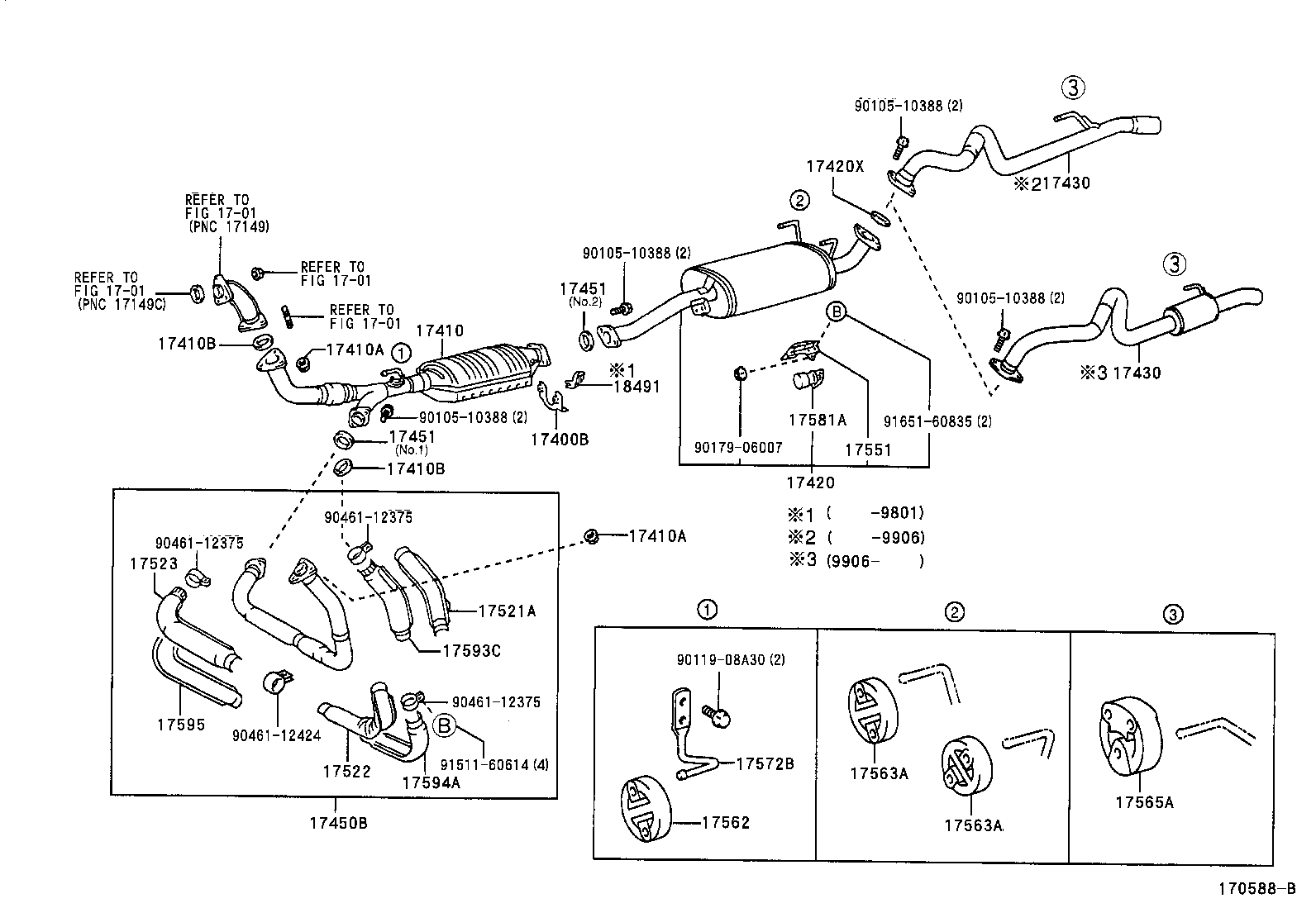

Exhaust Pipe
29 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|
| 17400B | Retainer, Exhaust Pipe |
| 17410 | Pipe Assy, Exhaust, Front |
| 17410A | Nut, Exhaust Pipe Set Stud Bolt |
| 17410B | Gasket, Exhaust Pipe |
| 17420 | Pipe Assy, Exhaust, Center |
| 17420X | Gasket, Exhaust Pipe, Center |
| 17430 | Pipe Assy, Exhaust, Tail |
| 17450B | Pipe Assy, Exhaust, Front NO.2 |
| 17451 | Gasket, Exhaust Pipe |
| 17452 | Clamp, Exhaust Pipe |
| 17503 | Bracket Sub-assy, Catalytic Converter, Rear |
| 17521A | Protector, Exhaust Pipe, Upper NO.1 |
| 17522 | Protector, Exhaust Pipe, Upper NO.2 |
| 17523 | Protector, Exhaust Pipe, Upper NO.3 |
| 17541 | Stay, Exhust Pipe Protector, NO.1 |
| 17551 | Insulator, Exhaust Pipe Heat, NO.1 |
| 17562 | Support, Exhaust Pipe, NO.2 |
| 17563A | Support, Exhaust Pipe, NO.3 |
| 17565A | Support, Exhaust Pipe, NO.4 |
| 17571 | Bracket, Exhaust Pipe Support, NO.1 |
| 17572B | Bracket, Exhaust Pipe Support, NO.2 |
| 17575 | Bracket, Exhaust Pipe Support, NO.5 |
| 17581A | Damper, Exhaust Pipe |
| 17593C | Protector, Exhaust Pipe, Lower NO.1 |
| 17594A | Protector, Exhaust Pipe, Lower NO.2 |
| 17595 | Protector, Exhaust Pipe, Lower NO.3 |
| 18435 | Protector, Catalytic Converter |
| 18435A | Protector, Monolithic Converter |
| 18491 | Flange, Thermosensor Inlet |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
