Toyota Land Cruiser Van
1969-03 → 1980-07 · chassis FJ4#,5#,BJ4# · catalogue 791110 · Japan
Discontinued model
Data version 1981-01

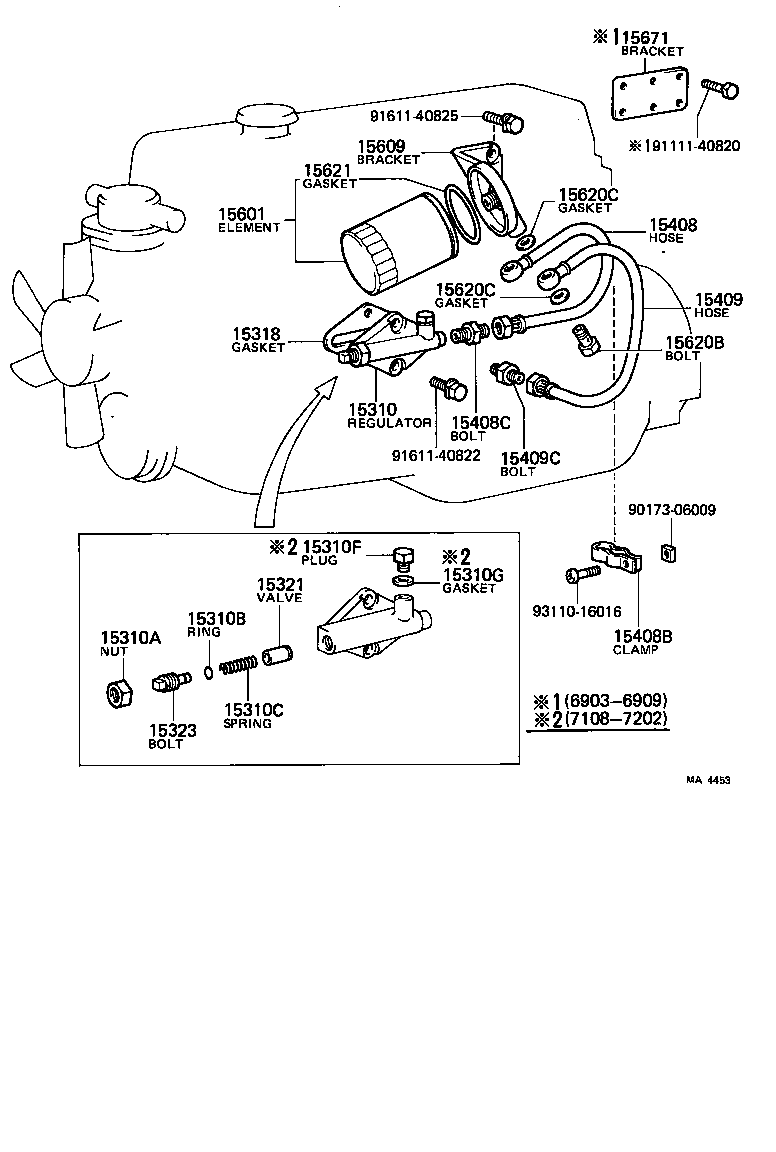

Oil Filter
21 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 15310 | Regulator Assy, Oil Pressure |
| 15310A | Nut, Oil Pressure Regulator Cap Lock |
| 15310B | Ring, Oil Pressure Regulator Oil |
| 15310C | Spring, Oil Pressure Regulator |
| 15310F | Plug, W/Head Straight Screw(FOR REGULATOR) |
| 15310G | Gasket(FOR OIL PRESSURE REGULATOR) |
| 15318 | Gasket, Oil Pressure Regulator Body |
| 15321 | Valve, Oil Adjusting |
| 15323 | Bolt, Oil Pressure Adjusting |
| 15408 | Pipe OR Hose, Oil Filter Inlet |
| 15408B | Clamp(FOR OIL FILTER INLET PIPE) |
| 15408C | Bolt, Union(FOR OIL FILTER INLET PIPE) |
| 15409 | Pipe OR Hose, Oil Filter Outlet |
| 15409C | Bolt, Union(FOR OIL FILTER OUTLET PIPE) |
| 15601 | Filter Sub-assy, Oil |
| 15609 | Bracket Sub-assy, Oil Filter |
| 15620B | Bolt, Union(FOR OIL FILTER CAP) |
| 15620C | Gasket(FOR OIL FILTER CAP) |
| 15621 | Gasket, Oil Filter Body |
| 15671 | Bracket, Oil Filter |
| 15691 | Gasket, Oil Filter |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
