Toyota Land Cruiser Van

1980-08 → 1987-08 · chassis BJ6#,FJ6#,HJ6# · catalogue 791120 · Japan

Discontinued model Data version 1988-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat & Seat Track

90 part groups · 10 illustrations

Illustrations

MBH755A 1980-08 → 1982-10

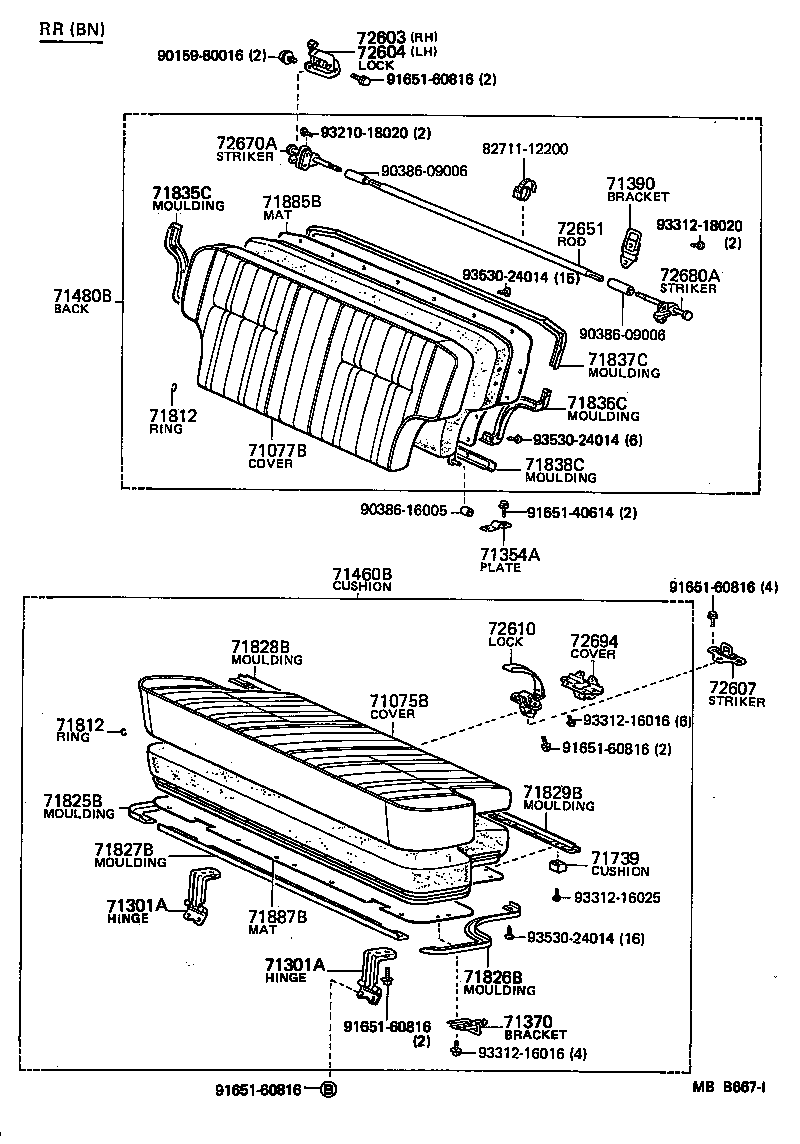

MBB667I 1980-08 → 1984-11

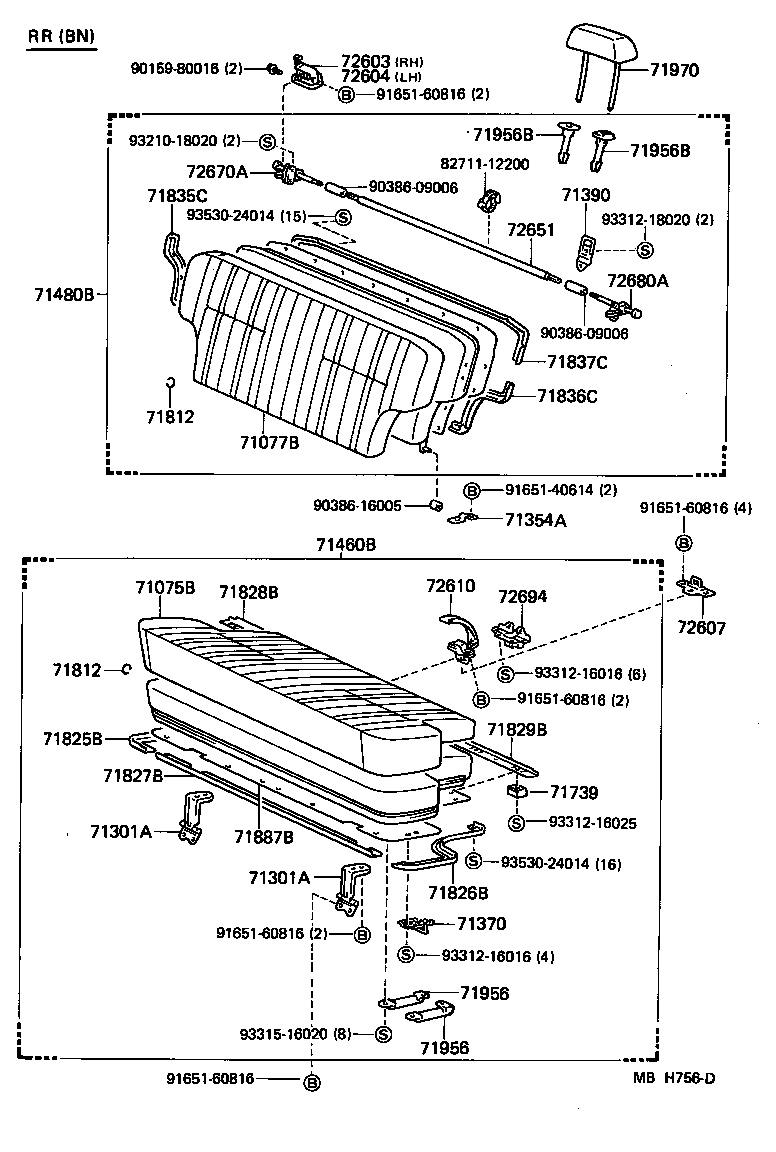

MBH756D 1984-11 → 1985-04

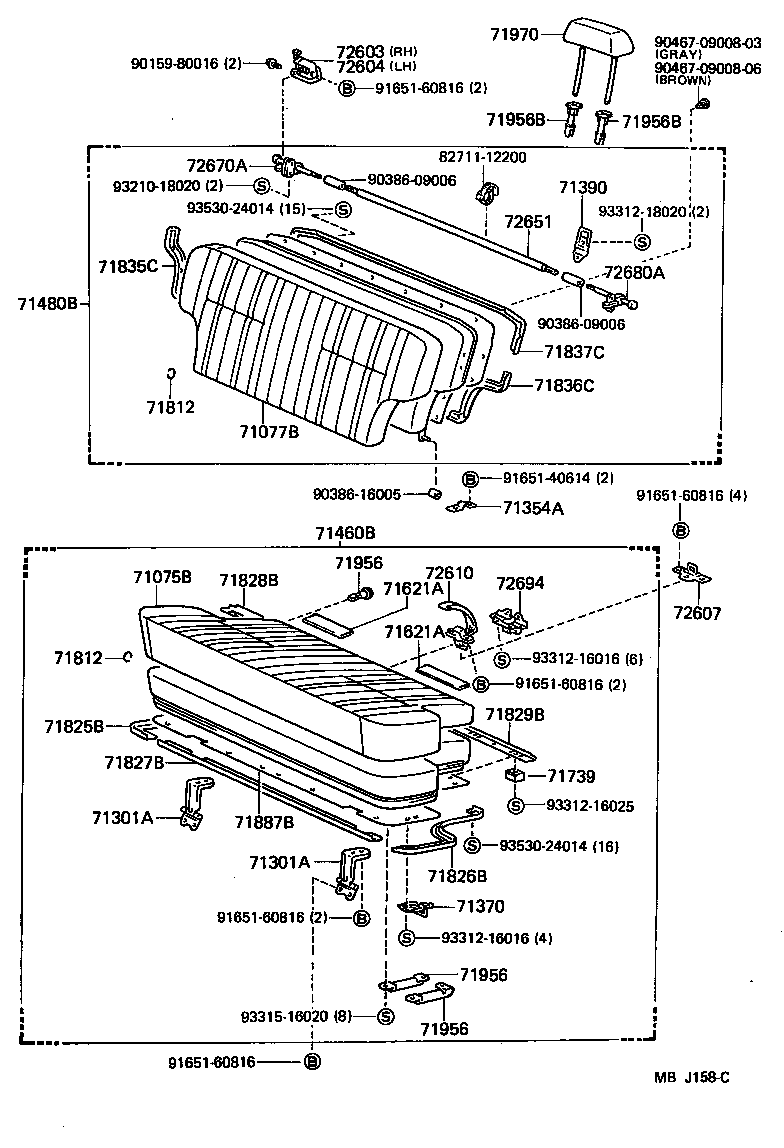

MBJ158C 1985-04 → 1985-10

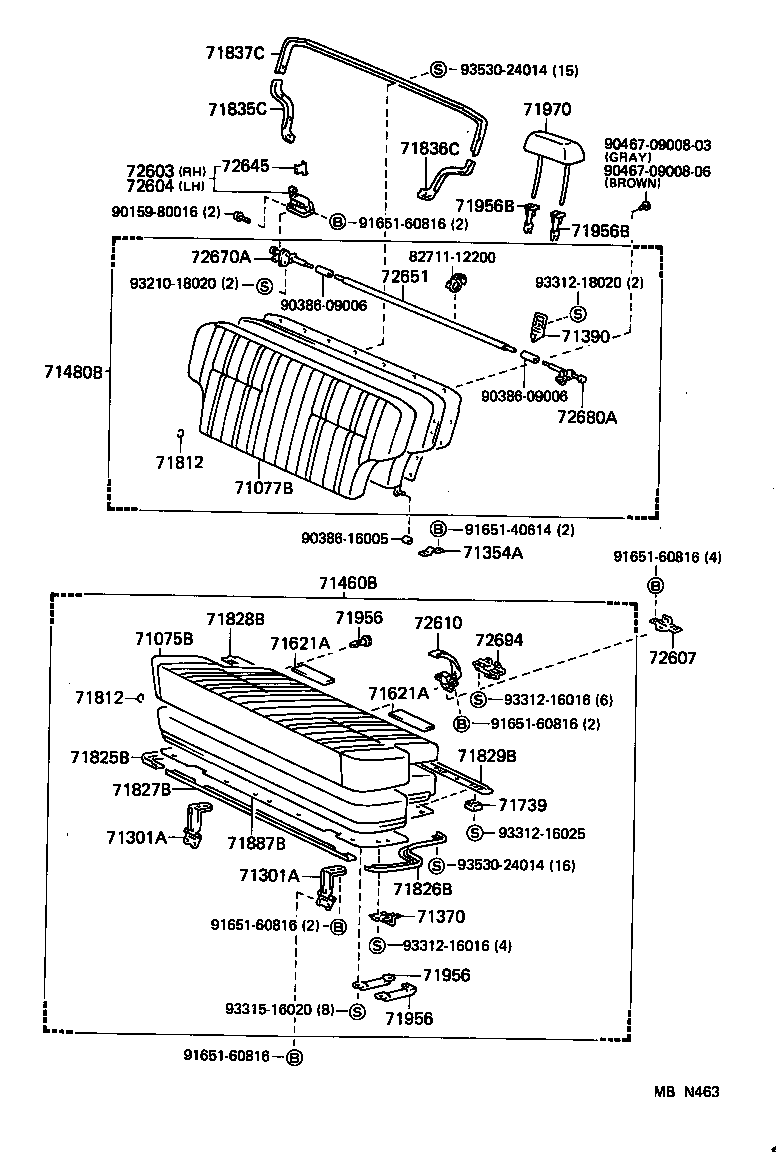

MBN463 1985-10 → —

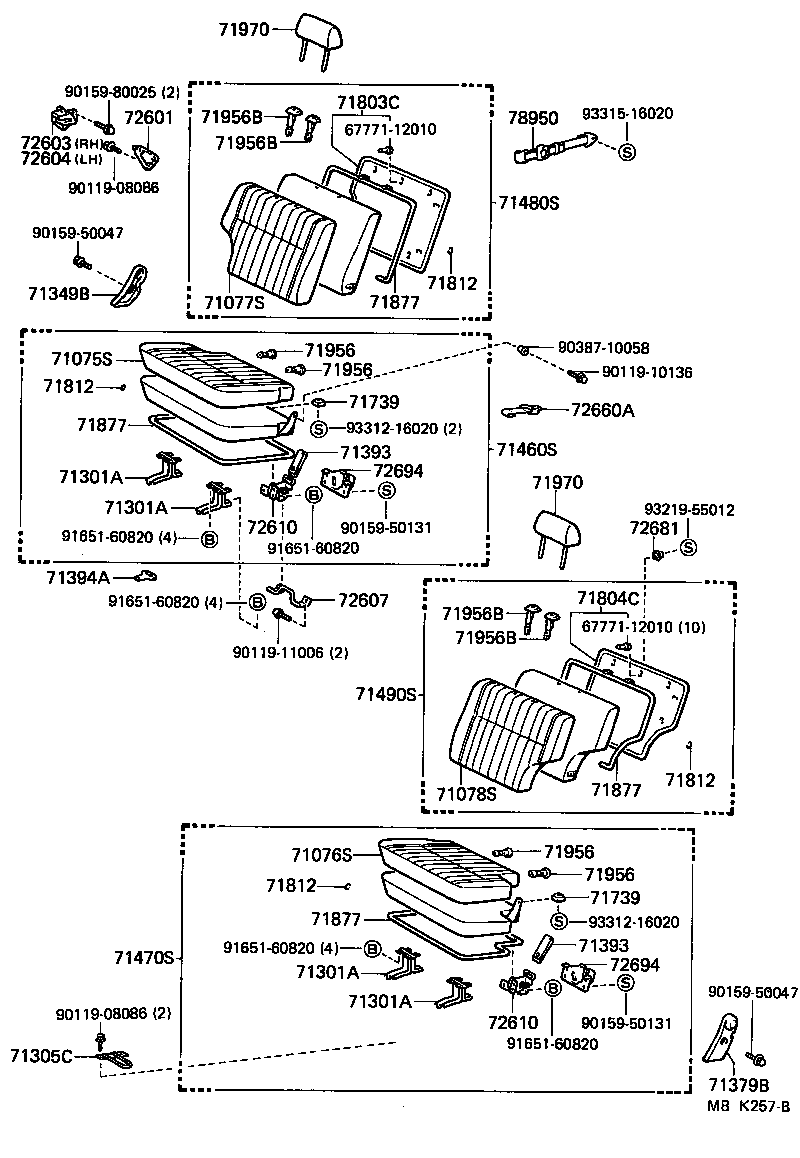

MBK257B 1985-10 → —

Part groups

PNC	Description
71071S	Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71072S	Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71073S	Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71074S	Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71075B	Cover, Rear Seat Cushion (FOR BENCH TYPE)
71075S	Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
71076S	Cover, Rear Seat Cushion, LH (FOR SEPARATE TYPE)
71077B	Cover, Rear Seatback (FOR BENCH TYPE)
71077S	Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
71078S	Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
71113	Leg, Front Seat Cushion, RH
71114	Leg, Front Seat Cushion, LH
71146	Silencer, Front Seatback
71301A	Hinge Sub-assy, Rear Seat Cushion
71305C	Stay Sub-assy, Rear Seat
71349B	Cover, Rear Seatback Stay, RH
71354A	Plate, Rear Seatback Set
71370	Bracket Sub-assy, Rear Seat Cushion Holder
71379B	Cover, Rear Seatback Hinge, LH
71390	Bracket Sub-assy, Rear Seatback Holder
71393	Band, Rear Seat Cushion
71394A	Plate, Rear Seat Cushion Band Support, Lower
71410S	Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
71420S	Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
71430S	Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
71440S	Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
71460B	Cushion Assy, Rear Seat (FOR BENCH TYPE)
71460S	Cushion Assy, Rear Seat, RH(FOR SEPARATE TYPE)
71470S	Cushion Assy, Rear Seat, LH (FOR SEPARATE TYPE)
71480B	Back Assy, Rear Seat (FOR BENCH TYPE)
71480S	Back Assy, Rear Seat, RH (FOR SEPARATE TYPE)
71490S	Back Assy, Rear Seat, LH (FOR SEPARATE TYPE)
71579A	Washer, Front Seatback Board Setting
71621A	Pad, Rear Seat Cushion Silencer, A
71705	Board Sub-assy, Front Seatback, RH
71705B	Cap(FOR FRONT SEATBACK BOARD)
71706	Board Sub-assy, Front Seatback, LH
71739	Cushion, Seat Support
71803C	Board Sub-assy, Rear RH Seatback(FOR SEPARATE SEAT)
71804C	Board Sub-assy, Rear LH Seatback(FOR SEPARATE SEAT)
71812	Clip (FOR FRONT SEAT CUSHION COVER)
71825B	Moulding, Rear Seat Cushion, RH
71826B	Moulding, Rear Seat Cushion, LH
71827B	Moulding, Rear Seat Cushion, Front
71828B	Moulding, Rear Seat Cushion, Rear RH
71829B	Moulding, Rear Seat Cushion, Rear LH
71835C	Moulding, Rear Seatback, RH
71836C	Moulding, Rear Seatback, LH
71837C	Moulding, Rear Seatback, Upper
71838C	Moulding, Rear Seatback, Lower
71877	Ornament, Rear Seat Cushion Panel
71885B	Mat, Rear Seatback
71887B	Mat, Rear Seat Cushion
71950	Headrest Assy, Front Seat
71956	Support, Headrest
71956A	Support, Front Seat Headrest
71956B	Support, Rear Seat Headrest
71970	Headrest Assy, Rear Seat
72011	Adjuster Sub-assy, Front Seat, Outer RH
72110S	Track Assy, RH Seat, Outer (FOR SEPARATE SEAT)
72120S	Track Assy, LH Seat, Outer (FOR SEPARATE SEAT)
72130S	Track Assy, RH Seat, Inner (FOR SEPARATE SEAT)
72140S	Track Assy, LH Seat, Inner (FOR SEPARATE SEAT)
72145A	Bracket, Front Inner Seat Track, Lower Front RH
72146A	Bracket, Front Inner Seat Track, Lower Front LH
72457A	Knob, Seat Adjuster
72457C	Knob, Side Support Adjuster
72498	Cover, Vertical Adjuster Bracket
72510	Adjuster Assy, Reclining Seatback, RH
72520	Adjuster Assy, Reclining Seatback, LH
72524	Handle, Reclining Adjuster Release
72537	Cover, Reclining Hinge Outer, RH
72538	Cover, Reclining Hinge Outer, LH
72601	Striker Sub-assy, Rear Seat Lock
72603	Lock Sub-assy, Rear Seatback, RH
72604	Lock Sub-assy, Rear Seatback, LH
72607	Striker Sub-assy, Rear Seat Cushion Lock
72610	Lock Assy, Rear Seat Cushion
72645	Cushion, Rear Seatback Lock
72651	Rod, Rear Seatback Lock
72660A	Support Assy, Rear Seat Cushion
72670A	Striker Assy, Rear Seatback Lock, RH
72680A	Striker Assy, Rear Seatback Lock, LH
72681	Hook, Rear Seatback Lock, Lower
72694	Cover, Rear Seat Cushion Lock
72760A	Adjuster Assy, Lumbar Support
73800	Suspension Assy, Seat, RH
73847	Cushion, Seat Suspension Stopper
73888	Handle, Seat Suspension Control
78950	Band Assy, Fold Seat Stopper, NO.1

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
