Toyota Land Cruiser

2021-07 → present · chassis FJA300,VJA300 · catalogue 791170 · Japan

Supported model Data version 2021-08

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

50 part groups · 7 illustrations

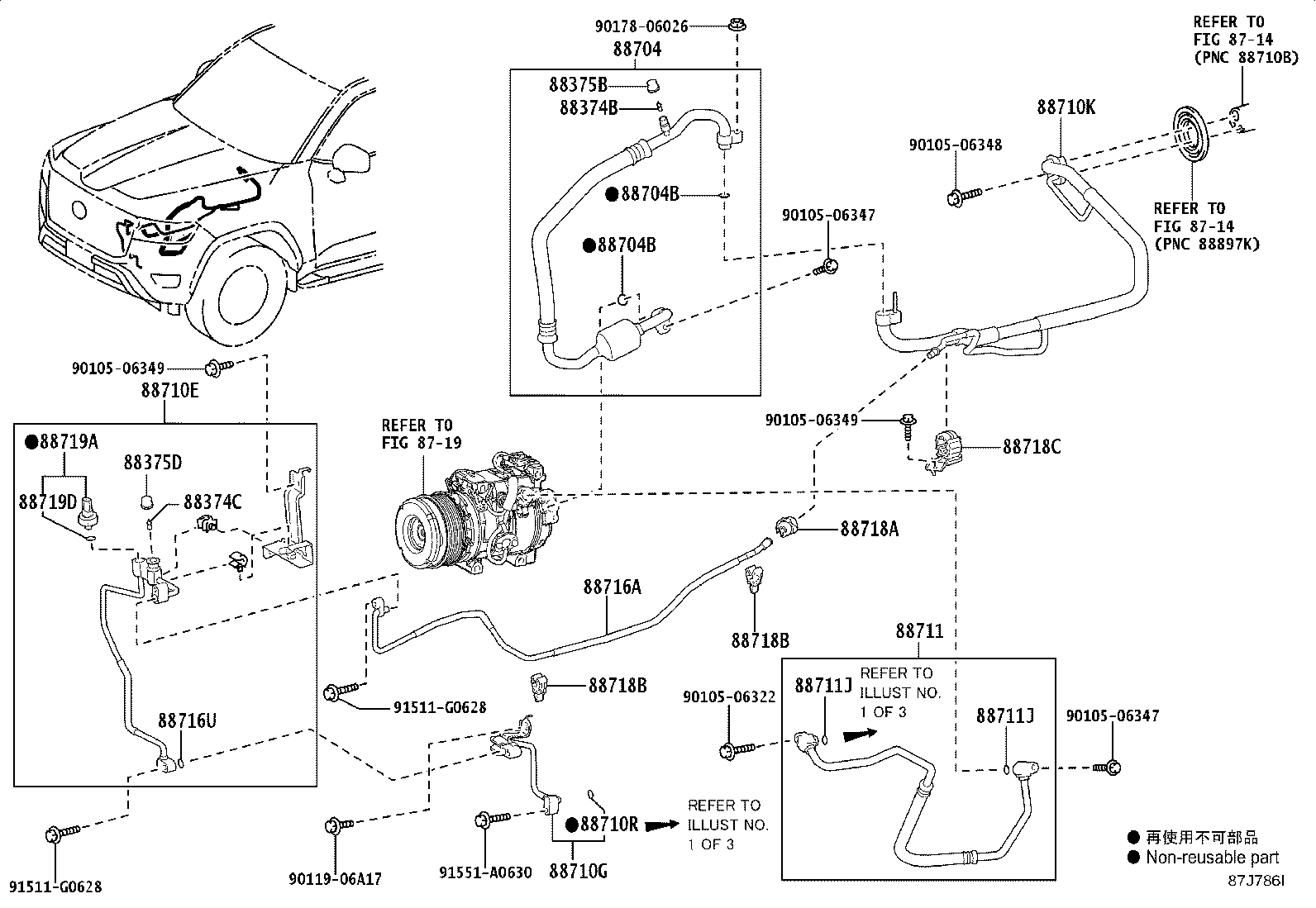

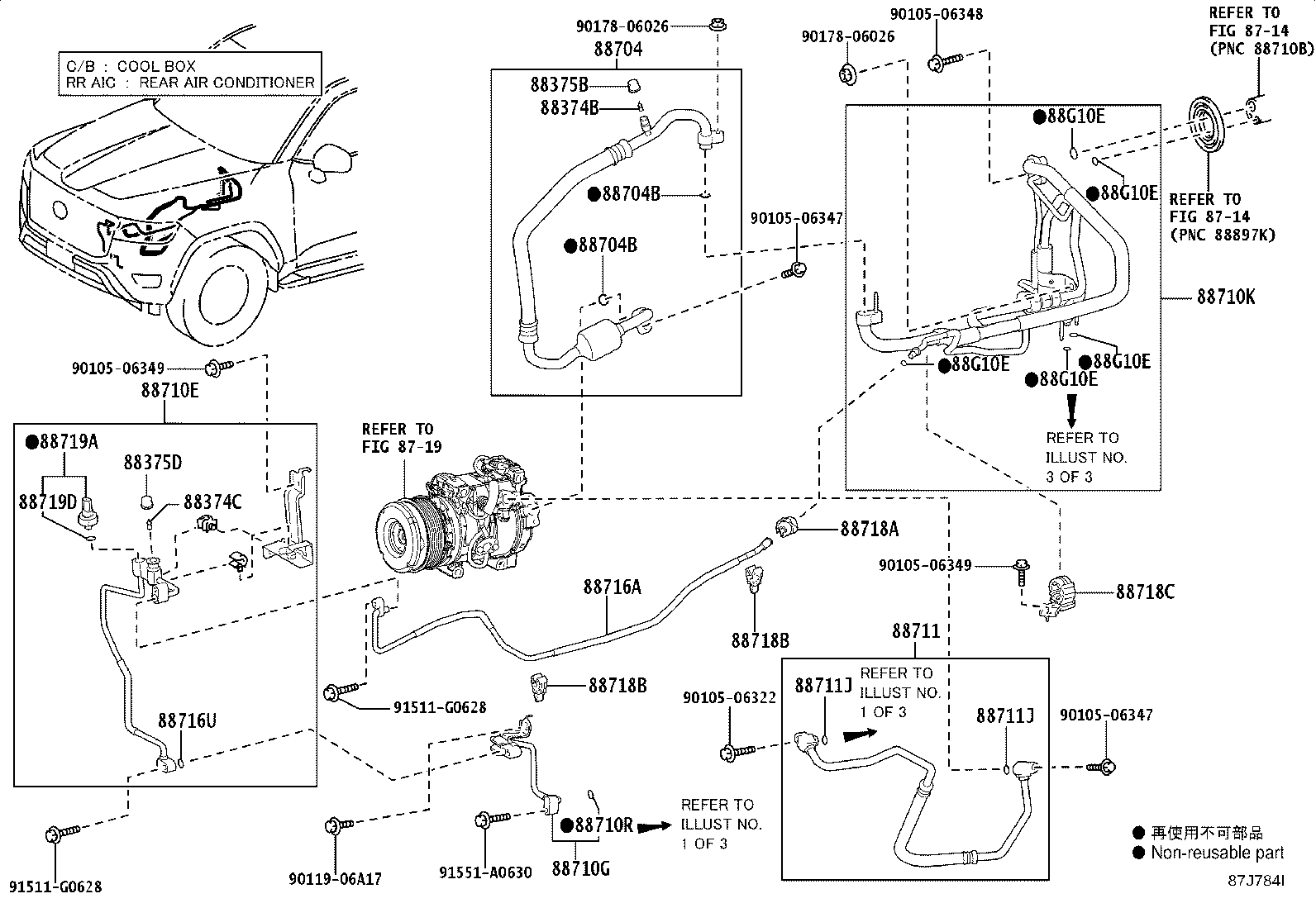

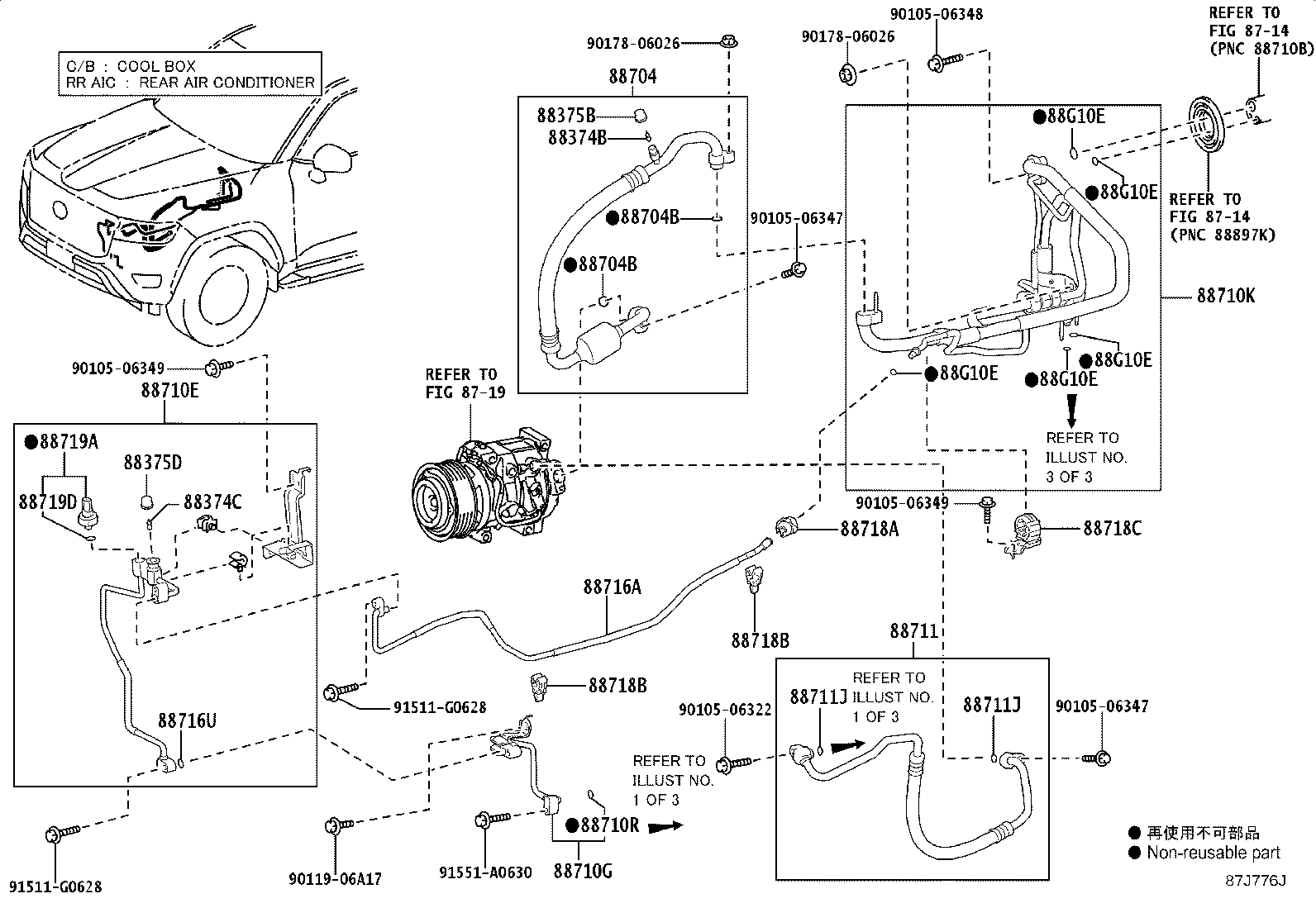

Illustrations

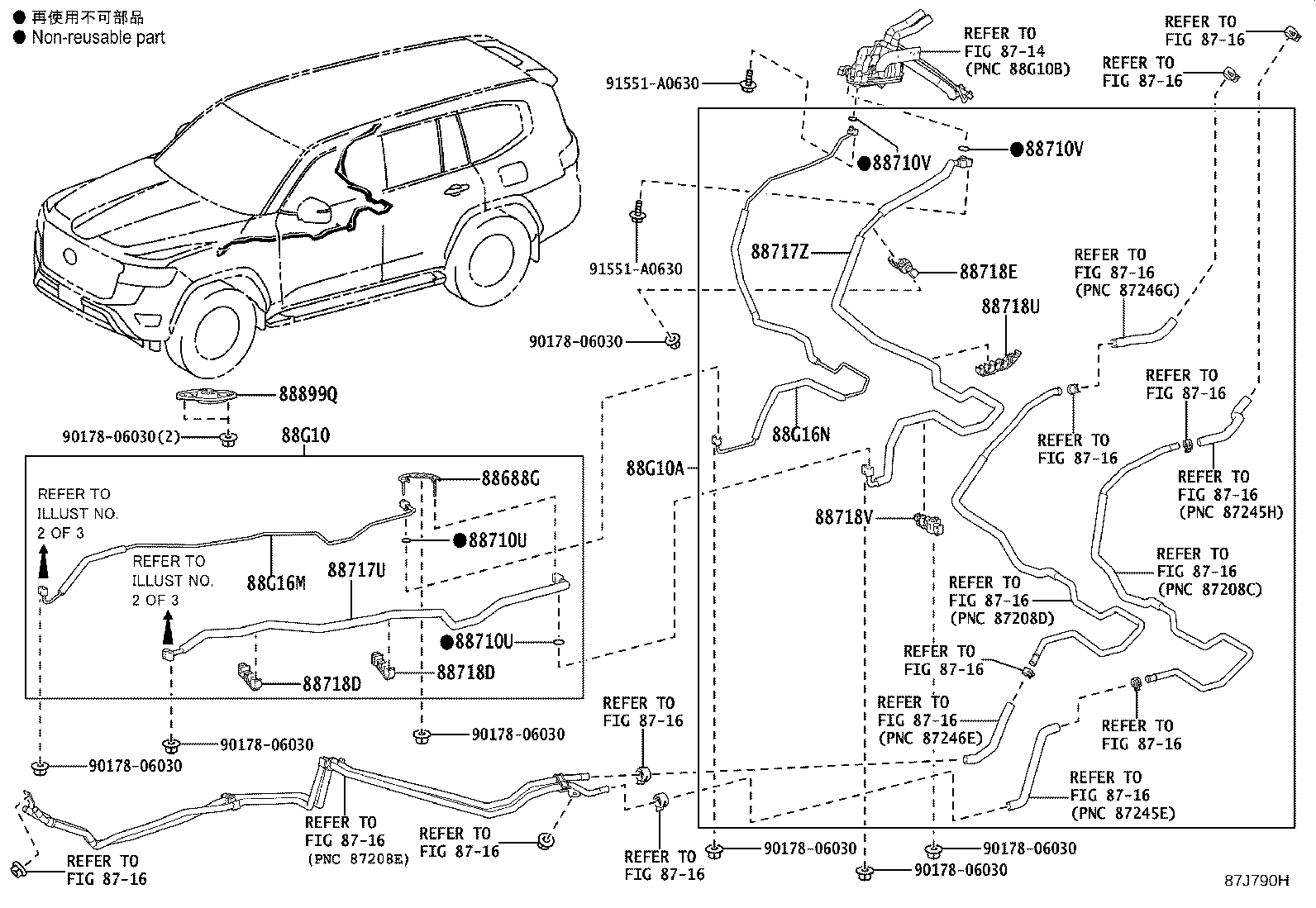

87J790H 2021-07 → 2022-04

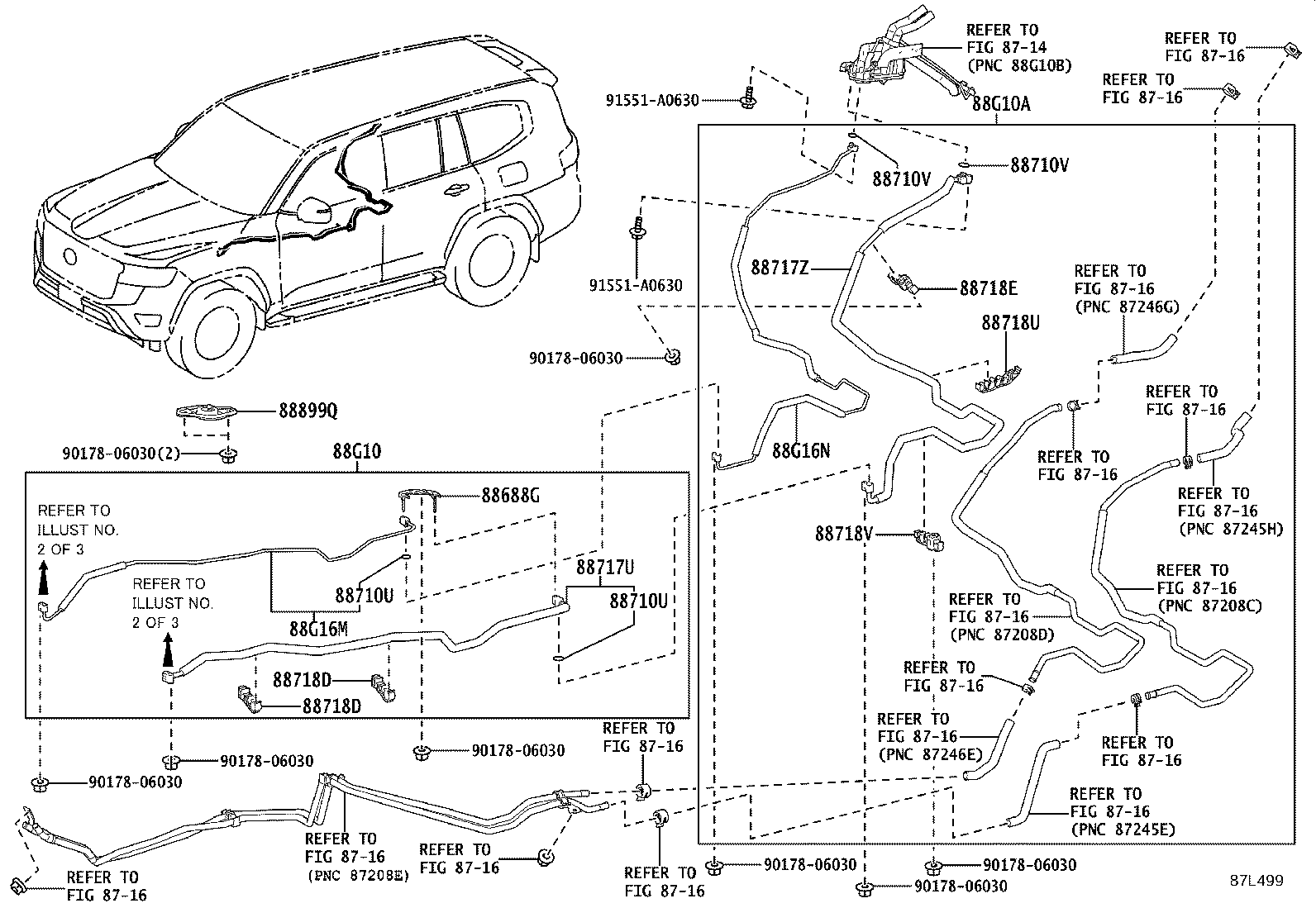

87L499 2022-04 → —

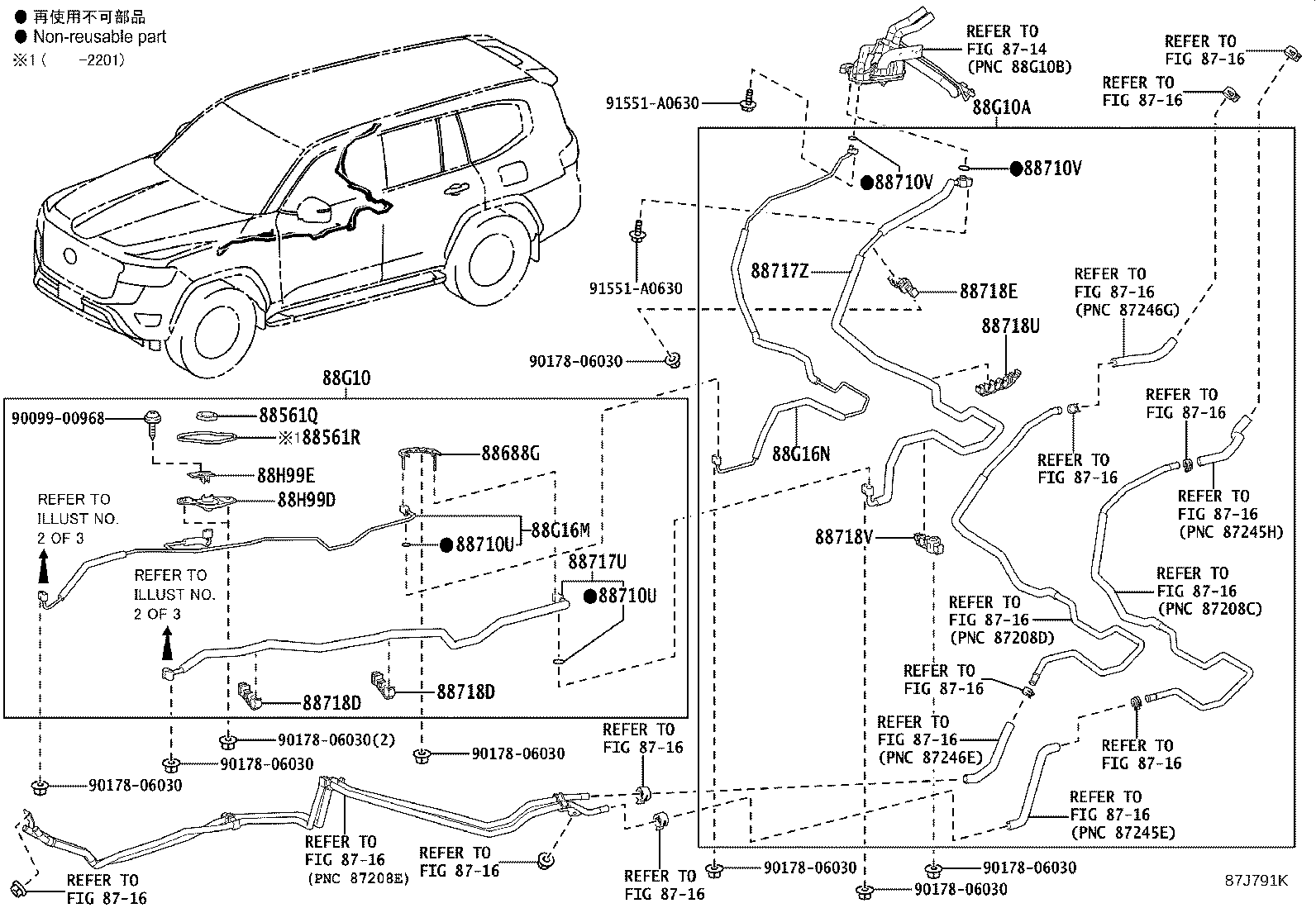

87J791K 2021-07 → —

Part groups

PNC	Description
88374B	Valve, Service, NO.1
88374C	Valve, Service, NO.2
88375B	Cap, Service Valve, NO.1
88375D	Cap, Service Valve, NO.2
88467H	Cushion, Condenser Bracket, NO.1
88474	Dryer, Cooler
884A0	Condenser Assy, Cooler
88561Q	Packing, Cooling Box Cover, NO.1
88561R	Packing, Cooling Box Cover, NO.2
88688G	Bracket, Cooler Refrigerant Pipe
88704	Hose Sub-assy, Suction
88704B	Ring, O(FOR SUCTION HOSE)
88710E	Tube & Accessory Assy, Air Conditioner
88710G	Tube & Accessory Assy, Air Conditioner, NO.2
88710K	Tube & Accessory Assy, Air Conditioner, NO.3
88710R	Ring, O, NO.1(FOR TUBE & ACCESSORY ASSY, A/C, NO.2)
88710U	Ring, O, NO.4(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONER)
88710V	Ring, O, NO.5(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONER)
88711	Hose, Cooler Refrigerant Discharge, NO.1
88711J	Ring, O, NO.1(FOR DISCHARGE HOSE)
88716A	Pipe, Cooler Refrigerant Liquid, A
88716U	Ring, O(FOR COOLER REFRIGERANT LIQUID PIPE)
88717U	Tube, Suction, NO.1
88717Z	Tube, Suction, NO.2
88718A	Clamp, NO.1(FOR COOLER REFRIGERANT PIPE)
88718B	Clamp, NO.2(FOR COOLER REFRIGERANT PIPE)
88718C	Clamp, NO.3(FOR COOLER REFRIGERANT PIPE)
88718D	Clamp, NO.4(FOR COOLER REFRIGERANT PIPE)
88718E	Clamp, NO.5(FOR COOLER REFRIGERANT PIPE)
88718U	Clamp, NO.6(FOR COOLER REFRIGERANT PIPE)
88718V	Clamp, NO.7(FOR COOLER REFRIGERANT PIPE)
88719A	Sensor, Air Conditioner Pressure
88719D	Ring, O(FOR AIR CONDITIONER PRESSURE SENSOR)
88899Q	Plate, Cover
88F88	Bracket, Condenser, NO.1
88F88A	Bracket, Condenser, NO.2
88F88B	Bracket, Condenser, NO.3
88F88C	Bracket, Condenser, NO.4
88F88D	Bracket, Condenser, NO.5
88F88E	Bracket, Condenser, NO.6
88G10	Tube & Accessory Assy, Air Conditioner, NO.4
88G10A	Tube & Accessory Assy, Air Conditioner, NO.5
88G10E	Ring, O, NO.1 (FOR TUBE & ACCESSORY ASSY, A/C, NO.3)
88G16M	Tube, Liquid, NO.1
88G16N	Tube, Liquid, NO.2
88H99A	Bush, Condenser Bracket, NO.1
88H99B	Bush, Condenser Bracket, NO.2
88H99C	Bush, Condenser Bracket, NO.3
88H99D	Cover, Cooling Box, NO.1
88H99E	Cover, Cooling Box, NO.2

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
