Toyota Coaster

1982-05 → 1993-01 · chassis RB2#,BB2#,3#,HB3#,HZB3#,HDB20,3# · catalogue 811120 · Japan

Discontinued model Data version 1993-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Manifold

61 part groups · 14 illustrations

Illustrations

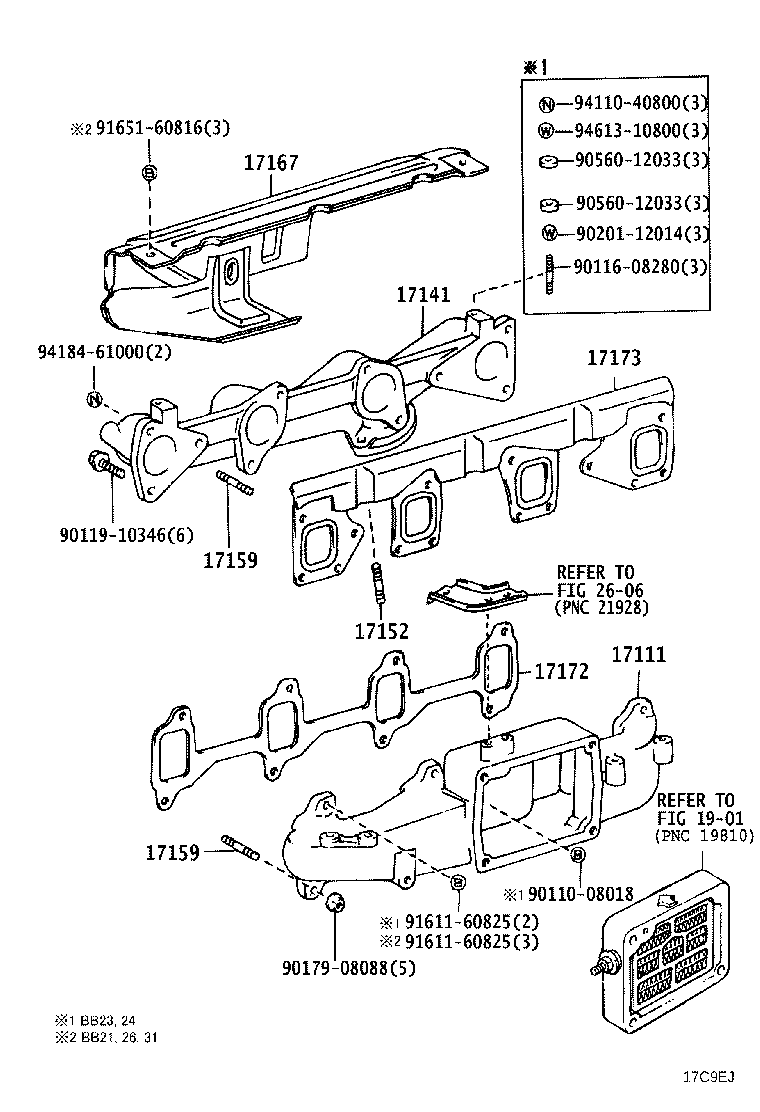

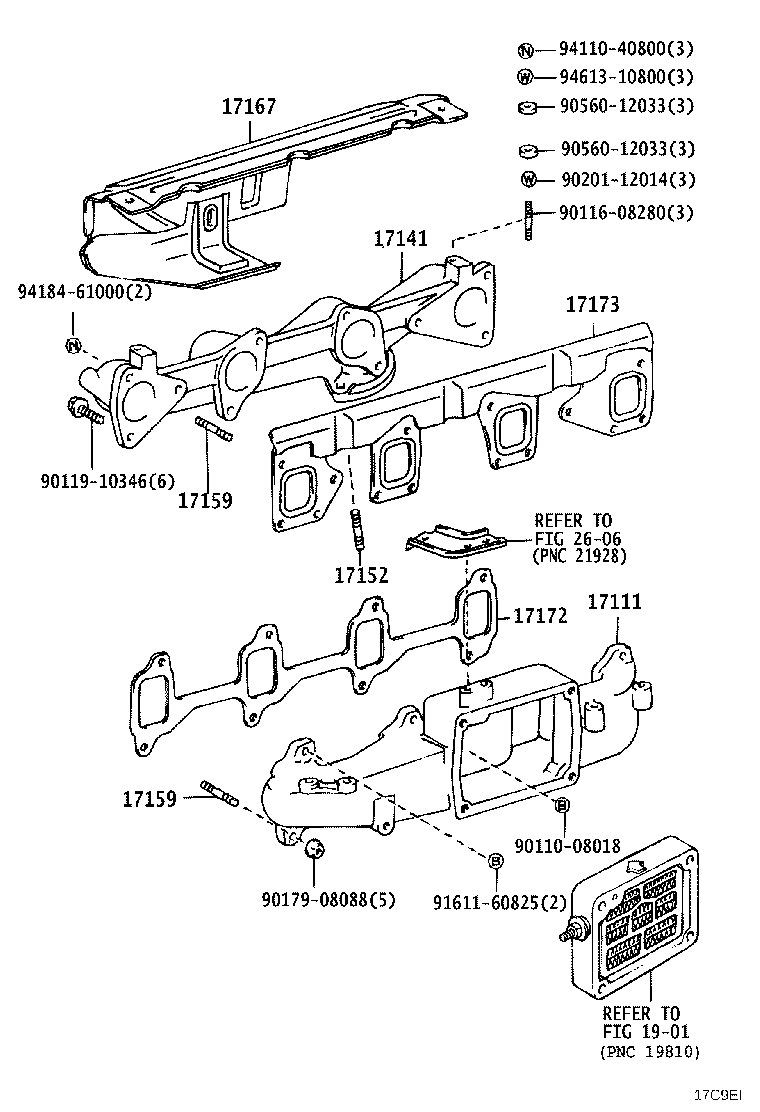

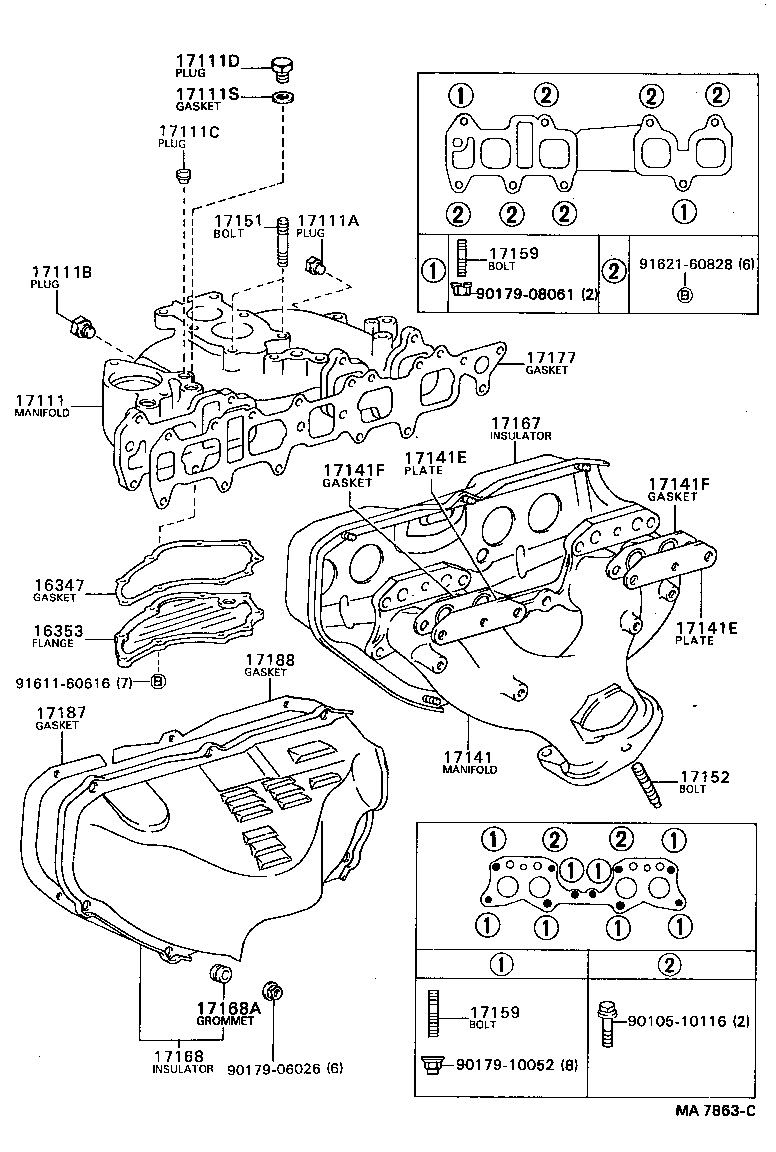

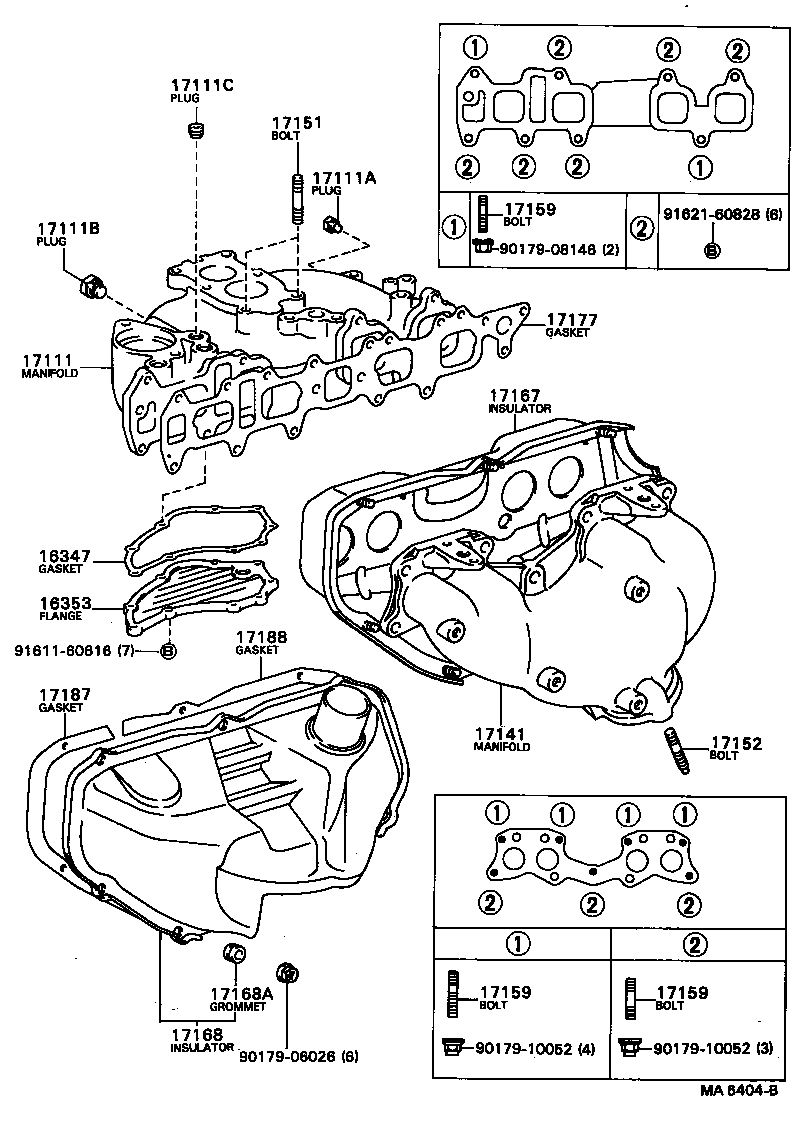

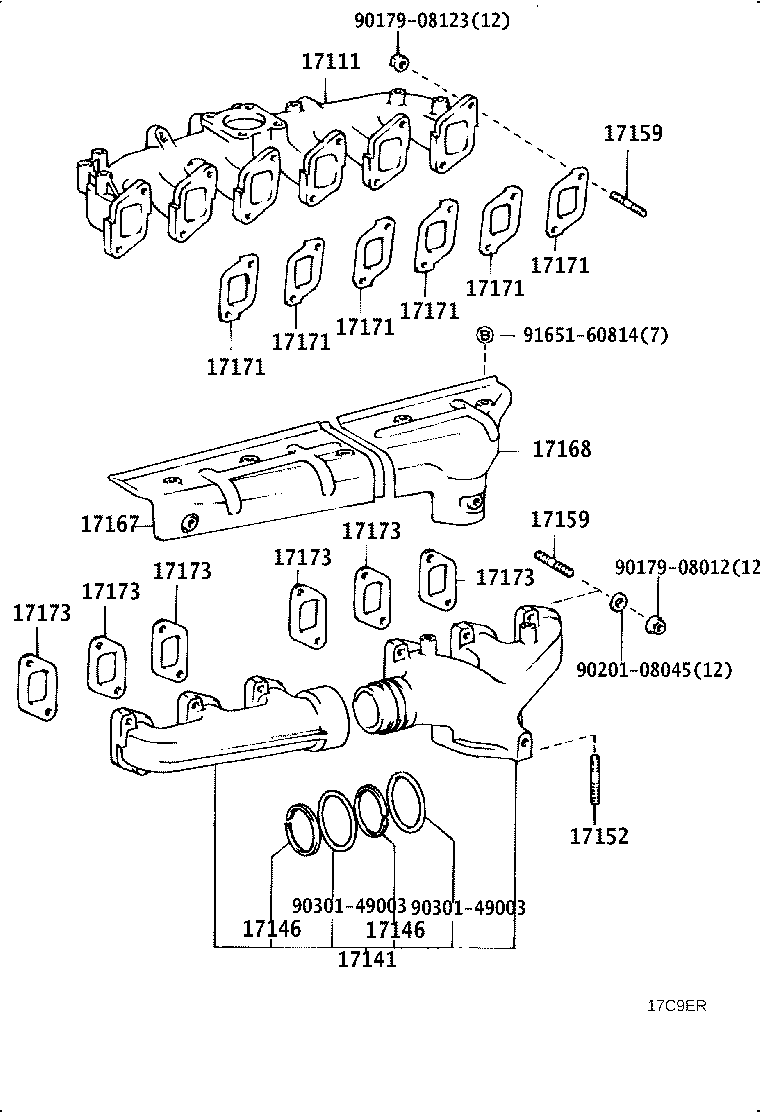

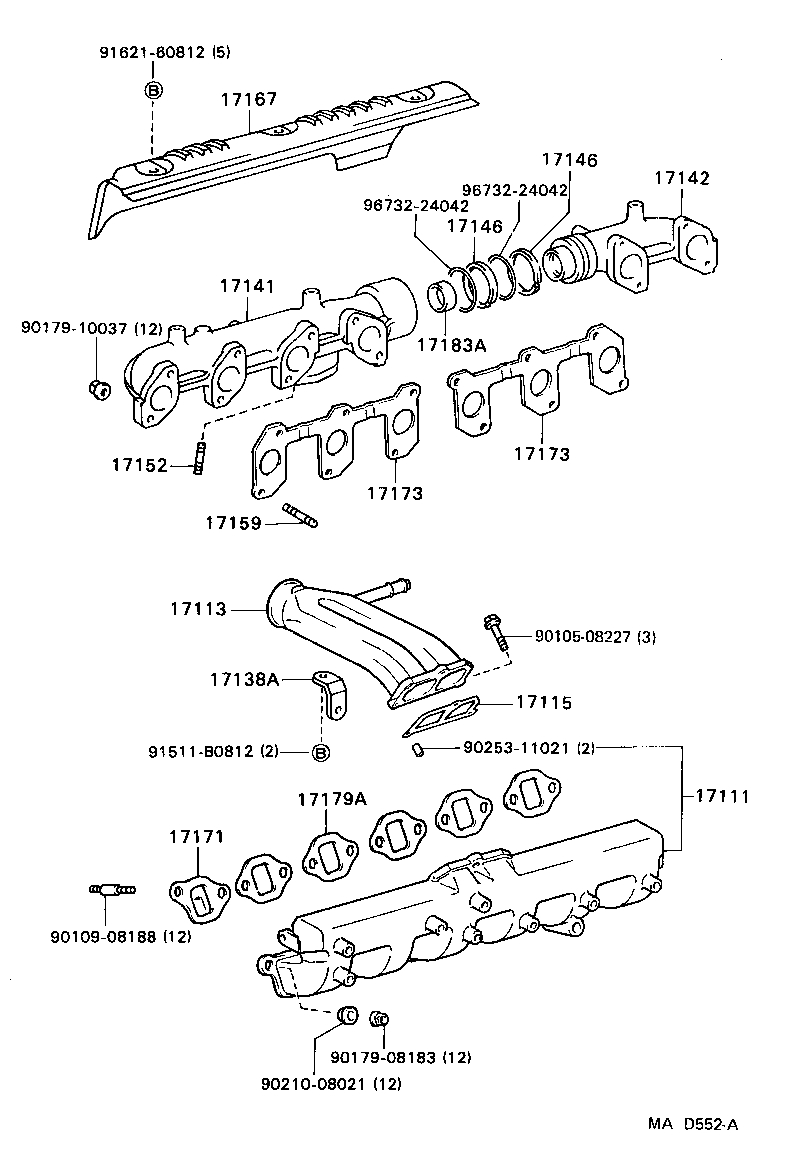

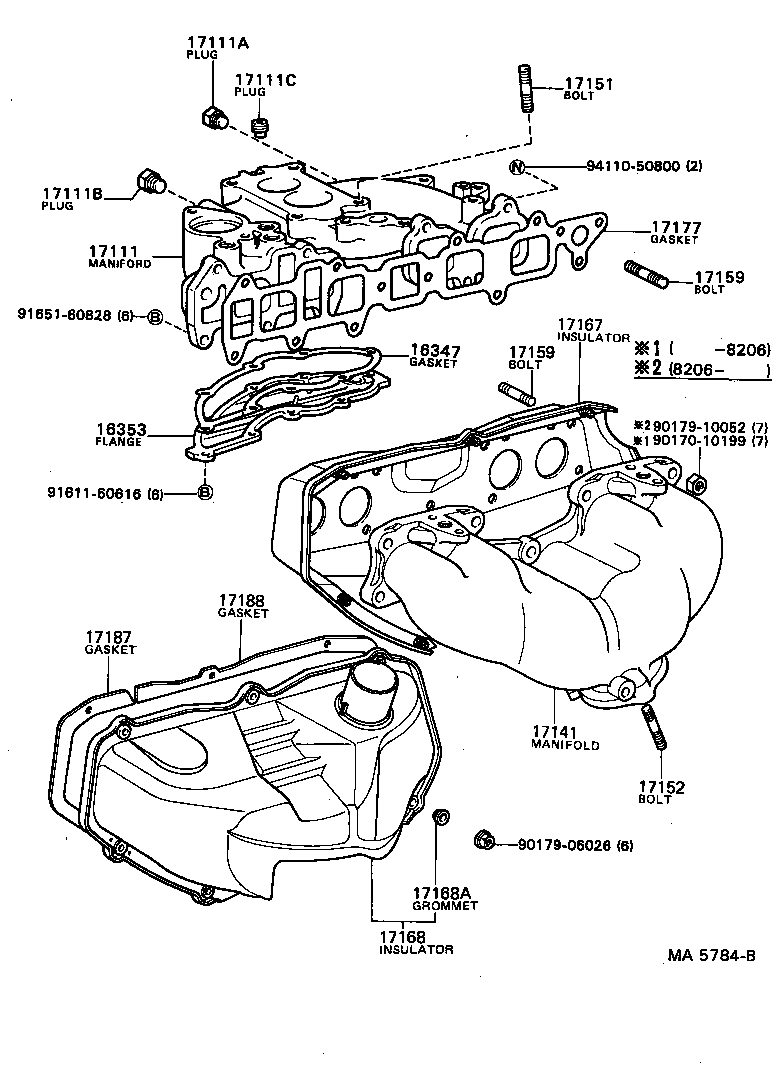

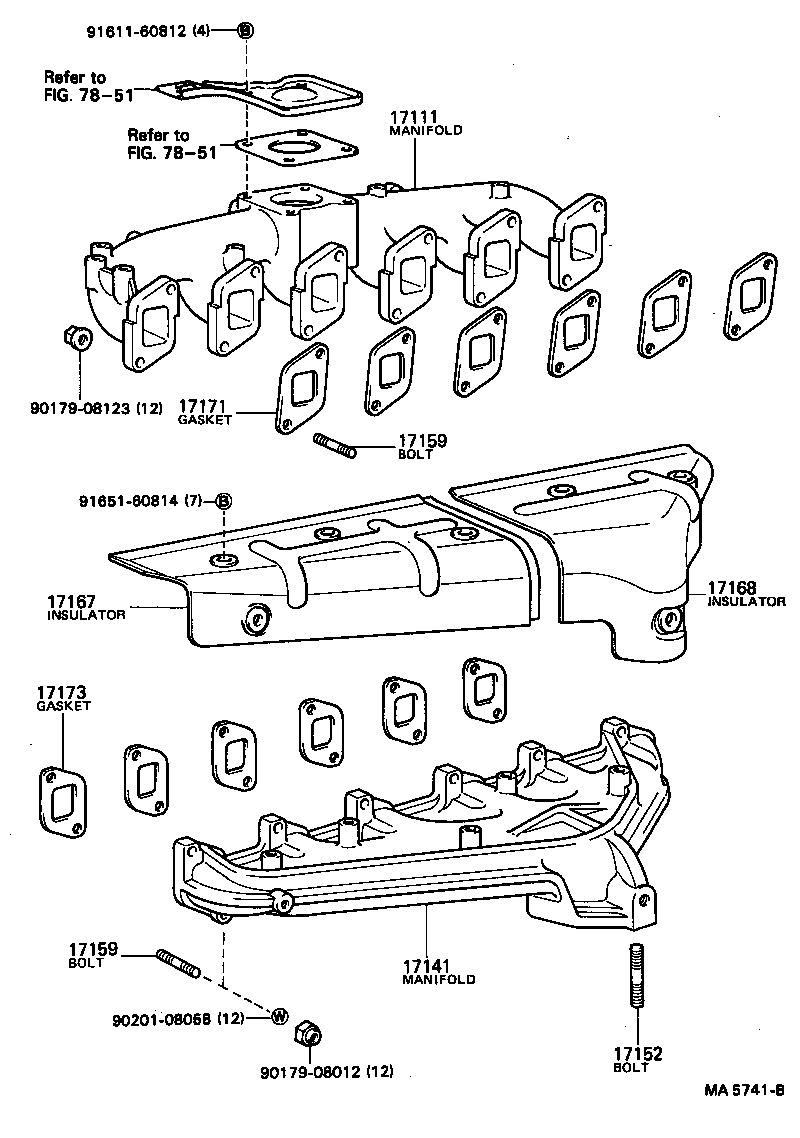

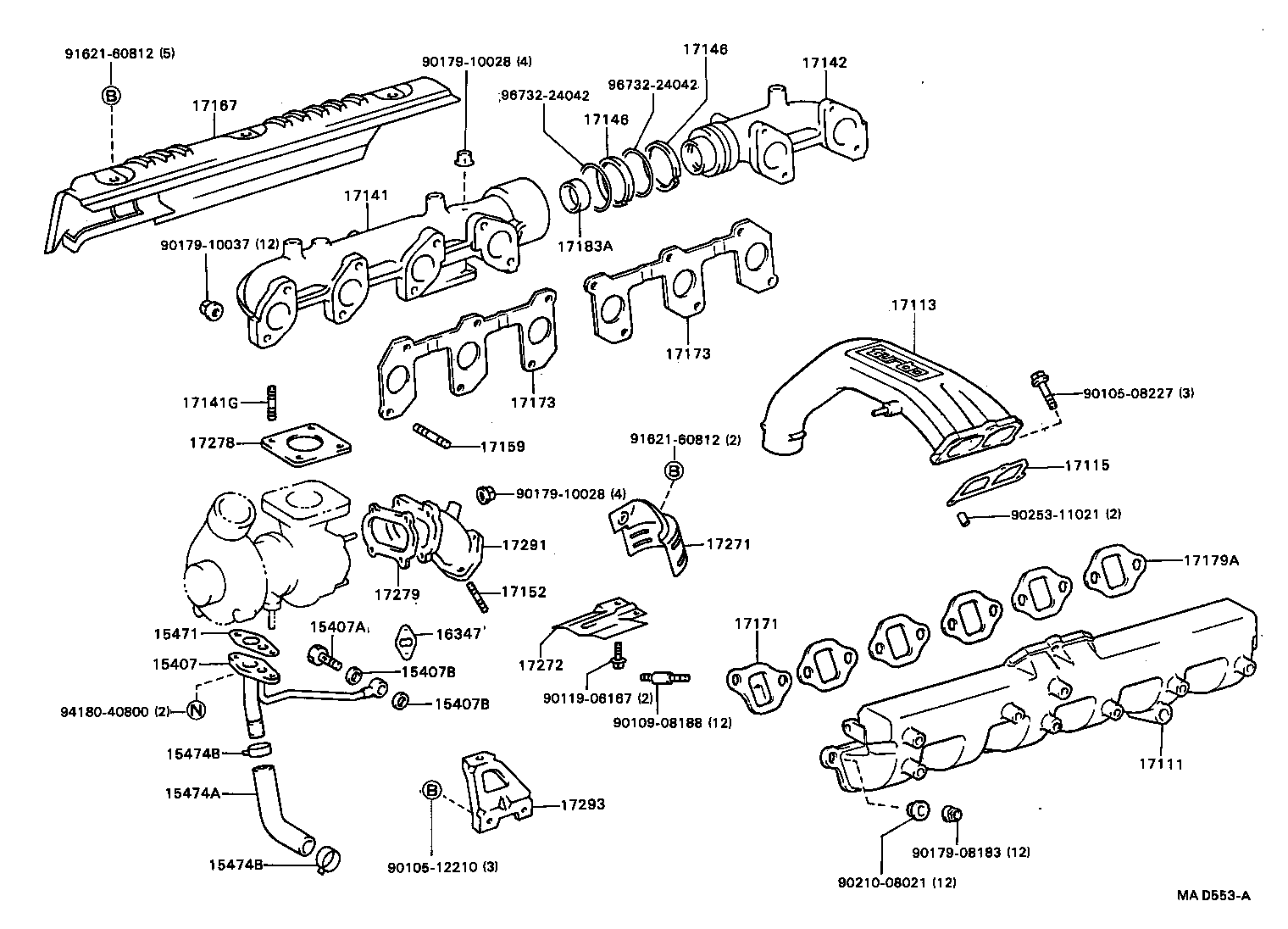

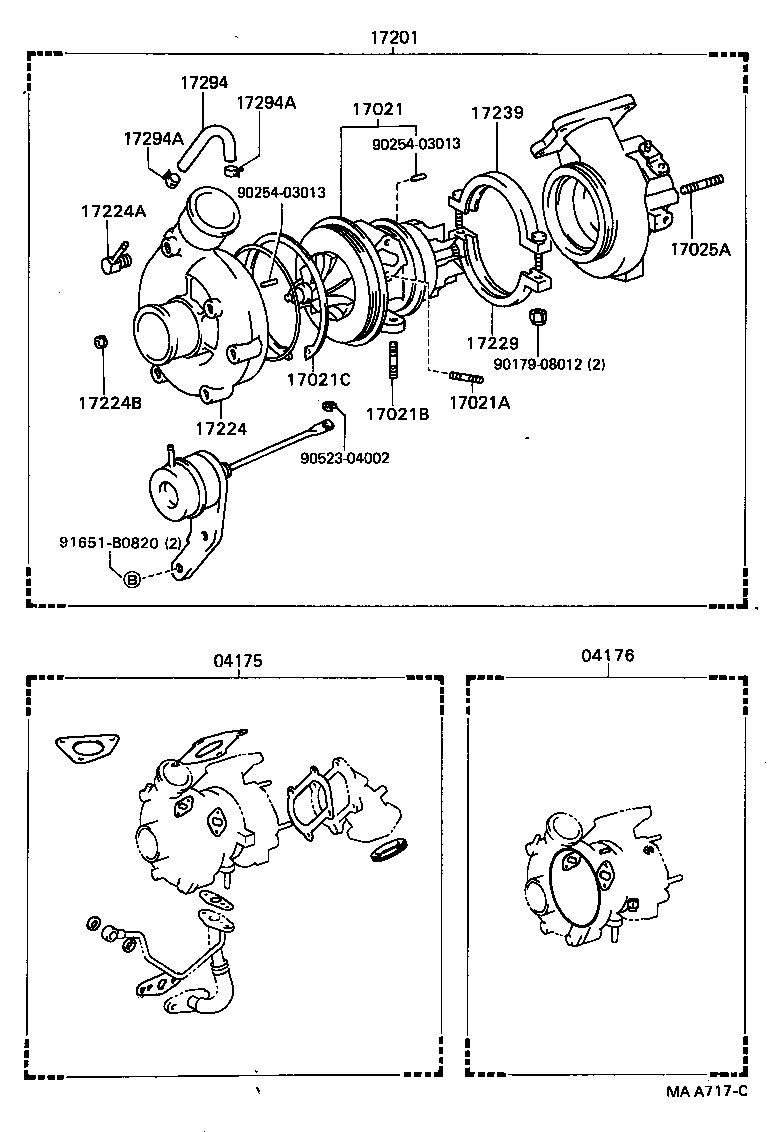

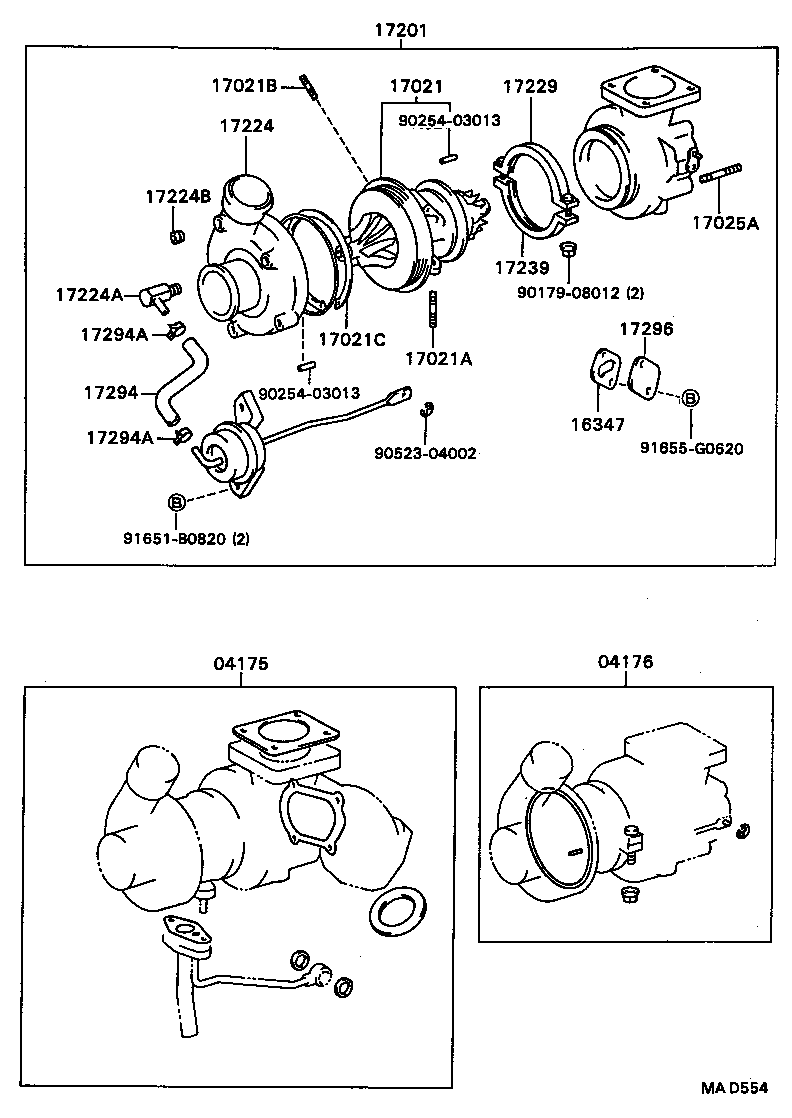

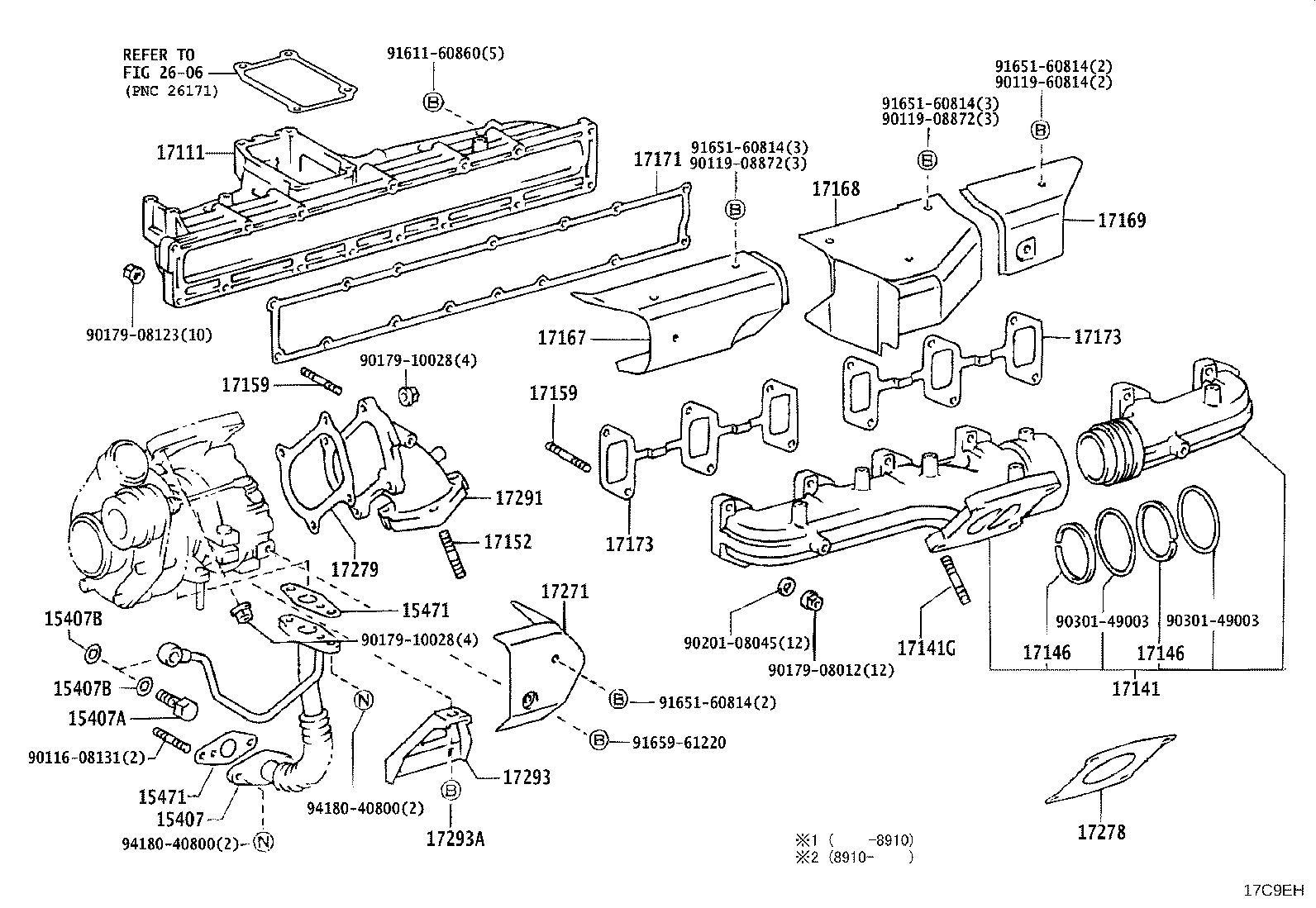

Figure 17C9ES 17C9ES 1982-05 → 1988-08 Figure 17C9EJ 17C9EJ 1988-08 → — Figure 17C9EI 17C9EI 1988-02 → — Figure MA5741B MA5741B 1982-05 → 1984-11 Figure 17C9ER 17C9ER 1984-11 → 1990-01 Figure 17C9EH 17C9EH 1985-10 → 1990-01 Figure 17C9EH 17C9EH 1988-08 → 1990-01 Figure MAA717C MAA717C 1985-10 → 1990-01 Figure MAD552A MAD552A 1990-01 → — Figure MAD553A MAD553A 1990-01 → — Figure MAD554 MAD554 1990-01 → — Figure MA5784B MA5784B 1982-05 → 1982-08 Figure MA6404B MA6404B 1982-08 → 1984-08 Figure MA7863C MA7863C 1984-08 → —

Part groups

PNCDescription
04175 Gasket Kit, Turbocharger
04176 Seal Kit, Turbocharger
15407 Pipe Sub-assy, Turbo Oil Inlet
15407A Bolt, Union(FOR TURBO OIL INLET PIPE)
15407B Gasket(FOR TURBO OIL INLET PIPE)
15471 Gasket, Turbo Oil Inlet
15474A Hose, Turbo Oil Outlet
15474B Clamp OR Clip(FOR TURBO OIL OUTLET HOSE)
16347 Gasket, Water By-pass
16353 Flange, Water By-pass
17021 Housing Sub-assy, Bearing
17021A Bolt, Stud(FOR BEARING HOUSING)
17021B Bolt, Stud
17021C Ring, Hole Snap(FOR BEARING HOUSING)
17025A Bolt, Stud(FOR TURBINE HOUSING)
17111 Manifold, Intake
17111A Plug, NO.1
17111B Plug, NO.2
17111C Plug, NO.3
17111D Plug, NO.4
17111S Gasket(FOR MANIFOLD PLUG)
17113 Pipe, Intake
17115 Gasket, Intake Manifold Hole Cover
17138A Stay, Intake Pipe
17141 Manifold, Exhaust
17141E Plate, Exhaust Manifold
17141F Gasket(FOR EXHAUST MANIFOLD PLATE)
17141G Bolt, Stud(FOR TURBOCHARGER)
17142 Case, Exhaust Manifold, NO.2
17146 Ring, Exhaust Manifold
17151 Bolt, Stud(FOR MANIFOLD TO CARBURETOR)
17152 Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE)
17159 Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
17167 Insulator, Exhaust Manifold Heat, NO.1
17168 Insulator, Exhaust Manifold Heat, NO.2
17168A Grommet(FOR EXHAUST MANIFOLD HEAT INSULATOR)
17169 Insulator, Exhaust Manifold Heat, NO.3
17171 Gasket, Intake TO Exhaust Manifold
17172 Gasket, Manifold TO Cylinder Head
17173 Gasket, Exhaust Manifold TO Head
17177 Gasket, Intake Manifold TO Head, NO.1
17179A Gasket, Intake Manifold, NO.2
17183A Collar, Manifold
17187 Gasket, Heat Insulator, NO.1
17188 Gasket, Heat Insulator, NO.2
17201 Turbocharger Sub-assy
17224 Housing, Compressor
17224A Union(FOR COMPRESSOR HOUSING)
17224B Plug, Taper Screw
17229 Band, V
17239 Clamp, V, NO.2
17271 Insulator, Turbo, NO.1
17272 Insulator, Turbo, NO.2
17278 Gasket, Turbo TO Exhaust Manifold
17279 Gasket, Turbine Outlet Elbow
17291 Elbow, Turbine Outlet
17293 Stay, Turbocharger
17293A Bolt, Stud(FOR TURBOCHARGER STAY)
17294 Hose, Actuator
17294A Clip(FOR ACTUATOR HOSE)
17296 Plate, Bearing Housing, Side
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
