Toyota Coaster

1993-01 → 2016-12 · chassis BB4#,5#,BZB40,50,HDB5#,HZB4#,5#,XZB4#,5# · catalogue 811130 · Japan

Discontinued model Data version 2016-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

41 part groups · 9 illustrations

Illustrations

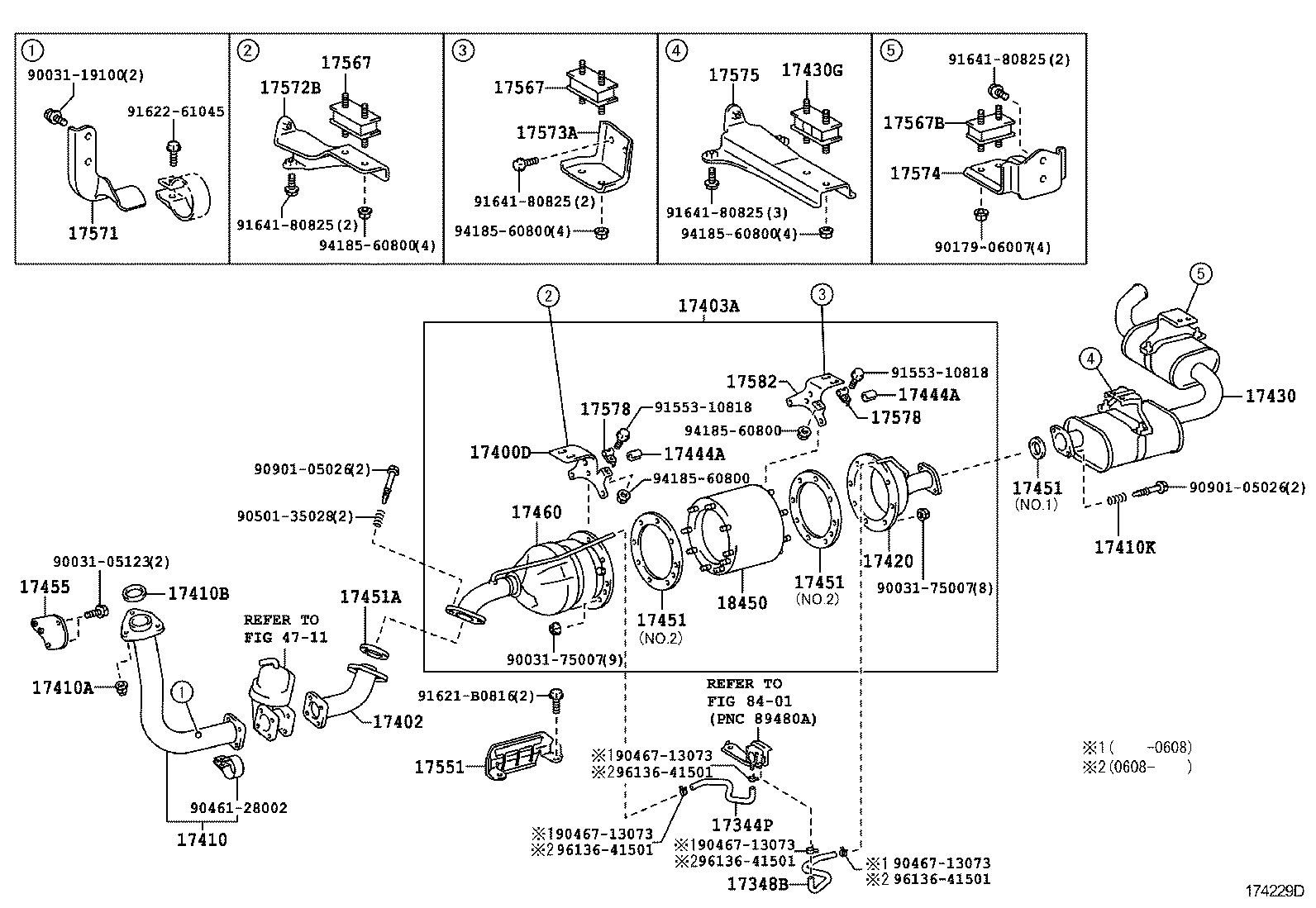

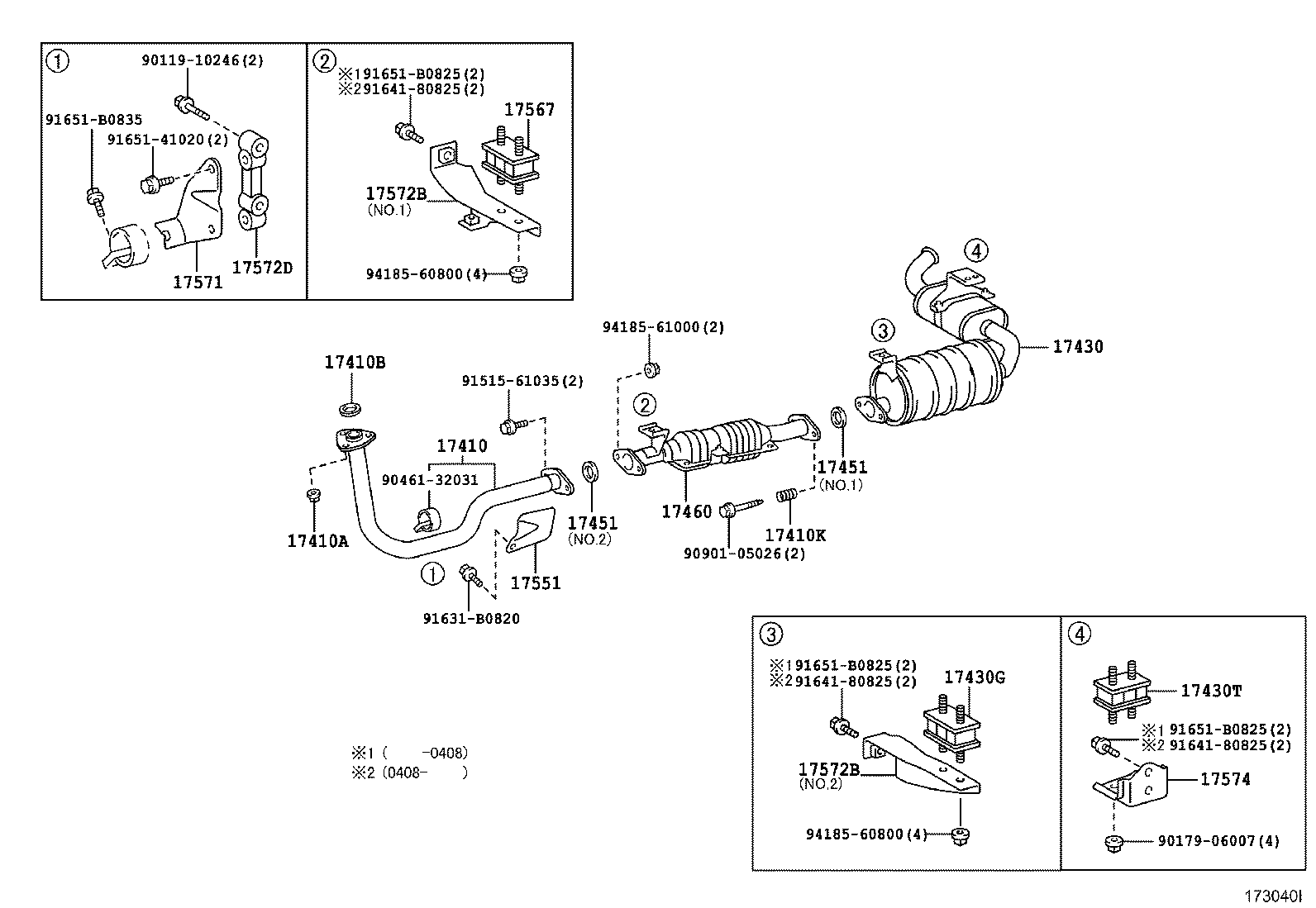

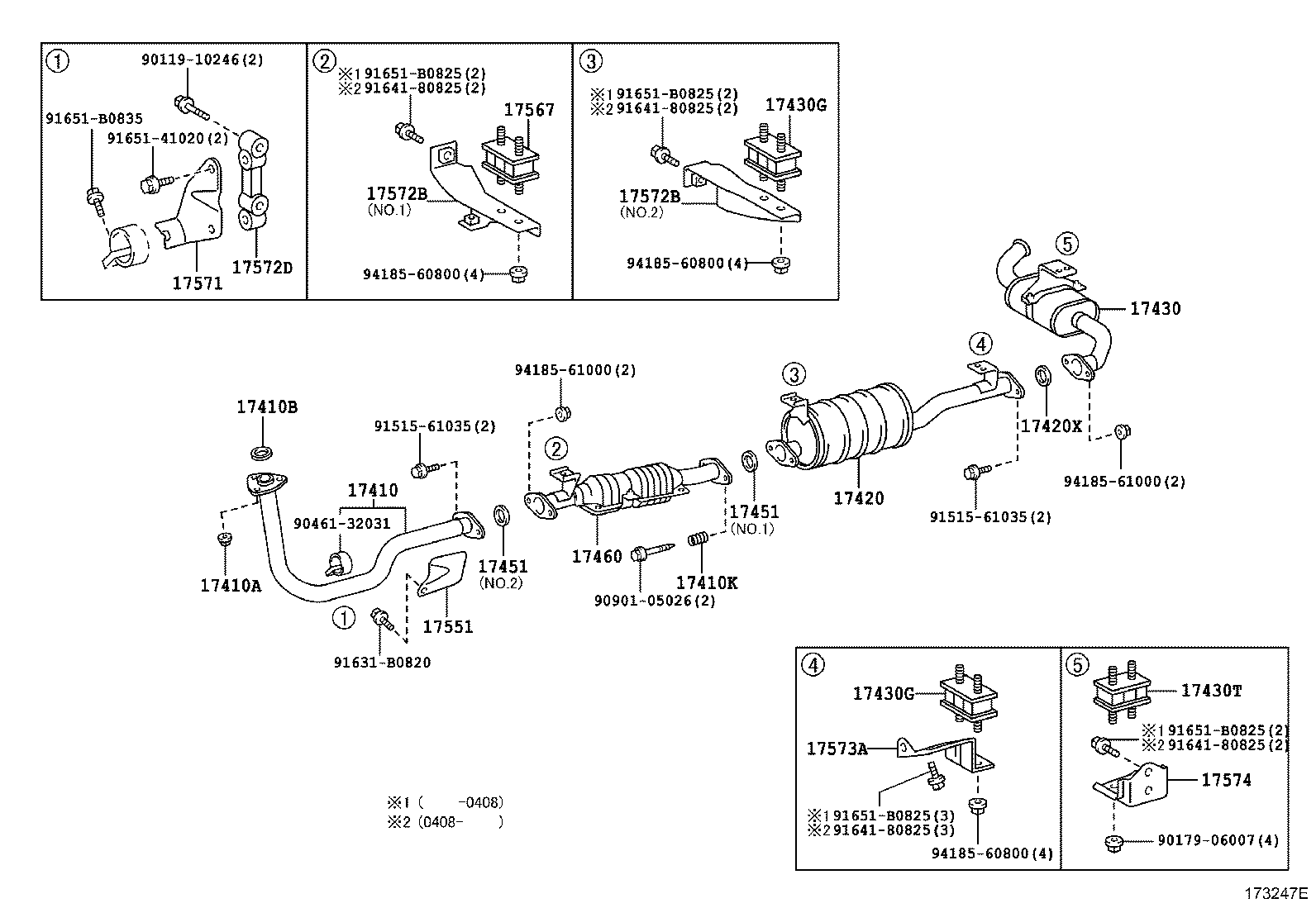

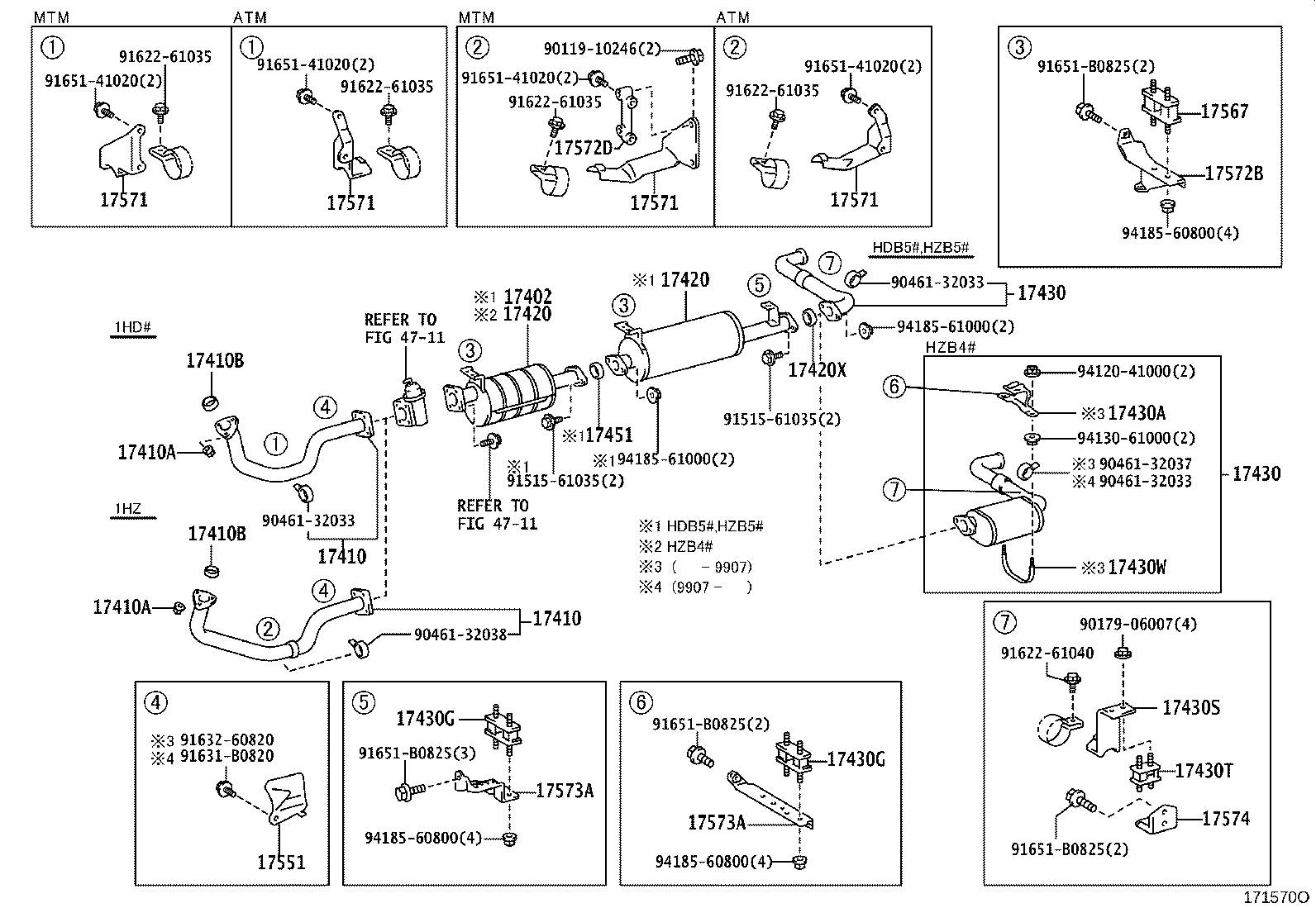

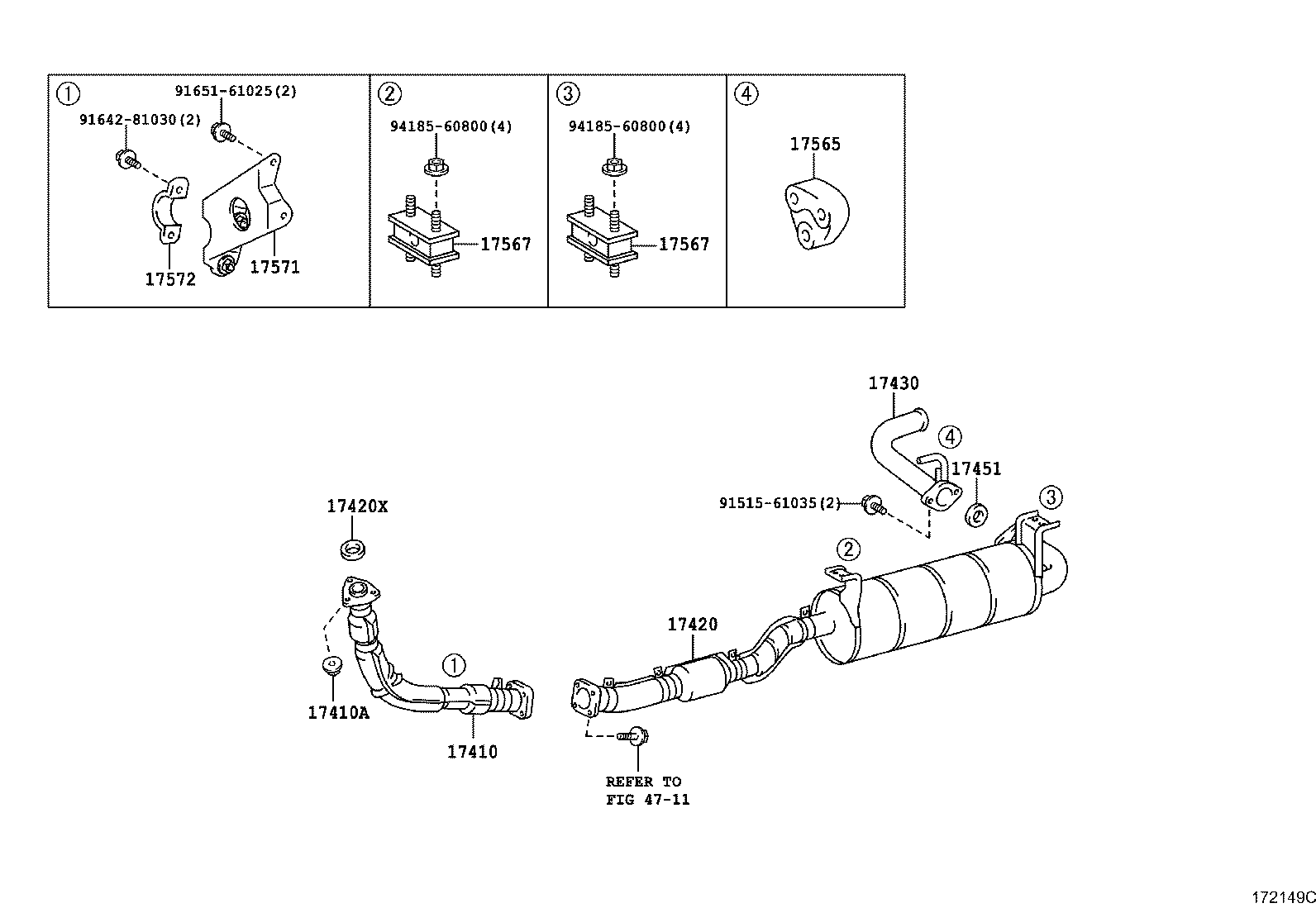

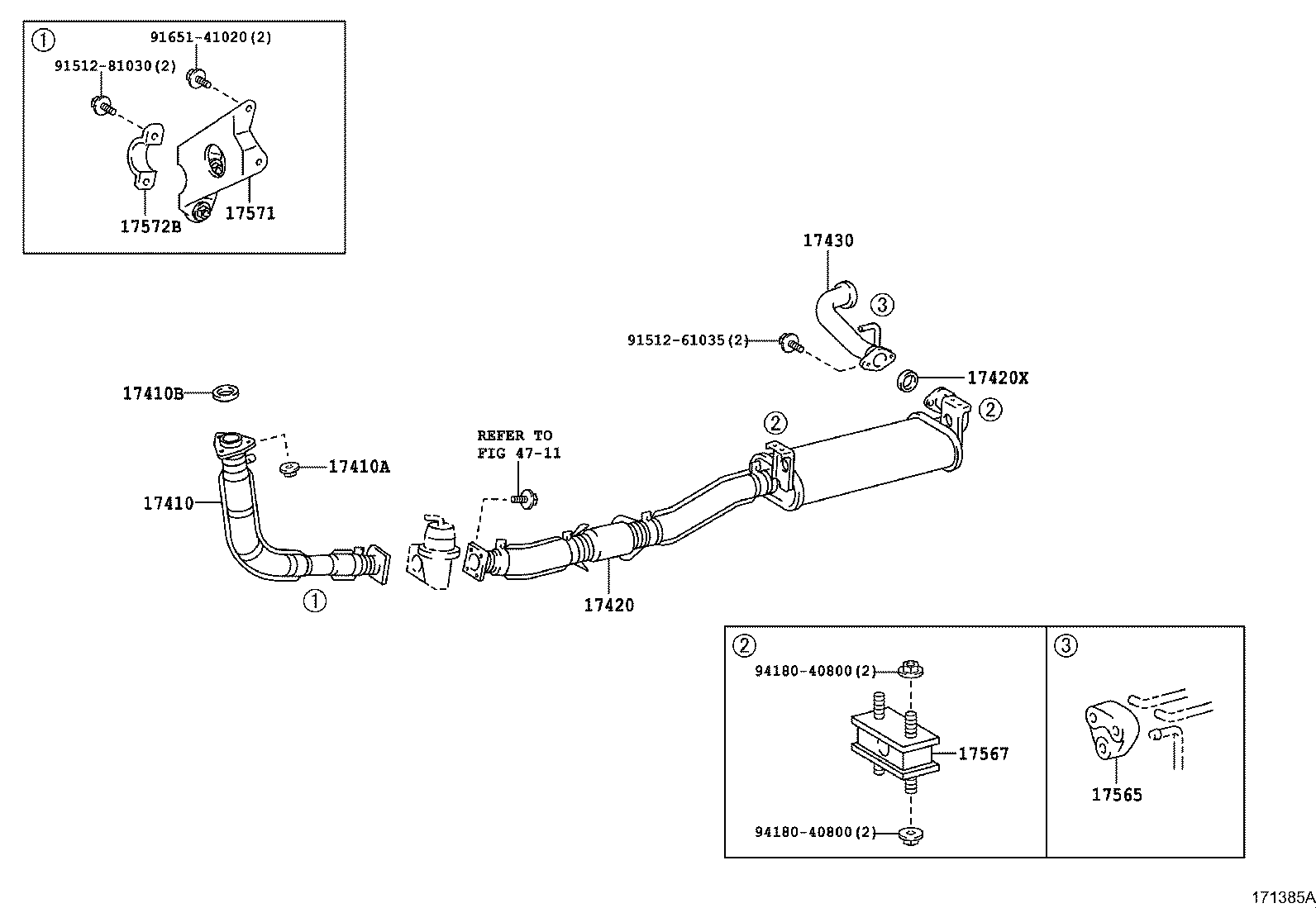

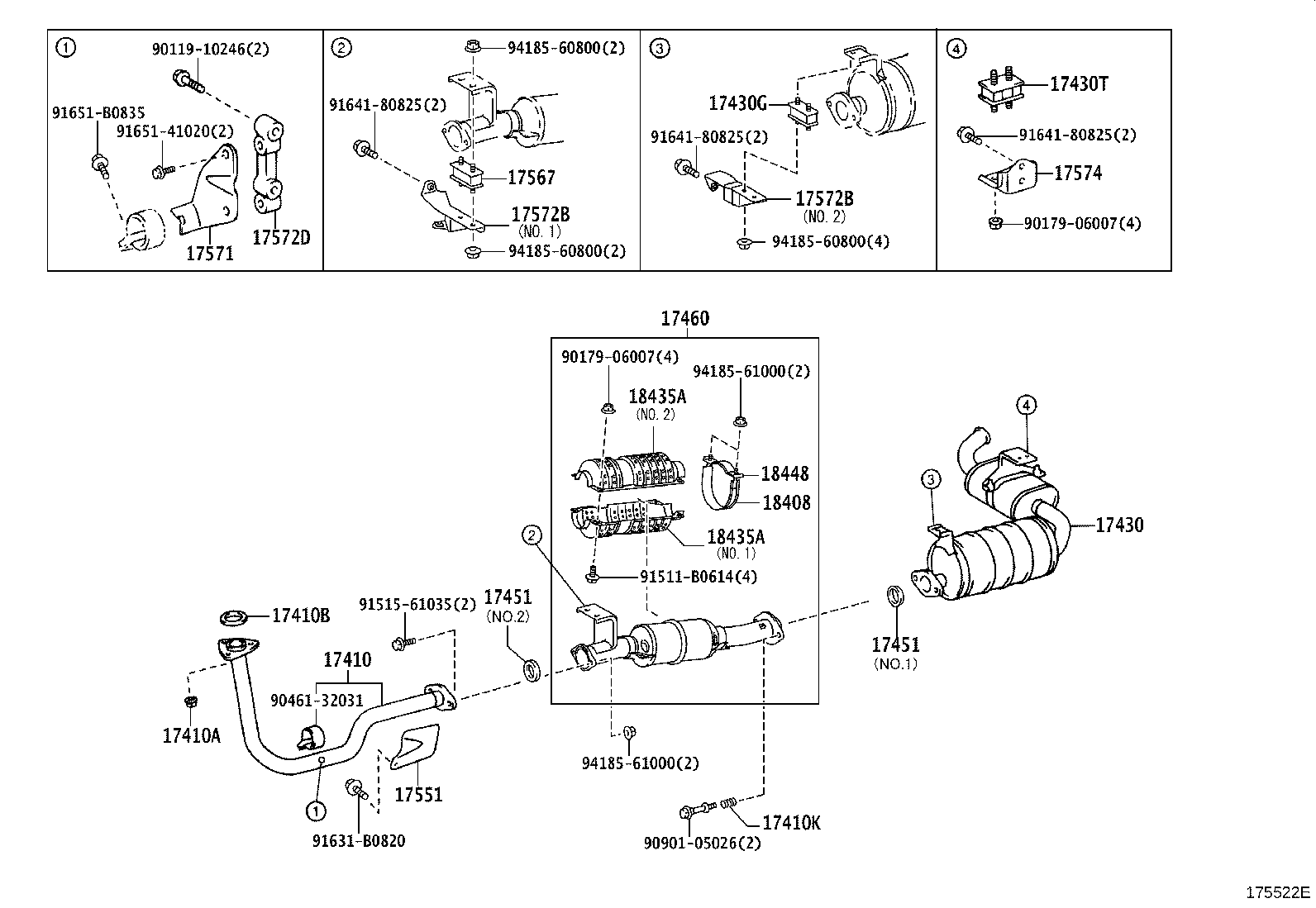

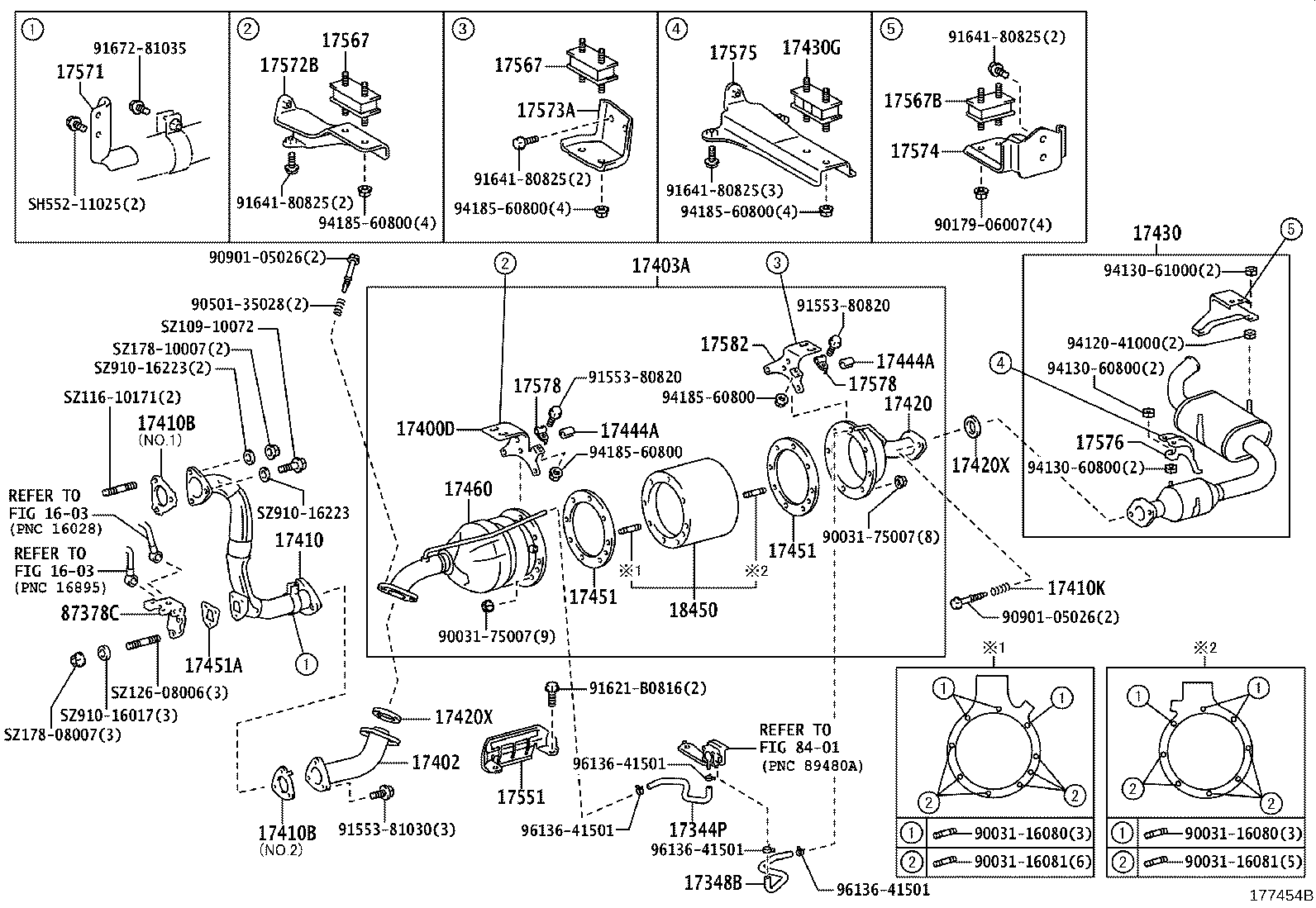

Figure 171384E 171384E 1993-01 → 1999-07 Figure 171385A 171385A 1995-12 → 1999-07 Figure 171570O 171570O 1993-01 → 2004-08 Figure 172149C 172149C 1999-07 → 2004-08 Figure 173040I 173040I 2002-03 → 2007-08 Figure 173247E 173247E 2002-03 → 2007-08 Figure 174229D 174229D 2004-08 → 2011-08 Figure 175522E 175522E 2007-08 → — Figure 177454B 177454B 2011-08 → —

Part groups

PNCDescription
17344P Hose, Air, NO.4(FOR EXHAUST PIPE)
17348B Hose, Air, NO.8(FOR EXHAUST PIPE)
17400D Bracket, Catalytic Converter Support
17402 Pipe Sub-assy, Exhaust, Front NO.2
17403A Pipe Sub-assy, Exhaust, Center NO.2
17410 Pipe Assy, Exhaust, Front
17410A Nut, Exhaust Pipe Set Stud Bolt
17410B Gasket, Exhaust Pipe
17410K Spring, Exhaust Pipe
17420 Pipe Assy, Exhaust, Center
17420X Gasket, Exhaust Pipe, Center
17430 Pipe Assy, Exhaust, Tail
17430A Bracket, Exhaust Tailpipe(FOR FRONT)
17430G Cushion, Exhaust Tailpipe(FOR CENTER)
17430S Bracket, Exhaust Tailpipe (FOR REAR)
17430T Cushion, Exhaust Tailpipe (FOR REAR)
17430W Clamp NO.2, Exhaust Tailpipe (FOR REAR)
17444A Spacer, Exhaust Front Pipe
17451 Gasket, Exhaust Pipe
17451A Gasket, Exhaust Pipe, NO.2
17455 Bracket, Exhaust Pipe
17460 Converter Assy, Catalytic W/Pipe
17551 Insulator, Exhaust Pipe Heat, NO.1
17565 Support, Exhaust Pipe, NO.5
17567 Cushion, Exhaust Pipe Support
17567B Cushion, Exhaust Pipe Support, NO.3
17571 Bracket, Exhaust Pipe Support, NO.1
17572 Bracket, Exhaust Pipe NO.1 Support
17572B Bracket, Exhaust Pipe Support, NO.2
17572D Bracket, Exhaust Pipe Support, NO.1
17573A Bracket, Exhaust Pipe Support, NO.3
17574 Bracket, Exhaust Pipe Support, NO.4
17575 Bracket, Exhaust Pipe Support, NO.5
17576 Bracket, Muffler Clamp
17578 Clamp, Pipe
17582 Bracket, Catalytic Converter Support, Upper
18408 Band Sub-assy, Convertor Protector Support
18435A Protector, Monolithic Converter
18448 Bracket, Converter Protector, Center
18450 Converter Assy, Monolithic
87378C Pipe, Exhaust
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
