Toyota Coaster
1993-01 → 2016-12 · chassis BB4#,5#,BZB40,50,HDB5#,HZB4#,5#,XZB4#,5# · catalogue 811130 · Japan
Discontinued model
Data version 2016-12

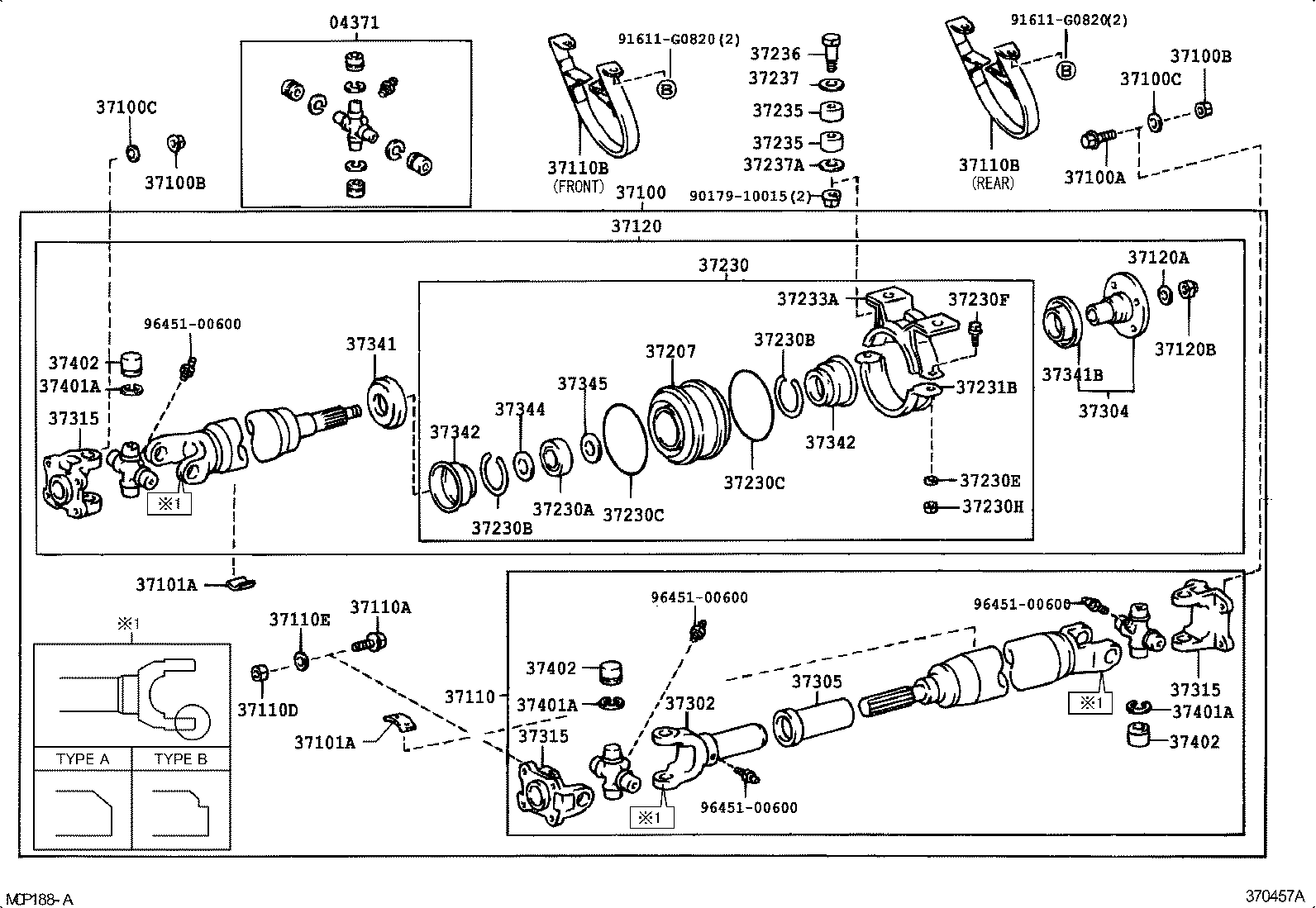

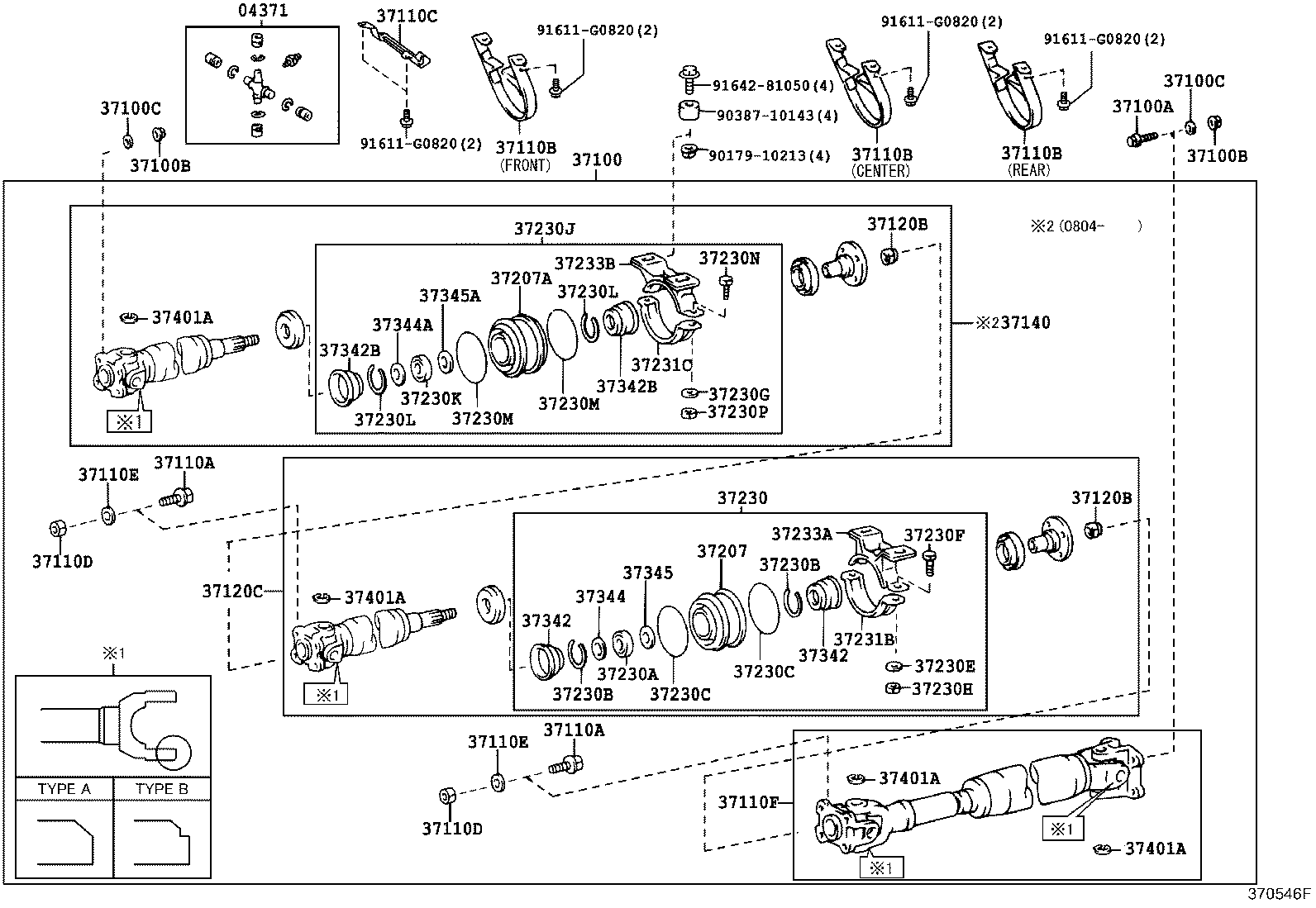

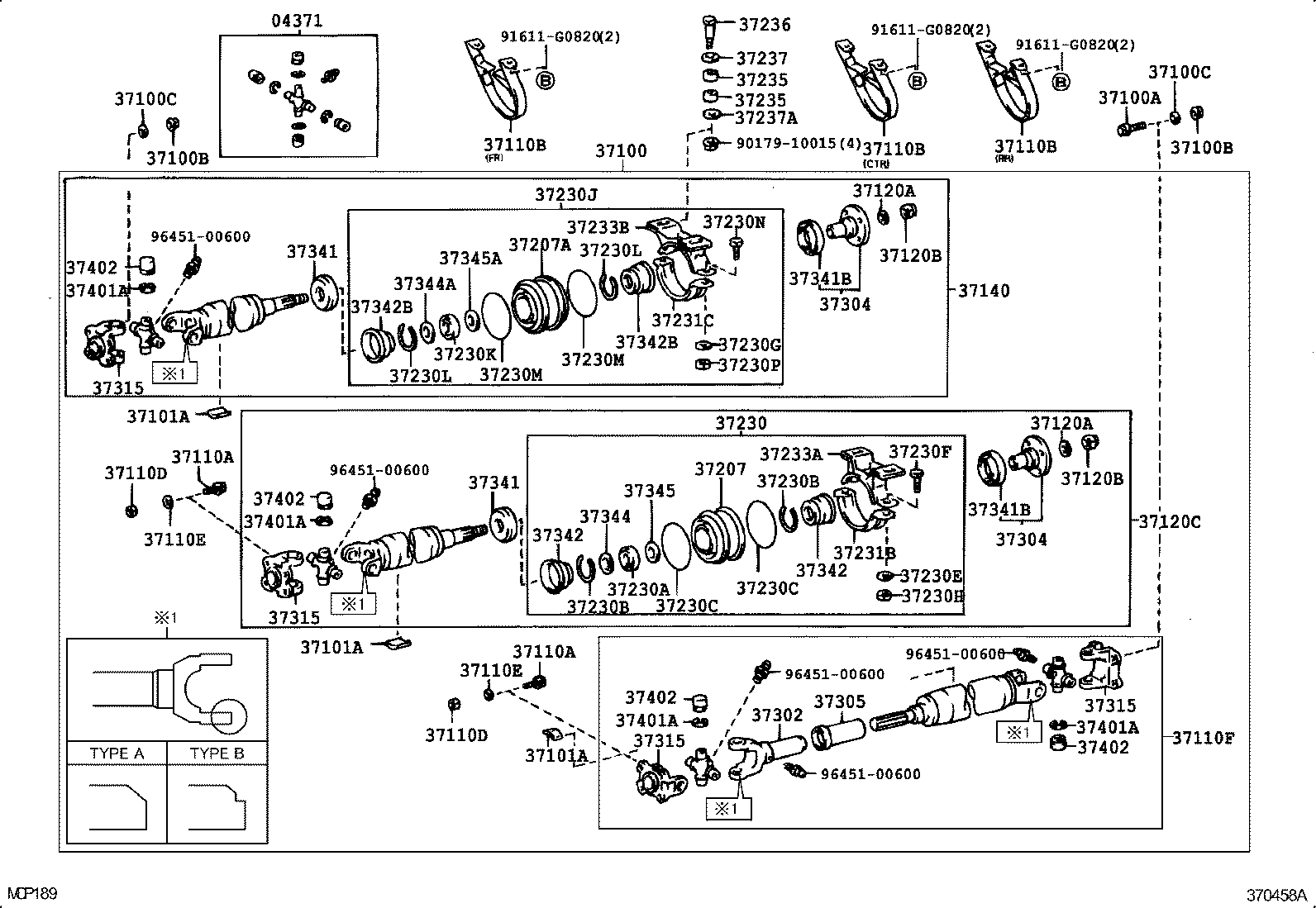

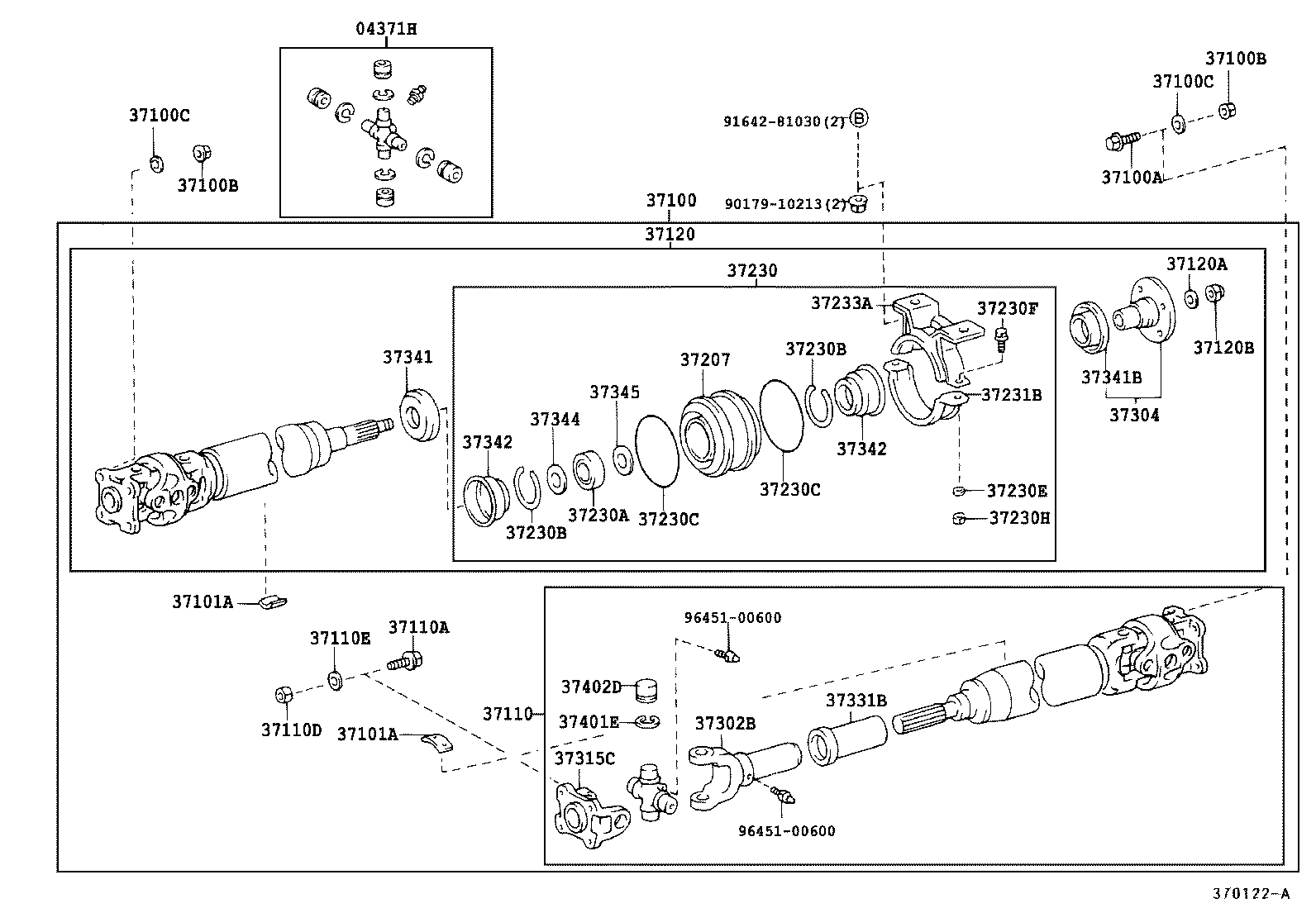

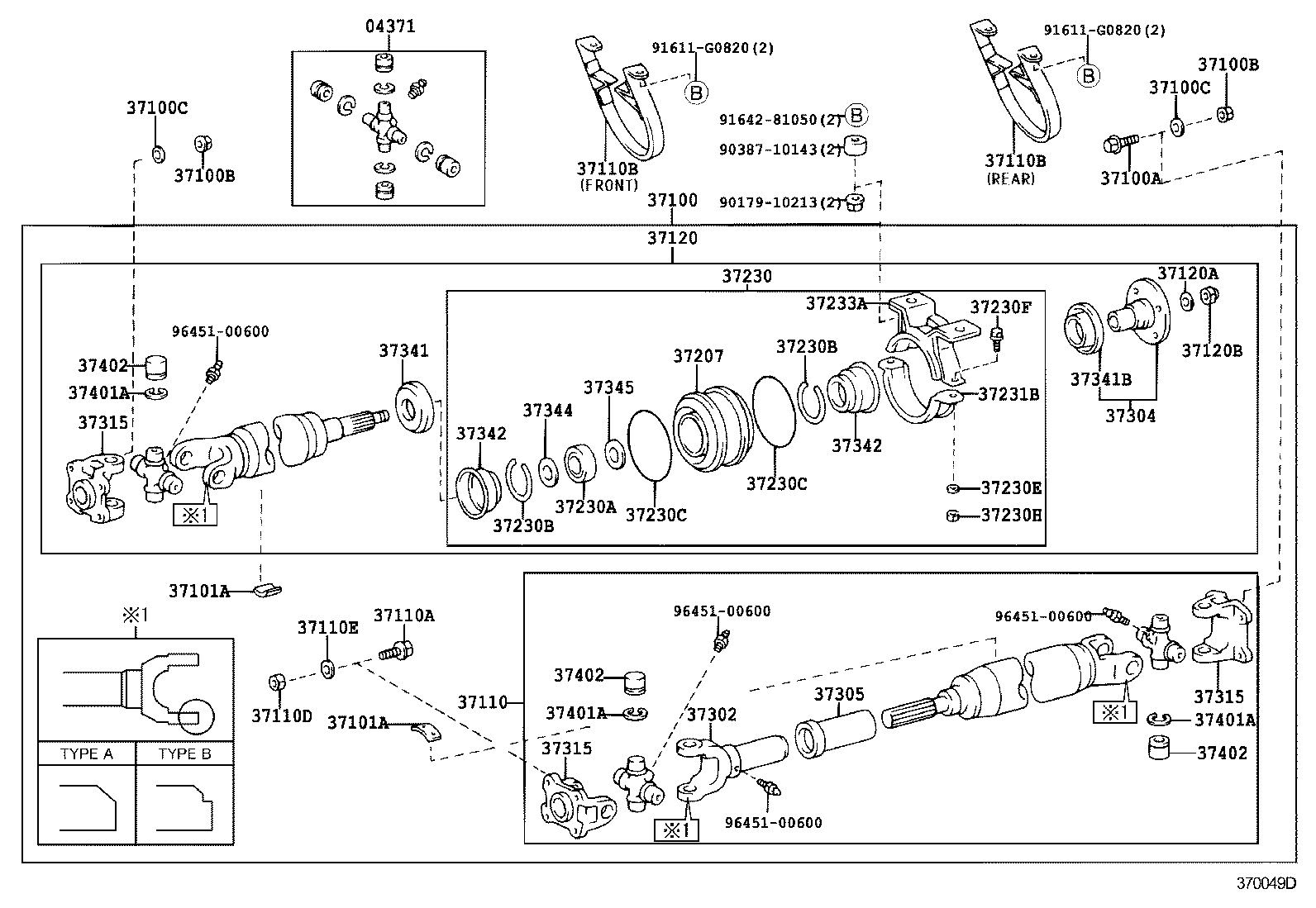

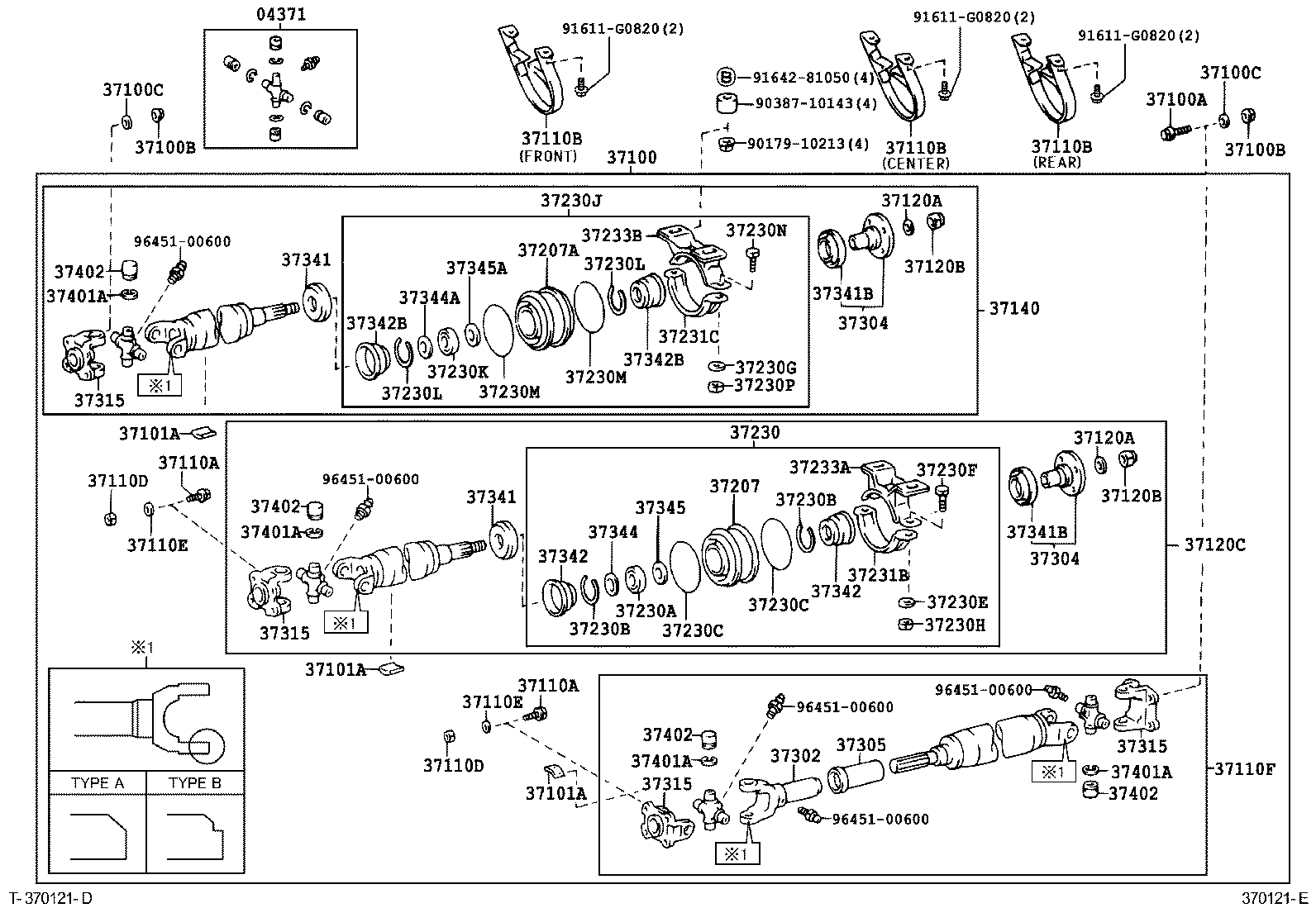

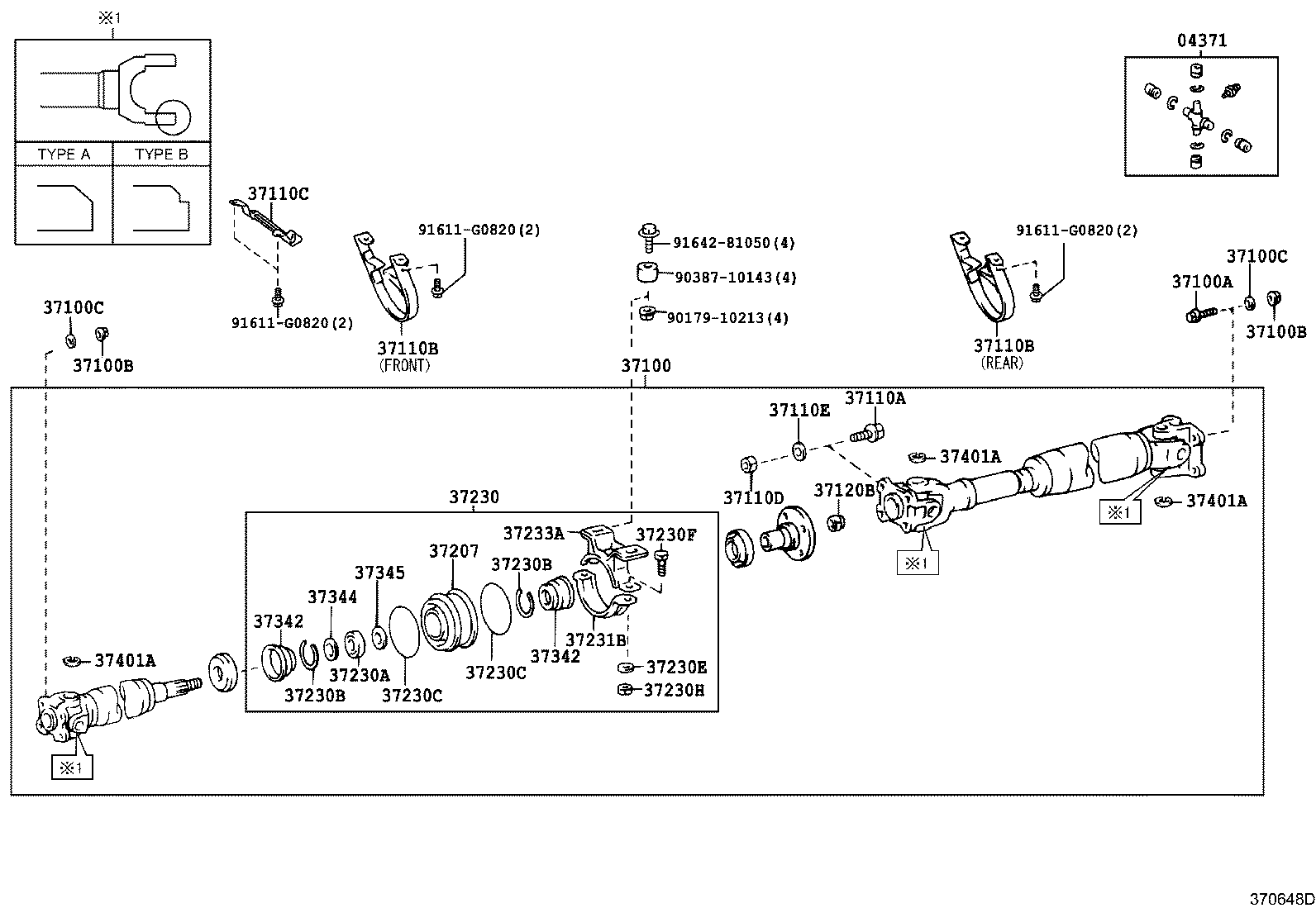

Propeller Shaft & Universal Joint
72 part groups · 10 illustrations
Part groups
| PNC | Description |
|---|---|
| 04371 | Spider Kit, Universal Joint(FOR PROPELLER SHAFT) |
| 04371G | Spider Kit, Front Propeller Shaft Universal Joint |
| 04371H | Spider Kit, Rear Propeller Shaft Universal Joint |
| 37100 | Shaft Assy, Propeller W/Center Bearing |
| 37100A | Bolt, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING) |
| 37100B | Nut, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING) |
| 37100C | Washer, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING) |
| 37101A | Piece, Balance, NO.1 (FOR PROPELLER SHAFT) |
| 37101B | Piece, Balance, NO.2 (FOR PROPELLER SHAFT) |
| 37110 | Shaft Assy, Propeller |
| 37110A | Bolt (FOR PROPELLER SHAFT) |
| 37110B | Guard, Propeller Shaft |
| 37110C | Bracket, Propeller Shaft Guard |
| 37110D | Nut (FOR PROPELLER SHAFT) |
| 37110E | Washer (FOR PROPELLER SHAFT) |
| 37110F | Shaft Assy, Propeller, Rear |
| 37120 | Shaft Assy, Propeller Intermediate |
| 37120A | Washer, Plate (FOR PROPELLER INTERMEDIATE SHAFT SET) |
| 37120B | Nut (FOR PROPELLER INTERMEDIATE SHAFT SETTING) |
| 37120C | Shaft Assy, Propeller, Center |
| 37140 | Shaft Assy, Propeller, Front |
| 37140A | Bolt (F0R FRONT PROPELLER SHAFT) |
| 37140B | Nut (F0R FRONT PROPELLER SHAFT) |
| 37140C | Washer (F0R FRONT PROPELLER SHAFT) |
| 37207 | Cushion Sub-assy, Center Support Bearing, NO.1 |
| 37207A | Cushion Sub-assy, Center Support Bearing, NO.2 |
| 37230 | Bearing Assy, Center Support, NO.1 |
| 37230A | Bearing, NO.1 (FOR CENTER SUPPORT) |
| 37230B | Ring, Snap, NO.1 (FOR CENTER SUPPORT BEARING) |
| 37230C | Ring, Set, NO.1 (FOR CENTER SUPPORT BEARING CUSHION) |
| 37230E | Washer, NO.1 (FOR CENTER SUPPORT BEARING) |
| 37230F | Bolt, NO.1 (FOR CENTER SUPPORT BEARING) |
| 37230G | Washer, NO.2 (FOR CENTER SUPPORT BEARING) |
| 37230H | Nut, NO.1 (FOR CENTER SUPPORT BEARING) |
| 37230J | Bearing Assy, Center Support, NO.2 |
| 37230K | Bearing, NO.2 (FOR CENTER SUPPORT) |
| 37230L | Ring, Snap, NO.2 (FOR CENTER SUPPORT BEARING) |
| 37230M | Ring, Set, NO.2 (FOR CENTER SUPPORT BEARING CUSHION) |
| 37230N | Bolt, NO.2 (FOR CENTER SUPPORT BEARING) |
| 37230P | Nut, NO.2 (FOR CENTER SUPPORT BEARING) |
| 37231B | Housing, Center Support Bearing, NO.1 |
| 37231C | Housing, Center Support Bearing, NO.3 |
| 37233A | Housing, Center Support Bearing, NO.2 |
| 37233B | Housing, Center Support Bearing, NO.4 |
| 37235 | Cushion, Center Support Bearing |
| 37236 | Bolt, Center Support Bearing Housing |
| 37237 | Plate, Center Support Bearing, NO.1 |
| 37237A | Plate, Center Support Bearing, NO.2 |
| 37302 | Yoke Sub-assy, Universal Joint Sleeve |
| 37302A | Yoke Sub-assy, FR Propeller Shaft Universal J0INT Sleeve |
| 37302B | Yoke Sub-assy, RR Propeller Shaft Universal J0INT Sleeve |
| 37304 | Flange Sub-assy, Universal Joint |
| 37305 | Cover Sub-assy, Sliding Shaft Dust |
| 37315 | Yoke, Universal Joint Flange |
| 37315B | Y0KE, Front Propeller Shaft Universal J0INT Flange |
| 37315C | Yoke, NO.1, Rear Propeller Shaft Universal Joint Flange |
| 37331A | Cover Sub-assy, Front Propeller Shaft Sliding Shaft Dust |
| 37331B | Cover Sub-assy, Rear Propeller Shaft Sliding Shaft Dust |
| 37341 | Deflector, Propeller Shaft Dust, NO.1 |
| 37341B | Deflector, Propeller Shaft Dust, NO.5 |
| 37342 | Deflector, Propeller Shaft Dust, NO.2 |
| 37342B | Deflector, Propeller Shaft Dust, NO.6 |
| 37344 | Deflector, Propeller Shaft Dust, NO.3 |
| 37344A | Deflector, Propeller Shaft Dust, NO.7 |
| 37345 | Deflector, Propeller Shaft Dust, NO.4 |
| 37345A | Deflector, Propeller Shaft Dust, NO.8 |
| 37401A | Ring, Hole Snap (FOR SPIDER BEARING) |
| 37401D | Ring, Snap (FOR FRONT PROPELLER SHAFT JOINT SPIDER BEARING) |
| 37401E | Ring, Snap (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARING) |
| 37402 | Bearing Sub-assy, Universal Joint Spider |
| 37402C | Bearing, Front Propeller Shaft Universal Joint Spider |
| 37402D | Bearing, Rear Propeller Shaft Universal Joint Spider |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
