Toyota Coaster

1993-01 → 2016-12 · chassis BB4#,5#,BZB40,50,HDB5#,HZB4#,5#,XZB4#,5# · catalogue 811130 · Japan

Discontinued model Data version 2016-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat Belt

62 part groups · 8 illustrations

Illustrations

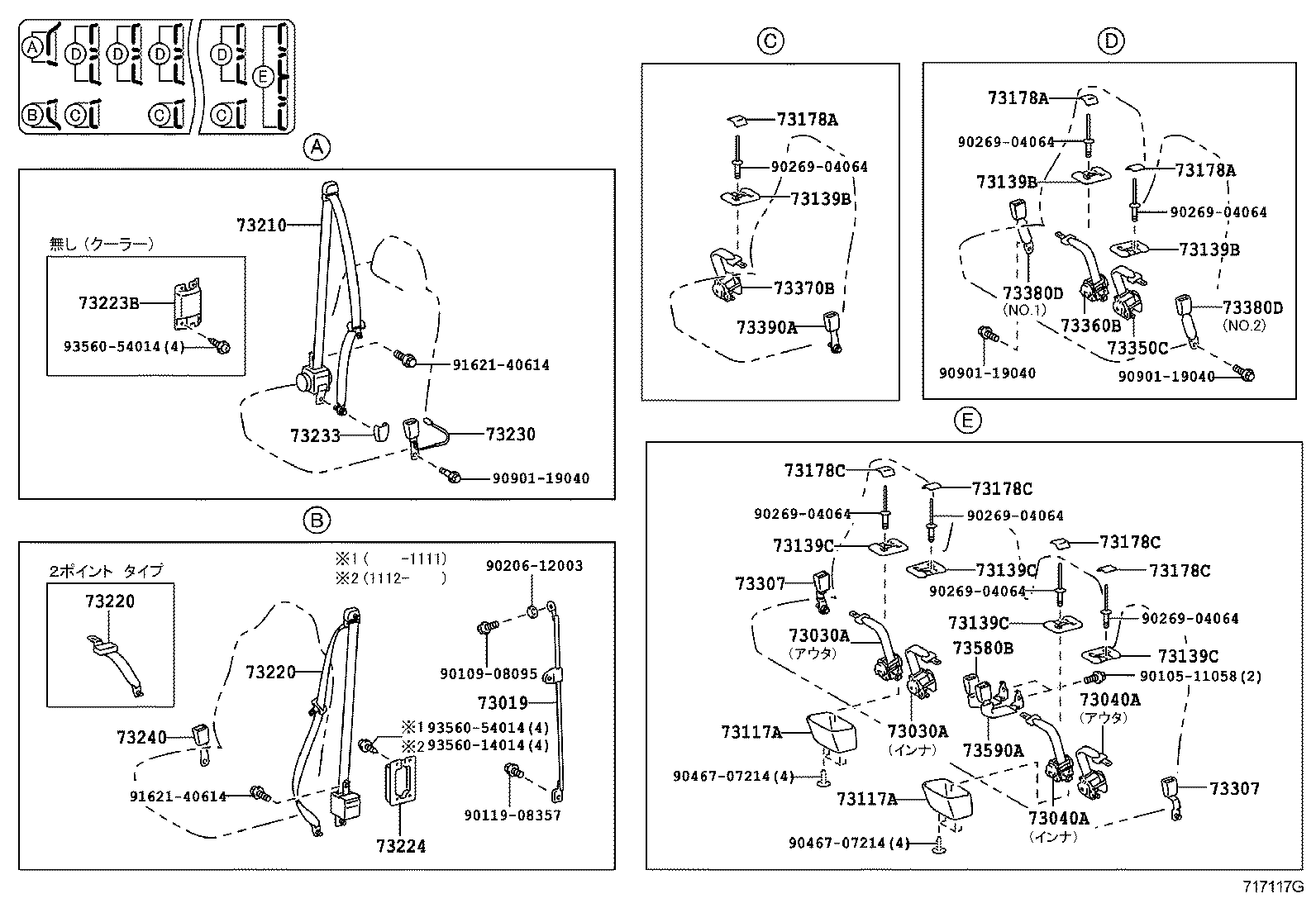

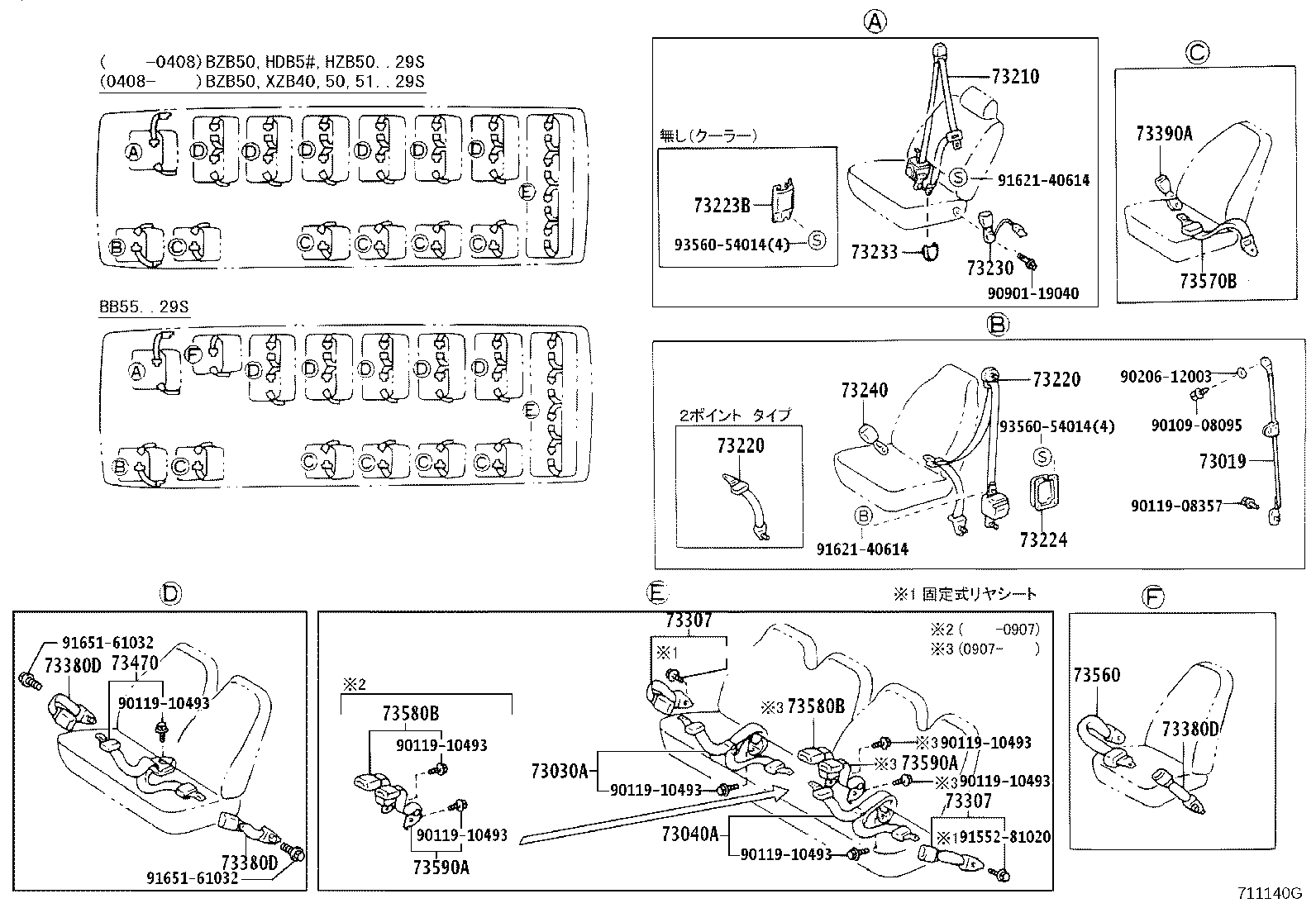

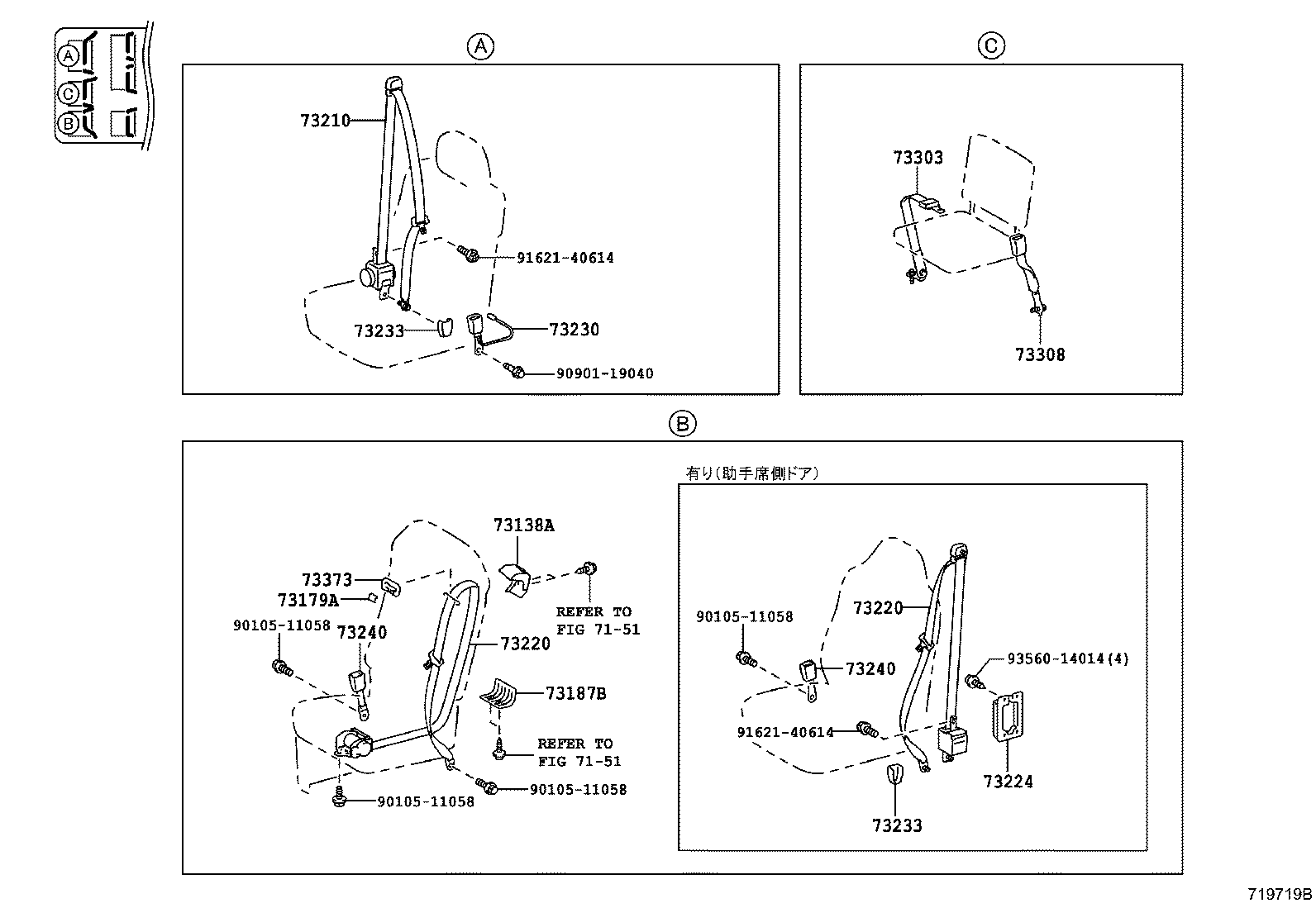

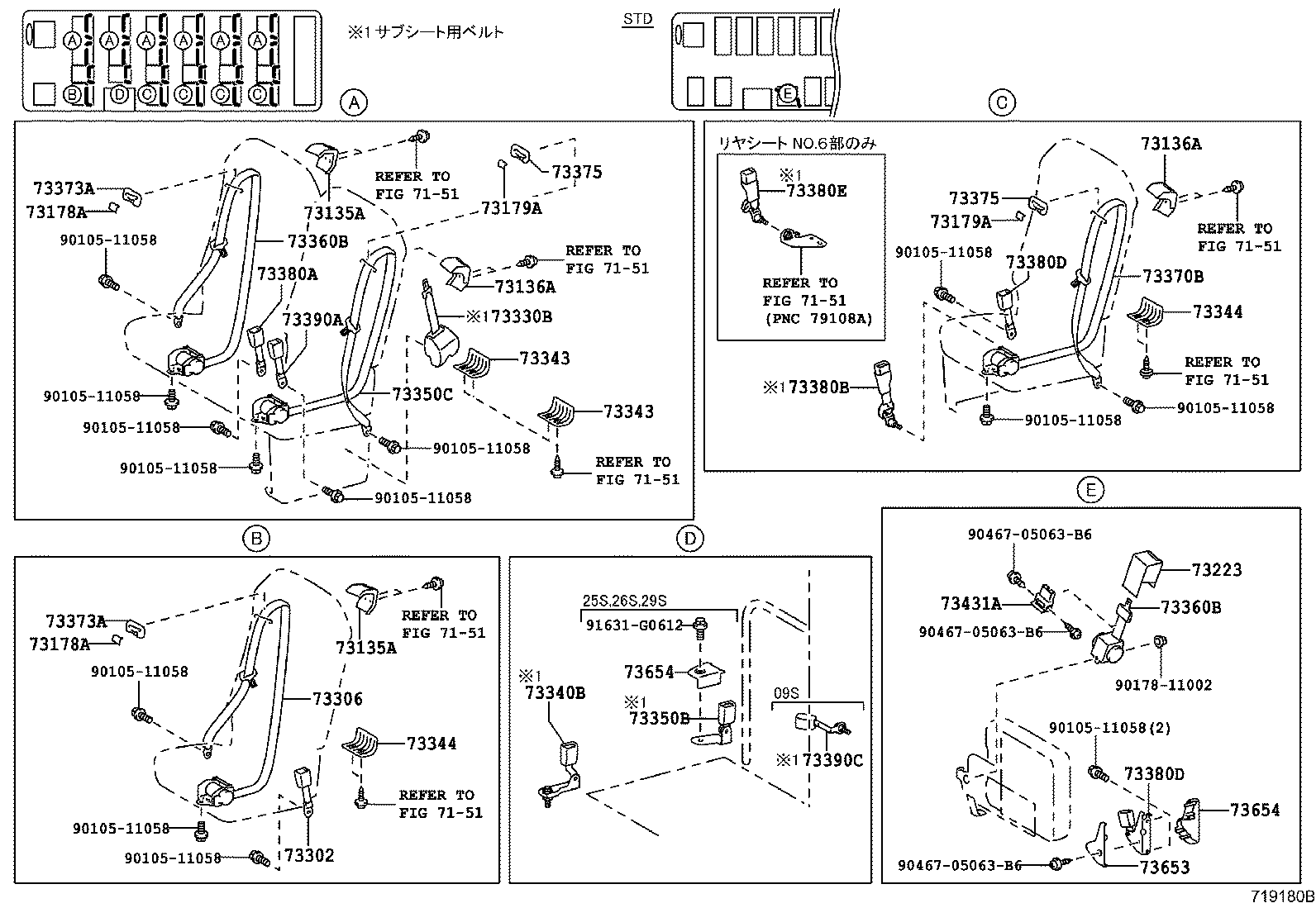

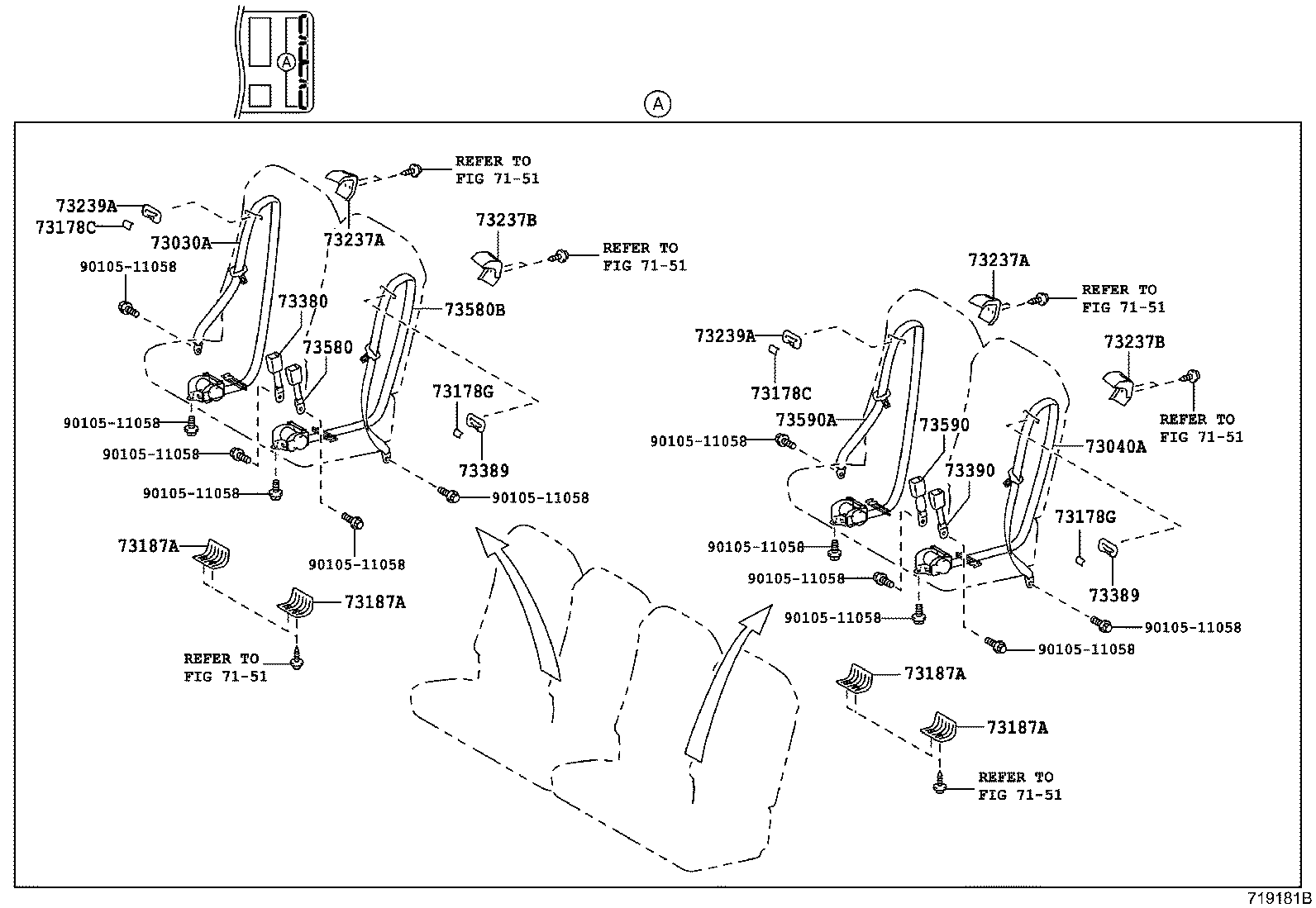

Figure 711402G 711402G 1993-01 → 2011-08 Figure 711140G 711140G 1993-01 → 2011-08 Figure 717117G 717117G 2011-08 → 2015-01 Figure 717866A 717866A 1993-01 → 2015-01 Figure 719179B 719179B 2015-01 → — Figure 719180A 719180A 2015-01 → — Figure 719181B 719181B 2015-01 → — Figure 717865 717865 2004-08 → —

Part groups

PNCDescription
73019 Shaft Sub-assy, Seat Belt
73030A Belt Assy, Rear Seat Lap Type, RH
73040A Belt Assy, Rear Seat Lap Type, LH
73117A Protector, Belt
73135A Cover, Shoulder Belt Anchor, RH
73136A Cover, Shoulder Belt Anchor, LH
73138A Cover, Shoulder Belt Anchor, Upper LH
73139B Cover, Seat Belt Anchor
73139C Cover, Rear Seat Belt
73178A Cap, Seat Belt Anchor Cover
73178C Cap, Seat Belt Anchor Cover
73178G Cap, Seat Belt Anchor Cover
73179A Cap, Seat Belt Anchor Cover, LH
73187A Guide, Rear Seat Shoulder Belt
73187B Guide, Front Seat Shoulder Belt
73210 Belt Assy, Front Seat Outer, RH
73219 Stopper, Tongue Plate
73220 Belt Assy, Front Seat Outer, LH
73223 Cover, Seat Belt Retractor
73223B Cover, Front Seat Belt Retractor, RH
73224 Cover, Front Seat Belt Retractor, LH
73230 Belt Assy, Front Seat Inner, RH
73233 Cover, Lap Belt Outer Anchor
73237A Cover, Shoulder Belt Anchor
73237B Cover, Shoulder Belt Anchor
73239A Cover, Rear Seat Shoulder Belt, RH
73240 Belt Assy, Front Seat Inner, LH
73302 Belt Sub-assy, Rear Seat Outer
73303 Belt Sub-assy, Sub Seat, Outer
73306 Belt Sub-assy Seat, Inner
73307 Belt Sub-assy, Rear Seat, Inner
73308 Belt Sub-assy, Sub Seat, Inner
73330B Belt Assy, Seat Lap Type, NO.1
73340B Belt Assy, Seat Lap Type, NO.2
73343 Guide, Rear Seat Shoulder Belt, RH
73344 Guide, Rear Seat Shoulder Belt, LH
73350B Belt Assy, Seat Lap Type, NO.3
73350C Belt Assy, Rear Seat, Outer Center
73360B Belt Assy, Rear Seat, Outer
73370B Belt Assy, Rear Seat, Outer
73373 Cover, Rear Seat Shoulder Belt
73373A Cover, Rear Seat Shoulder Belt, RH
73375 Cover, Rear Seat Shoulder Belt, LH
73380 Belt Assy, Rear Seat 3 Point Type, Inner, RH
73380A Belt Assy, Rear Seat, Inner
73380B Belt Assy, Seat Lap Type, NO.4
73380D Belt Assy, Rear Seat, Inner
73380E Belt Assy, RR Seat, Inner
73389 Cover, Rear Seat Shoulder Belt, LH
73390 Belt Assy, Rear Seat 3 Point Type, Inner, LH
73390A Belt Assy, Rear Seat, Inner
73390C Belt Assy, Rear NO.1 Seat, Inner LH
73431A Cover, Rear Seat Belt Retractor
73470 Belt Assy, Rear Seat, Outer
73560 Belt Assy, Rear NO.2 Seat, Outer RH
73570B Belt Assy, Rear Seat, Outer
73580 Belt Assy, Rear NO.2 Seat, Inner RH
73580B Belt Assy, Rear Seat, Inner RH
73590 Belt Assy, Rear NO.2 Seat, Inner LH
73590A Belt Assy, Rear Seat, Inner LH
73653 Cover, Rear Seat Belt Inner Anchor, RH
73654 Cover, Rear Seat Belt, Inner Anchor, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
