Toyota Coaster

1993-01 → 2016-12 · chassis BB4#,5#,BZB40,50,HDB5#,HZB4#,5#,XZB4#,5# · catalogue 811130 · Japan

Discontinued model Data version 2016-12

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Switch & Relay & Computer

212 part groups · 25 illustrations

Illustrations

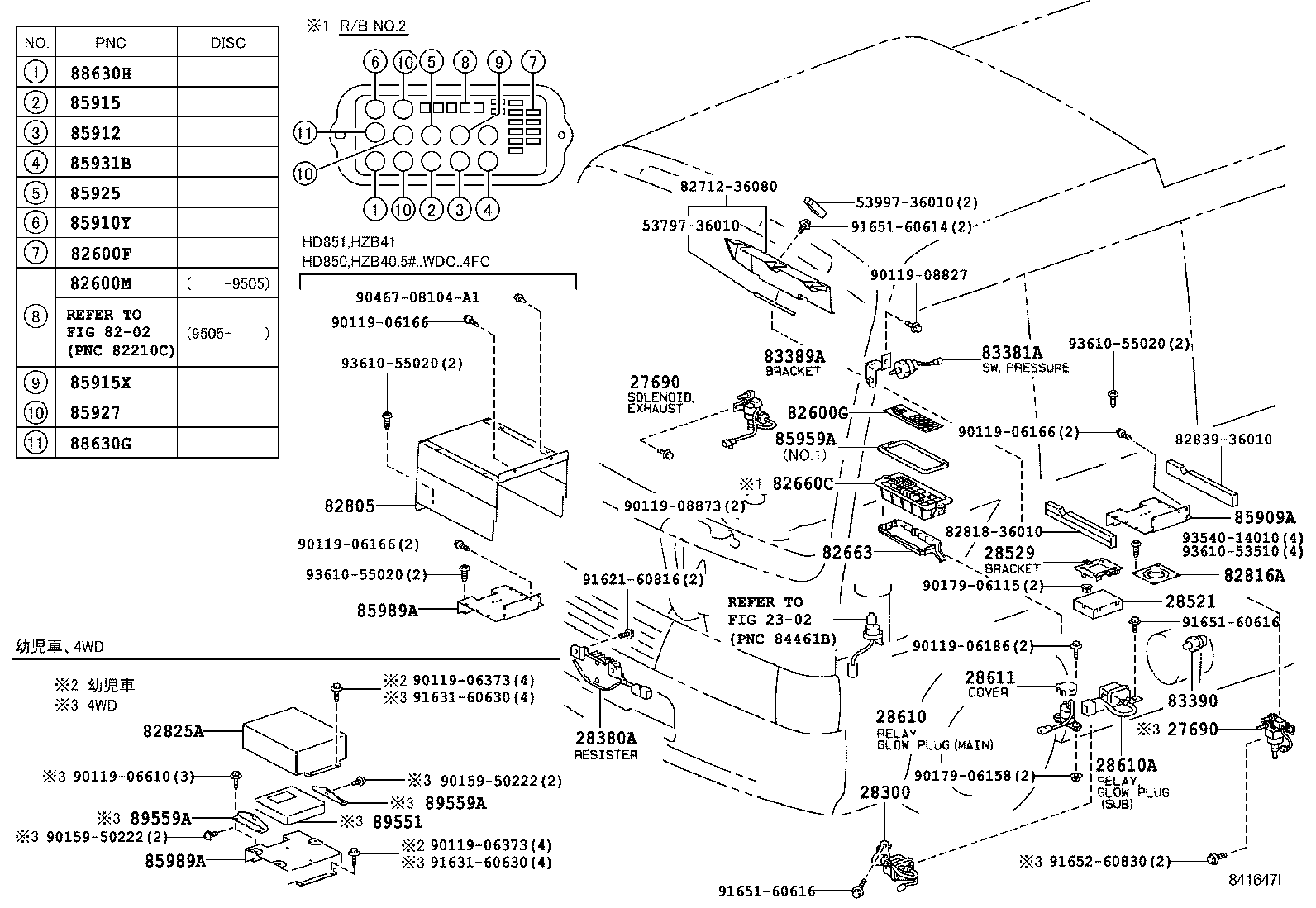

841642A 1993-01 → 2004-08

841643D 1996-01 → 1999-07

842805B 1999-07 → 2004-08

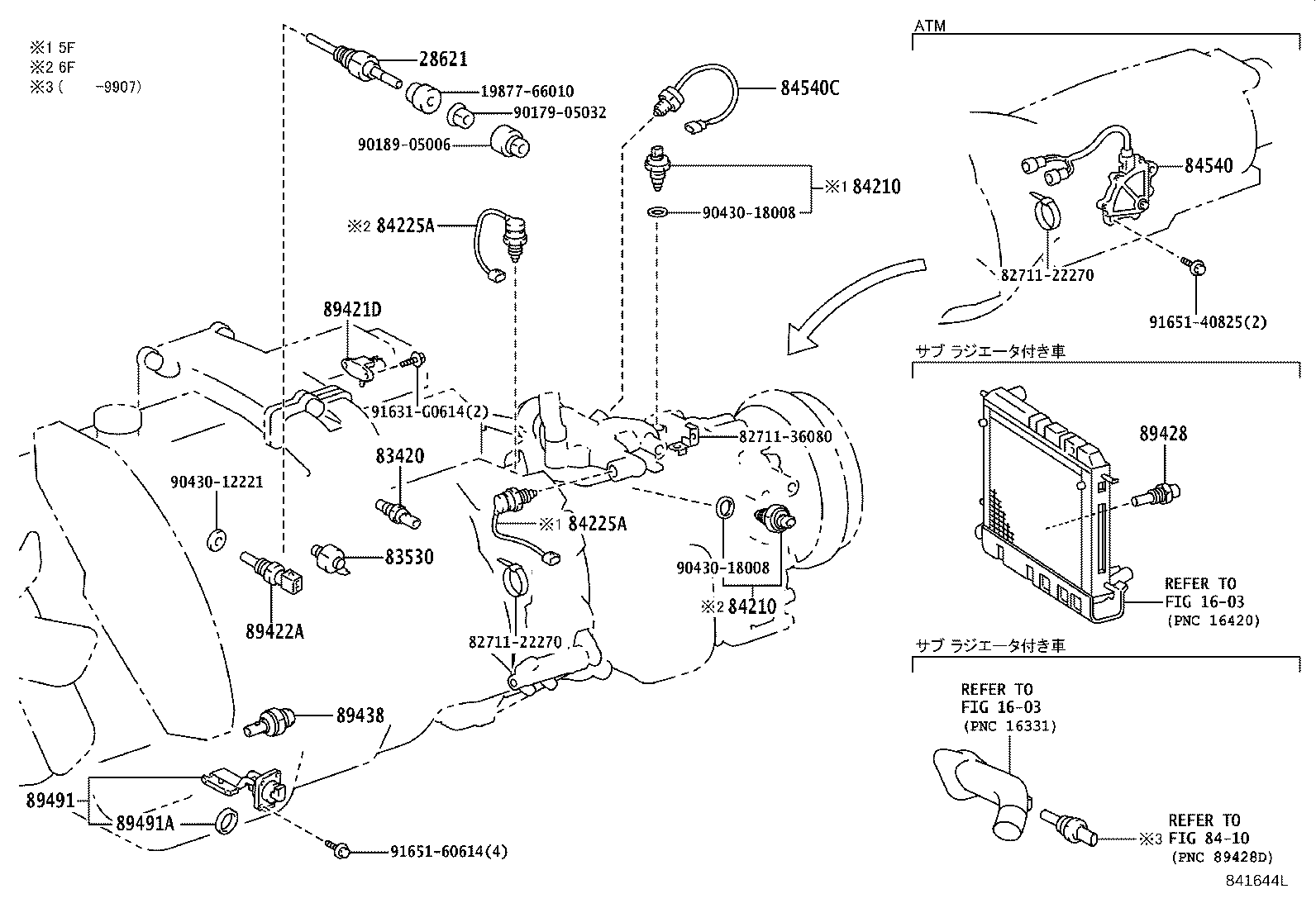

841644L 1993-01 → 2004-08

844701A 2002-03 → 2007-08

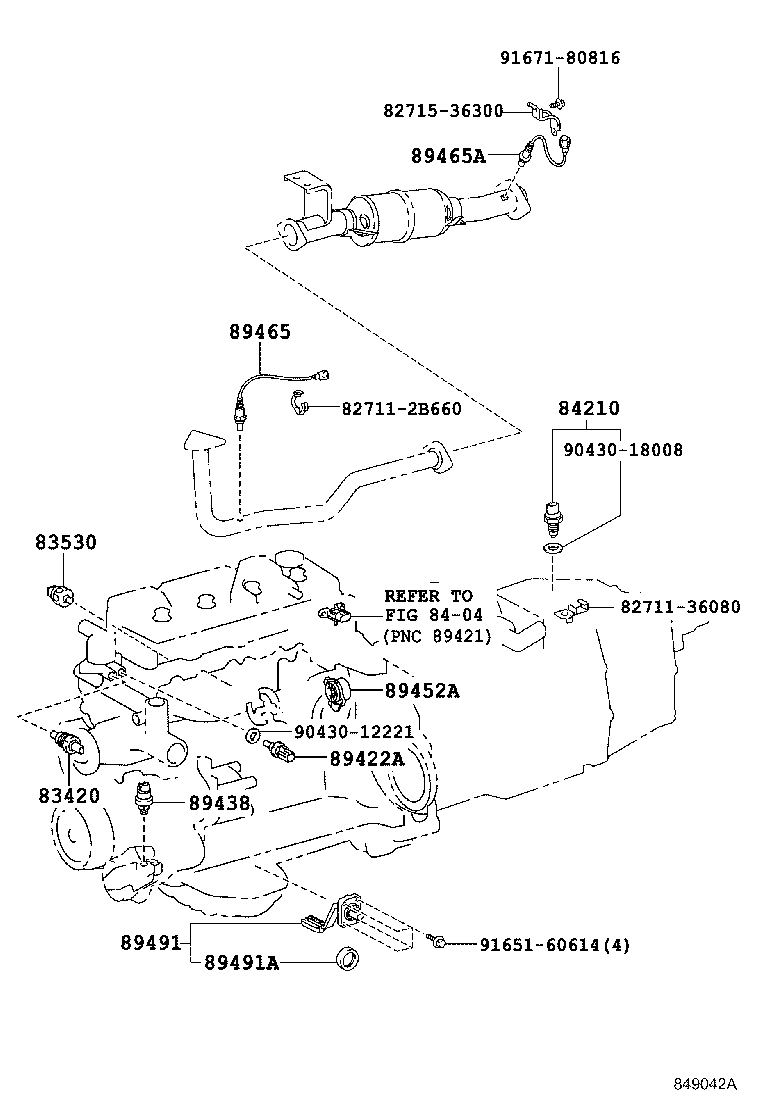

849042A 2007-08 → —

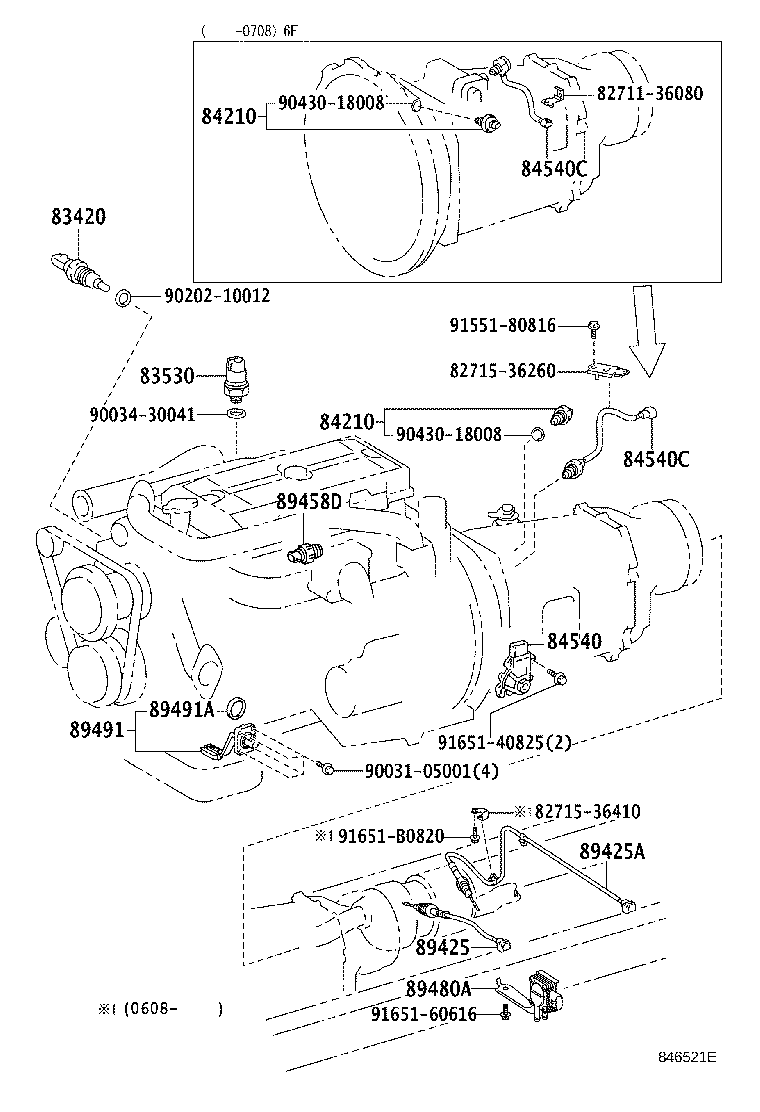

846521E 2004-08 → 2011-08

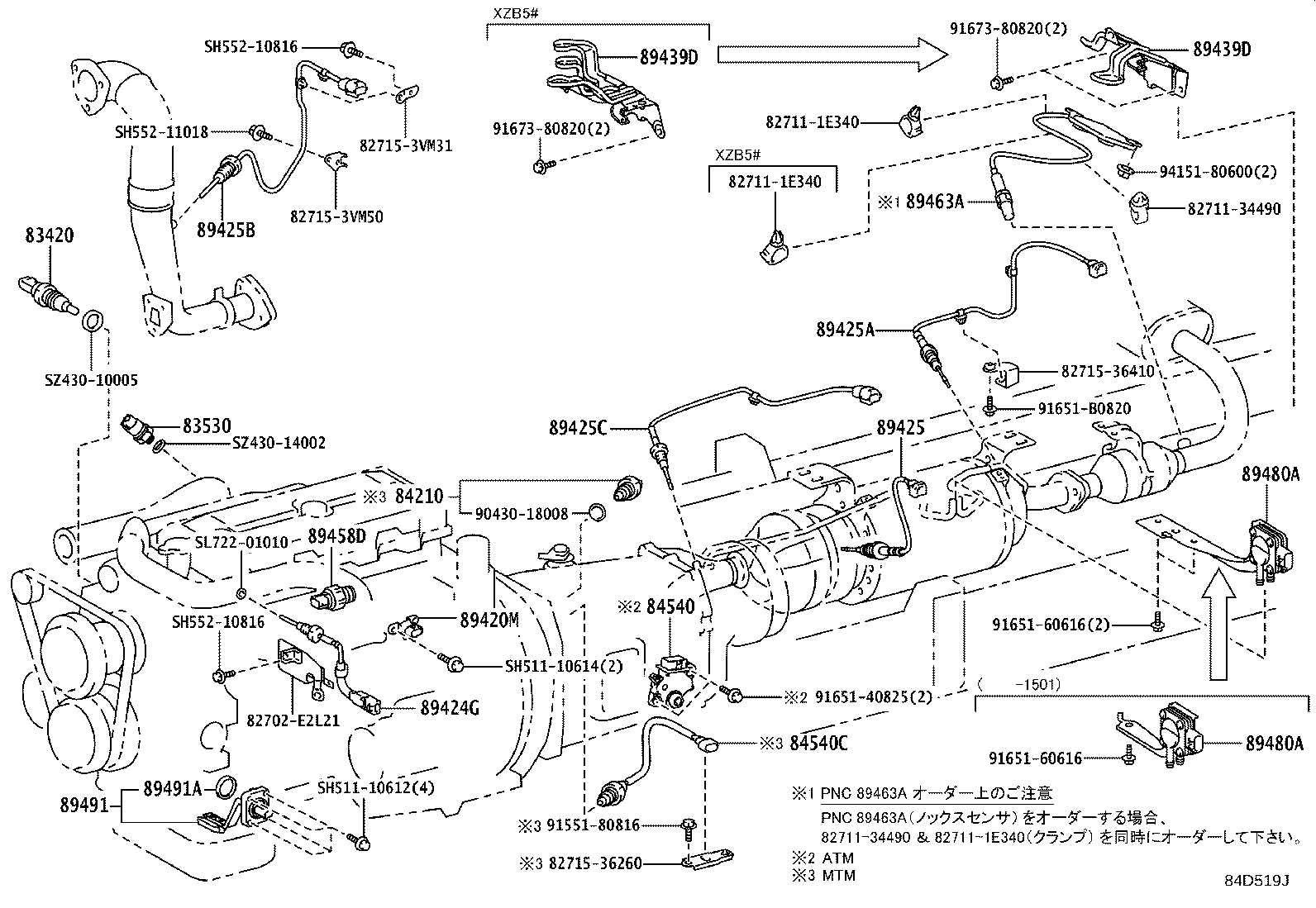

84D519J 2011-08 → —

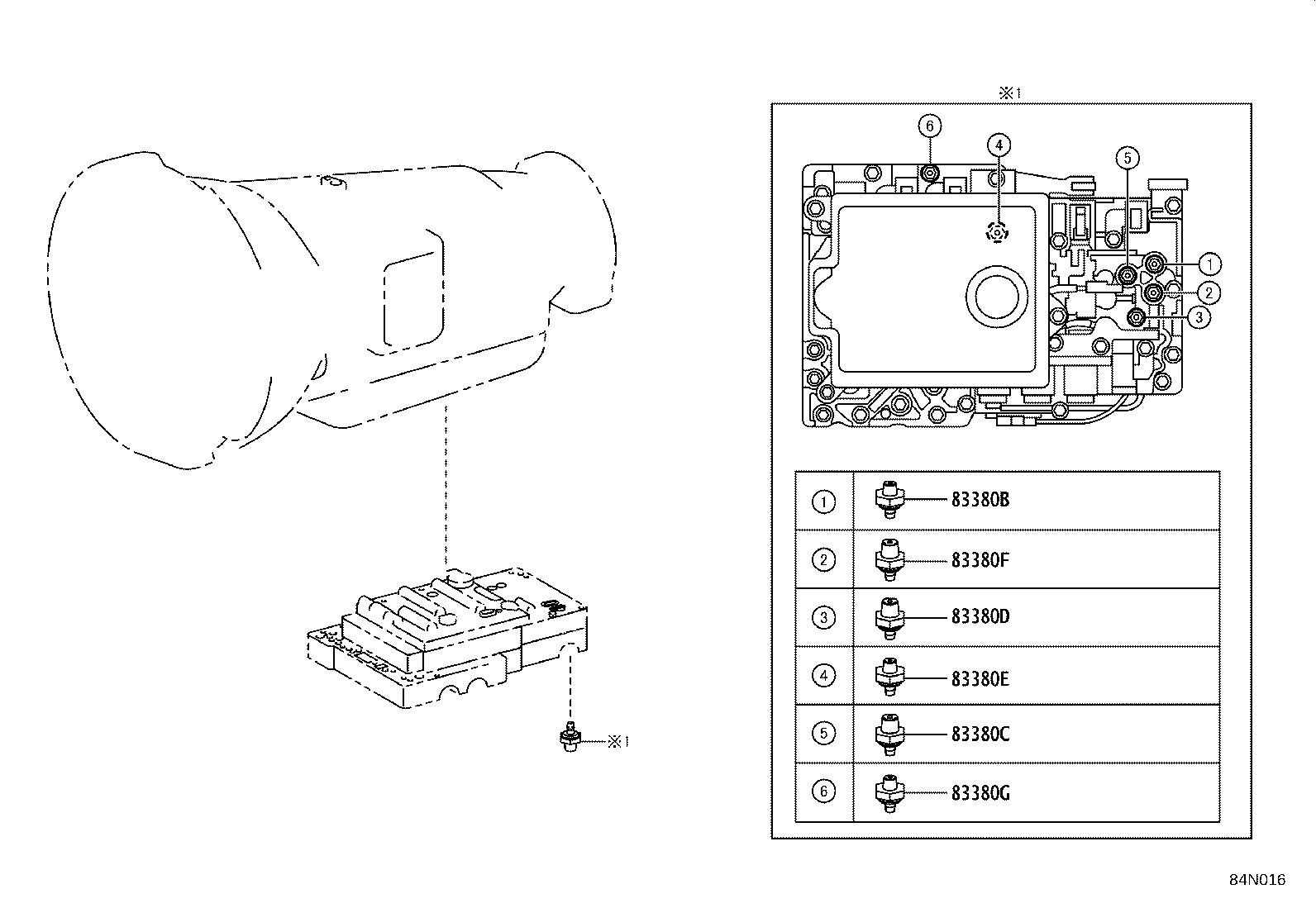

84N016 2005-12 → —

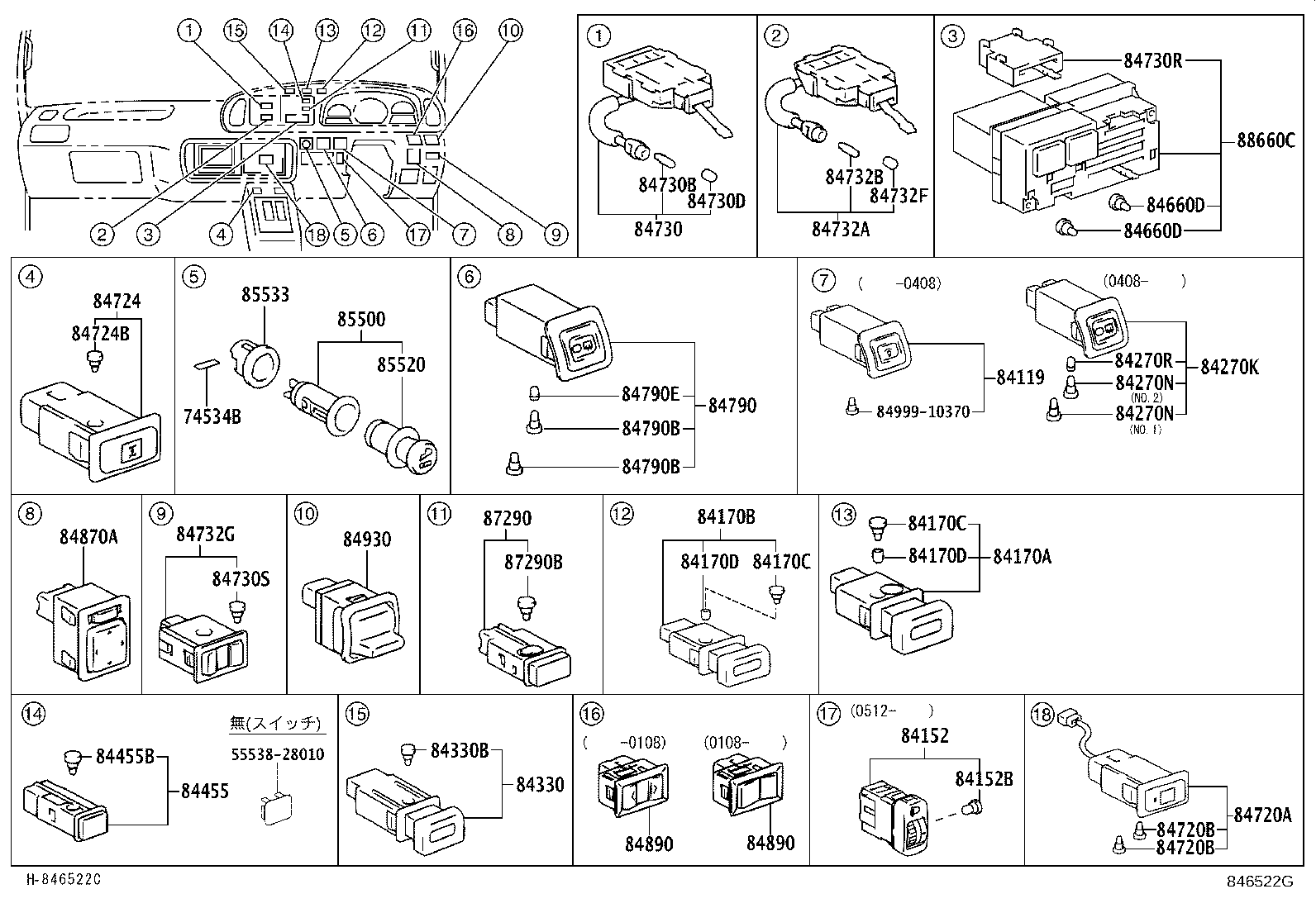

846522G 1993-01 → 2007-08

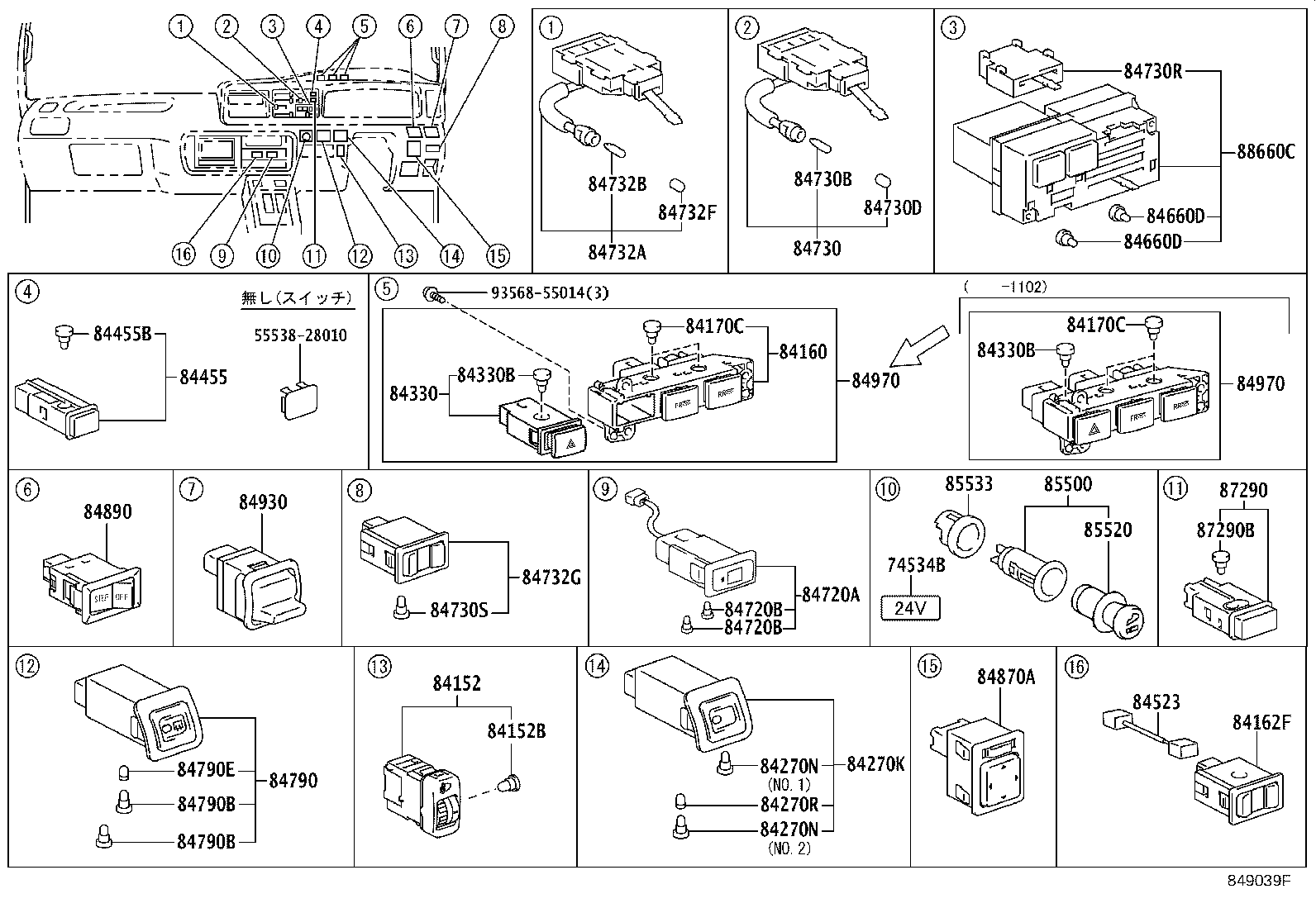

849039F 2007-08 → —

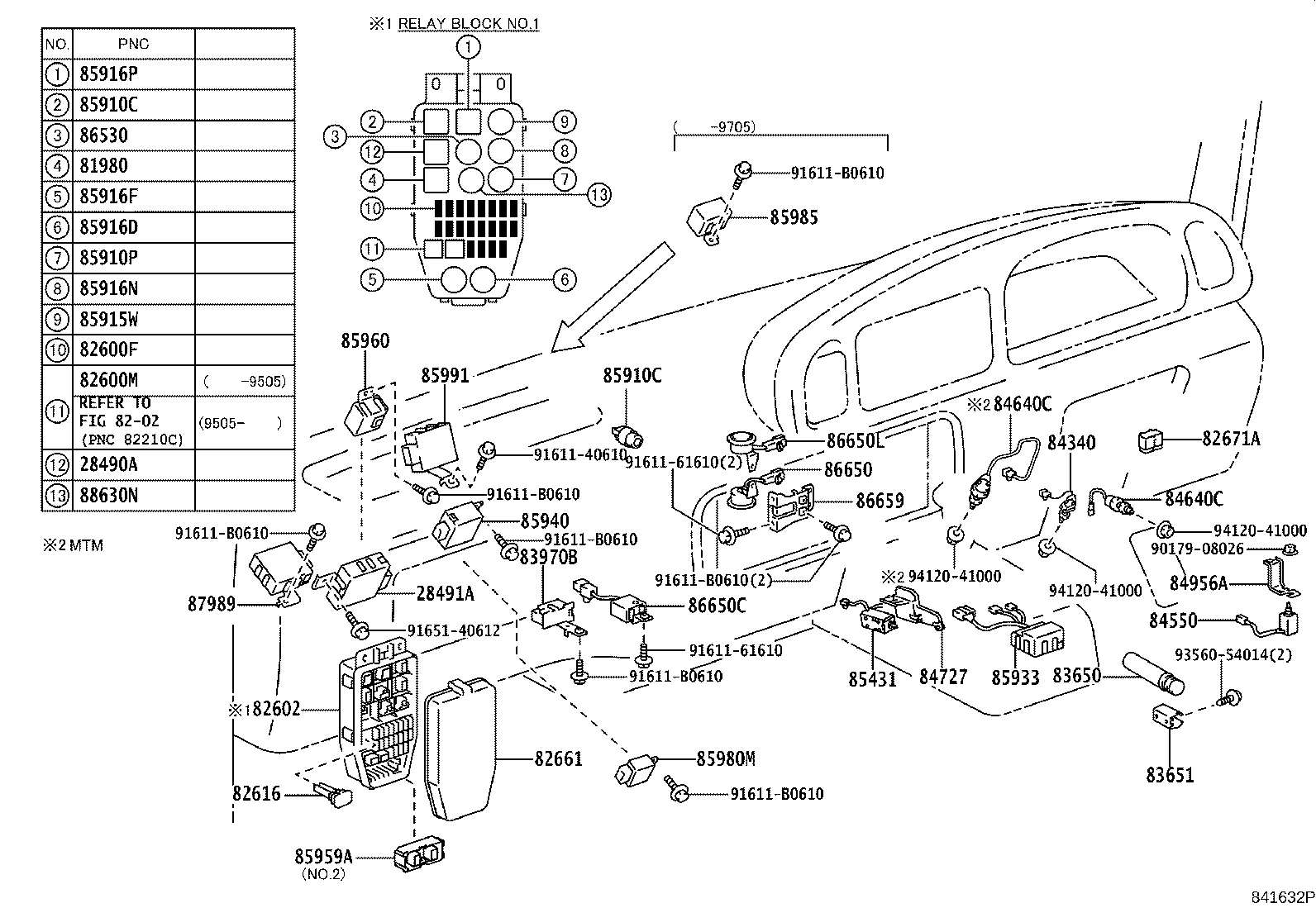

841632P 1993-01 → 1999-07

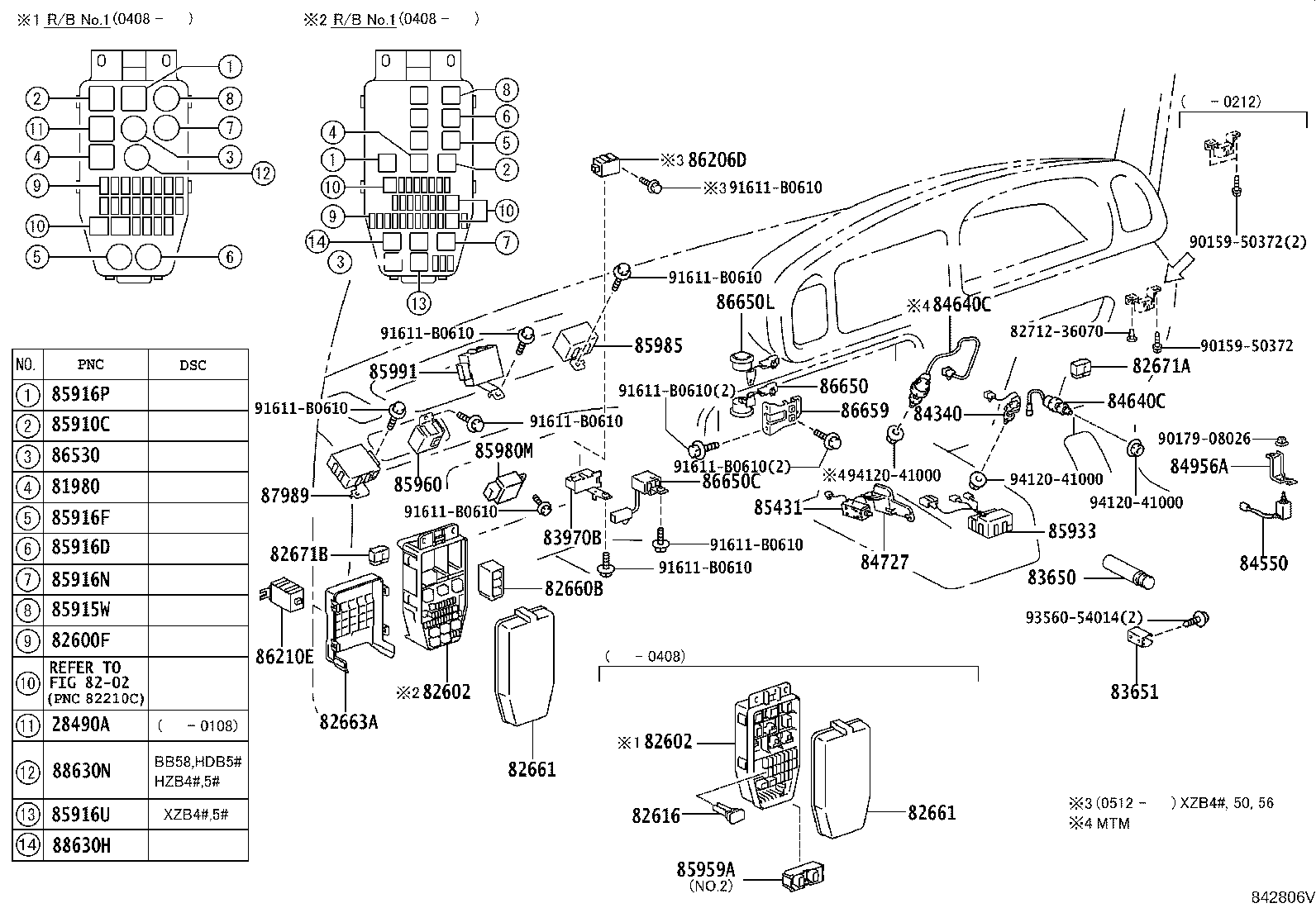

842806V 1999-07 → 2007-08

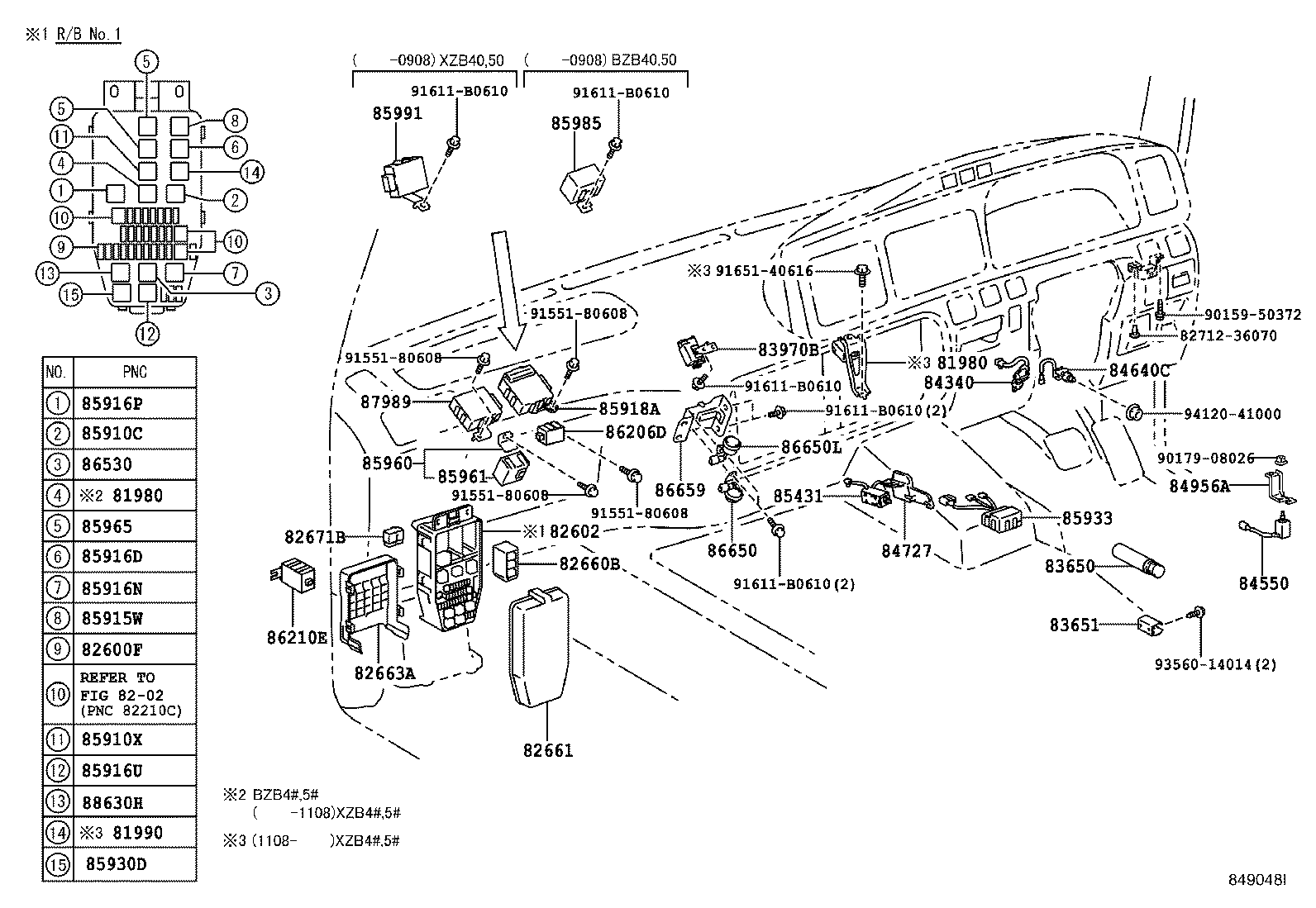

849048I 2007-08 → 2015-01

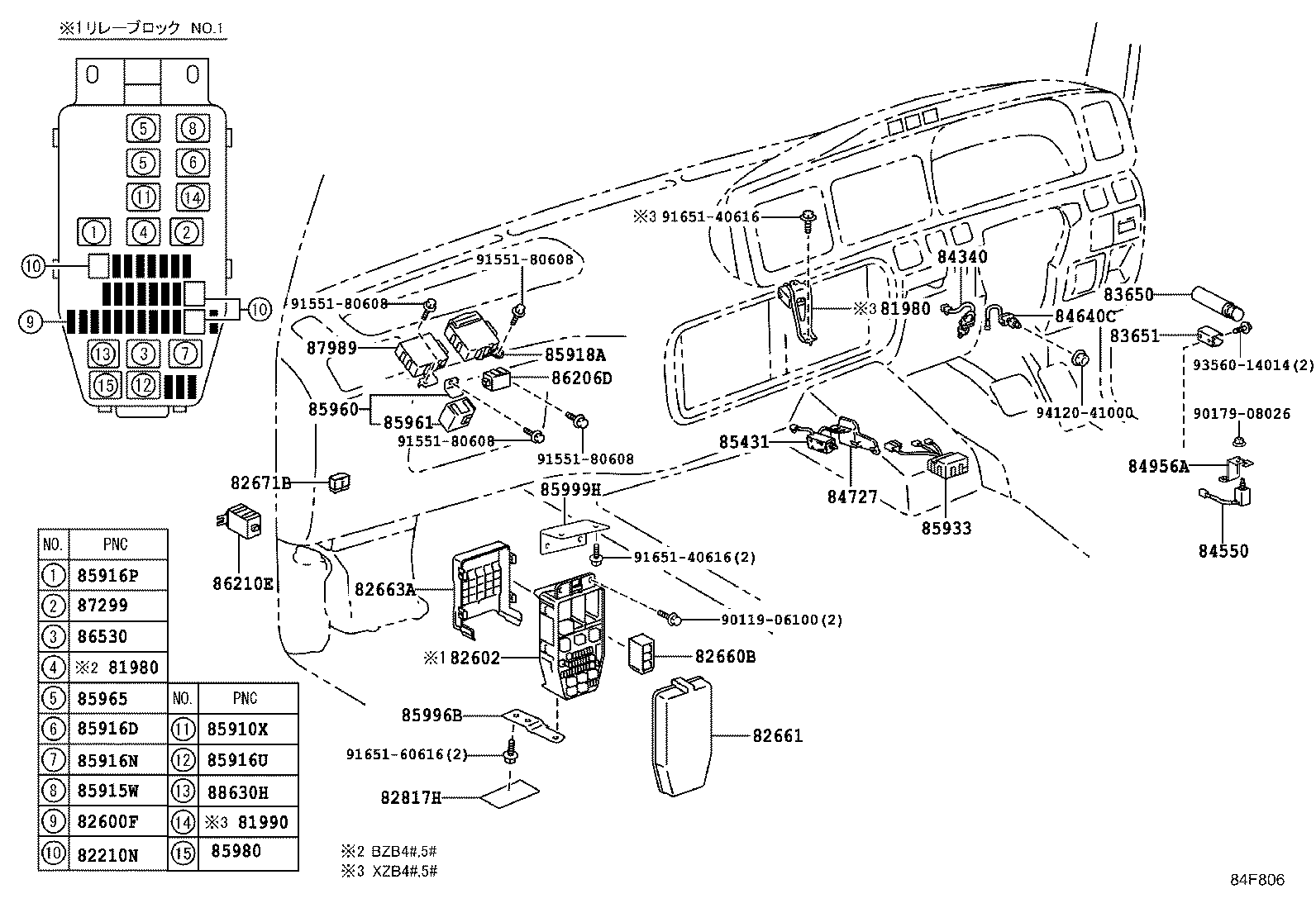

84F806 2015-01 → —

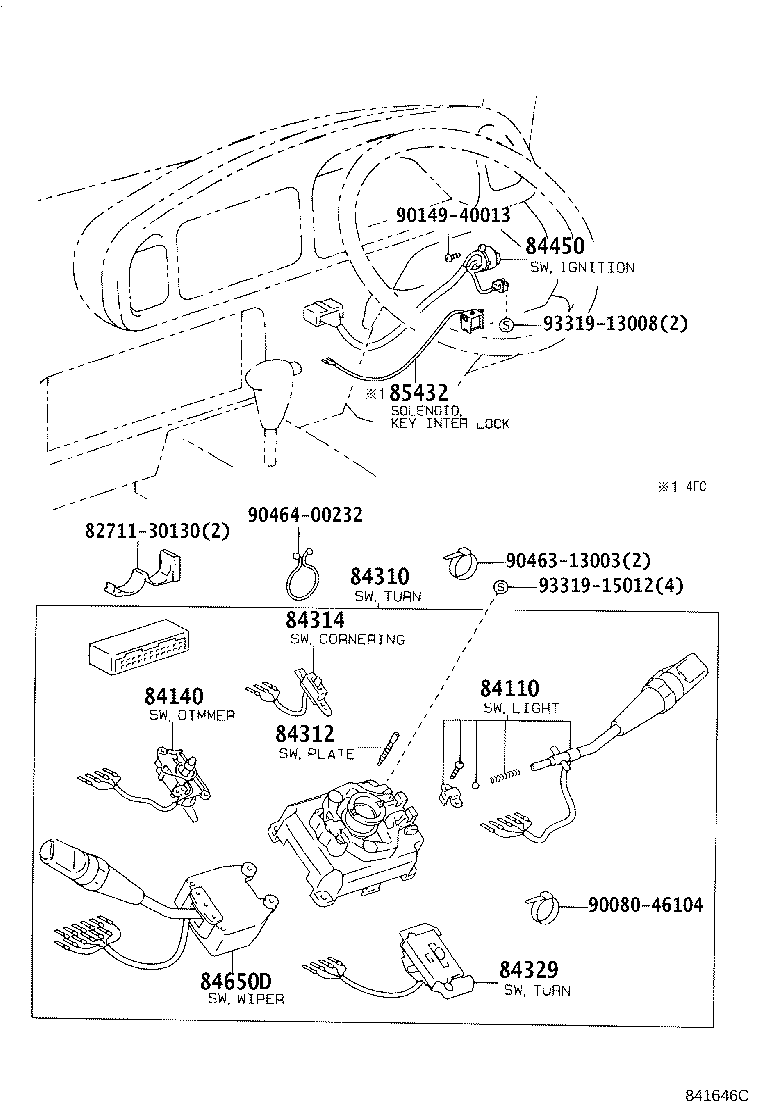

841646C 1993-01 → 1999-07

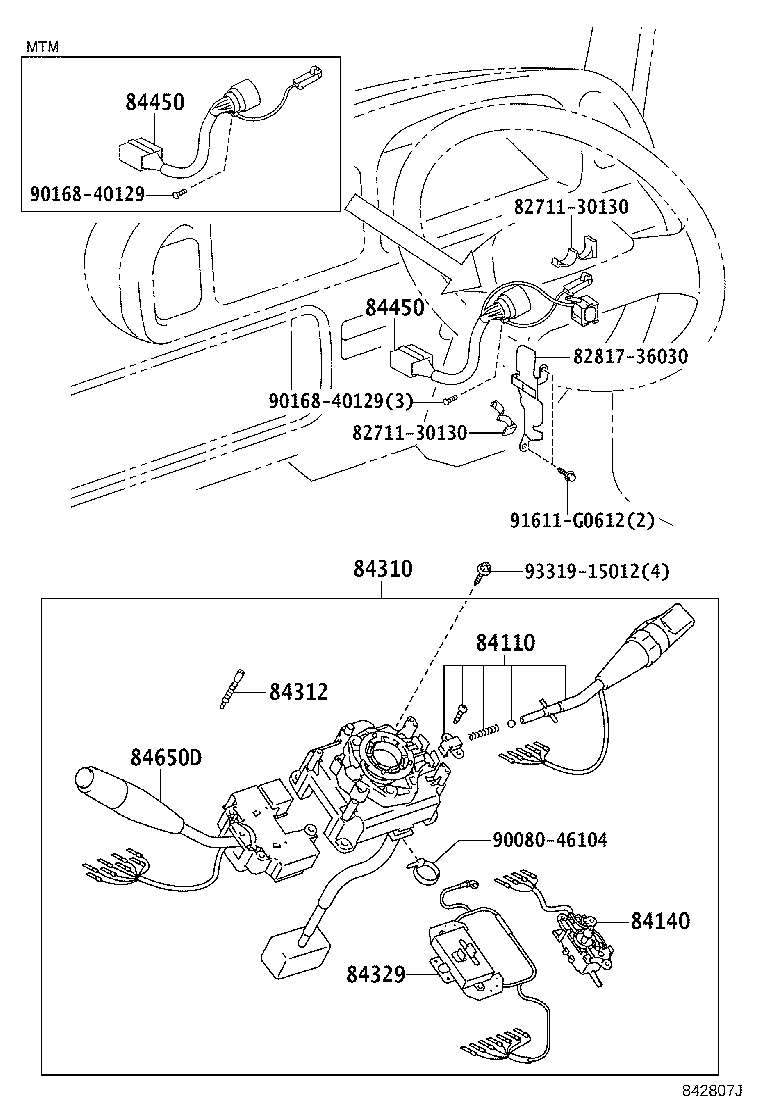

842807J 1999-07 → —

841647I 1993-01 → 1997-05

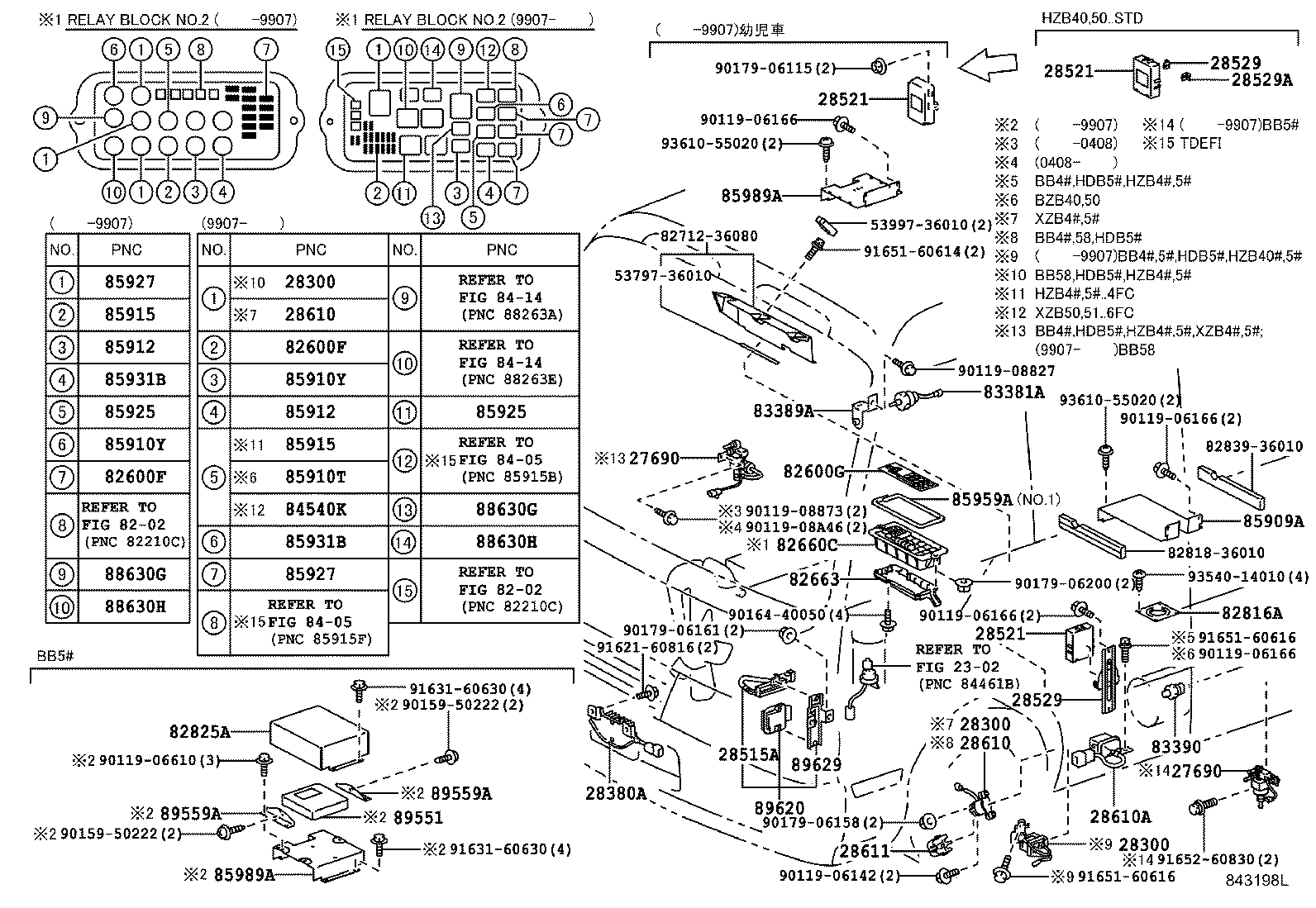

843198L 1997-05 → 2007-08

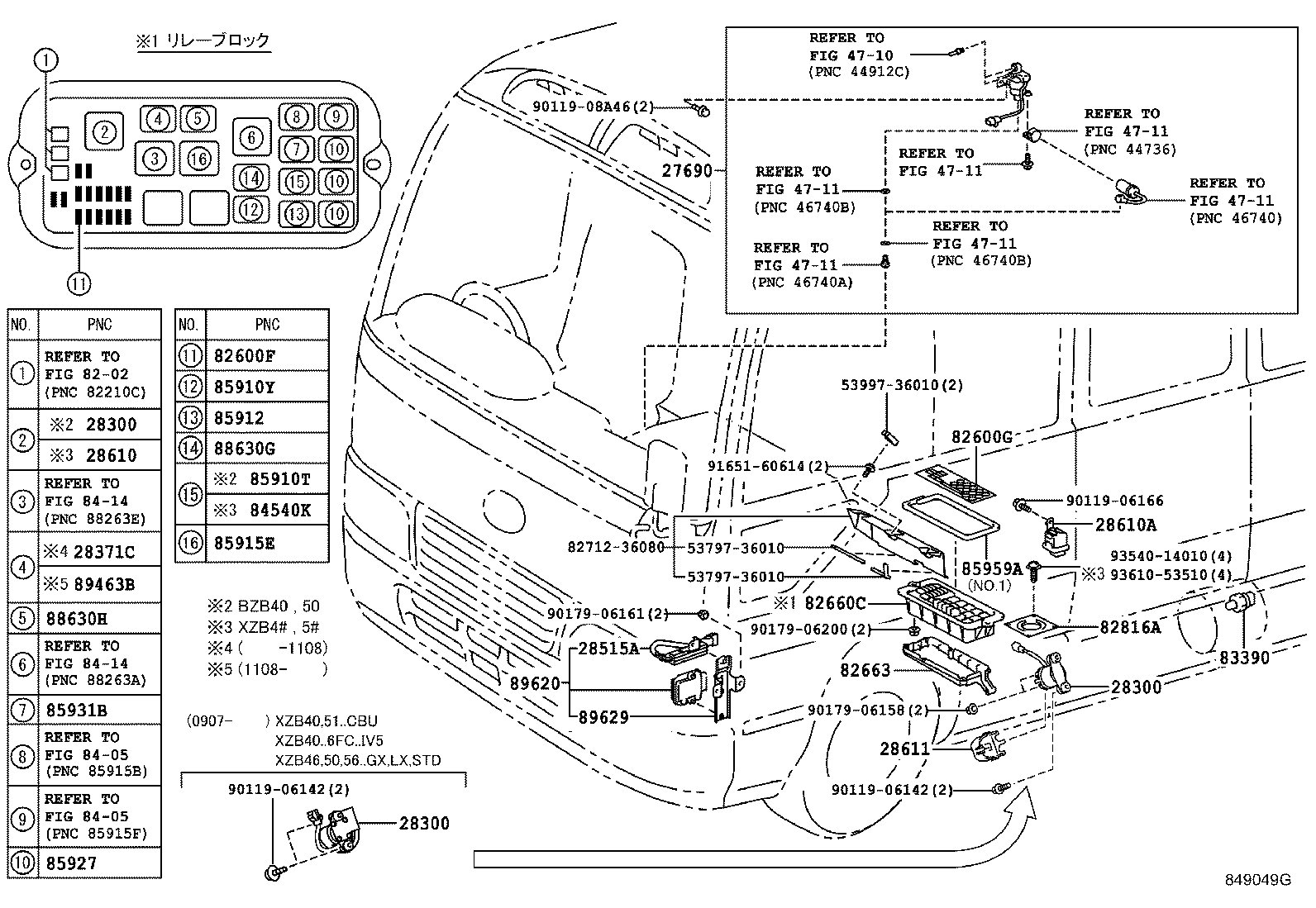

849049G 2007-08 → —

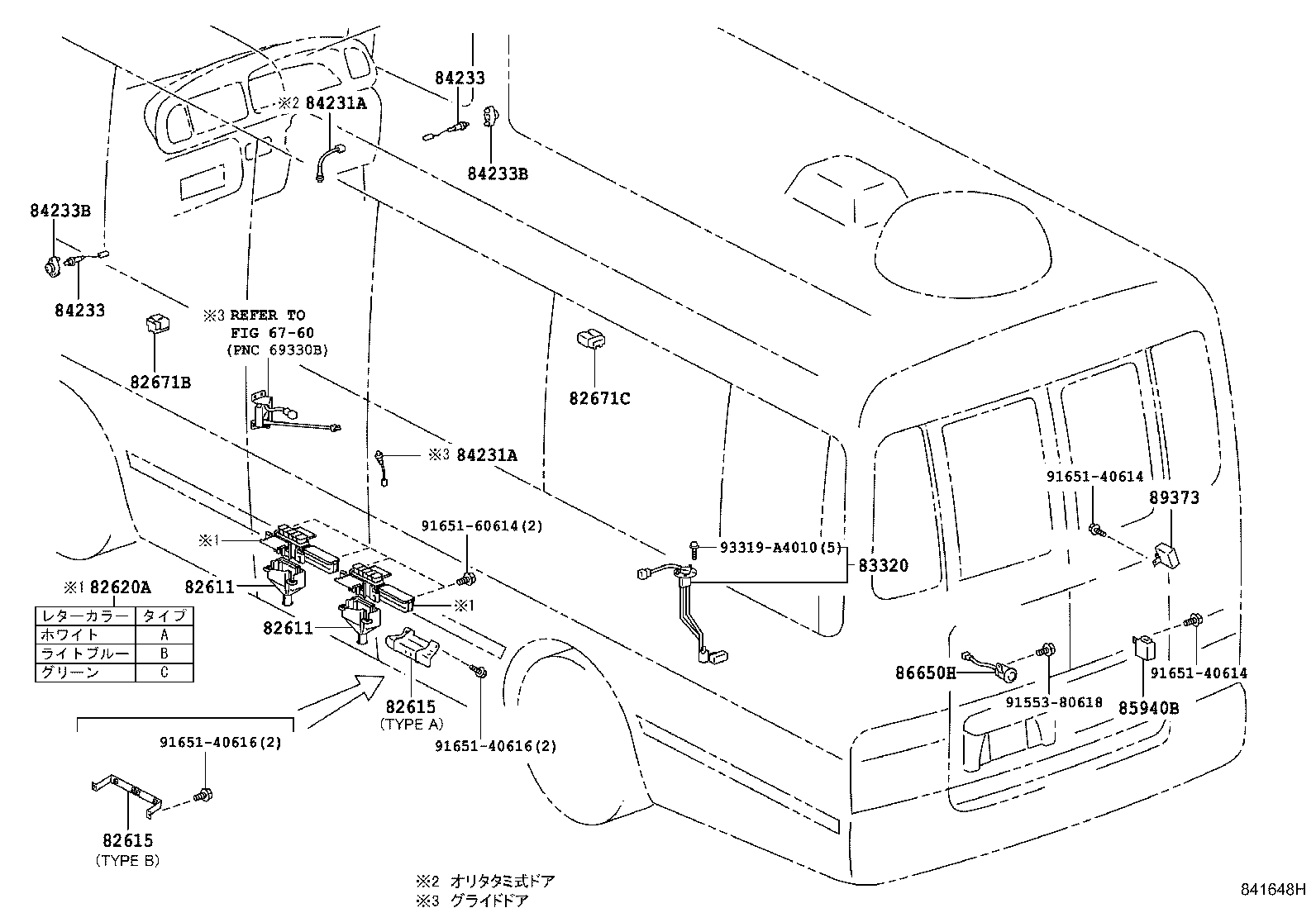

841648H 1993-01 → 1999-07

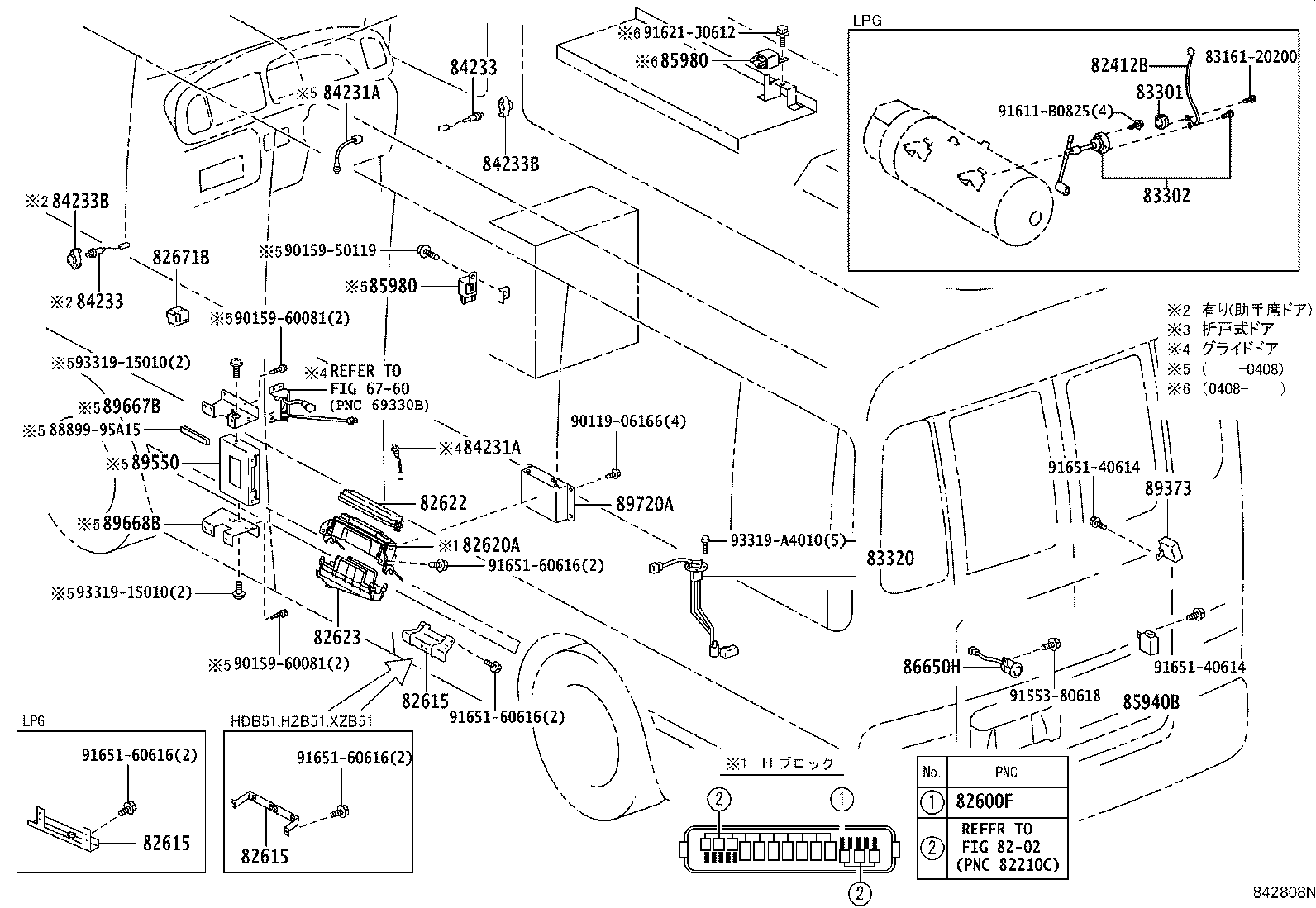

842808N 1999-07 → 2007-08

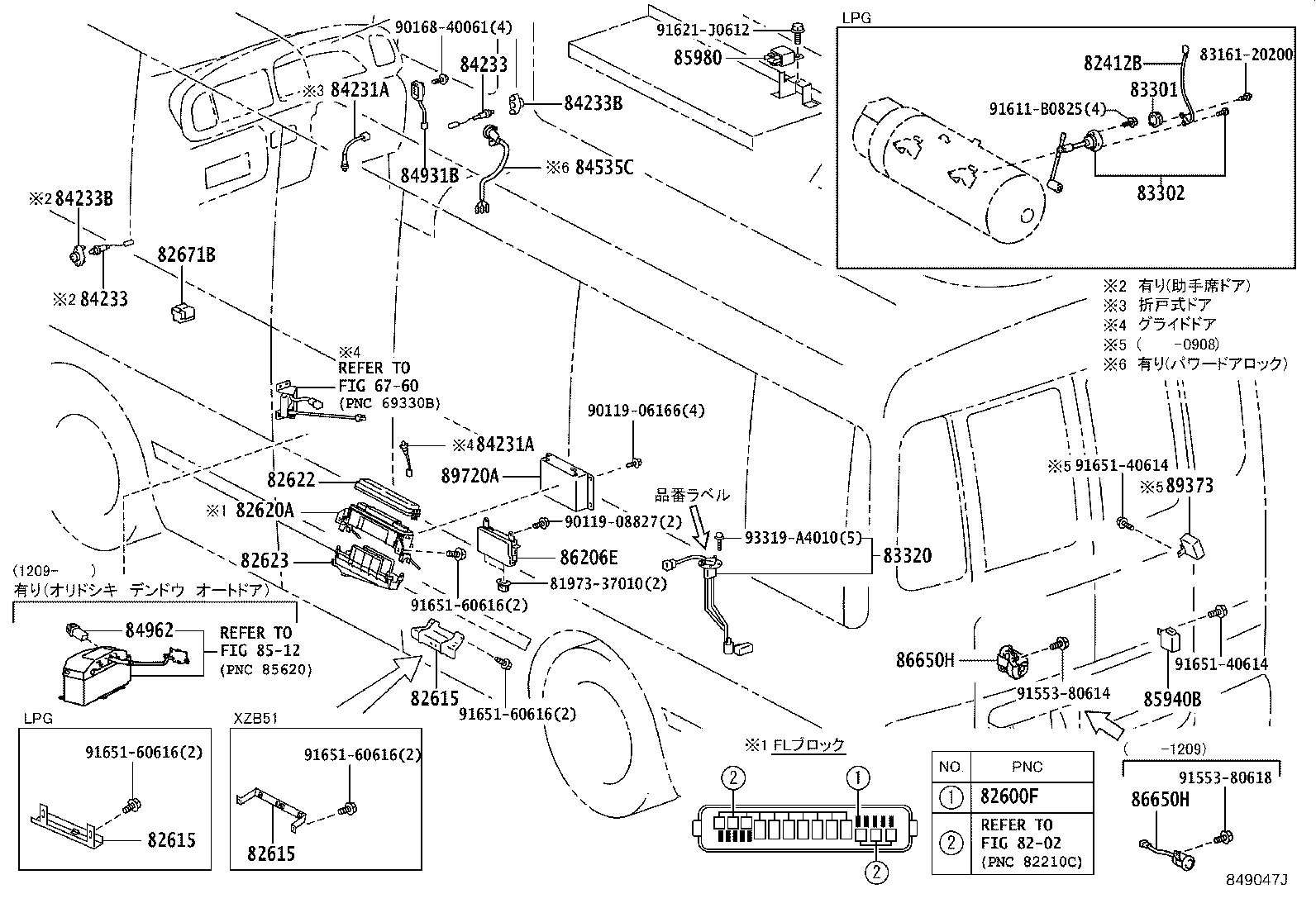

849047J 2007-08 → 2015-01

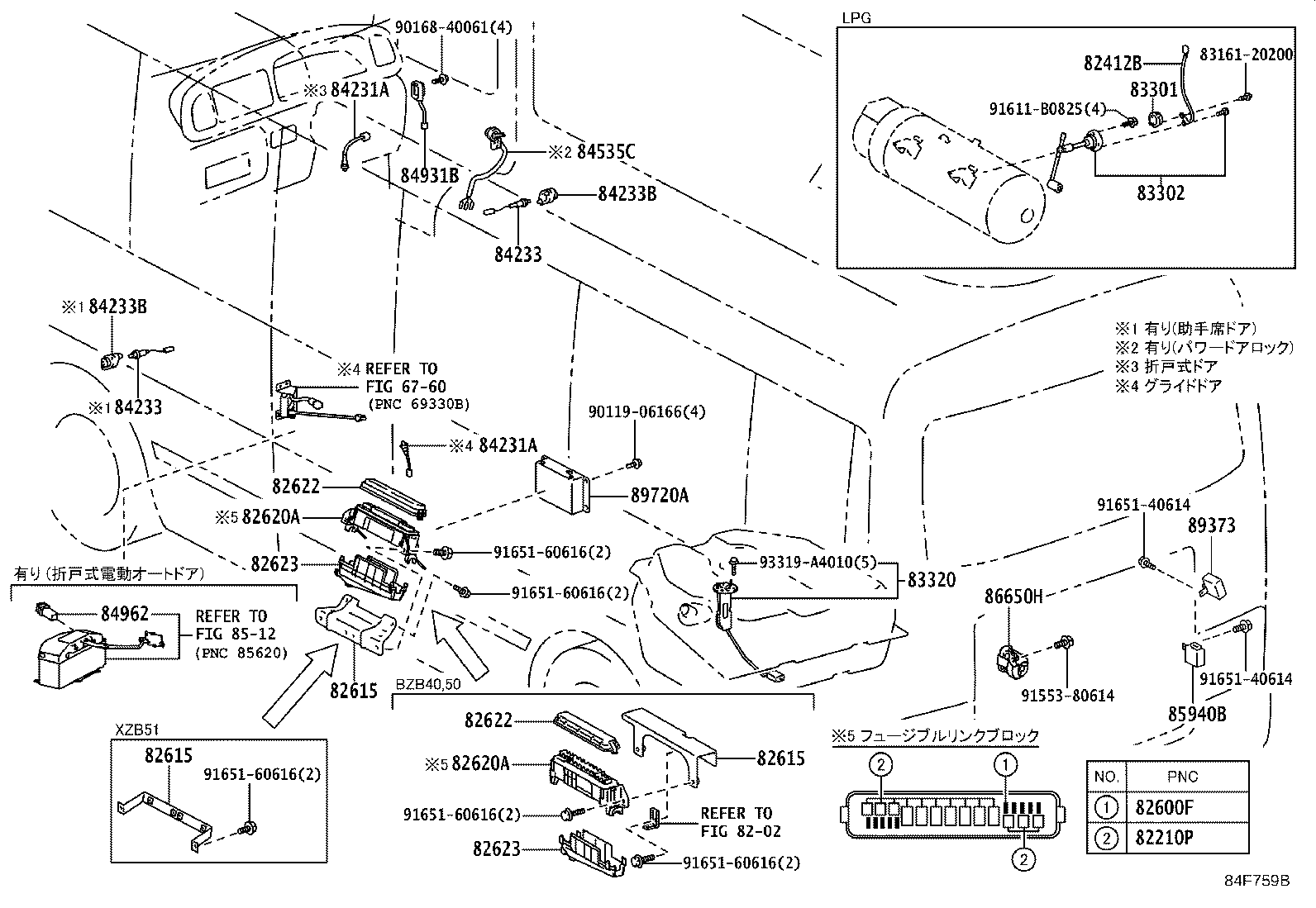

84F759B 2015-01 → —

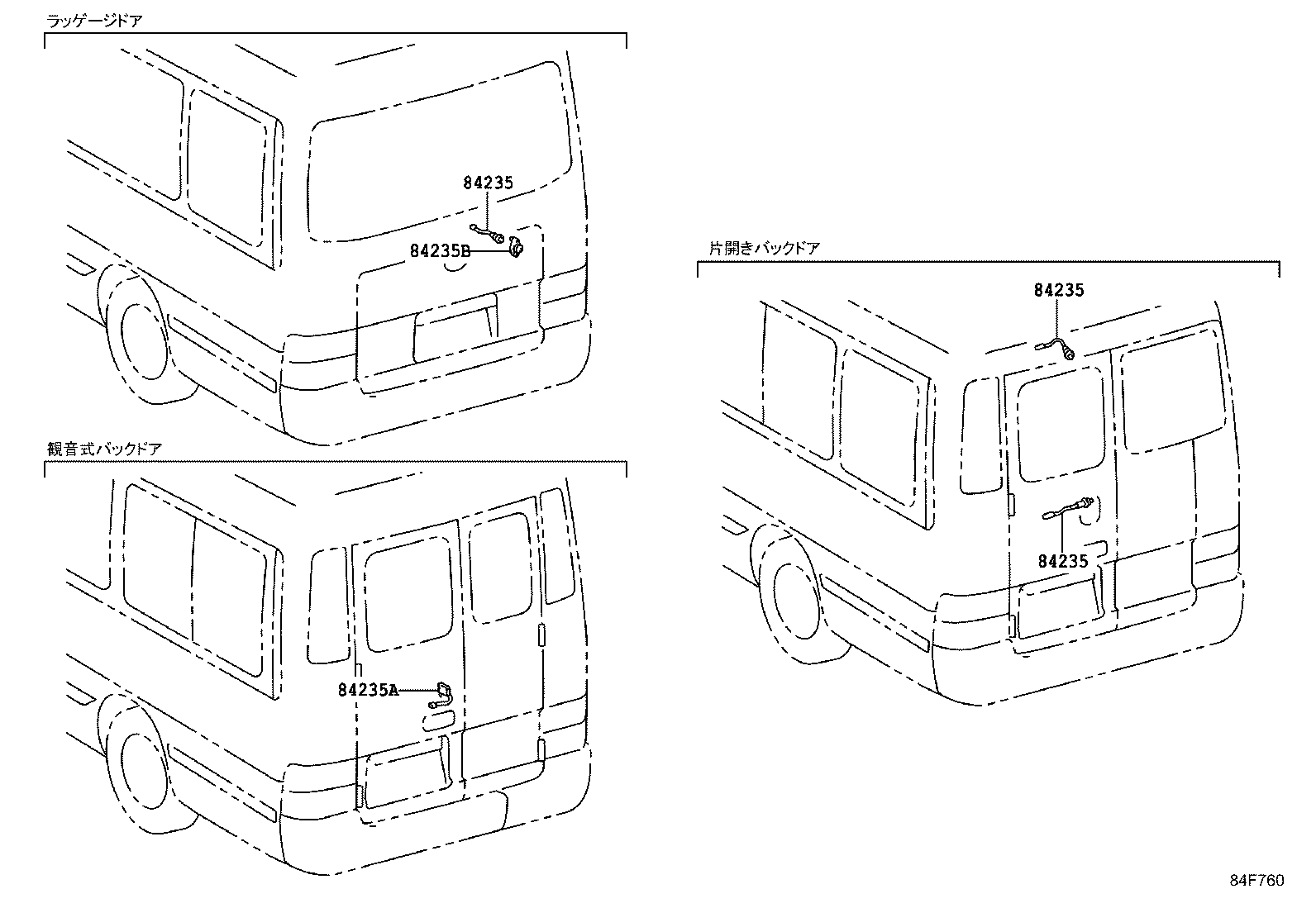

84F760 1993-01 → —

Part groups

PNC	Description
27690	Solenoid Assy, W/Bracket(FOR EXHAUST BRAKE)
28300	Relay Assy, Starter
28371C	Relay, Ignition, NO.2
28380A	Resister, Fuel Pump
28490A	Relay Assy, Exhaust Retarder
28491A	Computer, Exhaust Retarder
28515A	Resistor, Solenoid
28521	Timer, Preheating
28529	Bracket, Preheating Timer, NO.1
28529A	Bracket, Preheating Timer, NO.2
28610	Relay Assy, Intake Heater OR Glow Plug
28610A	Relay Assy, Glow Plug(SUB)
28611	Cover, Glow Plug Relay
28621	Resistor, Glow Plug
74534B	Plate, Voltage Caution
81980	Flasher Assy, Turn Signal
81990	Relay Assy, Turn Signal
82210N	Instrument Panel Fusible Link
82210P	Engine Room Fusible Link
82412B	Wire, Fuel Gage
82600F	Fuse, Fuse Block
82600G	Plate, Caution(FOR FUSE)
82600M	Fuse, Medium Current
82602	Block Sub-assy, Relay
82611	Cover, Fuse Block
82615	Bracket, Fuse
82616	Puller, Fuse
82620A	Block Assy, Fusible Link
82622	Cover, Fusible Link, Upper
82623	Cover, Fusible Link, Lower
82660B	Block Assy, Relay
82660C	Block Assy, Relay
82661	Cover, Relay Block, NO.1
82663	Cover, Relay Block, Lower
82663A	Cover, Relay Block, Lower, NO.2
82671A	Block, Junction
82671B	Block, Junction
82671C	Block, Junction
82805	Cover Sub-assy, Relay
82816A	Bracket, Wiring Harness Grommet
82817H	Protector, Wiring Harness
82825A	Cover, Relay
83301	Gage Sub-assy, Fuel Sender (FOR LPG TANK)
83302	Body Sub-assy, Fuel Sender Gage
83320	Gage Assy, Fuel Sender
83380B	Switch Assy, Pressure, NO.1
83380C	Switch Assy, Pressure, NO.2
83380D	Switch Assy, Pressure, NO.3
83380E	Switch Assy, Pressure, NO.6
83380F	Switch Assy, Pressure, NO.7
83380G	Switch Assy, Pressure, NO.8
83381A	Switch, Pressure
83389A	Bracket, Pressure Switch
83390	Switch Assy, Vacuum Warning
83420	Gage Assy, Water Temperature Sender
83530	Switch Assy, Oil Pressure (FOR ENGINE)
83650	Fusee
83651	Clamp, Fusee
83970B	Buzzer Assy, Reverse Warning
84110	Switch Assy, Light Control, NO.1
84119	Rheostat, Light Control
84140	Switch Assy, Headlamp Dimmer
84152	Switch, Headlamp Leveling
84152B	Bulb (FOR HEADLAMP LEVELING SWITCH)
84160	Switch Assy, Room Lamp
84162F	Switch, Front Fog Bulb Check
84170A	Switch Assy, Room Lamp NO.1
84170B	Switch Assy, Room Lamp NO.2
84170C	Bulb,Room Lamp Switch
84170D	Cap Bulb,Room Lamp Switch
84210	Switch Assy, Back-up Lamp
84222	Switch, Transfer Indicator, NO.1
84225A	Switch, Shift Position
84231A	Switch, Courtesy Lamp
84233	Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
84233B	Cushion, Courtesy Switch (FOR FRONT DOOR)
84235	Switch Assy, Courtesy Lamp(FOR BACK DOOR)
84235A	Switch, Courtesy Lamp
84235B	Cushion, Courtesy Switch(FOR BACK DOOR)
84270K	Switch Assy, Dpr
84270N	Bulb, Dpr Swich Assy
84270R	Cap, Dpr Switch Bulb
84310	Switch Assy, Turn Signal
84312	Plate, Horn Contact
84314	Switch, Cornering Lamp
84329	Switch, Turn Signal
84330	Switch Assy, Hazard Warning Signal
84330B	Bulb, Hazard Warning Signal Switch
84340	Switch Assy, Stop Lamp
84450	Switch Assy, Ignition OR Starter
84455	Switch, Warm UP
84455B	Bulb (FOR WARM UP SWITCH)
84523	Wire, Switch NO.1
84535C	Switch, Door Lock, RH
84540	Switch Assy, Neutral Start
84540C	Switch Assy, Neutral (FOR EXHAUST BRAKE)
84540K	Relay,Neutral Start Switch
84550	Switch Assy, Parking Brake
84640C	Switch Assy, Exhaust Retarder
84650D	Switch Assy, Windshield Wiper (W/RELAY, WIPER CONTROL)
84660D	Bulb(FOR COOLER SWITCH)
84720A	Switch Assy, Pattern Select, NO.1
84720B	Bulb (FOR PATTERN SELECT SWITCH)
84724	Switch, 4 Wheel Drive Control
84724B	Bulb, 4 Wheel Drive Control Switch
84727	Switch, Shift Lock Control
84730	Switch Assy, Heater Blower
84730B	Bulb, Heater Blower Switch
84730D	Cap, Heater Blower Switch Bulb
84730R	Switch Assy, Heater Blower
84730S	Bulb, Heater Blower Switch
84732A	Switch, Rear Heater Blower
84732B	Bulb, Rear Heater Blower Switch
84732F	Cap, Rear Heater Blower Switch
84732G	Switch, Ventilator
84790	Switch Assy, Rear Window Defogger
84790B	Bulb(FOR REAR WINDOW DEFOGGER SWITCH)
84790E	Cap, Bulb(FOR REAR WINDOW DEFOGGER SWITCH)
84870A	Switch Assy, Outer Mirror
84890	Switch Assy, Side Auto Step
84930	Switch Assy, Door Control
84931B	Switch, Door Control
84956A	Bracket, Hand Brake Signal Switch
84962	Switch, Power Slide Door Main
84970	Switch Assy, Combination
85431	Solenoid, Shift Lock
85432	Solenoid, Key Interlock
85500	Lighter Assy, Cigarette
85520	Knob And Element Assy, Cigarette Lighter
85533	Lens, Cigarette Lighter Indicator
85909A	Bracket Sub-assy, Relay Block
85910C	Relay Assy (FOR HEATER BLOWER MOTOR)
85910P	Relay, Turbo Indicator
85910T	Relay, Lpg
85910X	Relay, Heater Mirror
85910Y	Relay, Rear Heater
85912	Relay, Defogger
85915	Relay, Main
85915E	Relay
85915W	Relay, Automatic Door
85915X	Relay, Power Control
85916D	Relay, Fog Lamp
85916F	Relay, Cornering Lamp
85916N	Relay, Taillamp
85916P	Relay, Headlamp
85916U	Relay, Headlamp, NO.2
85918A	Relay, Door Control
85925	Relay, Radiator Fan
85927	Relay, Cooling Fan
85930D	Relay
85931B	Relay, Fuel Heater
85933	Computer, Shift Lock Control
85940	Relay Assy, Windshield Wiper
85940B	Relay Assy, Rear Wiper
85959A	Holder, Relay
85960	Relay Assy, Lamp Control
85961	Relay, Headlamp Retainer
85965	Relay, Room Lamp Control
85980	Relay Assy, Door Control
85980M	Relay Assy, Center Differential Lock Warning
85985	Relay, Key Reminder
85989A	Bracket, Relay, NO.5
85991	Relay, Seat Belt Warning
85996B	Bracket, Relay, NO.2
85999H	Bracket, Relay
86206D	Converter Sub-assy, Voltage
86206E	Converter Sub-assy, Voltage
86210E	Converter Assy, Voltage
86530	Relay Assy, Horn
86650	Buzzer Assy, Vacuum Indicator
86650C	Buzzer Assy, Sedimenter Warning
86650H	Buzzer Assy, Back
86650L	Buzzer Assy, Vacuum Warning
86659	Bracket, Buzzer
87290	Switch Assy, Heater
87290B	Bulb (FOR HEATER SWITCH)
87299	Relay, Heater
87989	Relay, Mirror Control
88630G	Relay Assy, Cooler
88630H	Relay Assy, Cooler
88630N	Relay Assy, Cooler
88660C	Switch Assy, Cooler Control
89373	Sensor, Lamp Failure Indicator
89420M	Sensor Assy, Air Pressure
89421D	Sensor, Turbo Pressure
89422A	Sensor, Water Temperature
89424B	Switch, Inlet Air Temperature
89424G	Sensor, Inlet Air Temperature
89425	Sensor, Exhaust Gas Temperature
89425A	Sensor, Exhaust Gas Temperature, NO.2
89425B	Sensor, Exhaust Gas Temperature, NO.3
89425C	Sensor, Exhaust Gas Temperature, NO.4
89428	Switch, Temperature Detect, NO.2
89438	Switch, Power Steering Oil Pressure
89439D	Bracket, Sensor, NO.1
89452A	Sensor, Throttle Position
89458D	Sensor, Fuel Pressure
89463A	Sensor, Nitrogen Oxides
89463B	Relay, Nitrogen Oxides
89465	Sensor, Oxygen
89465A	Sensor, Oxygen NO.2
89480A	Sensor Assy, Differential Pressure
89491	Sensor, Engine Oil Level
89491A	Gasket, Engine Oil Level Sensor
89550	Computer Assy, Emission Control
89551	Computer, Emission Control
89559A	Bracket, Emission Control Computer
89620	Igniter Assy
89629	Bracket, Igniter Assy
89667B	Bracket, Engine Control Computer, NO.1
89668B	Bracket, Engine Control Computer, NO.2
89720A	Computer Assy, Side Auto Step Controller

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
