Toyota Coaster

1993-01 → 2016-12 · chassis BB4#,5#,BZB40,50,HDB5#,HZB4#,5#,XZB4#,5# · catalogue 811130 · Japan

Discontinued model Data version 2016-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

61 part groups · 12 illustrations

Illustrations

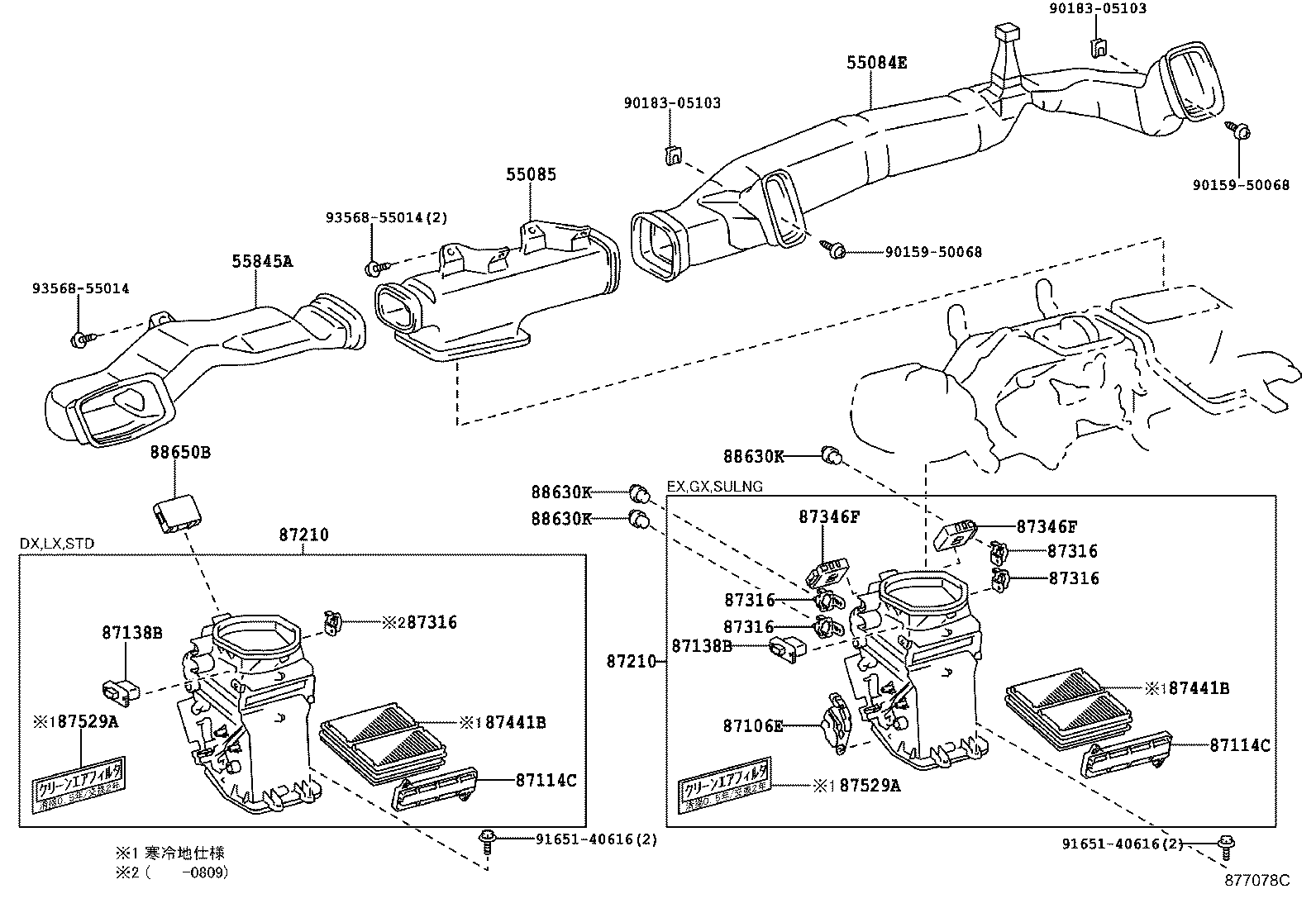

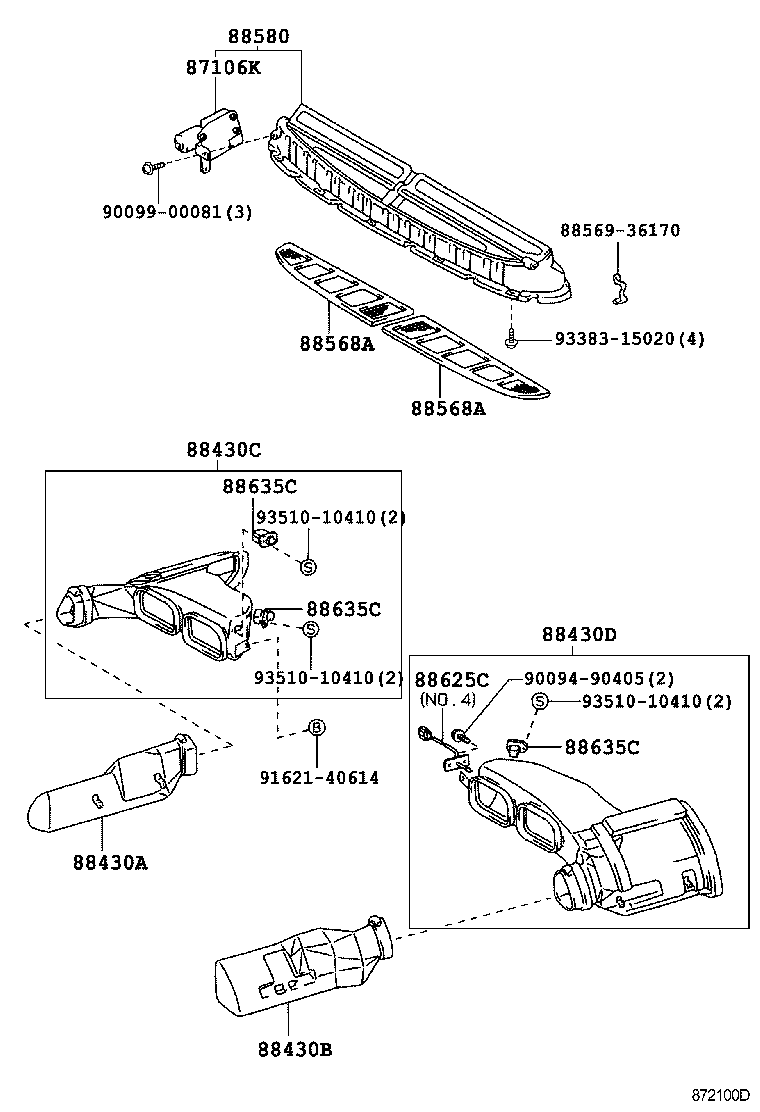

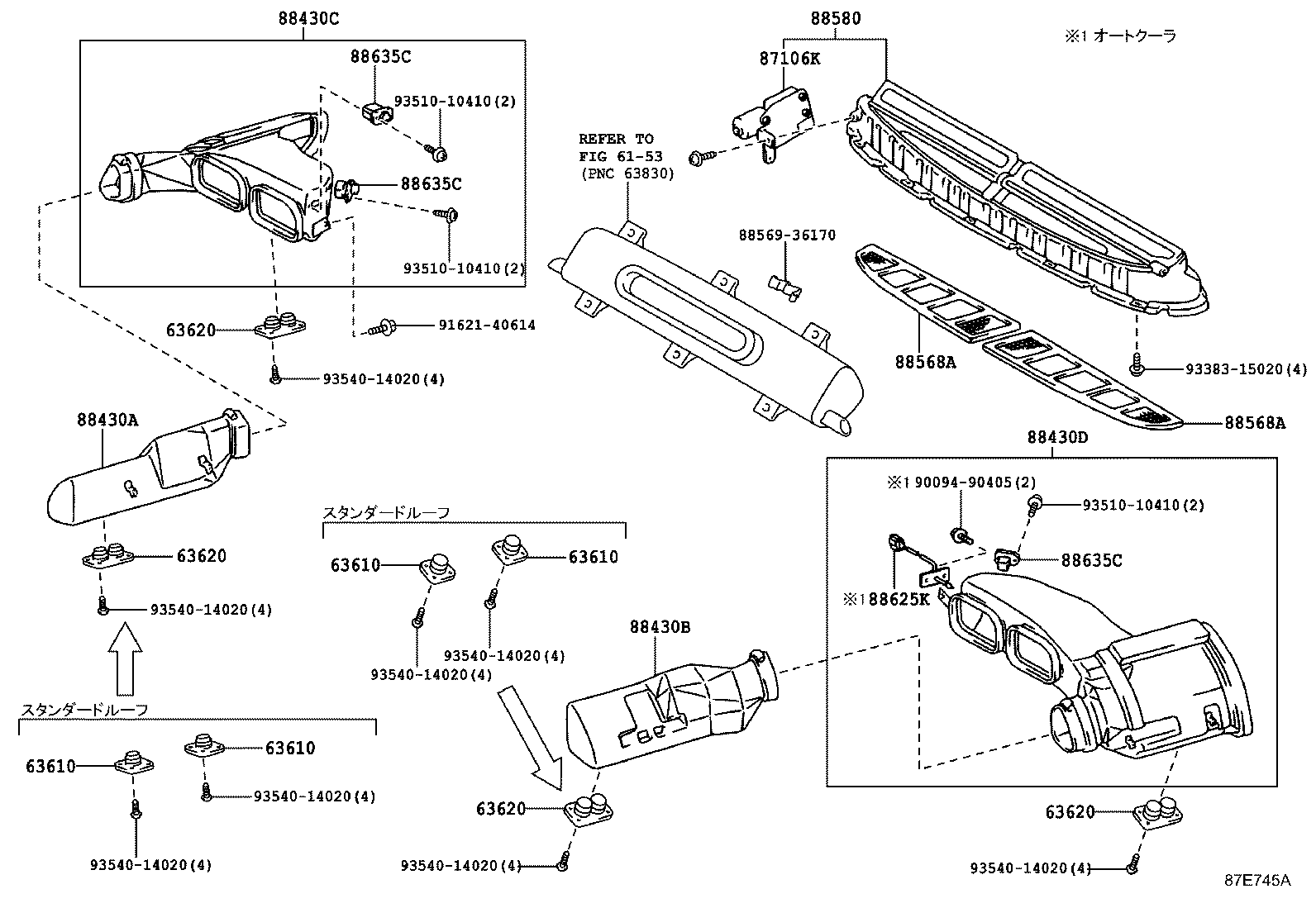

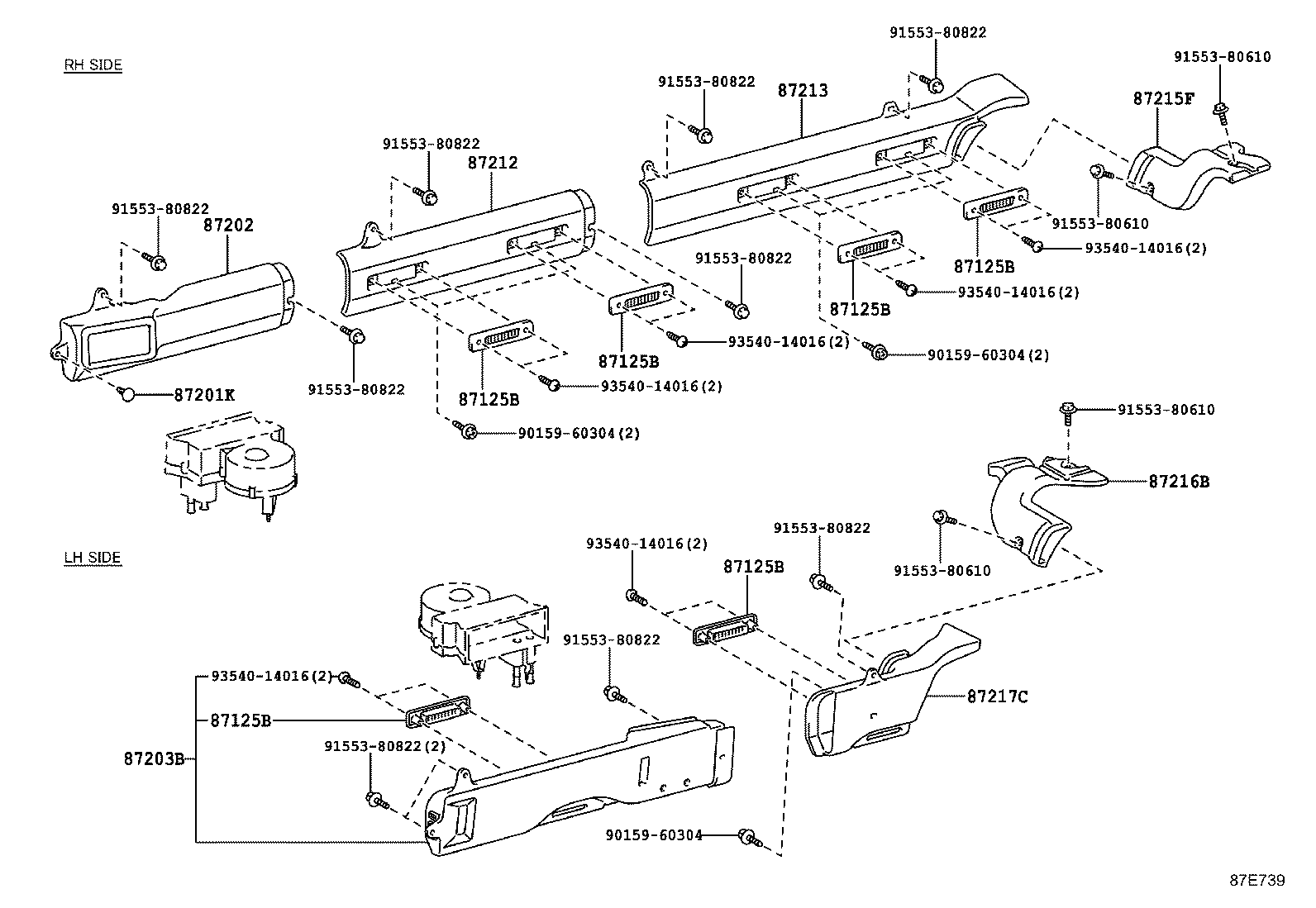

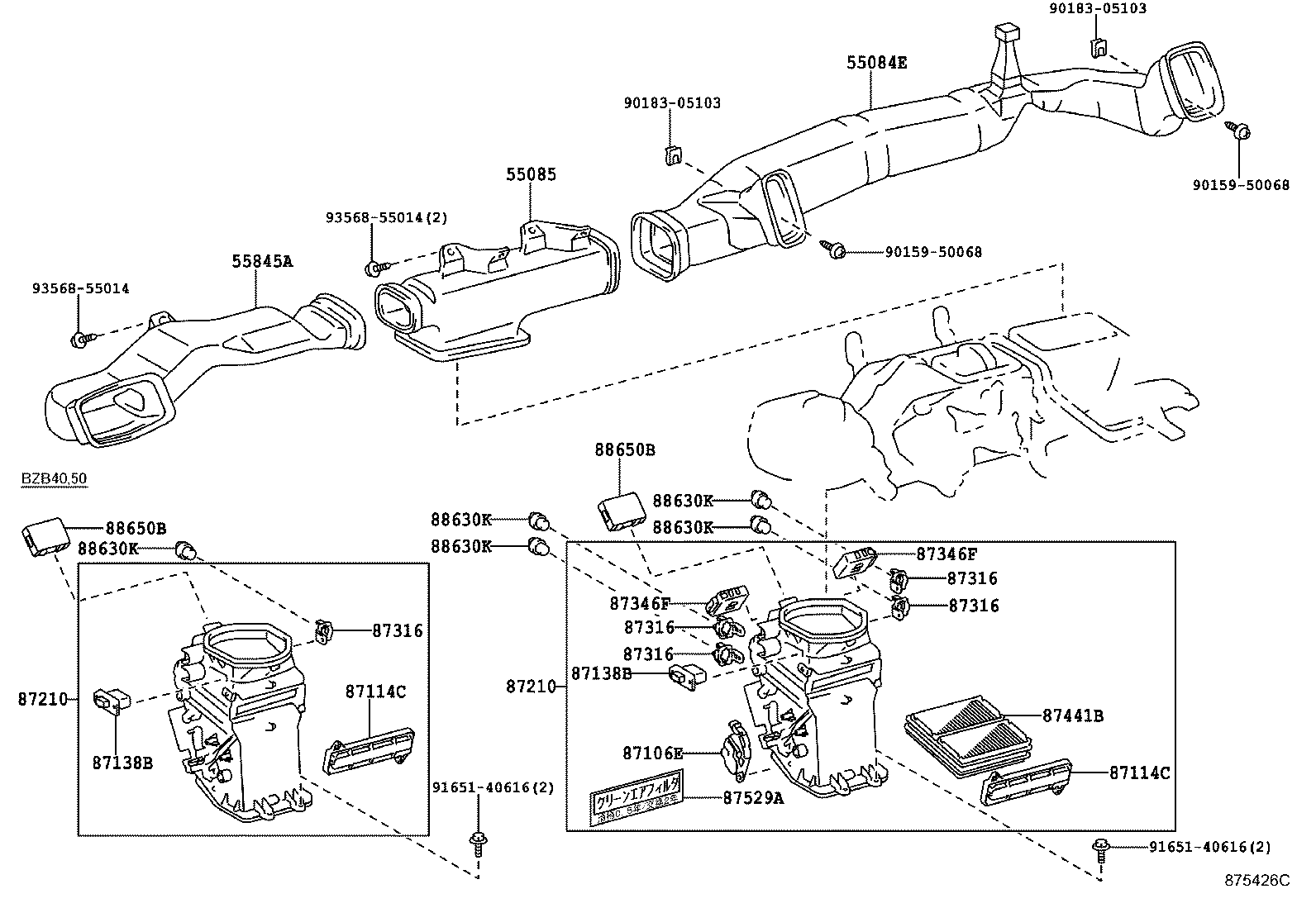

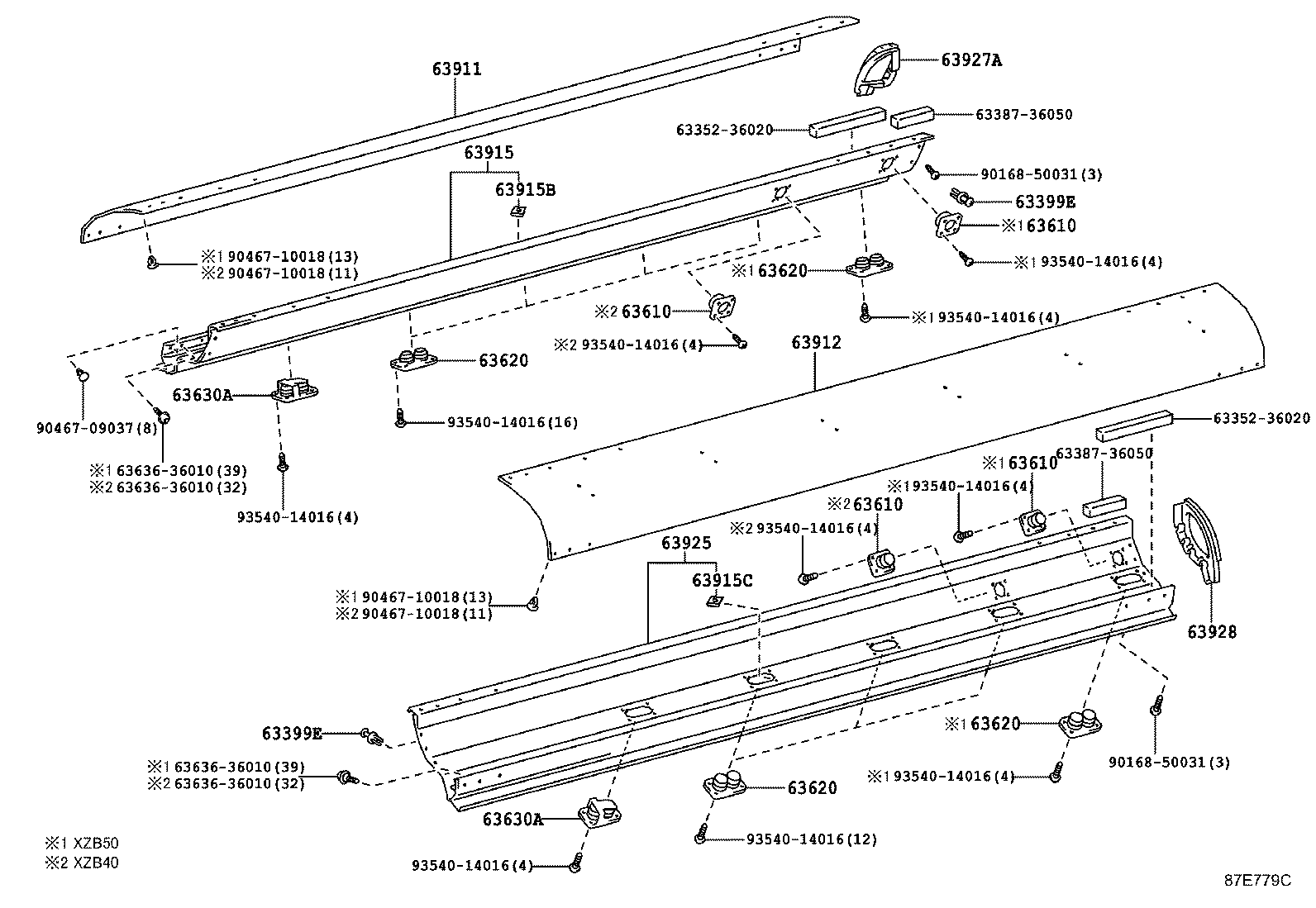

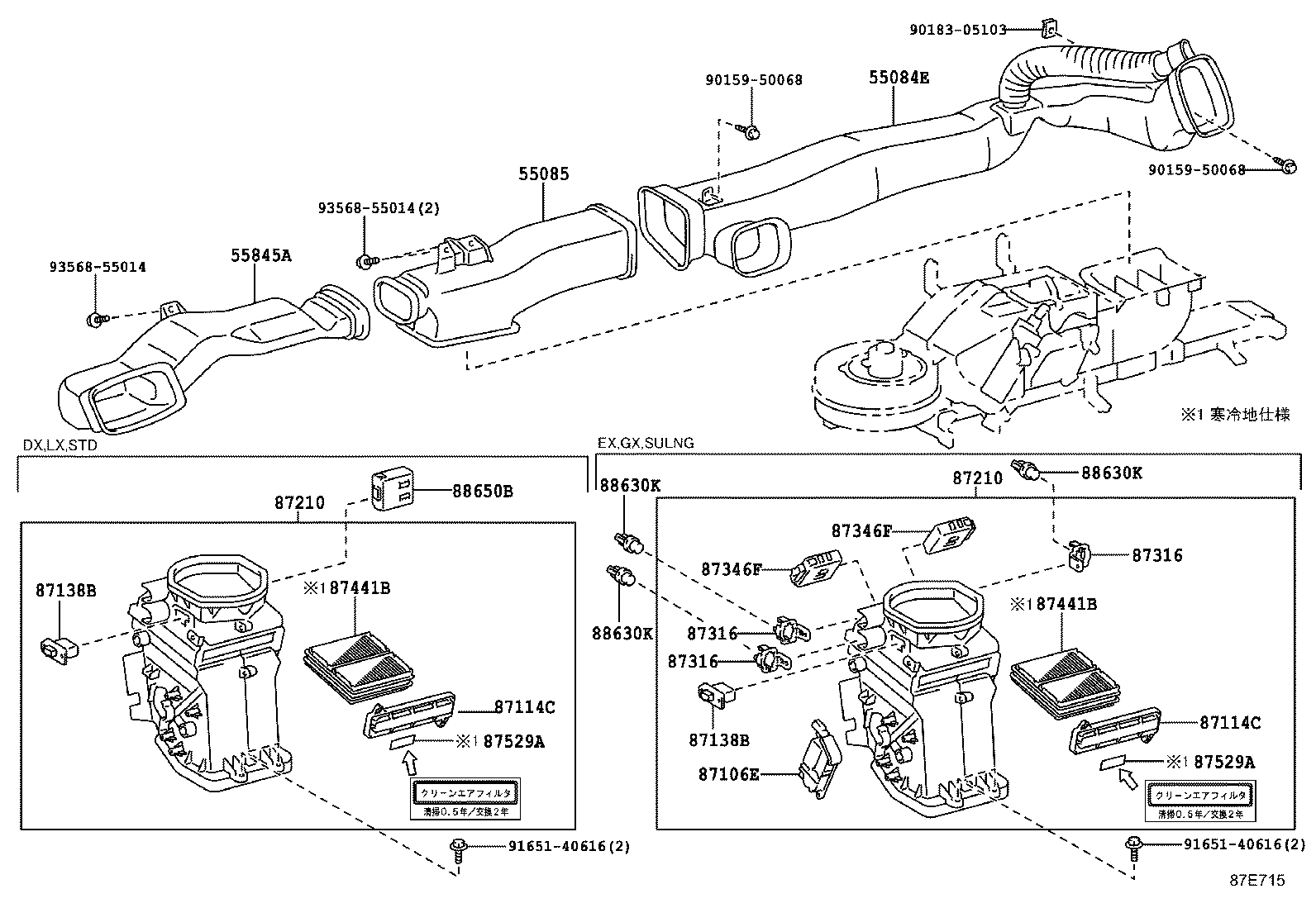

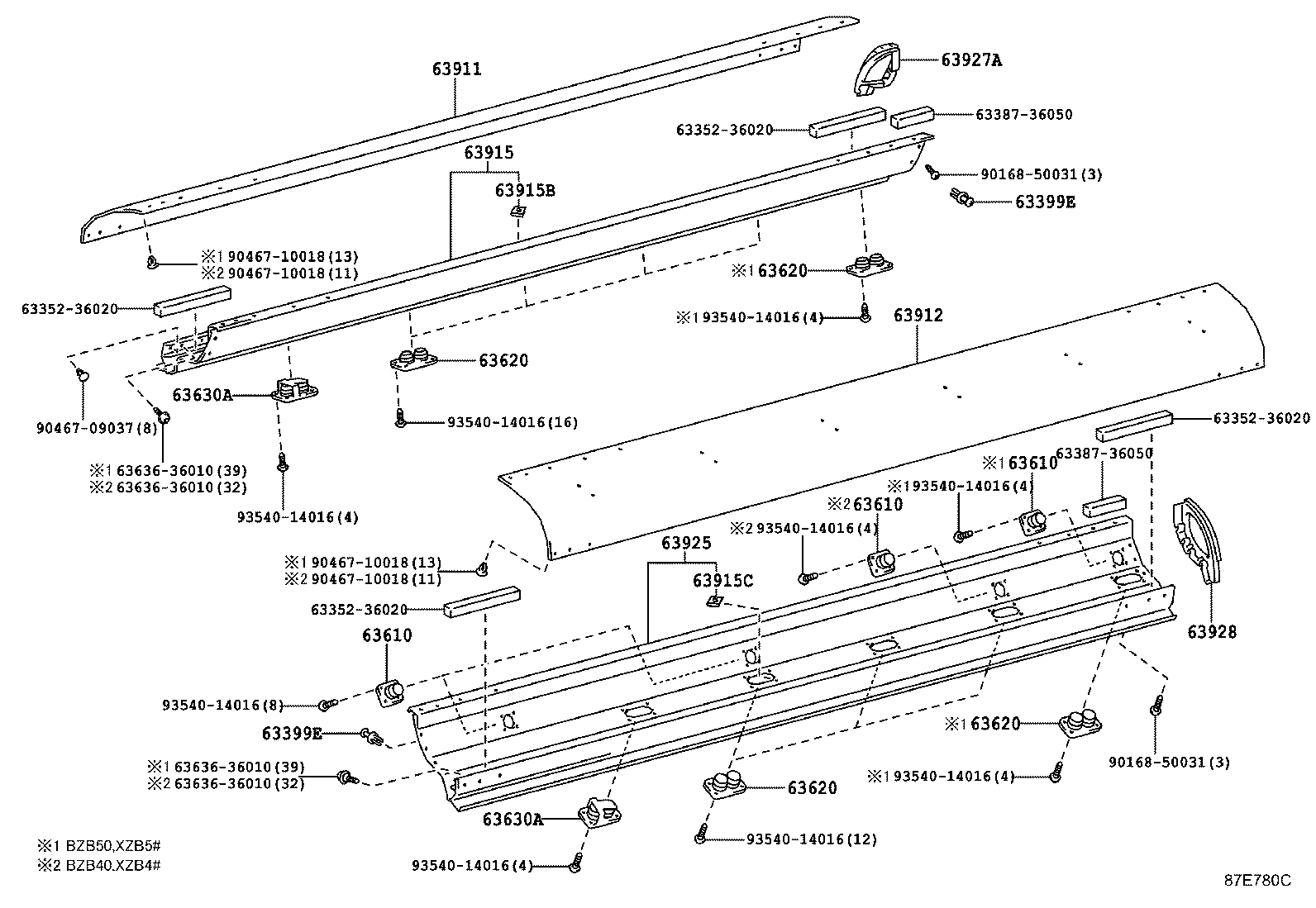

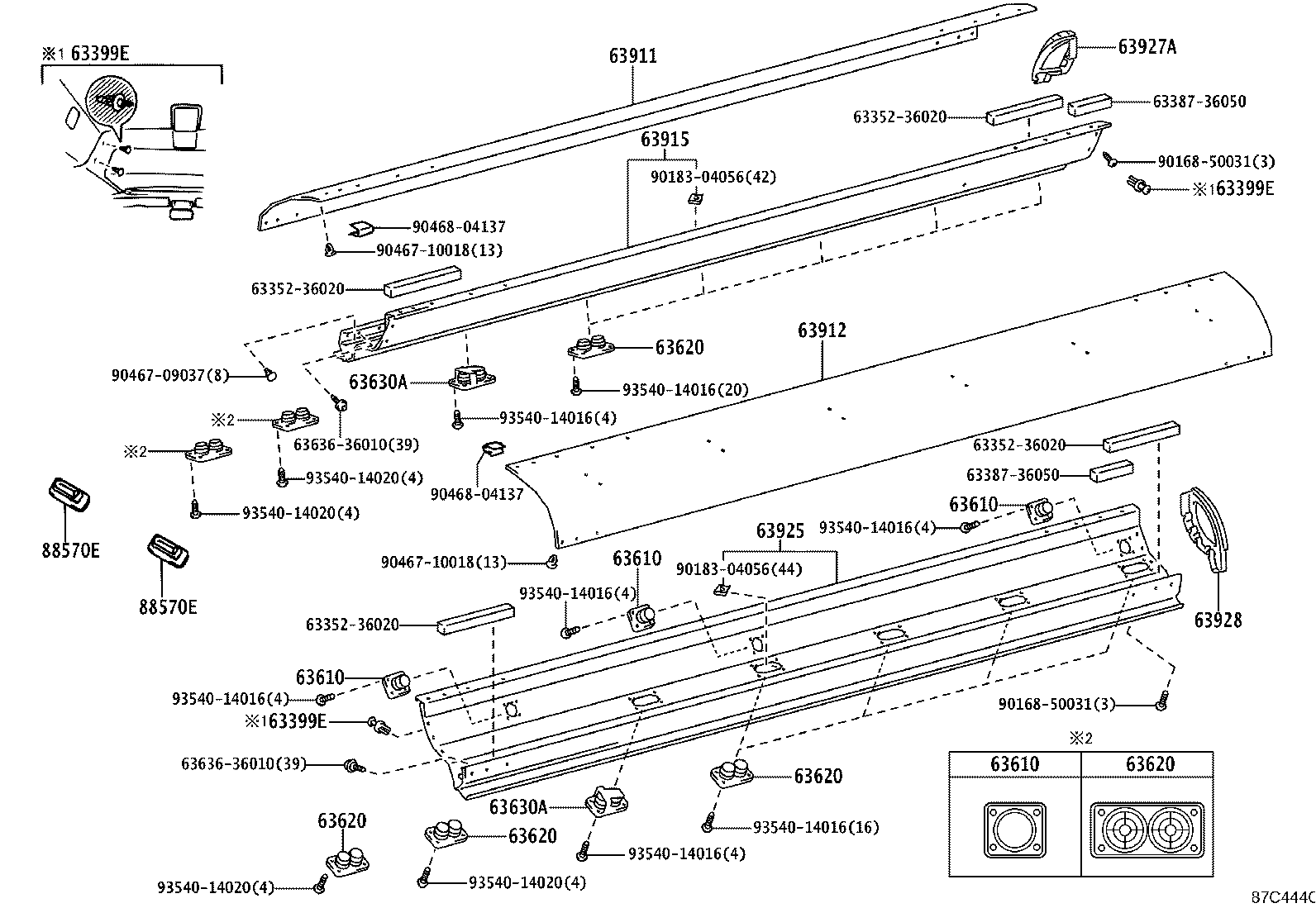

Figure 875425M 875425M 1993-01 → — Figure 875426C 875426C 1993-01 → 2004-08 Figure 877078C 877078C 2004-08 → 2007-08 Figure 87E715 87E715 2007-08 → — Figure 872099C 872099C 1993-01 → 2015-01 Figure 87E739 87E739 2015-01 → — Figure 872100D 872100D 1993-01 → 2015-01 Figure 87E745A 87E745A 2015-01 → — Figure 87C444C 87C444C 1993-01 → 2015-01 Figure 87E779C 87E779C 2015-01 → — Figure 87E780C 87E780C 2015-01 → — Figure 872101C 872101C 1993-01 → —

Part groups

PNCDescription
55084E Duct Sub-assy, Heater TO Register, NO.1
55085 Duct Sub-assy, Heater TO Register, NO.2
55519 Plate, Heater Control Name
55845A Duct, Heater TO Register, NO.3
55900A Control & Accessory Assy, Heater
55900B Bulb, Air Conditioner Control
55902C Panel Sub-assy, Air Conditioner
55905A Knob, Heater Control
55906A Cable Sub-assy, Defroster Damper Control
55907A Cable Sub-assy, Water Valve Control
55907F Cable Sub-assy, Water Valve Control
55908A Cable Sub-assy, Air Inlet Damper Control
55910 Control Assy, Heater OR Boost Ventilator
55912A Housing, Heater Control
63399E Clip, Roof Headlining
63610 Register Assy, Air Outlet, NO.1
63620 Register Assy, Air Outlet, NO.2
63630A Register Assy, Air Duct, NO.3
63911 Duct, Cooler, Outer RH
63912 Duct, Cooler, Outer LH
63915 Duct, Cooler, Inner NO.1 RH
63915B Nut, Spring
63915C Nut, Spring, NO.2
63925 Duct, Cooler, Inner NO.1 LH
63927A Cover, Cooler Duct End, NO.1
63928 Cover, Cooler Duct End, NO.2
87106E Servo Sub-assy, Heater Damper
87106K Servo Sub-assy, Damper(FOR AIRMIX)
87114C Cover, Heater
87123A Knob, Heater Control
87125B Grille, Heater Air Outlet
87138B Resistor, Heater Blower
87190 Switch Assy, Temperature Control
87201K Clip (FOR AIR DUCT)
87202 Duct, Heater Air
87203B Duct Sub-assy, Air, Rear LH
87210 Damper Assy, Air
87212 Duct, Air, Rear NO.1
87213 Duct, Air, Rear NO.2
87215F Duct, Air, Rear NO.3
87216B Duct, Air, Rear NO.4
87217C Duct, Air, Rear NO.5
87218C Duct, Air, Rear NO.6
87316 Bracket, Heater Relay, NO.1
87346F Amplifier Assy, Heater
87441B Filter, Heater Air
87529A Plate, Air Filter Caution
88326C Plate, Cover
88430A Duct Assy, Air, NO.1
88430B Duct Assy, Air, NO.2
88430C Duct Assy, Air, NO.3
88430D Duct Assy, Air, NO.4
88568A Filter, Air
88570E Grille Assy, Air Outlet
88580 Damper Assy, Air
88625C Thermistor, Cooler
88625K Thermistor, Cooler
88630K Relay Assy
88635C Resistor, Cooler Air Duct, NO.1
88650B Amplifier Assy, Airconditioner
88650P Amplifier Assy, Air Conditioner
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
