Toyota Coaster

1993-01 → 2016-12 · chassis BB4#,5#,BZB40,50,HDB5#,HZB4#,5#,XZB4#,5# · catalogue 811130 · Japan

Discontinued model Data version 2016-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

93 part groups · 82 illustrations

Illustrations

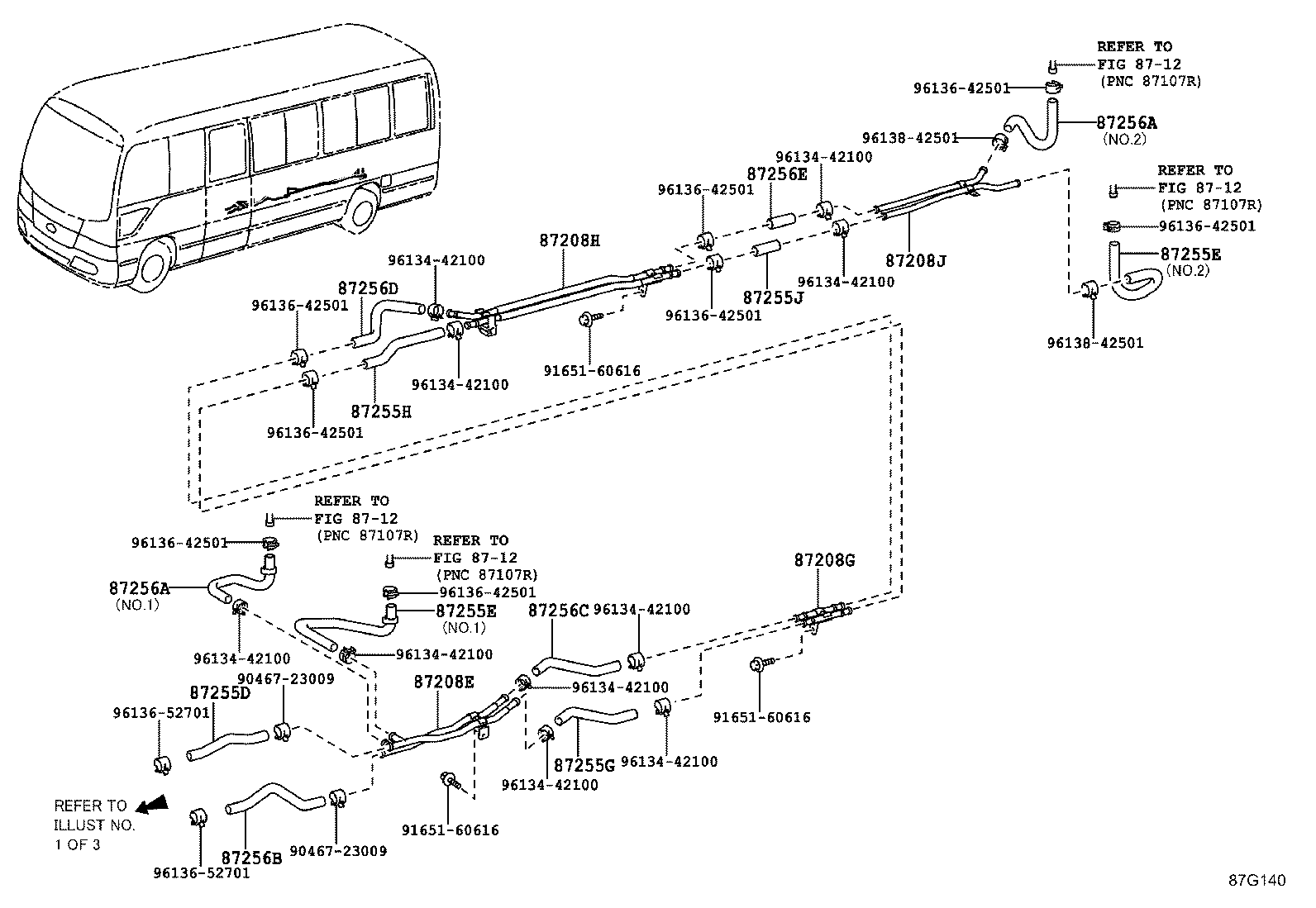

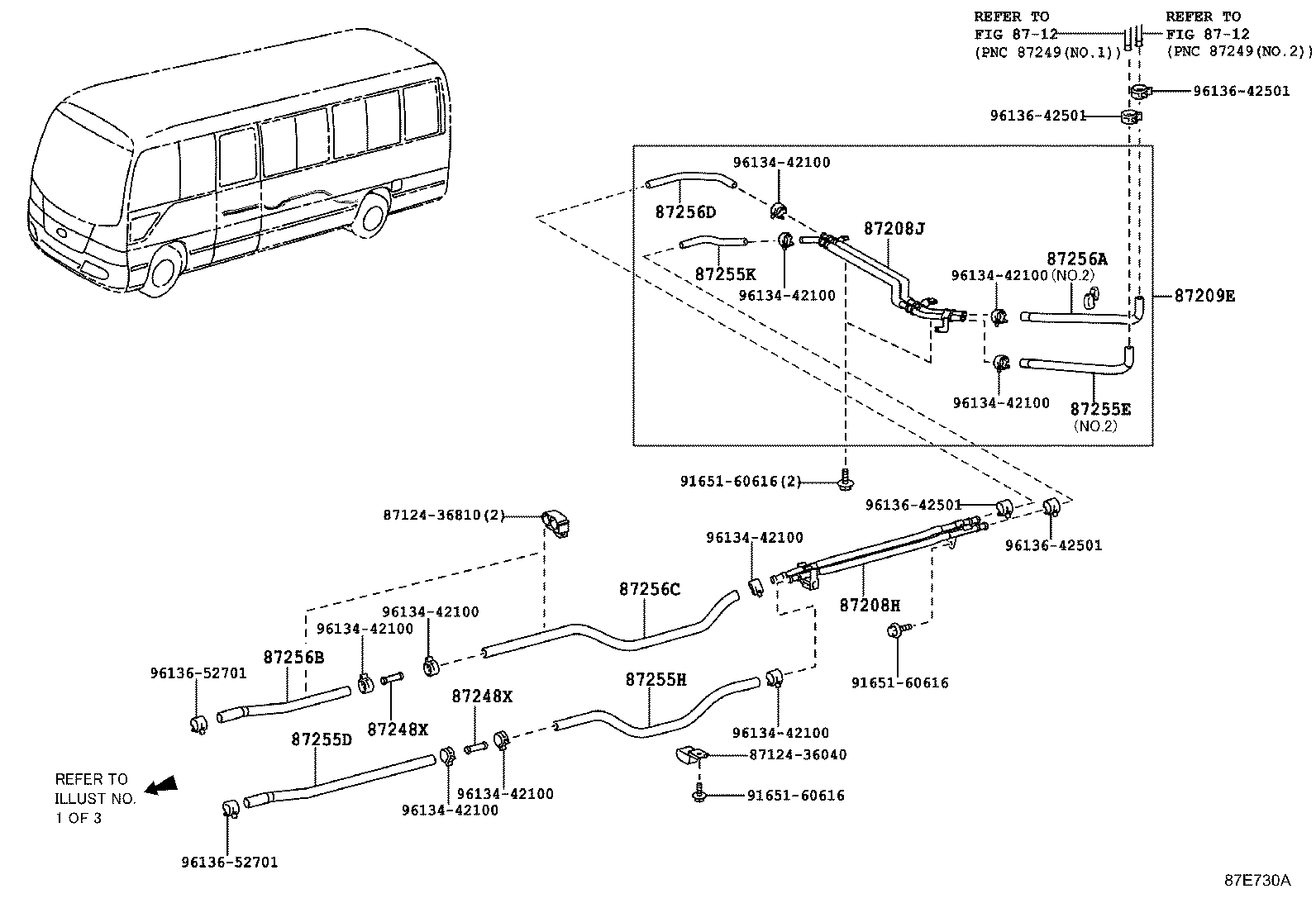

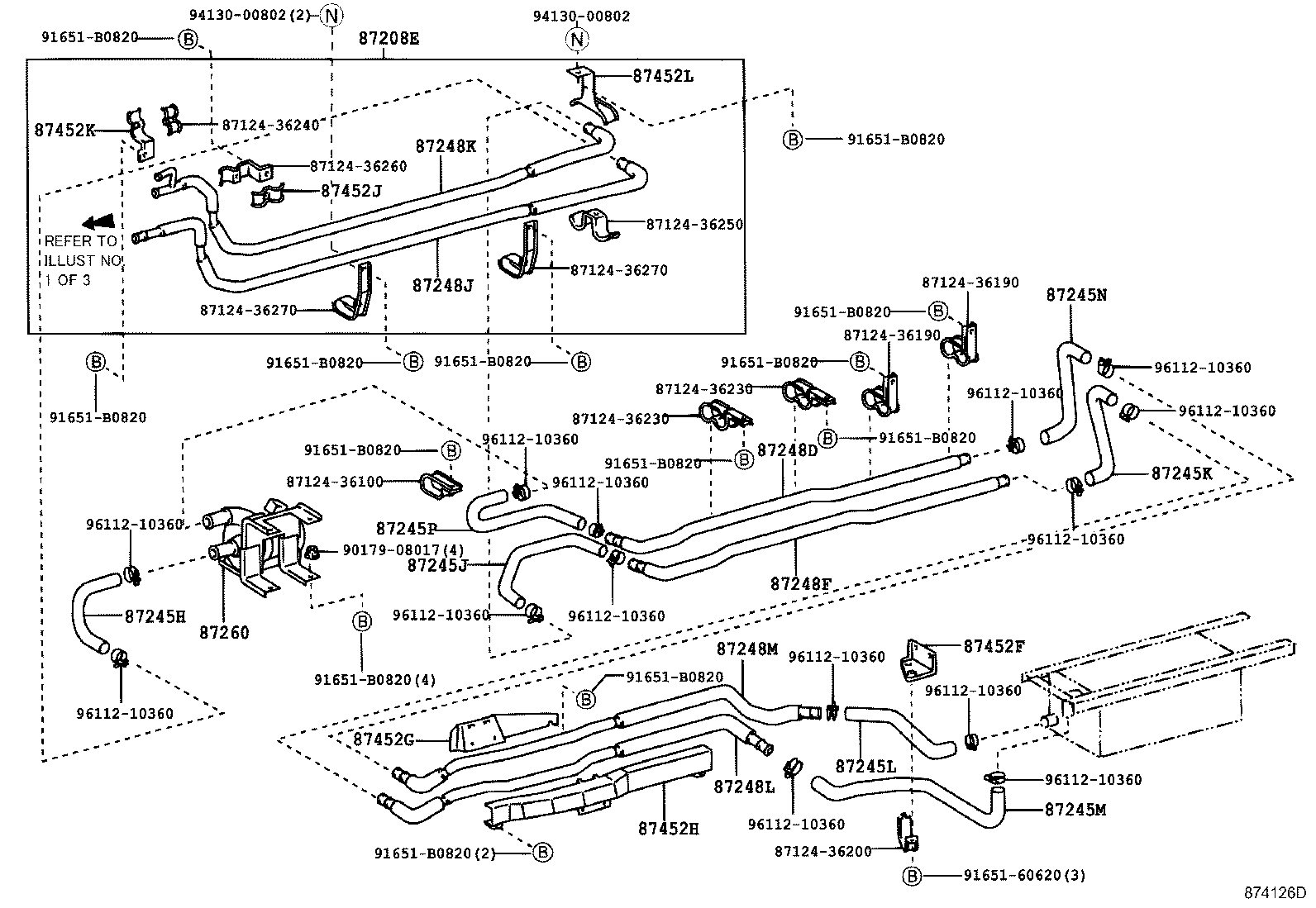

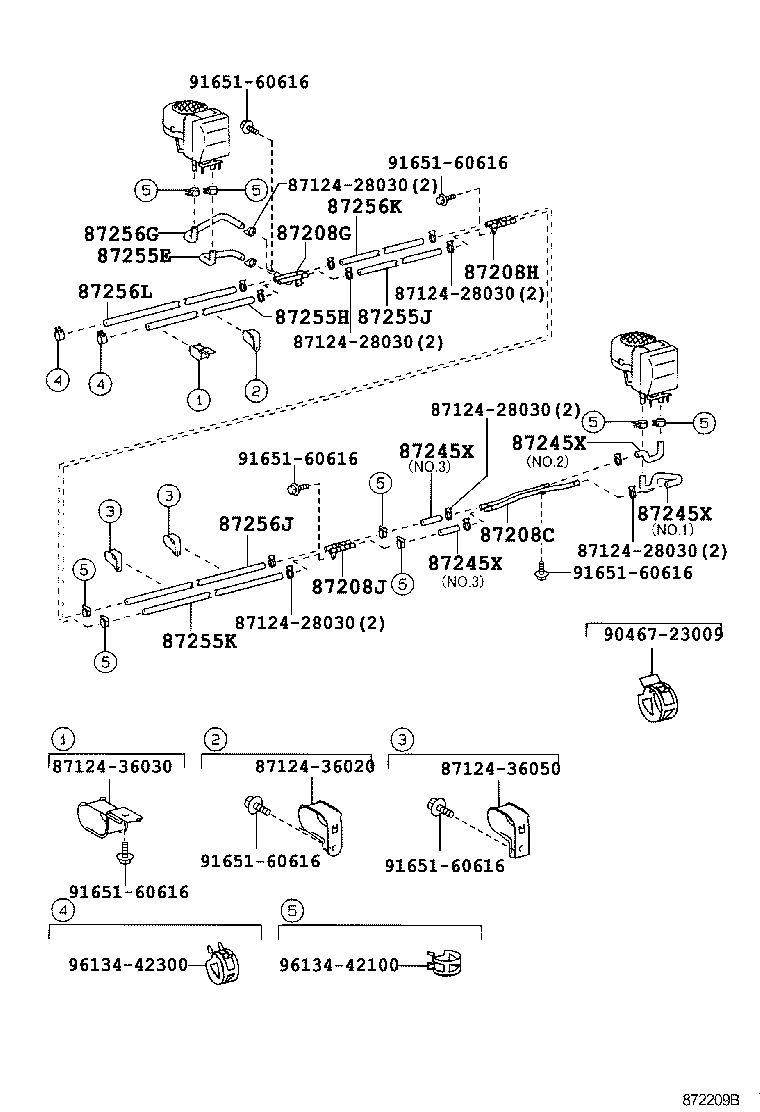

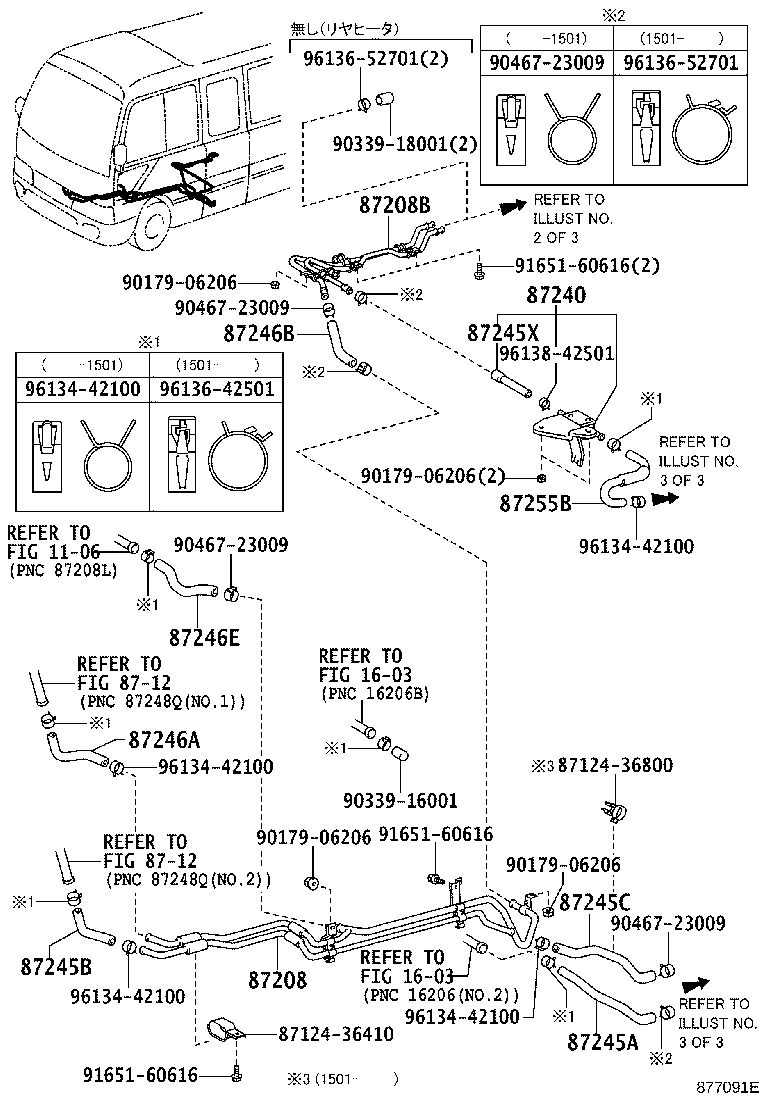

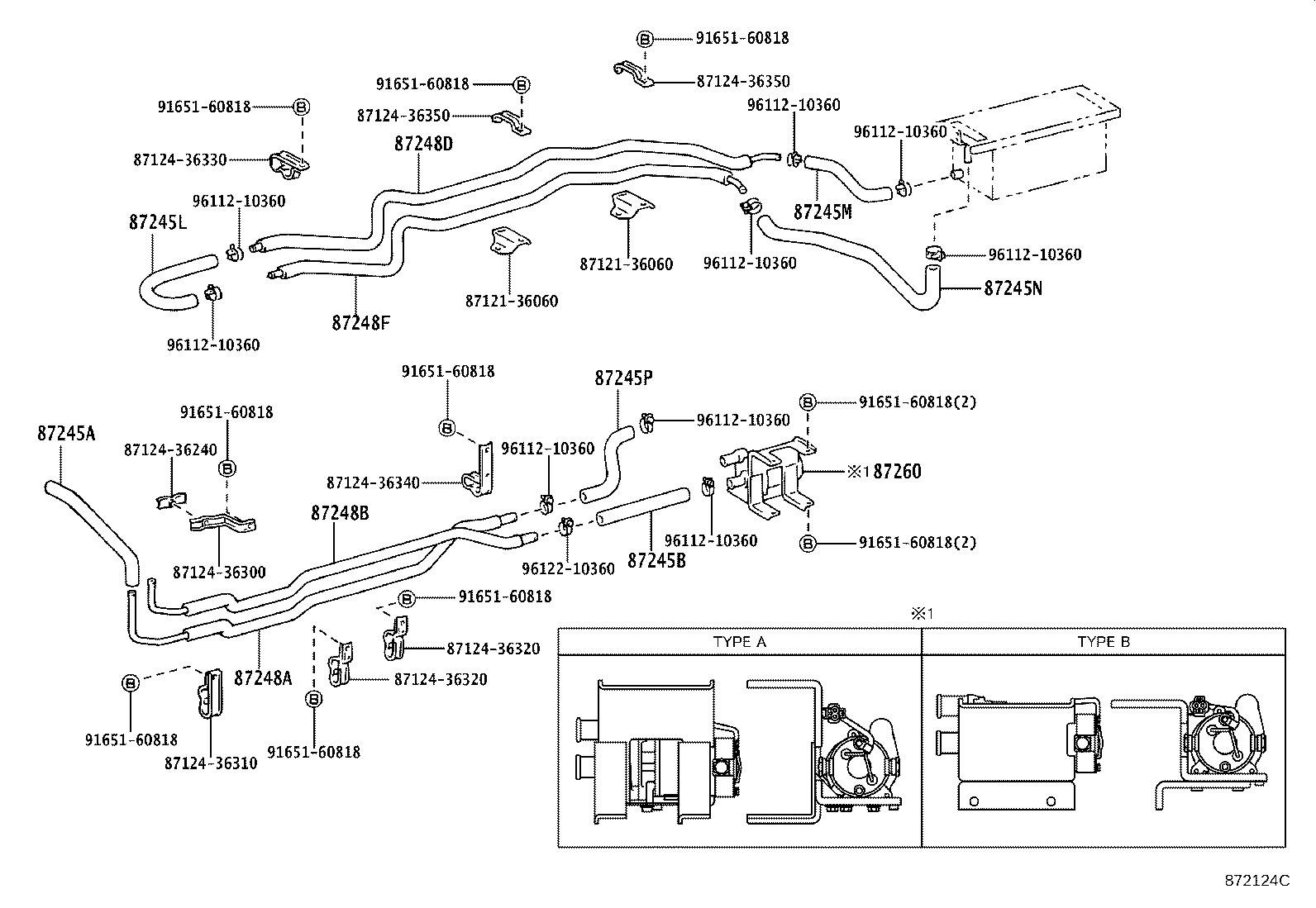

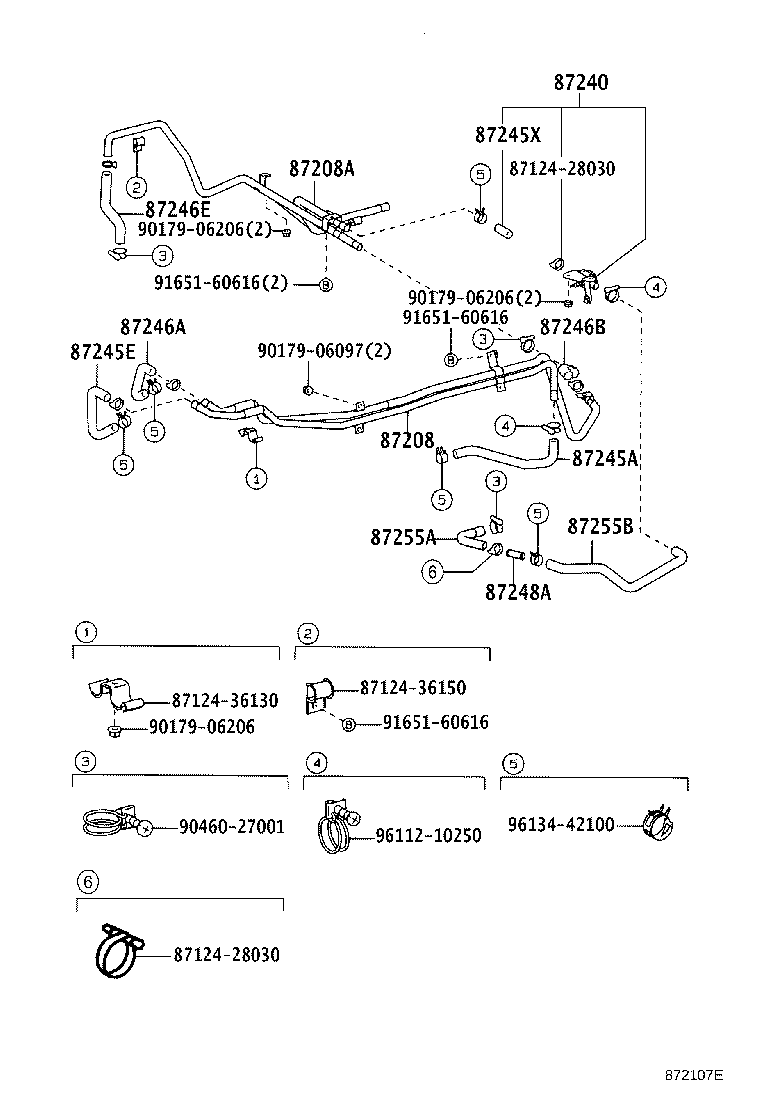

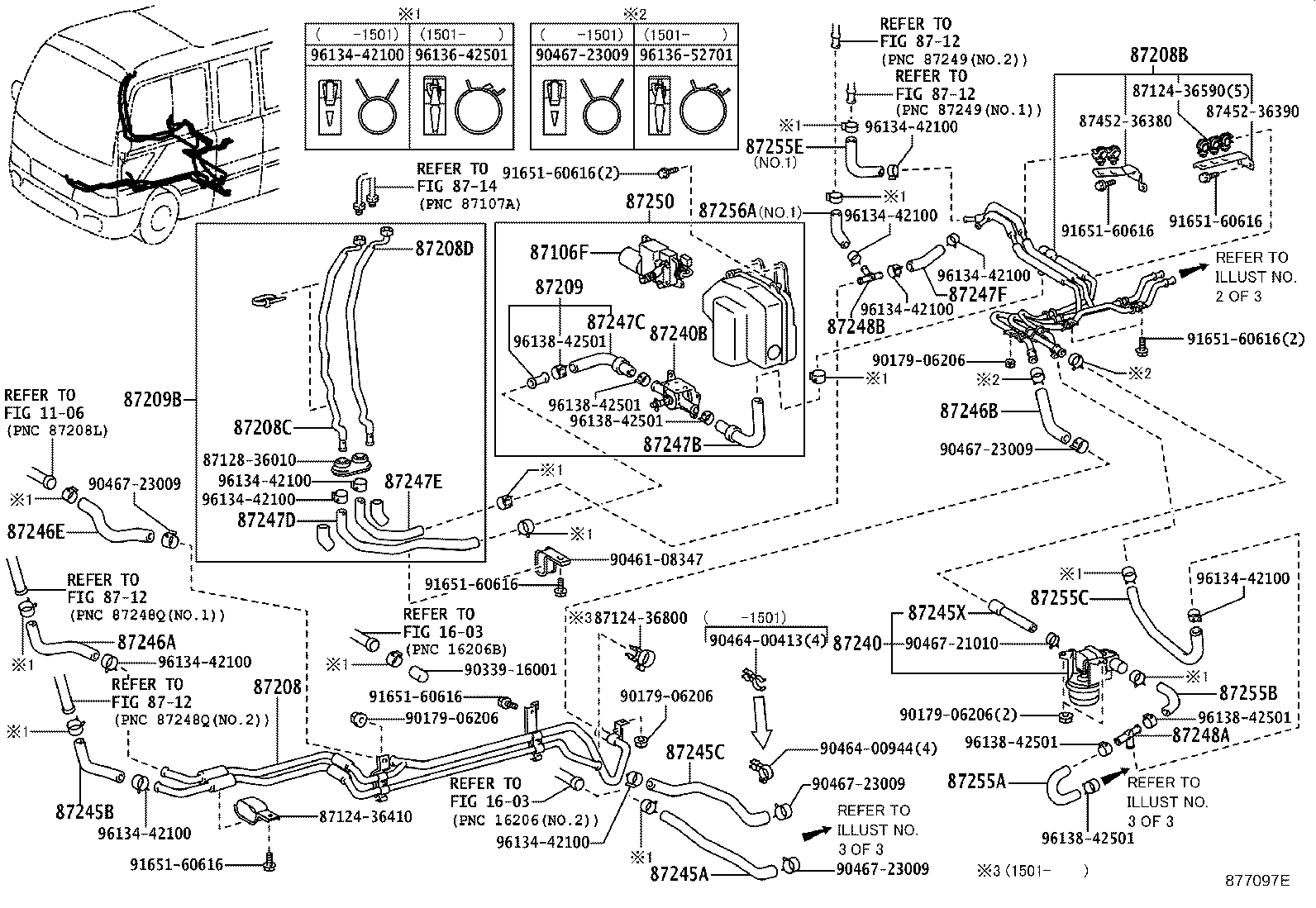

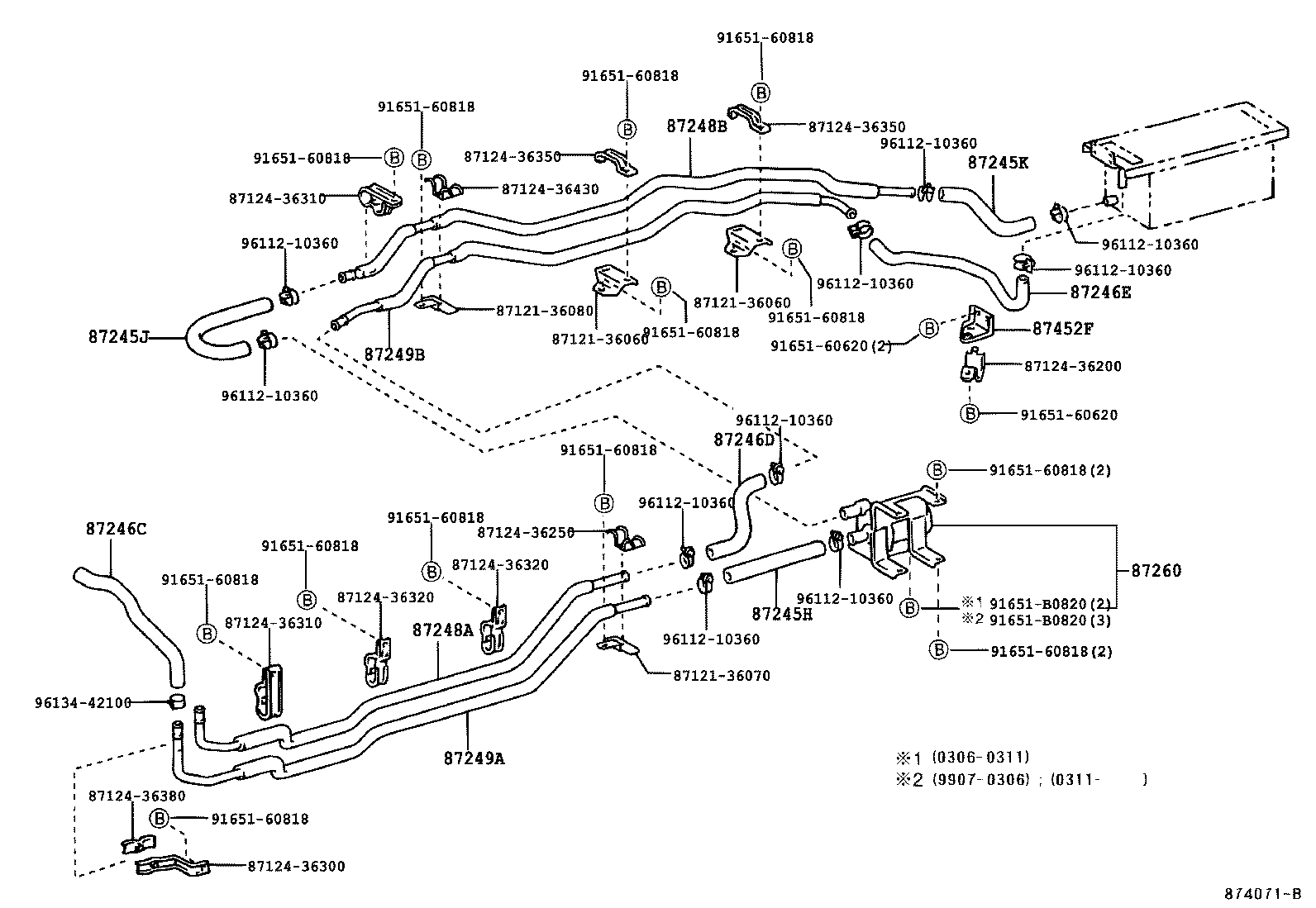

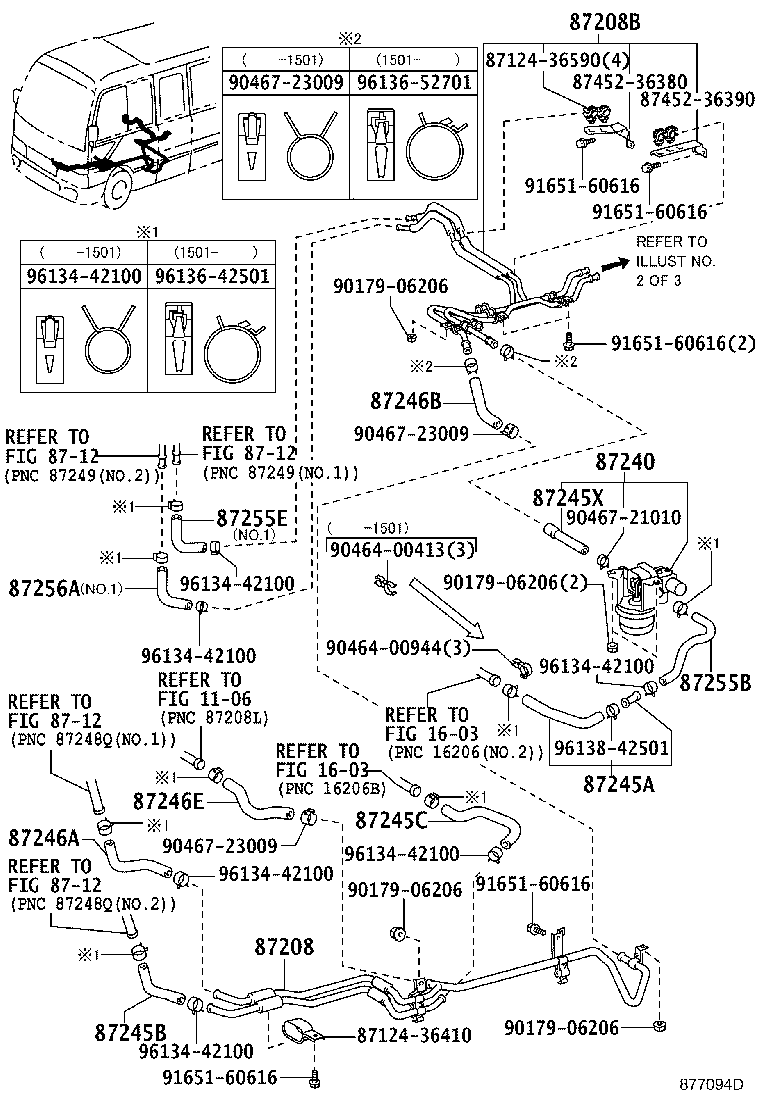

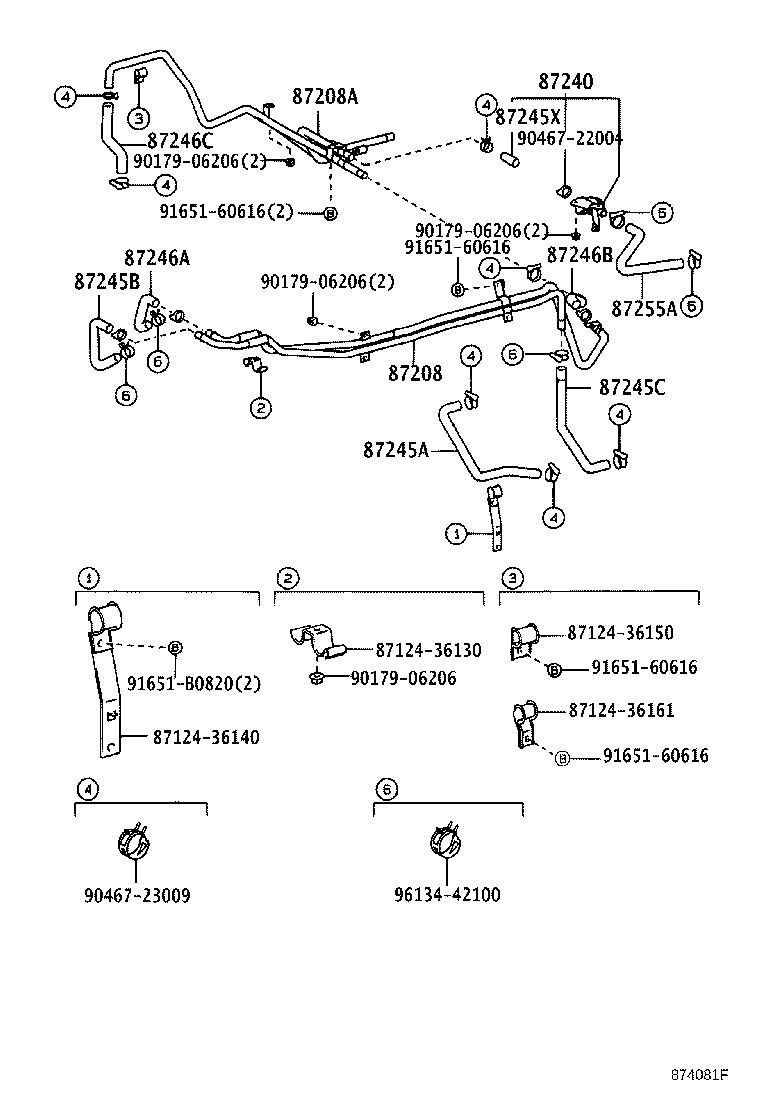

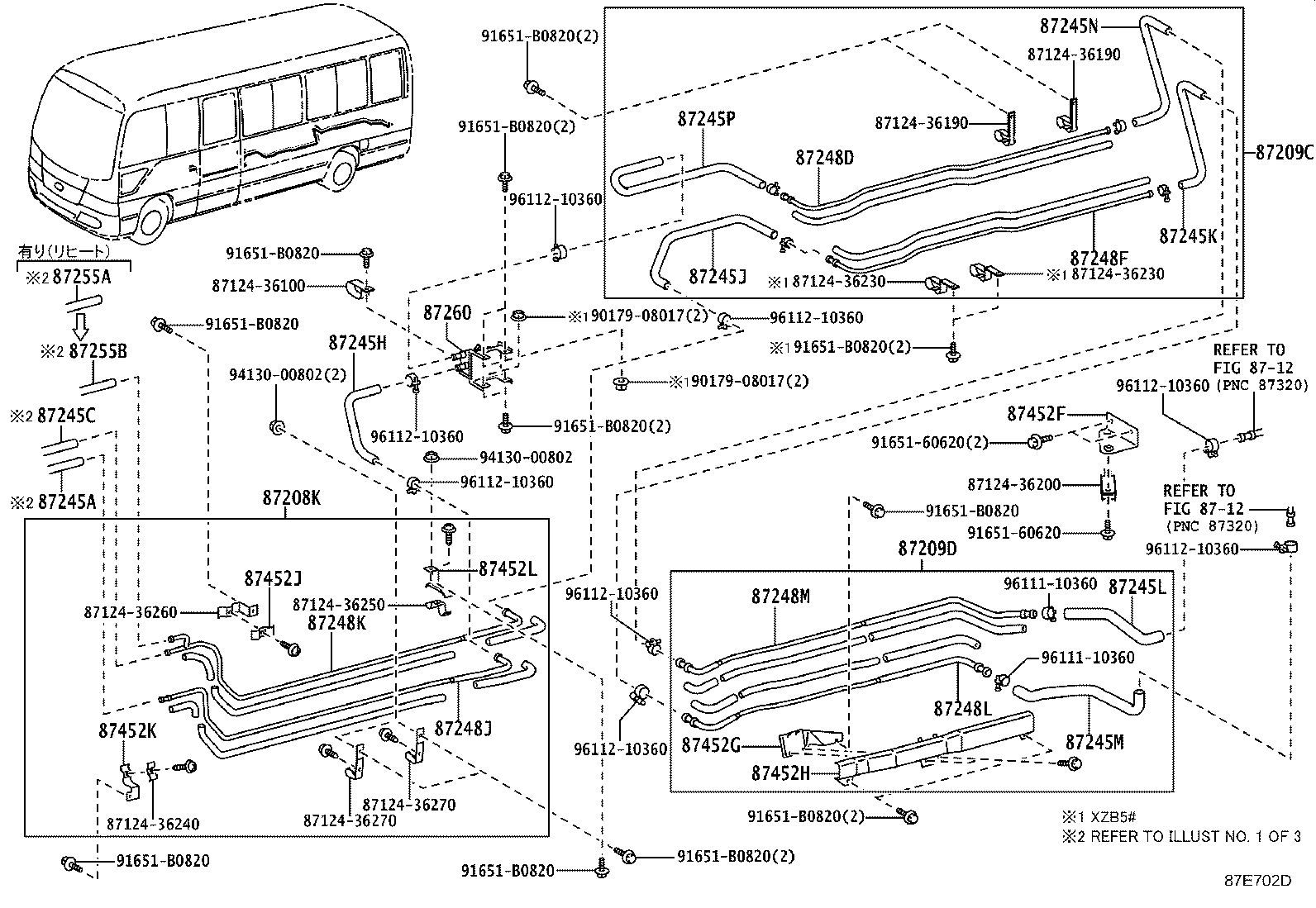

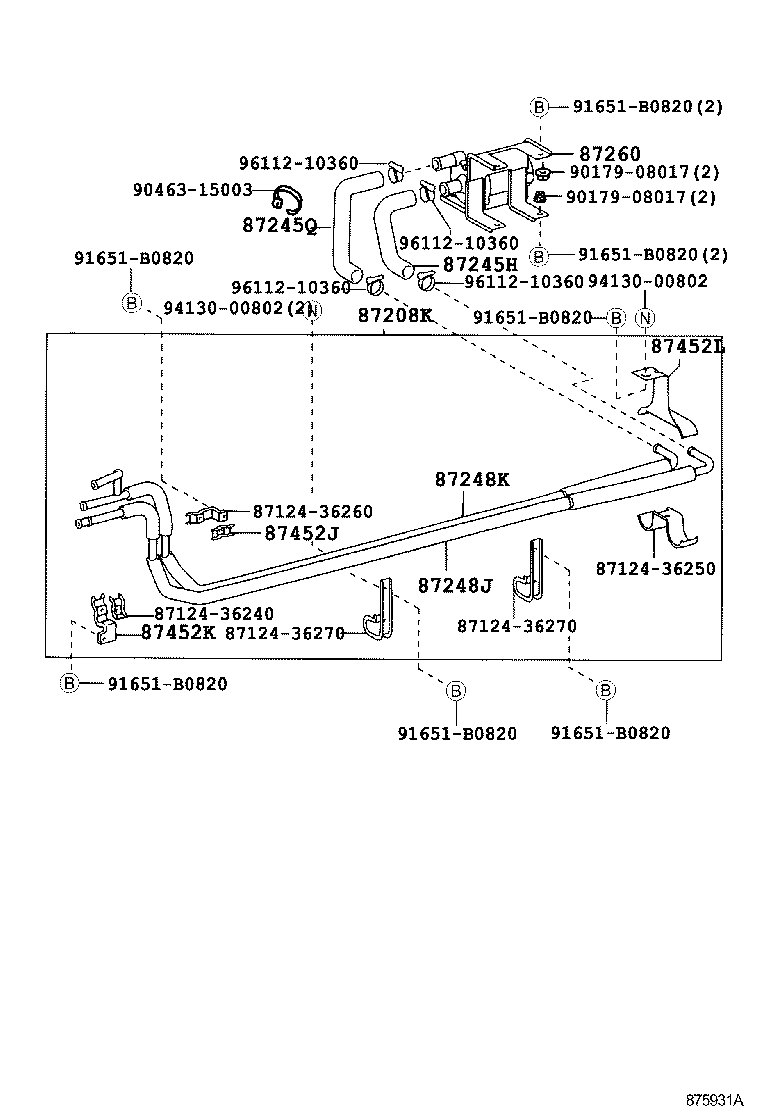

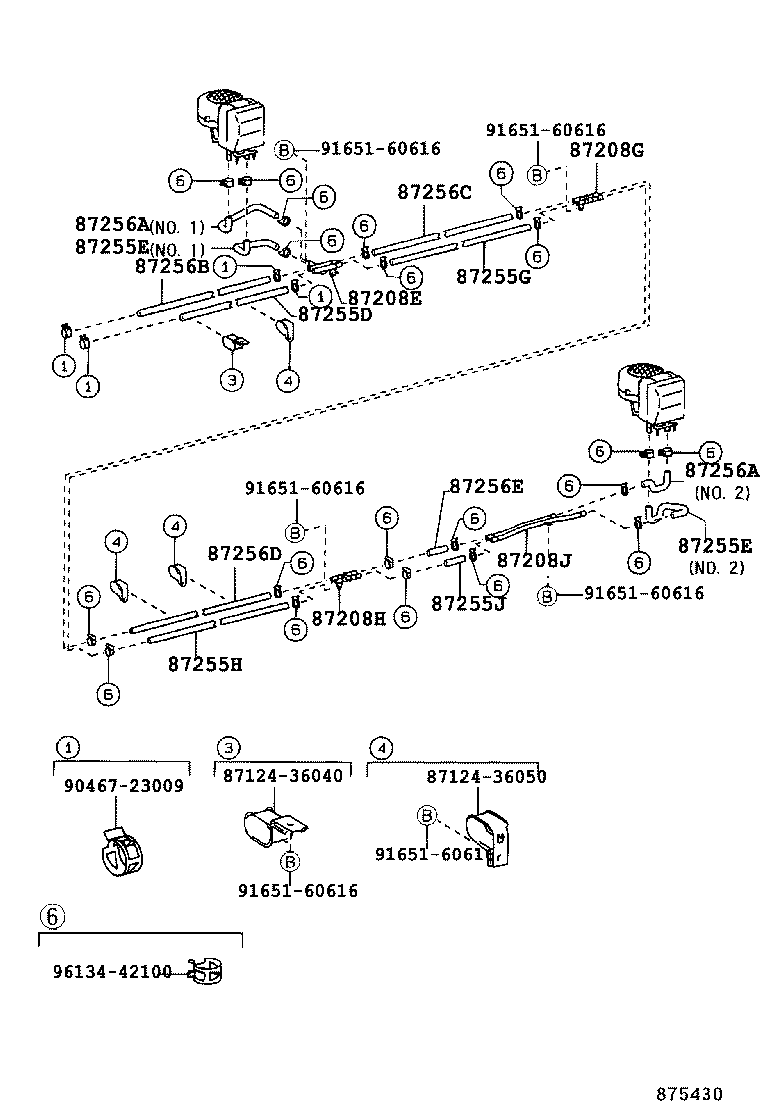

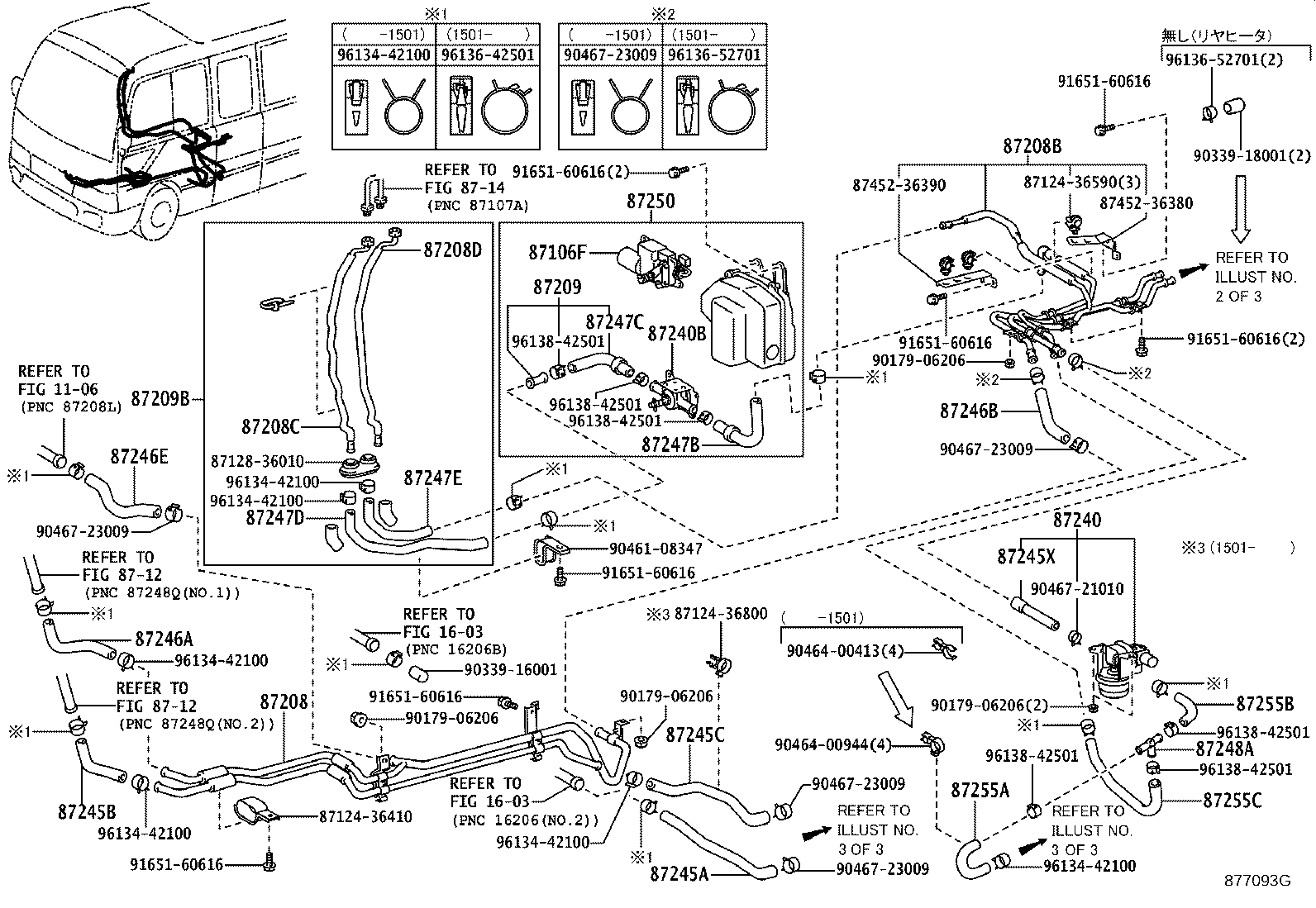

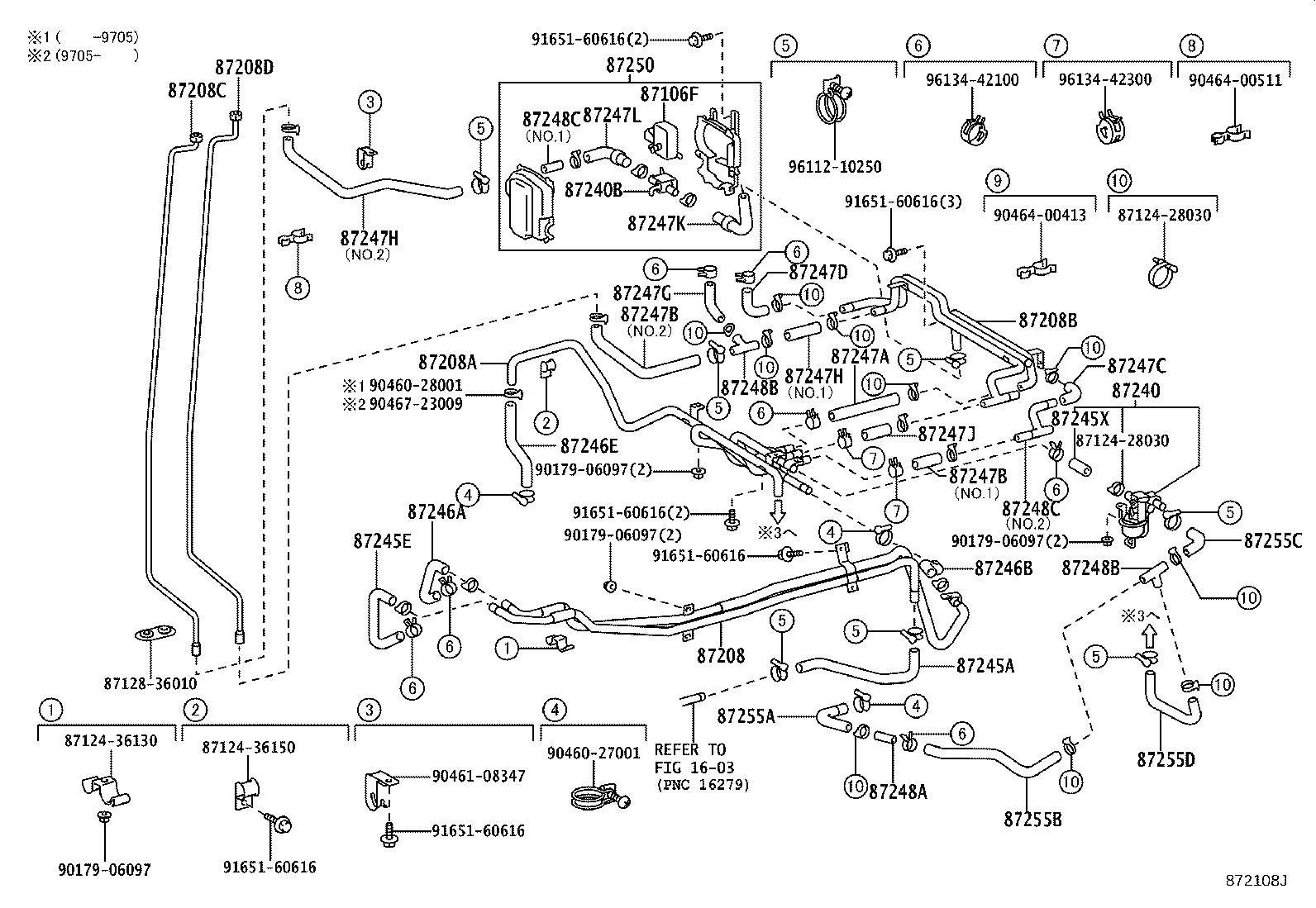

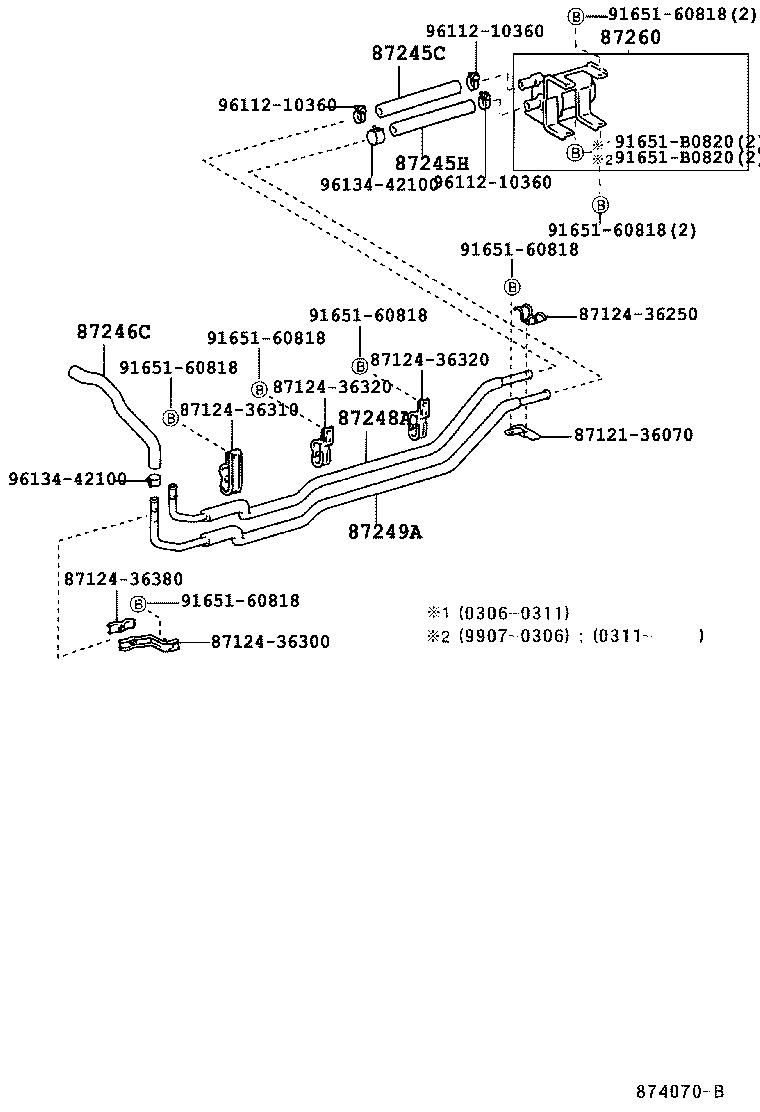

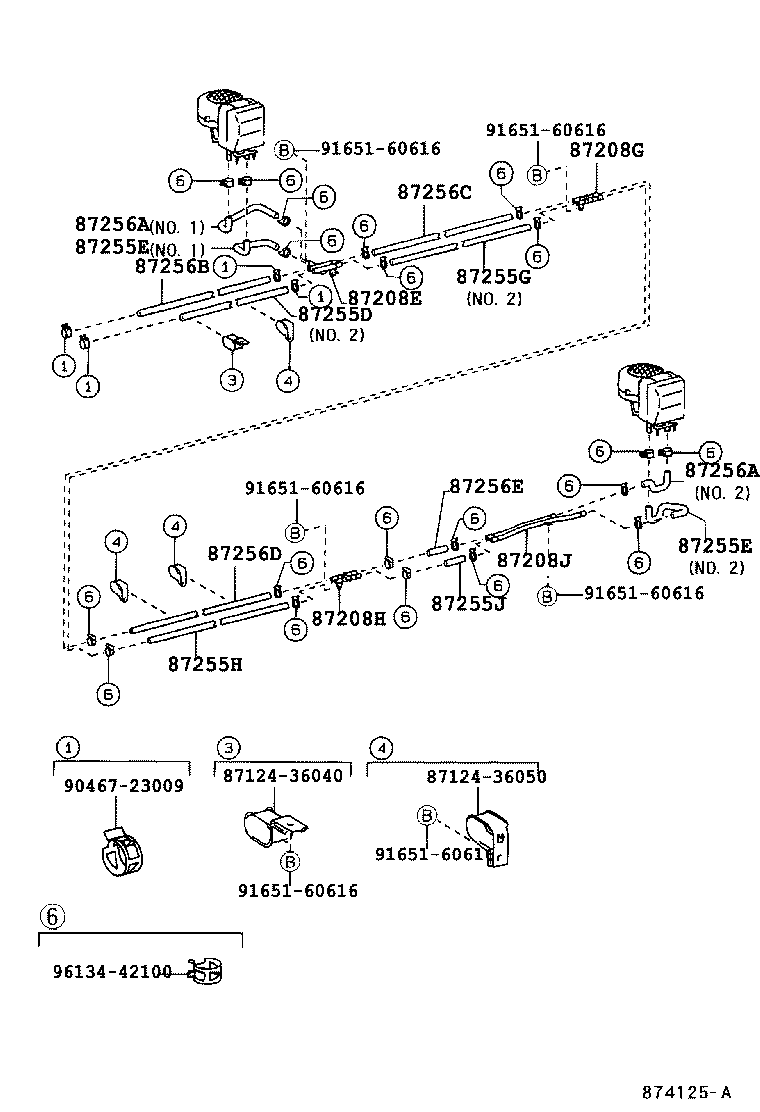

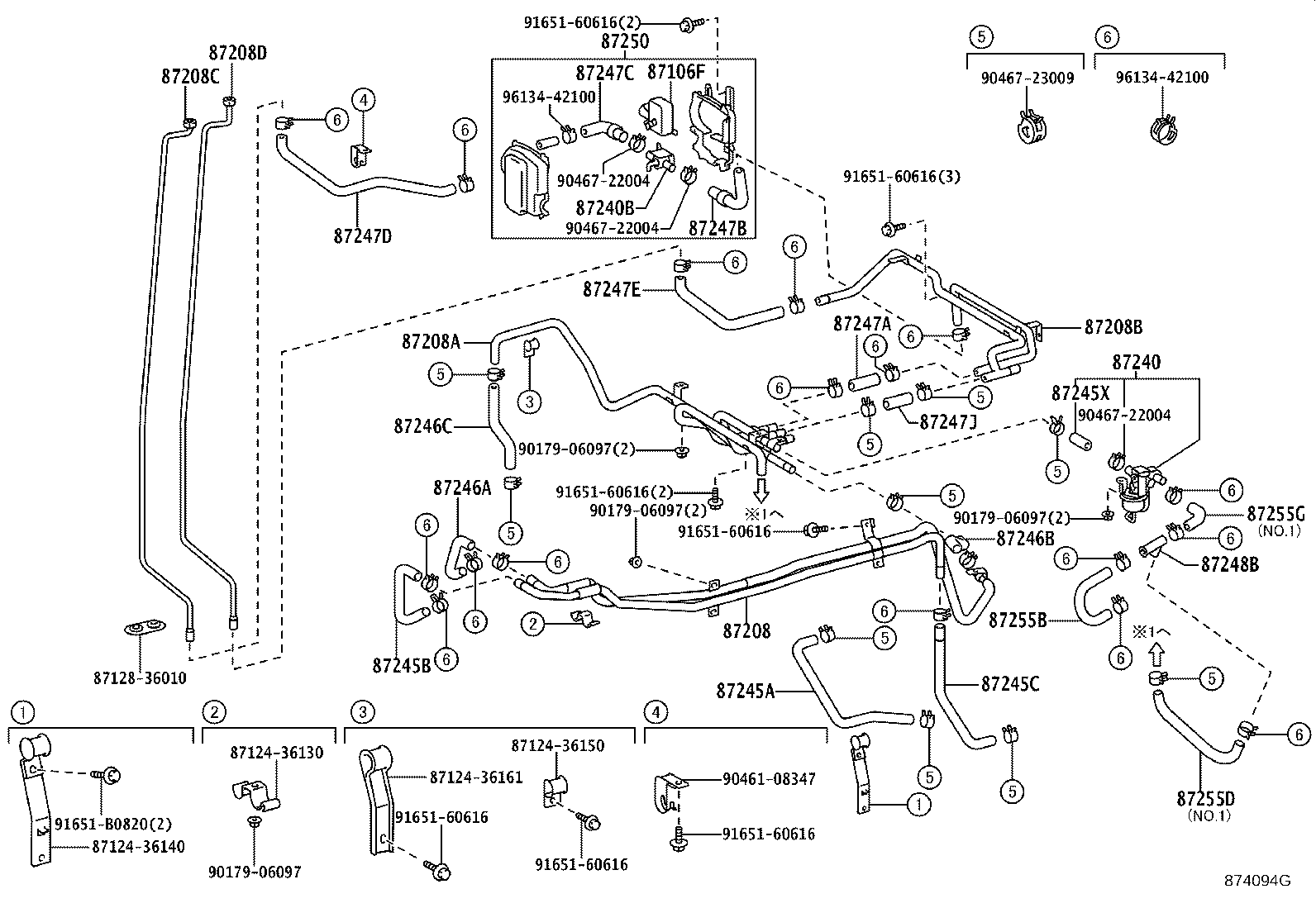

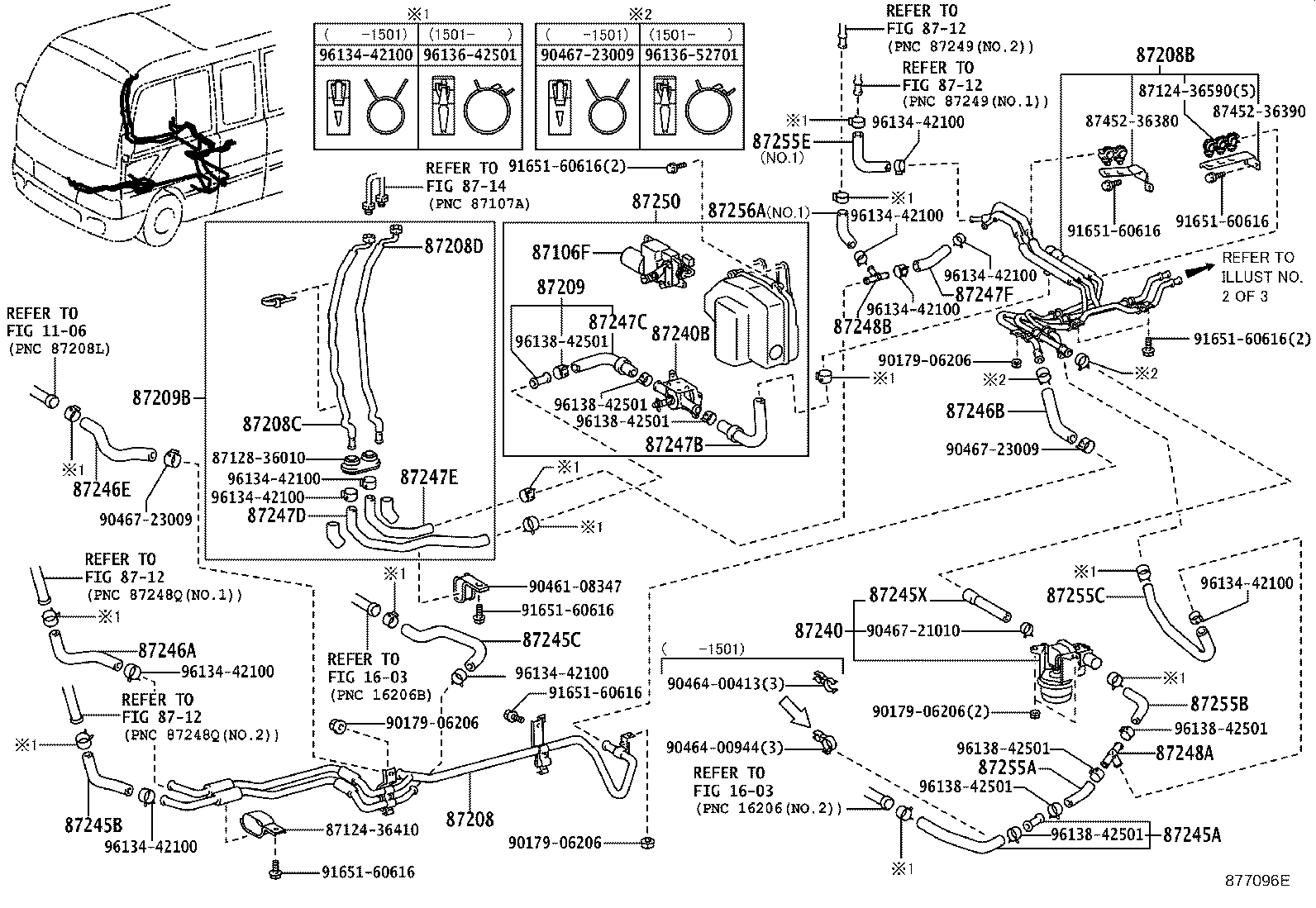

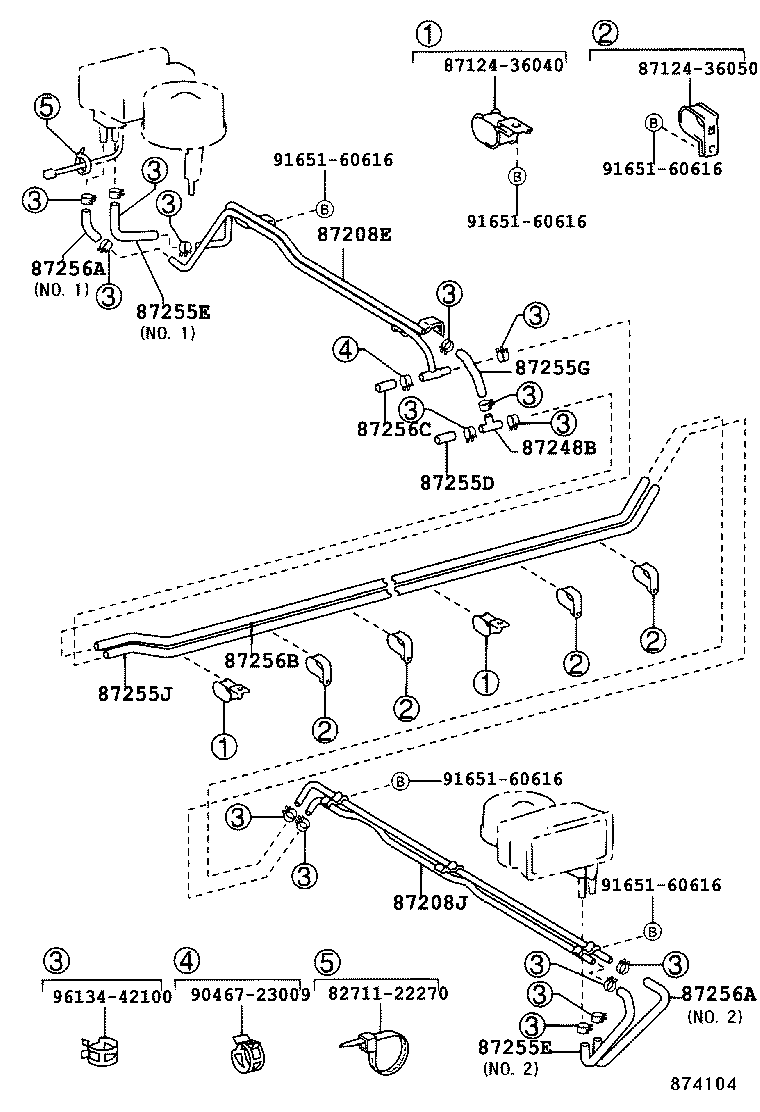

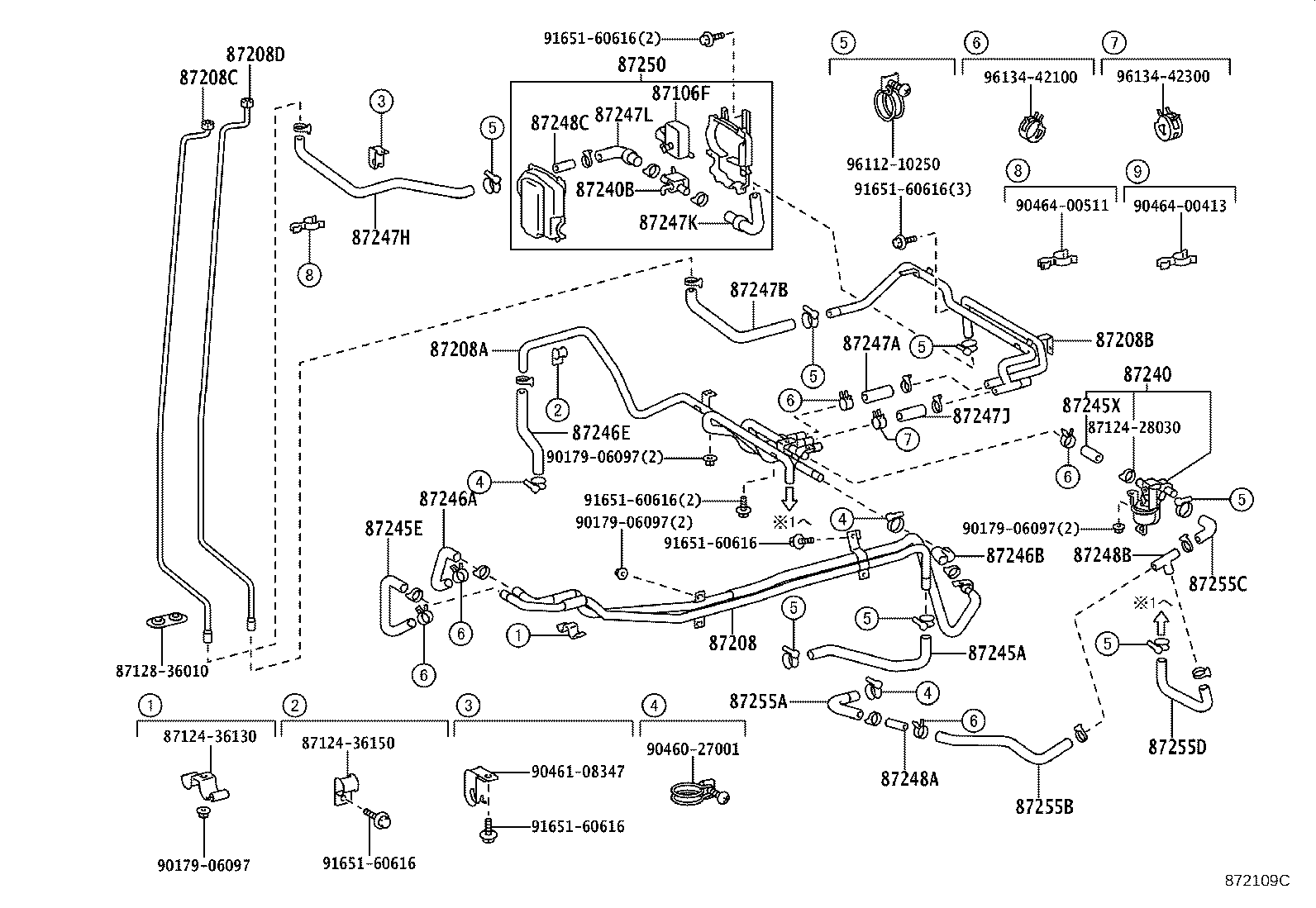

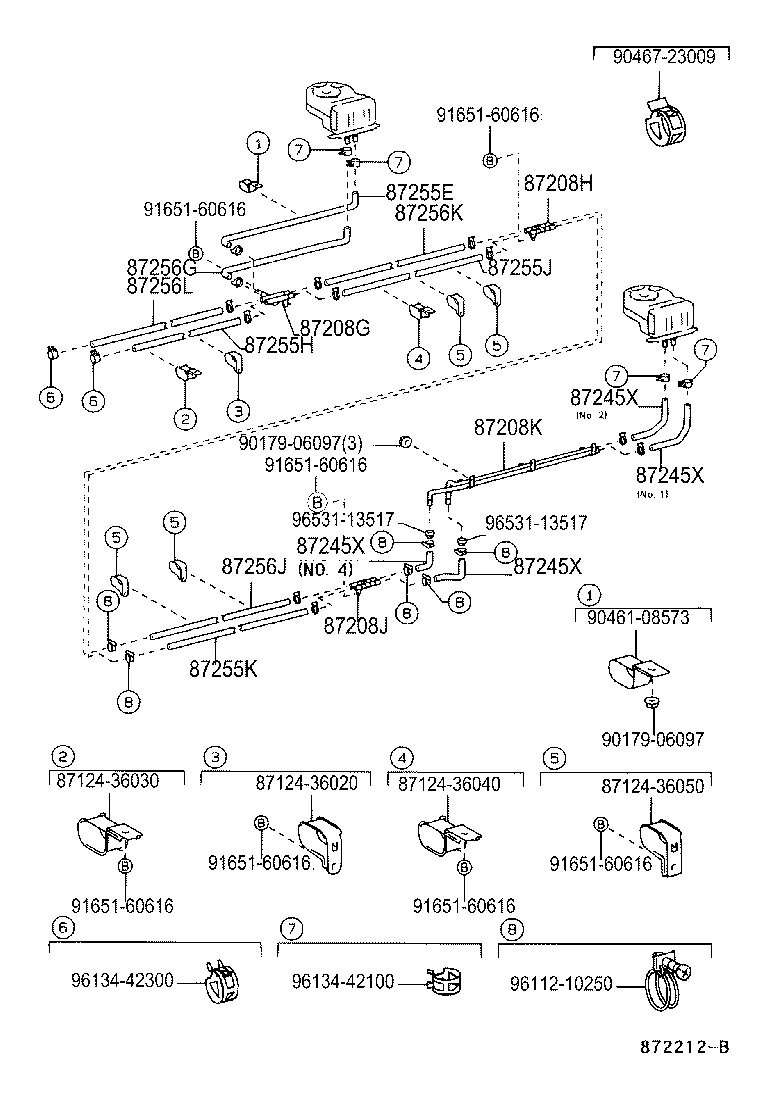

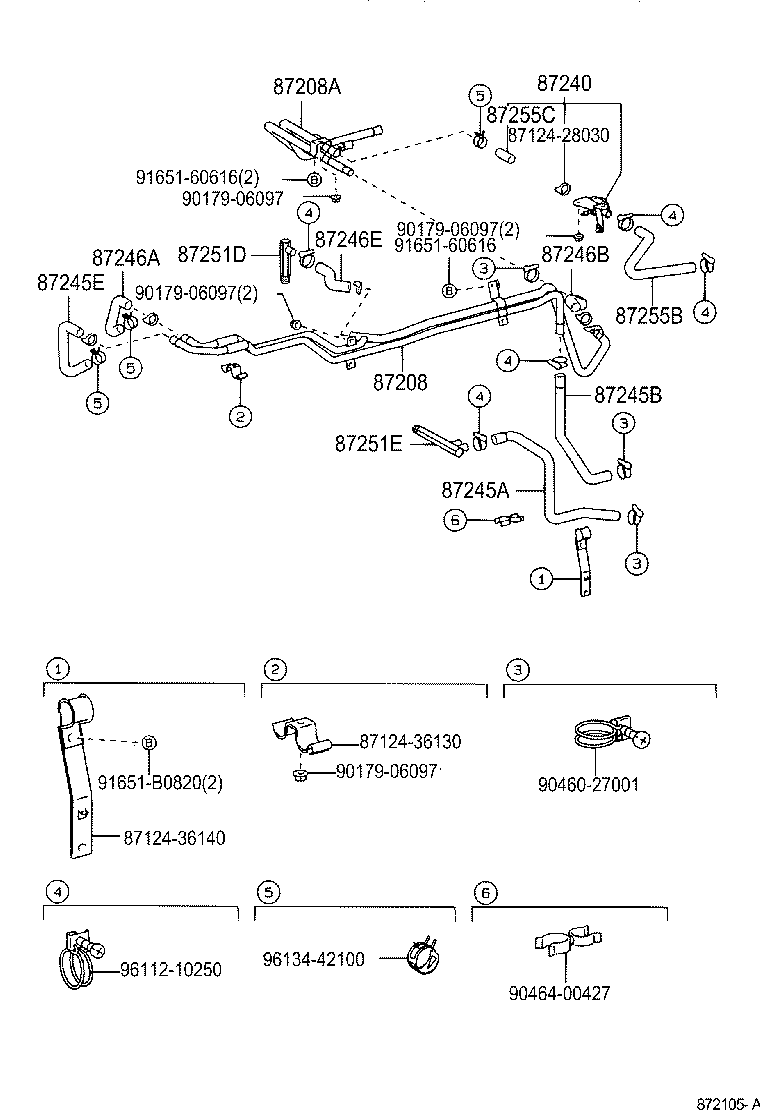

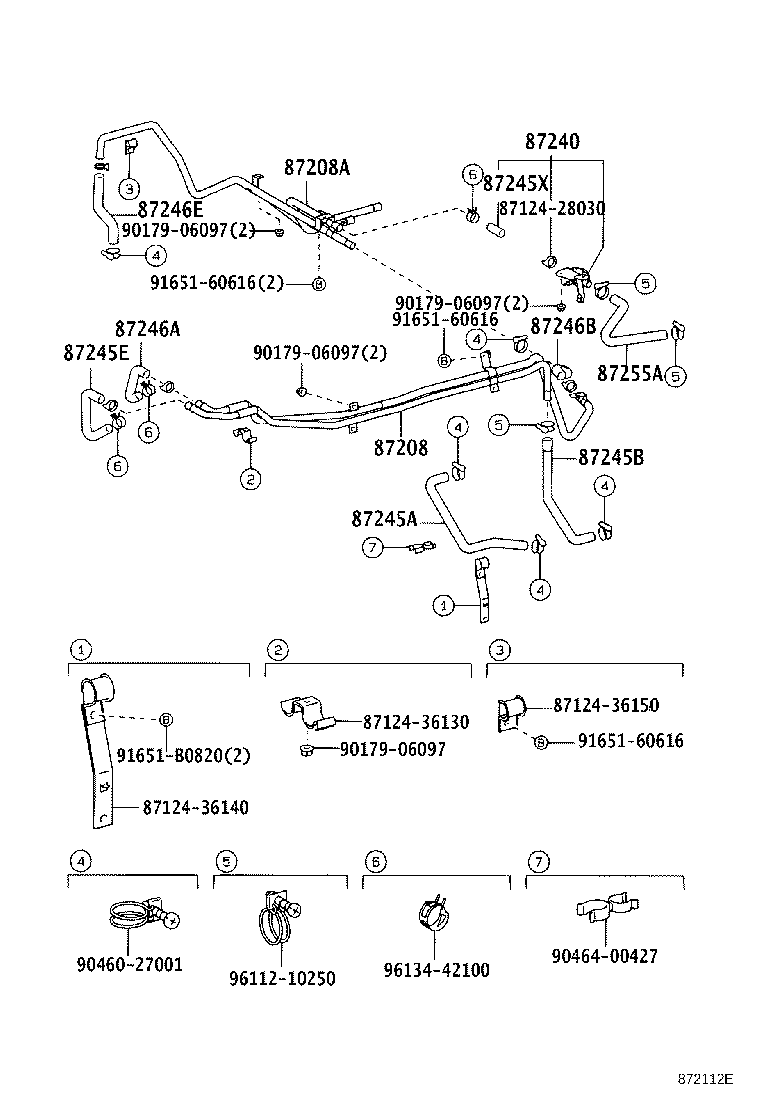

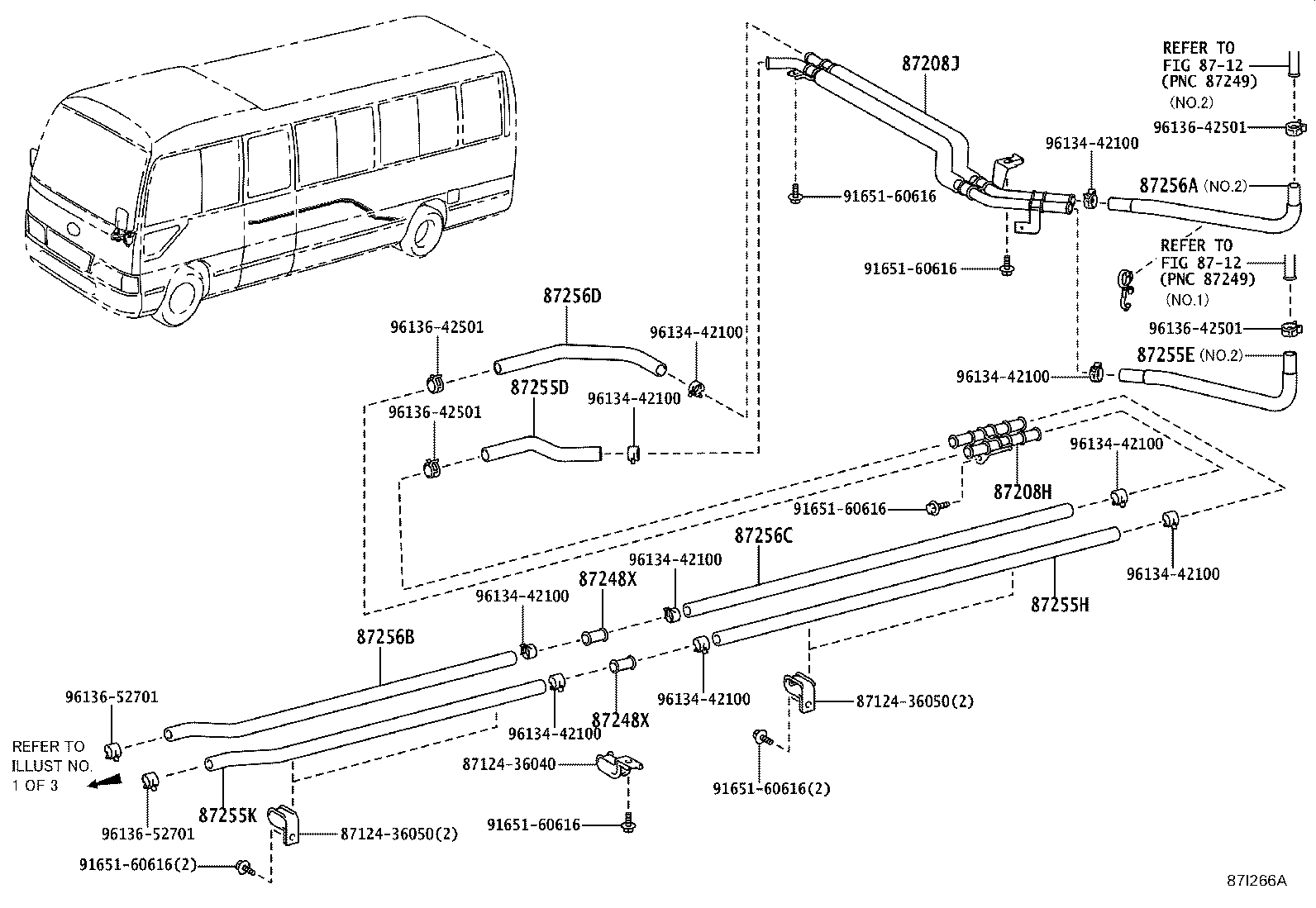

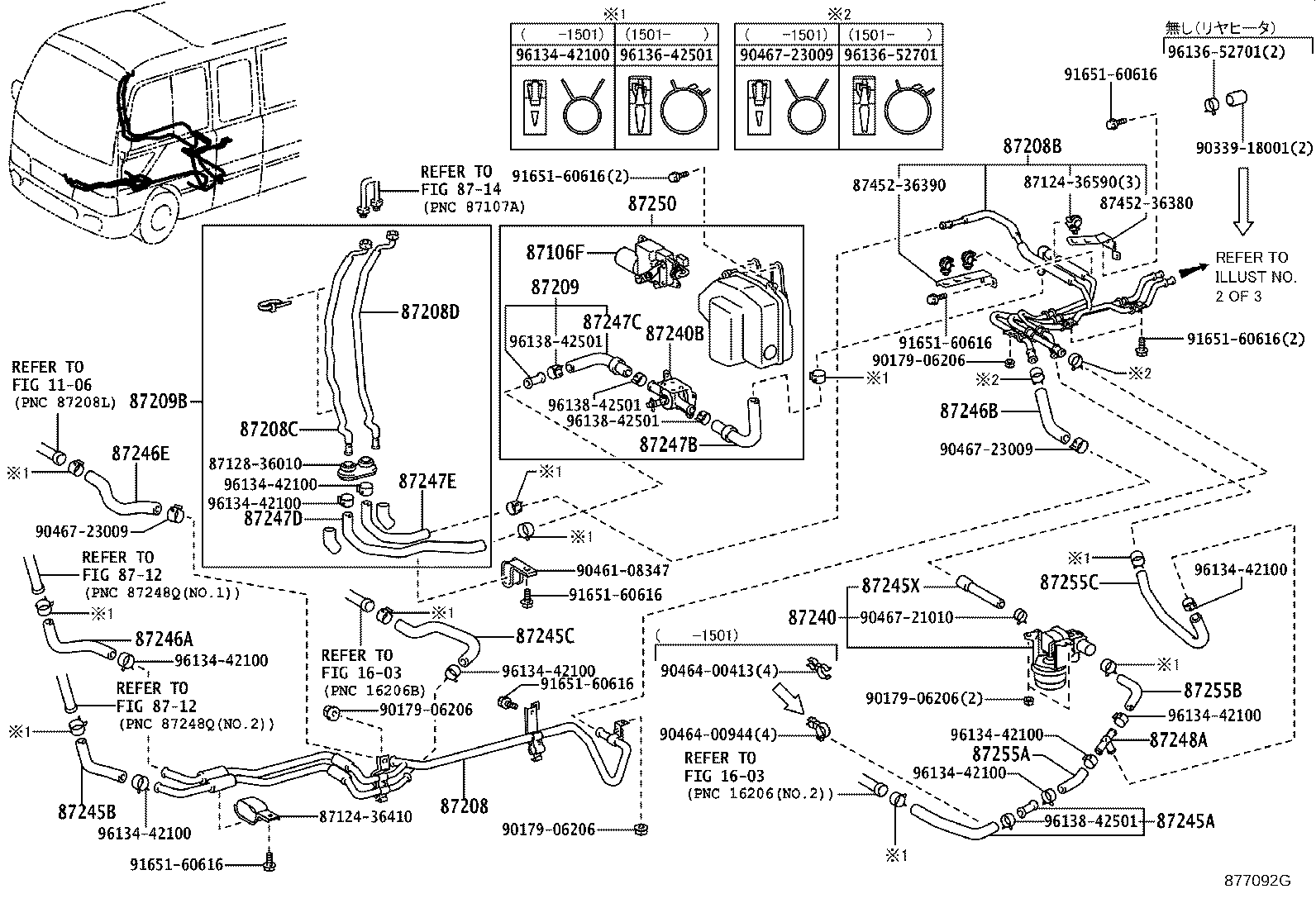

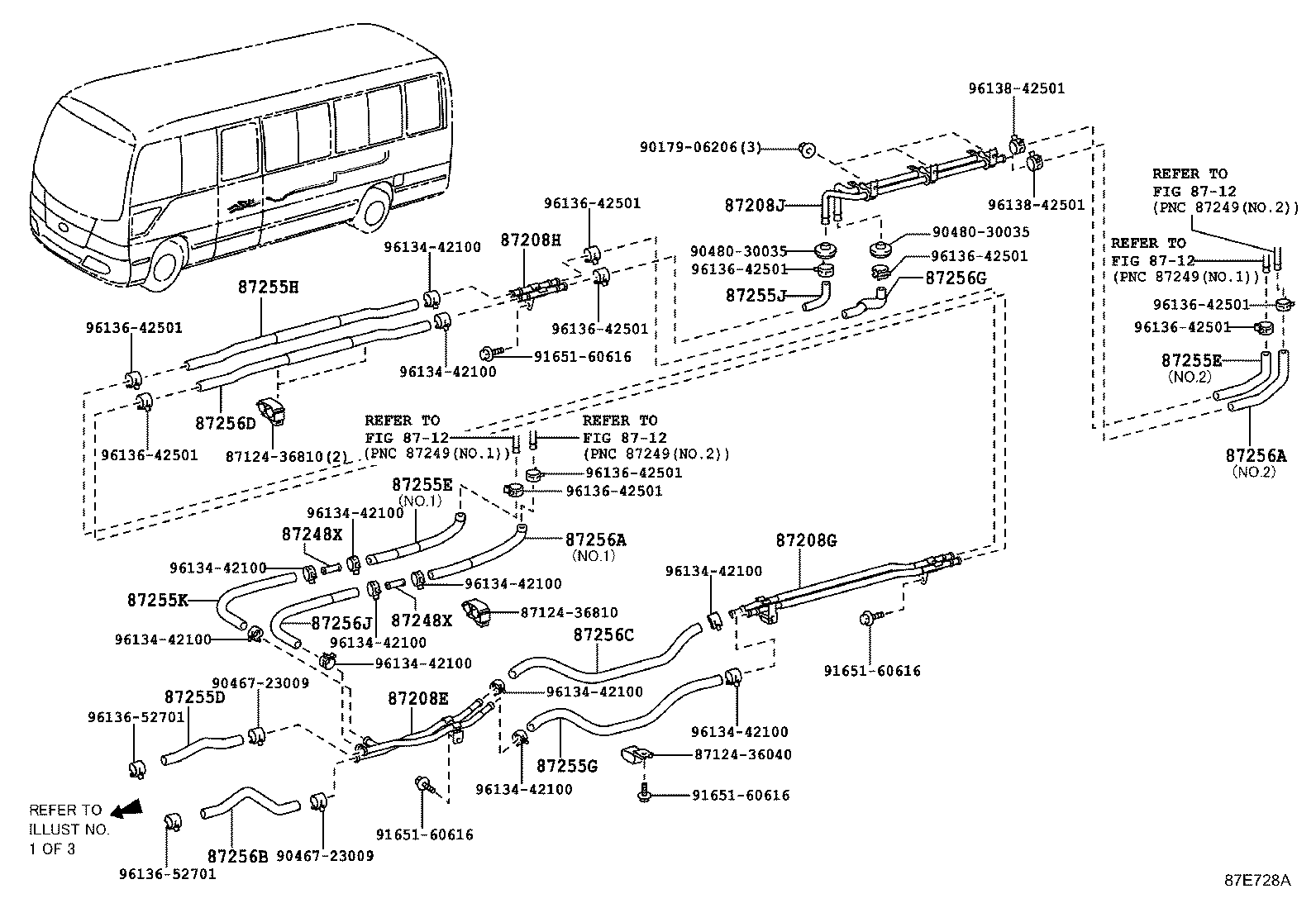

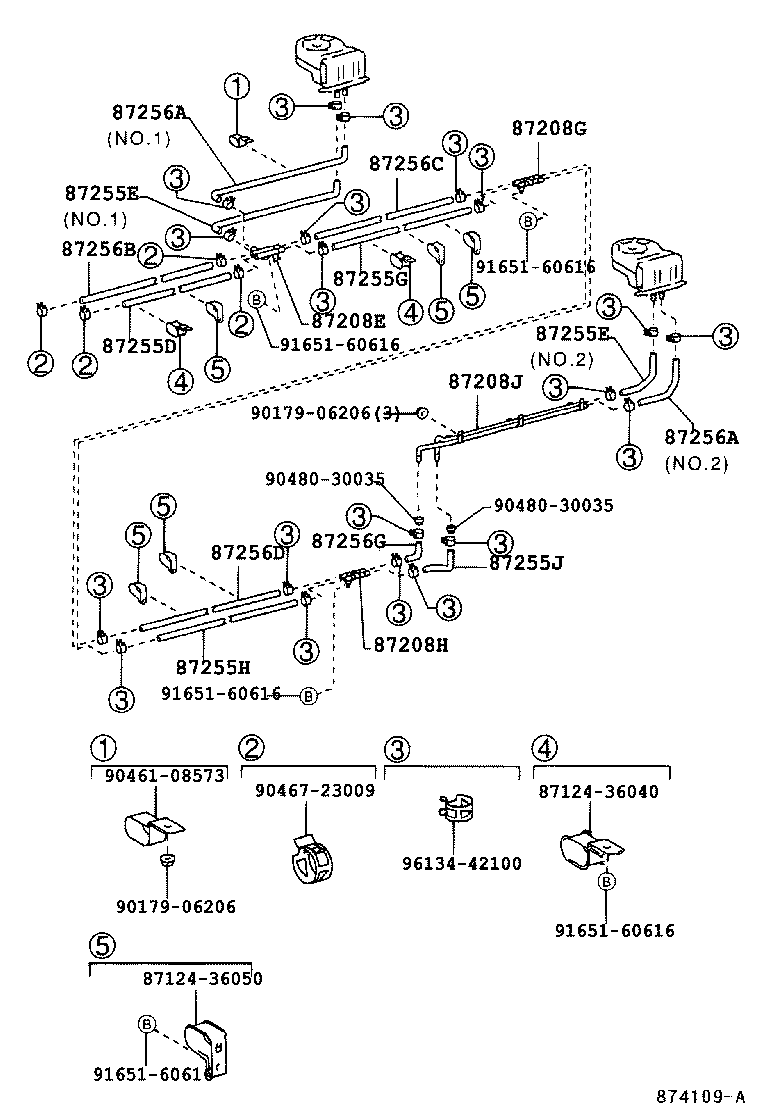

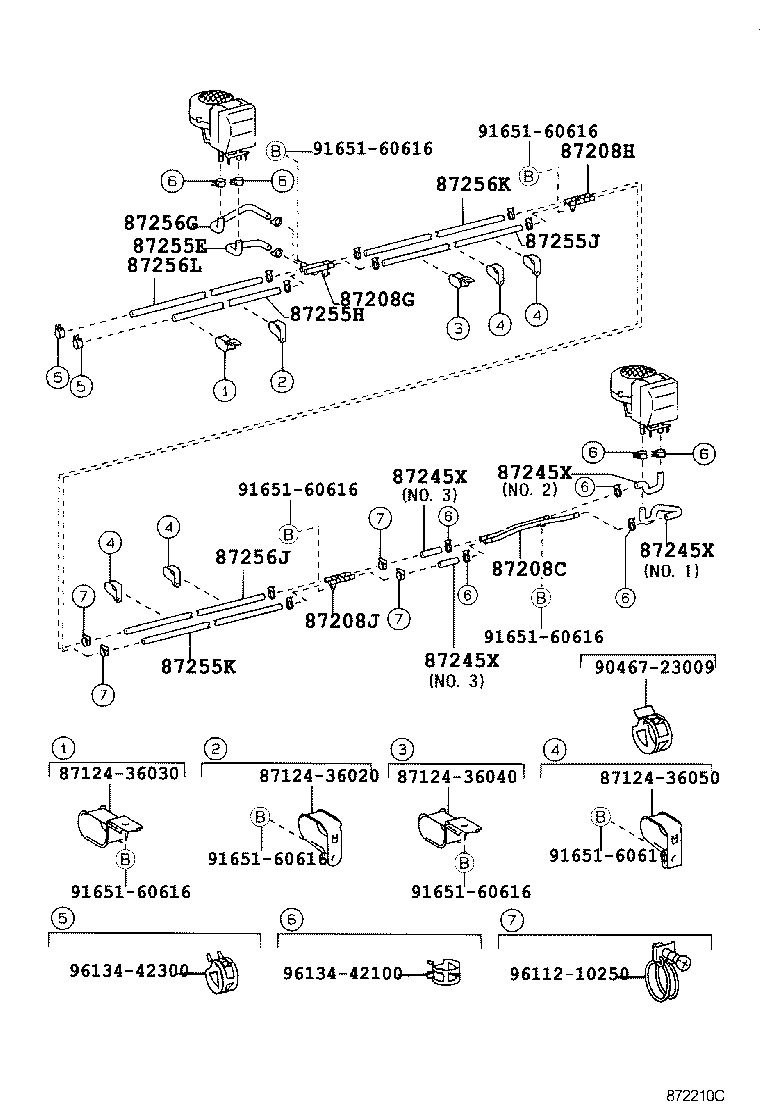

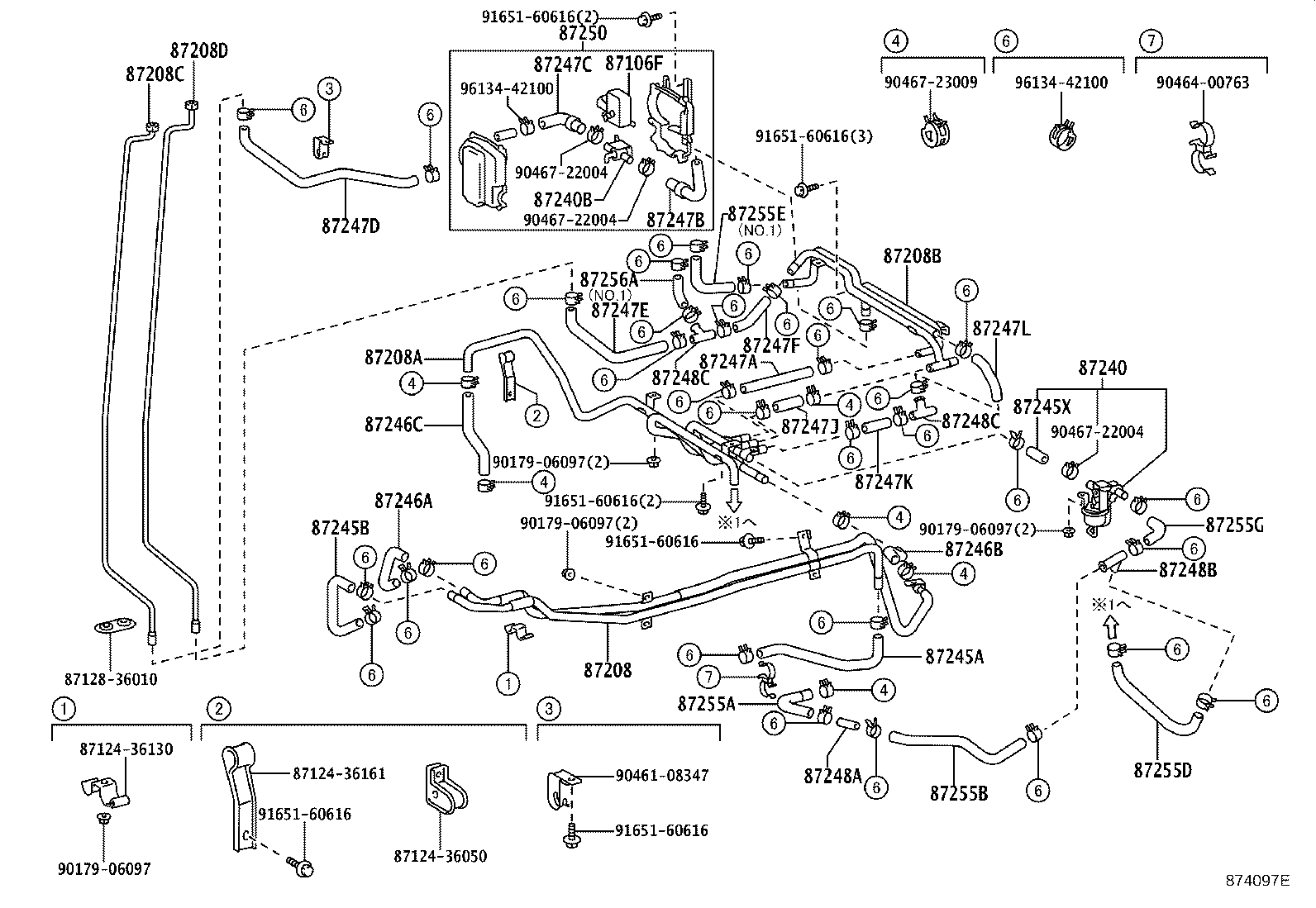

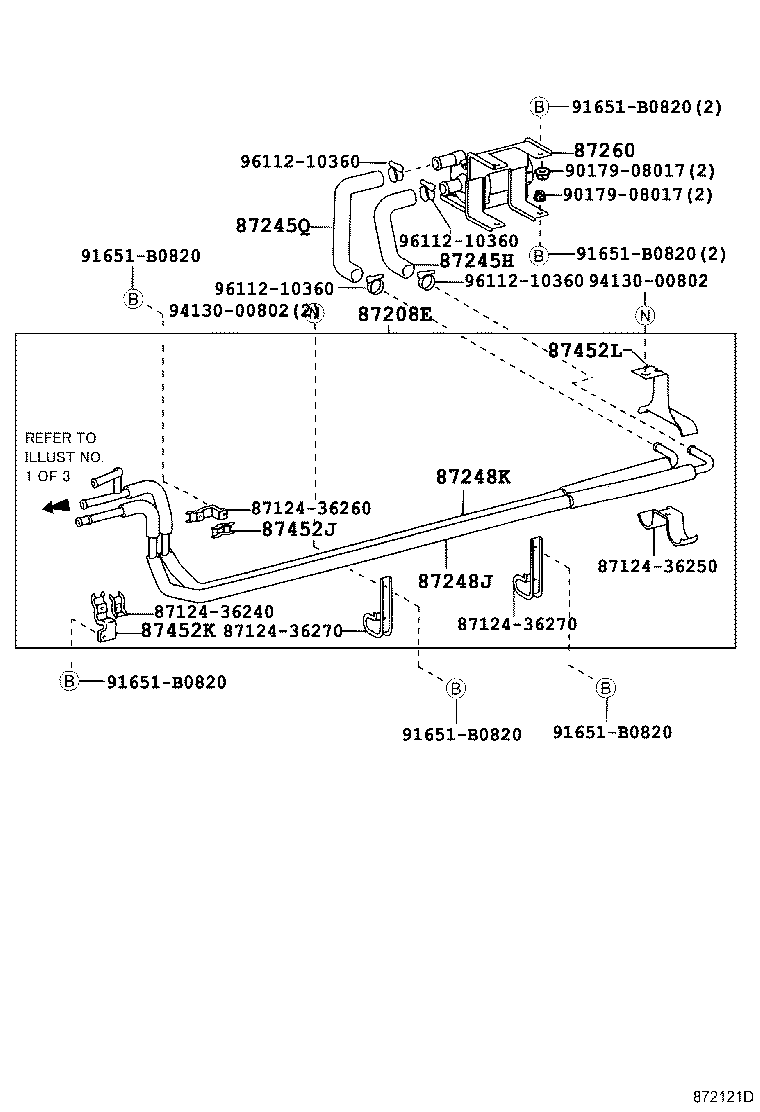

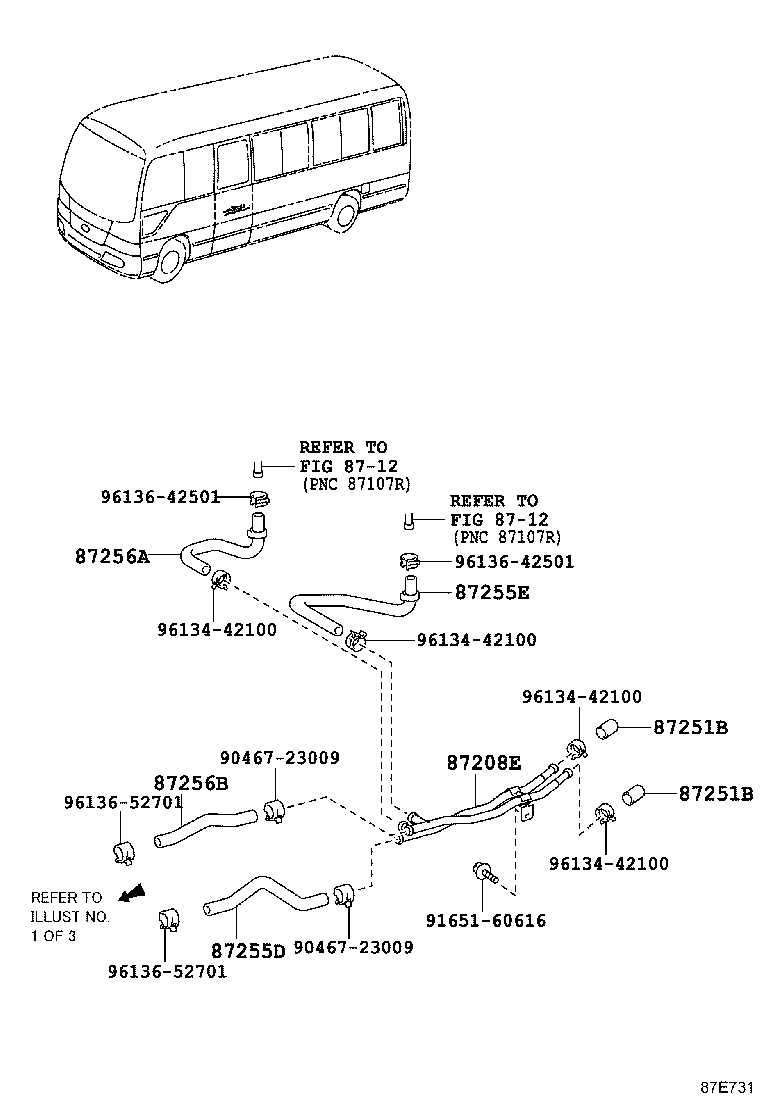

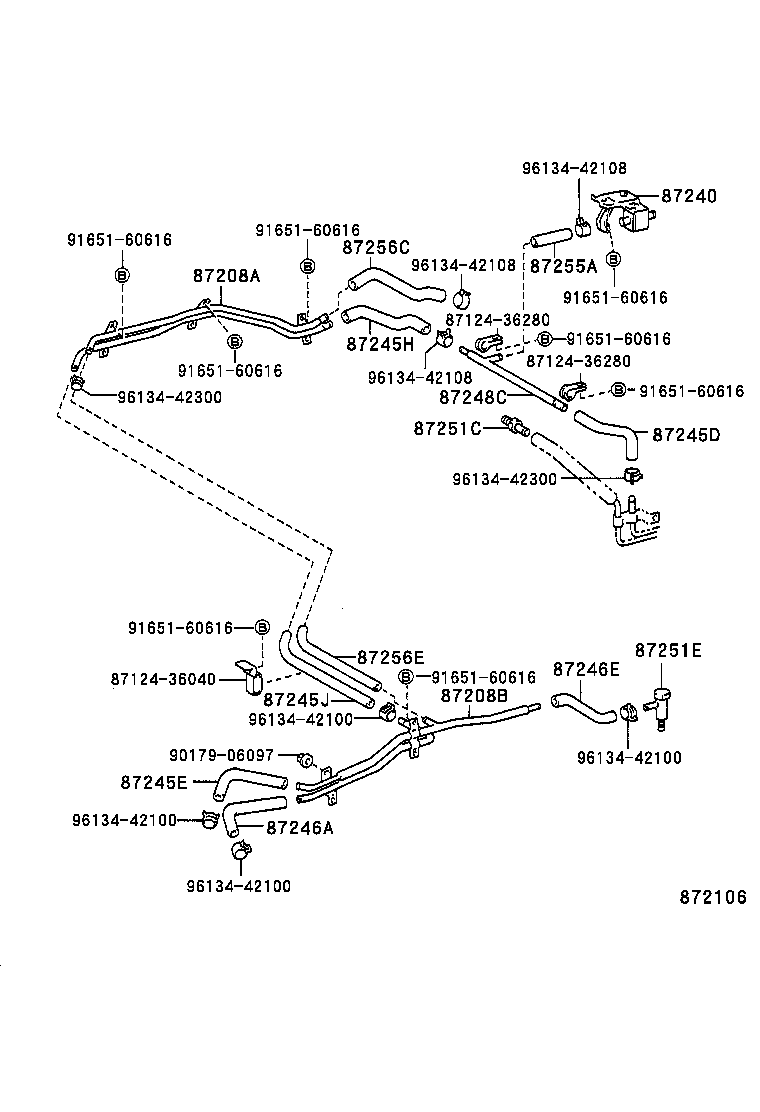

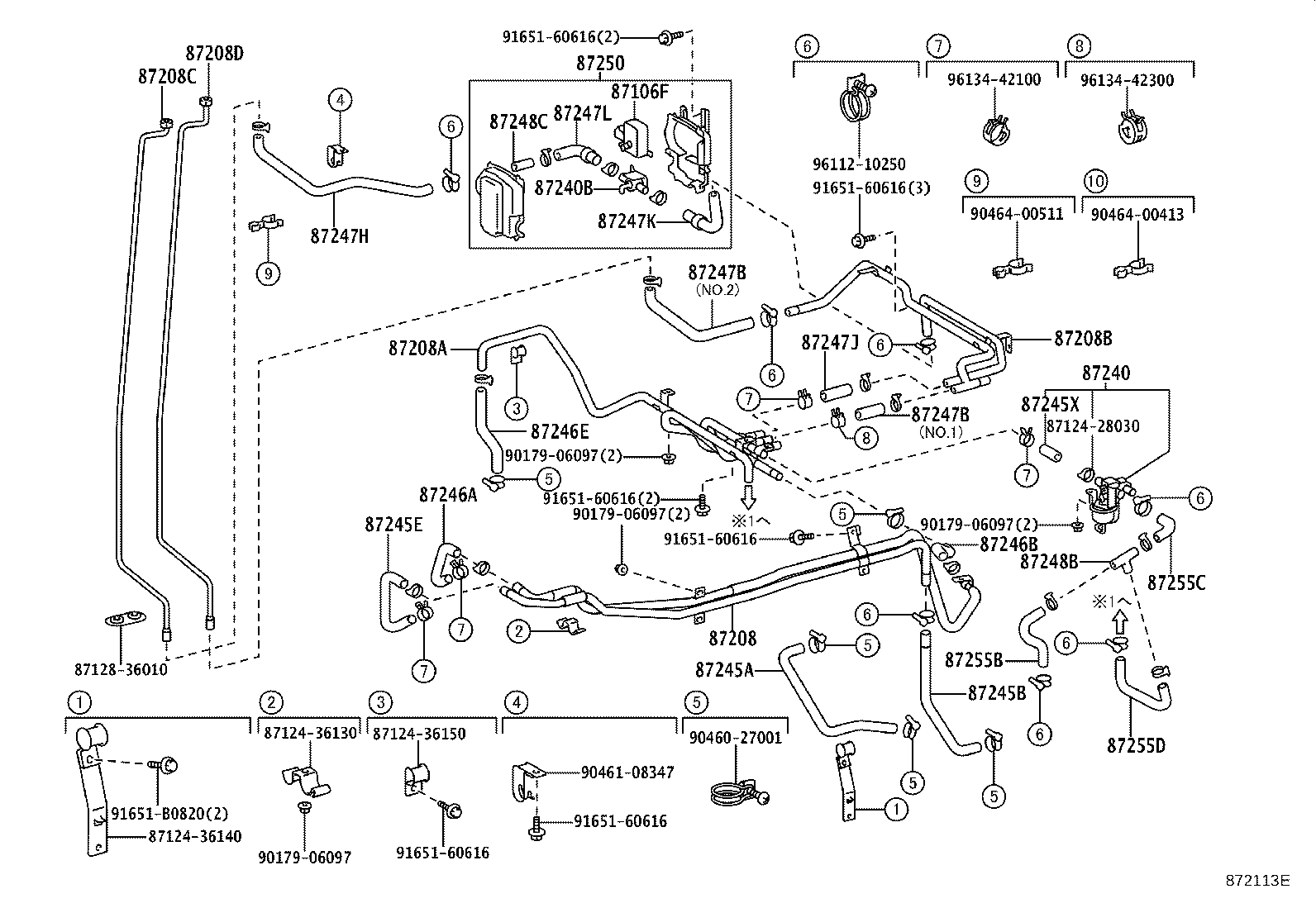

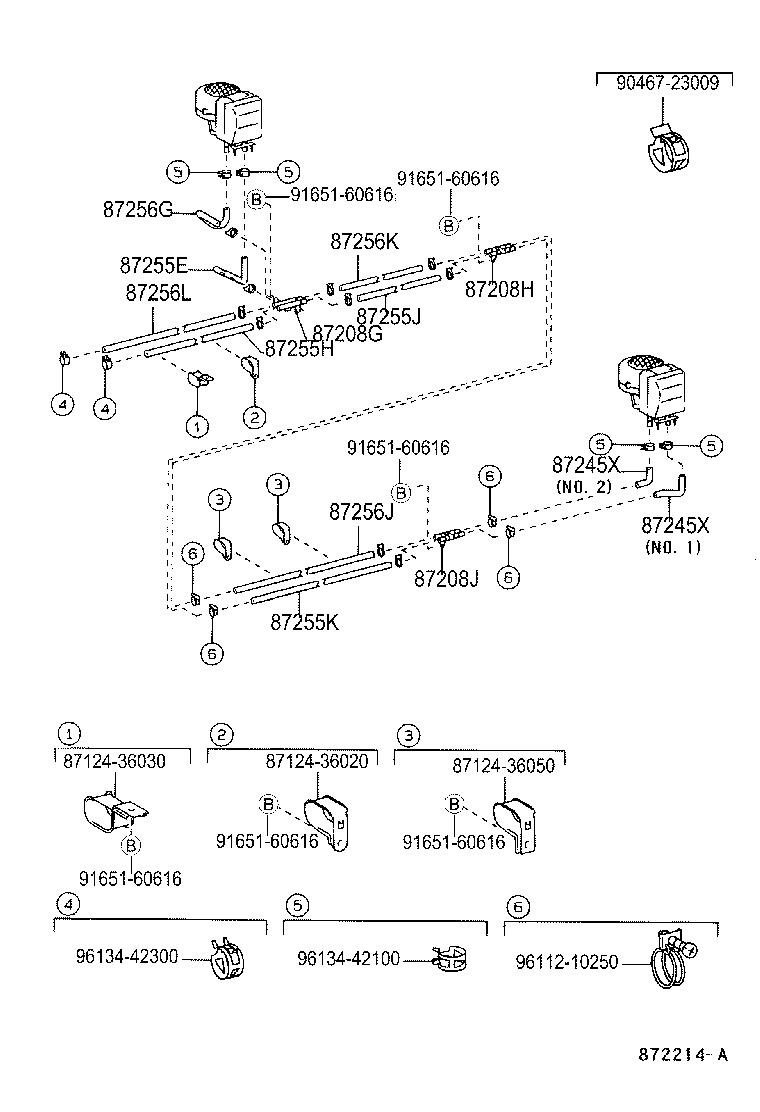

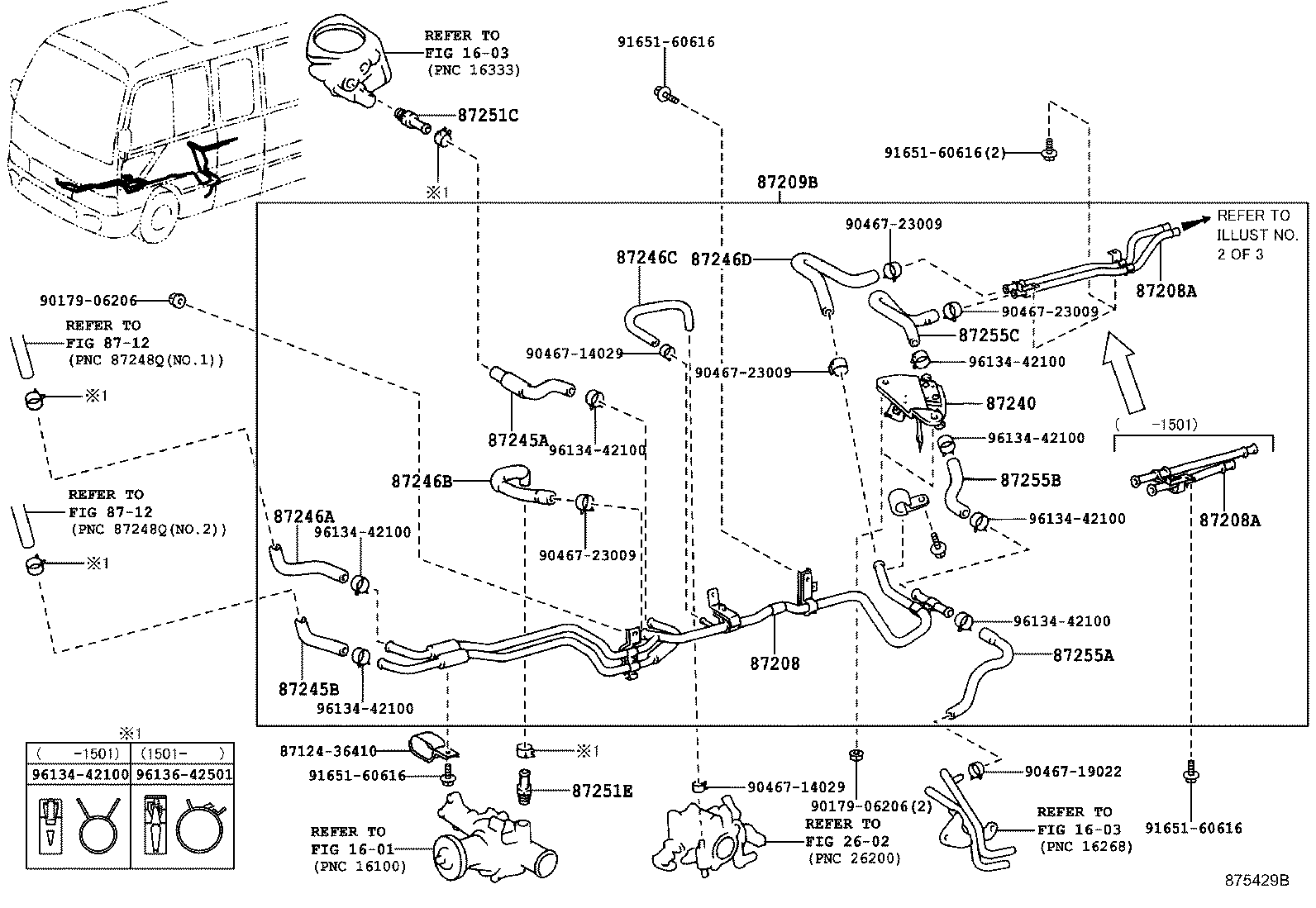

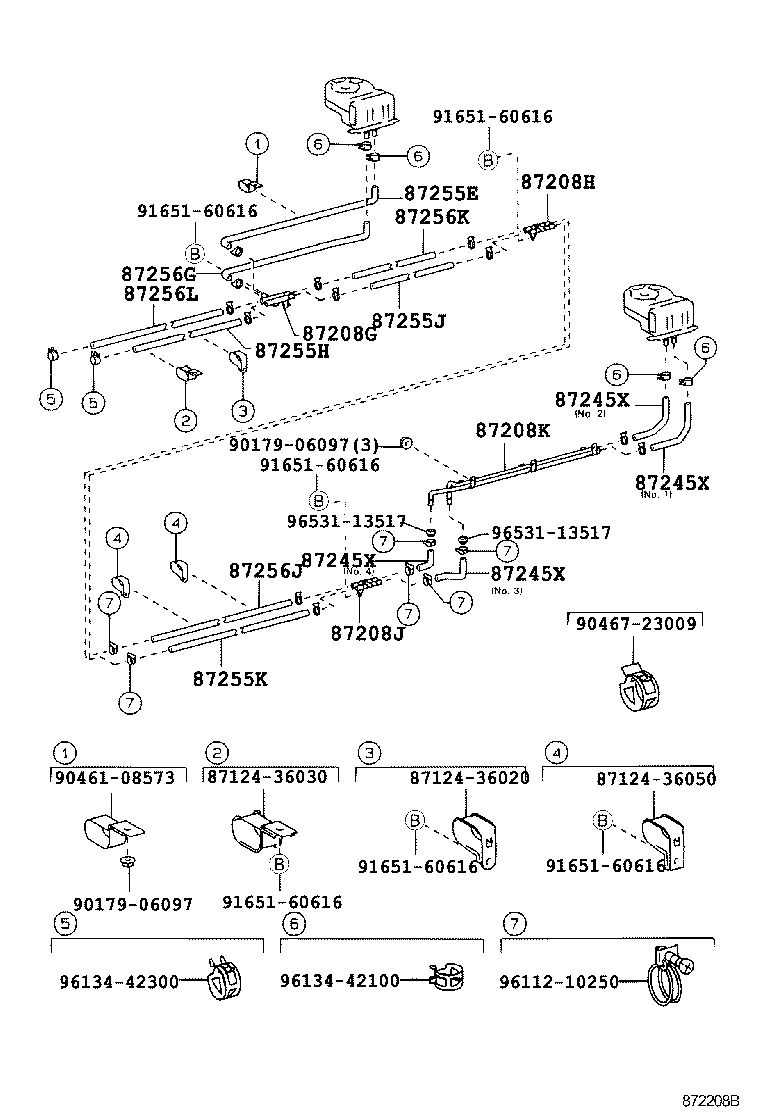

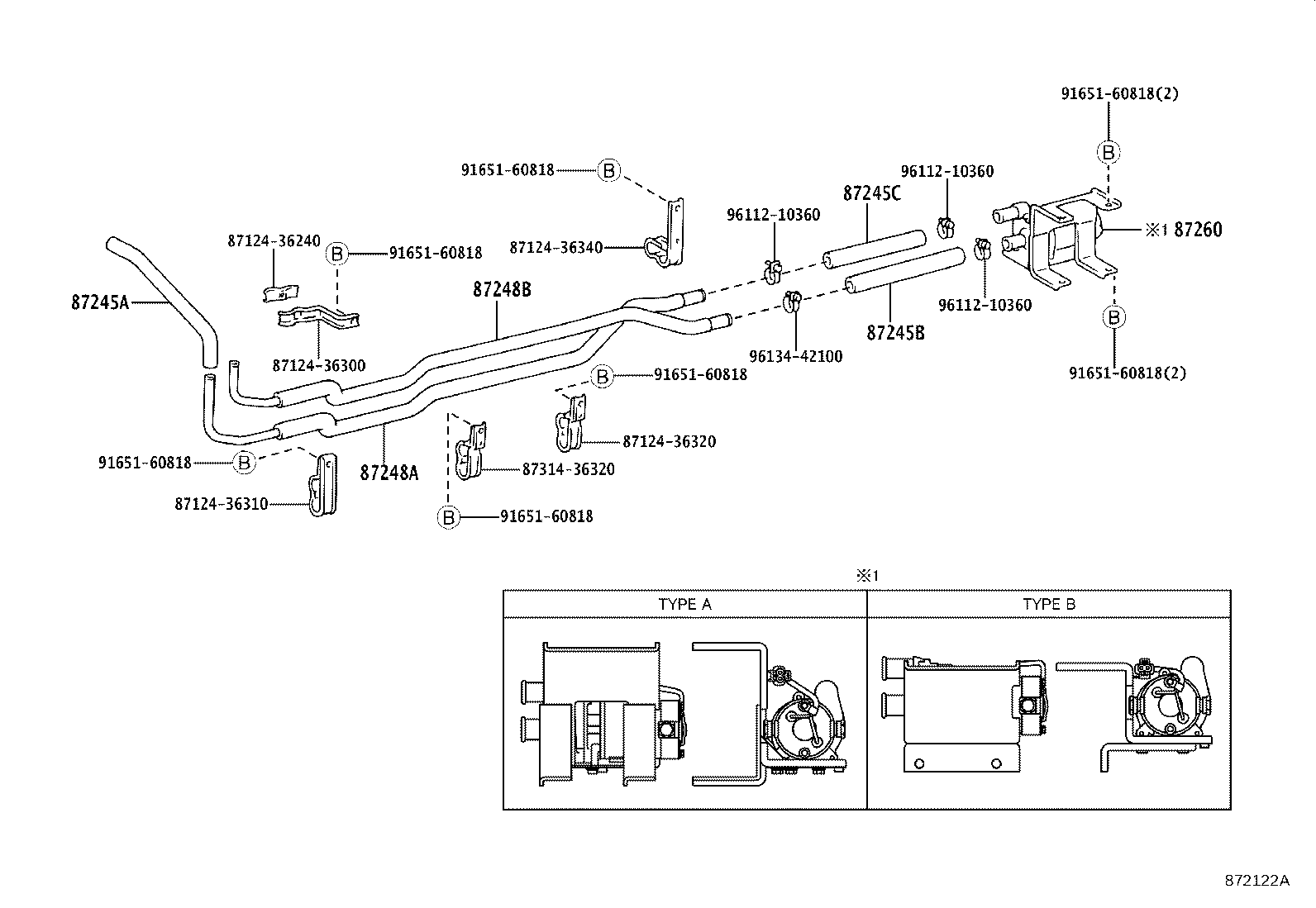

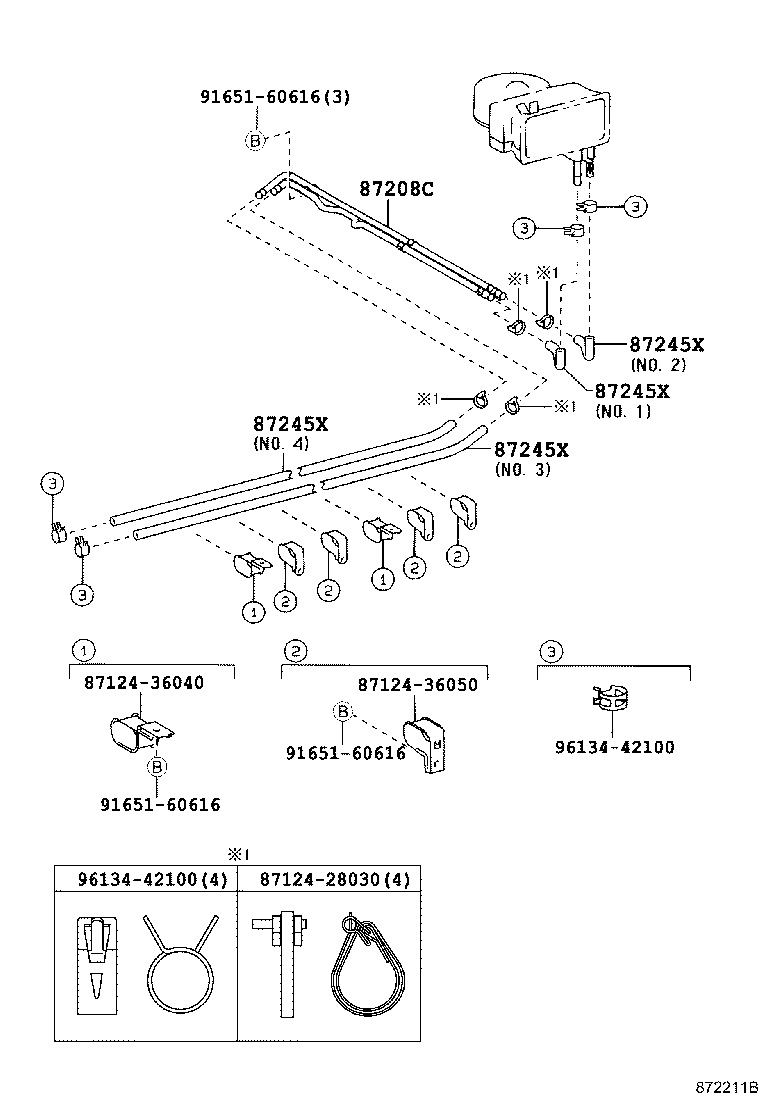

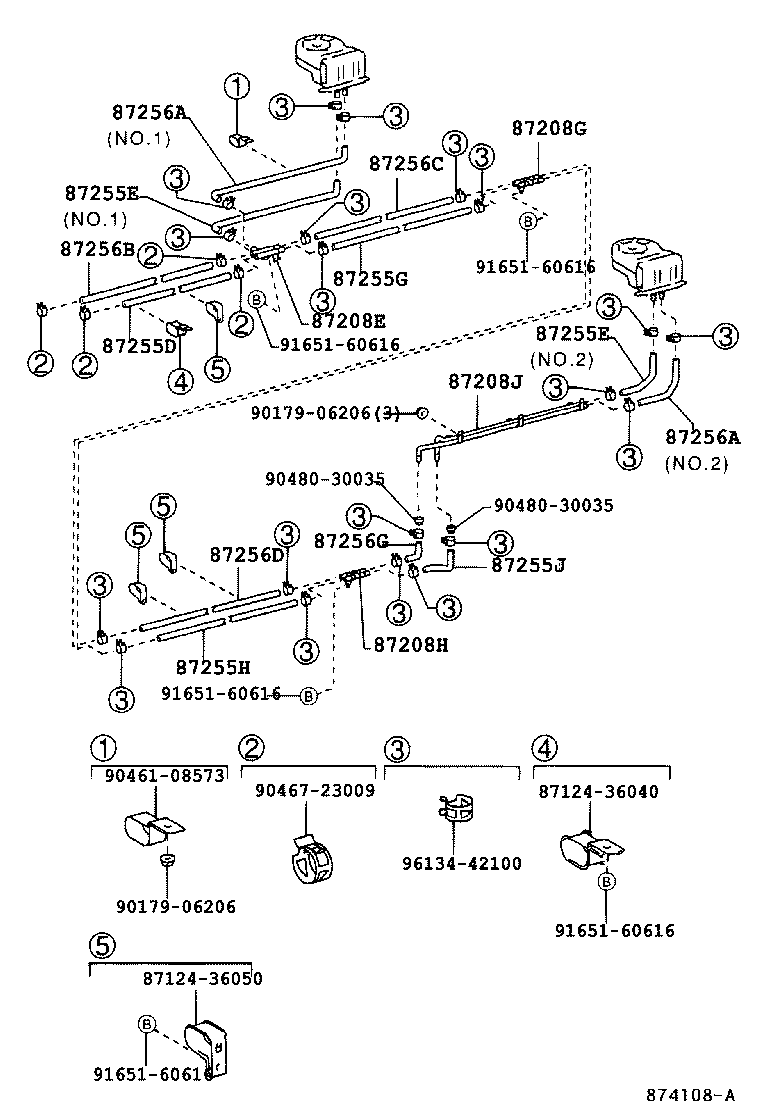

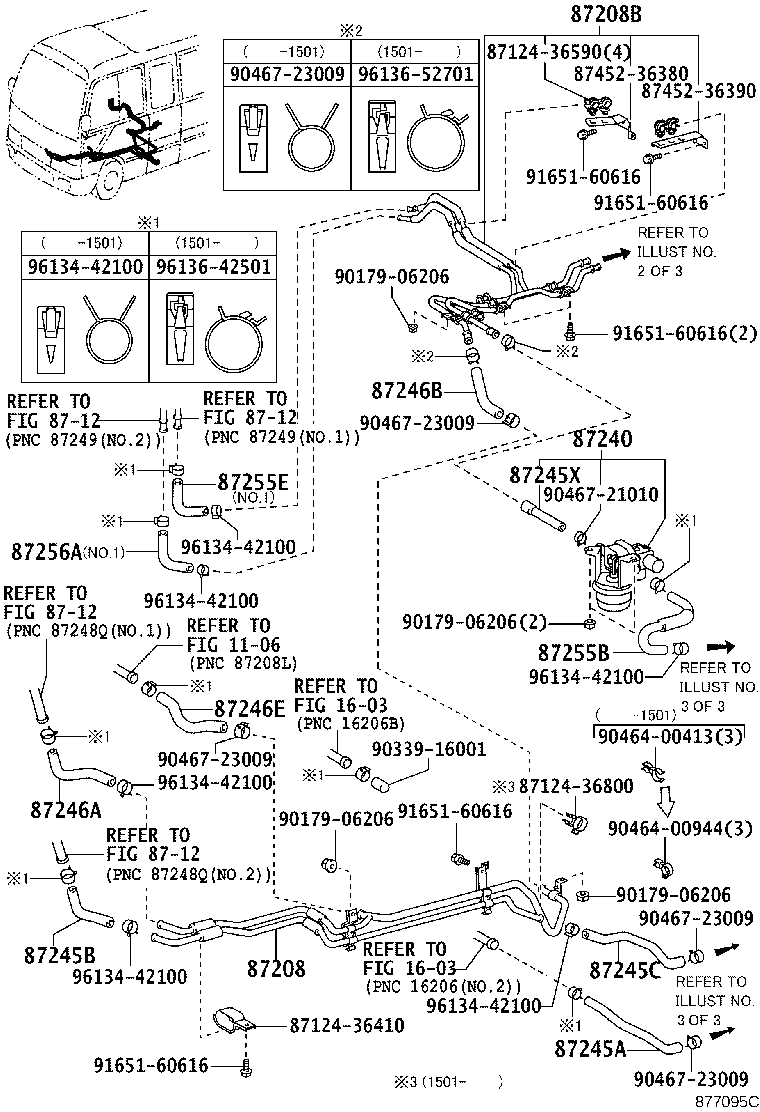

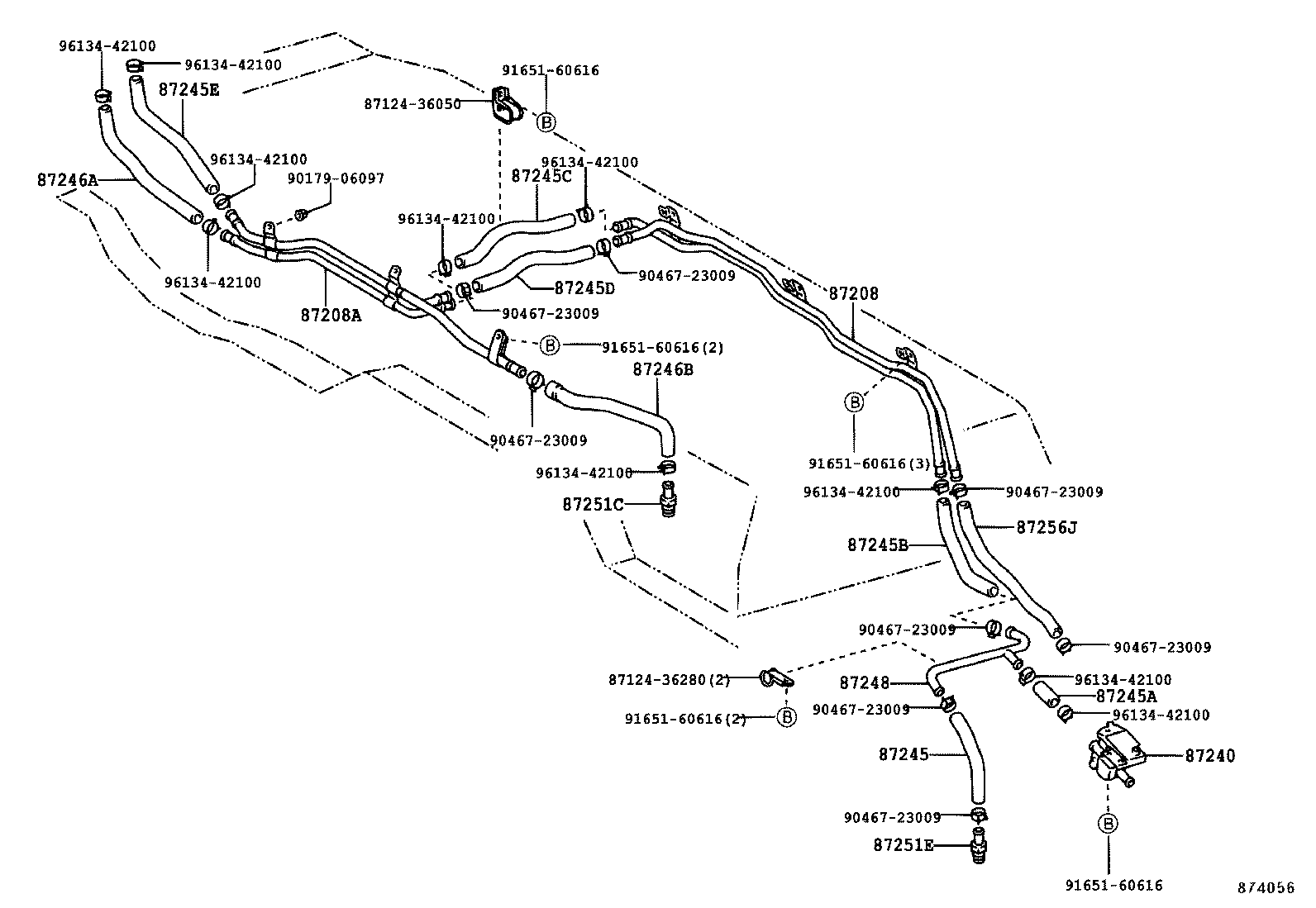

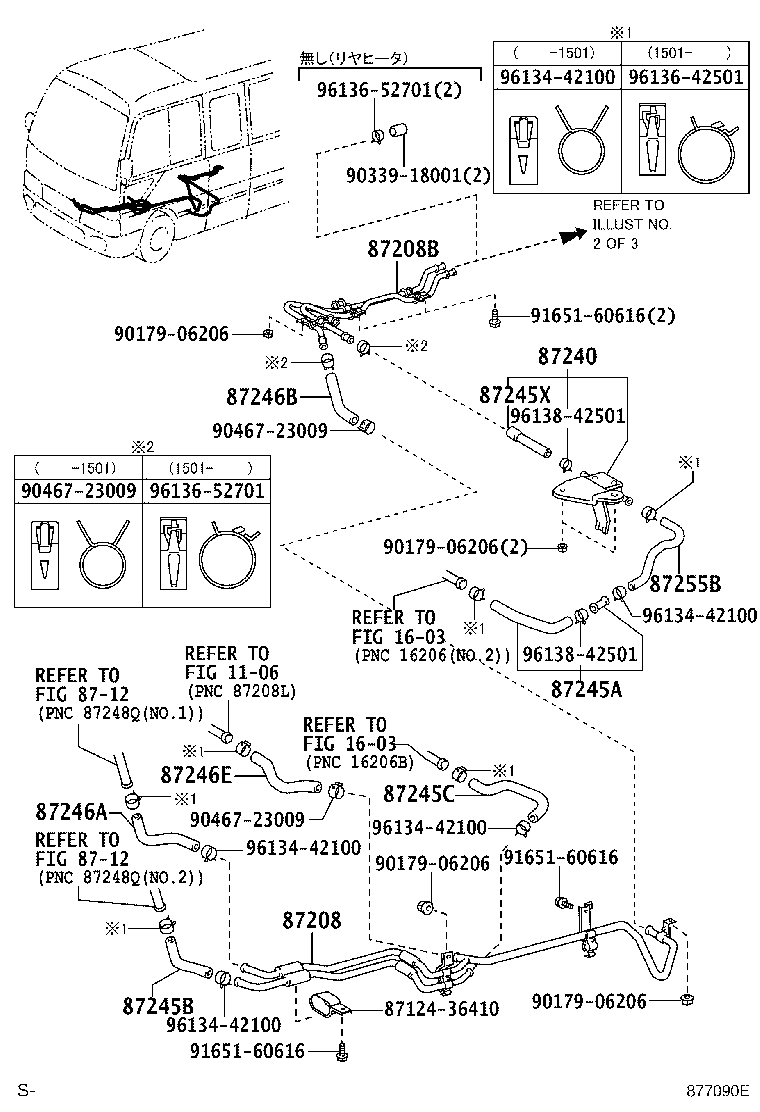

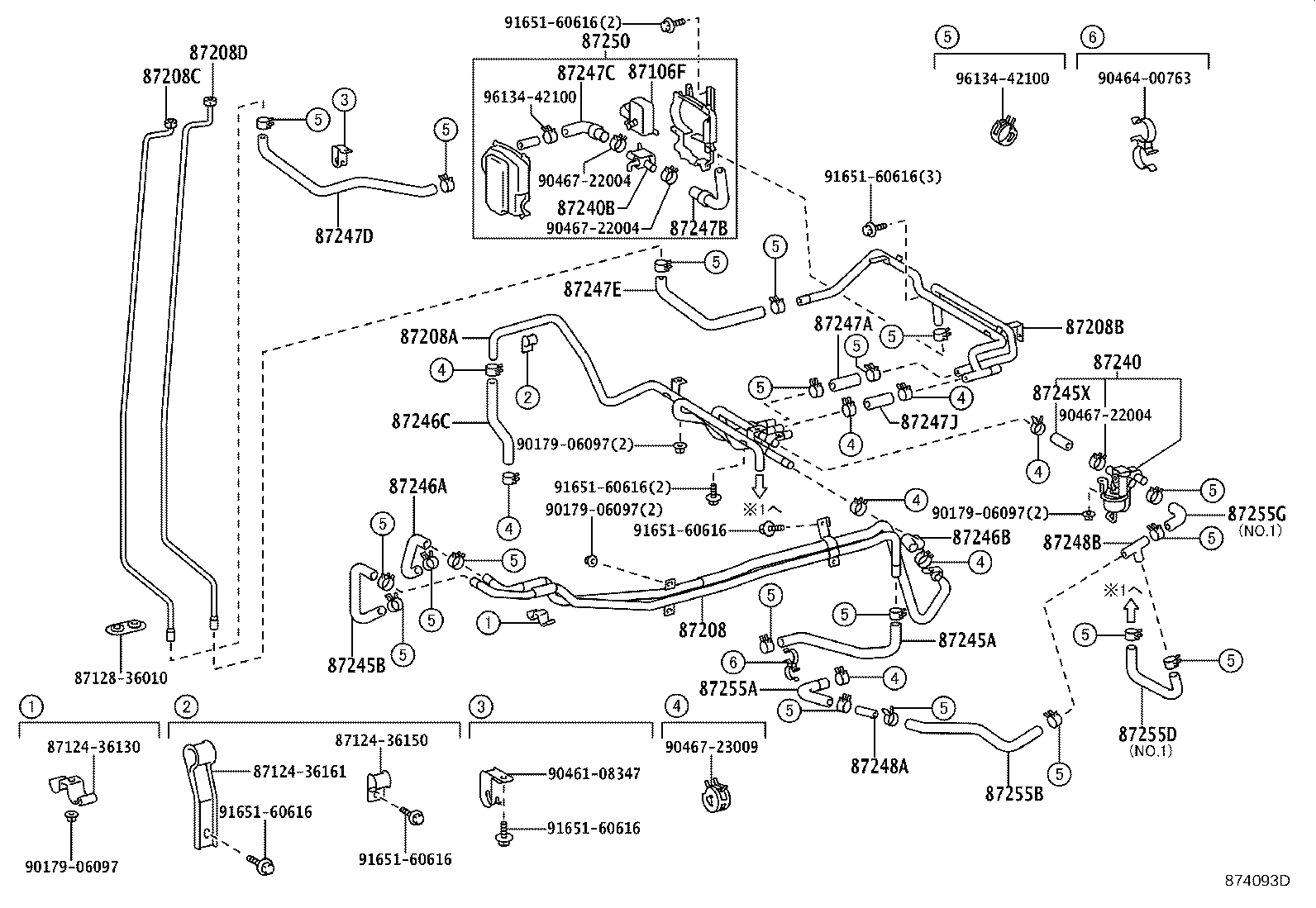

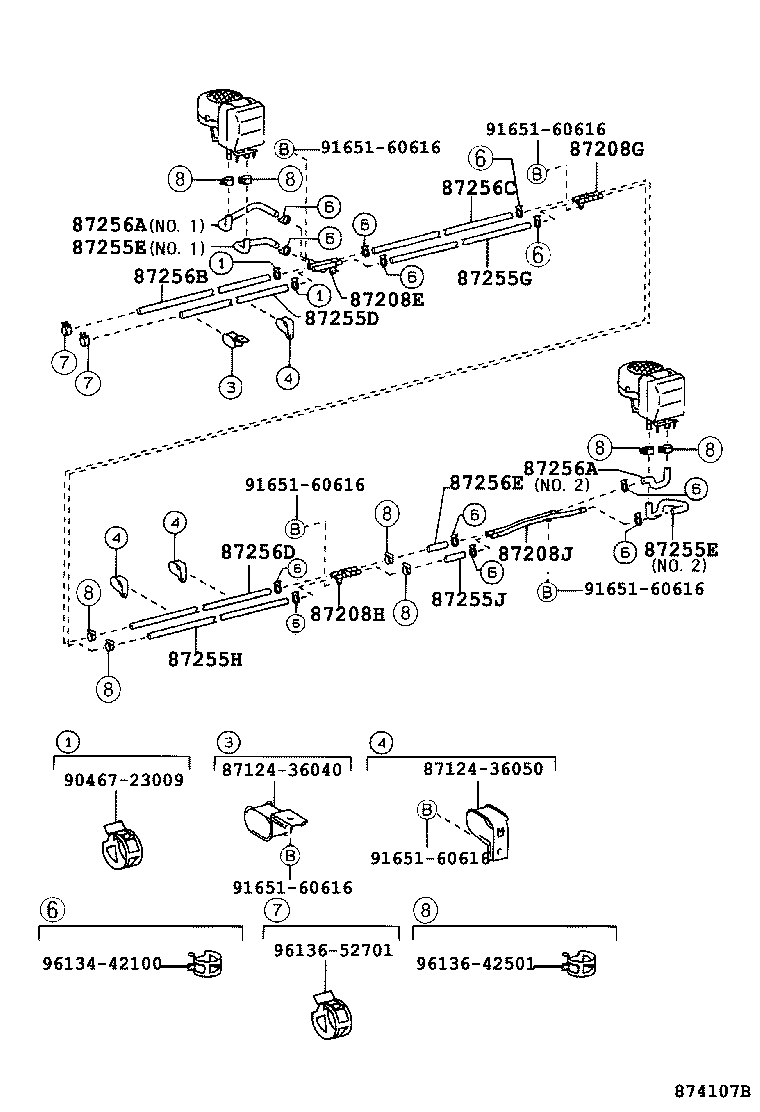

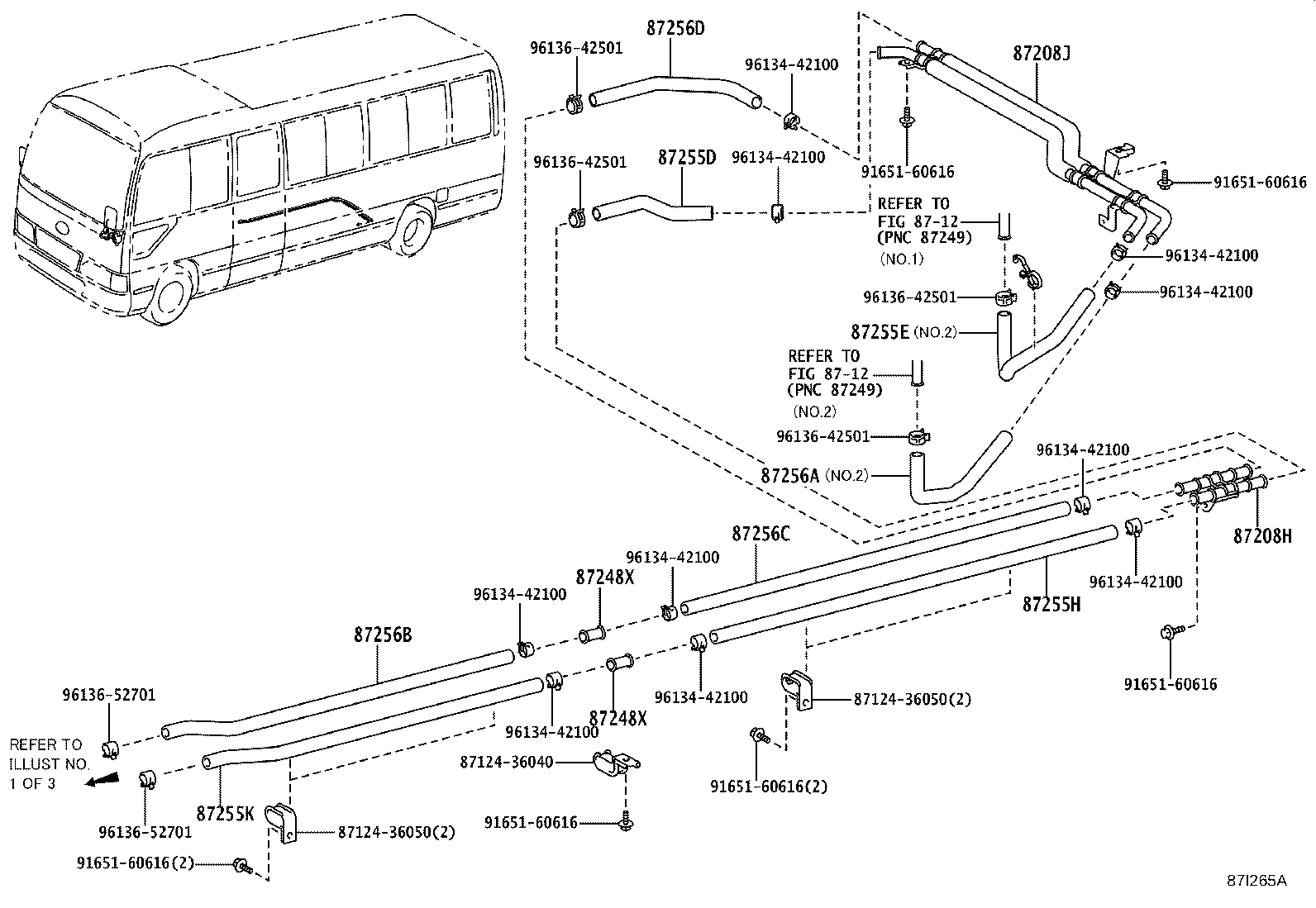

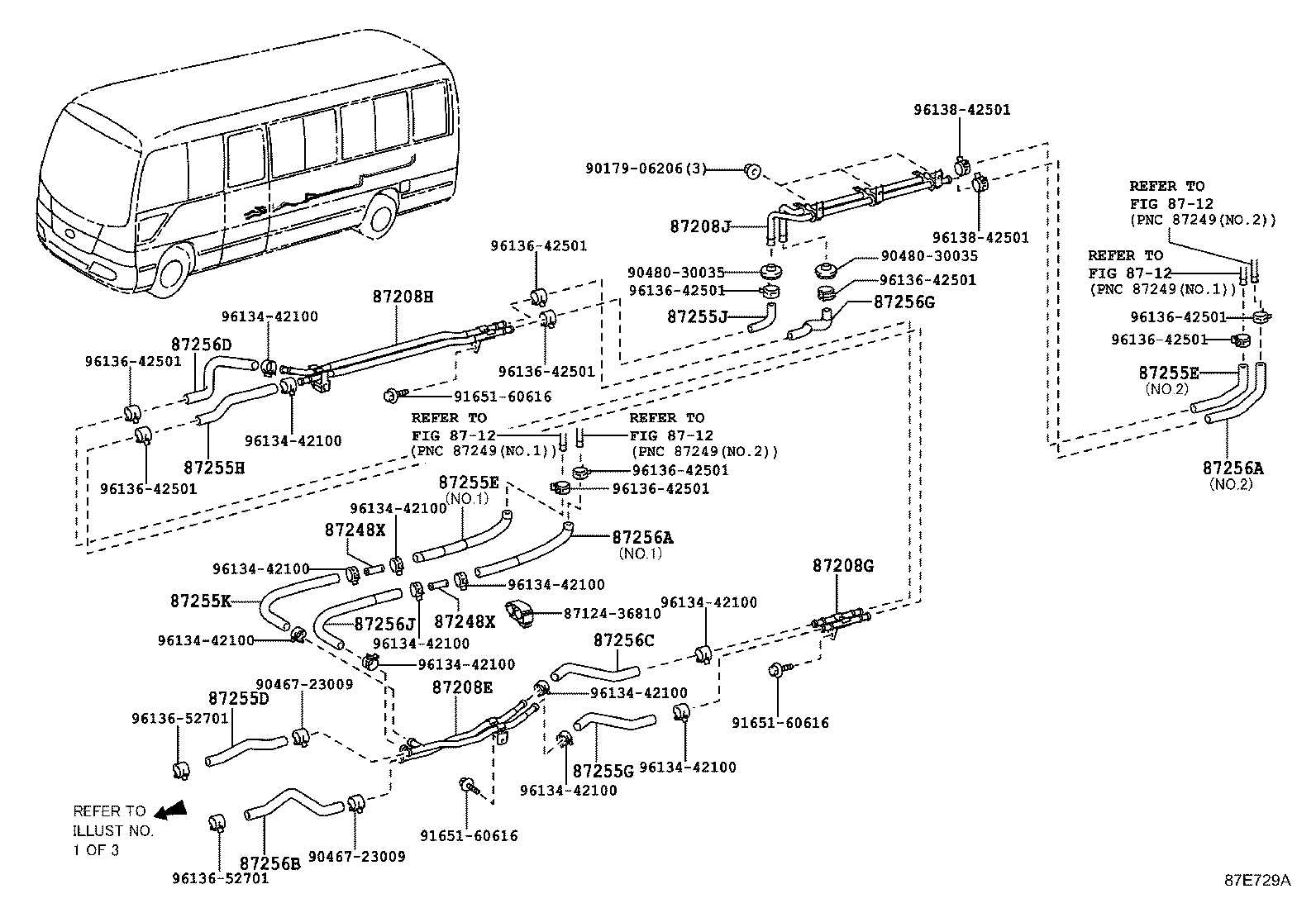

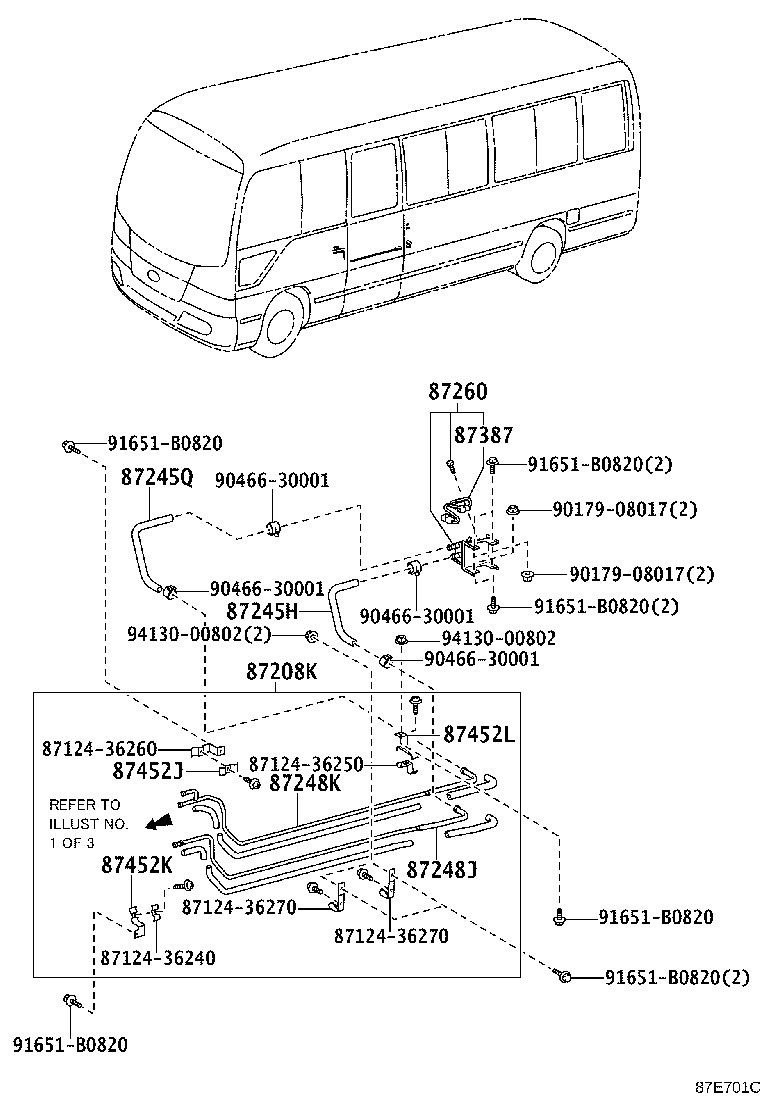

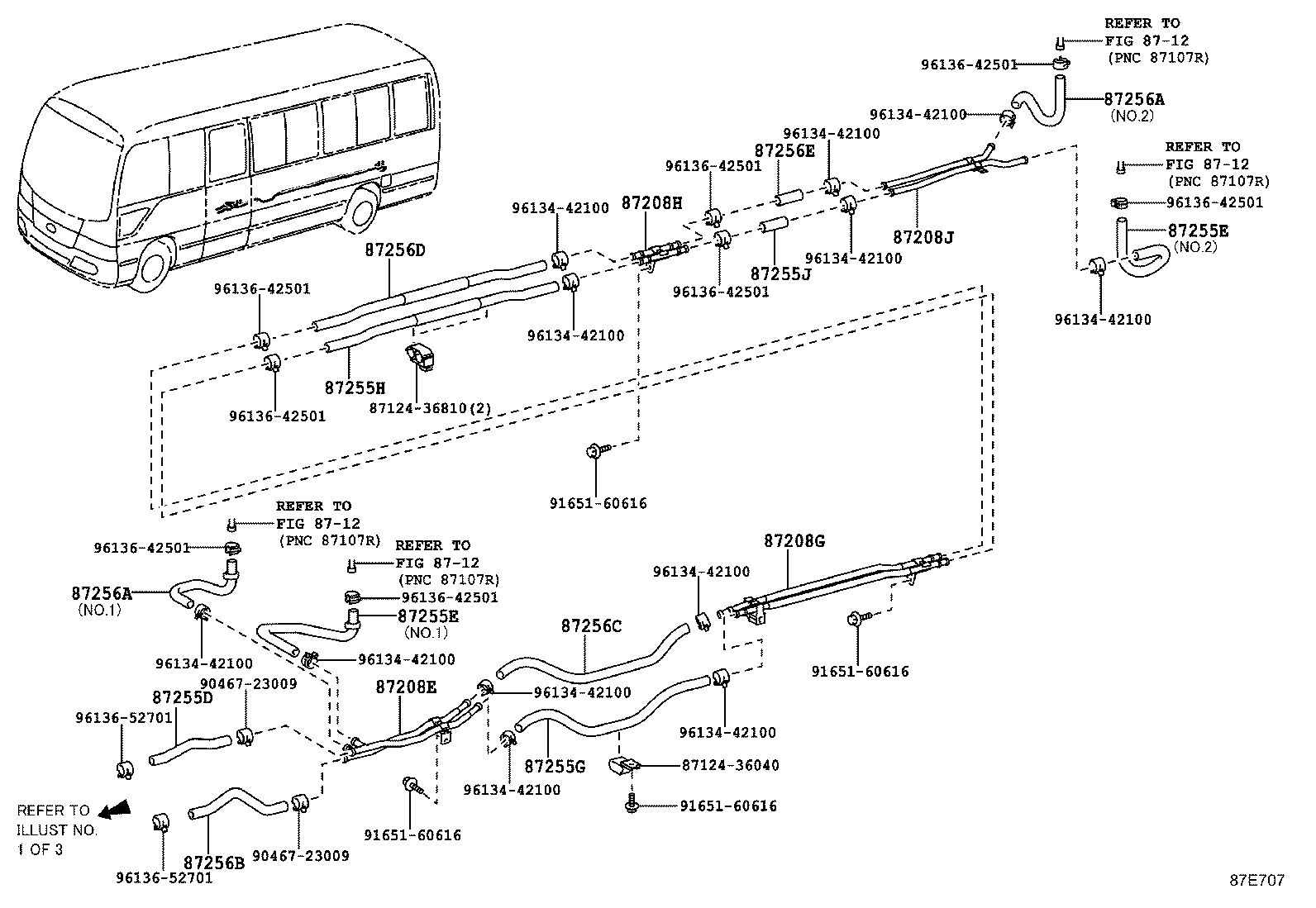

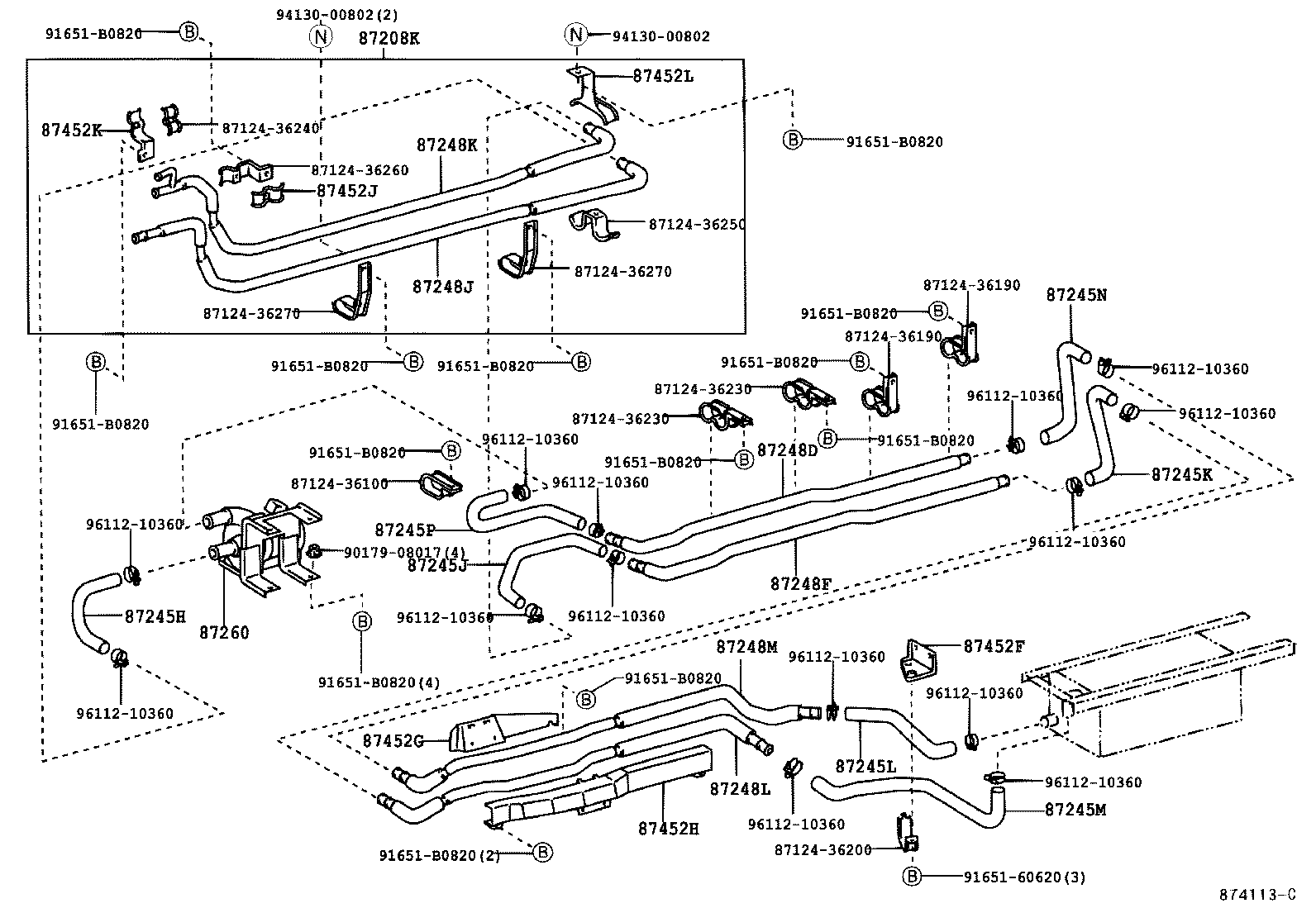

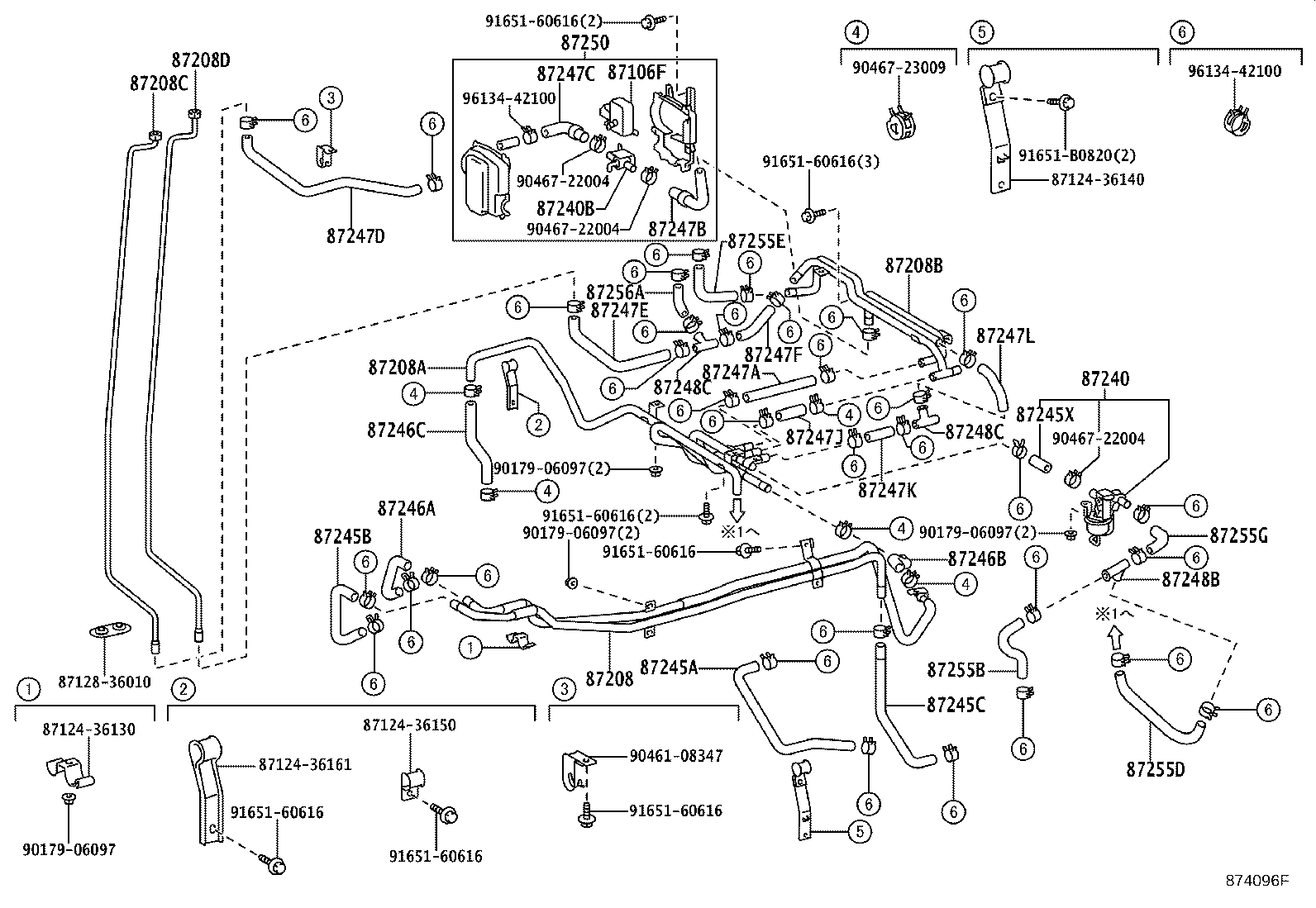

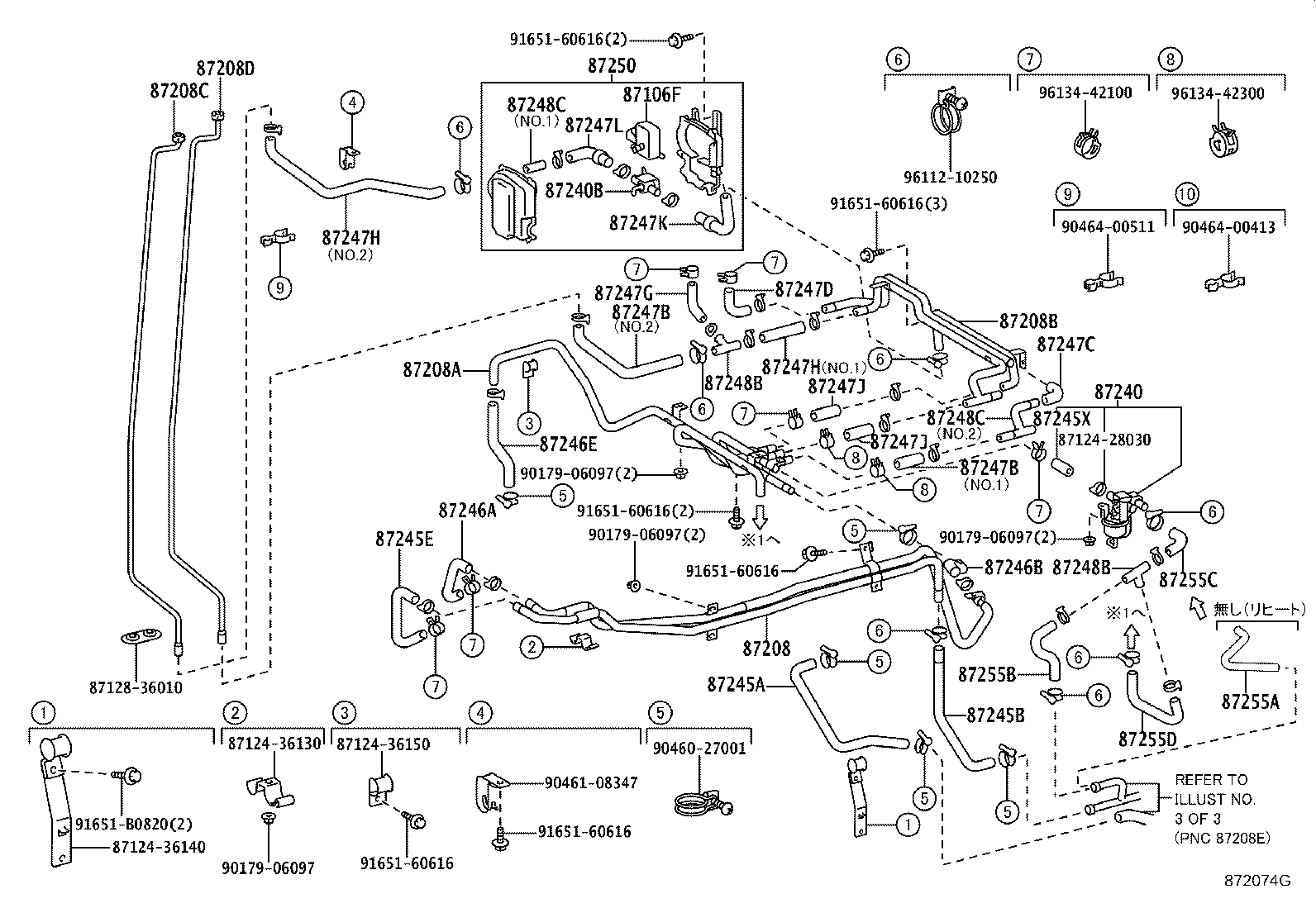

Figure 872103A 872103A 1993-01 → 1999-07 Figure 872104 872104 1993-01 → 1999-07 Figure 872105A 872105A 1993-01 → 1999-07 Figure 872106 872106 1995-12 → 1999-07 Figure 874056 874056 1999-07 → 2004-08 Figure 872107E 872107E 1993-01 → 1999-07 Figure 874077F 874077F 1999-07 → 2004-08 Figure 872112E 872112E 1993-01 → 1999-07 Figure 874081F 874081F 1999-07 → 2004-08 Figure 872109C 872109C 1993-01 → 1999-07 Figure 874093D 874093D 1999-07 → 2004-08 Figure 874093D 874093D 2001-08 → 2004-08 Figure 872113E 872113E 1993-01 → 1999-07 Figure 874094G 874094G 1999-07 → 2004-08 Figure 874094G 874094G 2001-08 → 2004-08 Figure 872110C 872110C 1993-01 → 1999-07 Figure 872108J 872108J 1993-01 → 1999-07 Figure 874097E 874097E 1999-07 → 2004-08 Figure 872074G 872074G 1993-01 → 1999-07 Figure 874096F 874096F 1999-07 → 2004-08 Figure 875429B 875429B 2002-03 → — Figure 877090E 877090E 2004-08 → 2015-01 Figure 877090E 877090E 2015-01 → — Figure 877091E 877091E 2004-08 → 2015-01 Figure 877091E 877091E 2015-01 → — Figure 877092G 877092G 2004-08 → — Figure 877093G 877093G 2004-08 → — Figure 877093G 877093G 2004-09 → — Figure 877094D 877094D 2004-08 → — Figure 877095C 877095C 2004-08 → — Figure 877096E 877096E 2004-08 → — Figure 877097E 877097E 2004-08 → — Figure 872209B 872209B 1993-01 → 1999-07 Figure 872207B 872207B 1995-12 → 1999-07 Figure 874059 874059 1999-07 → 2004-08 Figure 872213A 872213A 1993-01 → 1999-07 Figure 874105 874105 1999-07 → 2004-08 Figure 872214A 872214A 1993-01 → 1999-07 Figure 874107B 874107B 1999-07 → 2004-08 Figure 874107B 874107B 2002-11 → 2004-08 Figure 874125A 874125A 1999-07 → 2004-08 Figure 874125A 874125A 2004-08 → 2015-01 Figure 872208B 872208B 1993-01 → 1999-07 Figure 874108A 874108A 1999-07 → 2004-08 Figure 874108A 874108A 1999-07 → 2015-01 Figure 874108A 874108A 2004-08 → 2015-01 Figure 872210C 872210C 1993-01 → 1999-07 Figure 874103A 874103A 1999-07 → 2004-08 Figure 874103A 874103A 2001-08 → 2004-08 Figure 874103A 874103A 2002-03 → 2015-01 Figure 874103A 874103A 2004-08 → 2015-01 Figure 874104 874104 1999-07 → 2004-08 Figure 872211B 872211B 1993-01 → 1999-07 Figure 874106 874106 1999-07 → 2004-08 Figure 872212B 872212B 1993-01 → 1999-07 Figure 874109A 874109A 1999-07 → 2004-08 Figure 874109A 874109A 1999-07 → 2015-01 Figure 874109A 874109A 2004-08 → 2015-01 Figure 875430 875430 2002-03 → 2015-01 Figure 877099 877099 2004-08 → 2015-01 Figure 877098 877098 2004-08 → 2011-08 Figure 877098 877098 2004-08 → 2015-01 Figure 87I265A 87I265A 2011-08 → 2015-01 Figure 87I266A 87I266A 2011-08 → 2015-01 Figure 87G140 87G140 2015-01 → — Figure 87E707 87E707 2015-01 → — Figure 87E729A 87E729A 2015-01 → — Figure 87E728A 87E728A 2015-01 → — Figure 87E731 87E731 2015-01 → — Figure 87E730A 87E730A 2015-01 → — Figure 872121D 872121D 1993-01 → 1999-07 Figure 875931A 875931A 1999-07 → 2004-08 Figure 875931A 875931A 2004-08 → 2015-01 Figure 874126D 874126D 1993-01 → 1999-07 Figure 874113C 874113C 1999-07 → 2004-08 Figure 872122A 872122A 1995-12 → 1999-07 Figure 872124C 872124C 1995-12 → 1999-07 Figure 874070B 874070B 1999-07 → 2004-08 Figure 874071B 874071B 1999-07 → 2004-08 Figure 87E702D 87E702D 2004-08 → 2015-01 Figure 87G746 87G746 2015-01 → — Figure 87E701C 87E701C 2015-01 → —

Part groups

PNCDescription
87106F Servo Sub-assy, Heater Valve Damper

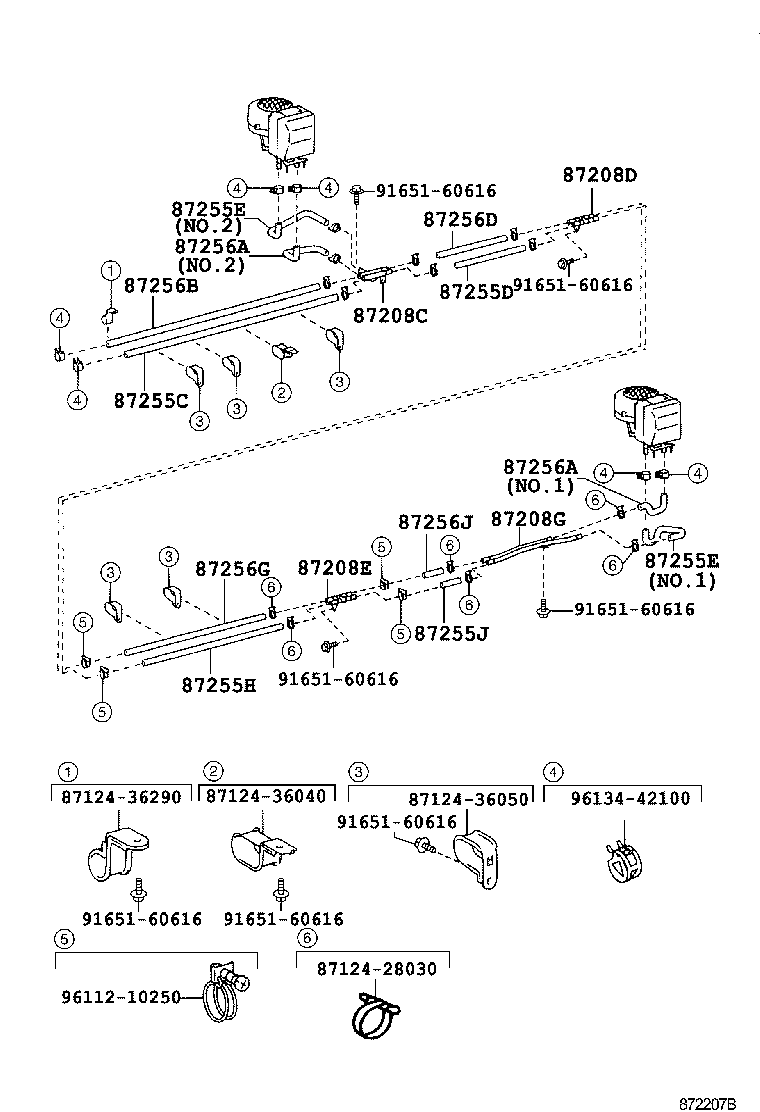

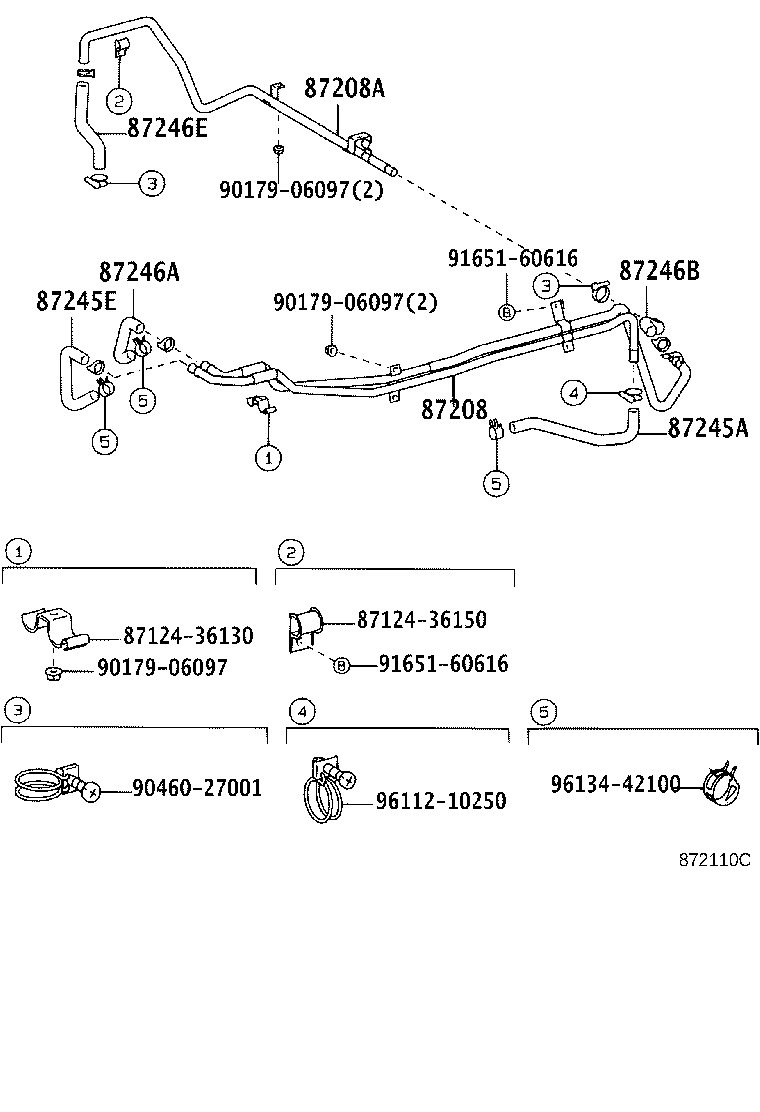

87208 Pipe Sub-assy, Heater Water
87208A Pipe Sub-assy, Heater Water, A
87208B Pipe Sub-assy, Heater Water, B
87208C Pipe Sub-assy, Heater Water, C
87208D Pipe Sub-assy, Heater Water, D
87208E Pipe Sub-assy, Heater Water, E
87208G Pipe Sub-assy, Heater Water, G
87208H Pipe Sub-assy, Heater Water, H
87208J Pipe Sub-assy, Heater Water, J
87208K Pipe Sub-assy, Heater Water, K
87209 Hose Sub-assy, Water
87209B Hose Sub-assy, Water, B
87209C Hose Sub-assy, Water, C
87209D Hose Sub-assy, Water, D
87209E Hose Sub-assy, Water, E
87240 Valve Assy, Heater Water
87240B Valve Assy, Heater Water, NO.2

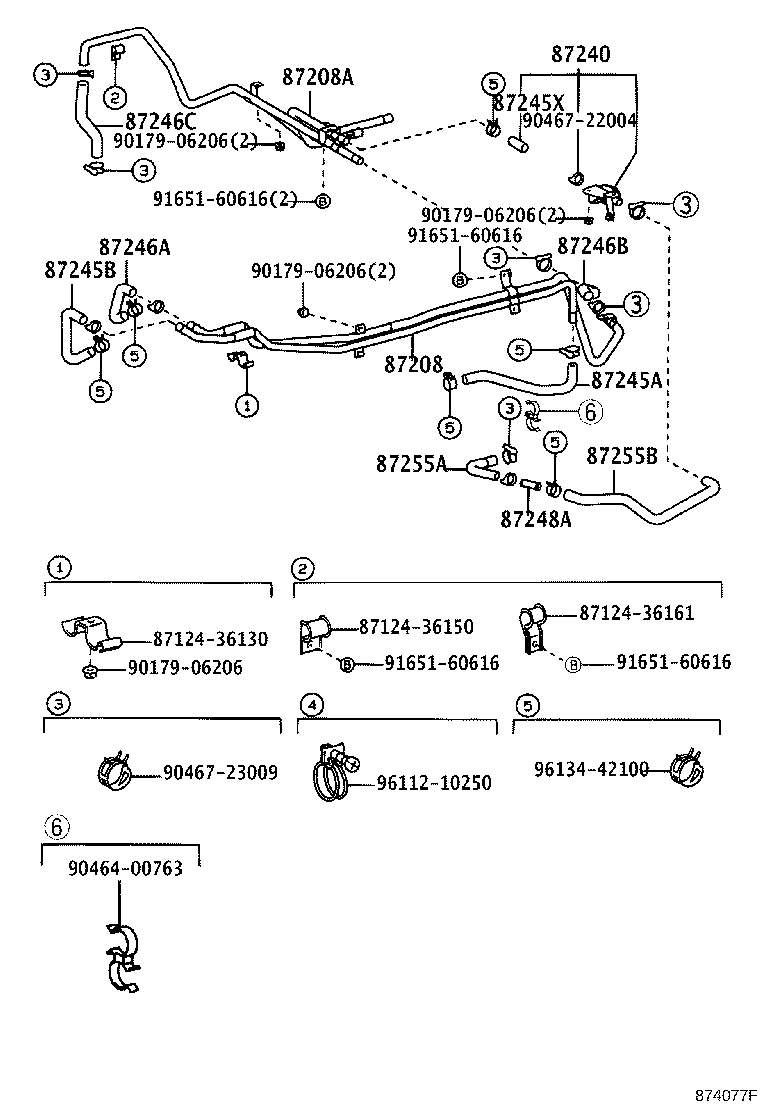

87245 Hose, Heater Water, Inlet
87245A Hose, Heater Water, Inlet A
87245B Hose, Heater Water, Inlet B
87245C Hose, Heater Water ,Inlet C
87245D Hose, Heater Water, Inlet D
87245E Hose, Heater Water, Inlet E
87245H Hose, Heater Water, Inlet H
87245J Hose, Heater Water, Inlet J
87245K Hose, Heater Water, Inlet K
87245L Hose, Heater Water, L
87245M Hose, Heater Water, M
87245N Hose, Heater Water, Inlet N
87245P Hose, Heater Water, Inlet P
87245Q Hose, Heater Water, Inlet Q
87245X Hose, Heater Water
87246A Hose, Heater Water, Outlet A
87246B Hose, Heater Water, Outlet B
87246C Hose, Heater Water, Outlet C
87246D Hose, Heater Water, Outlet D
87246E Hose, Heater Water, Outlet E
87247A Hose, Heater Water, A
87247B Hose, Heater Water, B
87247C Hose, Heater Water, C
87247D Hose, Heater Water, D
87247E Hose, Heater Water, E
87247F Hose, Heater Water, F
87247G Hose, Heater Water, G
87247H Hose, Heater Water, H
87247J Hose, Heater Water, J
87247K Hose, Heater Water, K
87247L Hose, Heater Water, L

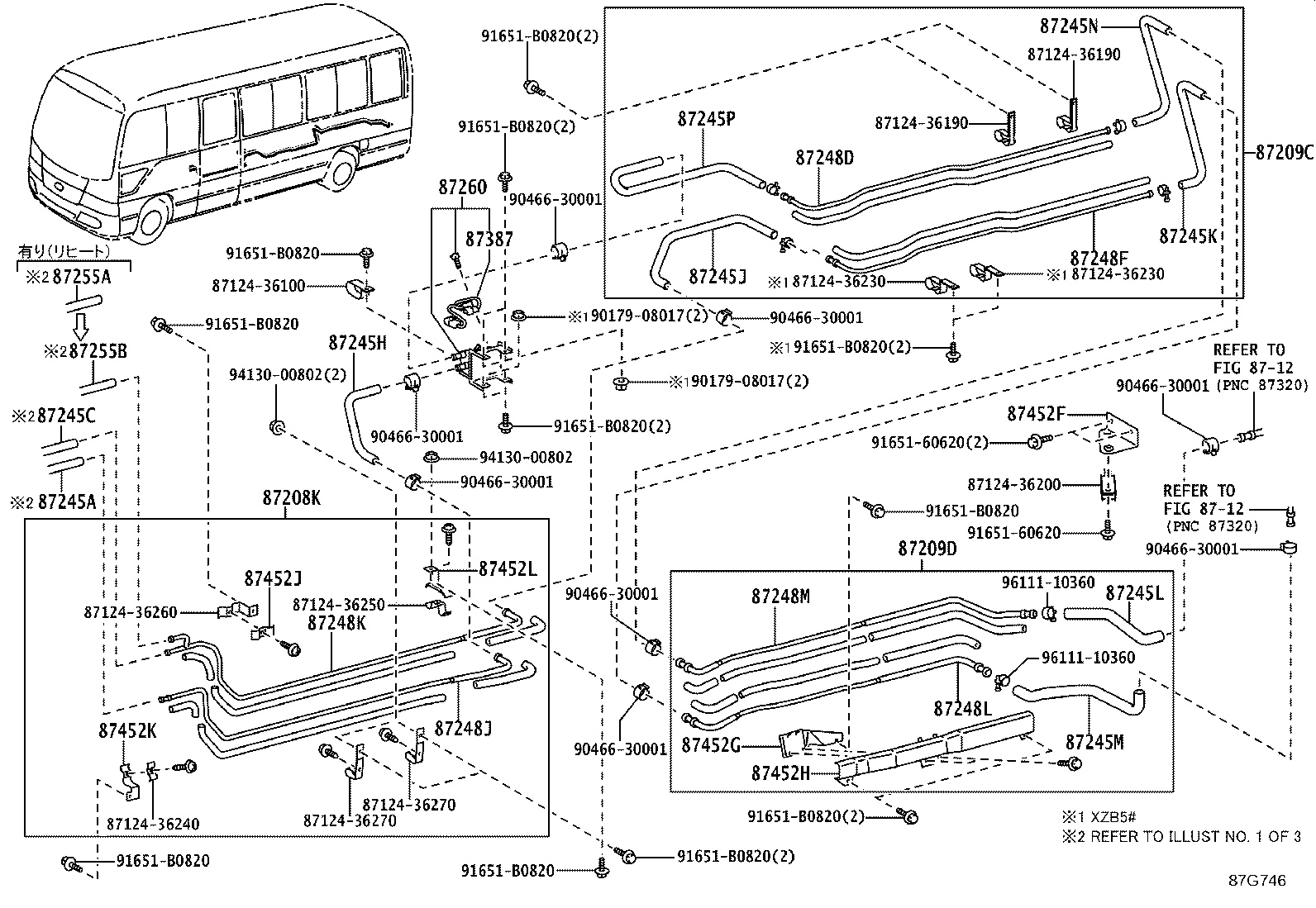

87248 Pipe Sub-assy, Water
87248A Pipe, Heater Water Inlet, A
87248B Pipe, Heater Water Inlet, B
87248C Pipe, Heater Water Inlet, C
87248D Pipe, Heater Water Inlet, D
87248F Pipe, Heater Water Inlet, F
87248J Pipe, Heater Water Inlet, J
87248K Pipe, Heater Water Inlet, K
87248L Pipe, Heater Water, L
87248M Pipe, Heater Water, M
87248X Pipe, Heater Water
87249A Pipe, Heater Water Outlet, A
87249B Pipe, Heater Water Outlet, B
87250 Hose And Valve Assy
87251B Plug, Heater Water
87251C Joint, Water Hose Through
87251D Joint, Water, NO.1
87251E Joint, Water, NO.2

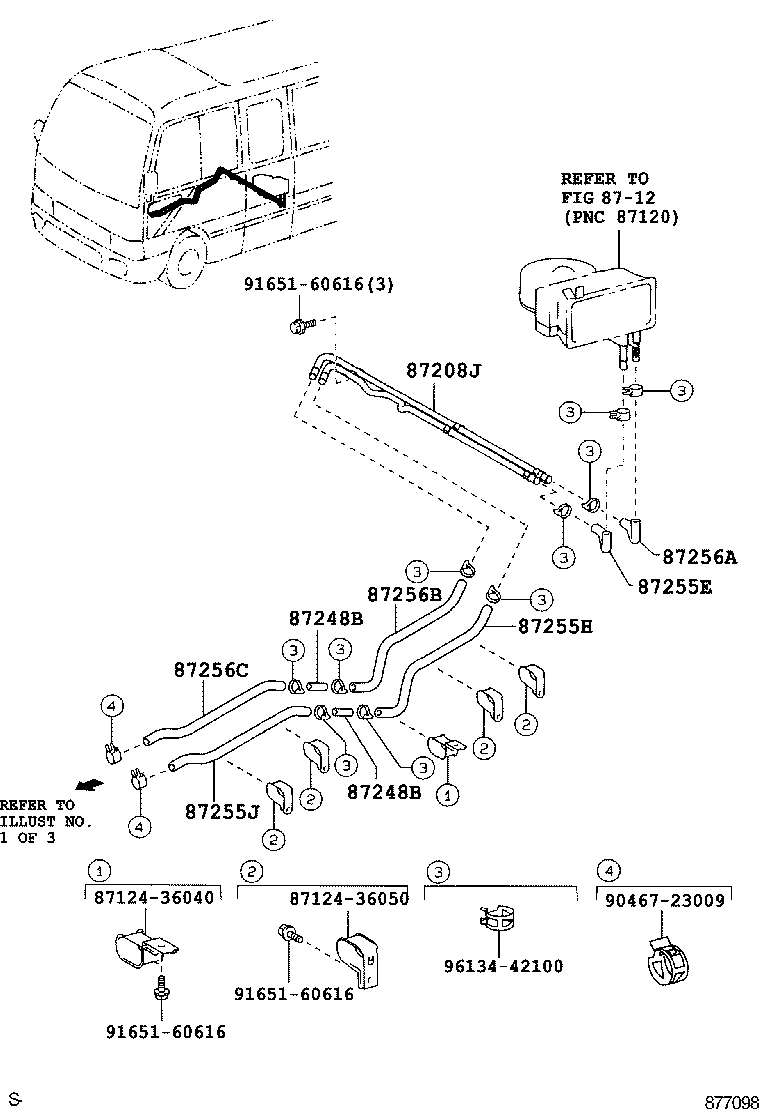

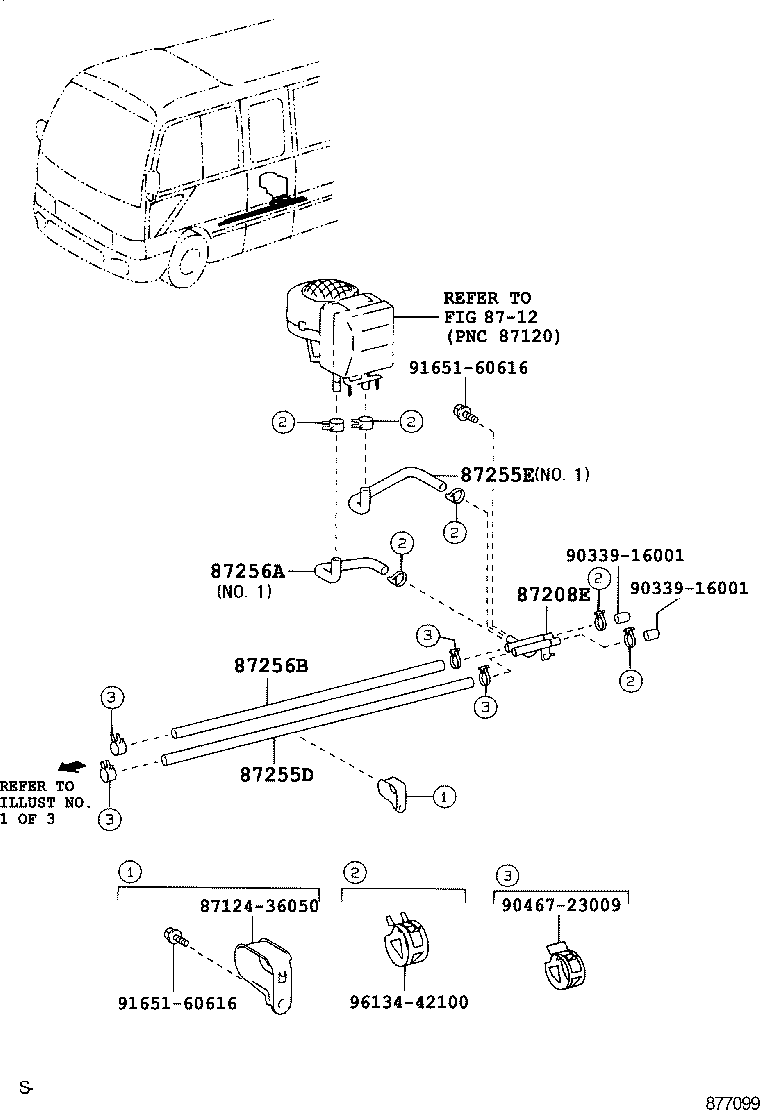

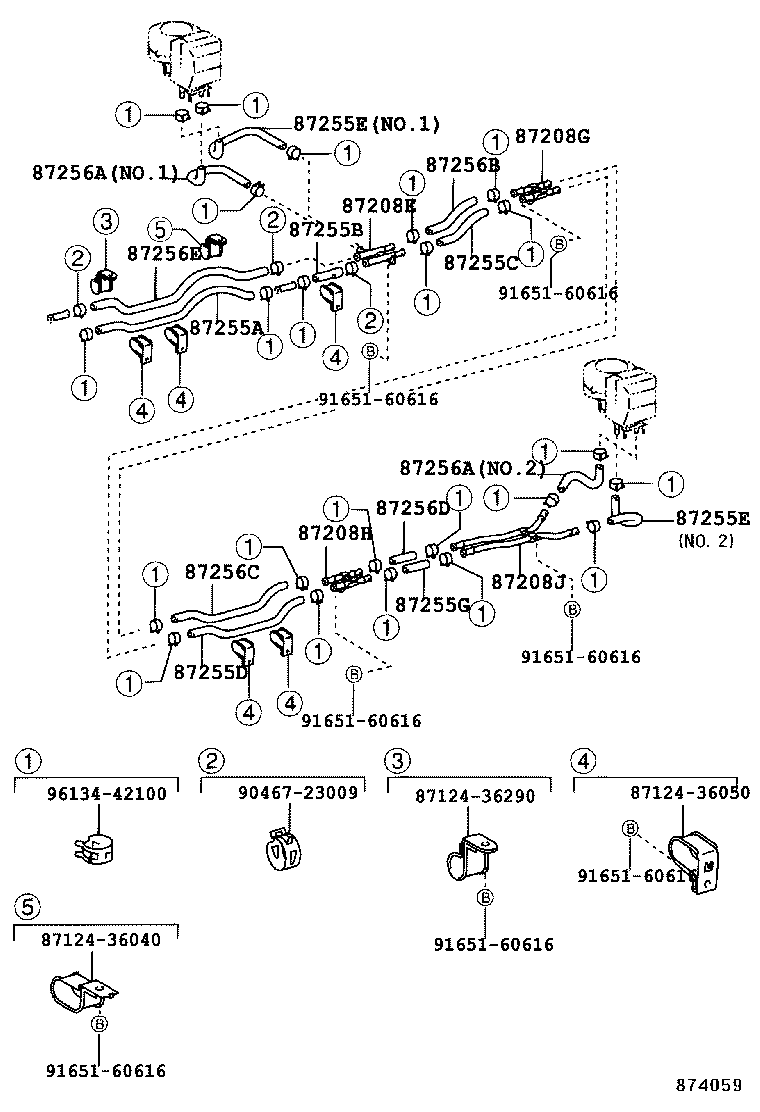

87255A Hose, Rear Heater Water Inlet, A(FROM ENGINE)
87255B Hose, Rear Heater Water Inlet, B
87255C Hose, Rear Heater Water Inlet, C
87255D Hose, Rear Heater Water Inlet, D
87255E Hose, Rear Heater Water Inlet, E(TO HEATER UNIT)
87255G Hose, Rear Heater Water Inlet, G
87255H Hose, Heater Water Inlet, H
87255J Hose, Heater Water Inlet, J
87255K Hose, Rear Heater Water Inlet, K

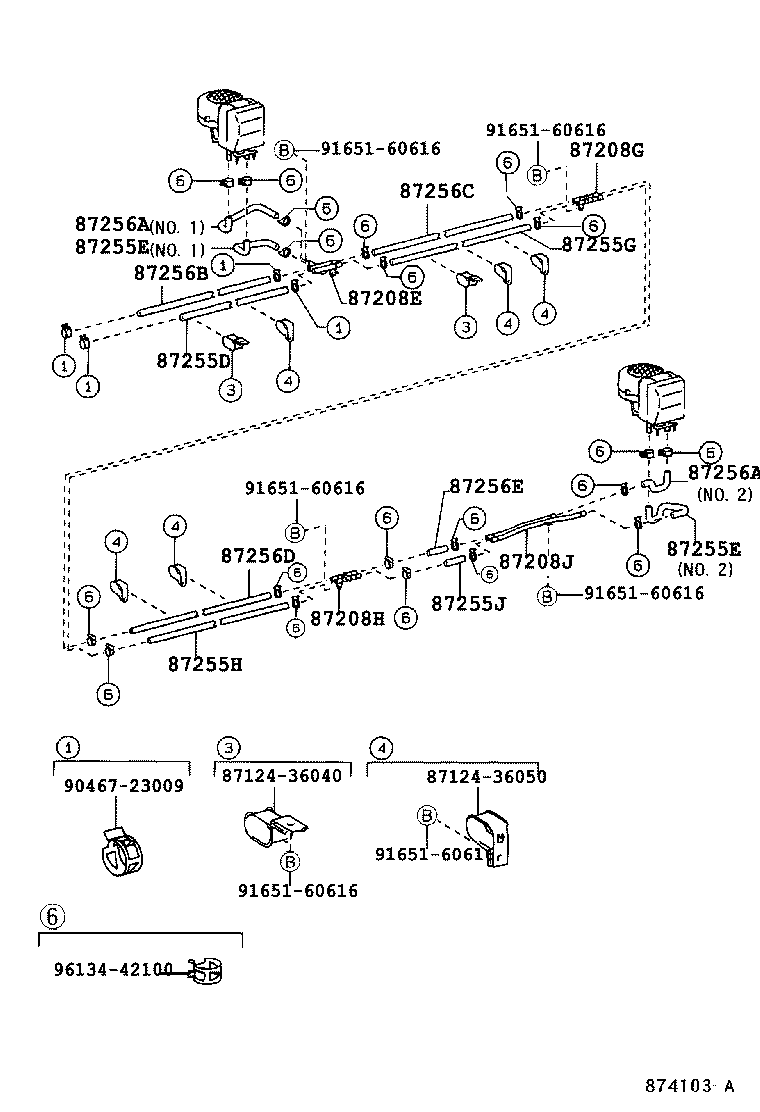

87256A Hose, Rear Heater Water Outlet, A (FROM HEATER UNIT)
87256B Hose, Rear Heater Water Outlet, B
87256C Hose, Rear Heater Water Outlet, C
87256D Hose, Rear Heater Water Outlet, D
87256E Hose, Rear Heater Water Outlet, E (TO ENGINE)
87256G Hose, Rear Heater Water Outlet, G
87256J Hose, Rear Heater Water Outlrt, J
87256K Hose, Rear Heater Water Outlet, K
87256L Hose, Rear Heater Water Outlet, L
87260 Pump Assy, Heater
87387 Wire, Blower Motor Lead
87452F Bracket, Power Heater, NO.3
87452G Bracket, Rear Heater, NO.1
87452H Bracket, Rear Heater, NO.2
87452J Bracket, Rear Heater Pipe, NO.1
87452K Bracket, Rear Heater Pipe, NO.2
87452L Bracket, Rear Heater Pipe, NO.3
