Toyota Coaster
2017-01 → present · chassis GDB1#,60,70,80,XZB60,70,80 · catalogue 811140 · Japan
Supported model
Data version 2023-05
Inside Trim Board
120 part groups · 22 illustrations

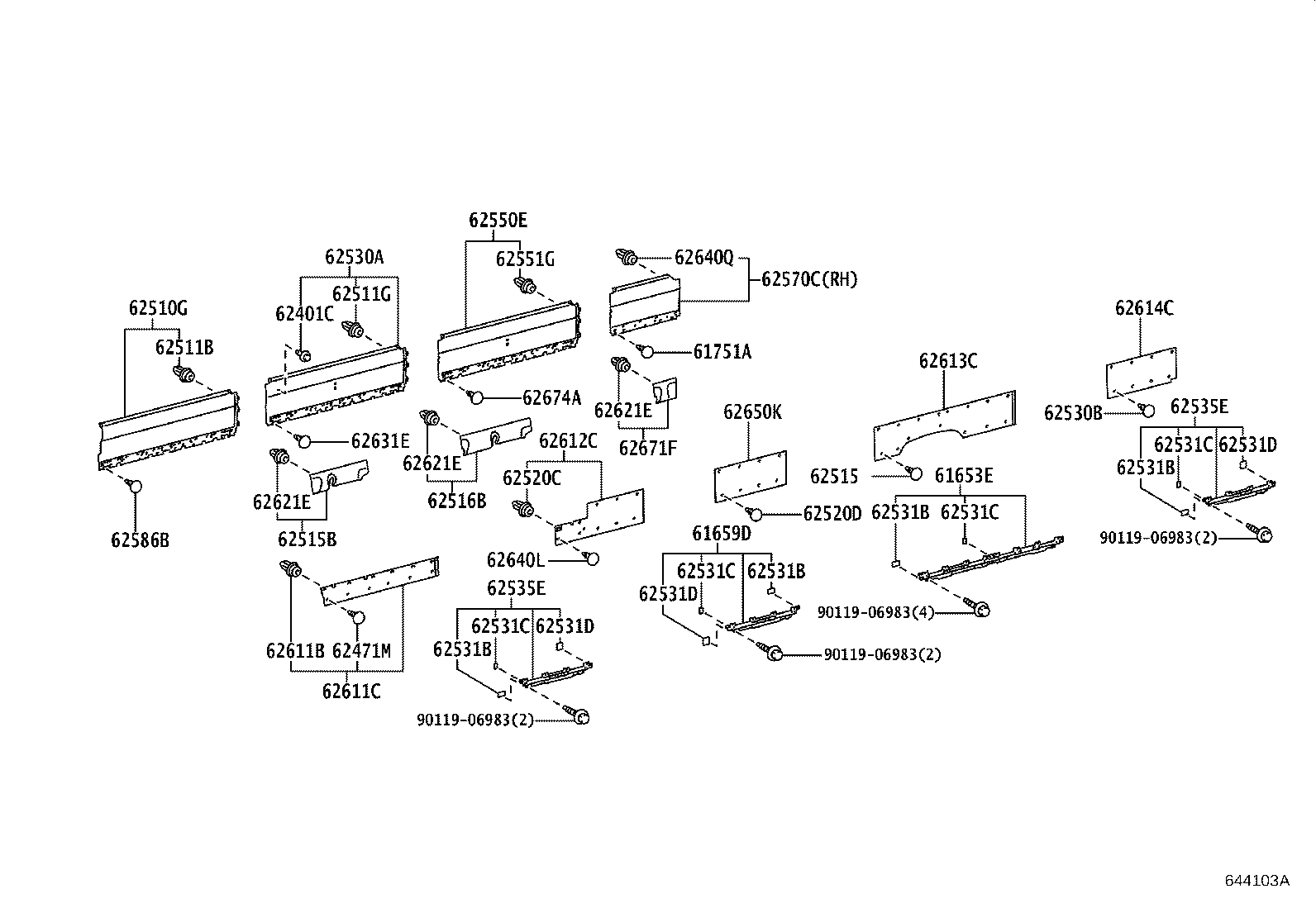

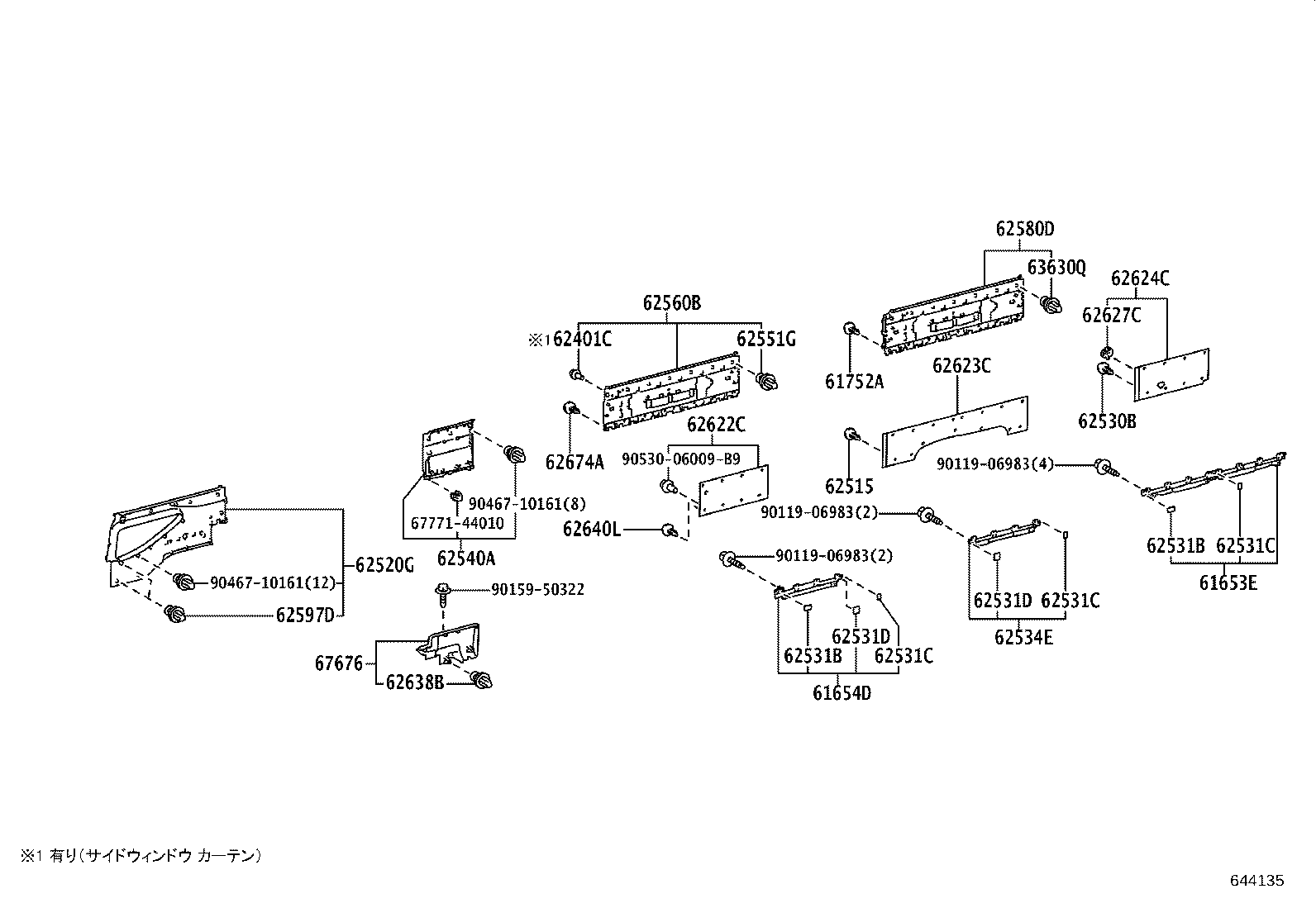

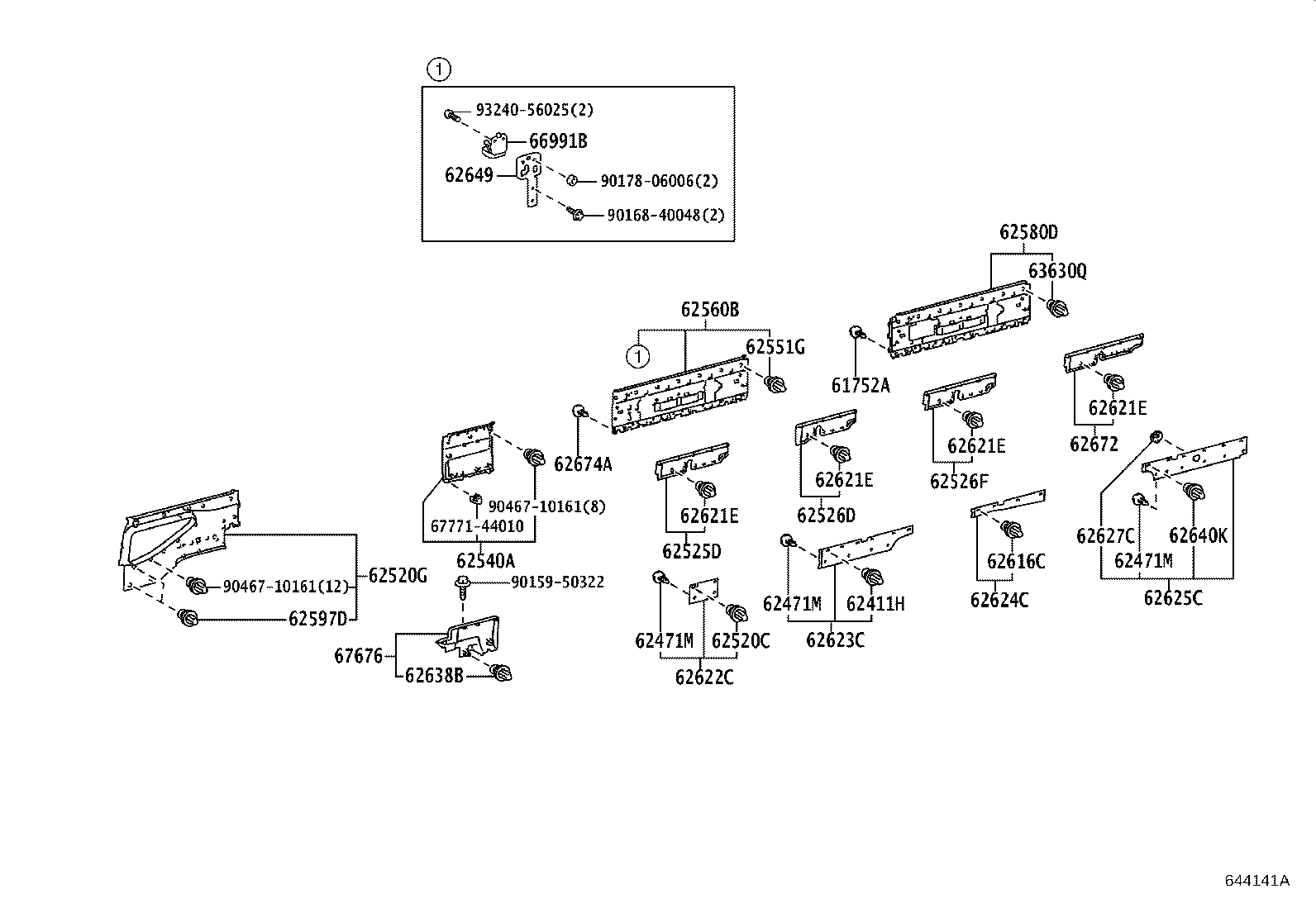

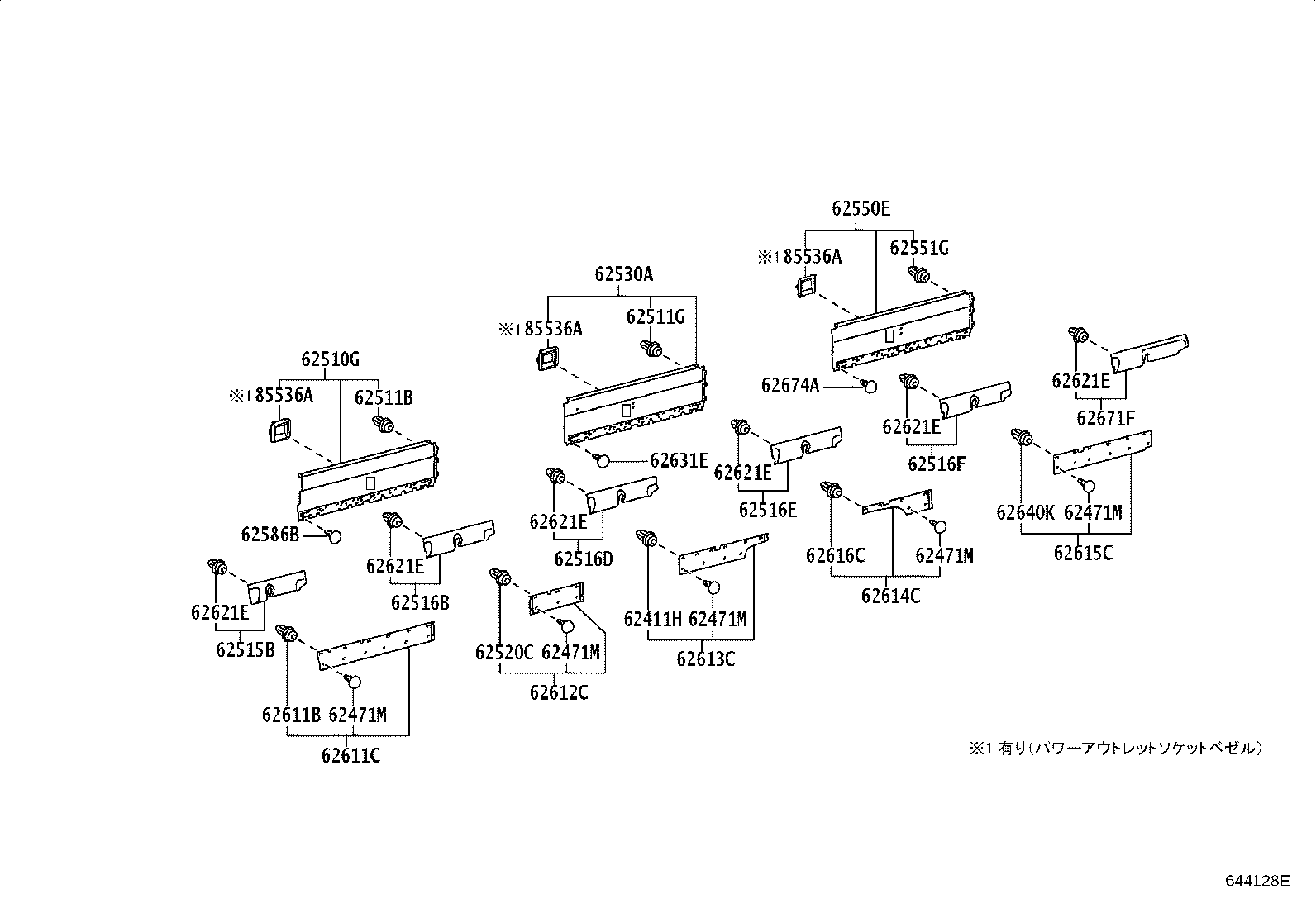

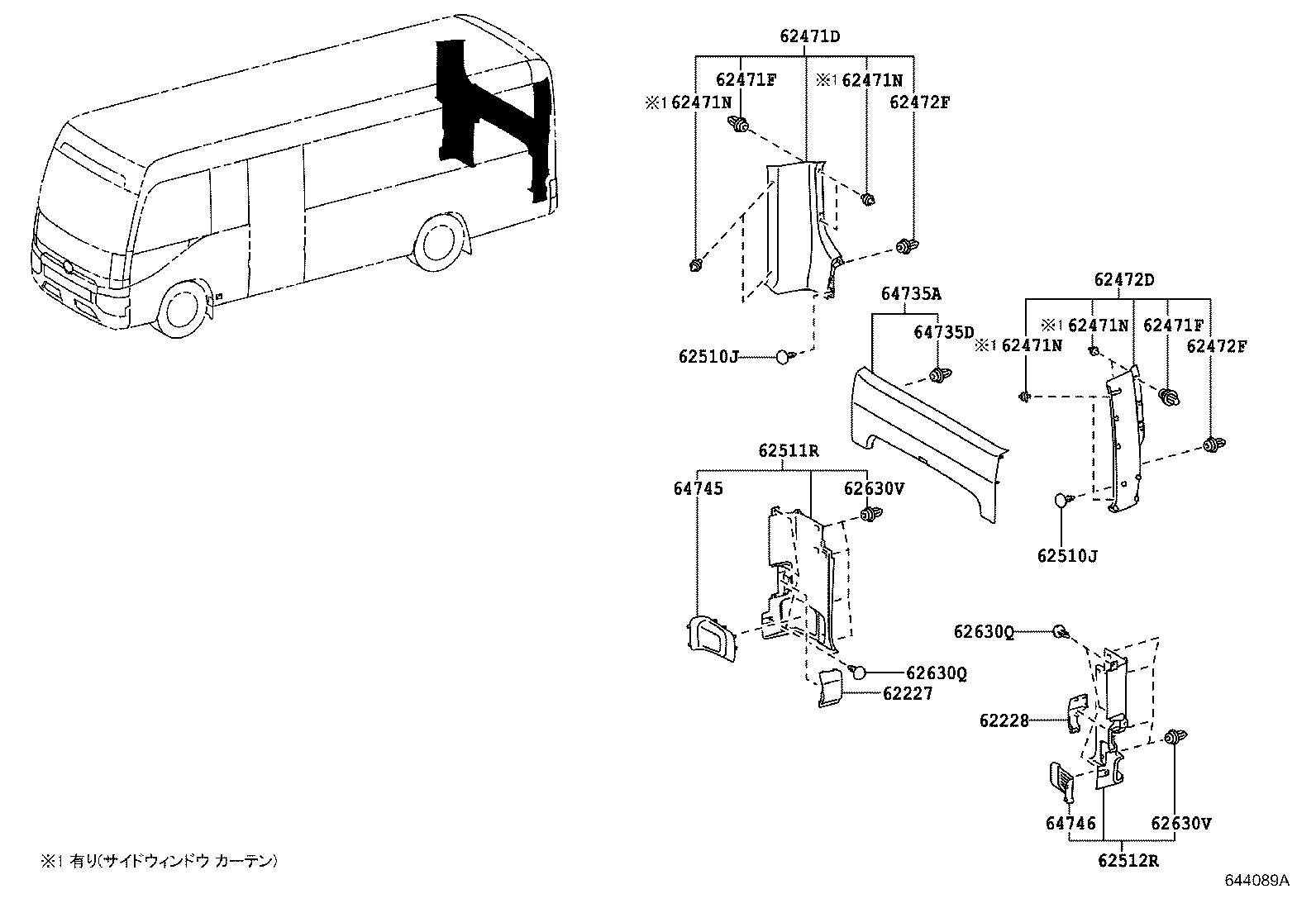

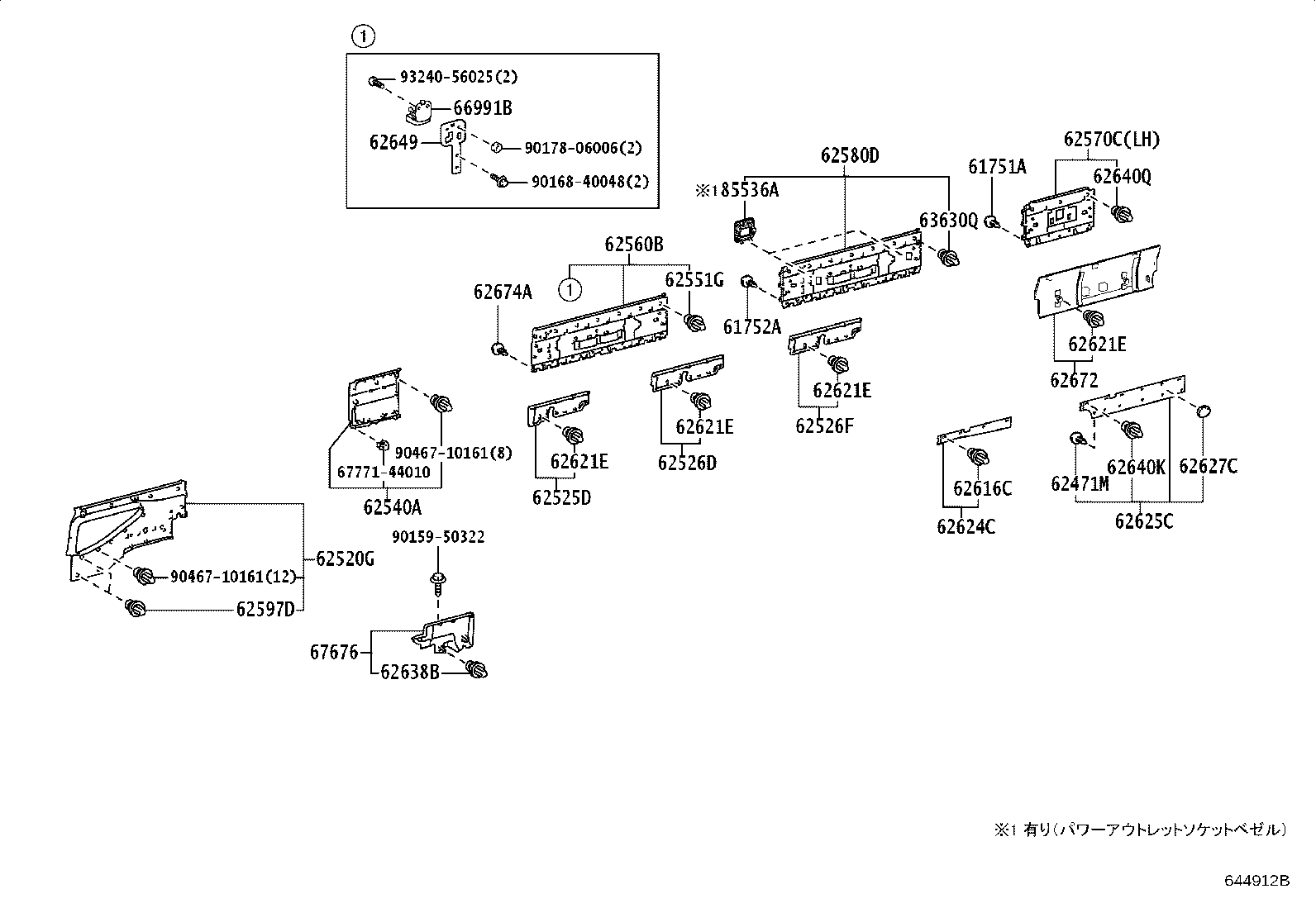

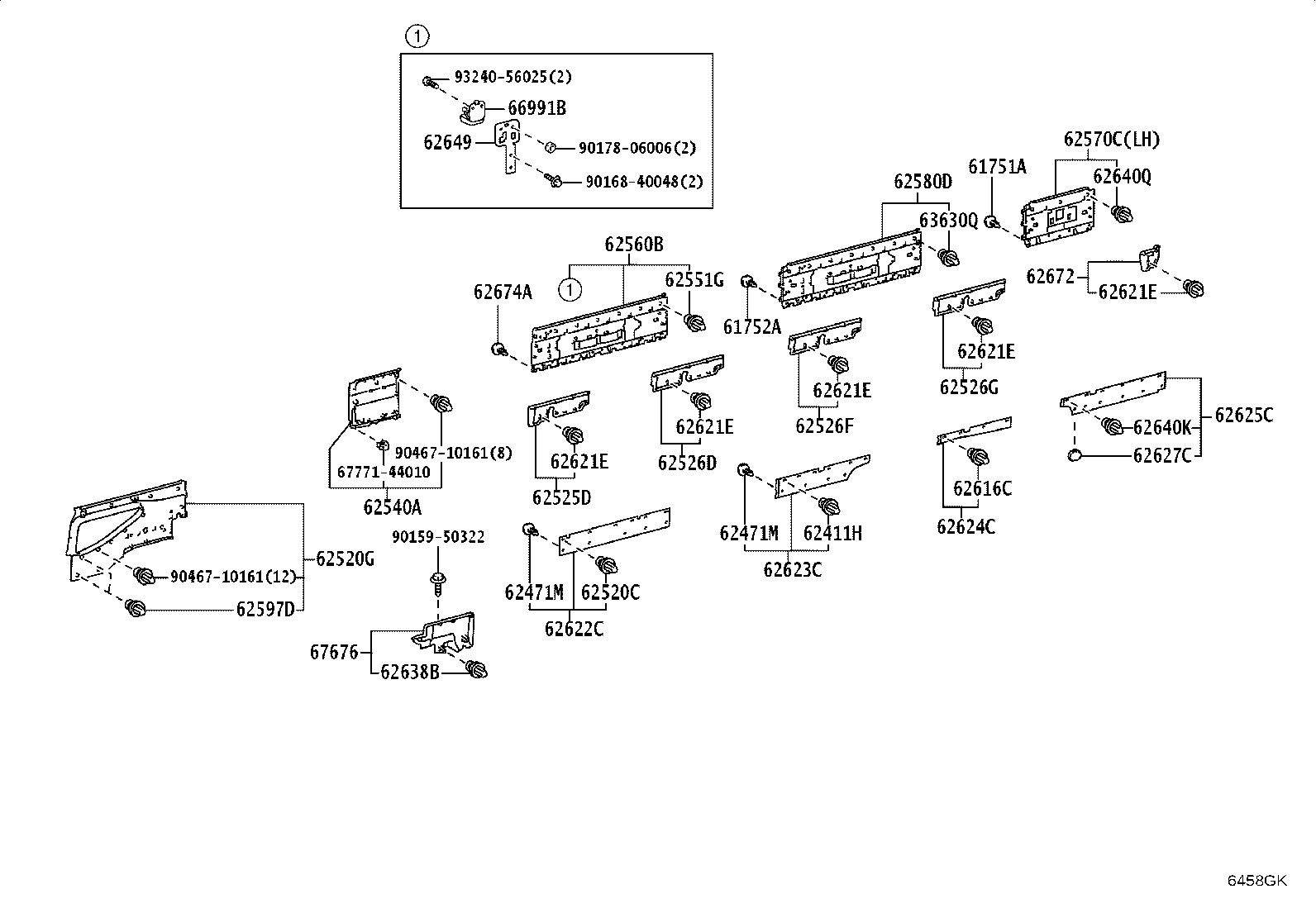

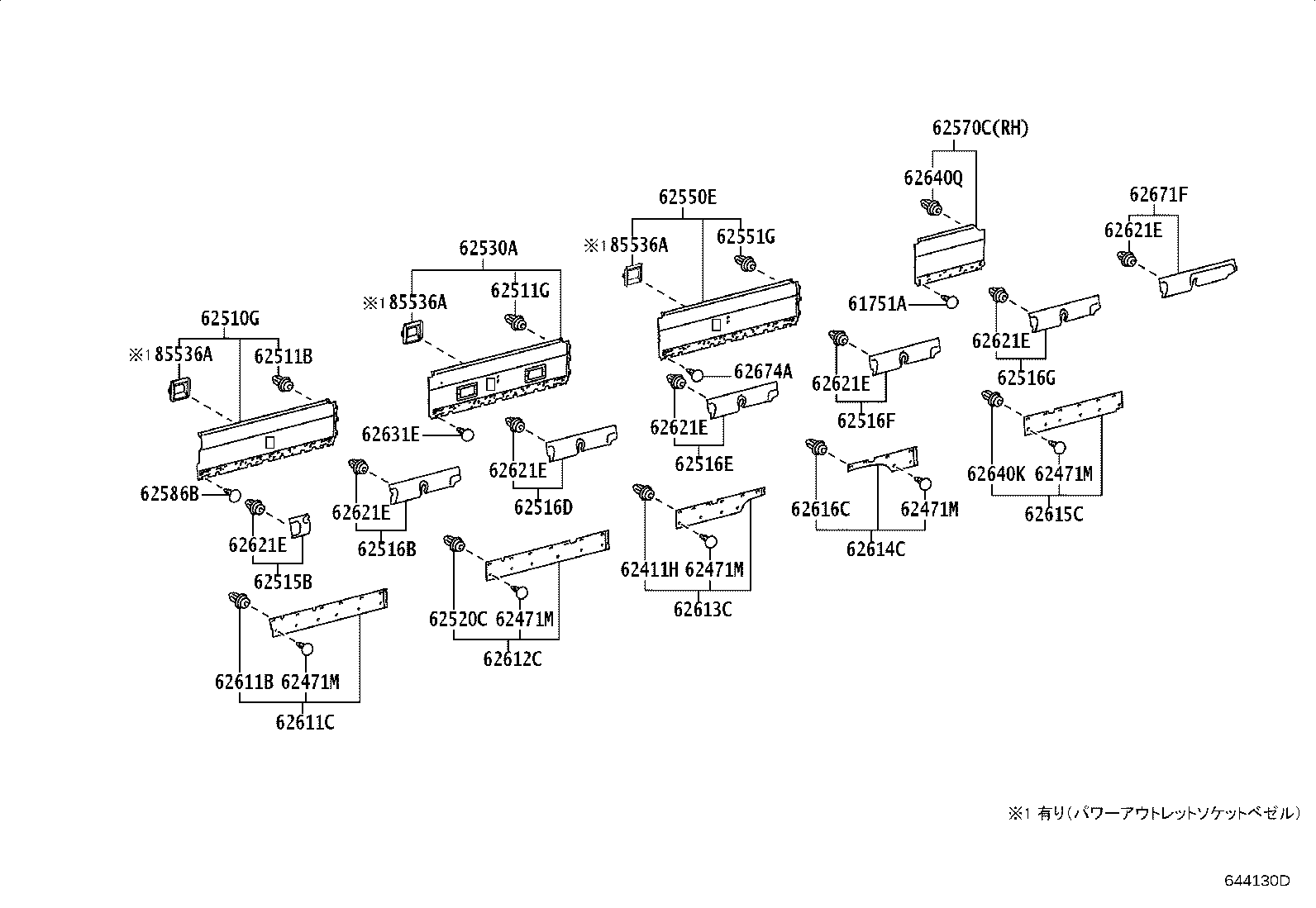

Illustrations
Part groups
| PNC | Description |
|---|---|
| 61653C | Bracket, Deck Side Trim, RH |
| 61653E | Bracket, Deck Side Trim |
| 61654D | Bracket, Deck Side Trim, NO.2 |
| 61659D | Bracket, Deck Side Trim Lower, NO.3 |
| 61751A | Retainer, Quarter Trim, RH |
| 61752A | Retainer, Quarter Trim, LH |
| 62111E | Retainer, Cowl Side Trim |
| 62211 | Garnish, Front Pillar, RH |
| 62212 | Garnish, Front Pillar, LH |
| 62217G | Clip, Front Pillar Garnish |
| 62227 | Cover, Quarter Pillar, Lower, RH |
| 62228 | Cover, Quarter Pillar, Lower LH |
| 62401B | Fastener, Hook |
| 62401C | Fastener, Hook |
| 62411H | Clip |
| 62411J | Fastener(FOR CENTER PILLAR GARNISH) |
| 62413A | Garnish, Center Pillar, Lower RH |
| 62413C | Clip (FOR CENTER LOWER GARNISH) |
| 62425 | Cover, Center Pillar Garnish |
| 62457 | Cover, Roof Side Rail Garnish |
| 62471D | Garnish, Rear Pillar, Upper RH |
| 62471F | Clip (FOR ROOF SIDE, INNER UPPER GARNISH) |
| 62471M | Clip |
| 62471N | Fastener(FOR REAR PILLAR GARNISH) |
| 62472D | Garnish, Rear Pillar, Upper LH |
| 62472F | Clip(FOR REAR PILLAR GARNISH) |
| 62487A | Cover, Roof Side Inner Garnish, RH |
| 62488A | Cover, Roof Side Inner Garnish, LH |
| 62508B | Clip |
| 62510G | Trim Assy, Side NO.1, RH |
| 62510J | Retainer, Quarter Trim |
| 62511B | Clip (FOR QUARTER INSIDE TRIM BOARD) |
| 62511G | Clip (FOR QUARTER INSIDE TRIM BOARD) |
| 62511R | Trim, Rear Body Inside, Rear RH |
| 62512R | Trim, Rear Body Inside, Rear LH |
| 62515 | Clip, Quarter Inside Trim |
| 62515B | Cover, Side Trim Base, NO.1 RH |
| 62516B | Cover, Side Trim Base, NO.2 RH |
| 62516D | Cover, Side Trim Base, NO.3 RH |
| 62516E | Cover, Side Trim Base, NO.4 RH |
| 62516F | Cover, Side Trim Base, NO.5 RH |
| 62516G | Cover, Side Trim Base, NO.6 RH |
| 62516H | Cover, Side Trim Base, NO.7 RH |
| 62520C | Clip, Quarter Trim Board, NO.1 |
| 62520D | Clip, Quarter Trim Board, NO.2 |
| 62520G | Trim Assy, Side NO.1, LH |
| 62525D | Cover, Side Trim Base, NO.1 LH |
| 62526D | Cover, Side Trim Base, NO.2 LH |
| 62526F | Cover, Side Trim Base, NO.3 LH |
| 62526G | Cover, Side Trim Base, NO.4 LH |
| 62526H | Cover, Side Trim Base, NO.5 LH |
| 62530A | Trim Assy, Side NO.2, RH |
| 62530B | Clip, Quarter Trim NO.1 |
| 62531B | Pad, Side Trim Base, NO.1 |
| 62531C | Pad, Side Trim Base, NO.2 |
| 62531D | Pad, Side Trim Base, NO.3 |
| 62534E | Bracket, Side Trim, NO.2 |
| 62535E | Bracket, Side Trim, NO.3 |
| 62536B | Garnish, Pillar NO.2, RH |
| 62537B | Garnish, Pillar NO.3, RH |
| 62538B | Garnish, Pillar NO.4, RH |
| 62539B | Garnish, Pillar NO.5, RH |
| 62540A | Trim Assy, Side NO.2, LH |
| 62546B | Garnish, Pillar NO.2, LH |
| 62547B | Garnish, Pillar NO.3, LH |
| 62548B | Garnish, Pillar NO.4, LH |
| 62549B | Garnish, Pillar NO.5, LH |
| 62550E | Trim Assy, Side NO.3, RH |
| 62551G | Clip |
| 62560B | Trim Assy, Side, NO.3 LH |
| 62570C | Trim Assy, Side NO.4 |
| 62573C | Fastener(FOR CENTER PILLAR GARNISH) |
| 62580D | Trim Assy, Side NO.4 LH |
| 62586A | Retainer, Quarter Trim |
| 62586B | Retainer, Quarter Trim, NO.2 |
| 62597D | Clip |
| 62611B | Clip (FOR SIDE TRIM BOARD) |
| 62611C | Board, Side Trim NO.1, RH |
| 62611E | Retainer, Door Trim |
| 62612C | Board, Side Trim NO.2, RH |
| 62613C | Board, Side Trim NO.3, RH |
| 62614C | Board, Side Trim NO.4, RH |
| 62615C | Board, Side Trim NO.5, RH |
| 62616C | Clip |
| 62621C | Board, Side Trim NO.1, LH |
| 62621E | Clip |
| 62622C | Board, Side Trim NO.2, LH |
| 62623C | Board, Side Trim NO.3, LH |
| 62624C | Board, Side Trim NO.4, LH |
| 62625C | Board, Side Trim NO.5, LH |
| 62627B | Cover, Quarter Trim |
| 62627C | Cover, Side Trim, NO.1 |
| 62630Q | Clip (FOR QUARTER TRIM) |
| 62630V | Clip (FOR QUARTER REAR TRIM) |
| 62631E | Retainer, Quater Trim |
| 62638A | Garnish, Quarter Pillar, RH |
| 62638B | Clip |
| 62639A | Garnish, Quarter Pillar, LH |
| 62640K | Clip(FOR QUARTER TRIM REAR PANEL) |
| 62640L | Clip(FOR QUARTER TRIM) |
| 62640Q | Clip (FOR QUARTER TRIM REAR PANEL) |
| 62649 | Bracket, Side Trim |
| 62650K | Board Assy, Side Trim, NO.3 RH |
| 62671F | Cover, Side Trim Board, NO.1 RH |
| 62672 | Cover, Side Trim Board, NO.1 LH |
| 62674A | Retainer, Quarter Trim Set |
| 62989 | Cover, Center Door Lock |
| 63630Q | Clip |
| 63951 | Cover, Cooler Pipe |
| 63951A | Clip(FOR COOLER PIPE COVER) NO.1 |
| 64342A | Clip |
| 64735A | Garnish, Center Back Rail Inner |
| 64735D | Clip(FOR CENTER BACK RAIL INNER GARNISH) |
| 64745 | Cover, Rear Combination Lamp Service, RH |
| 64746 | Cover, Rear Combination Lamp Service, LH |
| 66991B | Holder, Cup, NO.1 |
| 67676 | Cover, Side Trim Board, Front LH |
| 67745A | Moulding, Center Door Trim |
| 67771H | Retainer, Door Trim |
| 85536A | Bezel, Power Outlet Socket |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
