Toyota Coaster

2017-01 → present · chassis GDB1#,60,70,80,XZB60,70,80 · catalogue 811140 · Japan

Supported model Data version 2023-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Room Curtain & Room Rack

20 part groups · 8 illustrations

Illustrations

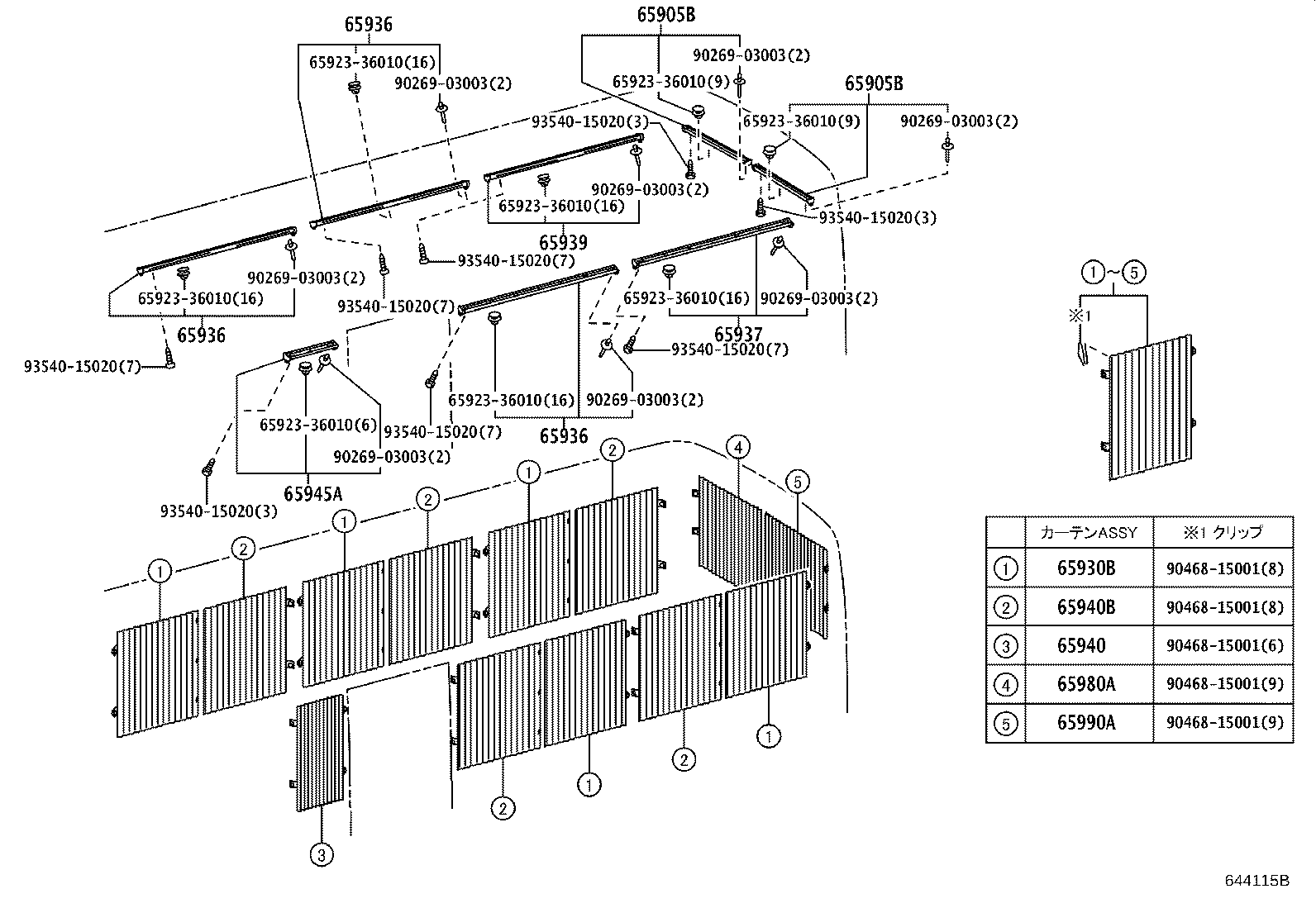

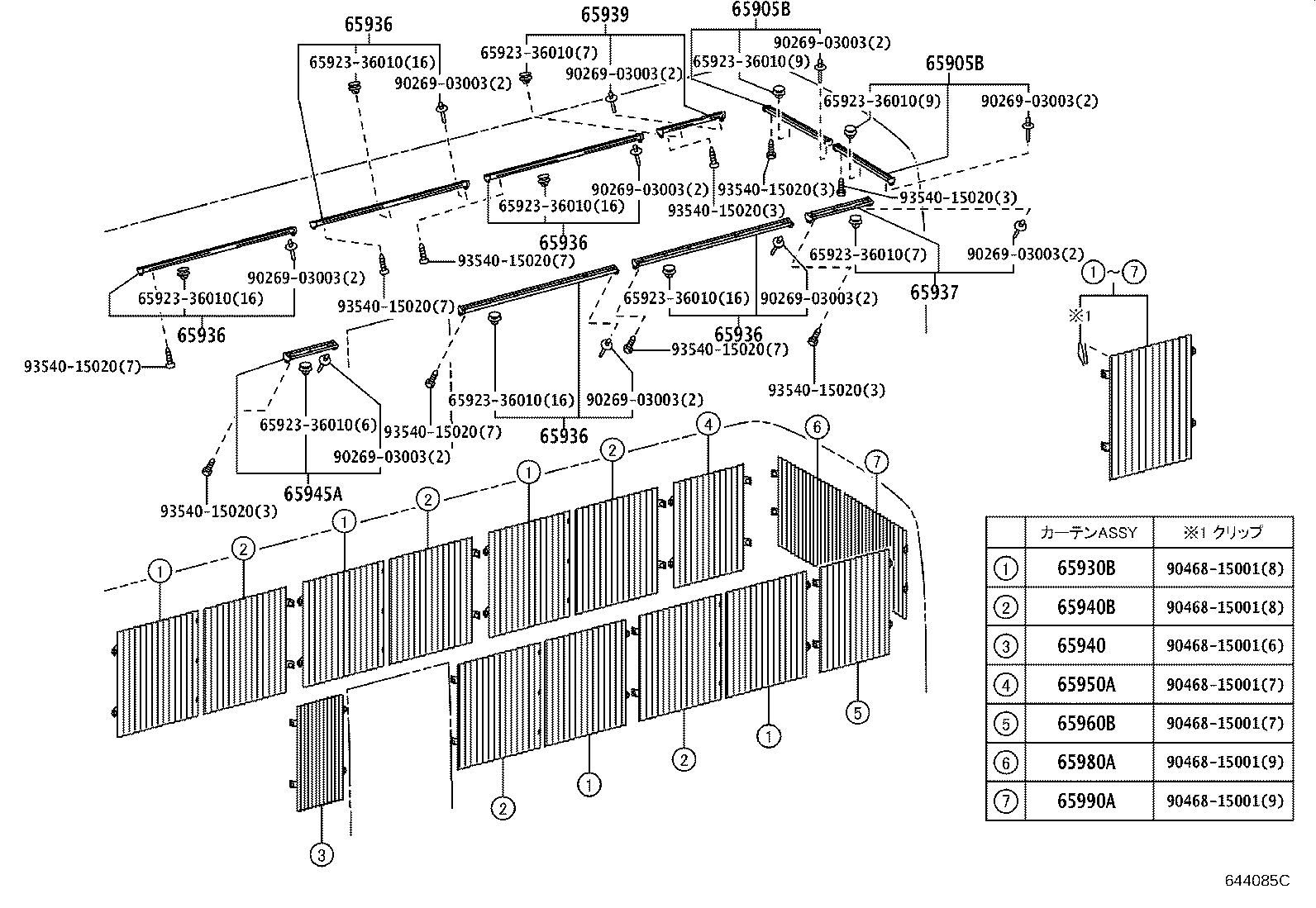

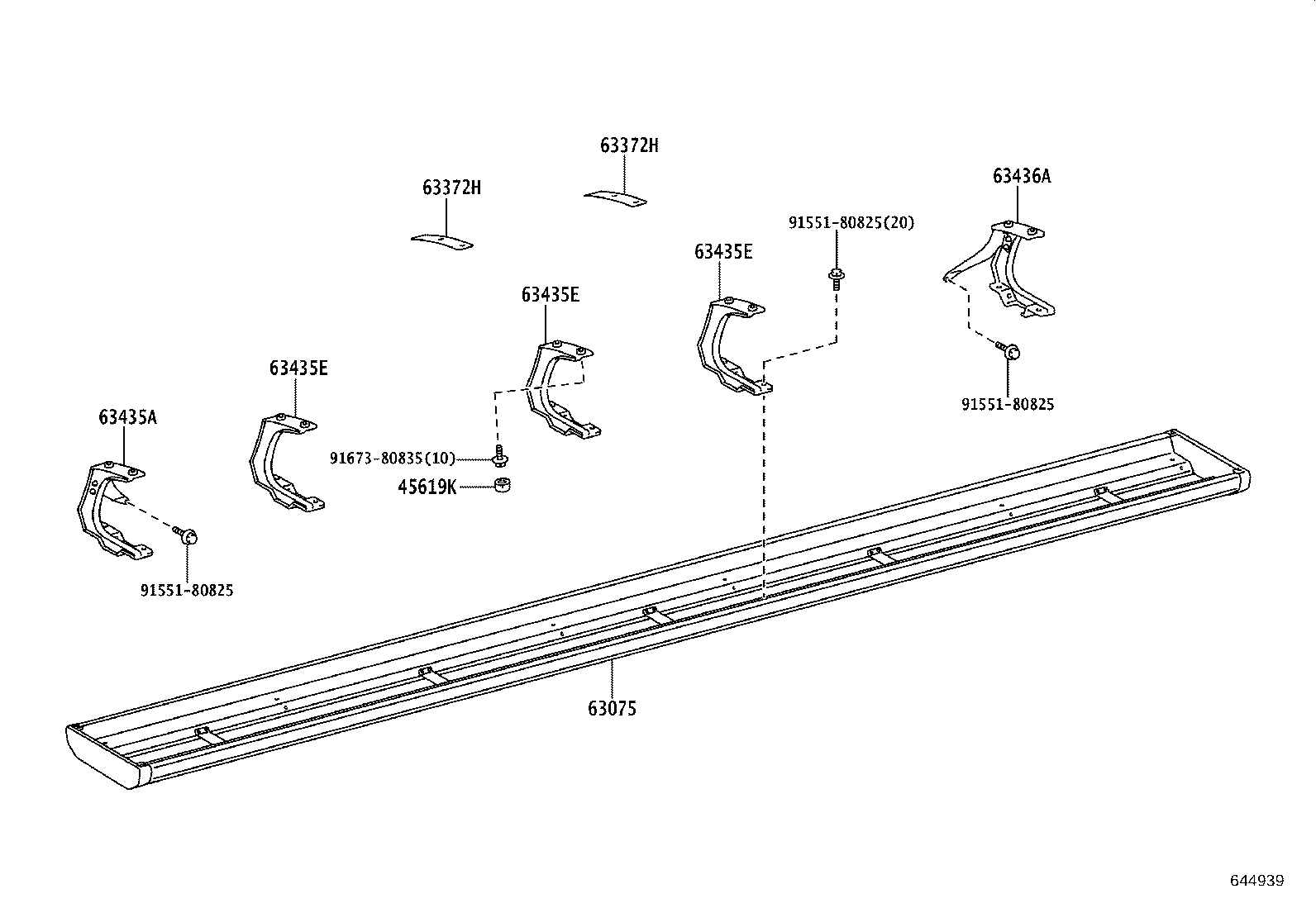

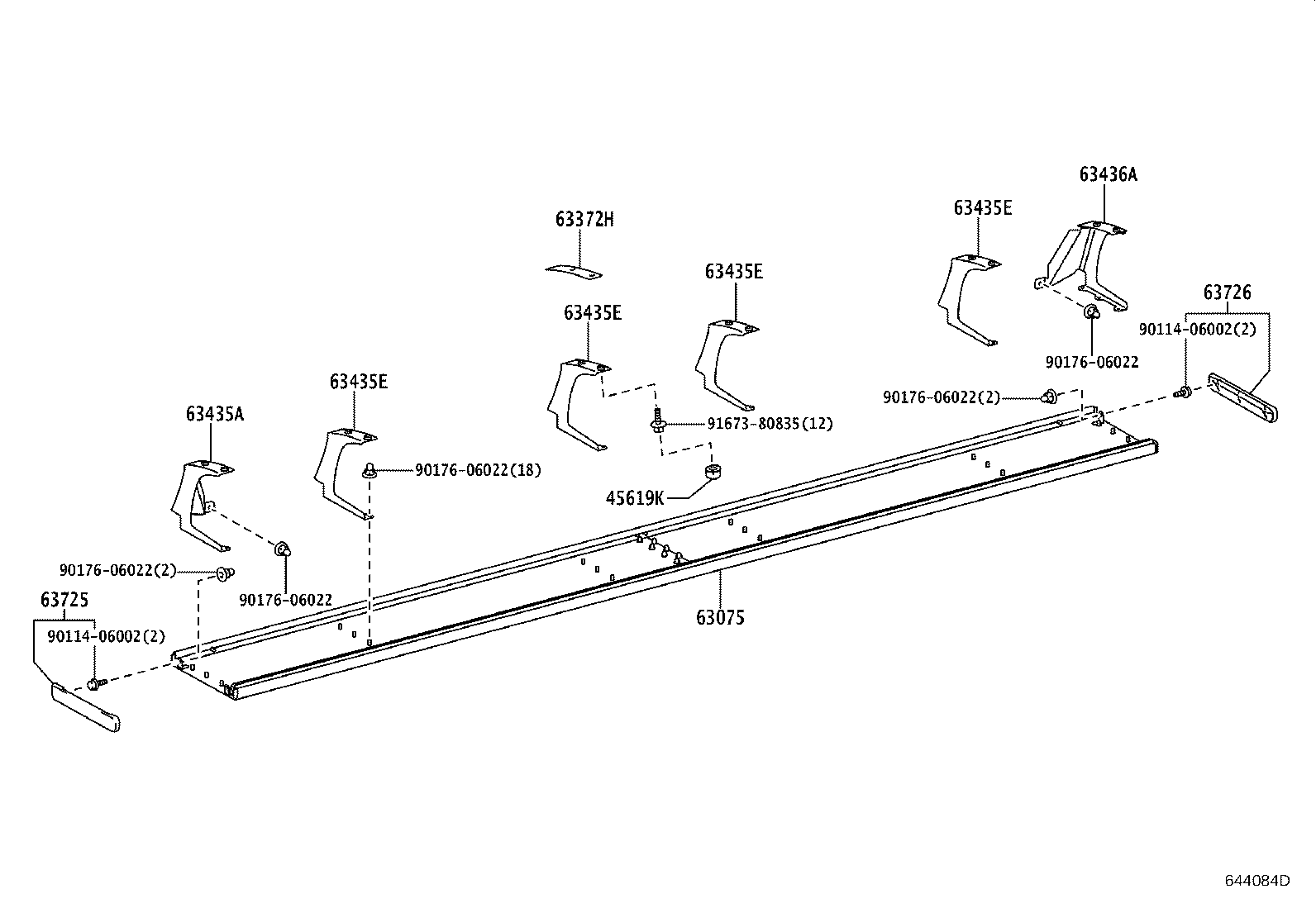

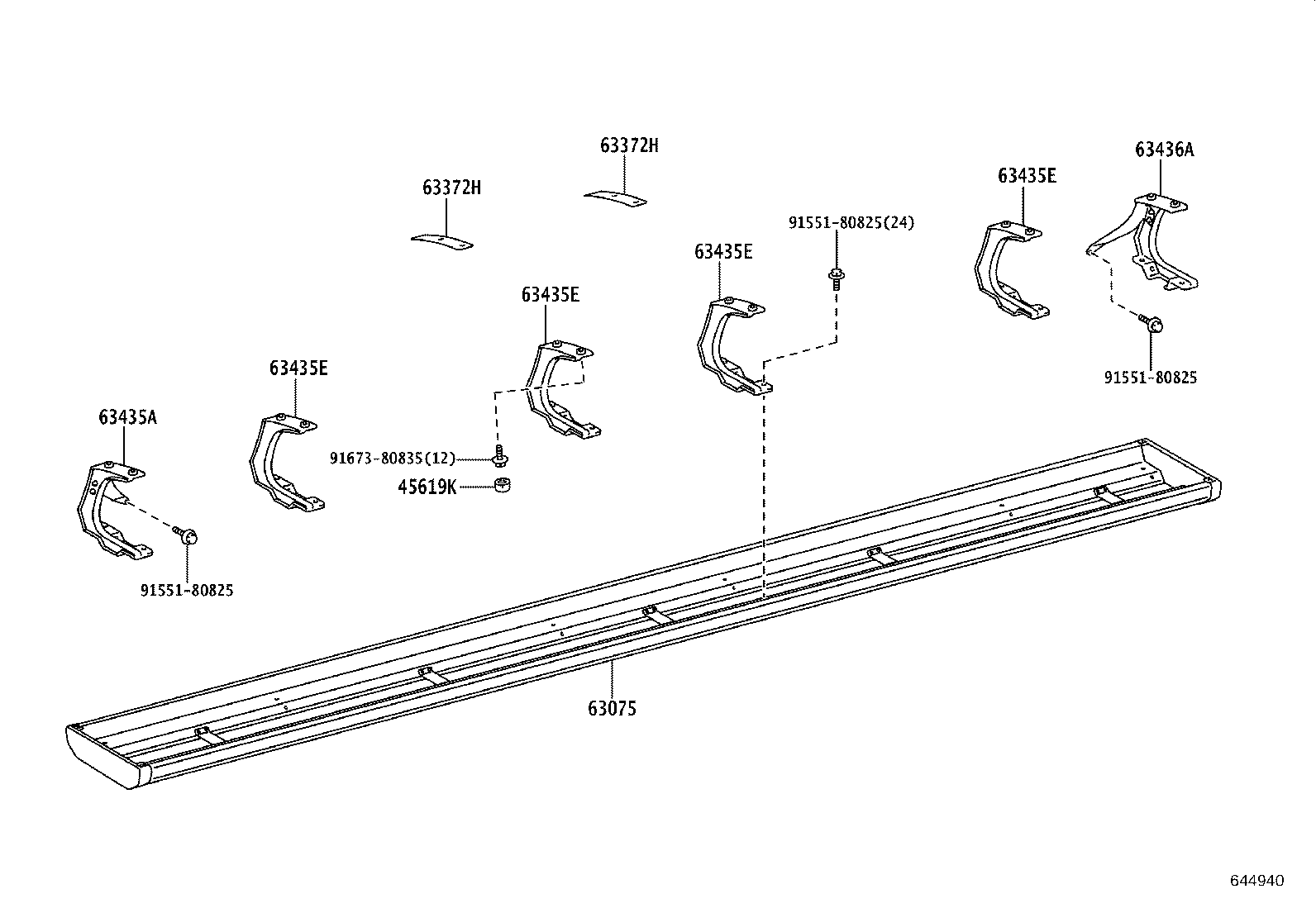

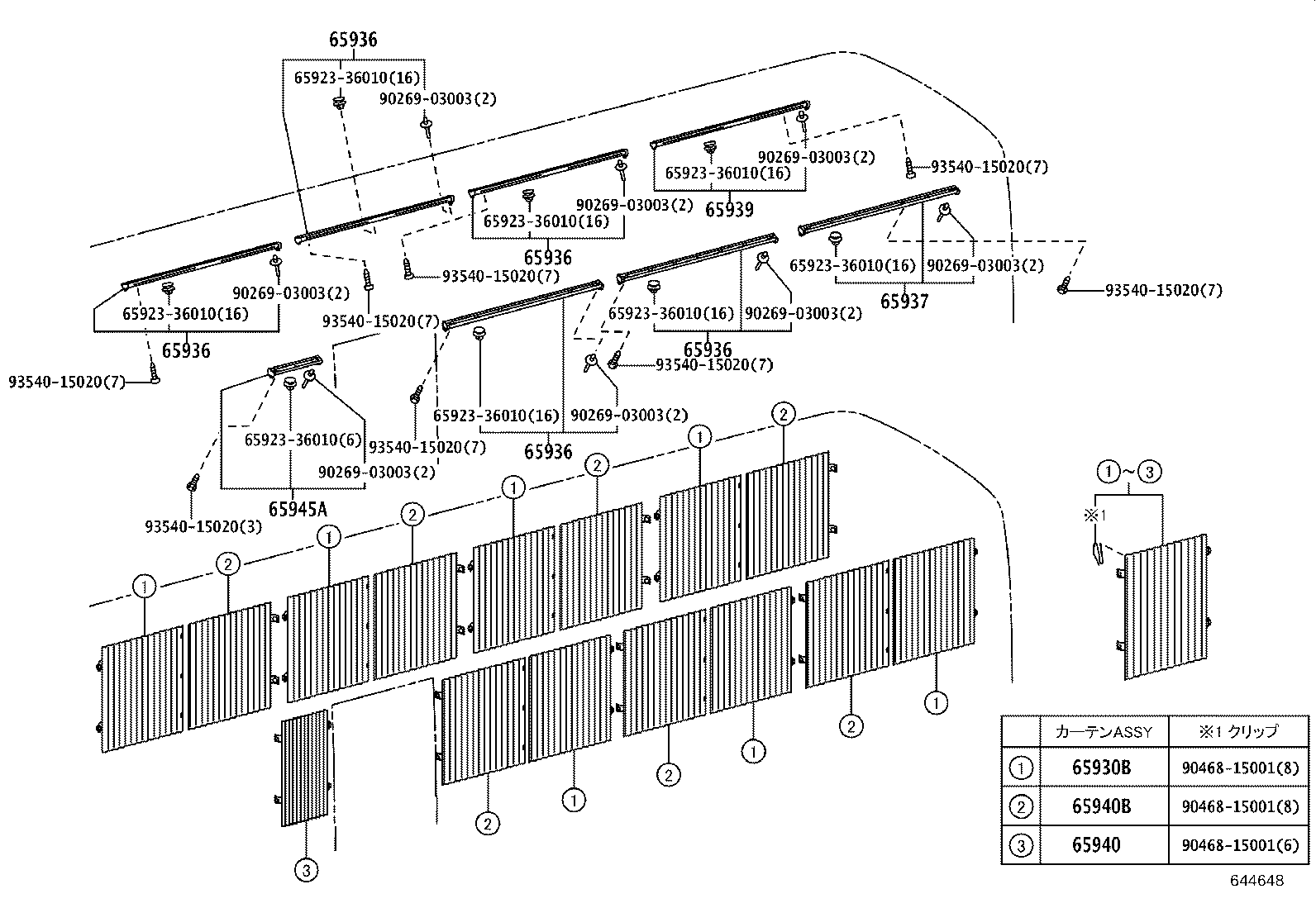

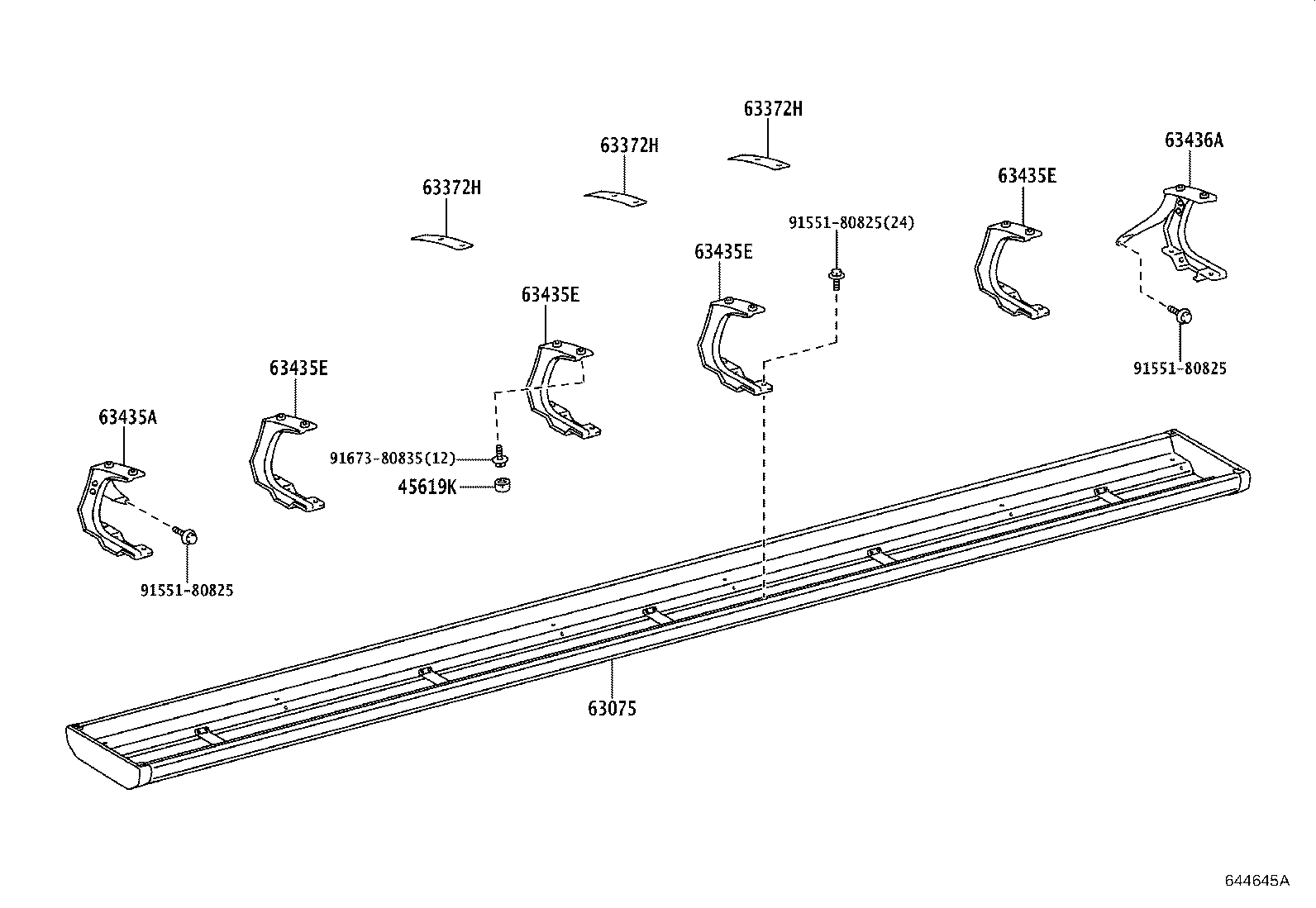

Figure 644112D 644112D 2017-01 → 2019-08 Figure 644939 644939 2019-08 → — Figure 644084D 644084D 2017-01 → 2019-08 Figure 644940 644940 2019-08 → — Figure 644645A 644645A 2019-08 → — Figure 644115B 644115B 2017-01 → — Figure 644085C 644085C 2017-01 → — Figure 644648 644648 2019-08 → —

Part groups

PNCDescription
45619K Cover, Knuckle Stopper
63075 Cover Sub-assy, Room Rack
63372H Moulding, Roof Board Set
63435A Frame, Room Rack, NO.1
63435E Frame, Room Rack, NO.1
63436A Frame, Room Rack, NO.2
63725 Plate, Room Rack Cover, Front
63726 Plate, Room Rack Cover, Rear
65905B Rail Sub-assy, Window Curtain
65930B Curtain Assy, Side Window, Front RH
65936 Rail, Curtain, NO.1
65937 Rail, Curtain, NO.2
65939 Rail, Curtain, NO.4
65940 Curtain Assy, Side, Front RH
65940B Curtain Assy, Side Window, Front LH
65945A Rail, Curtain, NO.5
65950A Curtain Assy, Side Window, Rear RH
65960B Curtain Assy, Side Window, Rear LH
65980A Curtain Assy, Back Window, RH
65990A Curtain Assy, Back Window, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
