Toyota Deliboy

1989-07 → 1995-11 · chassis KXC10,CXC10 · catalogue 831110 · Japan

Discontinued model Data version 1996-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

12 part groups · 2 illustrations

Illustrations

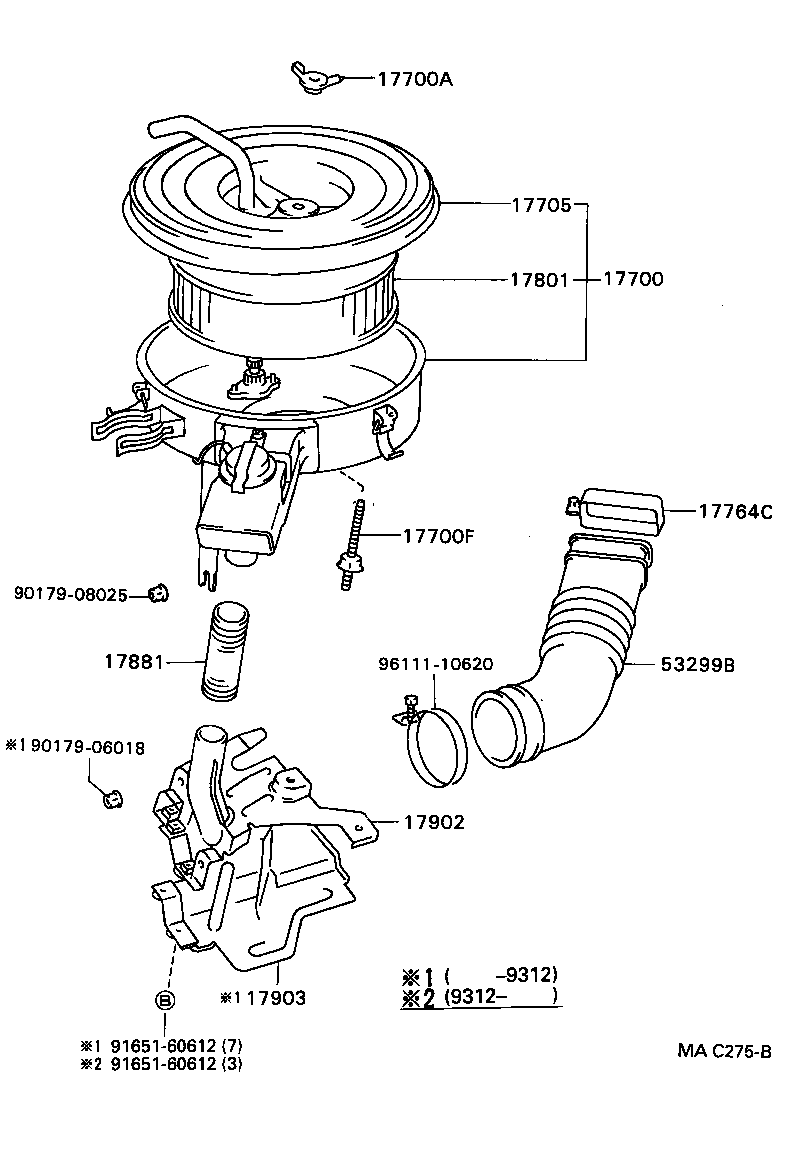

Figure MAE583 MAE583 1991-05 → 1994-09 Figure MAC275B MAC275B 1989-07 → —

Part groups

PNCDescription
17700 Cleaner Assy, Air
17700A Nut, Wing(FOR AIR CLEANER)
17700F Bolt, Stud(FOR AIR CLEANER SETTING)
17705 Cap Sub-assy, Air Cleaner
17764C Clamp, Hose(FOR AIR CLEANER DUCT)
17801 Element Sub-assy, Air Cleaner Filter
17881 Hose, Air Cleaner, NO.1
17881A Clamp(FOR AIR CLEANER HOSE, NO.1)
17894A Resonator, Intake Air, NO.2
17902 Inlet Sub-assy, Hot Air Intake, NO.1
17903 Inlet Sub-assy, Hot Air Intake, NO.2
53299B Duct, Cool Air Intake
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
