Toyota Pixis Van

2011-12 → present · chassis S321M,S331M · catalogue 894110 · Japan

Supported model Data version 2020-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

9 part groups · 2 illustrations

Illustrations

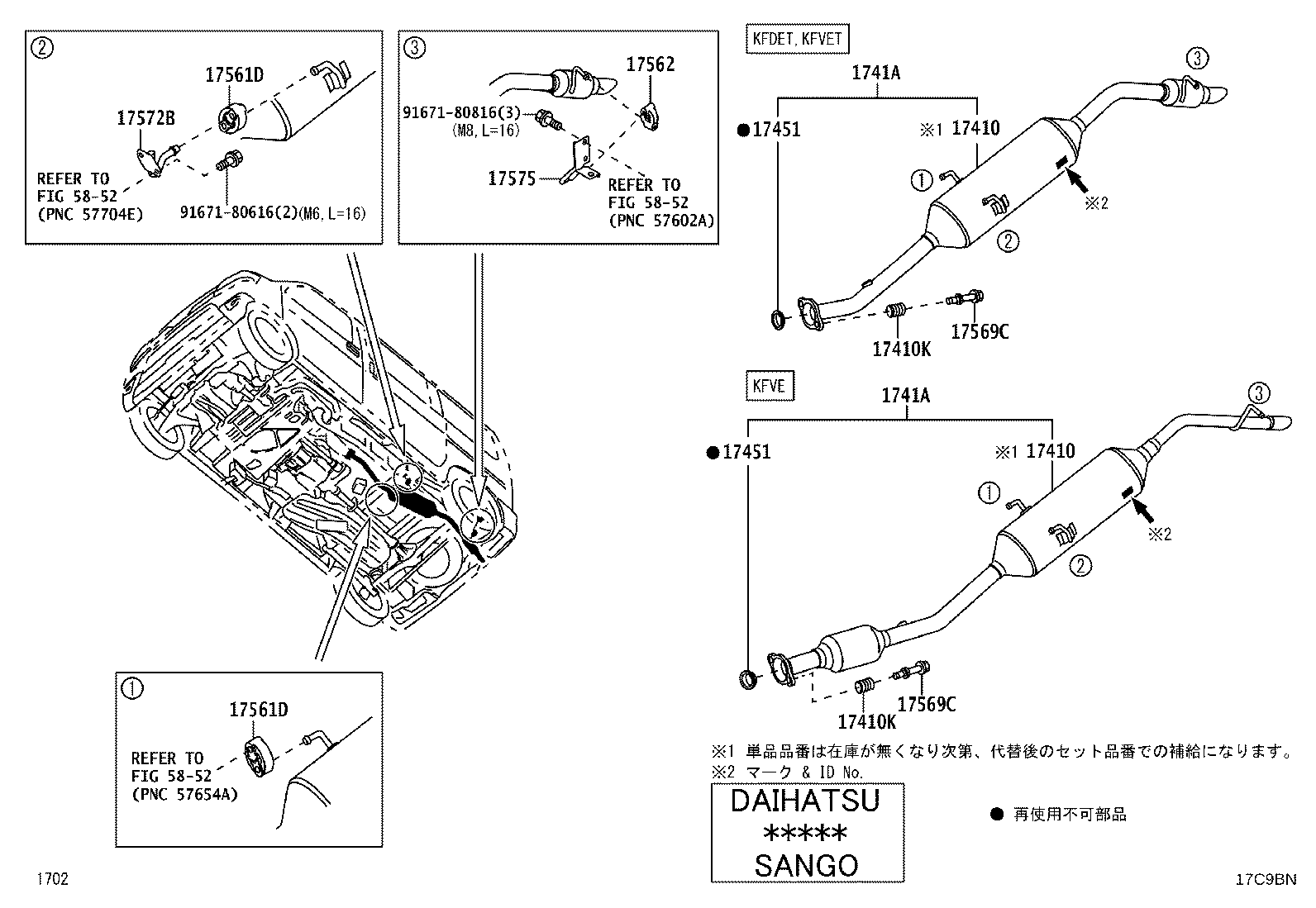

Figure 177459F 177459F 2011-12 → 2017-11 Figure 17C9BN 17C9BN 2017-11 → —

Part groups

PNCDescription
17410 Pipe Assy, Exhaust, Front
17410K Spring, Exhaust Pipe
1741A Pipe Set, Exhaust
17451 Gasket, Exhaust Pipe
17561D Support, Exhaust Pipe, NO.1
17562 Support, Exhaust Pipe, NO.2
17569C Bolt, Exhaust Pipe Support
17572B Bracket, Exhaust Pipe Support, NO.2
17575 Bracket, Exhaust Pipe Support, NO.5
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
