Toyota Pixis Van

2011-12 → present · chassis S321M,S331M · catalogue 894110 · Japan

Supported model Data version 2020-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Booster & Vacuum Tube

12 part groups · 8 illustrations

Illustrations

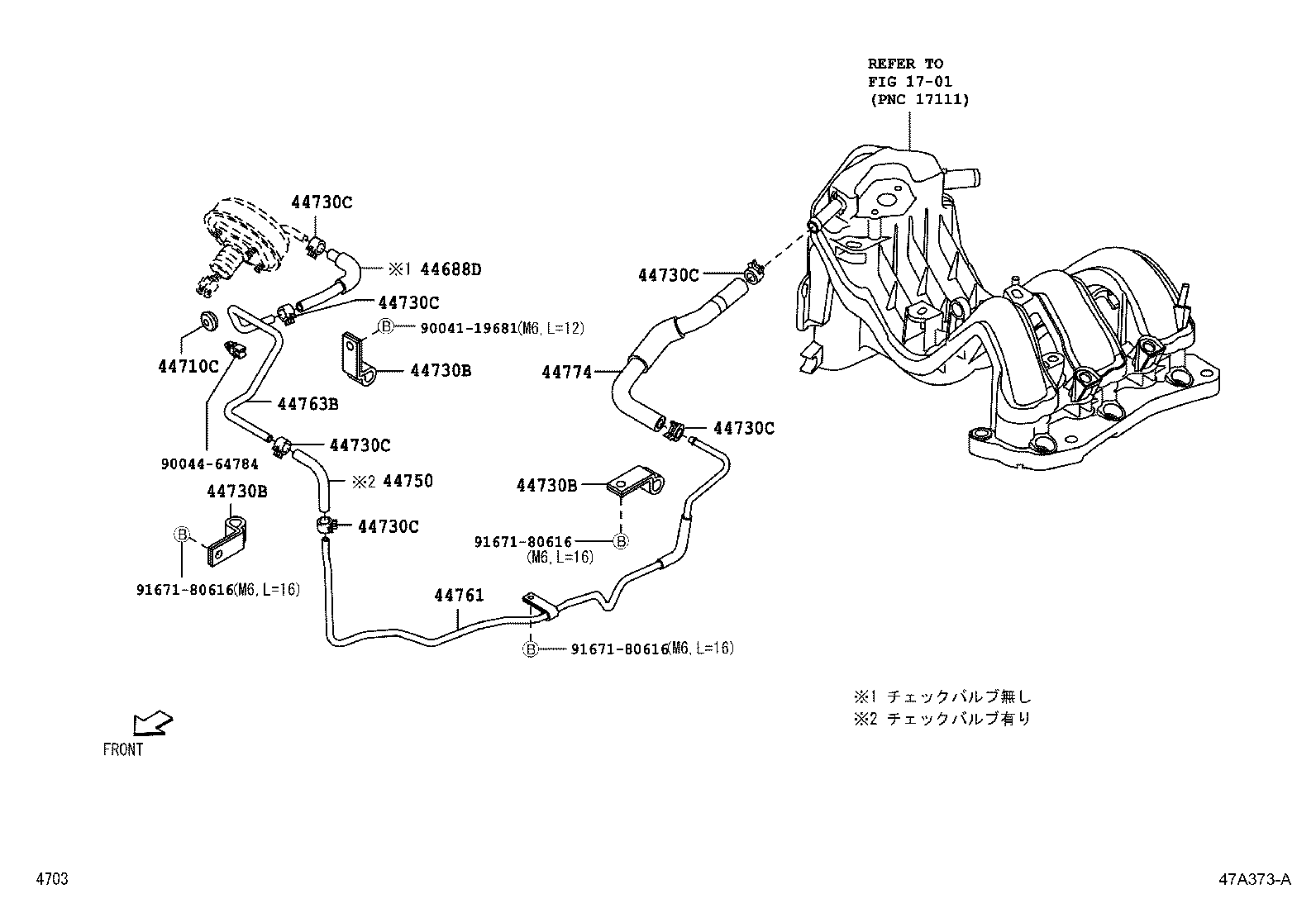

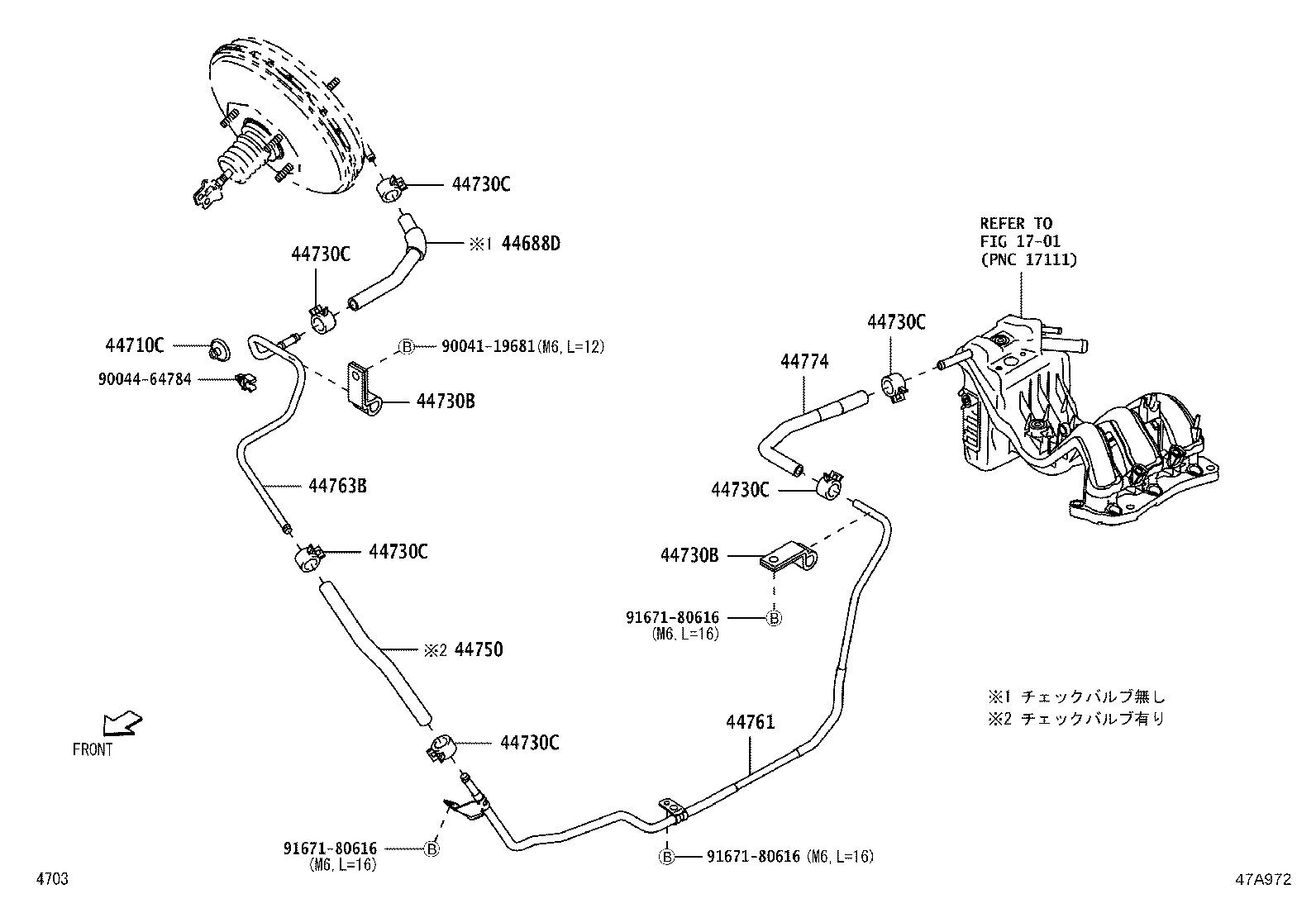

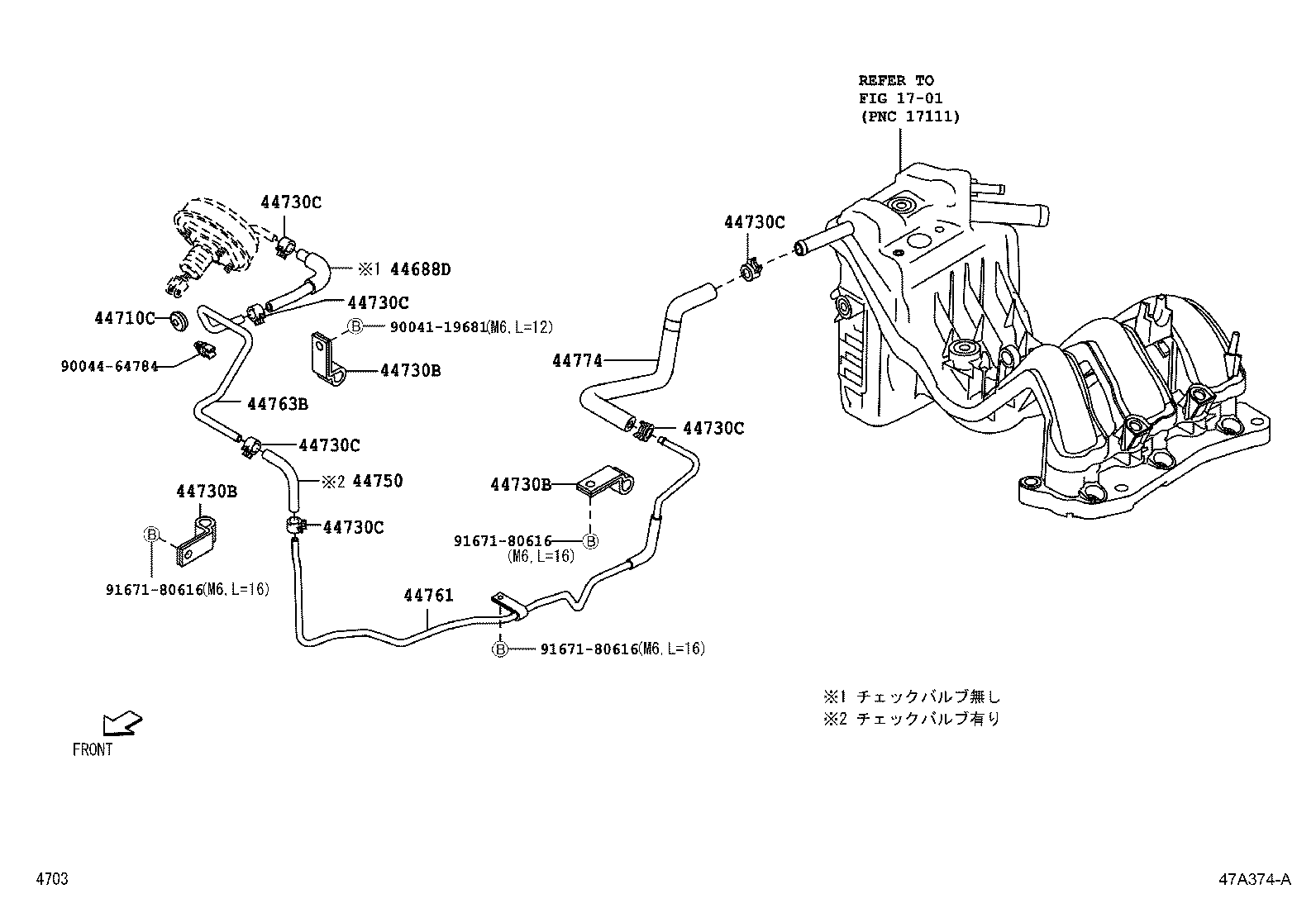

Figure 47A371C 47A371C 2011-12 → 2012-12 Figure 47A372A 47A372A 2011-12 → 2015-04 Figure 47A372A 47A372A 2012-12 → 2015-04 Figure 47A372A 47A372A 2015-04 → 2017-11 Figure 47E6CX 47E6CX 2017-11 → — Figure 47A373A 47A373A 2011-12 → 2015-04 Figure 47A374A 47A374A 2015-04 → 2017-11 Figure 47A972 47A972 2017-11 → —

Part groups

PNCDescription
44610 Booster Assy, Brake
44627C Nut, Booster Sleeve Cylinder
44688D Hose, Booster Vacuum
44710C Grommet, Booster Air Cleaner Hose
44730B Clamp, Vacuum Hose
44730C Clip(FOR VACUUM HOSE)
44750 Hose Assy, Vacuum
44761 Tube, Intake Manifold OR Vacuum Pump TO Connector
44763B Tube, Tube Connector TO Tube Connector
44774 Hose, Union TO Connector Tube
44976 Seal, Booster
47264D Clevis, Brake Master Cylinder Push Rod
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
