Toyota Pixis Van

2011-12 → present · chassis S321M,S331M · catalogue 894110 · Japan

Supported model Data version 2020-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Bumper & Bumper Stay

7 part groups · 2 illustrations

Illustrations

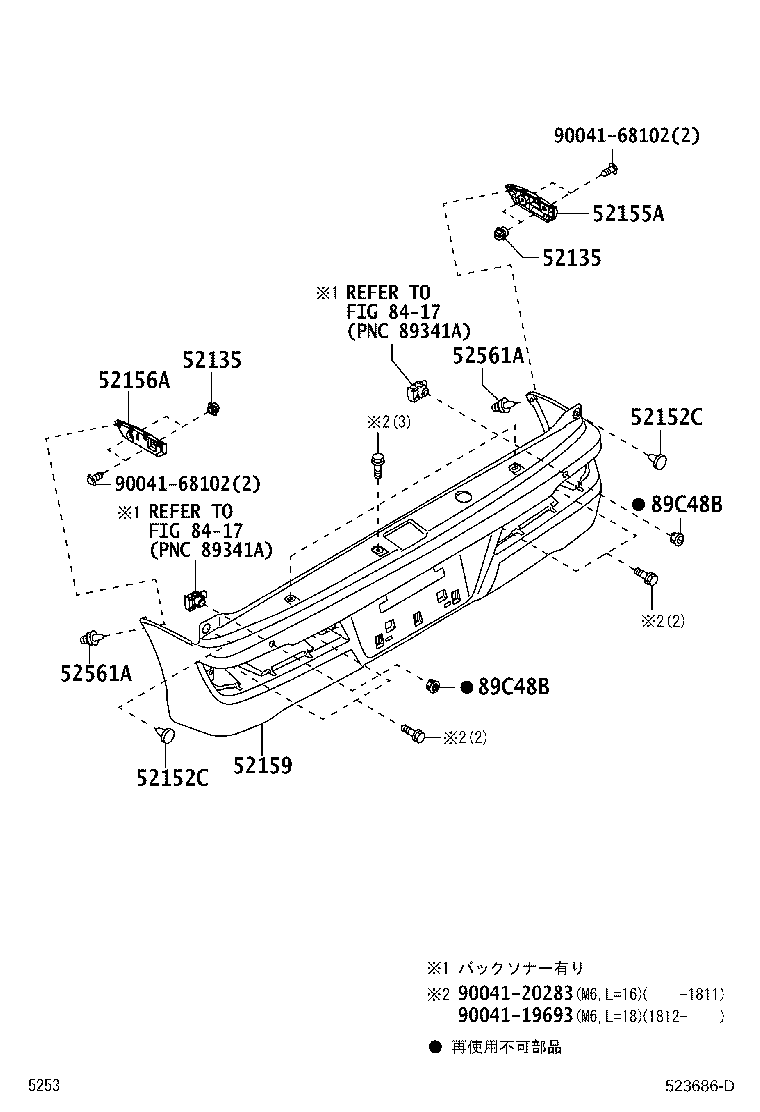

Figure 522541C 522541C 2011-12 → 2017-11 Figure 523686D 523686D 2017-11 → —

Part groups

PNCDescription
52135 Grommet, Rear Bumper Stay
52152C Clip, Rear Bumper Side
52155A Support, Rear Bumper Side, RH
52156A Support, Rear Bumper Side, LH
52159 Cover, Rear Bumper
52561A Clip(FOR REAR BUMPER RETAINER)
89C48B Retainer, Ultrasonic Sensor, Rear Center
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
