Toyota Yaris/Vios/Limo
2013-04 → present · chassis NCP15#,NSP15# · catalogue 149330 · United States
Supported model
Data version 2019-11
Alternator
26 part groups · 7 illustrations

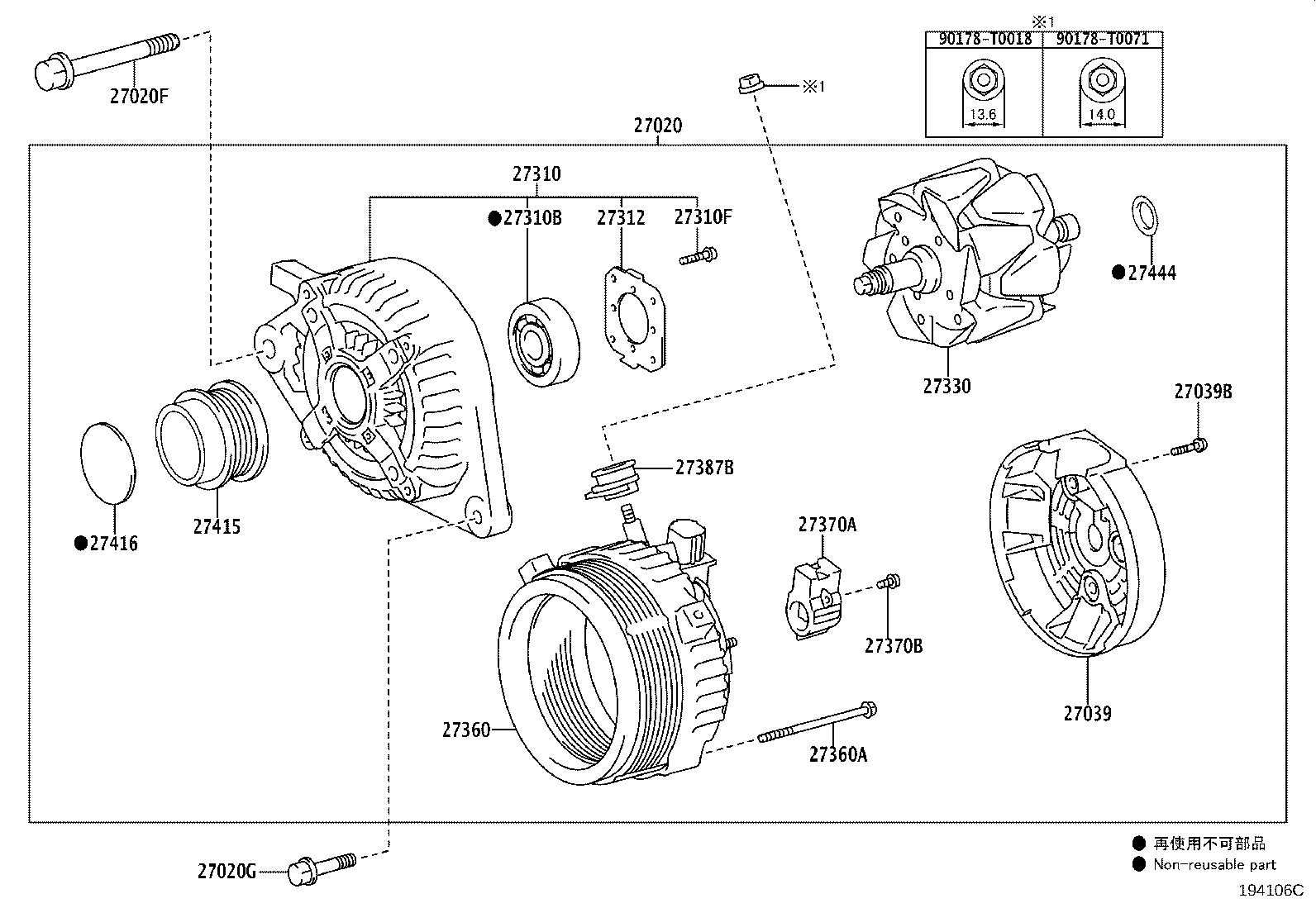

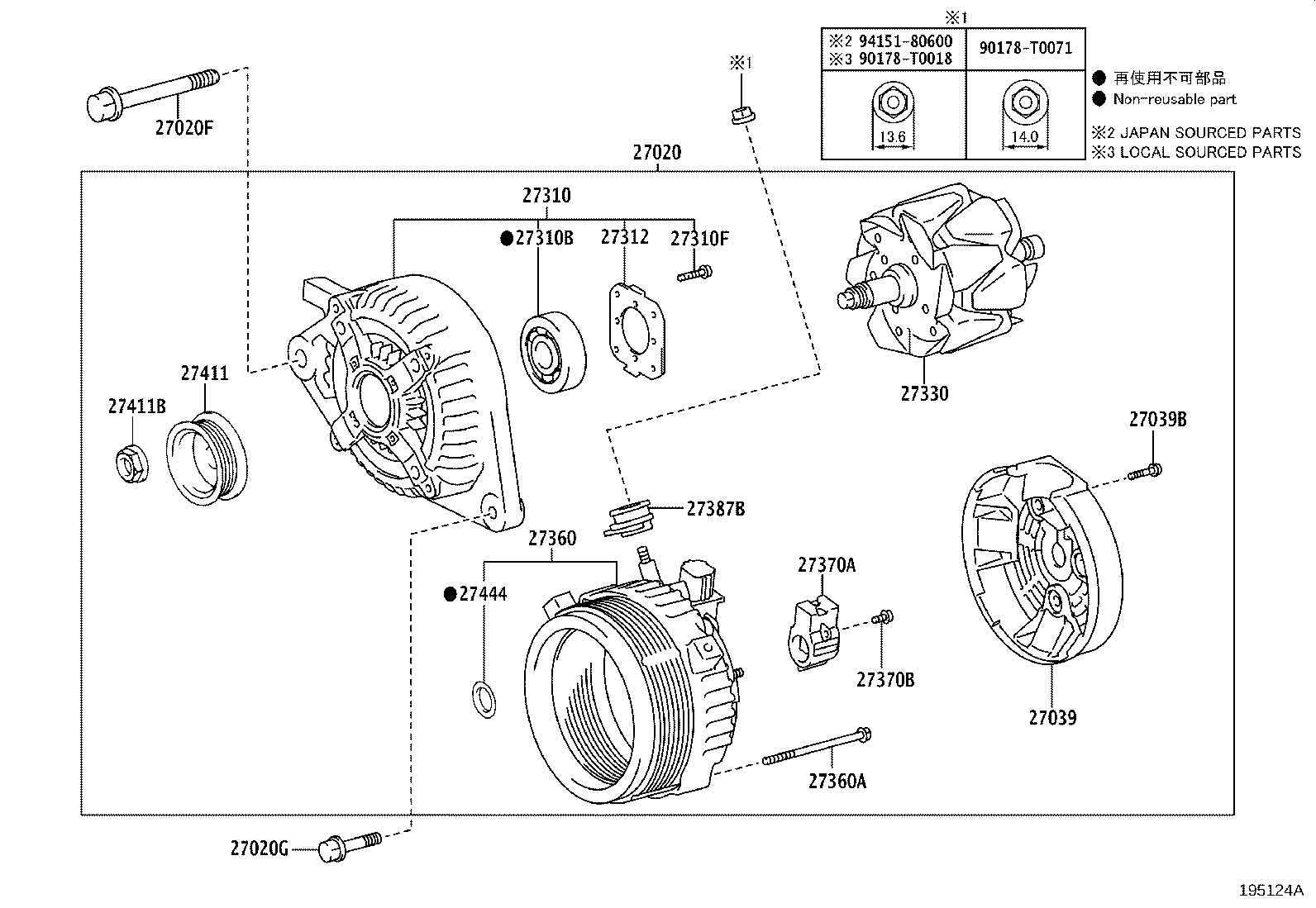

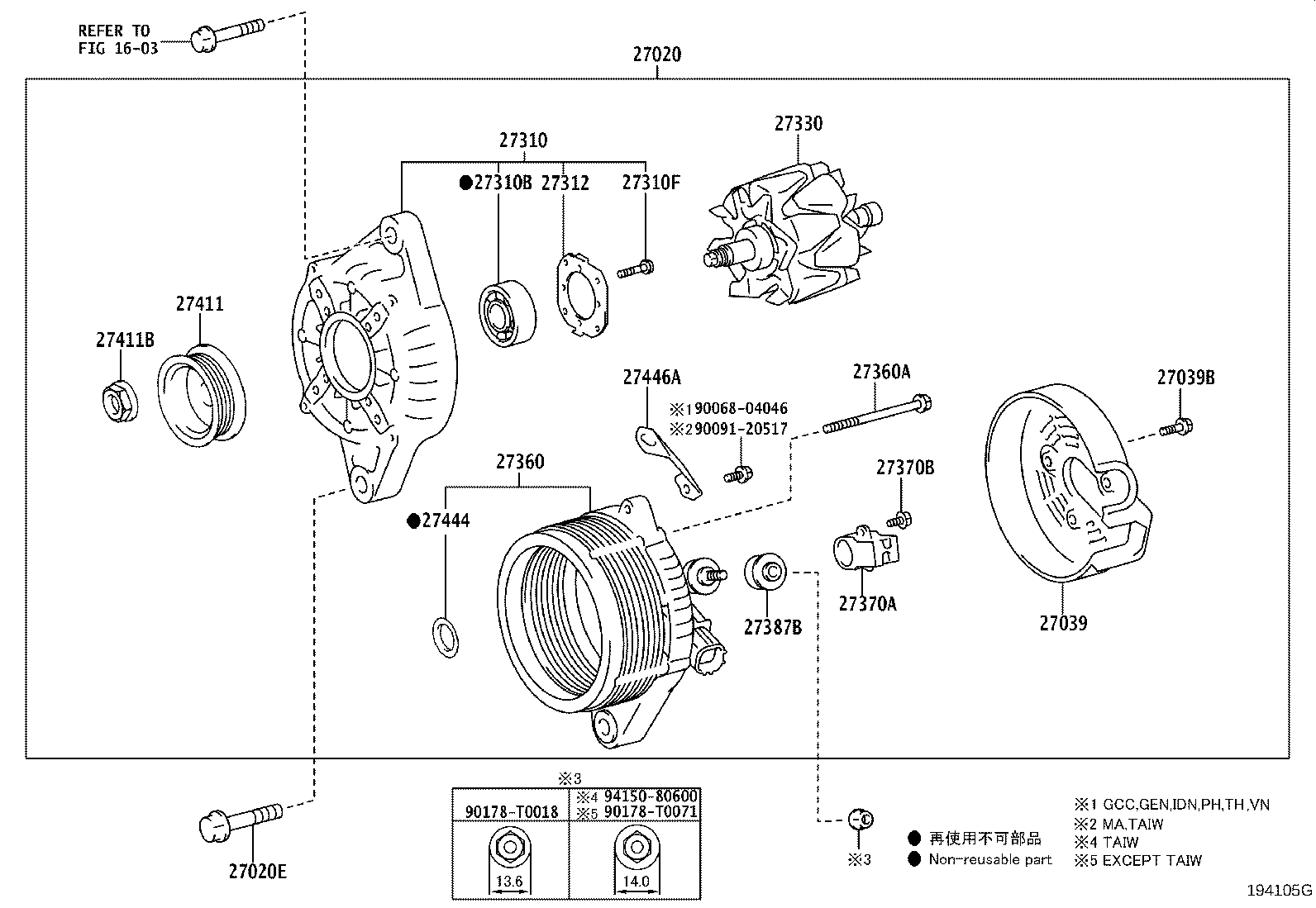

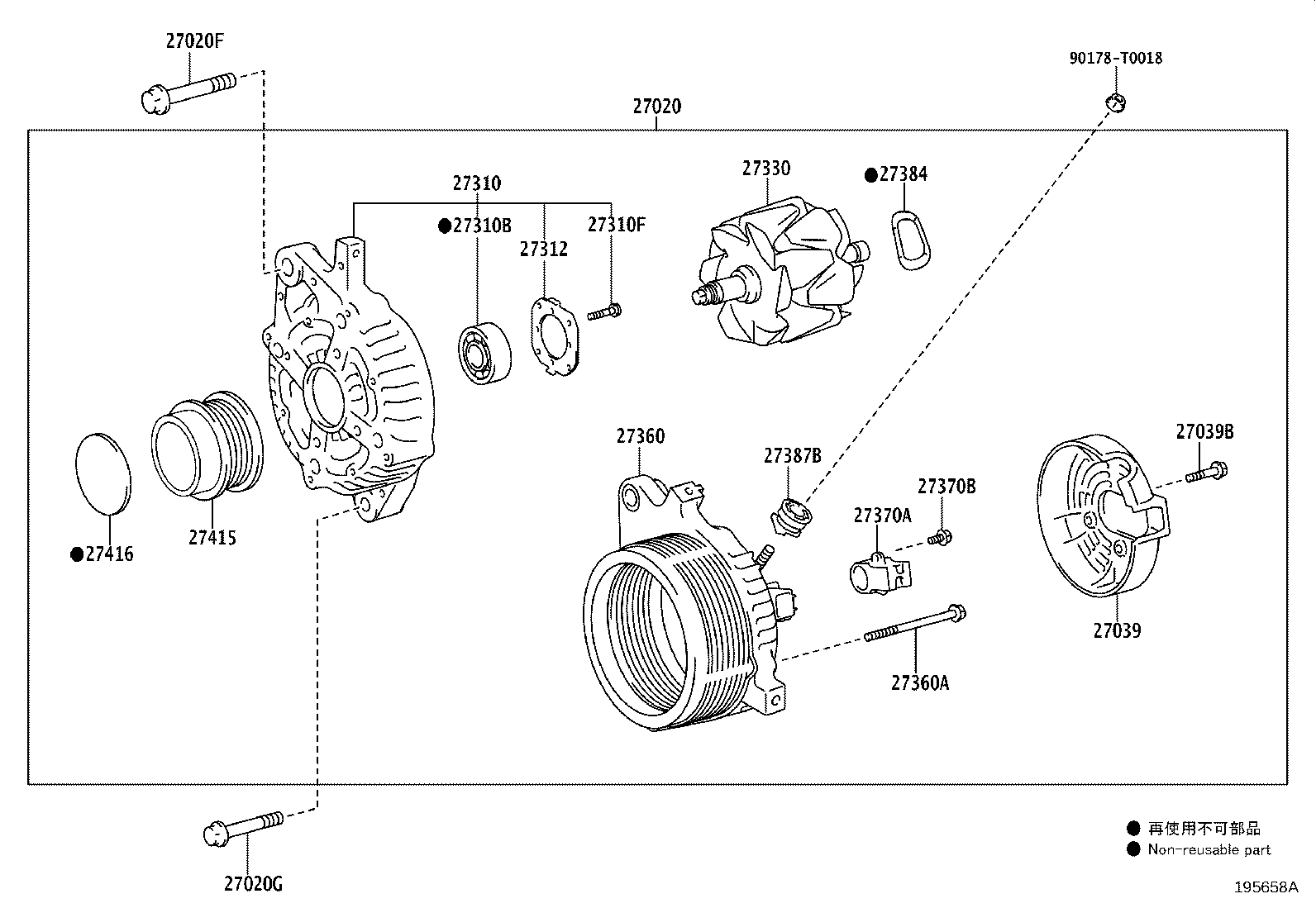

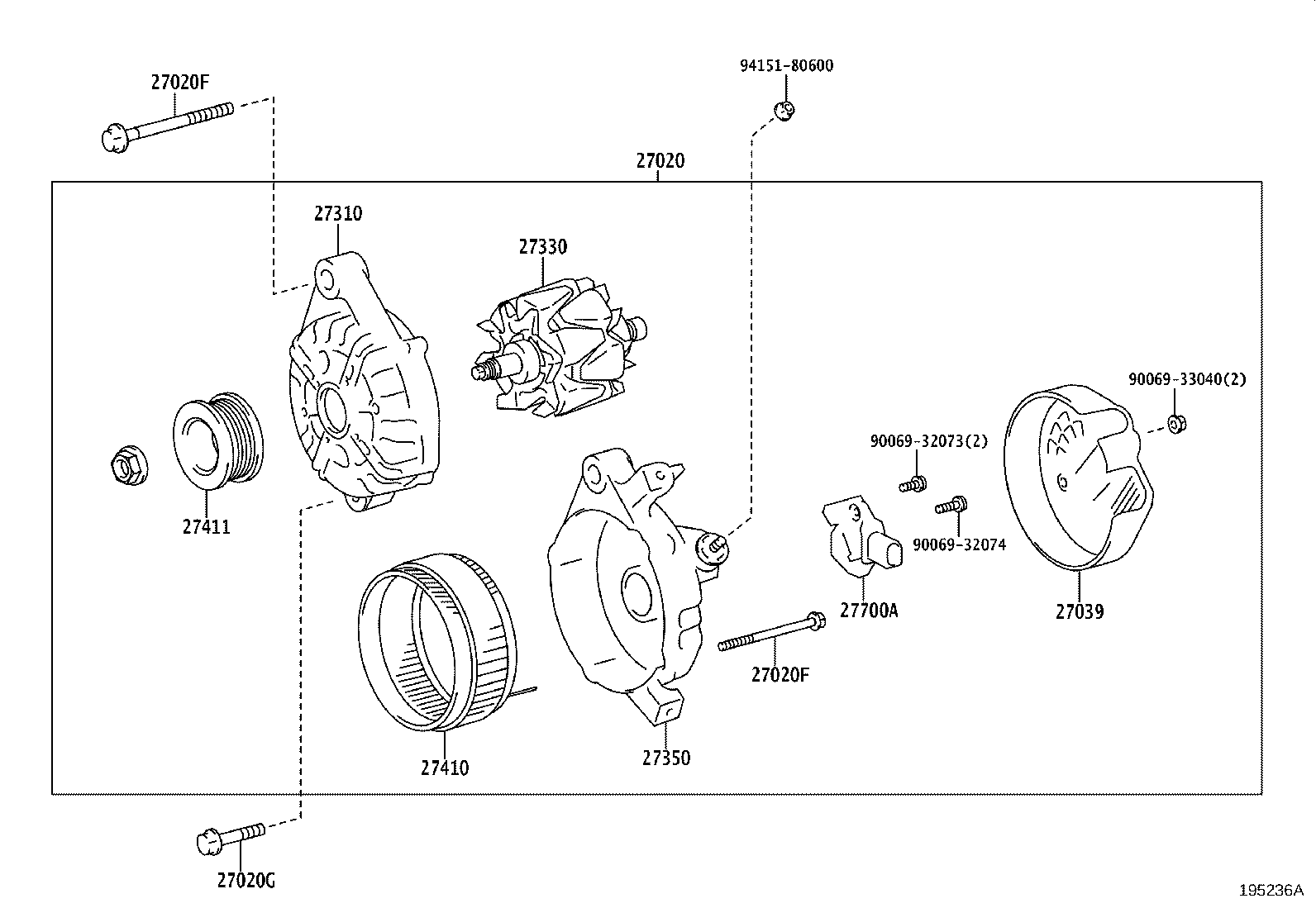

Part groups
| PNC | Description |
|---|---|
| 27020 | Alternator Assy |
| 27020E | Bolt(FOR ALTERNATOR) |
| 27020F | Bolt, NO.1(FOR ALTERNATOR) |
| 27020G | Bolt, NO.2(FOR ALTERNATOR) |
| 27039 | Cover, Alternator Rear End |
| 27039B | Bolt(FOR ALTERNATOR REAR END COVER) |
| 27310 | Frame Assy, Drive End, Alternator |
| 27310B | Bearing(FOR ALTERNATOR DRIVE END FRAME) |
| 27310F | Screw(FOR ALTERNATOR DRIVE END FRAME) |
| 27312 | Plate, Retainer |
| 27330 | Rotor Assy, Alternator |
| 27350 | Frame Assy, Rectifier End |
| 27360 | Coil Assy, Alternator |
| 27360A | Bolt(FOR ALTERNATOR COIL) |
| 27370A | Holder Assy, Alternator Brush |
| 27370B | Screw(FOR ALTERNATOR BRUSH HOLDER) |
| 27384 | Washer |
| 27387B | Insulator, Alternator Terminal |
| 27410 | Stator Assy, Alternator |
| 27411 | Pulley, Alternator |
| 27411B | Nut(FOR ALTERNATOR PULLEY) |
| 27415 | Pulley, Alternator W/Clutch |
| 27416 | Cap, Alternator Pulley |
| 27444 | Packing, Alternator Bearing Cover |
| 27446A | Clamp |
| 27700A | Regulator Assy, Generator |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
