Toyota Yaris/Vios/Limo

2013-04 → present · chassis NCP15#,NSP15# · catalogue 149330 · United States

Supported model Data version 2019-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Booster & Vacuum Tube

26 part groups · 14 illustrations

Illustrations

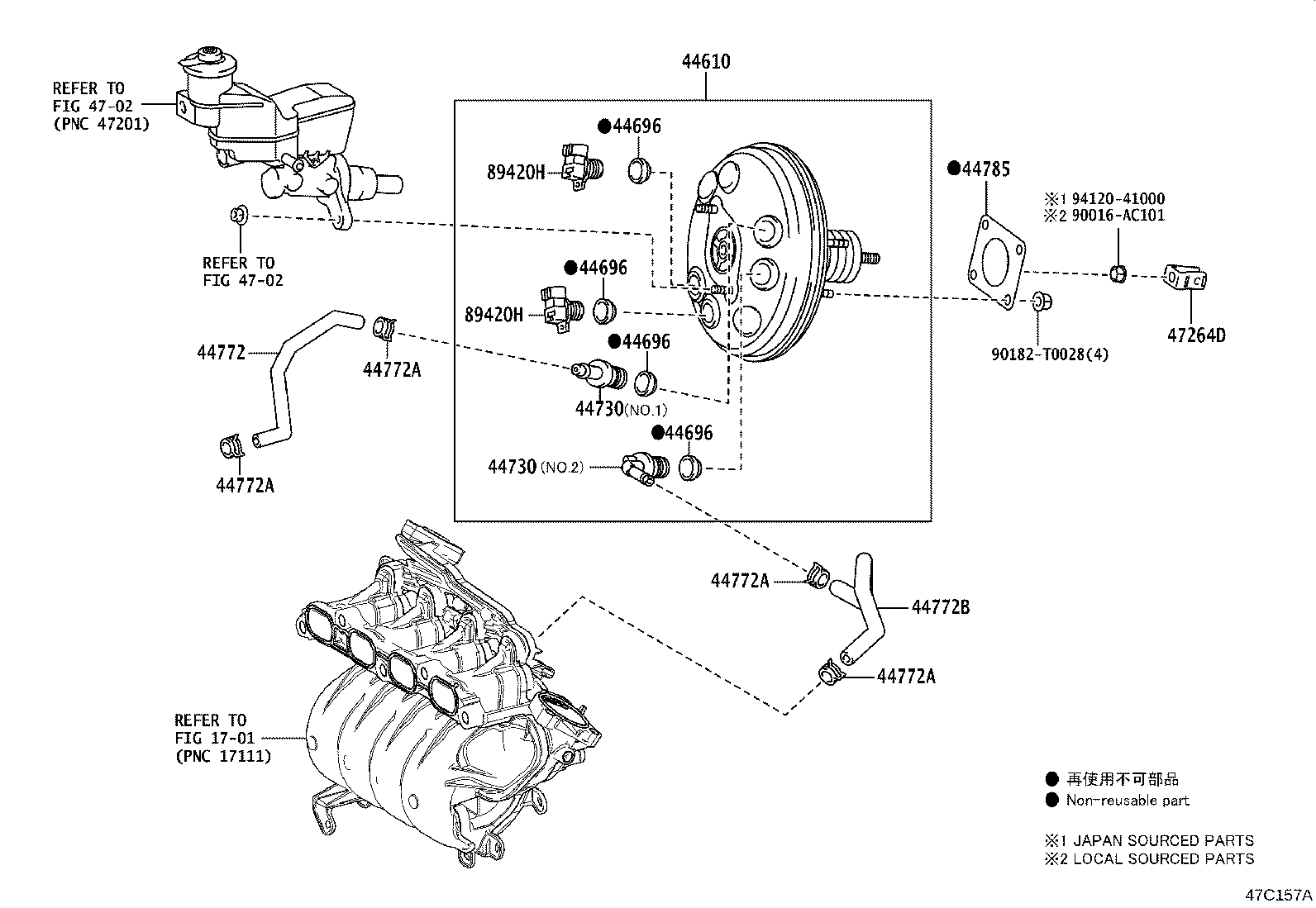

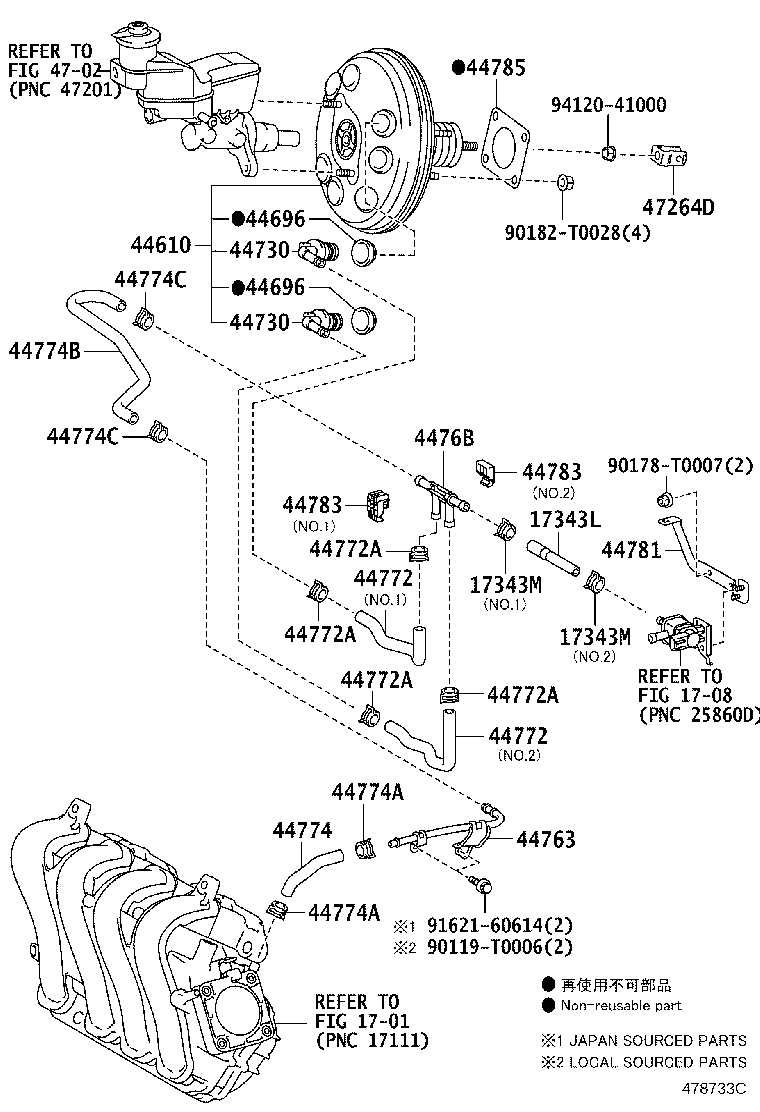

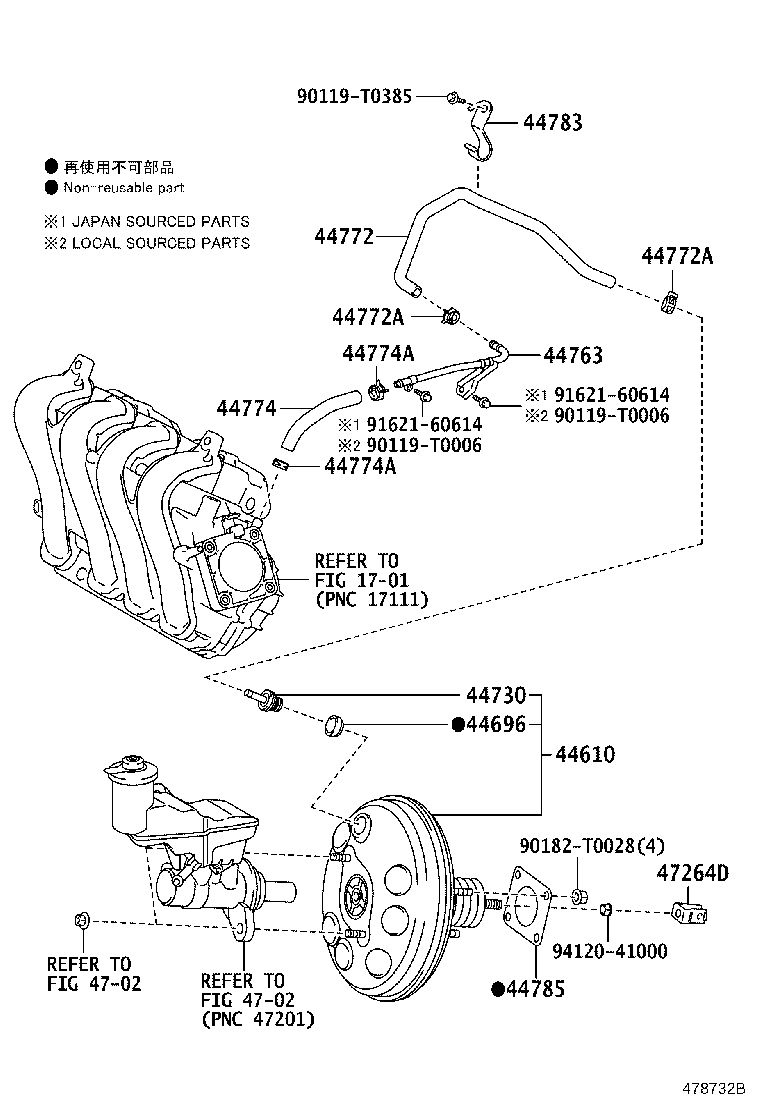

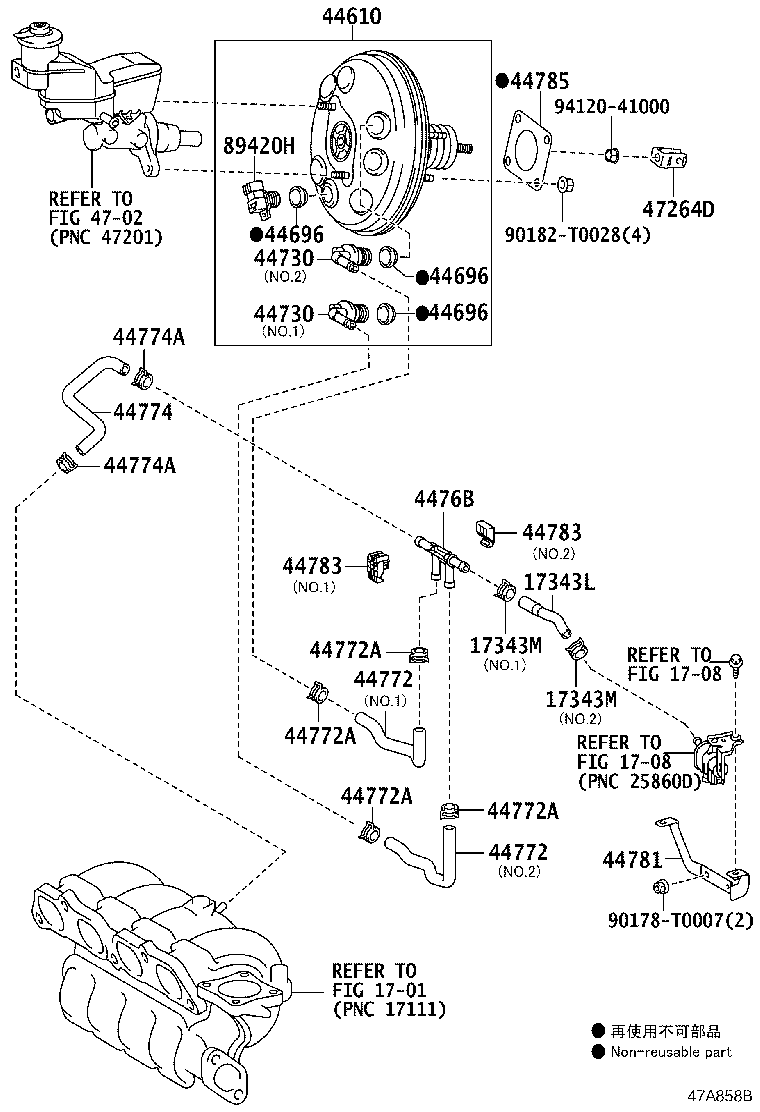

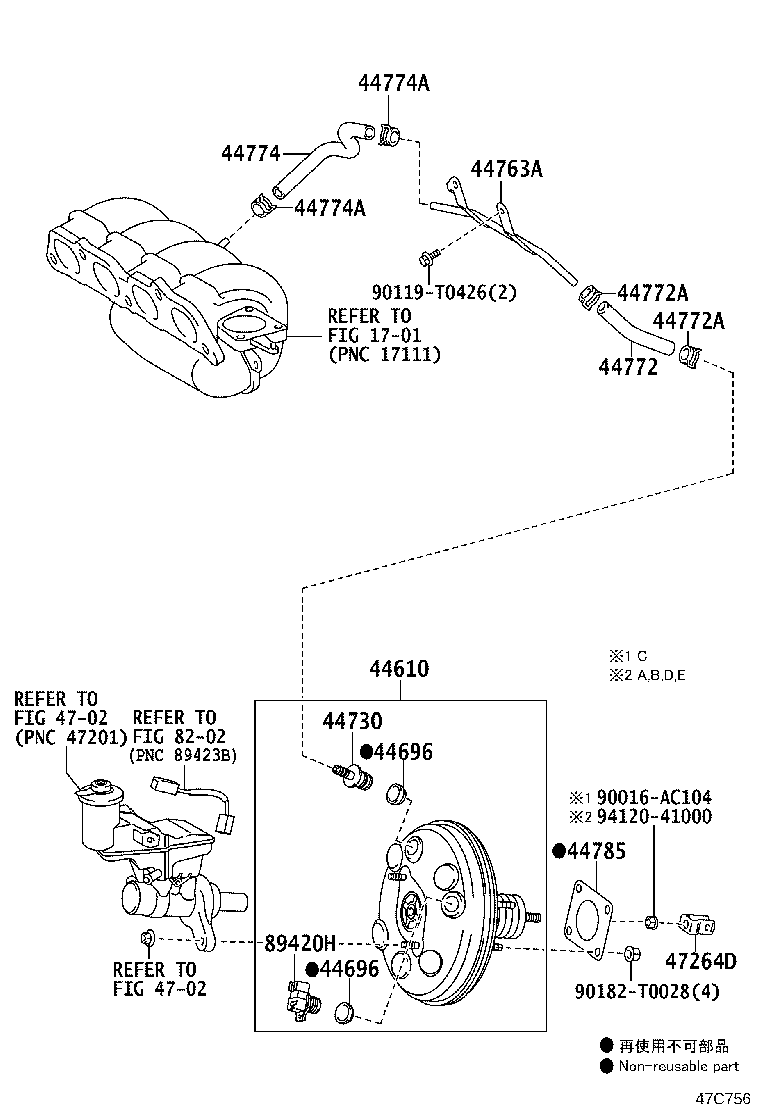

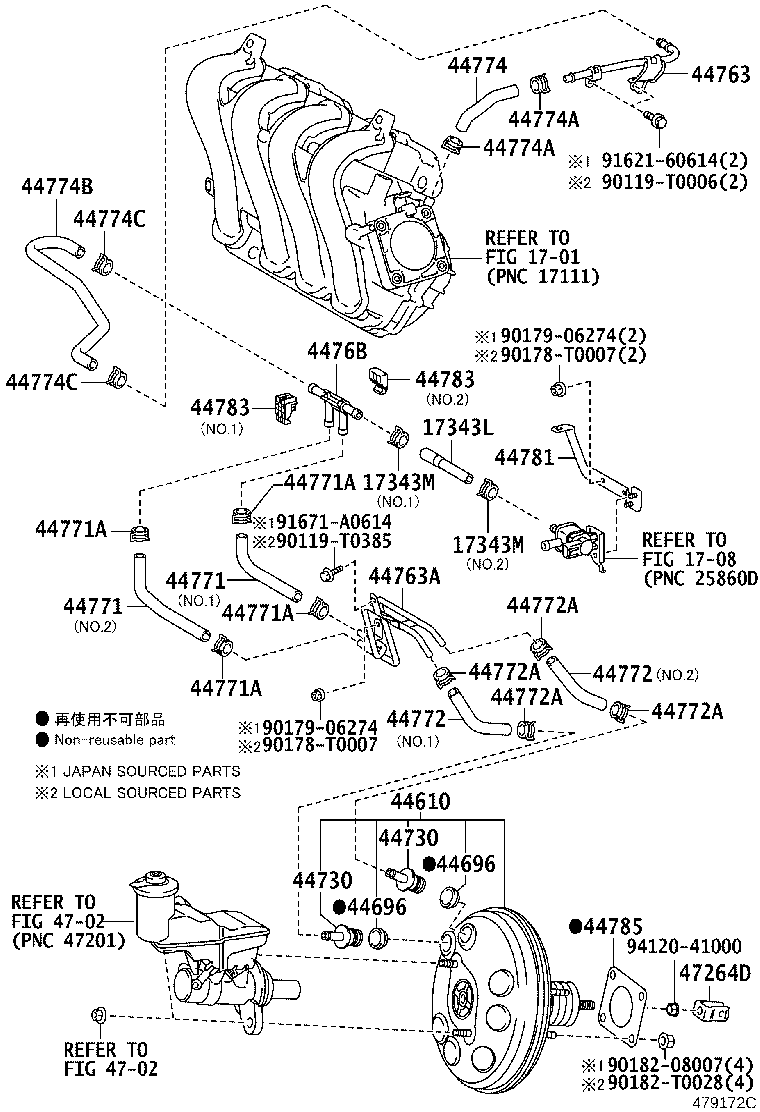

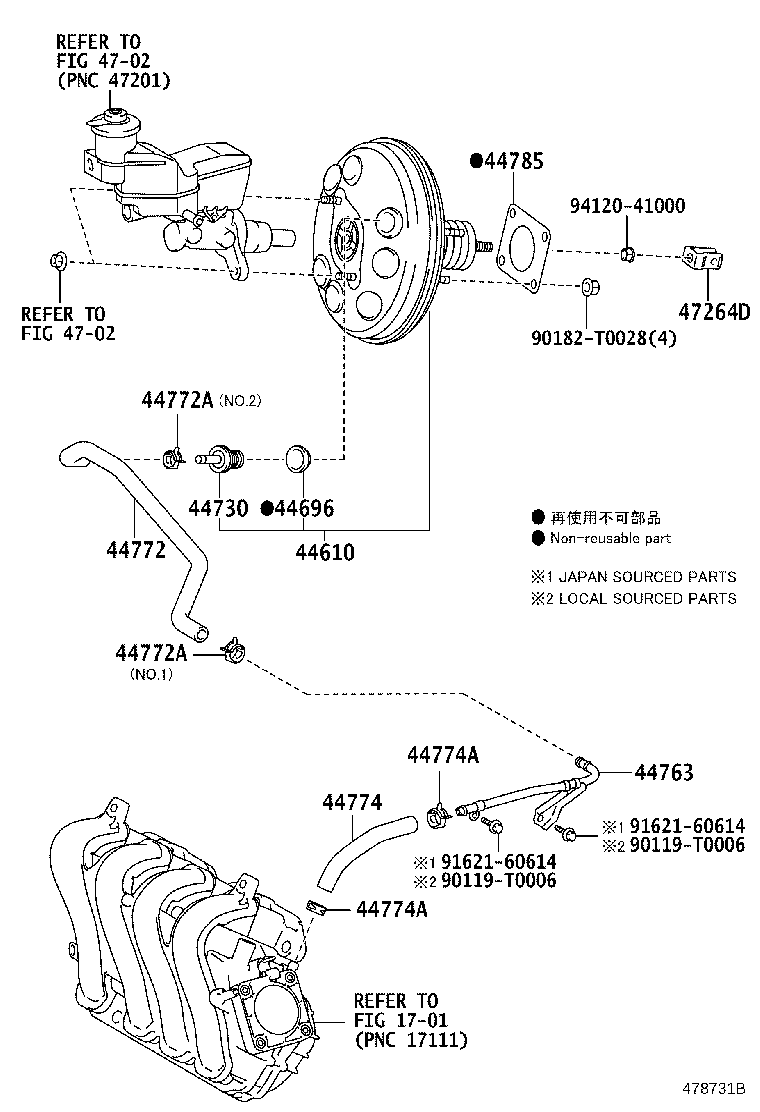

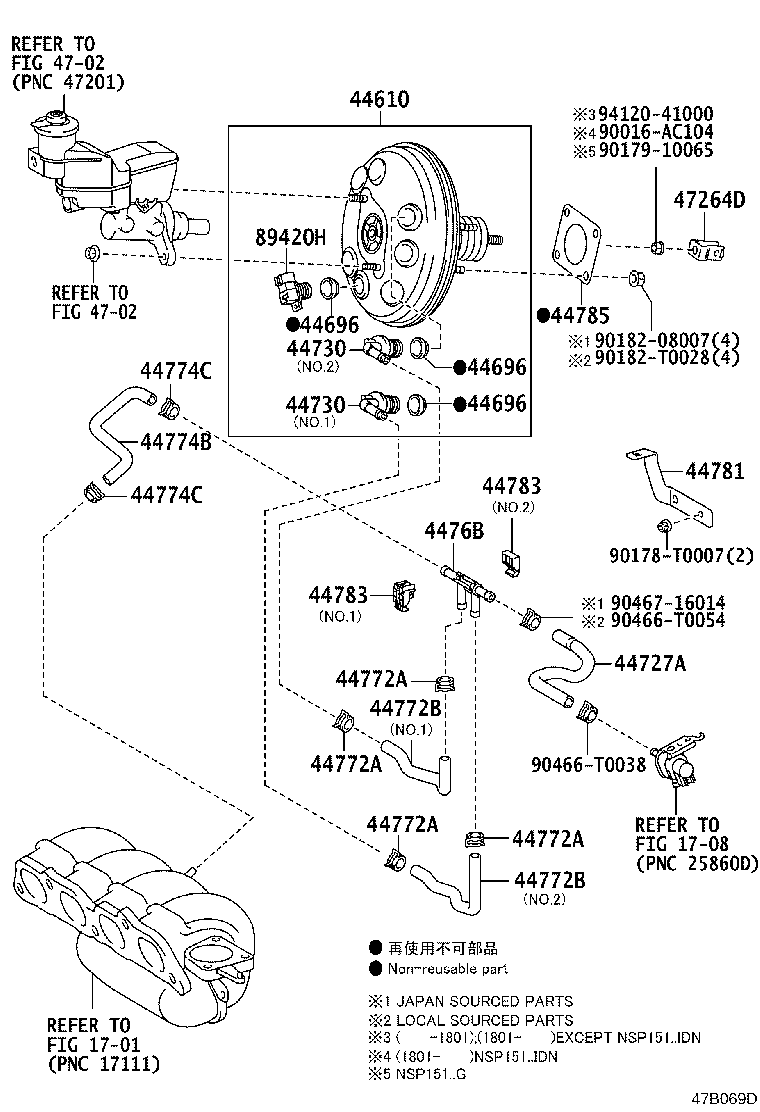

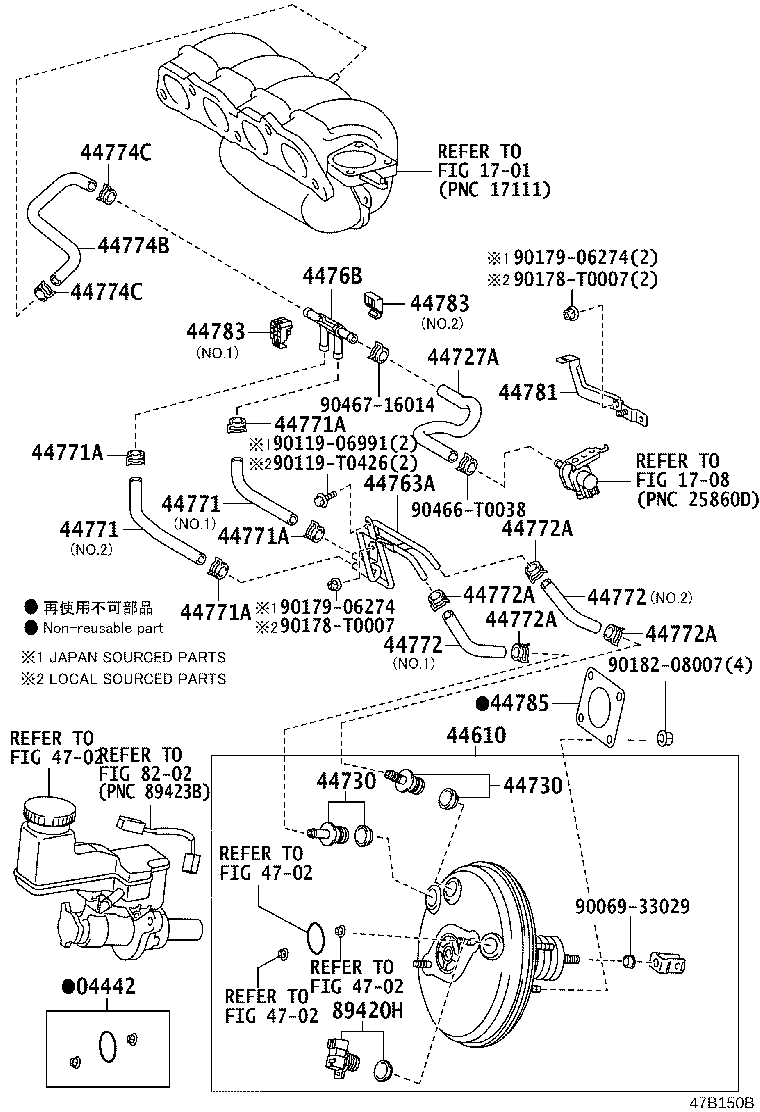

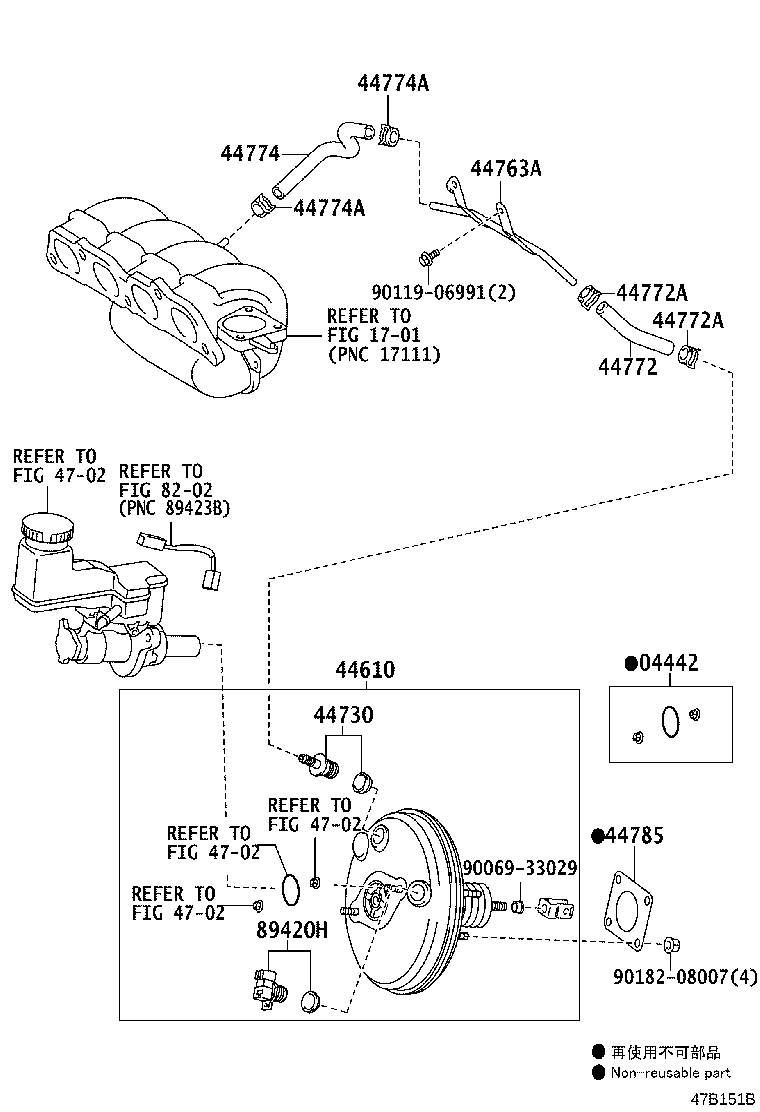

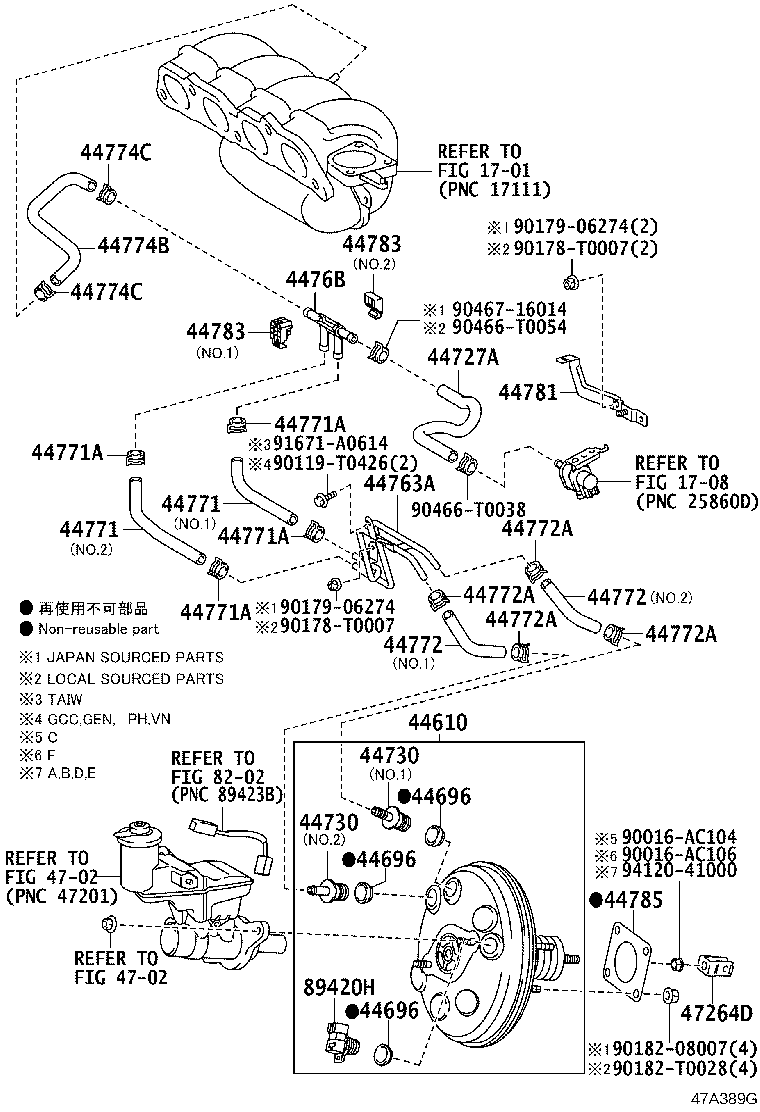

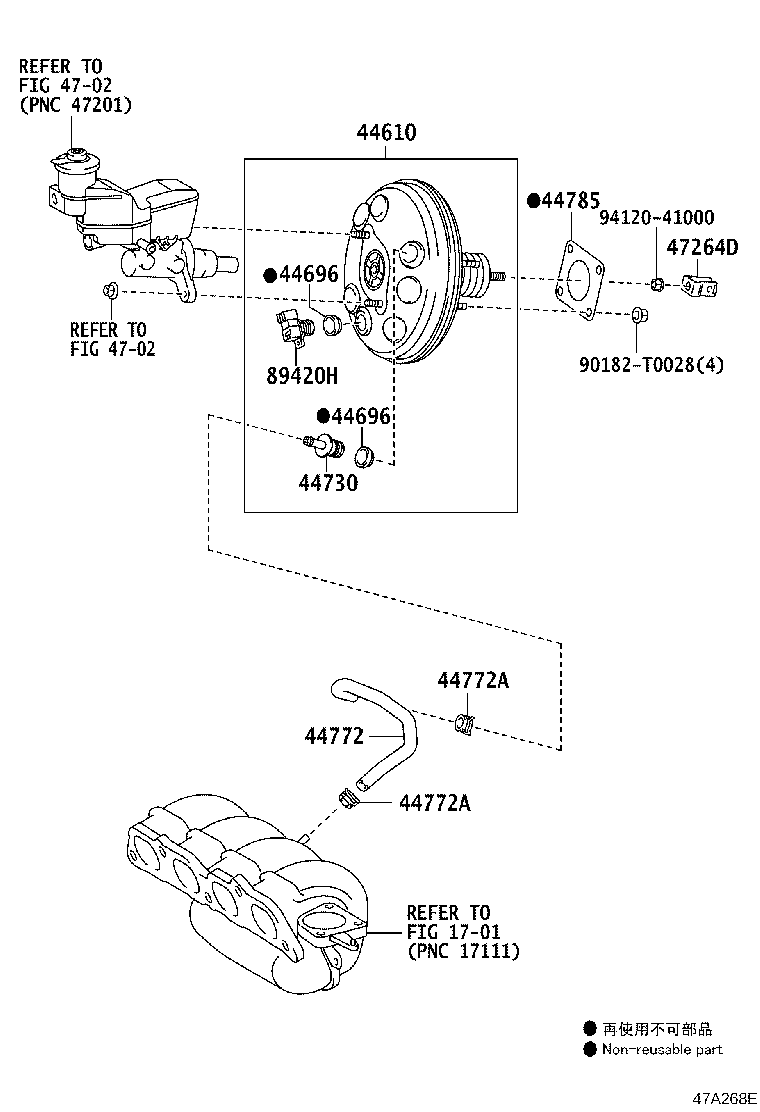

Figure 478731B 478731B 2013-04 → — Figure 478732B 478732B 2013-07 → — Figure 478733C 478733C 2013-04 → — Figure 479172C 479172C 2013-07 → — Figure 47C756 47C756 2016-04 → — Figure 47A268E 47A268E 2016-04 → 2016-10 Figure 47A268E 47A268E 2016-10 → — Figure 47A389G 47A389G 2016-04 → — Figure 47B069D 47B069D 2016-04 → — Figure 47A462C 47A462C 2016-10 → — Figure 47A858B 47A858B 2017-08 → — Figure 47B150B 47B150B 2018-07 → — Figure 47B151B 47B151B 2018-07 → — Figure 47C157A 47C157A 2019-11 → —

Part groups

PNCDescription
04442 Fitting Kit, Brake Booster
17343L Hose, Air, NO.3
17343M Clip(FOR AIR HOSE NO.3)
44610 Booster Assy, Brake
44696 Grommet, Check Valve
44727A Hose, Air, NO.2
44730 Valve Assy, Vacuum Check(FOR BRAKE)
44763 Tube, Booster Vacuum
44763A Tube, Hose TO Hose, NO.1
4476B Ejector, Brake Booster Vacuum
44771 Hose, Vacuum Tube Connector
44771A Clip(FOR VACUUM TUBE CONNECTOR HOSE)
44772 Hose, Check Valve TO Connector Tube
44772A Clip(FOR CHECK VALVE TO CONNECTOR TUBE)
44772B Hose, Check Valve TO Brake Booster
44773F Hose, Union TO Check Valve
44773G Clip(FOR UNION TO CHECK VALVE HOSE)
44774 Hose, Union TO Connector Tube
44774A Clip(FOR UNION TO CONNECTOR TUBE HOSE)
44774B Hose, Union TO Connector Tube
44774C Clip(FOR UNION TO CONNECTOR TUBE HOSE)
44781 Bracket, Hose
44783 Clamp, Vacuum Hose
44785 Gasket, Brake Booster
47264D Clevis, Brake Master Cylinder Push Rod
89420H Sensor Assy, Vacuum
