Toyota Yaris/Vios/Limo

2013-04 → present · chassis NCP15#,NSP15# · catalogue 149330 · United States

Supported model Data version 2019-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Suspension Crossmember & Under Cover

11 part groups · 13 illustrations

Illustrations

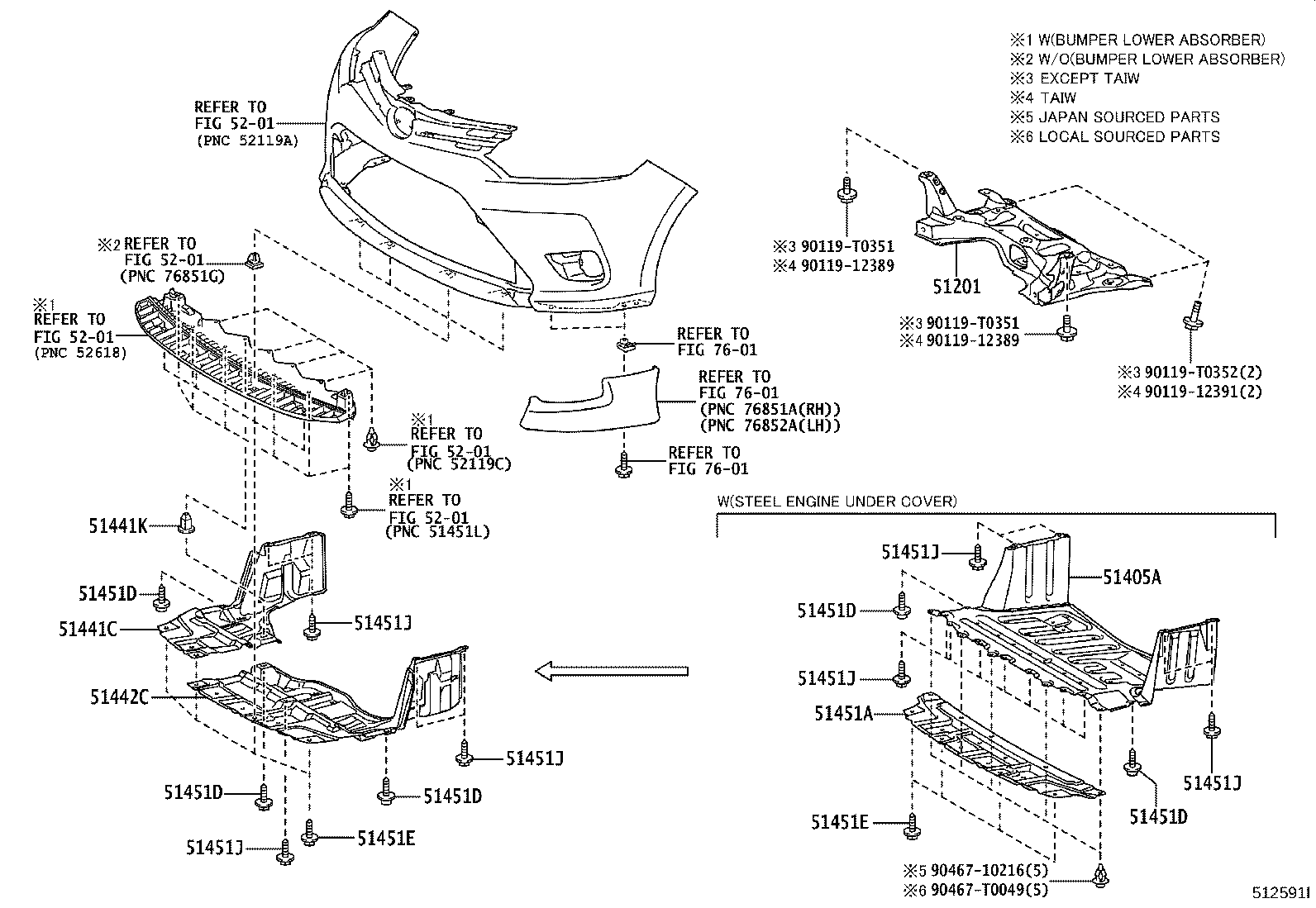

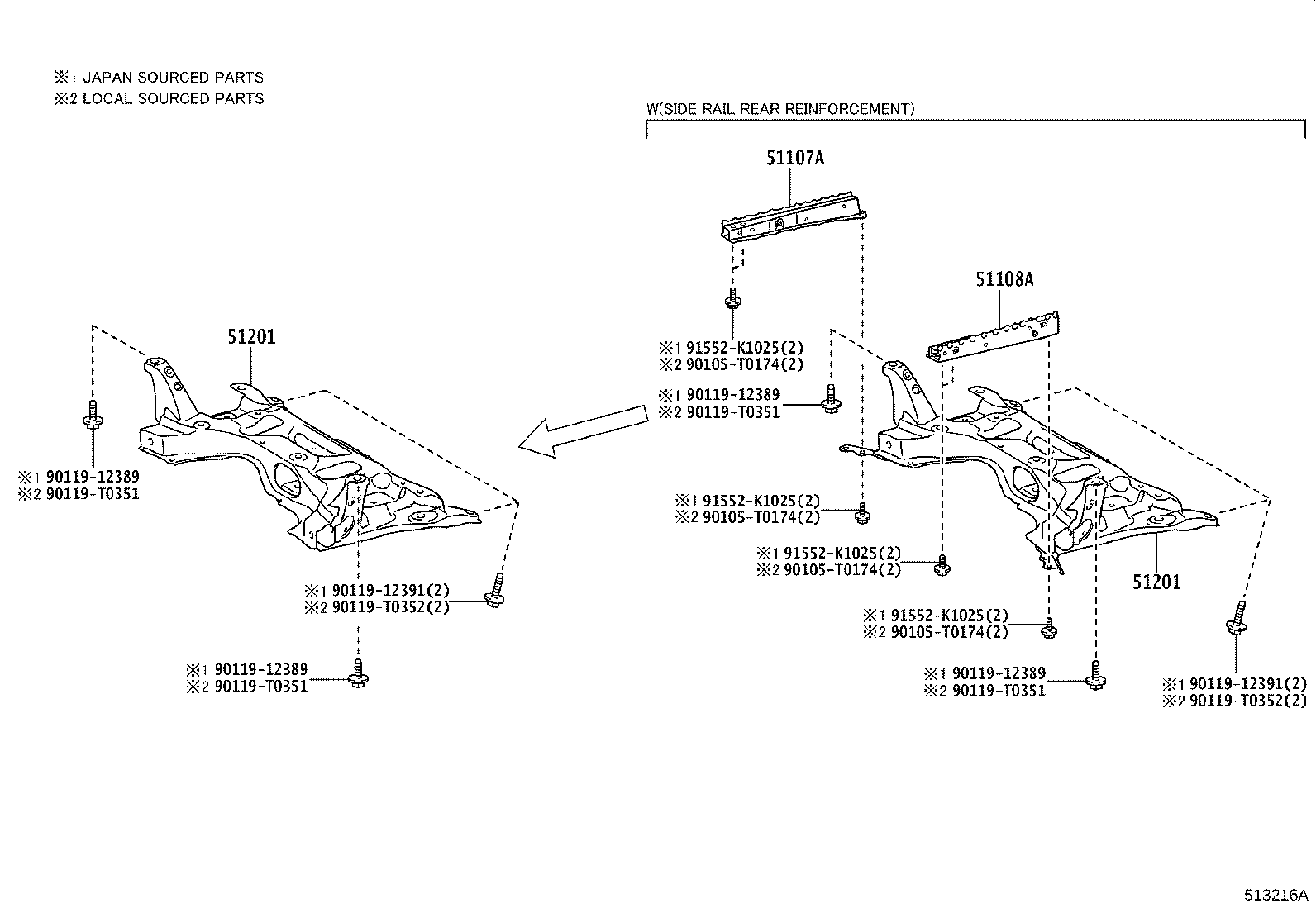

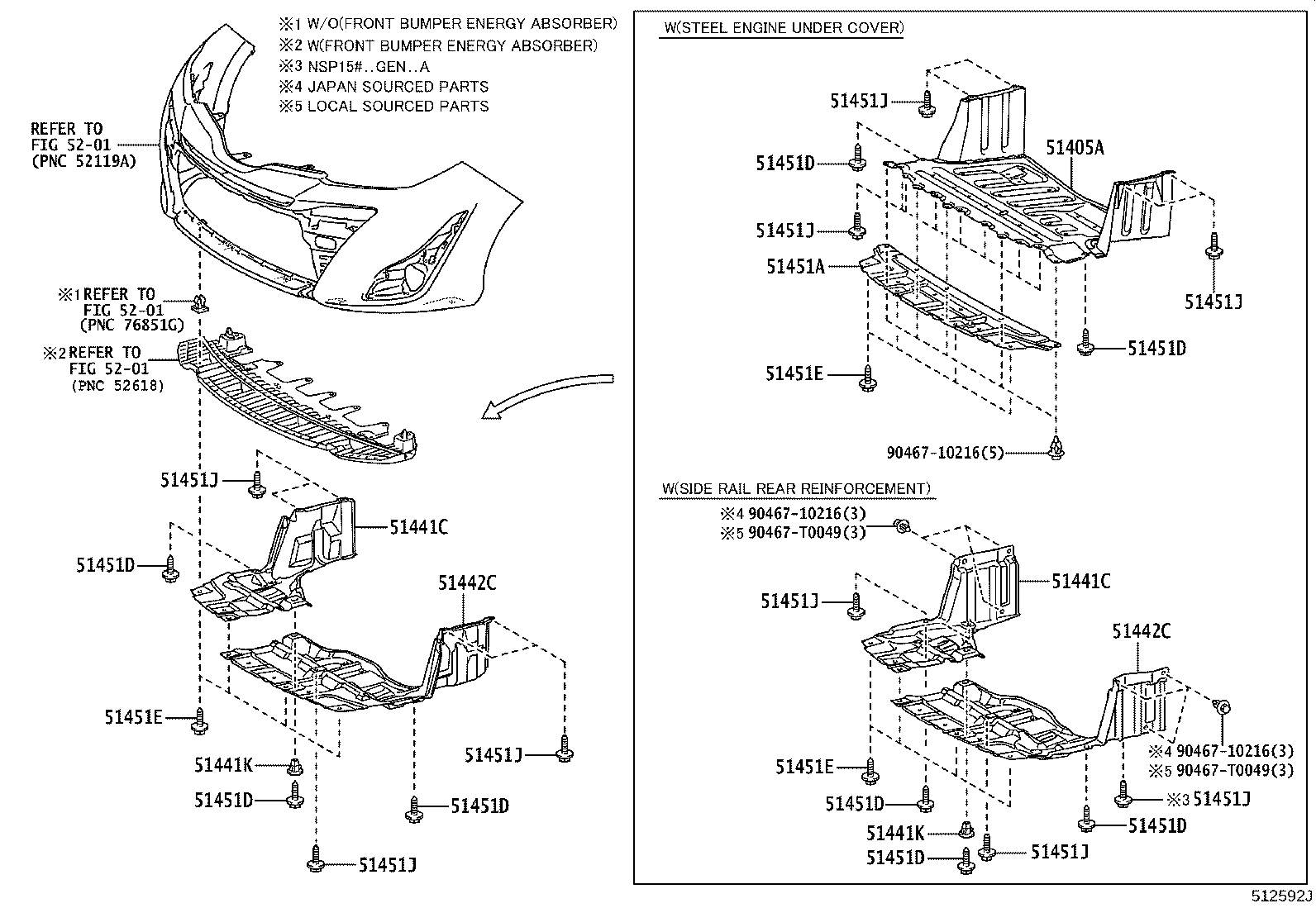

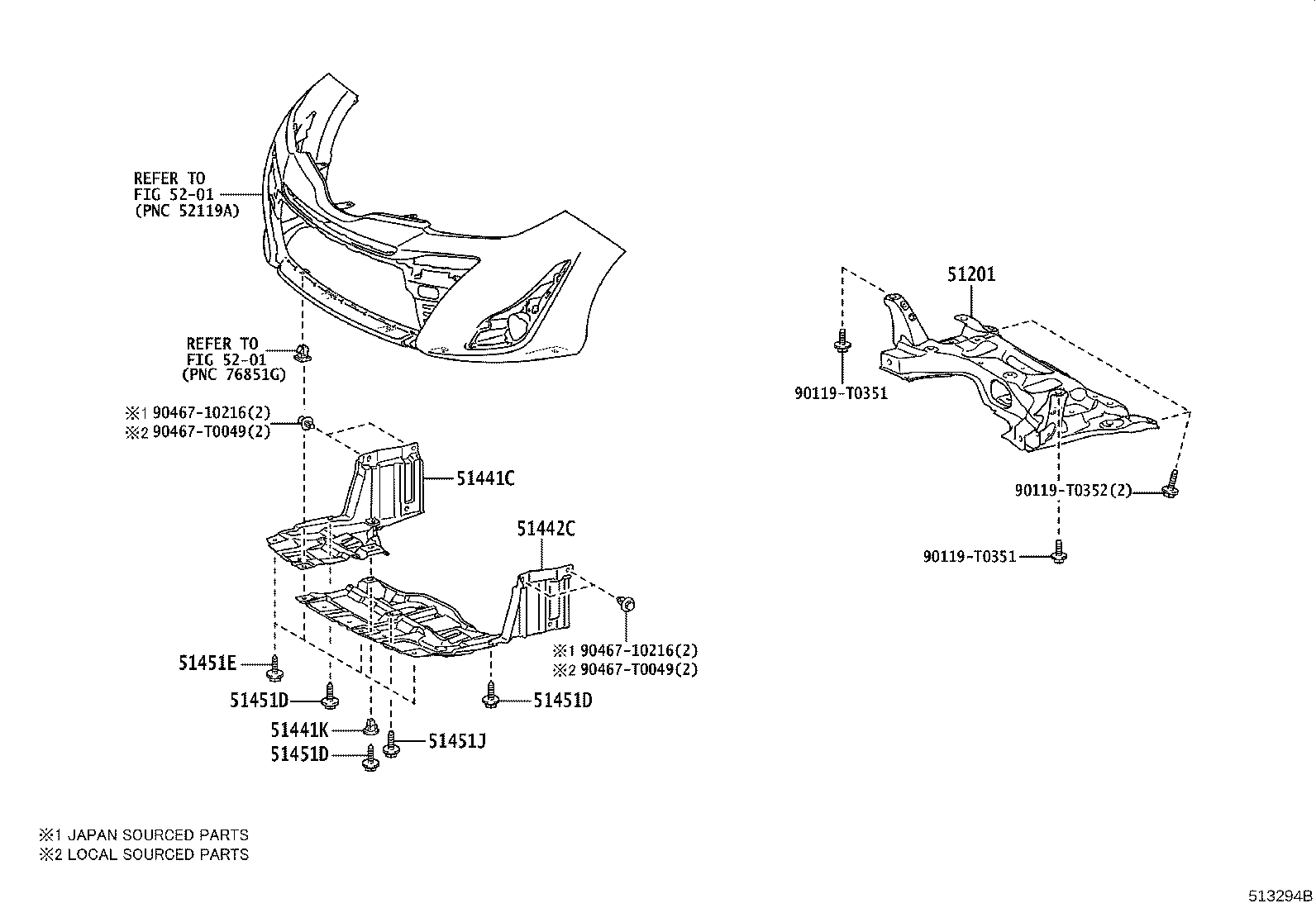

Figure 512591I 512591I 2013-04 → — Figure 512591I 512591I 2013-12 → 2017-12 Figure 512591I 512591I 2013-12 → 2018-01 Figure 512591I 512591I 2016-08 → 2018-12 Figure 512592J 512592J 2017-08 → — Figure 512592J 512592J 2018-01 → — Figure 512592J 512592J 2019-01 → — Figure 513216A 513216A 2017-08 → — Figure 513216A 513216A 2018-01 → — Figure 513216A 513216A 2018-01 → — Figure 513216A 513216A 2019-01 → — Figure 513216A 513216A 2019-11 → — Figure 513294B 513294B 2018-04 → —

Part groups

PNCDescription
51107A Reinforcement Sub-assy, Side Rail, Rear RH
51108A Reinforcement Sub-assy, Side Rail, Rear LH
51201 Crossmember Sub-assy, Front Suspension
51405A Cover Sub-assy, Engine Under, NO.1
51441C Cover, Engine Under, RH
51441K Grommet(FOR ENGINE UNDER COVER)
51442C Cover, Engine Under, LH
51451A Cover, Engine Under, Center
51451D Screw, NO.1
51451E Screw, NO.2
51451J Bolt, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
