Toyota Yaris/Vios/Limo
2013-04 → present · chassis NCP15#,NSP15# · catalogue 149330 · United States
Supported model
Data version 2019-11

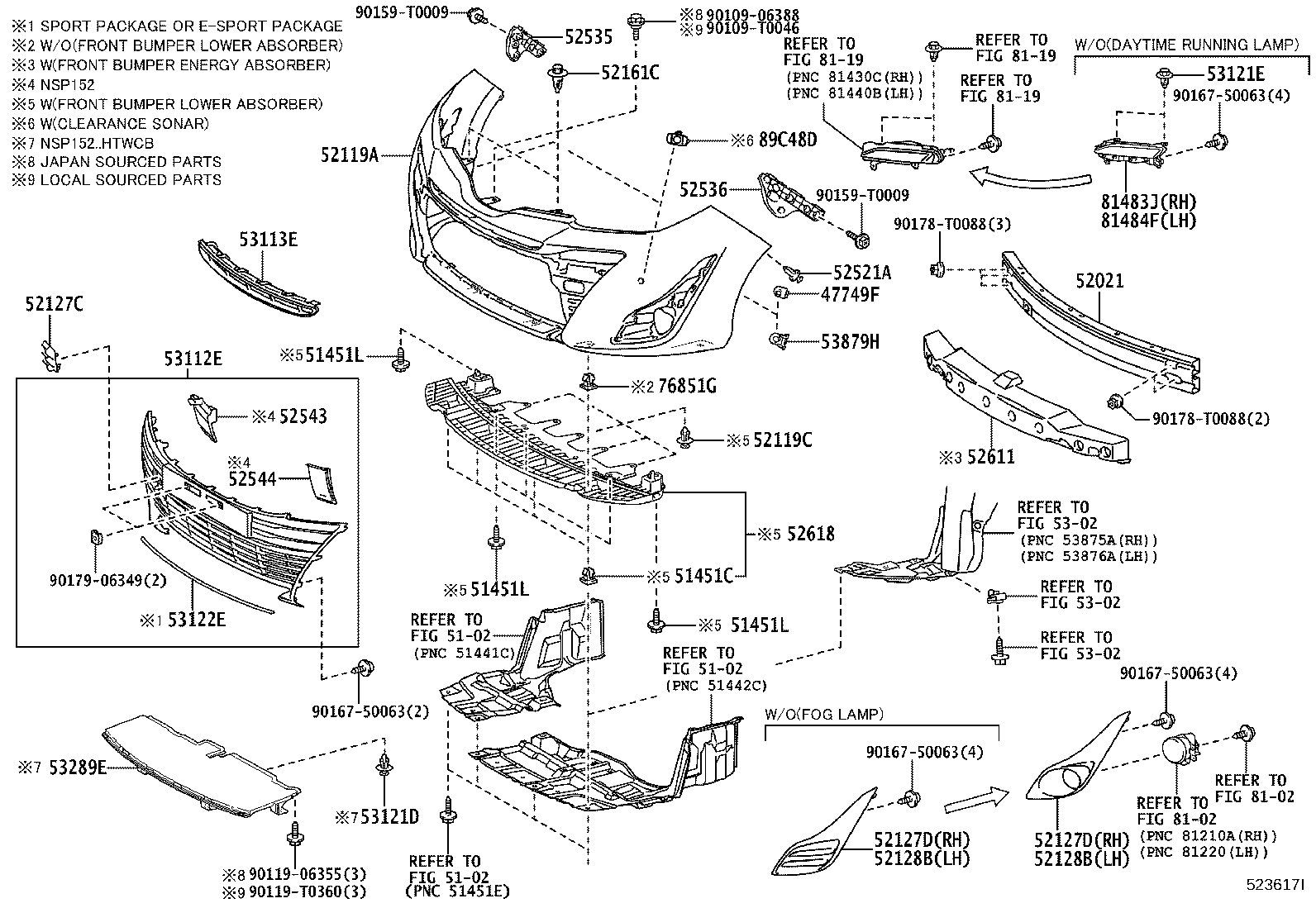

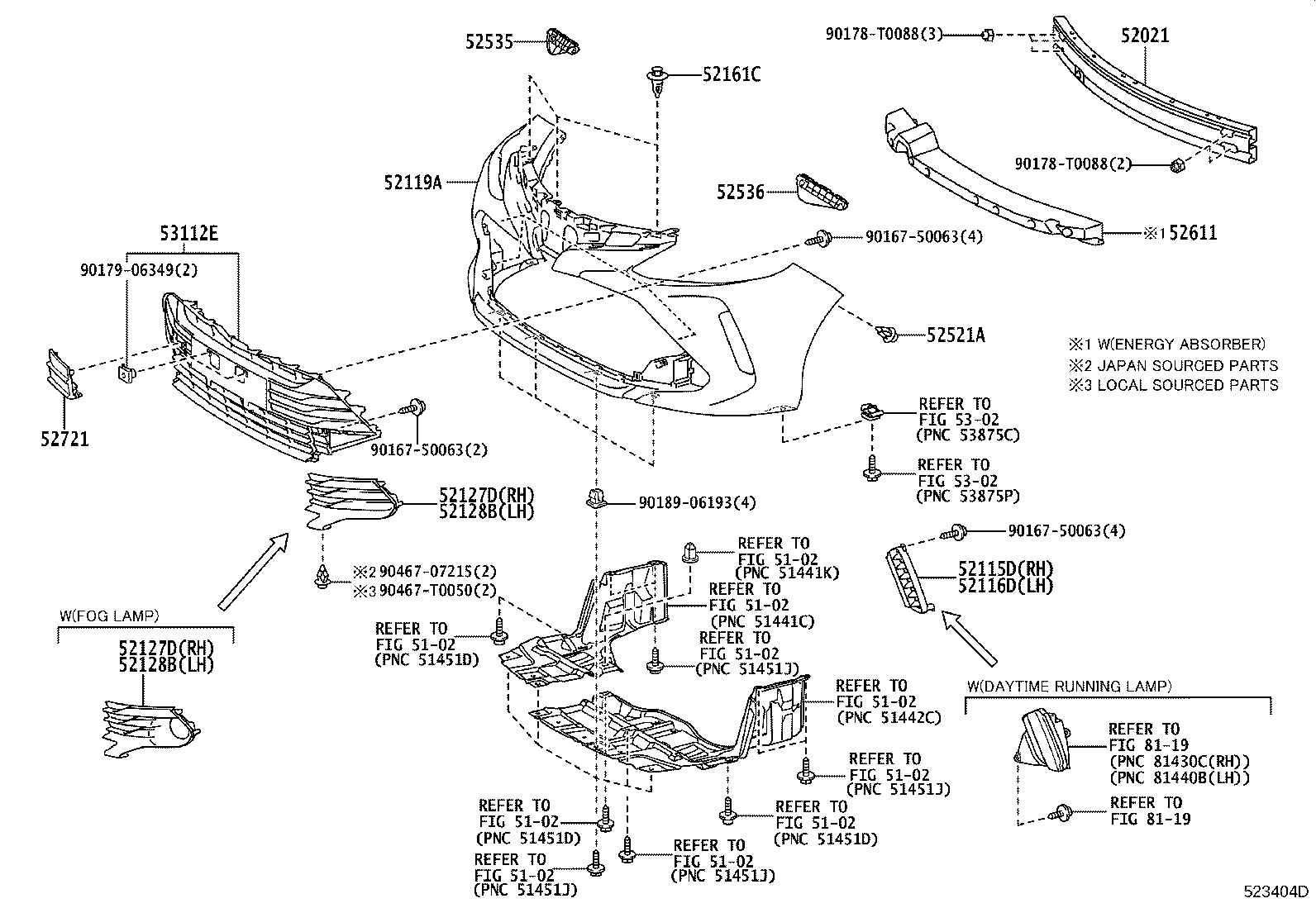

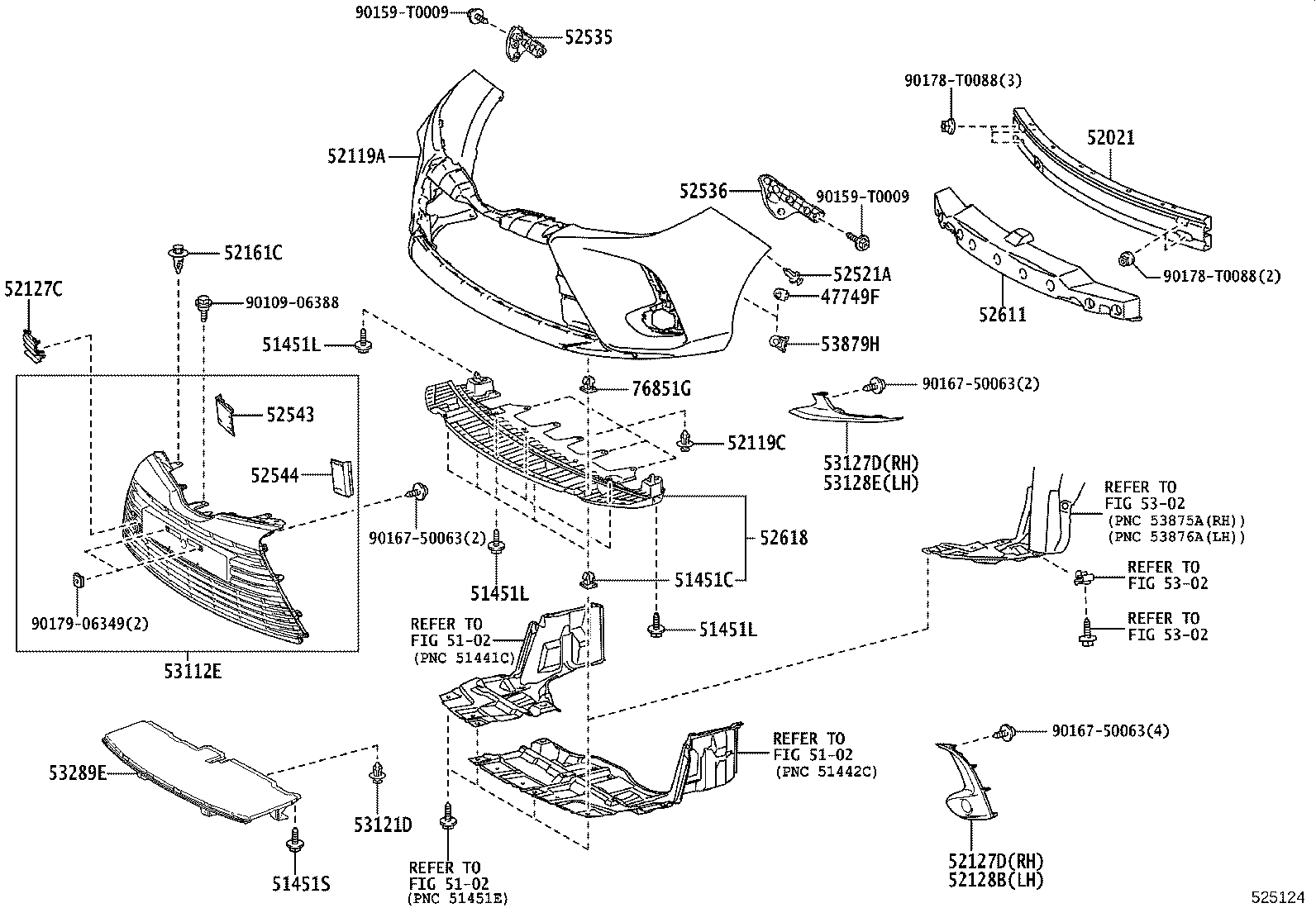

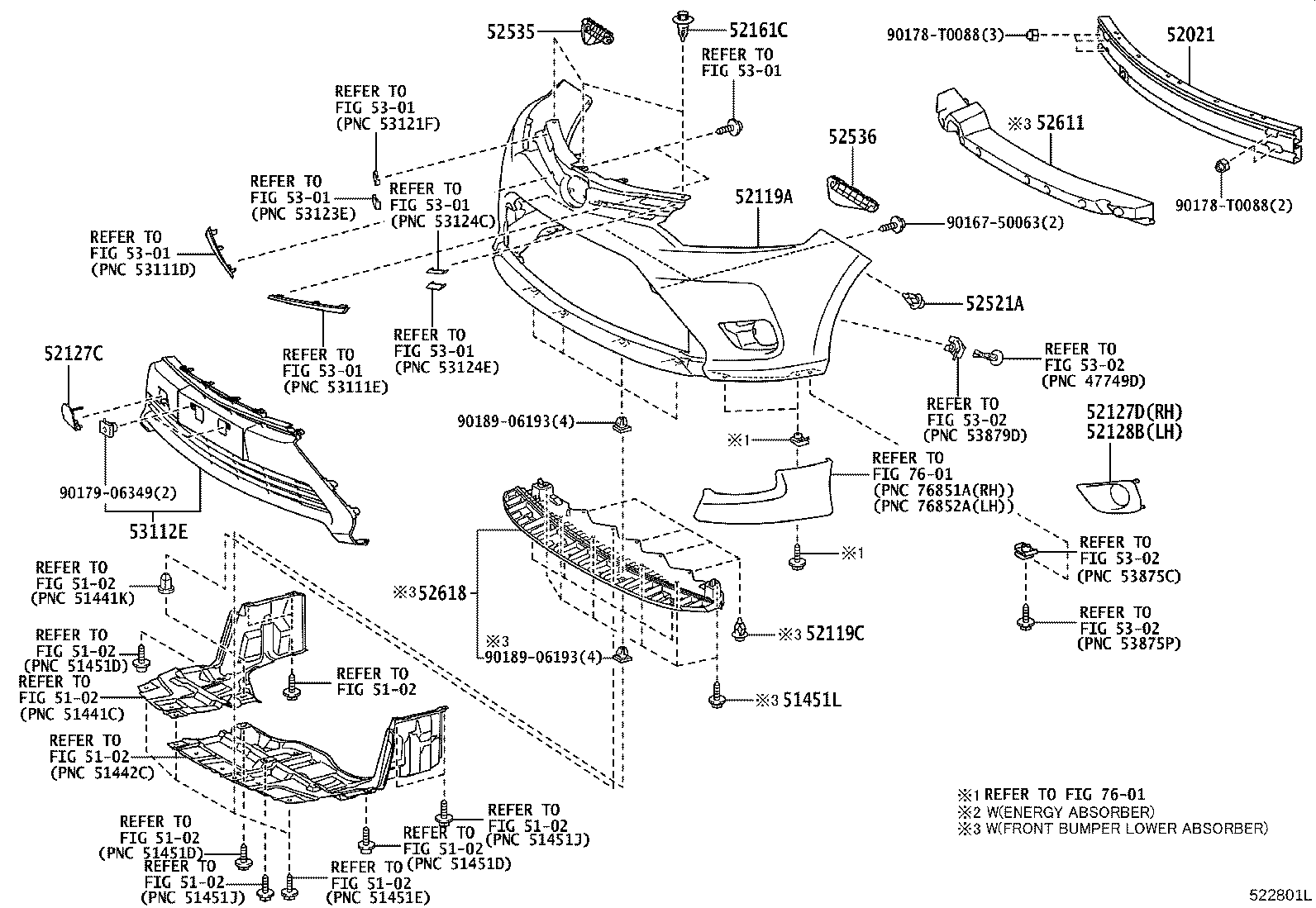

Front Bumper & Bumper Stay
34 part groups · 12 illustrations
Illustrations
Part groups
| PNC | Description |
|---|---|
| 47749F | Clip, Pin Hold |
| 51451C | Grommet(FOR ENGINE UNDER COVER) |
| 51451L | Bolt, NO.1 |
| 51451S | Bolt, NO.2 |
| 52021 | Reinforcement Sub-assy, Front Bumper |
| 52115D | Support, Front Bumper Side, NO.2 RH |
| 52116D | Support, Front Bumper Side, NO.2 LH |
| 52119A | Cover, Front Bumper |
| 52119C | Clip, Front Bumper Cover |
| 52127C | Cover, Front Bumper Hole |
| 52127D | Cover, Front Bumper Hole, RH |
| 52128B | Cover, Front Bumper Hole, LH |
| 52161C | Piece, Front Bumper |
| 52521A | Clip(FOR FRONT BUMPER RETAINER) |
| 52535 | Retainer, Front Bumper Side, RH |
| 52536 | Retainer, Front Bumper Side, LH |
| 52543 | Seal, Front Bumper Side, RH |
| 52544 | Seal, Front Bumper Side, LH |
| 52611 | Absorber, Front Bumper Energy |
| 52618 | Absorber, Front Bumper, Lower |
| 52721 | Moulding, Front Bumper Extension, RH |
| 53112E | Grille, Radiator, Lower NO.1 |
| 53113E | Grille, Radiator, Lower NO.2 |
| 53121D | Clip(FOR FRONT BUMPER), NO.2 |
| 53121E | Clip(FOR FRONT BUMPER), NO.1 |
| 53122E | Moulding, Radiator Grille, Lower |
| 53127D | Grille, Radiator, Lower Side RH |
| 53128E | Grille, Radiator, Lower Side LH |
| 53289E | Cover, Radiator Support Opening |
| 53879H | Retainer, Front Fender Liner |
| 76851G | Grommet, Screw, NO.1 |
| 81483J | Cover, Daytime Running Lamp, RH |
| 81484F | Cover, Daytime Running Lamp, LH |
| 89C48D | Retainer, Ultrasonic Sensor, Front Corner |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
