Toyota Yaris/Vios/Limo

2013-04 → present · chassis NCP15#,NSP15# · catalogue 149330 · United States

Supported model Data version 2019-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Unit

34 part groups · 48 illustrations

Illustrations

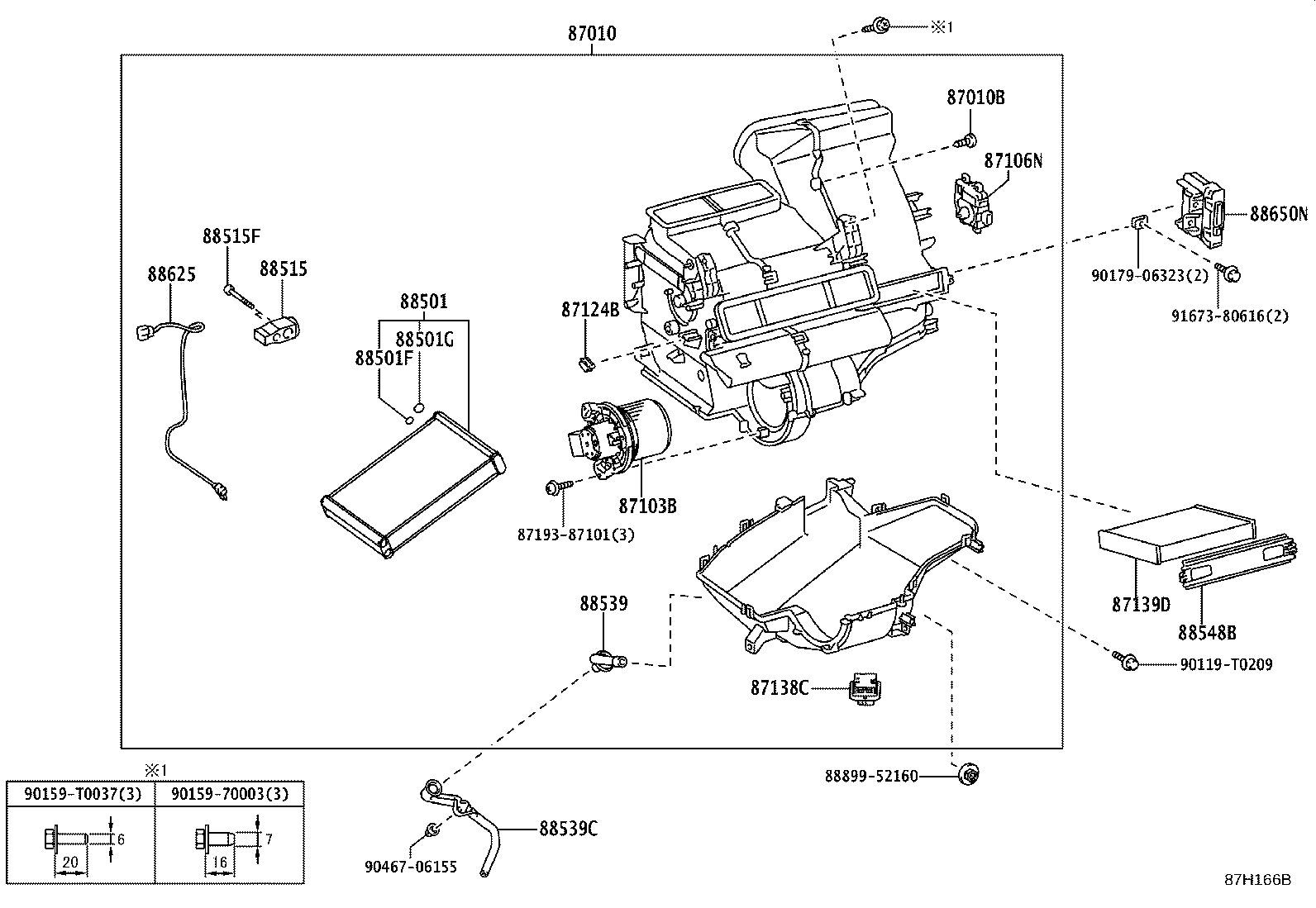

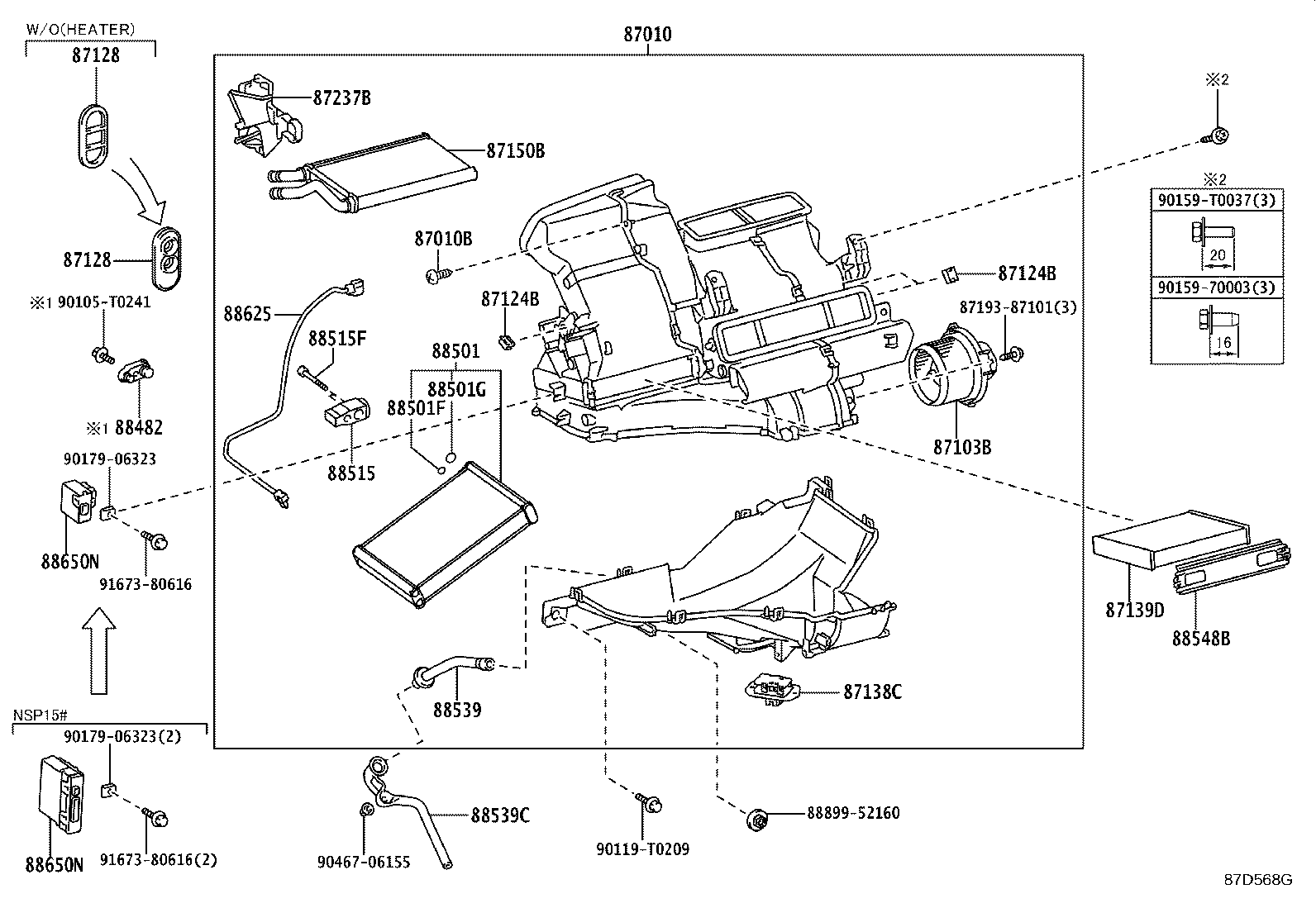

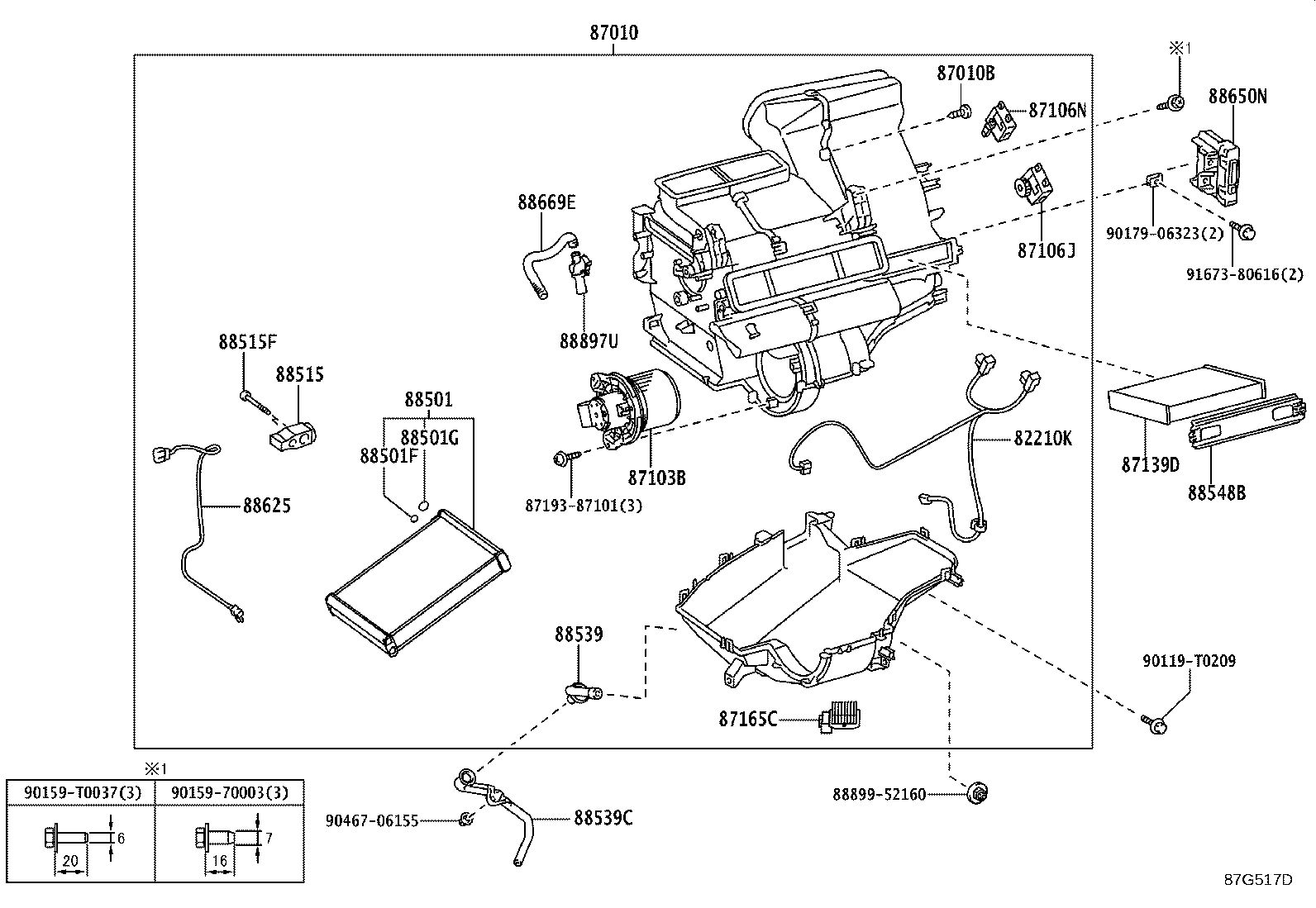

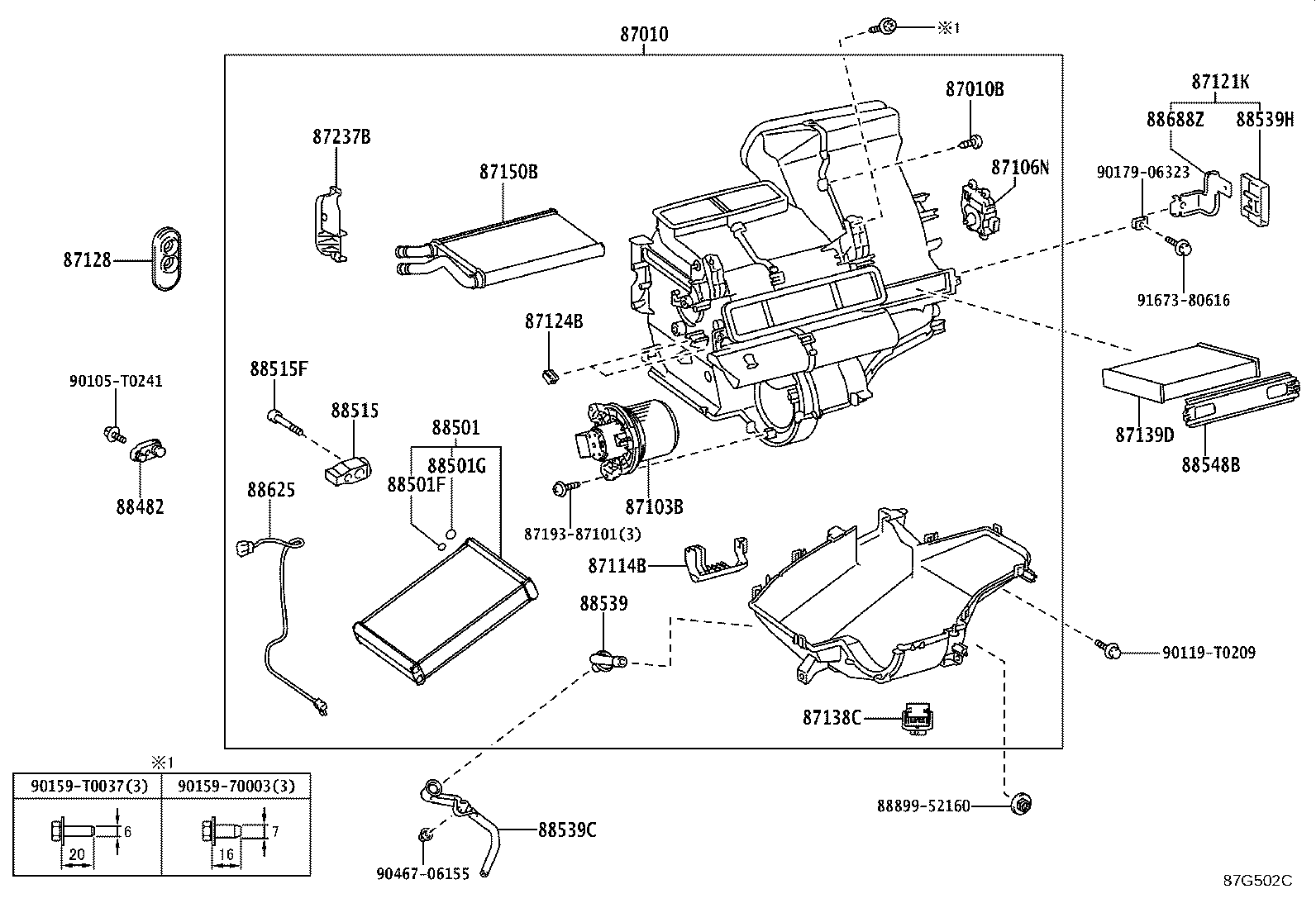

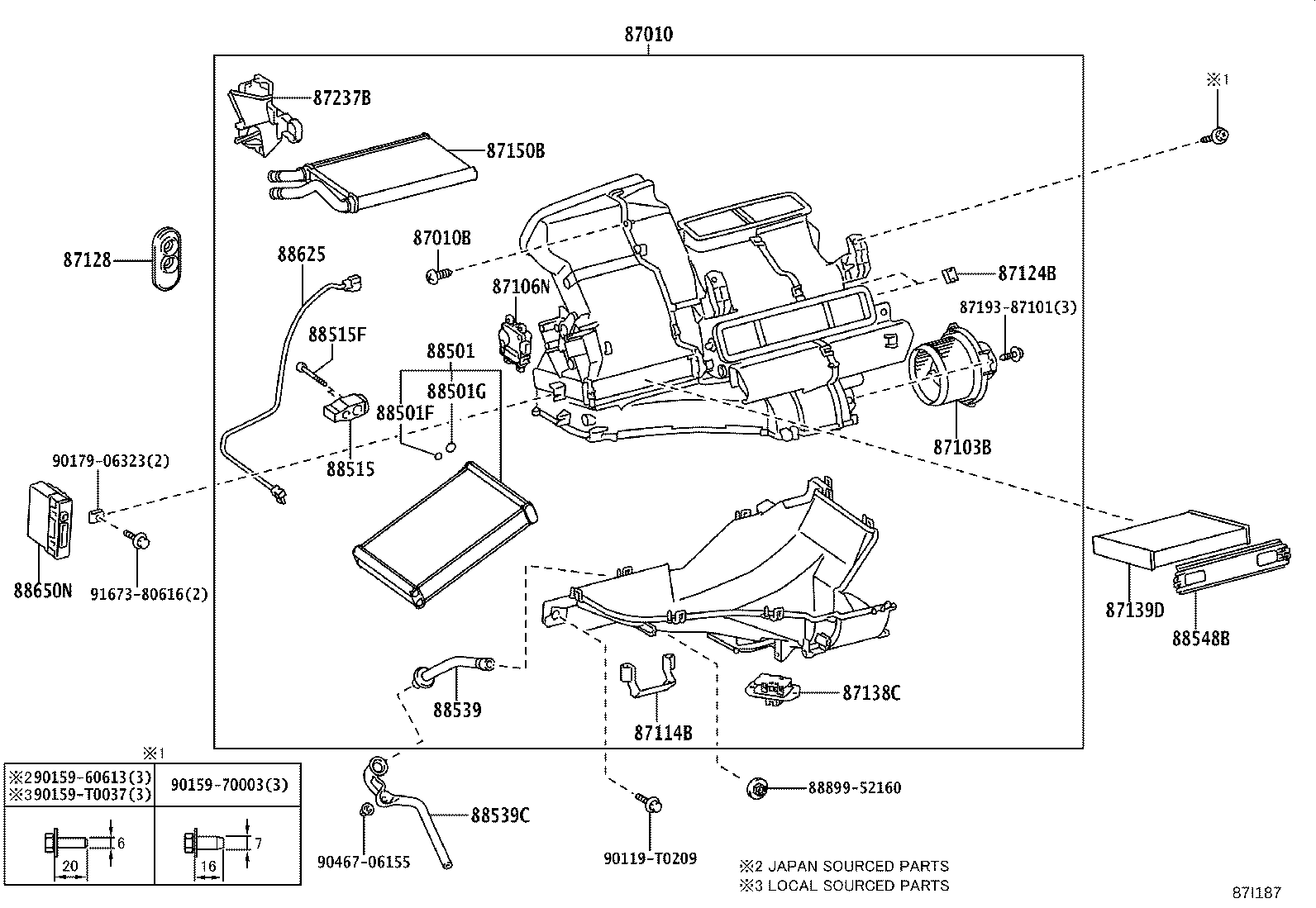

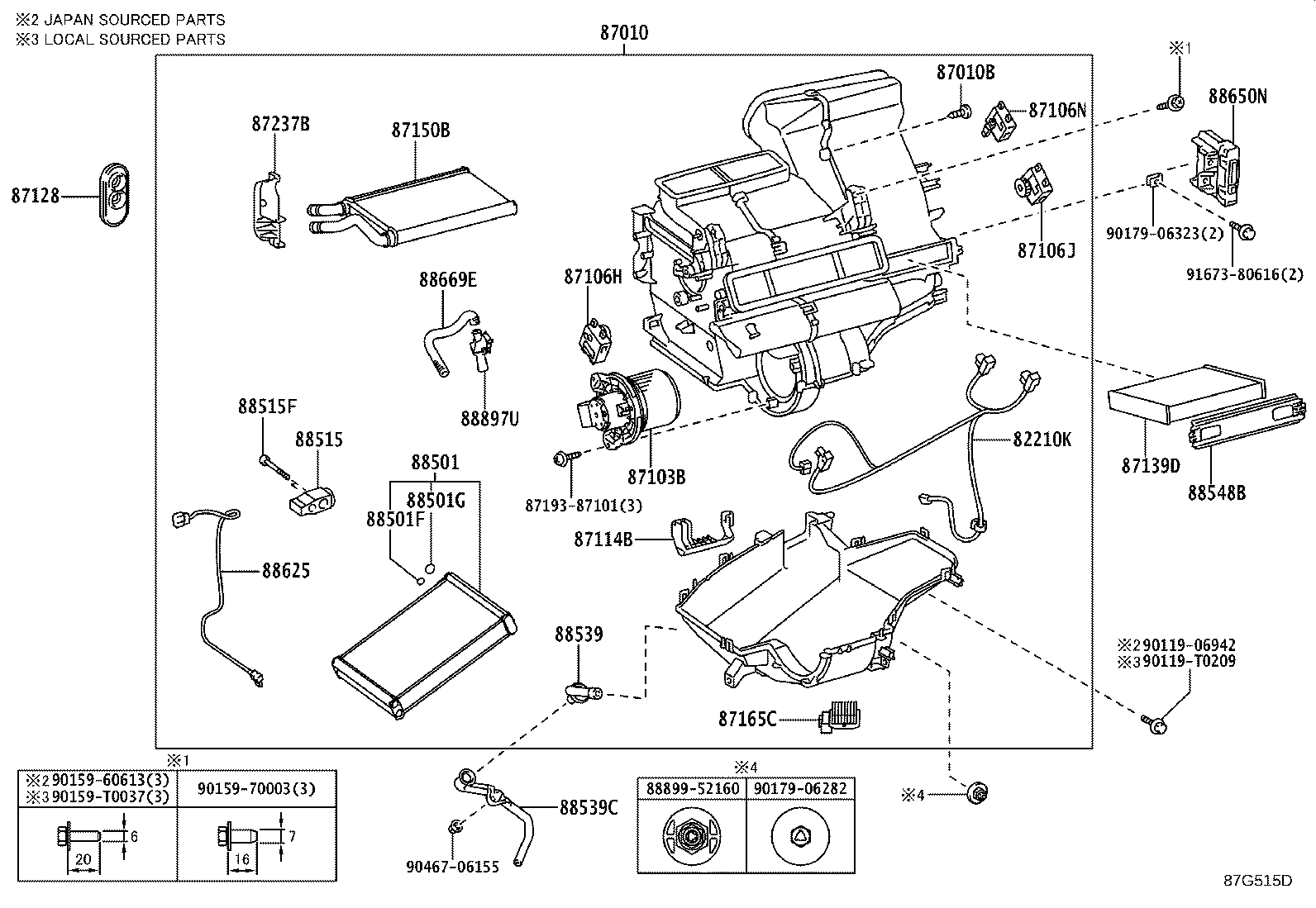

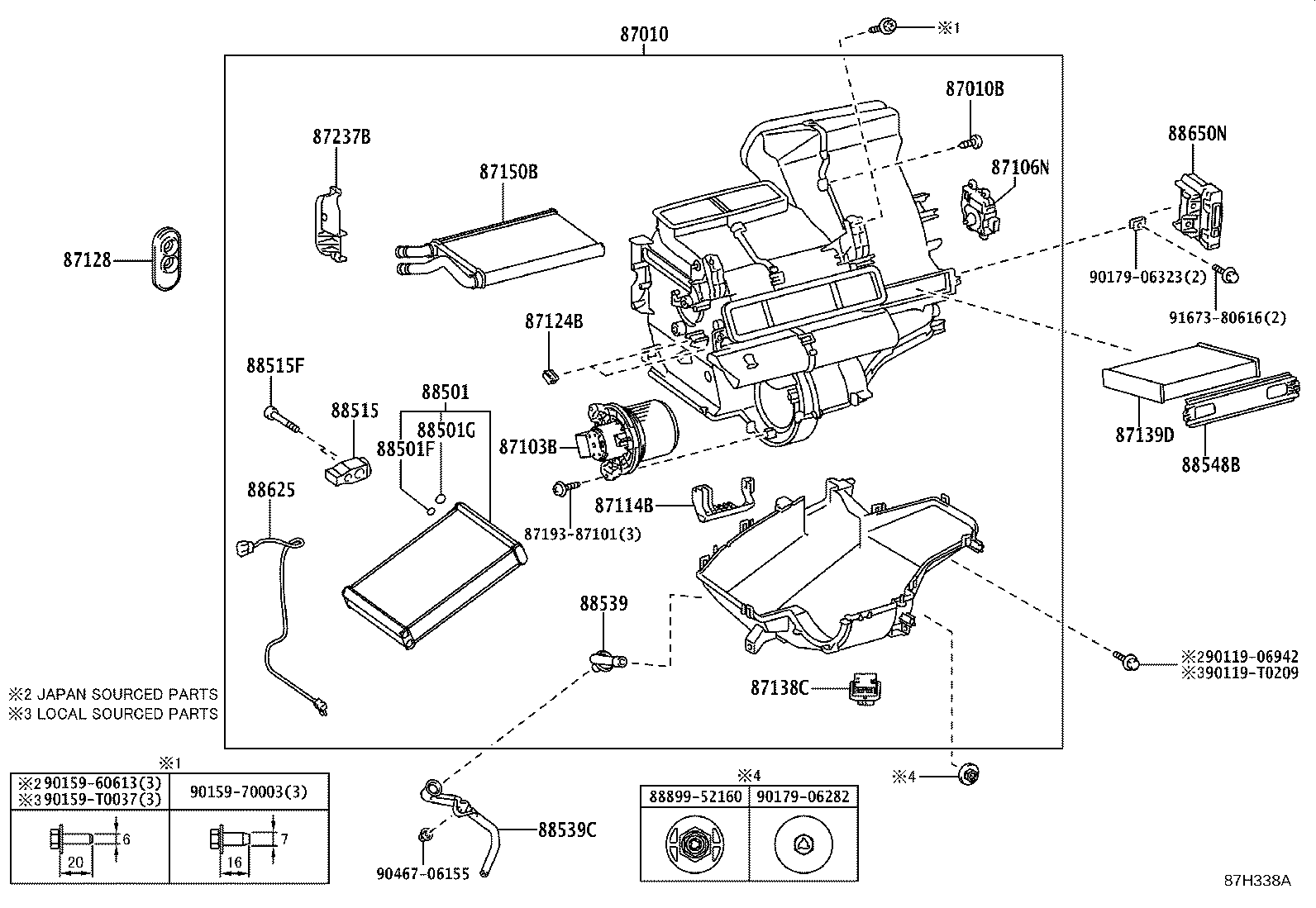

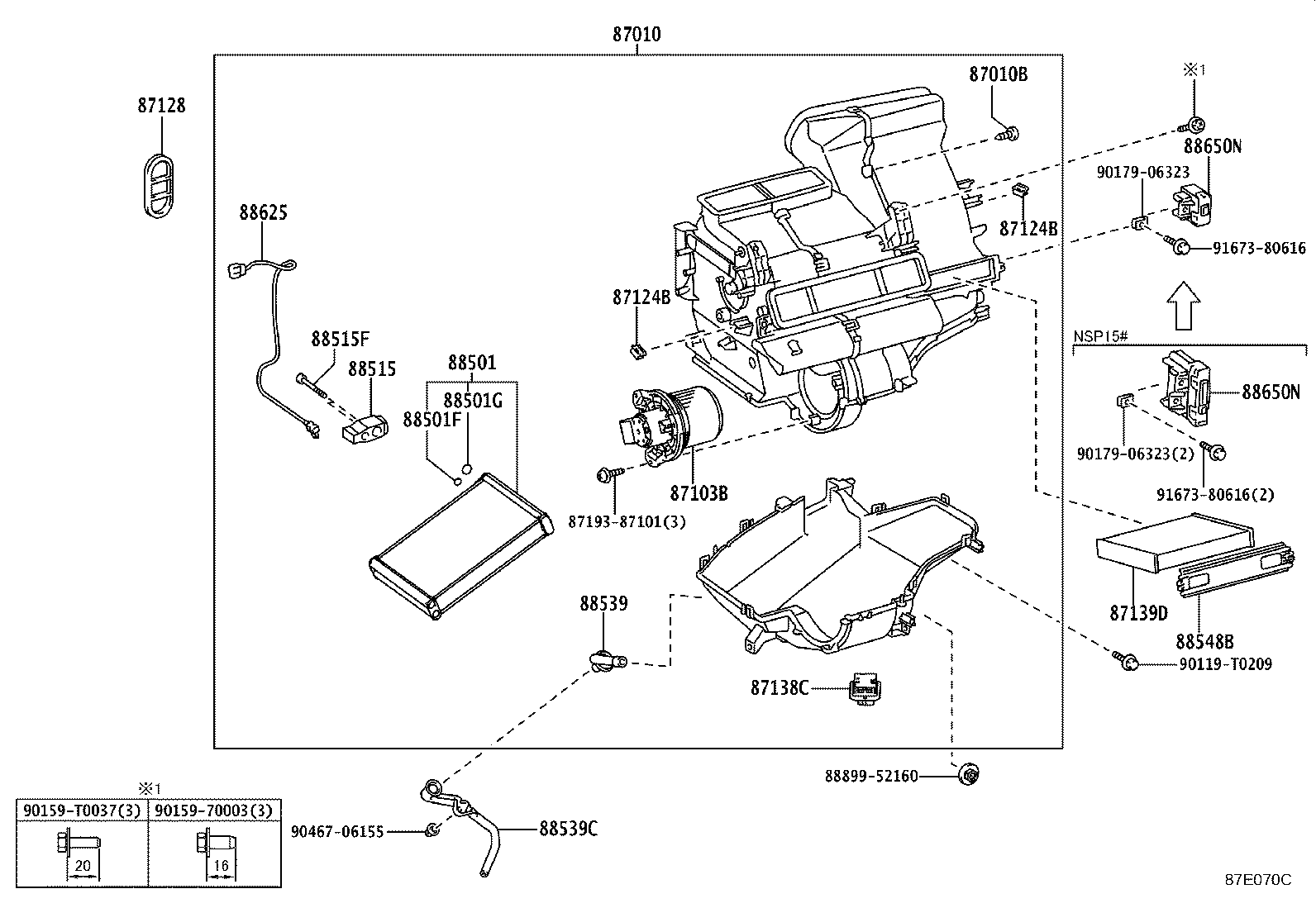

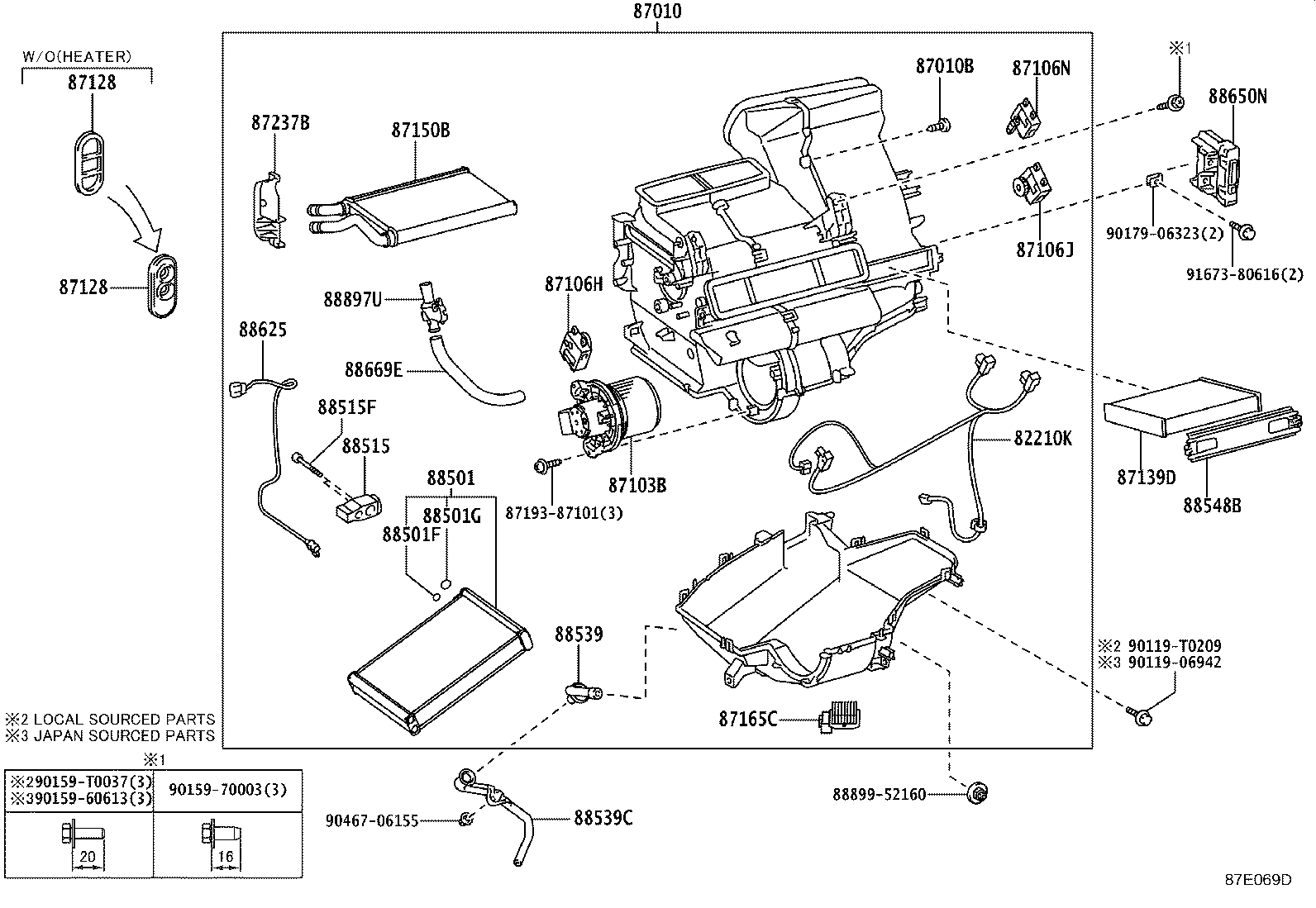

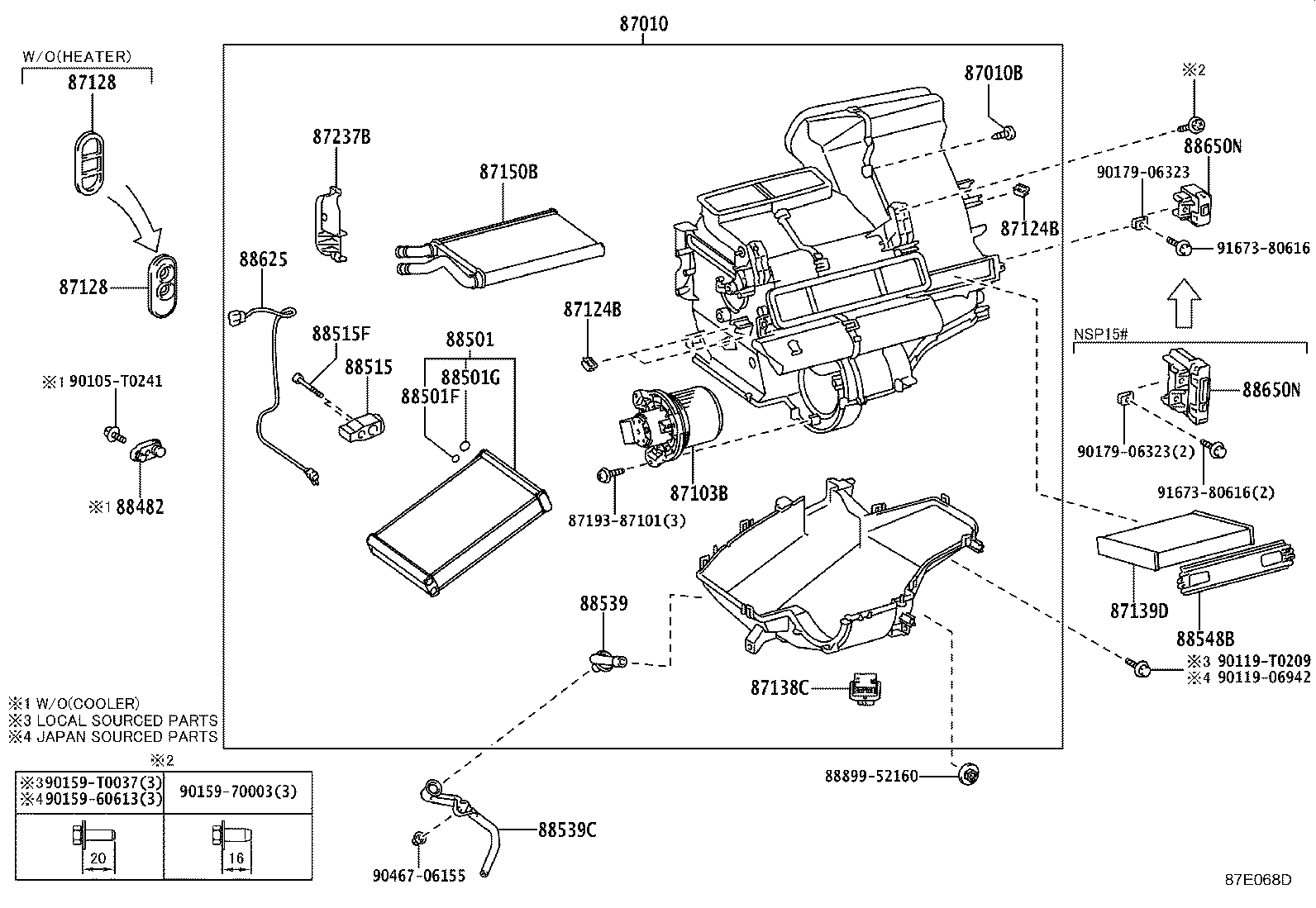

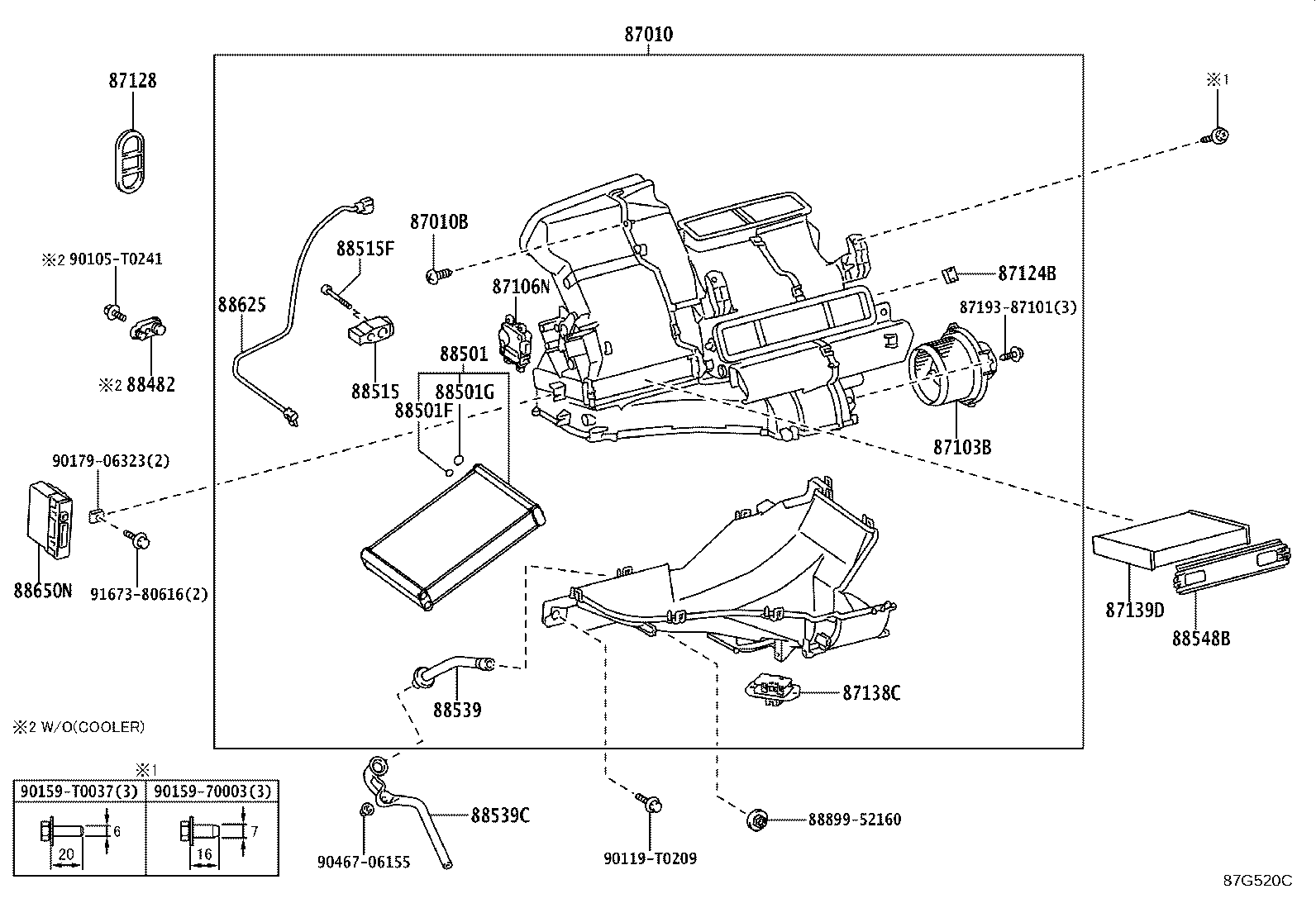

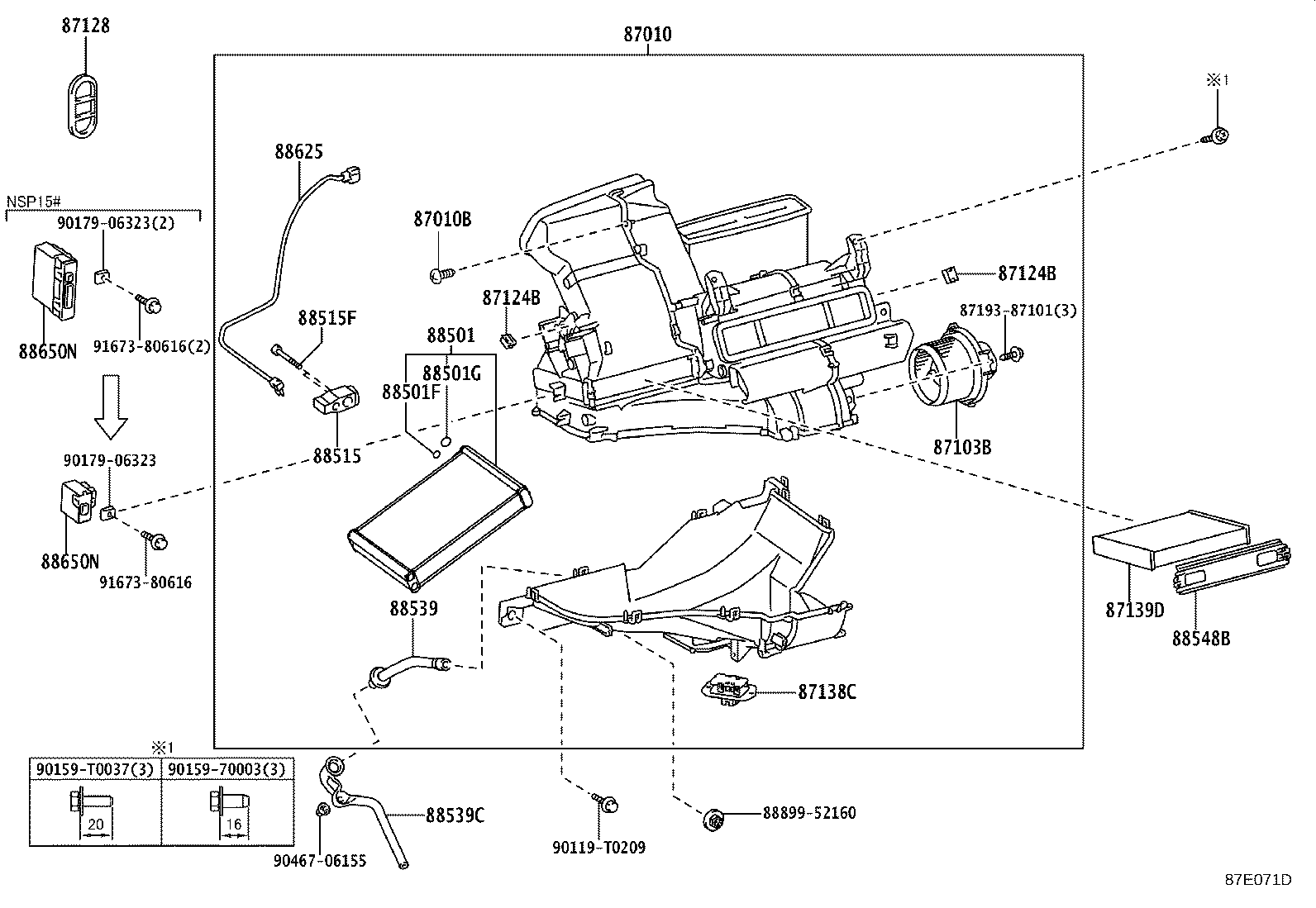

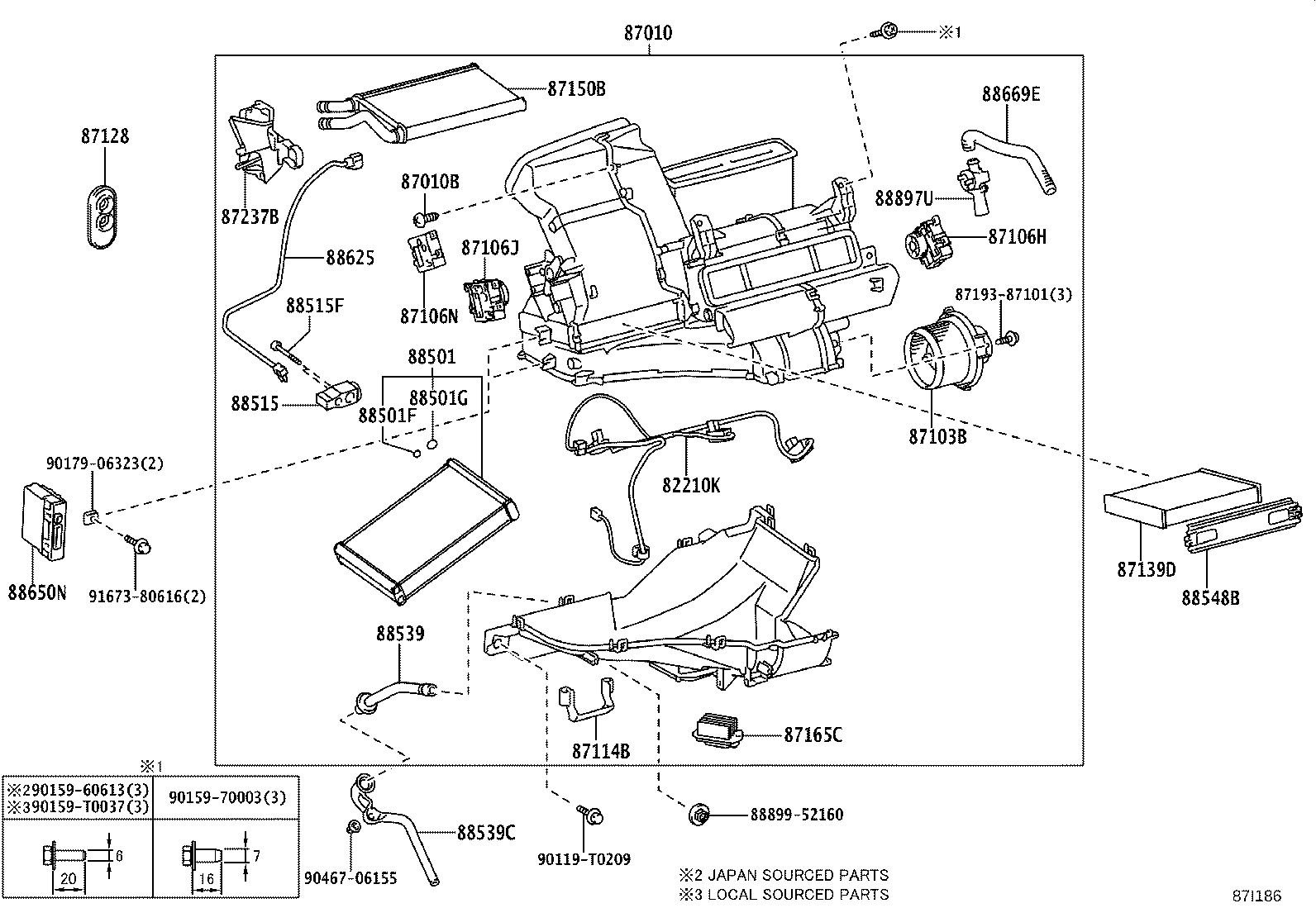

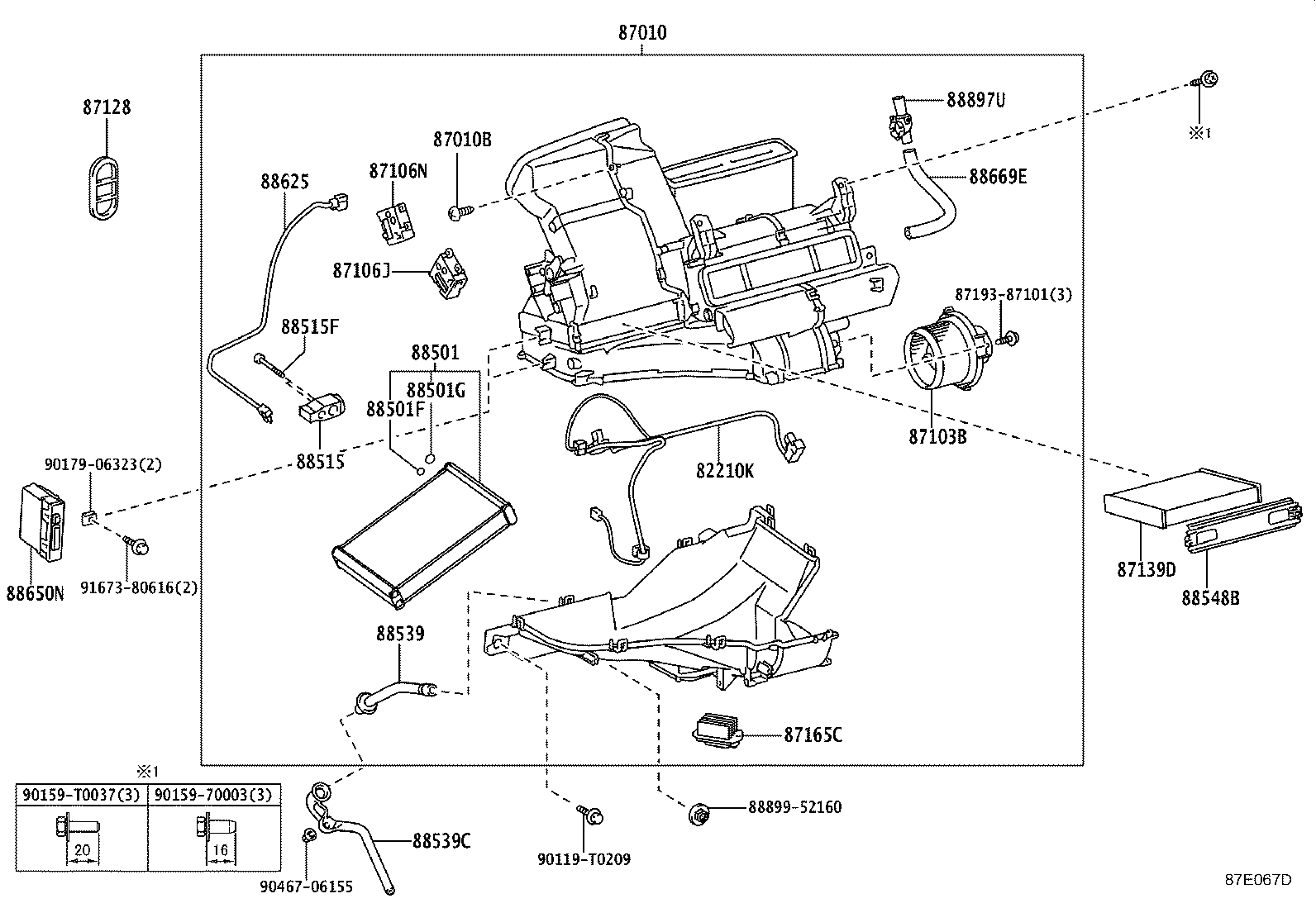

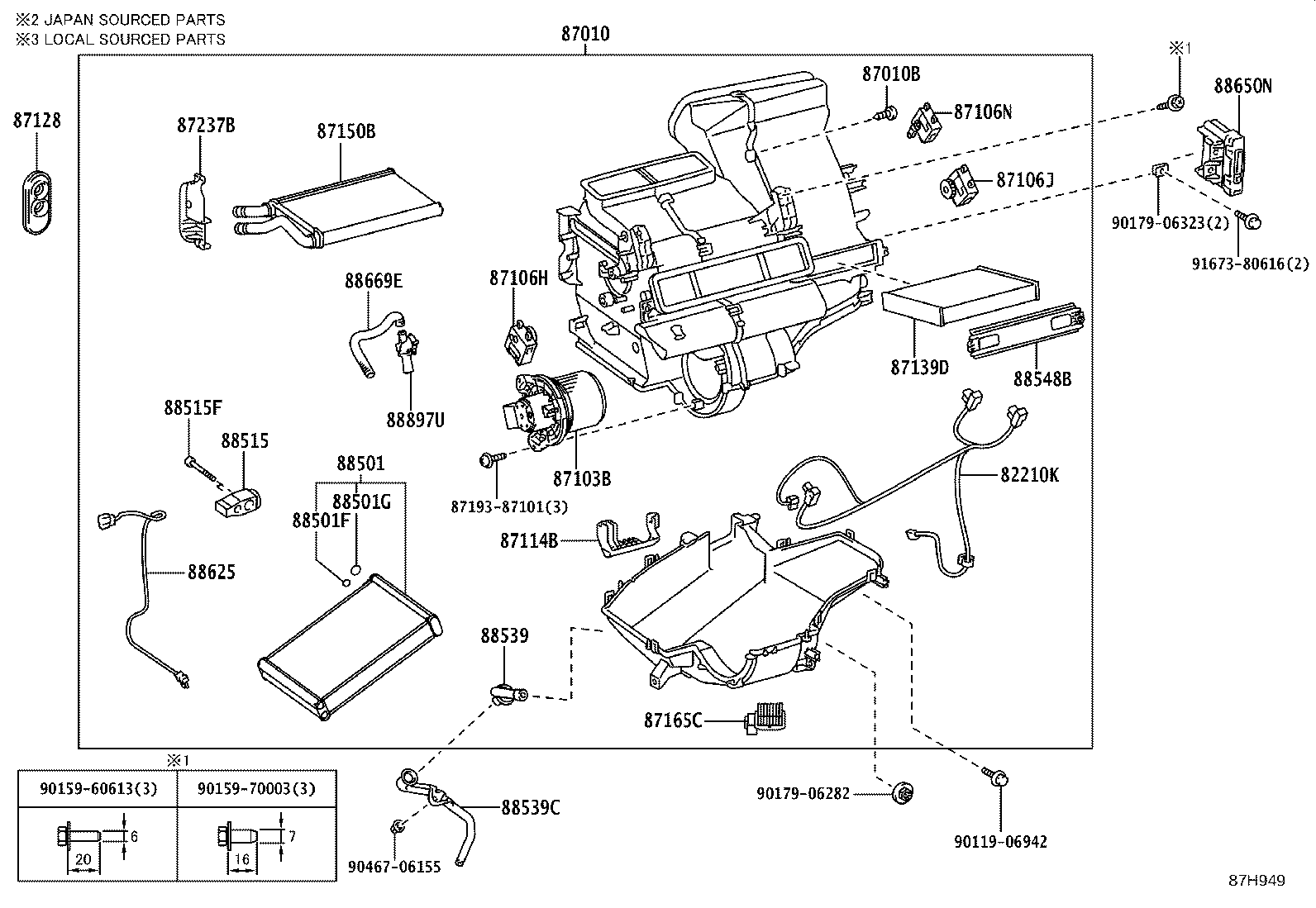

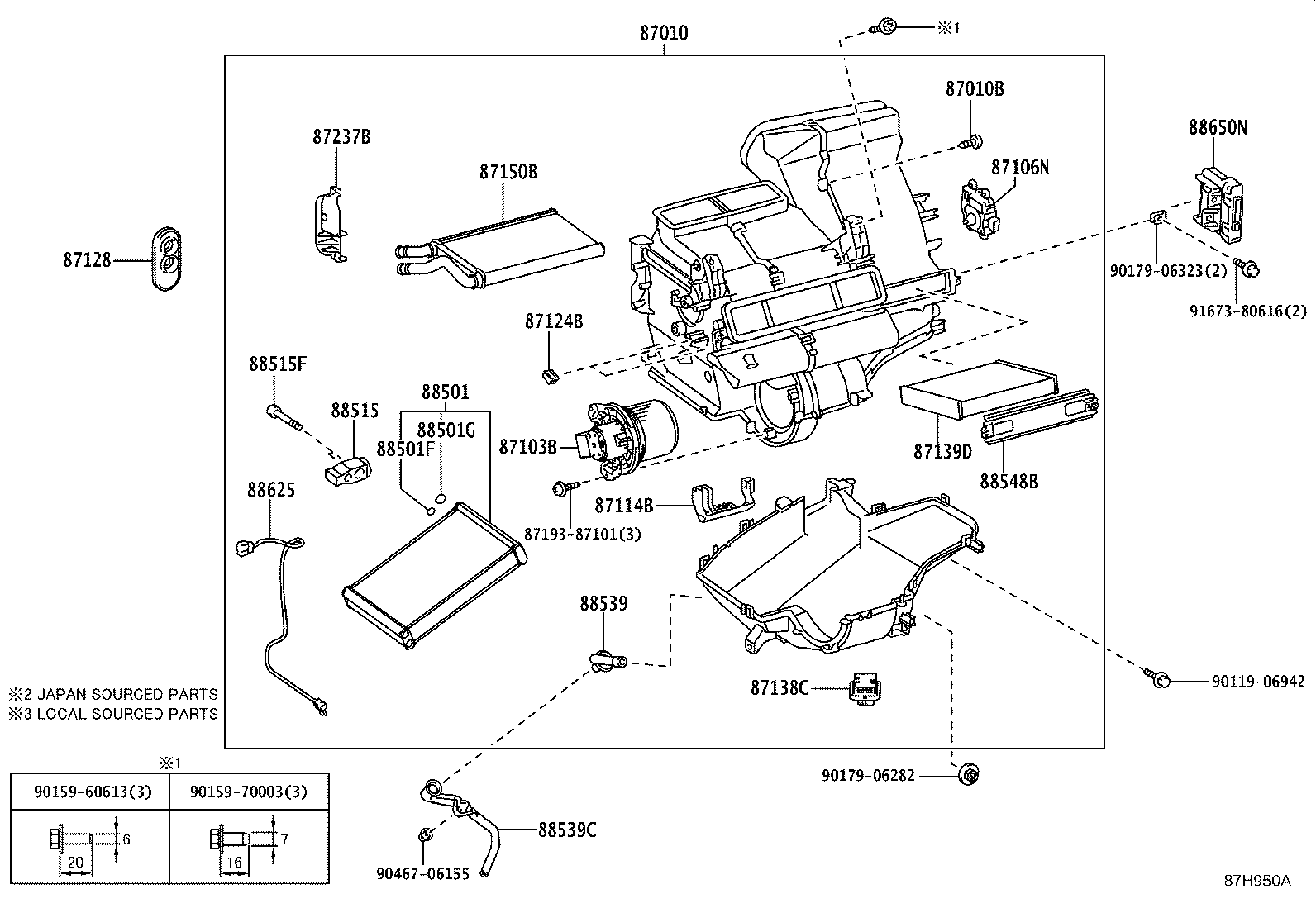

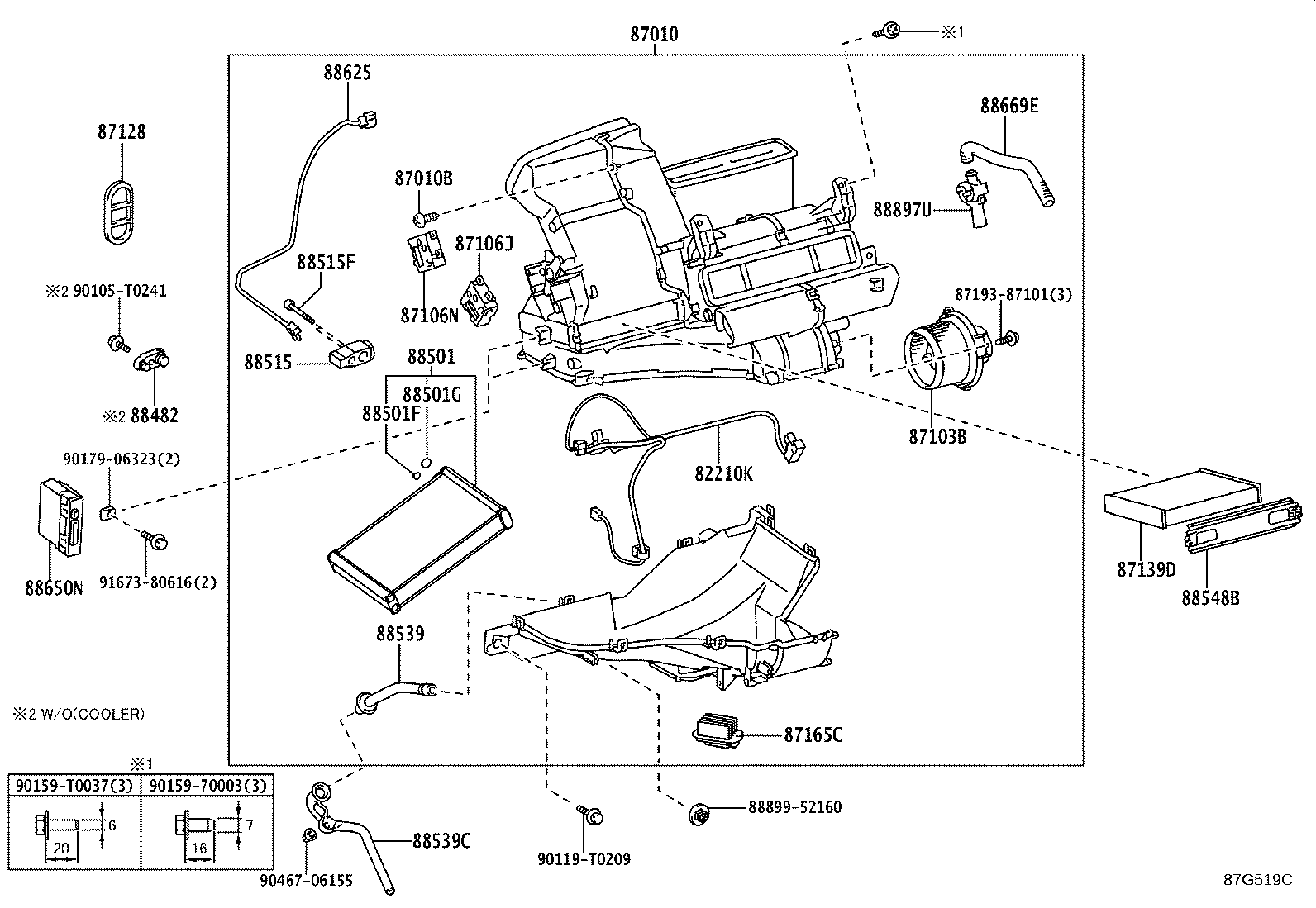

Figure 87E069D 87E069D 2013-07 → — Figure 87E069D 87E069D 2016-10 → 2018-01 Figure 87E068D 87E068D 2013-07 → — Figure 87E068D 87E068D 2016-10 → 2018-01 Figure 87E070C 87E070C 2013-07 → — Figure 87E070C 87E070C 2016-10 → 2018-01 Figure 87G515D 87G515D 2017-10 → — Figure 87G515D 87G515D 2018-01 → — Figure 87G515D 87G515D 2018-03 → — Figure 87G515D 87G515D 2018-07 → 2019-04 Figure 87H949 87H949 2018-07 → — Figure 87H338A 87H338A 2017-10 → — Figure 87H338A 87H338A 2018-01 → — Figure 87H338A 87H338A 2018-03 → — Figure 87H338A 87H338A 2018-07 → 2019-04 Figure 87H950A 87H950A 2018-07 → — Figure 87G517D 87G517D 2018-07 → — Figure 87H166B 87H166B 2018-07 → — Figure 87G502C 87G502C 2017-10 → — Figure 87E067D 87E067D 2013-04 → — Figure 87E067D 87E067D 2016-08 → 2018-12 Figure 87E067D 87E067D 2016-10 → 2018-01 Figure 87D568G 87D568G 2013-04 → — Figure 87D568G 87D568G 2016-08 → 2018-12 Figure 87D568G 87D568G 2016-10 → 2018-01 Figure 87E071D 87E071D 2013-04 → — Figure 87E071D 87E071D 2016-08 → 2018-12 Figure 87E071D 87E071D 2016-10 → 2018-01 Figure 87I186 87I186 2017-08 → — Figure 87I186 87I186 2018-01 → — Figure 87I186 87I186 2018-04 → — Figure 87I186 87I186 2019-01 → — Figure 87I187 87I187 2017-08 → — Figure 87I187 87I187 2018-01 → — Figure 87I187 87I187 2018-04 → — Figure 87I187 87I187 2019-01 → — Figure 87G519C 87G519C 2017-08 → — Figure 87G519C 87G519C 2018-01 → — Figure 87G519C 87G519C 2018-04 → — Figure 87G519C 87G519C 2019-01 → — Figure 87G520C 87G520C 2017-08 → — Figure 87G520C 87G520C 2018-01 → — Figure 87G520C 87G520C 2018-04 → — Figure 87G520C 87G520C 2019-01 → — Figure 87G951 87G951 2017-08 → — Figure 87G951 87G951 2018-01 → — Figure 87G951 87G951 2018-04 → — Figure 87G951 87G951 2019-01 → —

Part groups

PNCDescription
82210K Harness Assy, Air Conditioner
87010 Unit Assy, Air Conditioner
87010B Screw(FOR AIR CONDITIONER UNIT)
87103B Motor Sub-assy, Blower W/Fan
87106H Servo Sub-assy, Damper(FOR AIRMIX)
87106J Servo Sub-assy, Damper(FOR MODE)
87106N Servo Sub-assy, Damper(FOR RECIRCULATION)
87114B Cover, Heater
87121K Bracket, Heater
87124B Clamp, Heater
87128 Grommet, Heater
87138C Resistor, Blower
87139D Element, Air Refiner
87150B Radiator Assy, Heater
87165C Control, Blower Motor
87237B Cover, Heater Piping
88482 Cap, Cooler
88501 Evaporator Sub-assy, Cooler, NO.1
88501F O-ring, Cooler Evaporator NO.1(DISCHARGE)
88501G O-ring, Cooler Evaporator NO.1(SUCTION)
88515 Valve, Cooler Expansion
88515F Bolt(FOR COOLER EXPANSION VALVE)
88539 Hose, Cooler Unit Drain, NO.1
88539C Hose, Cooler Unit Drain, NO.2
88539H Connector

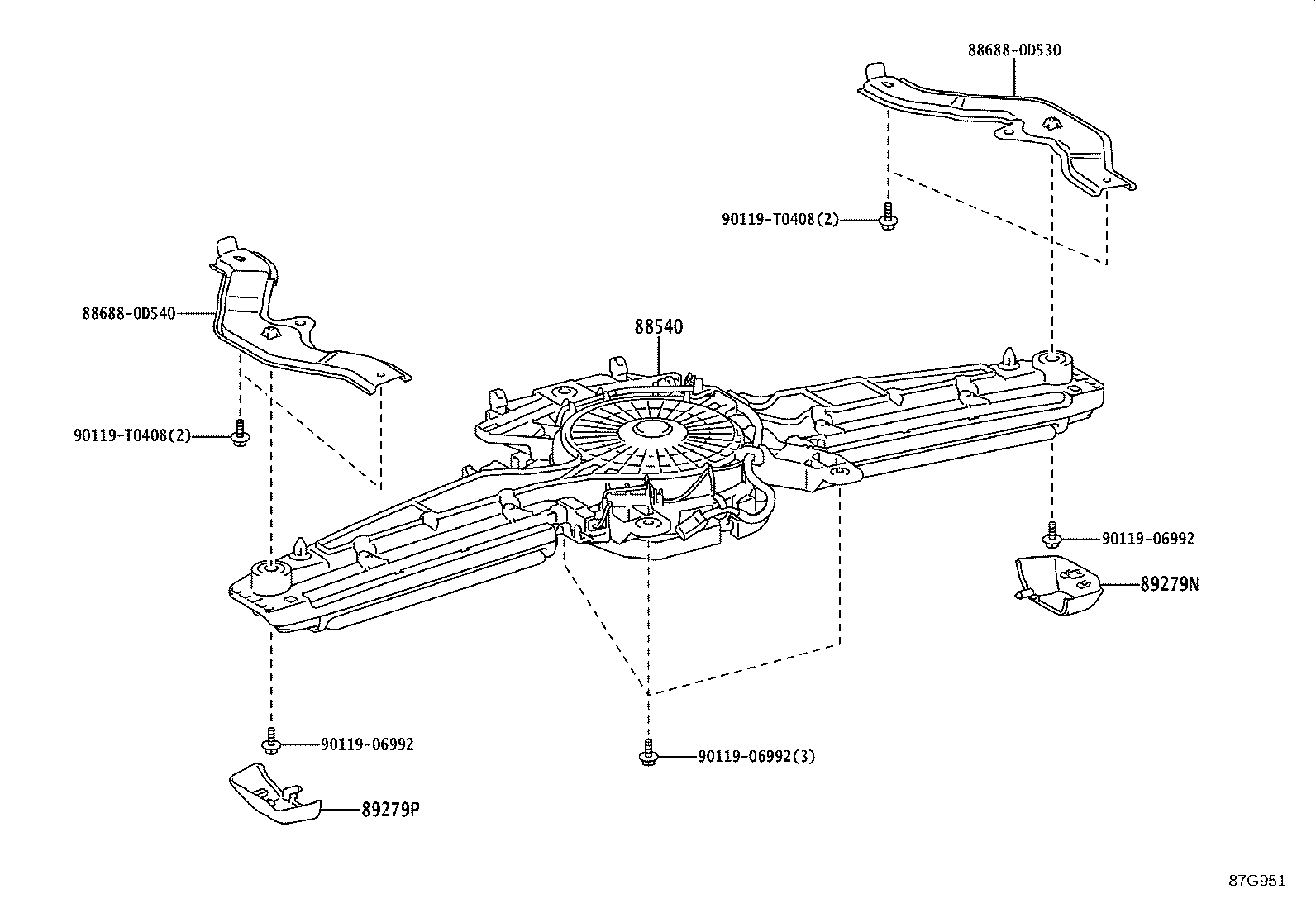

88540 Blower Assy, Cooler
88548B Case, Air Filter
88625 Thermistor, Cooler, NO.1
88650N Amplifier Assy, Air Conditioner
88669E Hose, Air
88688Z Bracket
88897U Pipe, Aspirator
89279N Cover
89279P Cover
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
