Toyota Yaris/Vios/Limo

2013-04 → present · chassis NCP15#,NSP15# · catalogue 149330 · United States

Supported model Data version 2019-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

27 part groups · 10 illustrations

Illustrations

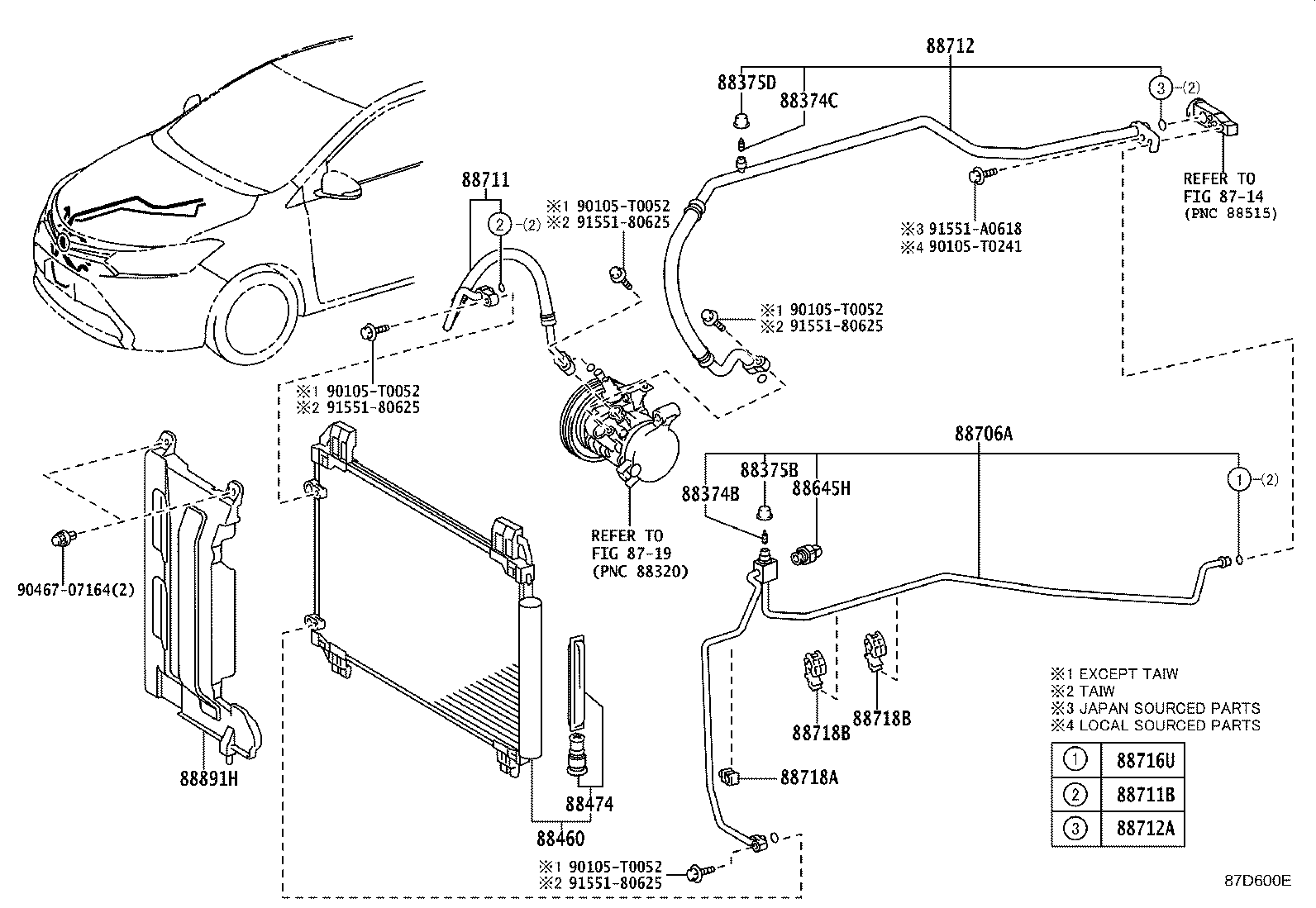

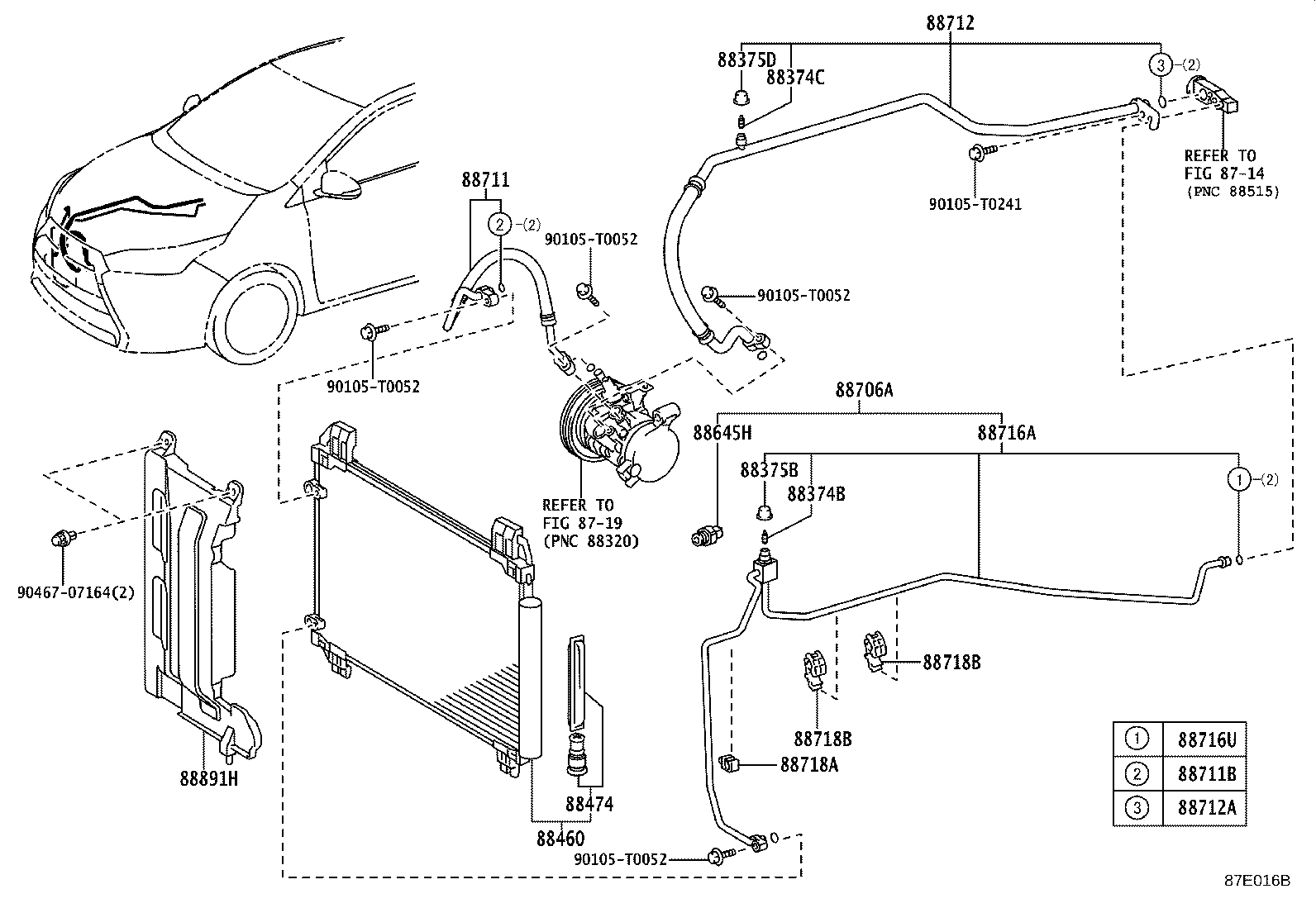

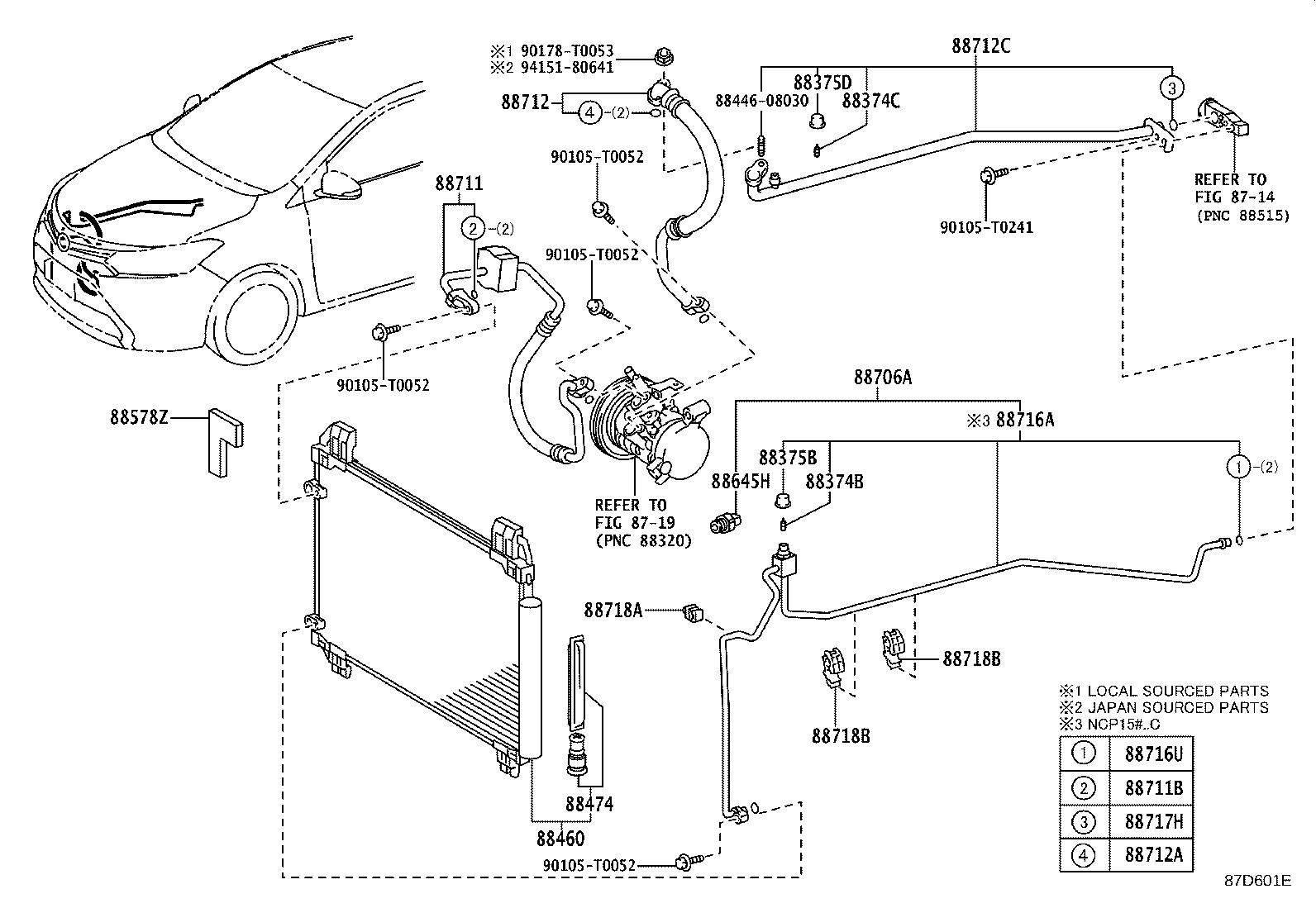

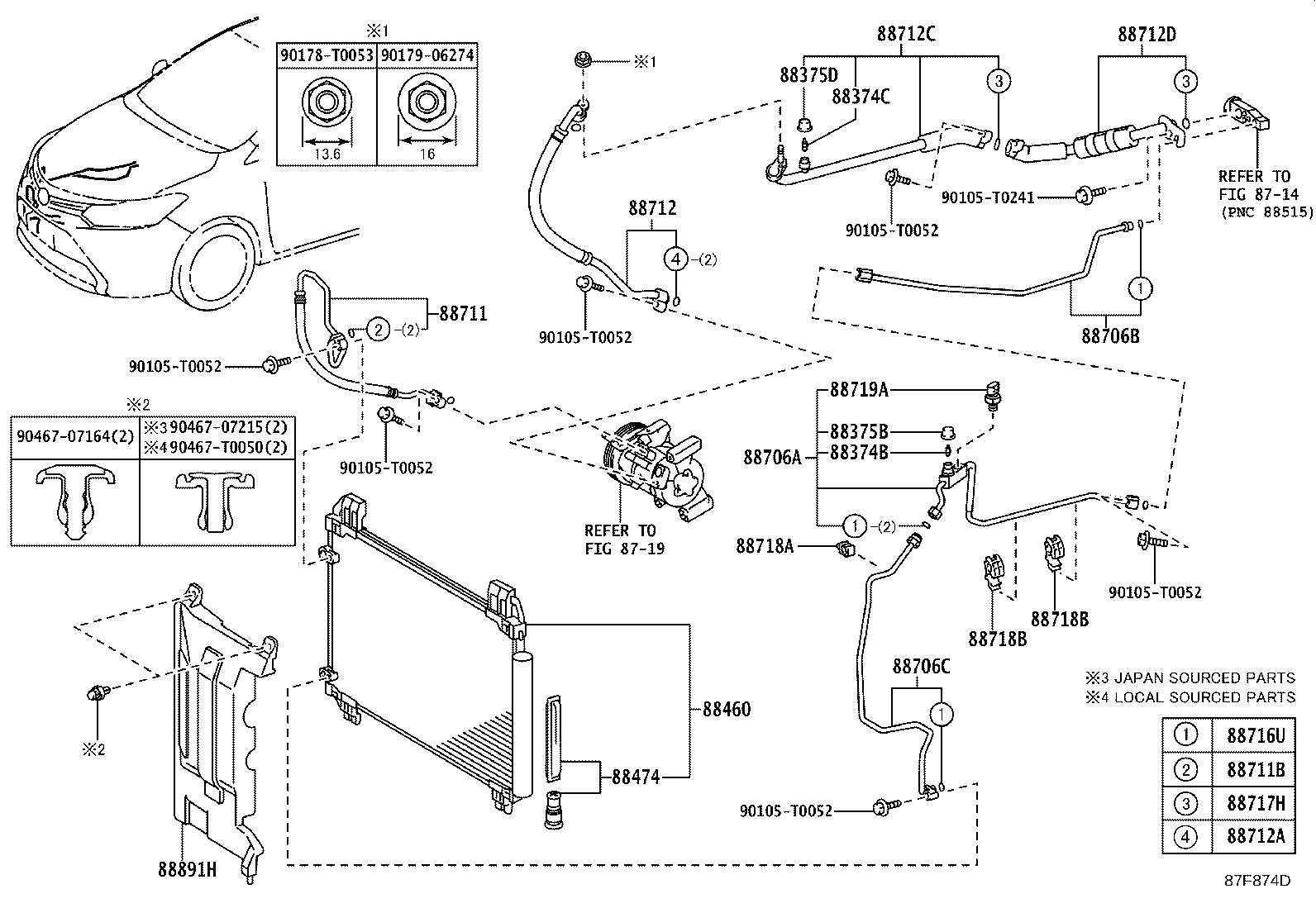

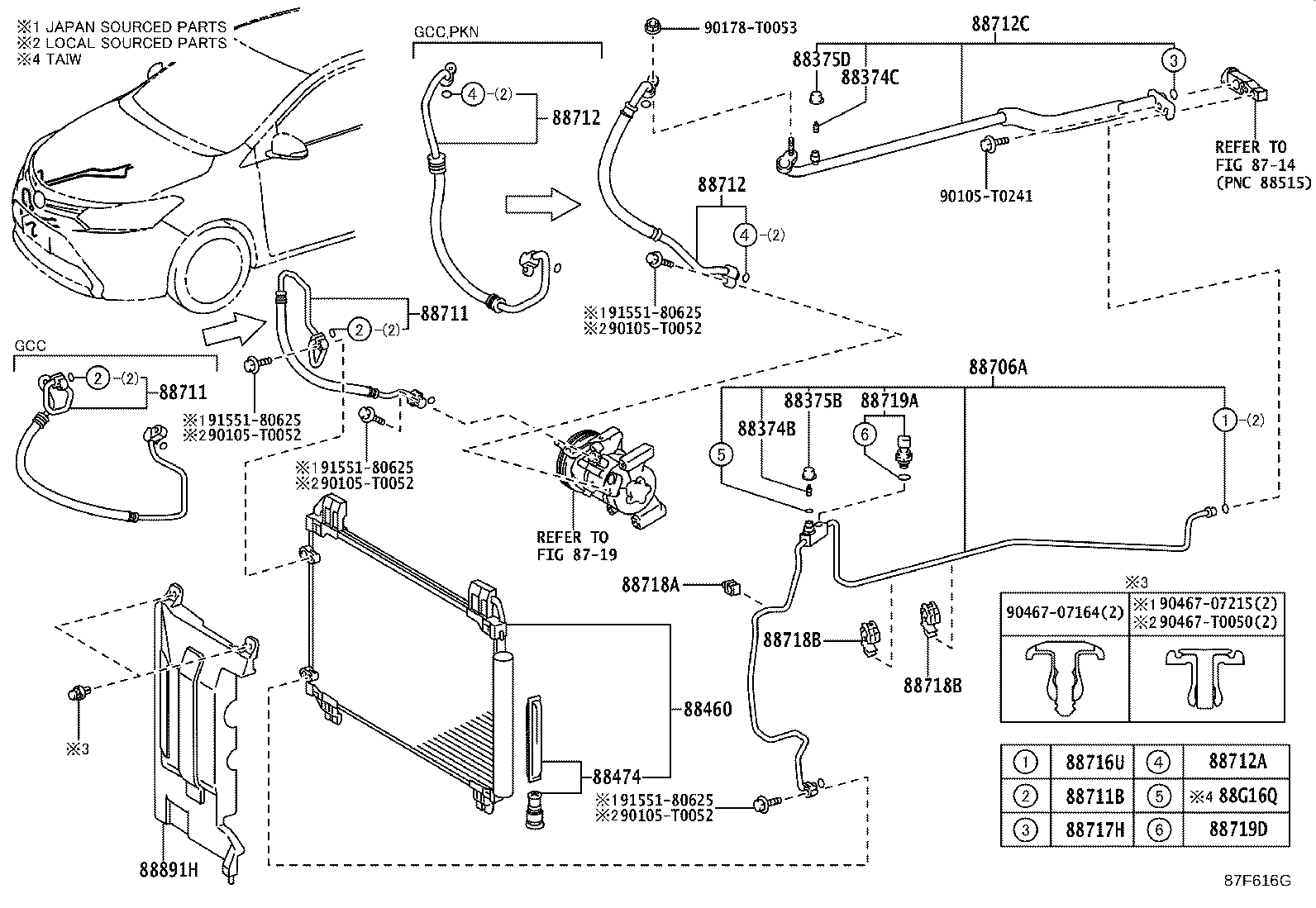

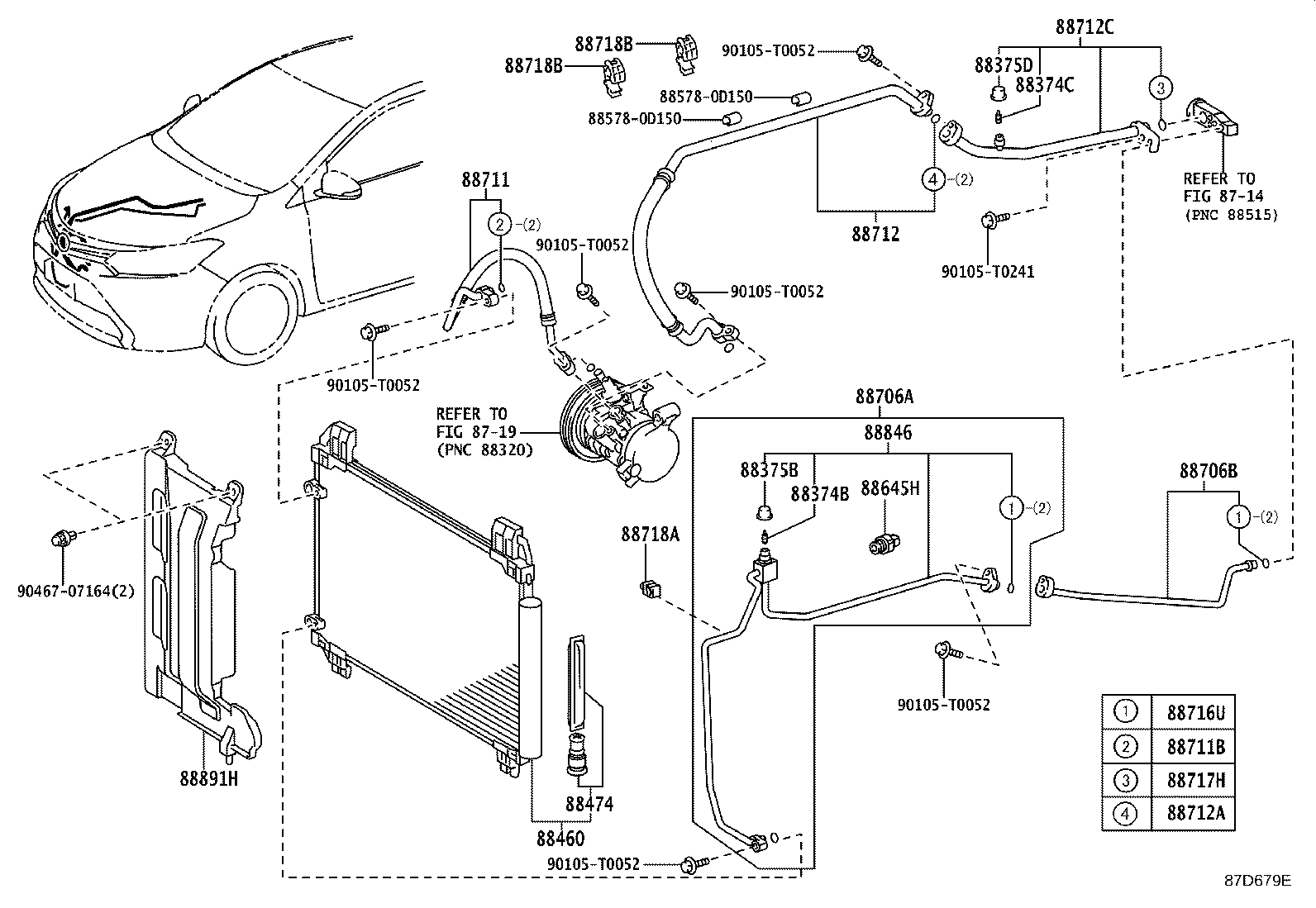

Figure 87D600E 87D600E 2013-04 → — Figure 87D601E 87D601E 2013-08 → — Figure 87E016B 87E016B 2013-12 → — Figure 87D679E 87D679E 2013-04 → — Figure 87D679E 87D679E 2013-08 → — Figure 87F616G 87F616G 2016-04 → — Figure 87F616G 87F616G 2018-01 → — Figure 87F616G 87F616G 2018-03 → — Figure 87F874D 87F874D 2016-04 → — Figure 87F874D 87F874D 2018-01 → —

Part groups

PNCDescription
88374B Valve, Service, NO.1
88374C Valve, Service, NO.2
88375B Cap, Service Valve, NO.1
88375D Cap, Service Valve, NO.2
88460 Condenser Assy, Cooler
88474 Dryer, Cooler
88578Z Packing, Cooler, NO.1
88645H Switch, Pressure NO.1
88706A Tube Sub-assy, Liquid, A
88706B Tube Sub-assy, Liquid, B
88706C Tube Sub-assy, Liquid, C
88711 Hose, Cooler Refrigerant Discharge, NO.1
88711B Ring, O(FOR COOLER REFRIGERANT DISCHARGE HOSE)
88712 Hose, Cooler Refrigerant Suction, NO.1
88712A Ring, O(FOR COOLER REFRIGERANT SUCTION HOSE)
88712C Hose, Suction
88712D Hose, Suction
88716A Pipe, Cooler Refrigerant Liquid, A
88716U Ring, O(FOR COOLER REFRIGERANT LIQUID PIPE)
88717H Ring, O(FOR COOLER REFRIGERANT SUCTION PIPE)
88718A Clamp, NO.1(FOR COOLER REFRIGERANT PIPE)
88718B Clamp, NO.2(FOR COOLER REFRIGERANT PIPE)
88719A Sensor, Air Conditioner Pressure
88719D Ring, O(FOR AIR CONDITIONER PRESSURE SENSOR)
88846 Tube, Liquid
88891H Cover, Cooler, NO.1
88G16Q Ring, O, NO.1(FOR LIQUID TUBE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
