Toyota Corolla

1979-08 → 1983-07 · chassis AE71E,TE72E · catalogue 191410 · United States

Discontinued model Data version 1984-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

30 part groups · 12 illustrations

Illustrations

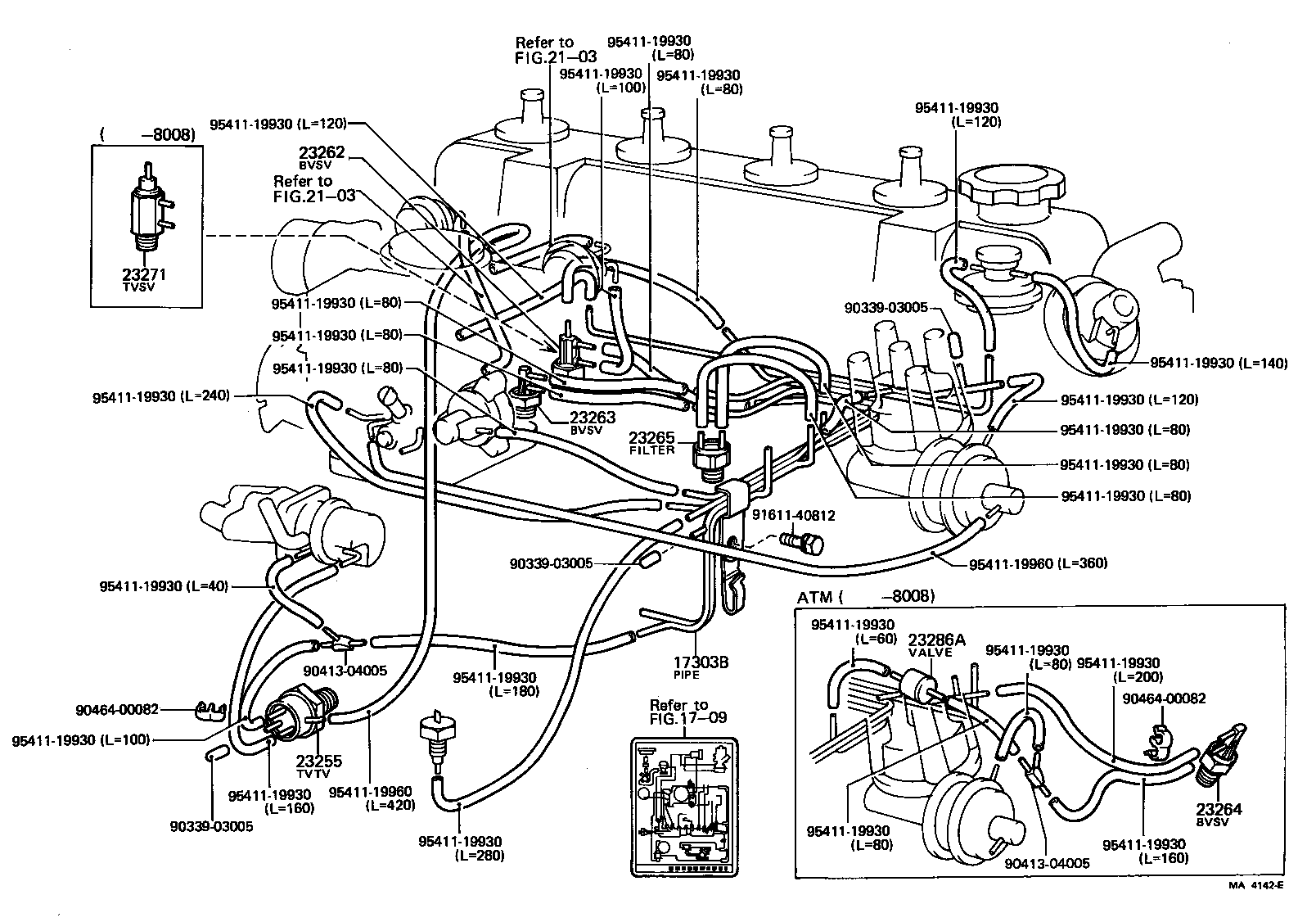

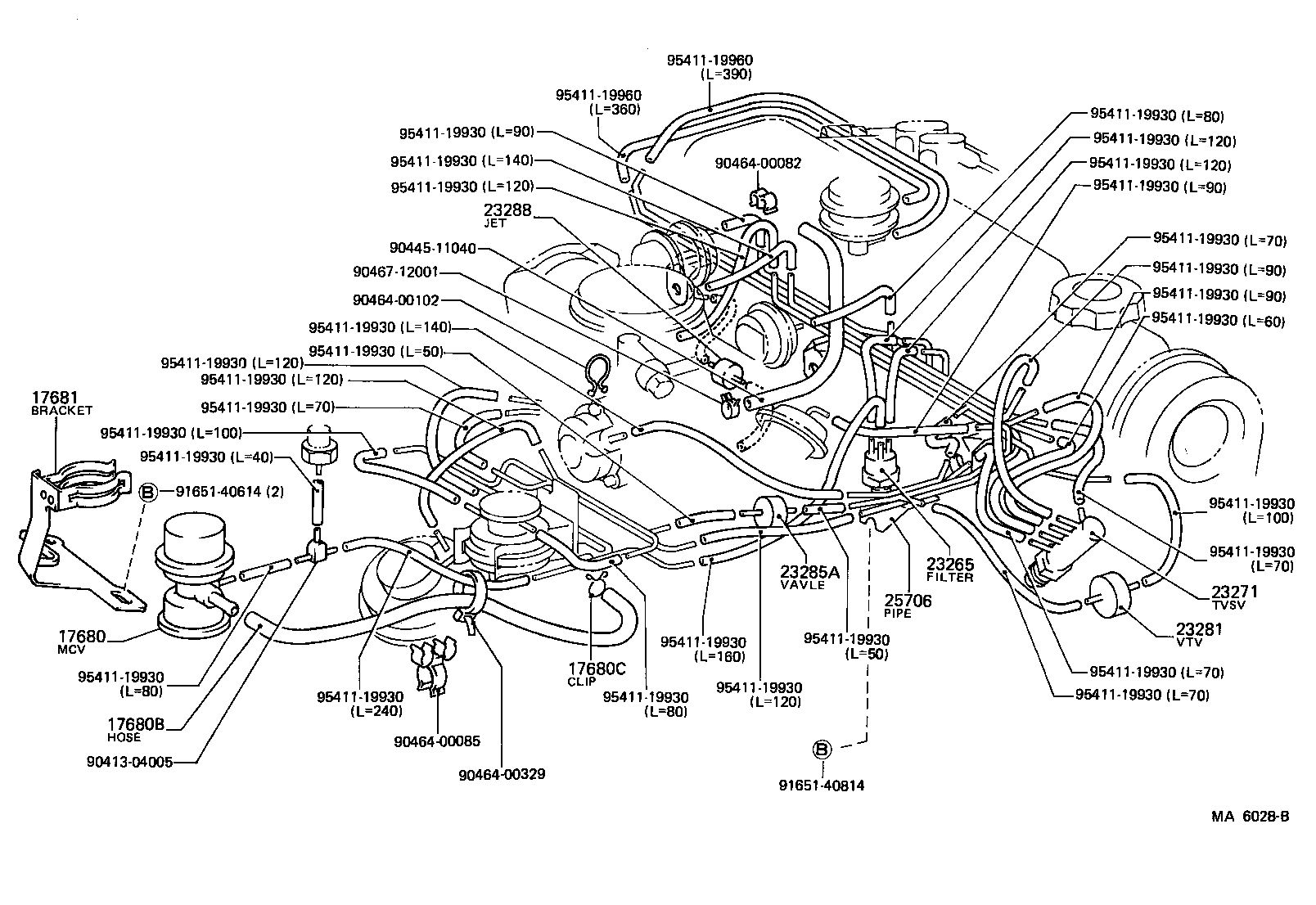

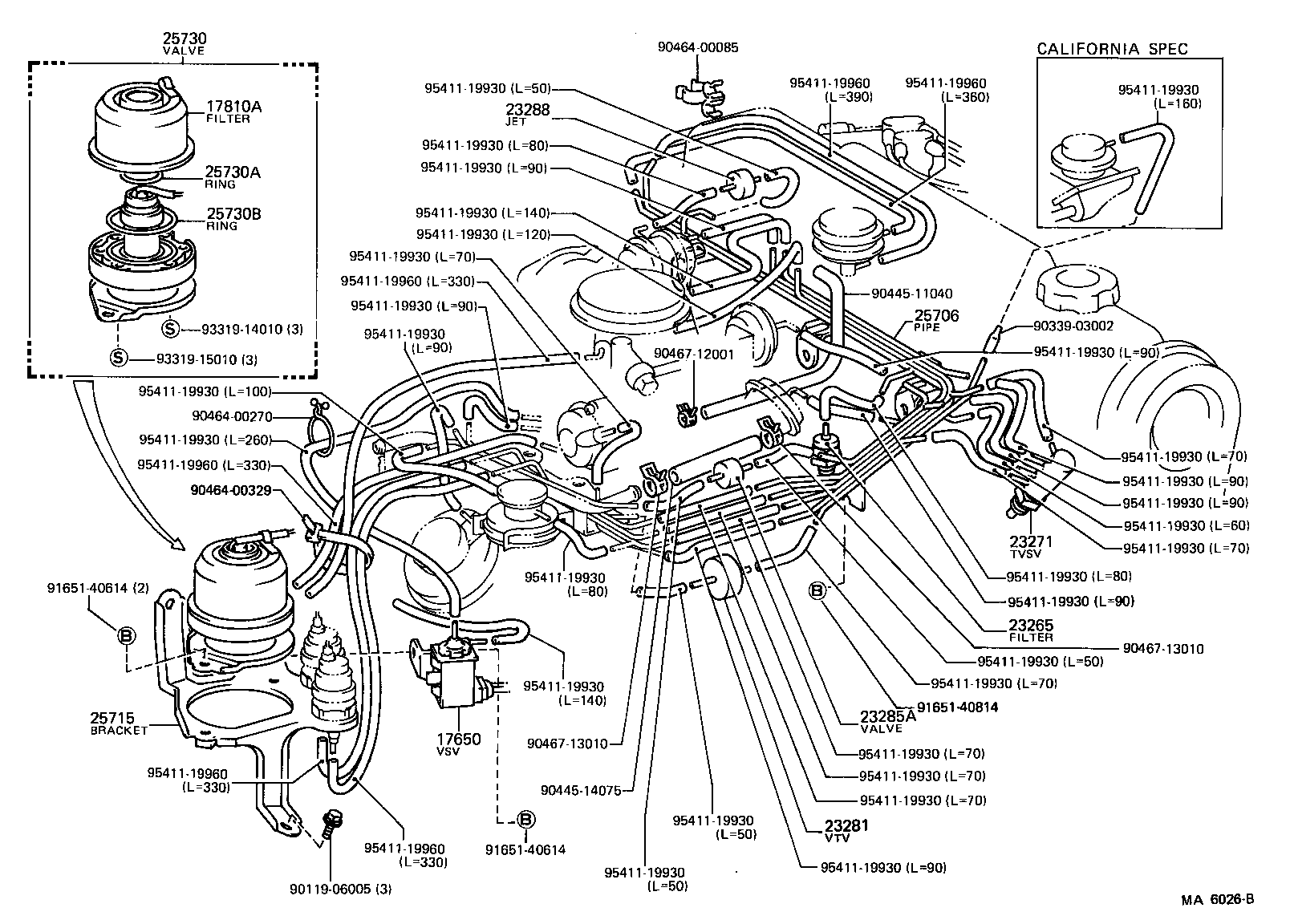

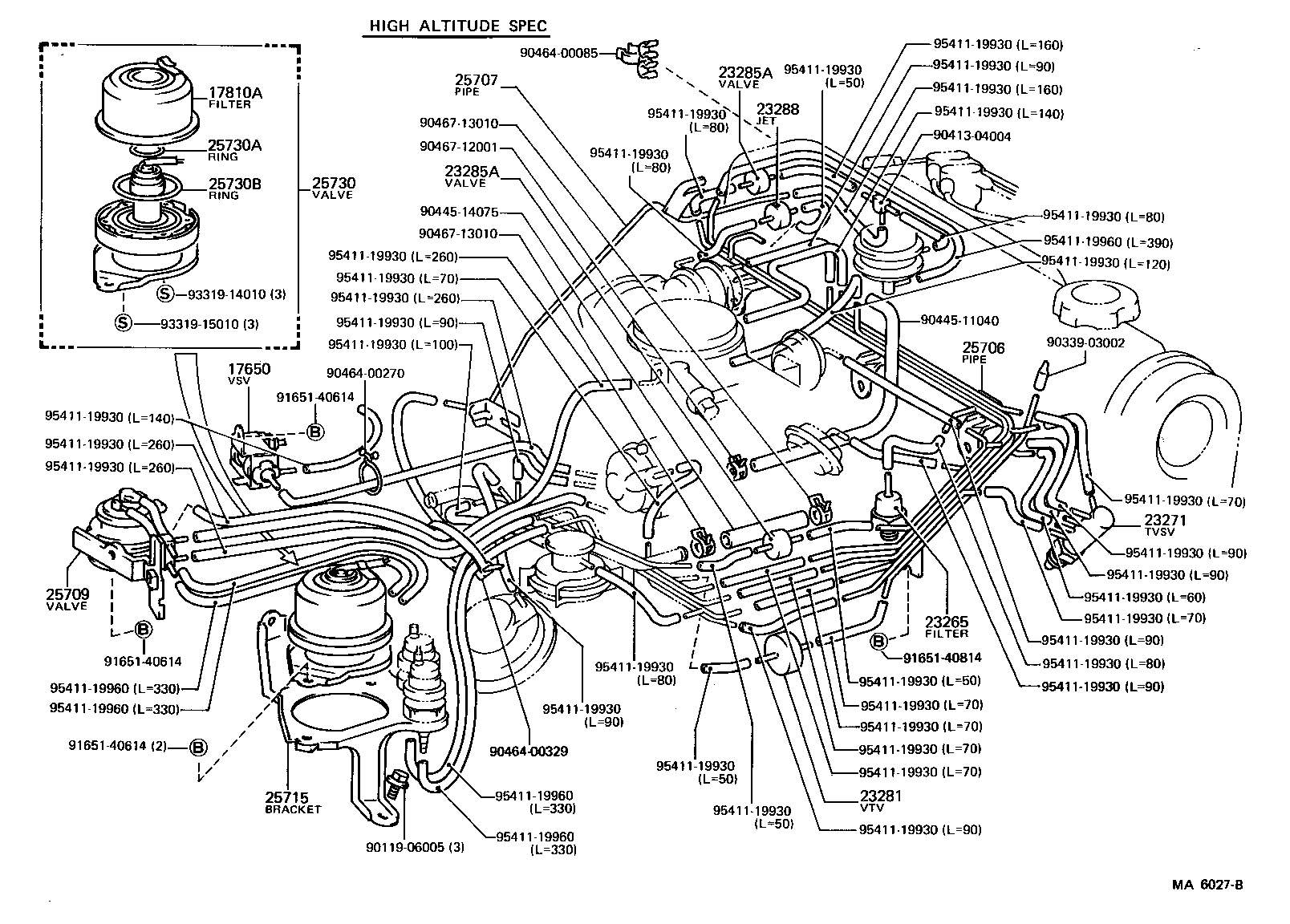

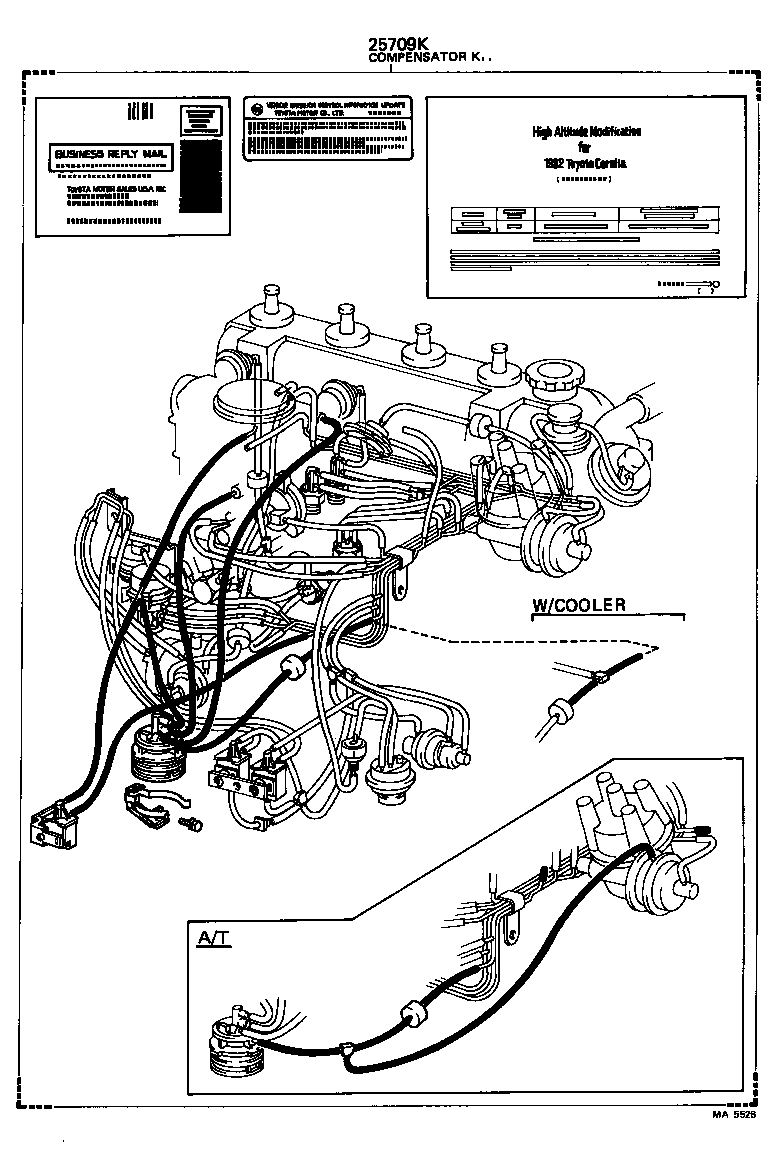

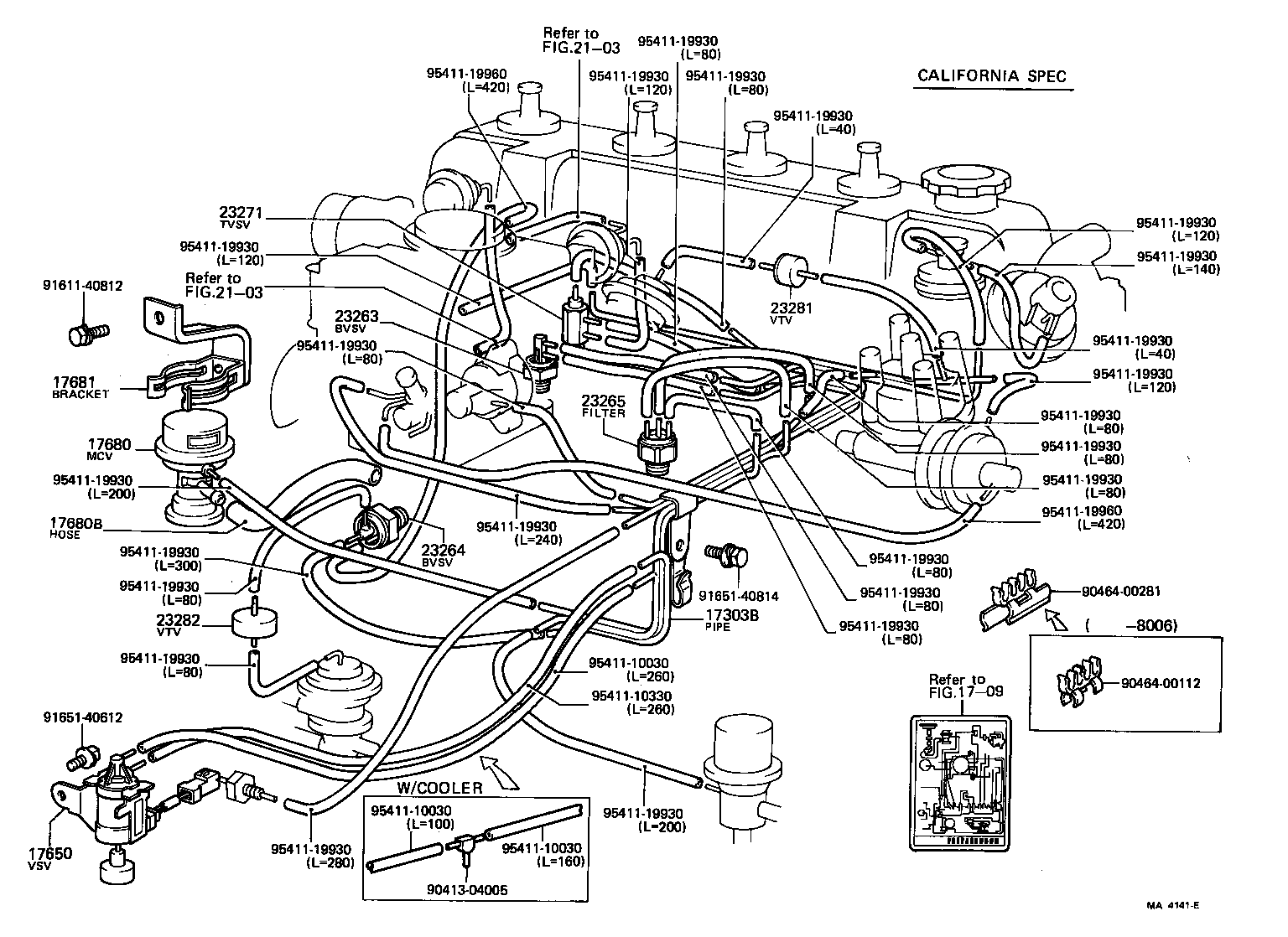

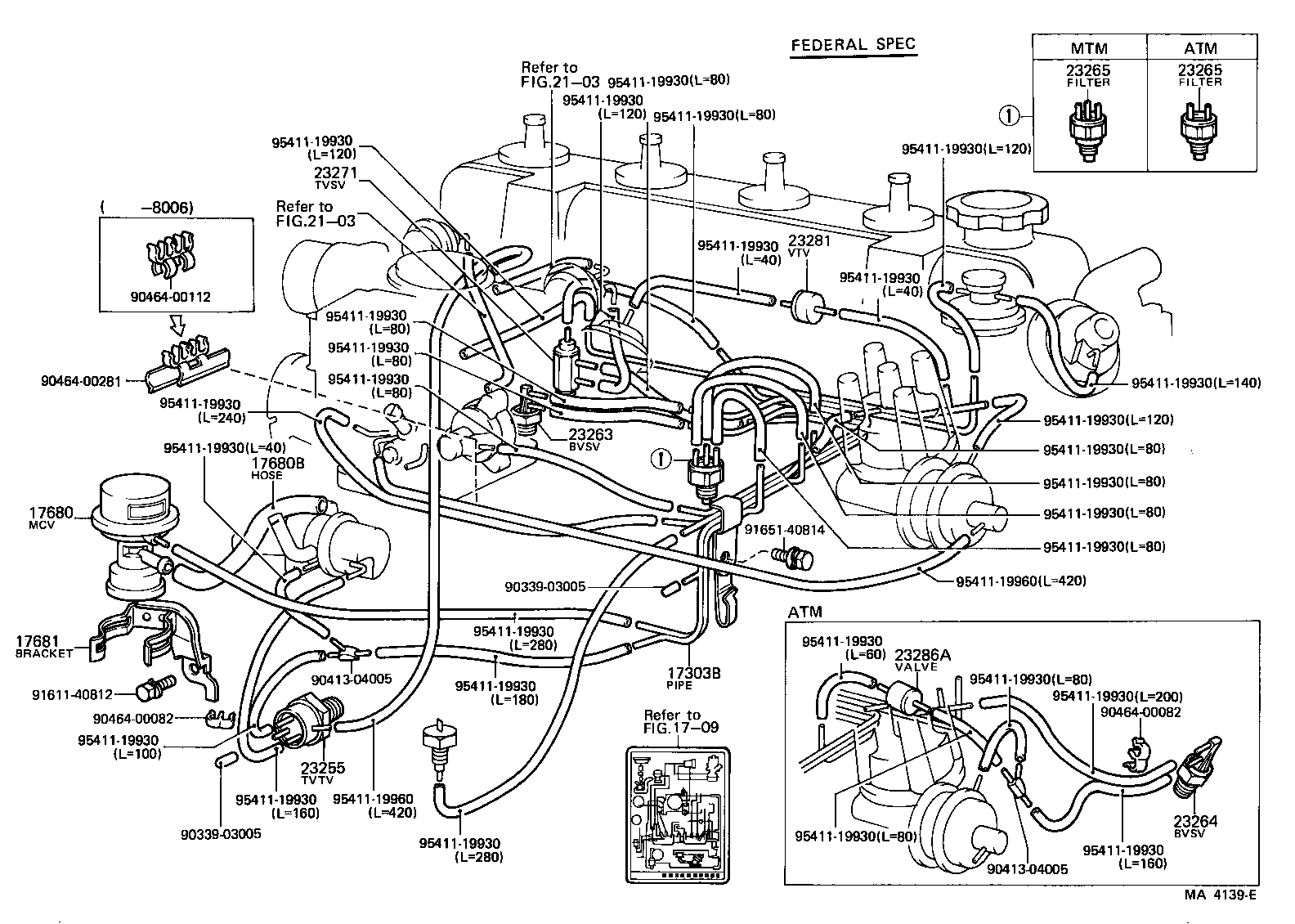

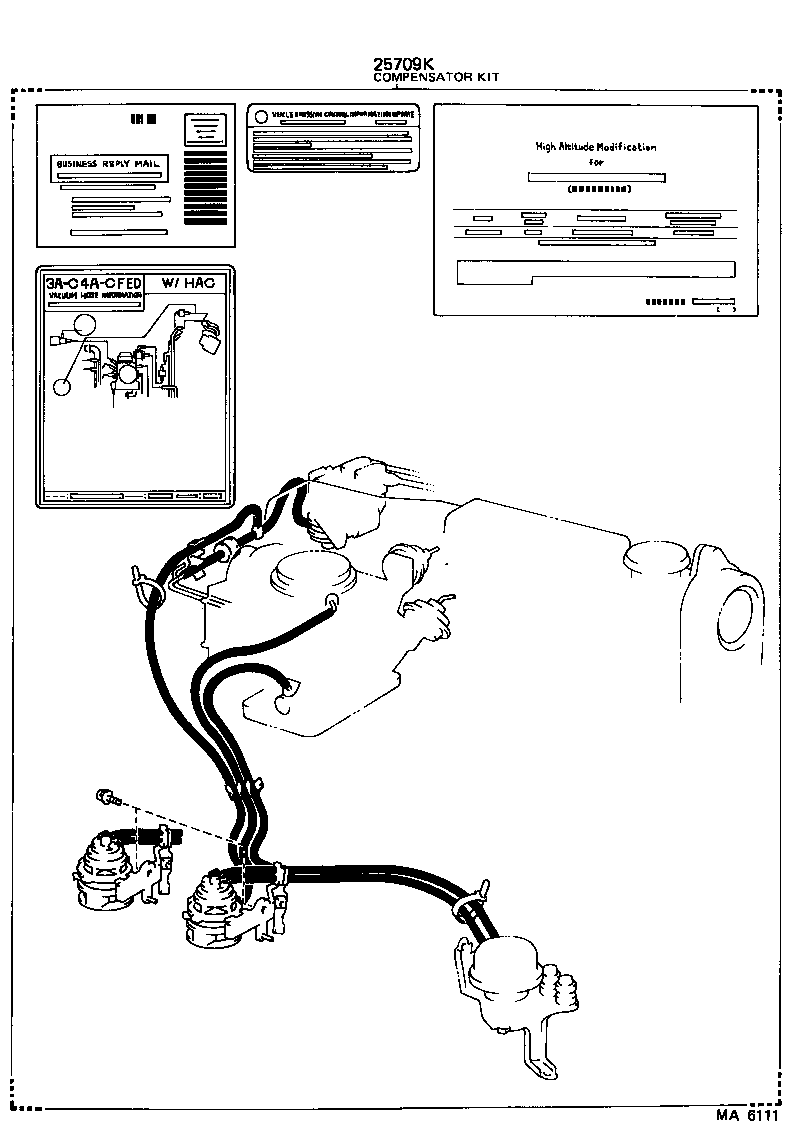

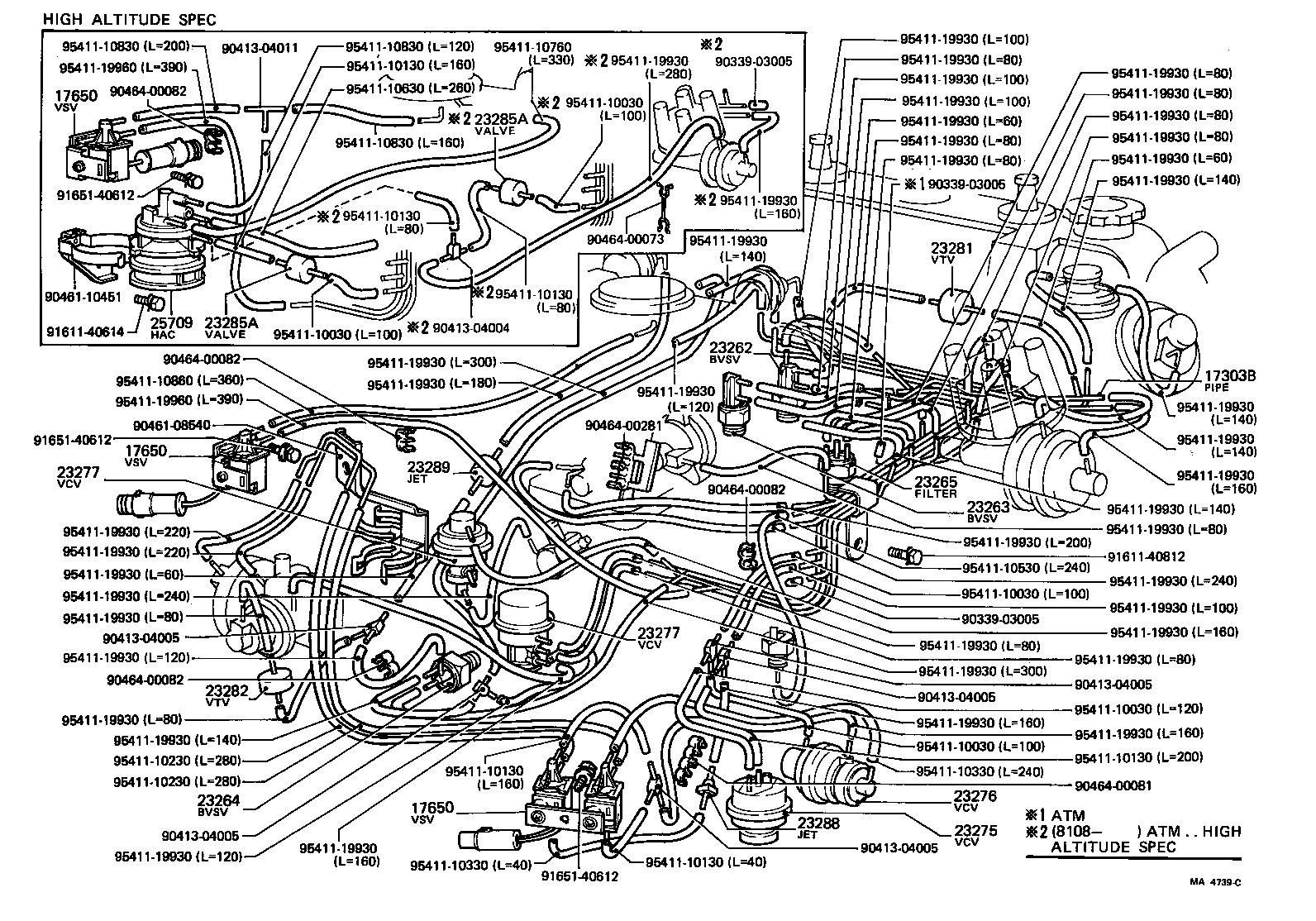

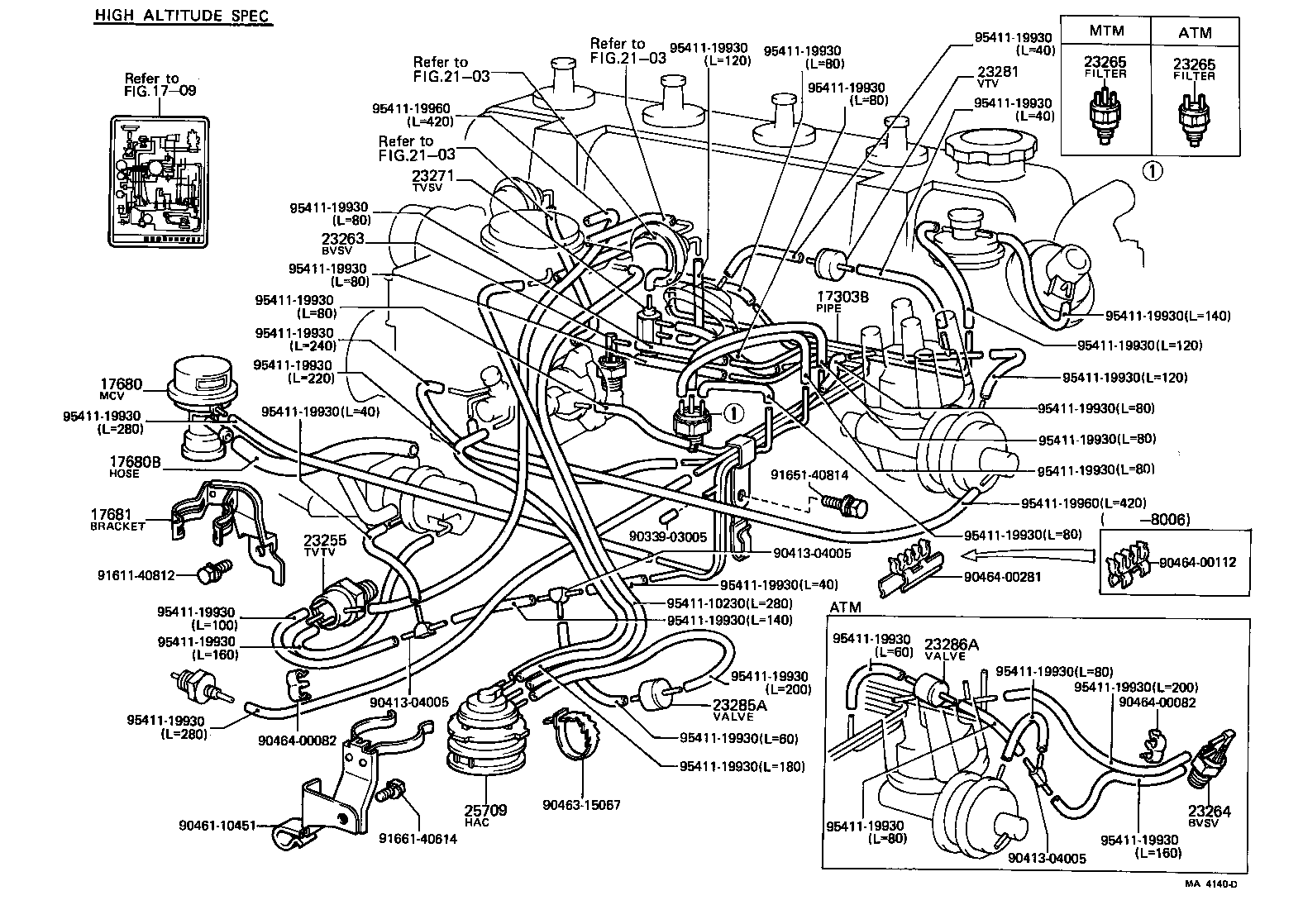

Figure MA9502Z MA9502Z 1979-08 → — Figure MA6026B MA6026B 1982-08 → — Figure MA6111 MA6111 1982-08 → — Figure MA6027B MA6027B 1982-08 → — Figure MA6028B MA6028B 1982-08 → — Figure MA9502Z MA9502Z 1979-08 → — Figure MA4139E MA4139E 1979-08 → 1980-08 Figure MA4140D MA4140D 1979-08 → 1980-08 Figure MA4141E MA4141E 1979-08 → 1980-08 Figure MA4739C MA4739C 1980-08 → 1982-08 Figure MA5526 MA5526 1981-08 → 1982-08 Figure MA4142E MA4142E 1979-08 → 1982-08

Part groups

PNCDescription
17303B Pipe Sub-assy, Air, NO.1
17650 Valve Assy, Vacuum Switching
17680 Valve Assy, Mixture Control
17680B Hose(FOR MIXTURE CONTROL VALVE)
17680C Clamp OR Clip(FOR MIXTURE CONTROL VALVE HOSE)
17681 Bracket, Mixture Control Valve
17810A Filter Assy, Air
23255 Valve, Thermostatic Vacuum Transmitting, NO.1
23262 Valve, Bimetal Vacuum Switching, NO.1
23263 Valve, Bimetal Vacuum Switching, NO.2
23264 Valve, Bimetal Vacuum Switching, NO.3
23265 Filter, Gas, NO.1
23271 Valve, Thermostatic Vacuum Switching, NO.1
23275 Valve, Vacuum Control, NO.1
23276 Valve, Vacuum Control, NO.2
23277 Valve, Vacuum Control, NO.3
23281 Valve, Vacuum Transmitting, NO.1
23282 Valve, Vacuum Transmitting, NO.2
23285A Valve, Check, NO.1
23286A Valve, Check, NO.2
23288 Jet, NO.1
23289 Jet, NO.2
25706 Pipe Sub-assy, Vacuum Transmitting, NO.1
25707 Pipe Sub-assy, Vacuum Transmitting, NO.2
25709 Valve Sub-assy, High Altitude Compensator
25709K Compensator Kit, High Altitude
25715 Bracket, Emission Control Valve
25730 Valve Assy, Electric Bleed Air Control
25730A Ring, O, NO.1(FOR ELECTRIC BLEED AIR CONTROL VALVE)
25730B Ring, O, NO.2(FOR ELECTRIC BLEED AIR CONTROL VALVE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
