Toyota Camry (JPP)

1988-08 → 1991-06 · chassis SV2#,VZV21 · catalogue 281440 · United States

Discontinued model Data version 1992-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

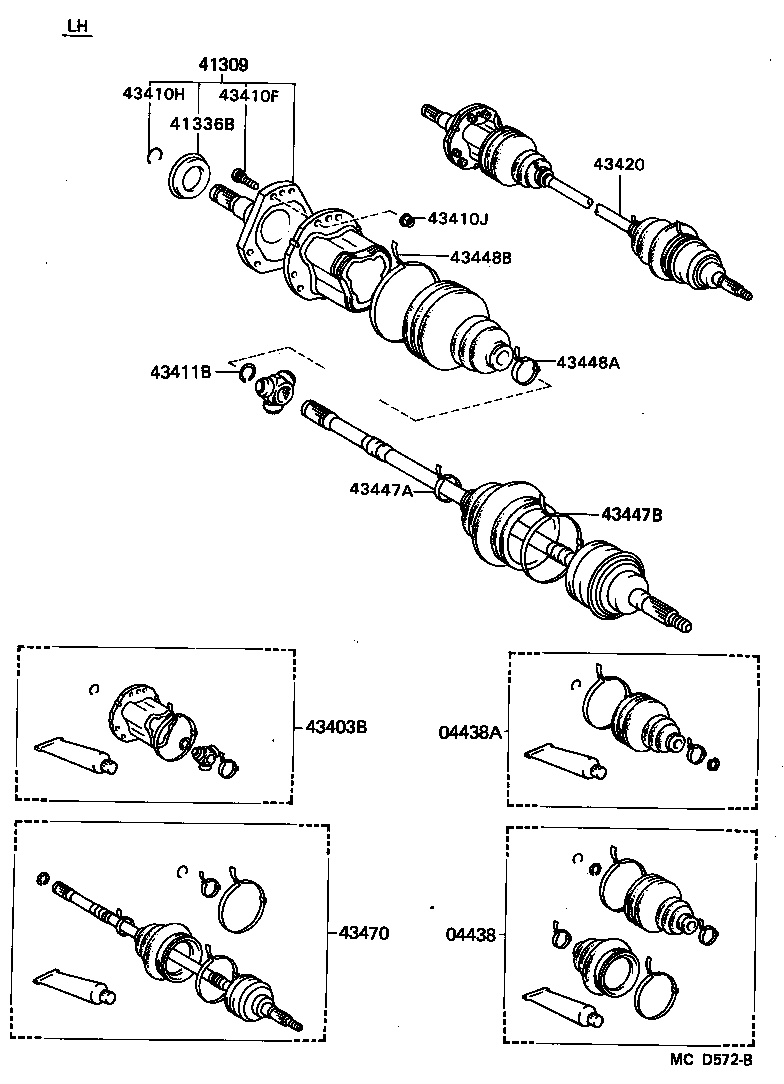

Exploded illustration MCD572B 41309 — SHAFT SUB-ASSY, DIFFERENTIAL SIDE GEAR, LH (5 parts) 43410H — RING, HOLE SNAP (FOR FRONT DRIVE SHAFT) (3 parts) 43410F — BOLT, SERRATION (FOR FRONT DRIVE SHAFT) (8 parts) 41336B — COVER, DUST(FOR FRONT DRIVE SHAFT) (19 parts) 43420 — SHAFT ASSY, FRONT DRIVE, LH (15 parts) 43410J — NUT (FOR FRONT DRIVE SHAFT) (3 parts) 43448B — CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING) (11 parts) 43448A — CLAMP, NO.1 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING) (12 parts) 43411B — RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER) (12 parts) 43447A — CLAMP, NO.1 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING) (15 parts) 43447B — CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING) (17 parts) 43403B — JOINT SET, FRONT AXLE INBOARD, LH (6 parts) 04438A — BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT (17 parts) 43470 — SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH (16 parts) 04438 — BOOT KIT, FRONT DRIVE SHAFT (19 parts)
MCD572B · 15 callouts Full size ↗
178 parts on this figure
Part number Description Fitment Price
04438 — Boot Kit, Front Drive Shaft
04438-03020 note Boot Kit, Front Drive Shaft
1990-09 → 1991-06 ended
SV21 4FC —
04438-03020 note Boot Kit, Front Drive Shaft
1989-06 → 1990-09 ended
SV21 4FC —
04438-12031 Boot Kit, Front Drive Shaft
1989-06 → 1989-08 ended
SV21 5F —
04438-12031 Boot Kit, Front Drive Shaft
1988-08 → 1989-06 ended
SV21 —
04438-12031 note Boot Kit, Front Drive Shaft
1989-06 → 1990-09 ended
SV21 4FC —
04438-12140 Boot Kit, Front Drive Shaft
1988-08 → 1990-02 ended
SV25 4FC —
04438-12191 note Boot Kit, Front Drive Shaft
1990-09 → 1991-01 ended
SV21 4FC (LE,STD) USA —
04438-12191 note Boot Kit, Front Drive Shaft
1990-09 → 1991-01 ended
SV21 4FC LE CND —
04438-12191 note Boot Kit, Front Drive Shaft
1990-09 → 1991-01 ended
SV21 4FC DX —
04438-12200 Boot Kit, Front Drive Shaft
1990-02 → 1991-06 ended
SV25 4FC —
04438-20070 Boot Kit, Front Drive Shaft
1989-08 → 1991-06 ended
SV21 5F CND —
04438-20070 Boot Kit, Front Drive Shaft
1989-08 → 1991-06 ended
SV21 5F USA —
04438-20110 note Boot Kit, Front Drive Shaft
1991-01 → 1991-06 ended
SV21 4FC (LE,STD) USA —
04438-20110 note Boot Kit, Front Drive Shaft
1991-01 → 1991-06 ended
SV21 4FC LE CND —
04438-20110 note Boot Kit, Front Drive Shaft
1991-01 → 1991-06 ended
SV21 4FC DX —
04438-32070 Boot Kit, Front Drive Shaft
1990-01 → 1991-06 ended
VZV21 —
04438-32070 Boot Kit, Front Drive Shaft
1988-08 → 1990-01 ended
VZV21 —
04438-32100 Boot Kit, Front Drive Shaft
1988-08 → 1990-02 ended
SV25 5F —
04438-32130 Boot Kit, Front Drive Shaft
1990-02 → 1990-08 ended
SV25 5F —
04438A — Boot Kit, Front Drive Shaft Inboard Joint
04438-03010 note Boot Kit, Front Drive Shaft Inboard Joint
1989-06 → 1990-09 ended
SV21 4FC —
04438-03010 note Boot Kit, Front Drive Shaft Inboard Joint
1990-09 → 1991-06 ended
SV21 4FC —
04438-12050 Boot Kit, Front Drive Shaft Inboard Joint
1989-06 → 1989-08 ended
SV21 5F —
04438-12050 note Boot Kit, Front Drive Shaft Inboard Joint
1989-06 → 1990-09 ended
SV21 4FC —
04438-12050 Boot Kit, Front Drive Shaft Inboard Joint
1988-08 → 1989-06 ended
SV21 —
04438-12150 Boot Kit, Front Drive Shaft Inboard Joint
1988-08 → 1990-02 ended
SV25 —
04438-12161 note Boot Kit, Front Drive Shaft Inboard Joint
1990-09 → 1991-01 ended
SV21 4FC (LE,STD) USA —
04438-12161 note Boot Kit, Front Drive Shaft Inboard Joint
1990-09 → 1991-01 ended
SV21 4FC LE CND —
04438-12161 note Boot Kit, Front Drive Shaft Inboard Joint
1990-09 → 1991-01 ended
SV21 4FC DX —
04438-12162 note Boot Kit, Front Drive Shaft Inboard Joint
1991-01 → 1991-06 ended
SV21 4FC DX —
04438-12162 note Boot Kit, Front Drive Shaft Inboard Joint
1991-01 → 1991-06 ended
SV21 4FC LE CND —
04438-12162 note Boot Kit, Front Drive Shaft Inboard Joint
1991-01 → 1991-06 ended
SV21 4FC (LE,STD) USA —
04438-12210 Boot Kit, Front Drive Shaft Inboard Joint
1990-02 → 1991-06 ended
SV25 —
04438-20060 Boot Kit, Front Drive Shaft Inboard Joint
1989-08 → 1991-06 ended
SV21 5F USA —
04438-20060 Boot Kit, Front Drive Shaft Inboard Joint
1989-08 → 1991-06 ended
SV21 5F CND —
04438-32060 Boot Kit, Front Drive Shaft Inboard Joint
1990-01 → 1991-06 ended
VZV21 —
04438-32060 Boot Kit, Front Drive Shaft Inboard Joint
1988-08 → 1990-01 ended
VZV21 —
41309 — Shaft Sub-assy, Differential Side Gear, LH
41309-17030 Shaft Sub-assy, Differential Side Gear, LH
1988-08 → 1991-06 ended
VZV21 —
41309-32010 Shaft Sub-assy, Differential Side Gear, LH
1988-08 → 1989-08 ended
SV21 —
41309-32010 Shaft Sub-assy, Differential Side Gear, LH
1989-08 → 1990-09 ended
SV21 4FC (LE,STD) USA —
41309-32010 Shaft Sub-assy, Differential Side Gear, LH
1989-08 → 1990-09 ended
SV21 4FC LE CND —
41309-32010 Shaft Sub-assy, Differential Side Gear, LH
1989-08 → 1990-09 ended
SV21 4FC DX —
41336B — Cover, Dust(FOR FRONT DRIVE SHAFT)
41336-03010 note Cover, Dust(FOR FRONT DRIVE SHAFT)
1989-06 → 1991-06 ended
SV21 4FC —
41336-03020 note Cover, Dust(FOR FRONT DRIVE SHAFT)
1990-09 → 1991-06 ended
SV21 4FC —
41336-03020 note Cover, Dust(FOR FRONT DRIVE SHAFT)
1989-06 → 1990-09 ended
SV21 4FC —
41336-12020 note Cover, Dust(FOR FRONT DRIVE SHAFT)
1988-08 → 1989-06 ended
VZV21 —
41336-12020 Cover, Dust(FOR FRONT DRIVE SHAFT)
1989-06 → 1991-06 ended
VZV21 5F —
41336-12020 note Cover, Dust(FOR FRONT DRIVE SHAFT)
1989-06 → 1991-06 ended
VZV21 4FC —
41336-12040 note Cover, Dust(FOR FRONT DRIVE SHAFT)
1988-08 → 1991-06 ended
SV25 —
41336-17020 note Cover, Dust(FOR FRONT DRIVE SHAFT)
1988-08 → 1990-01 ended
VZV21 —
41336-17020 note Cover, Dust(FOR FRONT DRIVE SHAFT)
1990-01 → 1991-06 ended
VZV21 —
41336-20011 note Cover, Dust(FOR FRONT DRIVE SHAFT)
1989-06 → 1990-07 ended
SV21 5F —
41336-20011 note Cover, Dust(FOR FRONT DRIVE SHAFT)
1988-08 → 1989-06 ended
SV21 —
41336-20011 note Cover, Dust(FOR FRONT DRIVE SHAFT)
1989-06 → 1991-06 ended
SV21 4FC —
41336-20011 note Cover, Dust(FOR FRONT DRIVE SHAFT)
1990-07 → 1991-06 ended
SV21 5F —
41336-20040 note Cover, Dust(FOR FRONT DRIVE SHAFT)
1988-08 → 1991-06 ended
SV25 —
41336-32020 note Cover, Dust(FOR FRONT DRIVE SHAFT)
1990-07 → 1991-06 ended
SV21 5F —
41336-32020 note Cover, Dust(FOR FRONT DRIVE SHAFT)
1990-09 → 1991-06 ended
SV21 4FC —
41336-32020 note Cover, Dust(FOR FRONT DRIVE SHAFT)
1989-06 → 1990-09 ended
SV21 4FC —
41336-32020 note Cover, Dust(FOR FRONT DRIVE SHAFT)
1988-08 → 1989-06 ended
SV21 —
41336-32020 note Cover, Dust(FOR FRONT DRIVE SHAFT)
1989-06 → 1990-07 ended
SV21 5F —
43403B — Joint Set, Front Axle Inboard, LH
43040-09010 note Joint Set, Front Axle Inboard, LH
1989-06 → 1990-09 ended
SV21 4FC —
43403-12060 Joint Set, Front Axle Inboard, LH
1990-01 → 1991-06 ended
SV25 —
43403-19075 Joint Set, Front Axle Inboard, LH
1988-08 → 1990-01 ended
SV25 —
43403-39016 Joint Set, Front Axle Inboard, LH
1988-08 → 1989-06 ended
SV21 —
43403-39016 Joint Set, Front Axle Inboard, LH
1989-06 → 1989-08 ended
SV21 5F —
43403-39016 note Joint Set, Front Axle Inboard, LH
1989-06 → 1990-09 ended
SV21 4FC —
43410F — Bolt, Serration (FOR FRONT DRIVE SHAFT)
90110-10007 Bolt, Serration (FOR FRONT DRIVE SHAFT)
1988-08 → 1990-01 ended
VZV21 —
90110-10007 Bolt, Serration (FOR FRONT DRIVE SHAFT)
1989-06 → 1990-01 ended
VZV21 5F —
90110-10007 Bolt, Serration (FOR FRONT DRIVE SHAFT)
1990-01 → 1991-06 ended
VZV21 4FC —
90110-10007 Bolt, Serration (FOR FRONT DRIVE SHAFT)
1990-01 → 1991-06 ended
VZV21 —
90114-08006 Bolt, Serration (FOR FRONT DRIVE SHAFT)
1988-08 → 1989-08 ended
SV21 —
90114-08006 Bolt, Serration (FOR FRONT DRIVE SHAFT)
1989-08 → 1990-09 ended
SV21 4FC LE CND —
90114-08006 Bolt, Serration (FOR FRONT DRIVE SHAFT)
1989-08 → 1990-09 ended
SV21 4FC (LE,STD) USA —
90114-08006 Bolt, Serration (FOR FRONT DRIVE SHAFT)
1989-08 → 1990-09 ended
SV21 4FC DX —
43410H — Ring, Hole Snap (FOR FRONT DRIVE SHAFT)
90521-27005 Ring, Hole Snap (FOR FRONT DRIVE SHAFT)
1988-08 → 1990-07 ended
SV21 —
90521-27005 Ring, Hole Snap (FOR FRONT DRIVE SHAFT)
1990-07 → 1991-06 ended
SV21 —
90521-33002 Ring, Hole Snap (FOR FRONT DRIVE SHAFT)
1988-08 → 1991-06 ended
VZV21 —
43410J — Nut (FOR FRONT DRIVE SHAFT)
90179-08053 Nut (FOR FRONT DRIVE SHAFT)
1988-08 → 1989-06 ended
SV21 —
90179-08053 Nut (FOR FRONT DRIVE SHAFT)
1989-06 → 1989-08 ended
SV21 5F —
90179-08053 Nut (FOR FRONT DRIVE SHAFT)
1989-06 → 1990-09 ended
SV21 4FC —
43411B — Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER)
90081-52004 note Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER)
1990-09 → 1991-06 ended
SV21 4FC —
90081-52004 note Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER)
1989-06 → 1990-09 ended
SV21 4FC —
90520-22005 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER)
1988-08 → 1989-06 ended
SV2# —
90520-22005 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER)
1989-08 → 1991-06 ended
SV25 —
90520-22005 note Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER)
1989-06 → 1990-09 ended
SV21 4FC —
90520-22005 note Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER)
1990-09 → 1991-06 ended
SV21 4FC —
90520-22005 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER)
1989-06 → 1989-08 ended
SV25 —
90520-22005 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER)
1989-06 → 1989-08 ended
SV21 5F —
90520-26028 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER)
1990-01 → 1991-06 ended
VZV21 —
90520-26028 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER)
1988-08 → 1990-01 ended
VZV21 —
90520-26048 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER)
1989-08 → 1991-06 ended
SV21 5F CND —
90520-26048 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER)
1989-08 → 1991-06 ended
SV21 5F USA —
43420 — Shaft Assy, Front Drive, LH
43420-03010 note Shaft Assy, Front Drive, LH
1989-06 → 1991-01 ended
SV21 4FC —
43420-03011 note Shaft Assy, Front Drive, LH
1991-01 → 1991-06 ended
SV21 4FC —
43420-20170 Shaft Assy, Front Drive, LH
1990-09 → 1991-01 ended
SV21 4FC —
43420-20171 note Shaft Assy, Front Drive, LH
1991-01 → 1991-06 ended
SV21 4FC DX —
43420-20171 note Shaft Assy, Front Drive, LH
1991-01 → 1991-06 ended
SV21 4FC LE CND —
43420-20171 note Shaft Assy, Front Drive, LH
1991-01 → 1991-06 ended
SV21 4FC (LE,STD) USA —
43420-20190 Shaft Assy, Front Drive, LH
1989-08 → 1991-01 ended
SV21 5F USA —
43420-20190 Shaft Assy, Front Drive, LH
1989-08 → 1991-01 ended
SV21 5F CND —
43420-32030 note Shaft Assy, Front Drive, LH
1989-06 → 1990-09 ended
SV21 4FC —
43420-32030 Shaft Assy, Front Drive, LH
1989-06 → 1989-08 ended
SV21 5F —
43420-32030 Shaft Assy, Front Drive, LH
1988-08 → 1989-06 ended
SV21 —
43420-32070 Shaft Assy, Front Drive, LH
1988-08 → 1991-01 ended
VZV21 —
43420-32071 Shaft Assy, Front Drive, LH
1991-01 → 1991-06 ended
VZV21 —
43420-32110 Shaft Assy, Front Drive, LH
1988-08 → 1990-08 ended
SV25 5F —
43420-32120 Shaft Assy, Front Drive, LH
1988-08 → 1991-01 ended
SV25 4FC —
43447A — Clamp, NO.1 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING)
42345-14010 note Clamp, NO.1 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING)
1989-06 → 1990-09 ended
SV21 4FC —
42345-14010 Clamp, NO.1 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING)
1990-09 → 1991-06 ended
VZV21;SV2# 4FC —
42345-14010 note Clamp, NO.1 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING)
1990-09 → 1991-06 ended
SV21 4FC —
42345-14010 Clamp, NO.1 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING)
1990-01 → 1991-06 ended
VZV21 4FC —
42345-14010 Clamp, NO.1 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING)
1990-01 → 1990-09 ended
SV25,VZV21 —
42345-14010 Clamp, NO.1 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING)
1989-08 → 1990-01 ended
SV25 —
42345-14010 Clamp, NO.1 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING)
1989-08 → 1990-01 ended
VZV21 5F —
42345-14010 Clamp, NO.1 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING)
1988-08 → 1990-01 ended
VZV21 —
42345-14010 Clamp, NO.1 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING)
1989-06 → 1989-08 ended
SV21,VZV21 5F —
42345-14010 Clamp, NO.1 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING)
1989-06 → 1989-08 ended
SV25 —
42345-14010 Clamp, NO.1 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING)
1988-08 → 1989-06 ended
SV2# —
90081-46024 note Clamp, NO.1 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING)
1989-06 → 1990-09 ended
SV21 4FC —
90081-46024 note Clamp, NO.1 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING)
1990-09 → 1991-06 ended
SV21 4FC —
90949-01559 Clamp, NO.1 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING)
1989-08 → 1991-06 ended
SV21 5F CND —
90949-01559 Clamp, NO.1 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING)
1989-08 → 1991-06 ended
SV21 5F USA —
43447B — Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING)
90081-46022 note Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING)
1989-06 → 1990-09 ended
SV21 4FC —
90081-46022 note Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING)
1990-09 → 1991-06 ended
SV21 4FC —
90081-46024 note Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING)
1990-09 → 1991-06 ended
SV21 4FC —
90949-01076 note Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING)
1990-09 → 1991-06 ended
SV21 4FC —
90949-01076 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING)
1989-08 → 1991-06 ended
SV25 4FC —
90949-01076 note Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING)
1989-06 → 1990-09 ended
SV21 4FC —
90949-01076 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING)
1989-06 → 1989-08 ended
SV21 5F —
90949-01076 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING)
1989-06 → 1989-08 ended
SV25 4FC —
90949-01076 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING)
1988-08 → 1989-06 ended
SV21 —
90949-01076 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING)
1988-08 → 1989-06 ended
SV25 4FC —
90949-01339 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING)
1989-06 → 1990-01 ended
SV25,VZV21 5F —
90949-01339 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING)
1988-08 → 1990-01 ended
VZV21 —
90949-01339 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING)
1988-08 → 1989-06 ended
SV25 5F —
90949-01339 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING)
1990-01 → 1991-06 ended
VZV21;SV25 5F —
90949-01339 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING)
1990-01 → 1991-06 ended
VZV21 4FC —
90949-01473 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING)
1989-08 → 1991-06 ended
SV21 5F USA —
90949-01473 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING)
1989-08 → 1991-06 ended
SV21 5F CND —
43448A — Clamp, NO.1 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)
42345-14010 Clamp, NO.1 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)
1988-08 → 1989-06 ended
SV21 —
42345-14010 Clamp, NO.1 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)
1990-01 → 1991-06 ended
VZV21 —
42345-14010 note Clamp, NO.1 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)
1989-06 → 1990-09 ended
SV21 4FC —
42345-14010 Clamp, NO.1 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)
1988-08 → 1990-01 ended
VZV21 —
42345-14010 Clamp, NO.1 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)
1989-06 → 1989-08 ended
SV21,VZV21 5F —
90081-46024 note Clamp, NO.1 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)
1989-06 → 1990-09 ended
SV21 4FC —
90081-46024 note Clamp, NO.1 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)
1990-09 → 1991-06 ended
SV21 4FC —
90949-01078 Clamp, NO.1 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)
1988-08 → 1990-09 ended
SV25 —
90949-01078 note Clamp, NO.1 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)
1990-09 → 1991-06 ended
SV21 4FC —
90949-01078 Clamp, NO.1 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)
1990-09 → 1991-06 ended
SV2# 4FC —
90949-01559 Clamp, NO.1 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)
1989-08 → 1991-06 ended
SV21 5F CND —
90949-01559 Clamp, NO.1 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)
1989-08 → 1991-06 ended
SV21 5F USA —
43448B — Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)
42345-14020 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)
1988-08 → 1989-06 ended
SV21 —
42345-14020 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)
1989-06 → 1989-08 ended
SV21 5F —
42345-14020 note Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)
1989-06 → 1990-09 ended
SV21 4FC —
42345-30010 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)
1989-08 → 1991-06 ended
SV21 5F USA —
42345-30010 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)
1989-08 → 1991-06 ended
SV21 5F CND —
90081-46023 note Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)
1989-06 → 1990-09 ended
SV21 4FC —
90081-46023 note Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)
1990-09 → 1991-06 ended
SV21 4FC —
90949-01076 note Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)
1990-09 → 1991-06 ended
SV21 4FC —
90949-01076 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)
1988-08 → 1991-06 ended
SV25 —
90949-01340 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)
1988-08 → 1990-01 ended
VZV21 —
90949-01340 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)
1990-01 → 1991-06 ended
VZV21 —
43470 — Shaft Assy, Front Drive Outboard Joint, LH
43470-09030 note Shaft Assy, Front Drive Outboard Joint, LH
1989-06 → 1990-09 ended
SV21 4FC —
43470-09031 note Shaft Assy, Front Drive Outboard Joint, LH
1991-01 → 1991-06 ended
SV21 4FC —
43470-29136 Shaft Assy, Front Drive Outboard Joint, LH
1990-09 → 1991-06 ended
SV21 4FC —
43470-29155 Shaft Assy, Front Drive Outboard Joint, LH
1989-08 → 1991-01 ended
SV21 5F CND —
43470-29155 Shaft Assy, Front Drive Outboard Joint, LH
1989-08 → 1991-01 ended
SV21 5F USA —
43470-29156 Shaft Assy, Front Drive Outboard Joint, LH
1991-01 → 1991-06 ended
SV21 5F —
43470-32060 Shaft Assy, Front Drive Outboard Joint, LH
1988-08 → 1990-08 ended
SV25 5F —
43470-39025 Shaft Assy, Front Drive Outboard Joint, LH
1989-06 → 1989-08 ended
SV21 5F —
43470-39025 Shaft Assy, Front Drive Outboard Joint, LH
1988-08 → 1989-06 ended
SV21 —
43470-39025 note Shaft Assy, Front Drive Outboard Joint, LH
1989-06 → 1990-09 ended
SV21 4FC —
43470-39045 Shaft Assy, Front Drive Outboard Joint, LH
1988-08 → 1990-01 ended
VZV21 —
43470-39045 Shaft Assy, Front Drive Outboard Joint, LH
1990-01 → 1991-01 ended
VZV21 —
43470-39046 Shaft Assy, Front Drive Outboard Joint, LH
1991-01 → 1991-06 ended
VZV21 —
43470-39075 Shaft Assy, Front Drive Outboard Joint, LH
1988-08 → 1990-08 ended
SV25 5F —
43470-39085 Shaft Assy, Front Drive Outboard Joint, LH
1988-08 → 1991-01 ended
SV25 4FC —
43470-39086 Shaft Assy, Front Drive Outboard Joint, LH
1991-01 → 1991-06 ended
SV25 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
