Toyota Lexus ES350/300H(Jpp
2018-06 → present · chassis AXZH1#,GSZ10 · catalogue 2824A0 · United States
Supported model
Data version 2021-08
Wiring & Clamp
119 part groups · 15 illustrations
Illustrations
Part groups

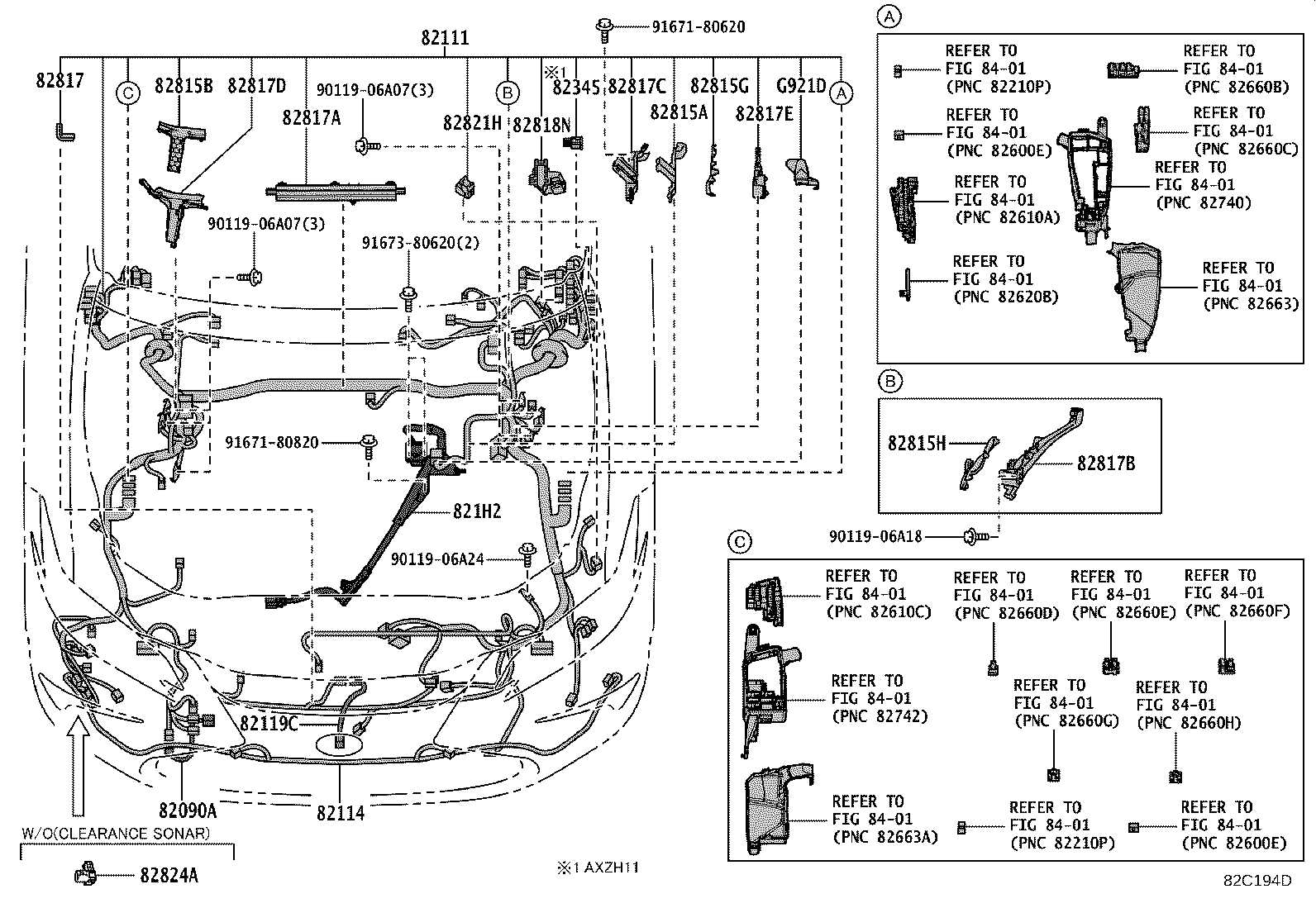

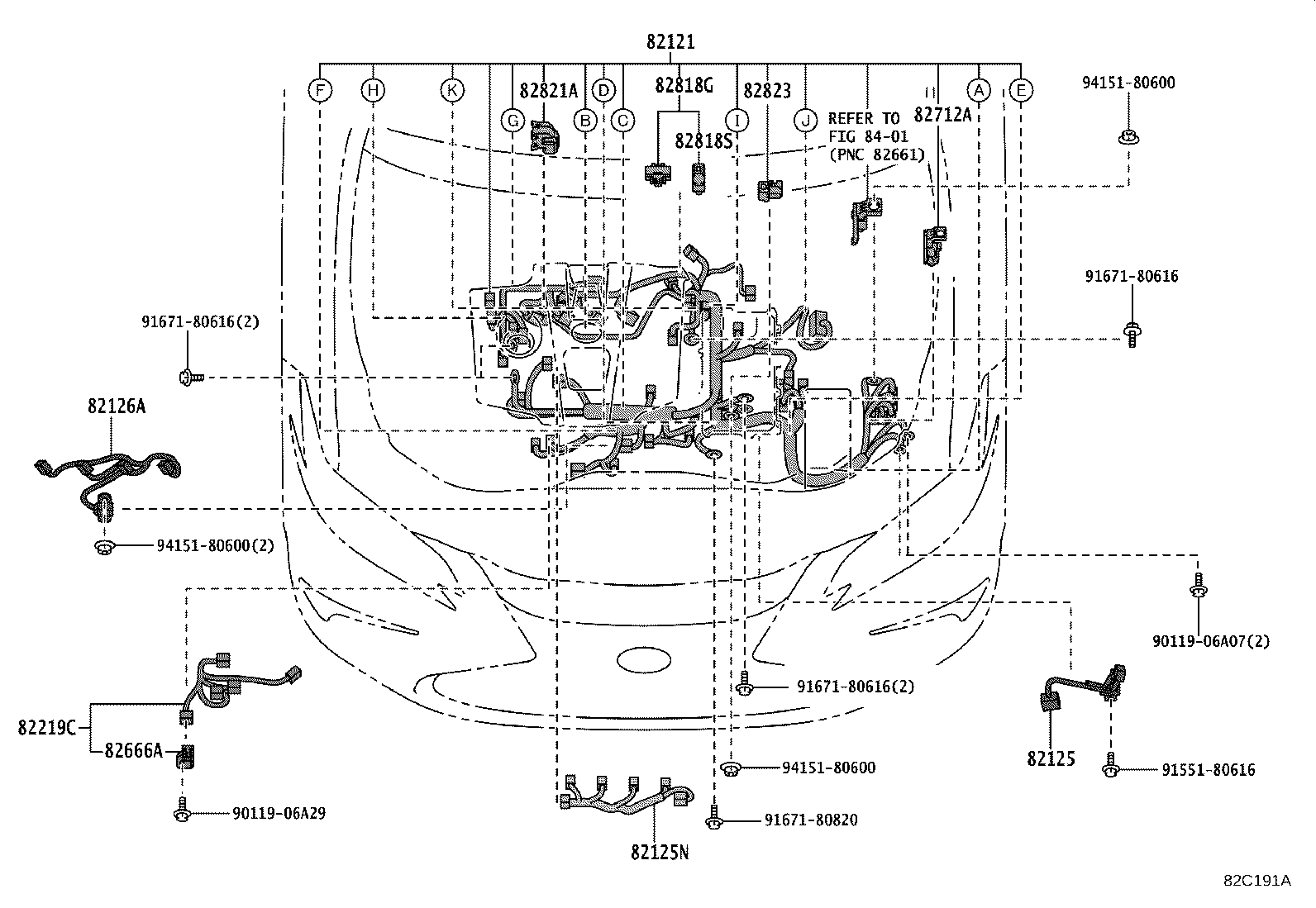

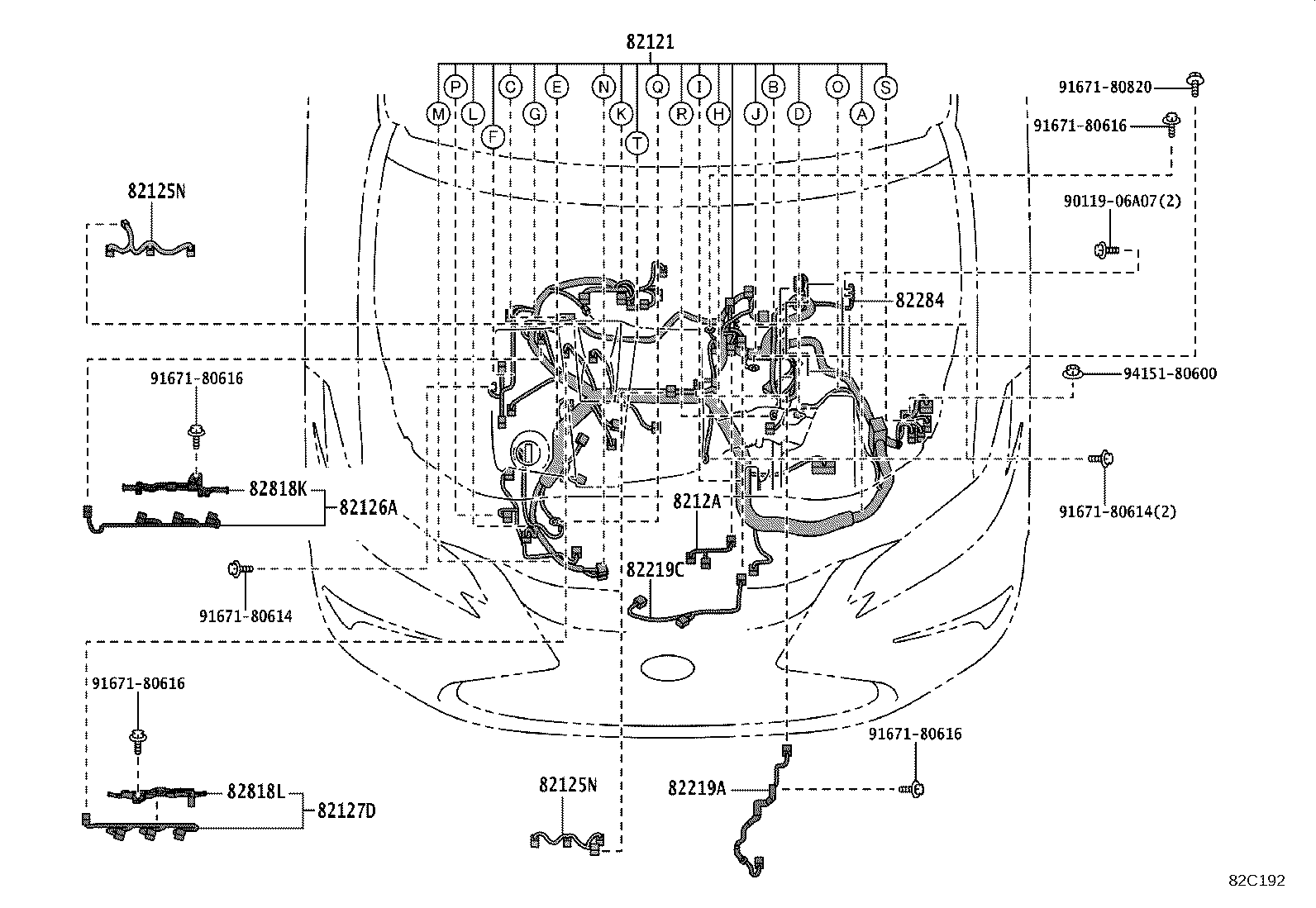

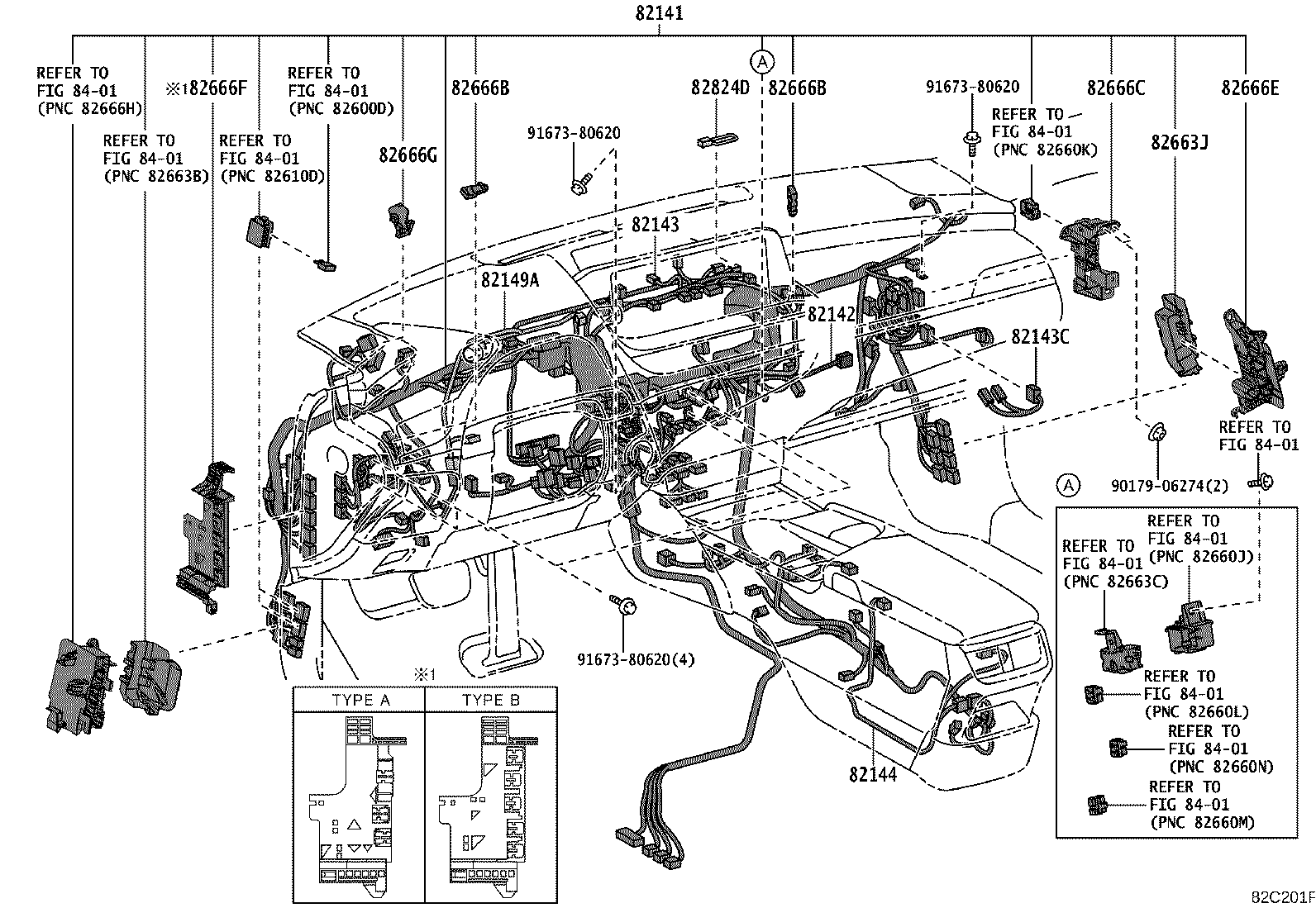

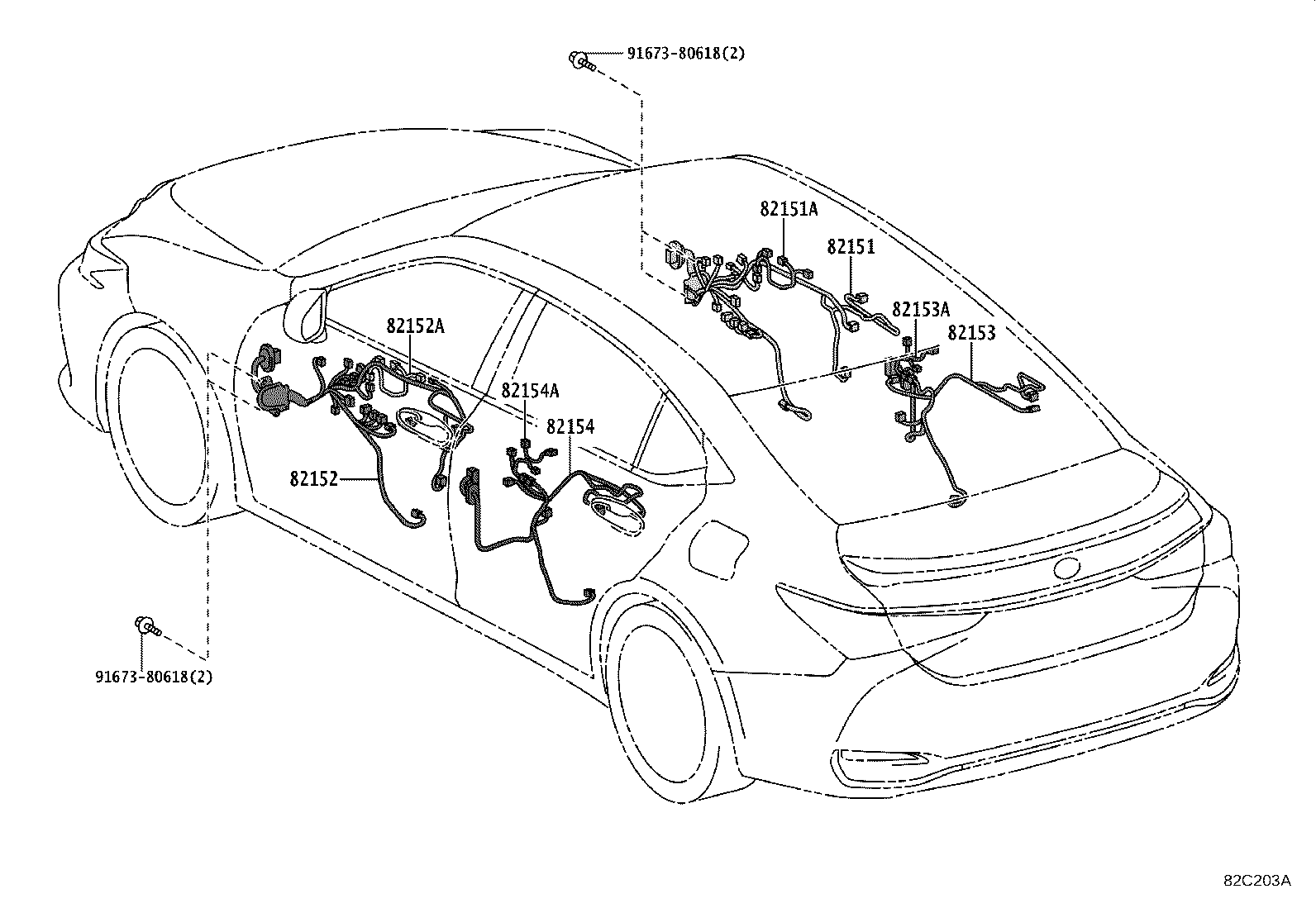

| PNC | Description |
|---|---|
| 82090A | Wire Assy, Extension |
| 82111 | Wire, Engine Room Main |
| 82114 | Wire, Engine Room, NO.4 |
| 82119C | Wire, Engine Room, NO.5 |
| 82121 | Wire, Engine |
| 82125 | Wire, Transmission |
| 82125N | Wire, Engine, NO.5 |
| 82126A | Wire, Engine, NO.6 |
| 82127D | Wire, Engine, NO.7 |
| 8212A | Wire, Engine, NO.9 |
| 82141 | Wire, Instrument Panel |
| 82142 | Wire, Instrument Panel, NO.2 |
| 82143 | Wire, Instrument Panel, NO.3 |
| 82143C | Wire, Instrument Panel, NO.3 |
| 82144 | Wire, Instrument Panel, NO.4 |
| 82149A | Wire, Instrument Panel, NO.5 |
| 82151 | Wire, Front Door, RH |
| 82151A | Wire, Front Door, NO.2, RH |
| 82152 | Wire, Front Door, LH |
| 82152A | Wire, Front Door, NO.2, LH |
| 82153 | Wire, Rear Door, NO.1 |
| 82153A | Wire, Rear Door, RH |
| 82154 | Wire, Rear Door, NO.2 |
| 82154A | Wire, Rear Door, LH |

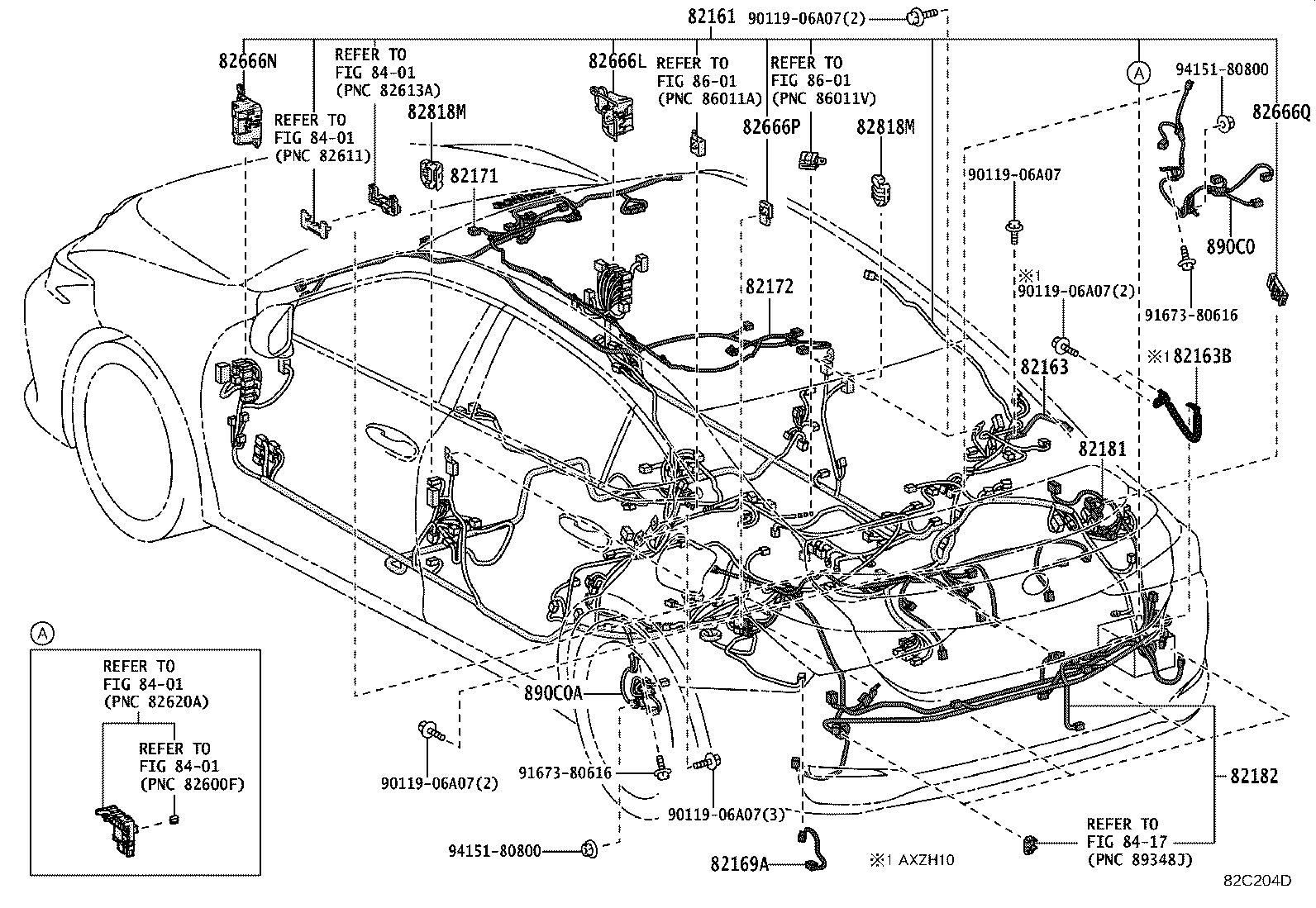

| 82161 | Wire, Floor |
| 82163 | Wire, Floor, NO.3 |
| 82163B | Wire, Floor NO.5 |
| 82169A | Wire, Floor, NO.6 |
| 82171 | Wire, Roof, NO.1 |
| 82172 | Wire, Roof, NO.2 |
| 82181 | Wire, Luggage Room, NO.1 |
| 82182 | Wire, Luggage Room, NO.2 |

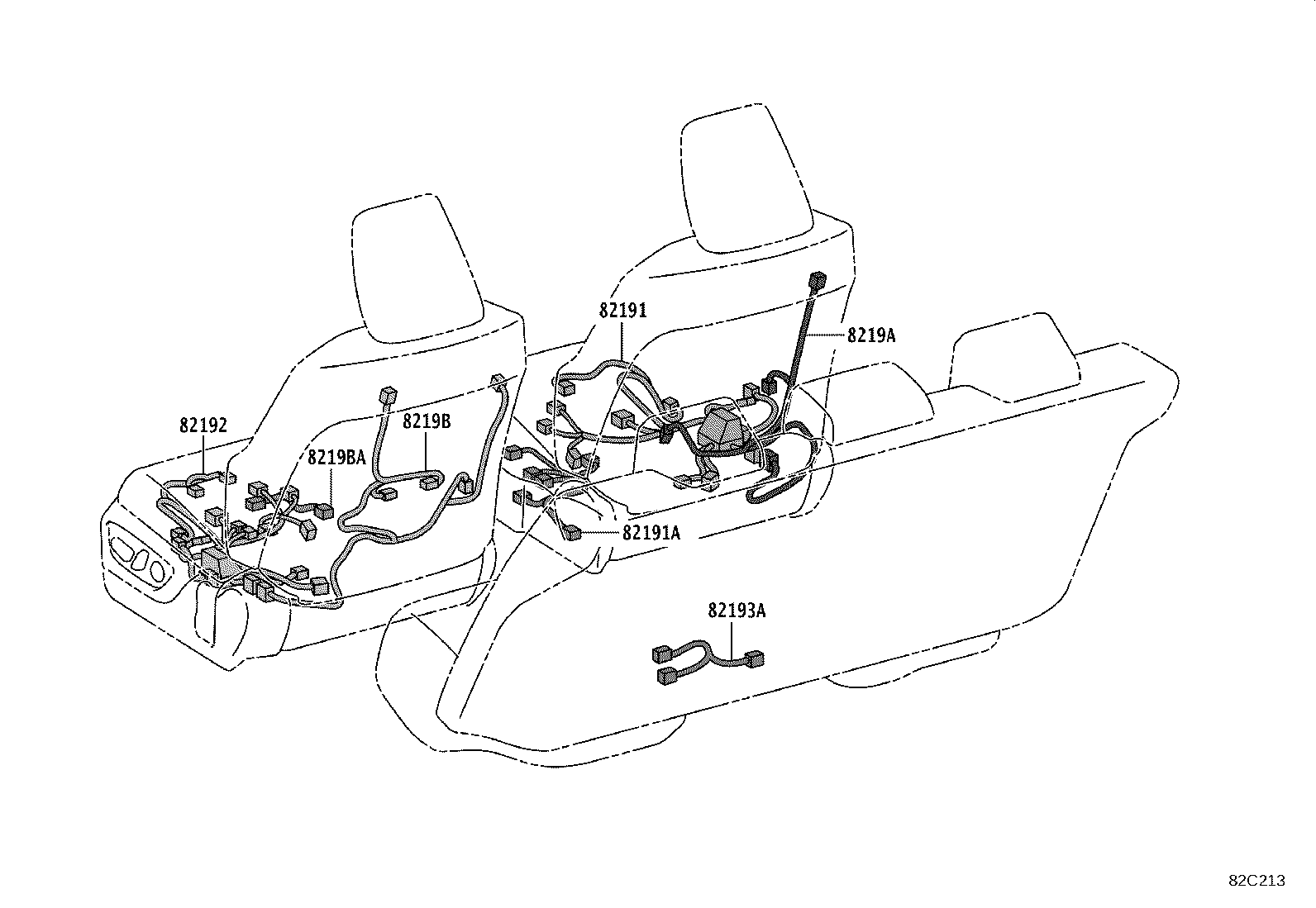

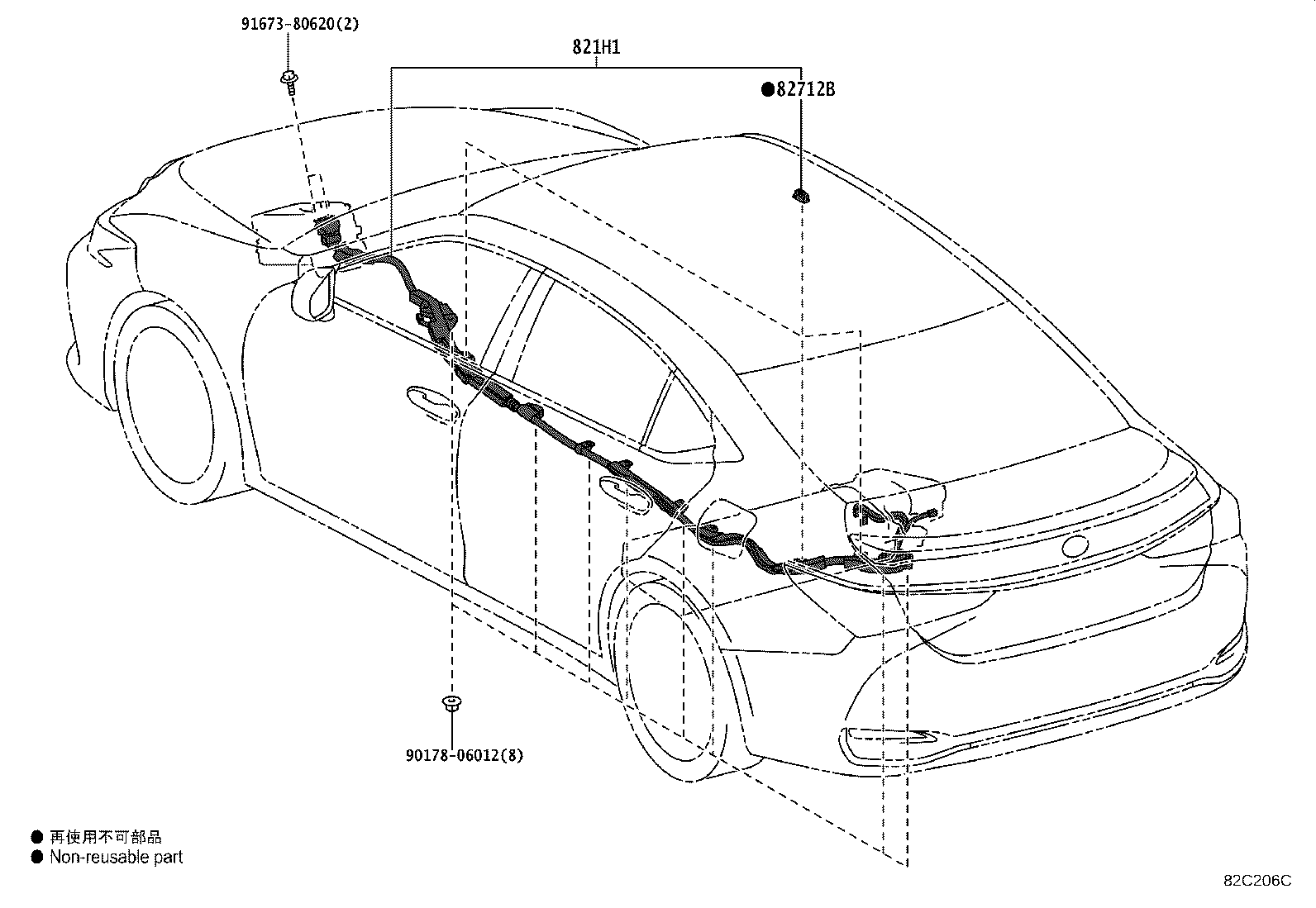

| 82191 | Wire, Front Seat, RH |
| 82191A | Wire, Front Seat, RH |
| 82192 | Wire, Front Seat, LH |
| 82193A | Wire, Rear Seat, NO.1 |
| 8219A | Wire, Front Seat, RH NO.2 |
| 8219B | Wire, Front Seat, LH NO.2 |
| 8219BA | Wire, Front Seat, LH NO.3 |
| 821H1 | Wire, Floor Under |
| 821H2 | Wire, HV Air Conditioner |
| 82219A | Wire, Sensor |
| 82219C | Wire, Sensor |
| 82284 | Wire, Earth |

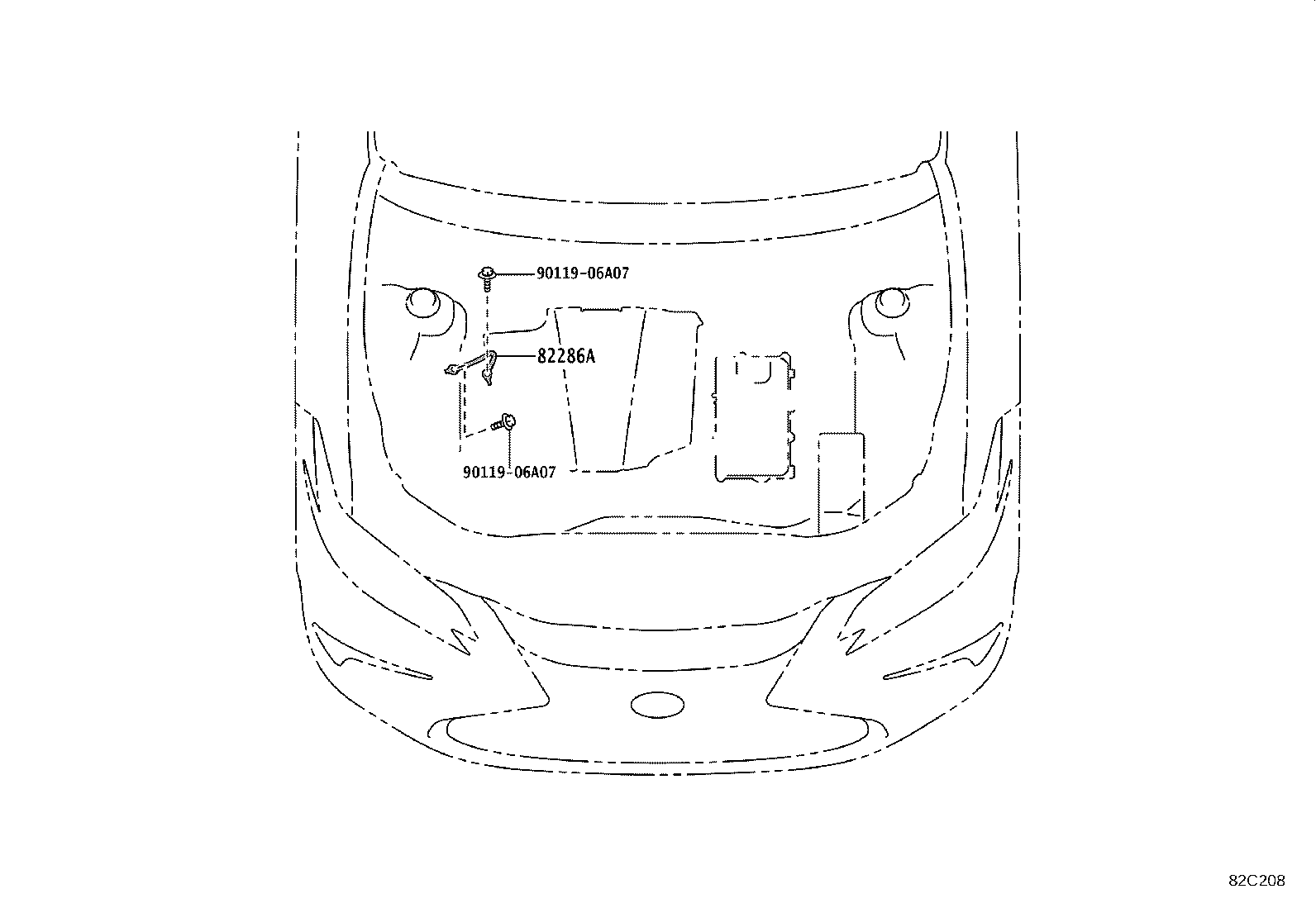

| 82286A | Wire, Earth, NO.2 |
| 82345 | Diode |
| 82663J | Cover, Connector Holder |
| 82666A | Holder, Connector NO.2 |
| 82666B | Holder, Connector NO.3 |
| 82666C | Holder, Connector NO.4 |
| 82666E | Holder, Connector NO.6 |
| 82666F | Holder, Connector NO.7 |
| 82666G | Holder, Connector NO.8 |
| 82666L | Holder, Connector NO.9 |
| 82666N | Holder, Connector NO.10 |
| 82666P | Holder, Connector NO.11 |
| 82666Q | Holder, Connector NO.12 |

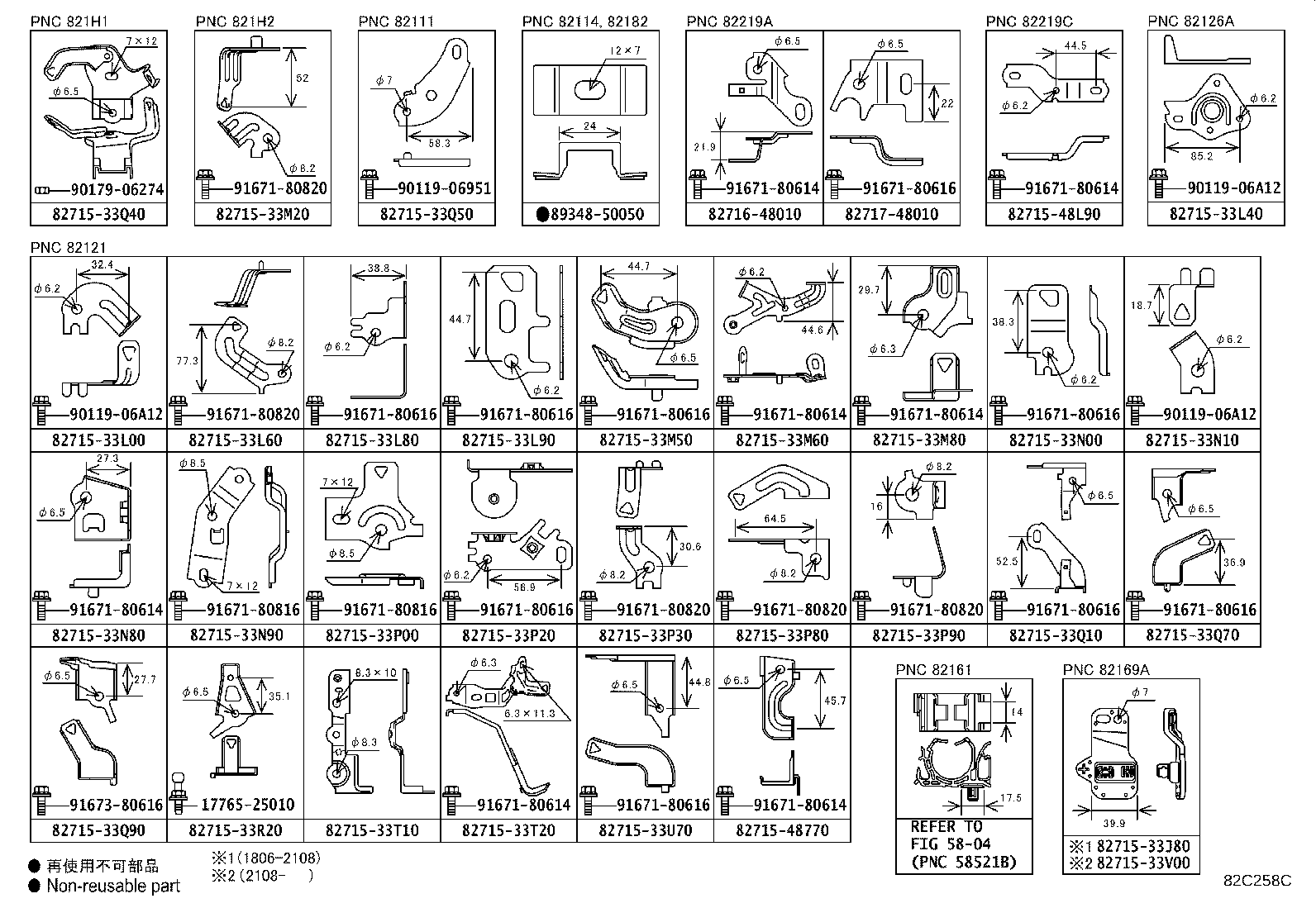

| 82712A | Support, Wiring Harness |
| 82712B | Support, Wiring Harness |

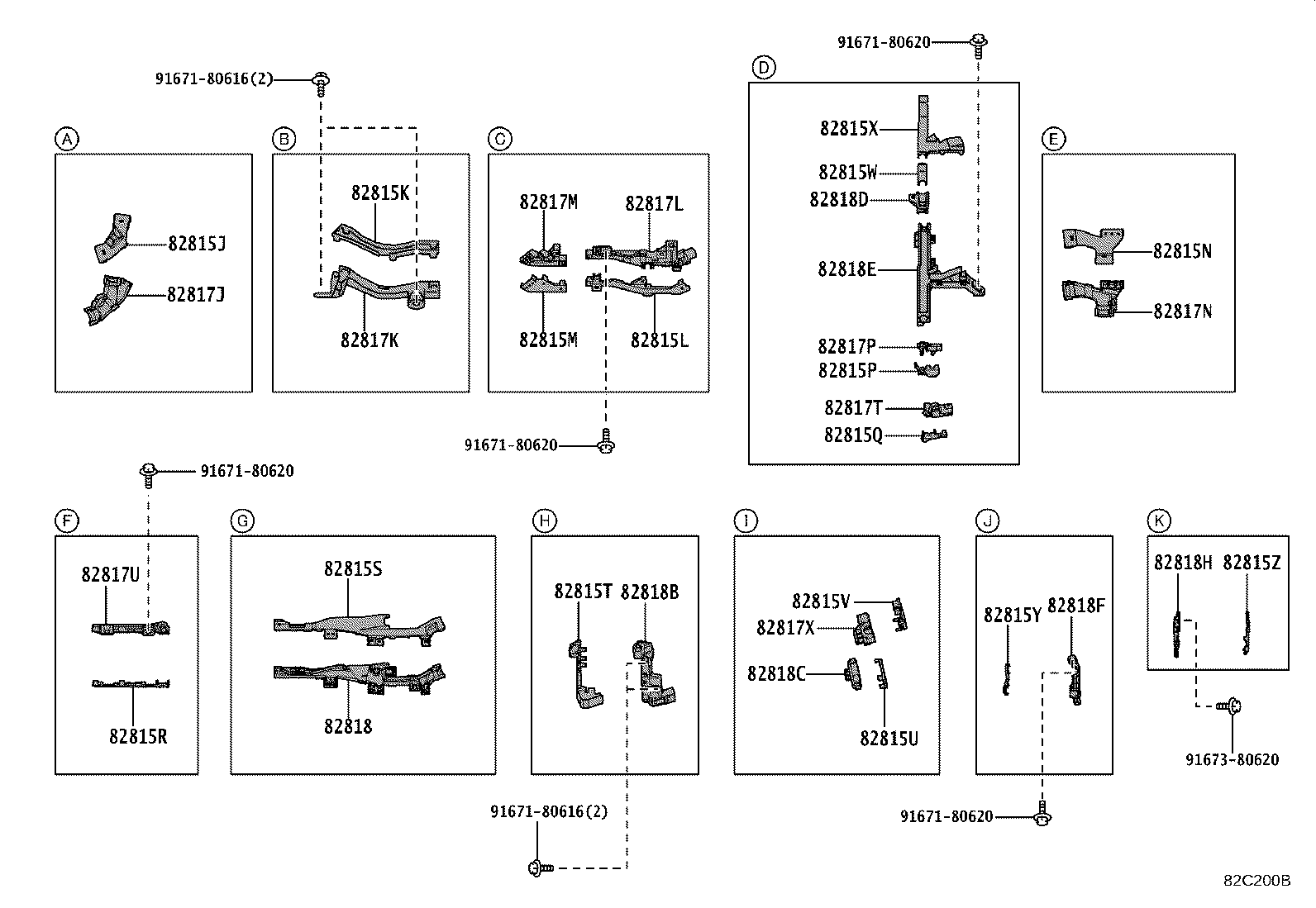

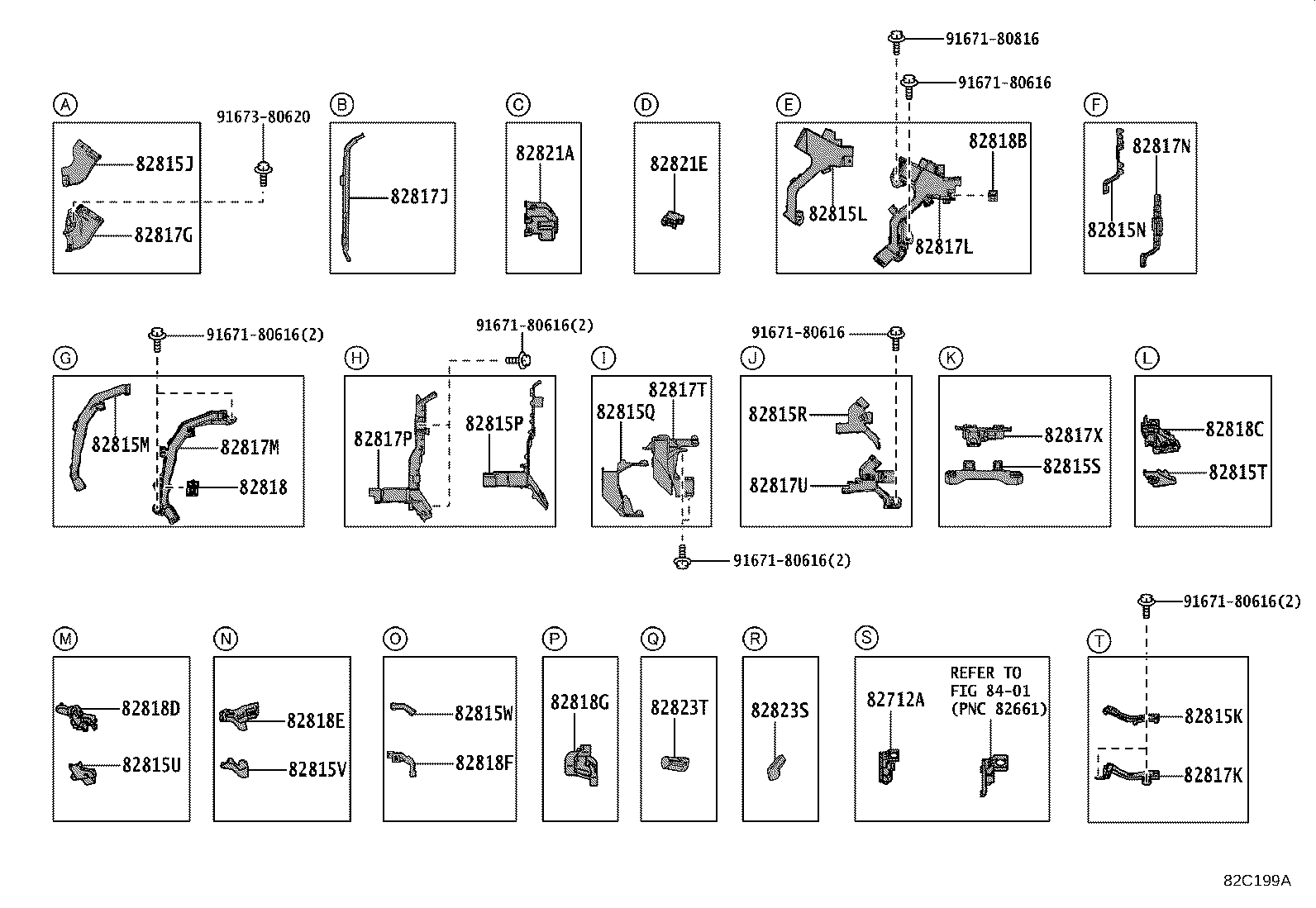

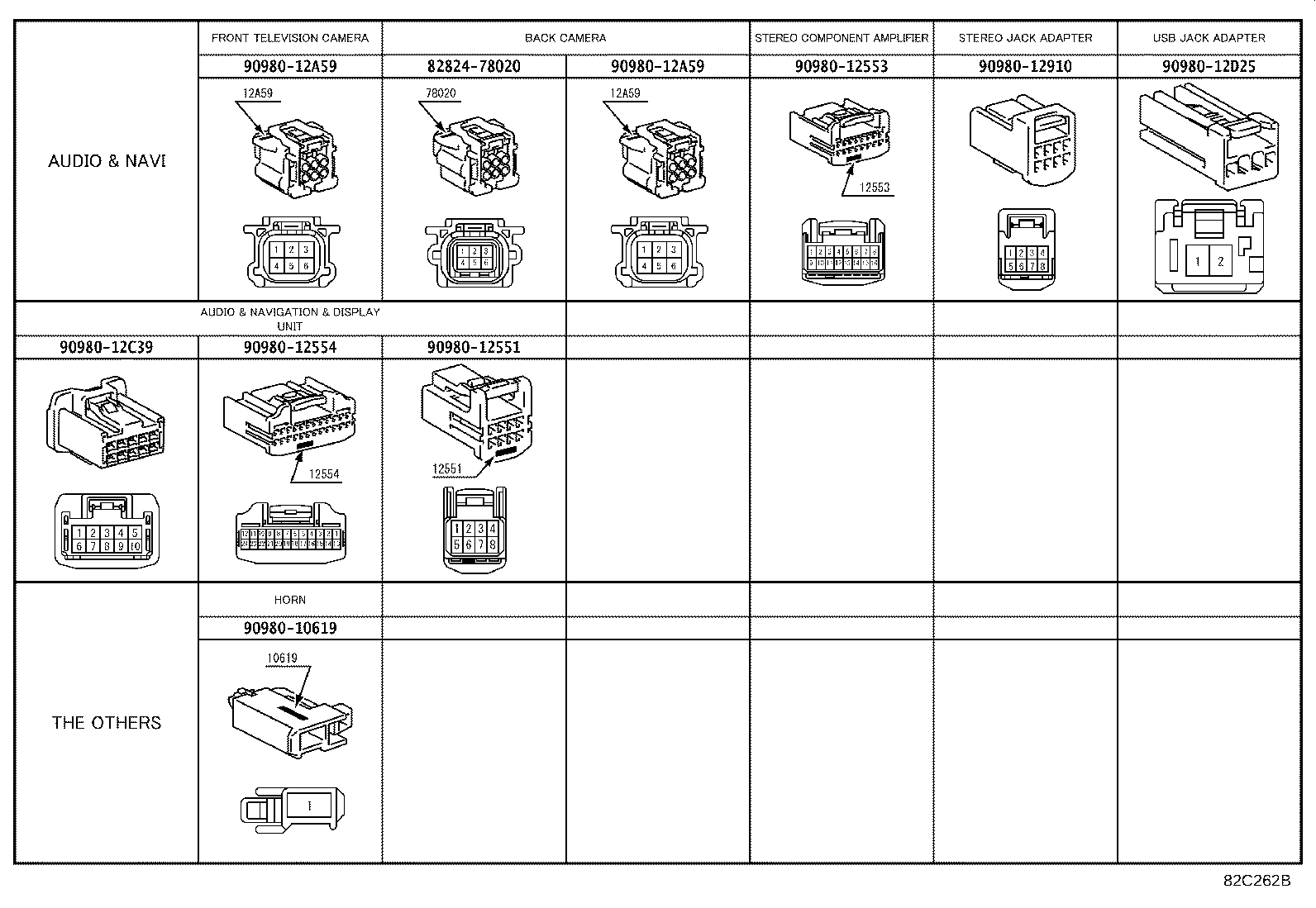

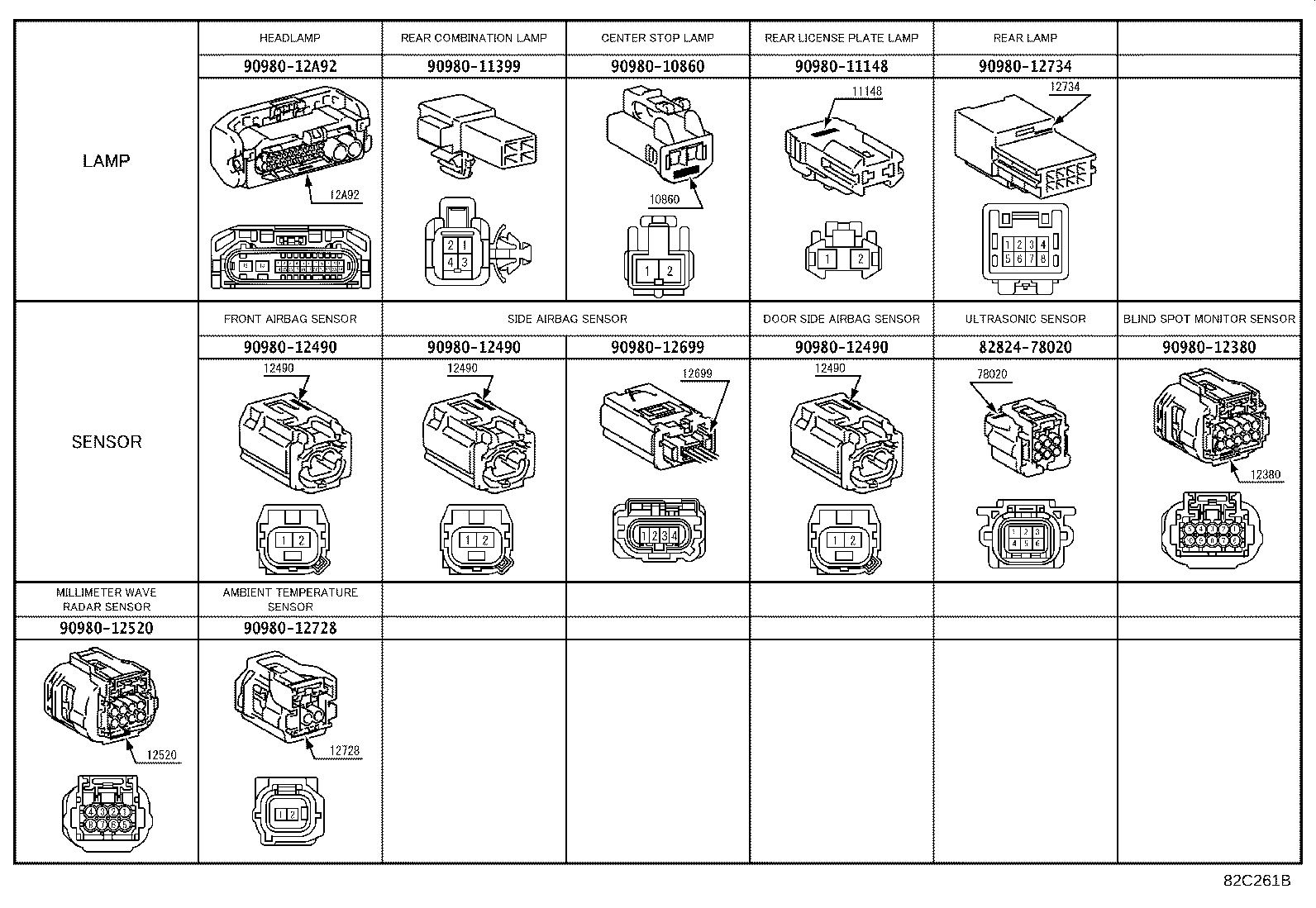

| 82815A | Cover, Wiring Harness Protector |
| 82815B | Cover, Wiring Harness Protector |
| 82815G | Cover, Wiring Harness Protector NO.5 |
| 82815H | Cover, Wiring Harness Protector NO.6 |
| 82815J | Cover, Wiring Harness Protector, NO.7 |
| 82815K | Cover, Wiring Harness Protector, NO.8 |
| 82815L | Cover, Wiring Harness Protector, NO.9 |
| 82815M | Cover, Wiring Harness Protector, NO.10 |
| 82815N | Cover, Wiring Harness Protector, NO.11 |
| 82815P | Cover, Wiring Harness Protector, NO.12 |
| 82815Q | Cover, Wiring Harness Protector, NO.13 |
| 82815R | Cover, Wiring Harness Protector, NO.14 |
| 82815S | Cover, Wiring Harness Protector, NO.15 |
| 82815T | Cover, Wiring Harness Protector, NO.16 |
| 82815U | Cover, Wiring Harness Protector, NO.17 |
| 82815V | Cover, Wiring Harness Protector, NO.1 |
| 82815W | Cover, Wiring Harness Protector, NO.2 |
| 82815X | Cover, Wiring Harness Protector, NO.3 |
| 82815Y | Cover, Wiring Harness Protector, NO.4 |
| 82815Z | Cover, Wiring Harness Protector, NO.18 |
| 82817 | Protector, Wiring Harness, NO.1 |
| 82817A | Protector, Wiring Harness, NO.2 |
| 82817B | Protector, Wiring Harness, NO.3 |
| 82817C | Protector, Wiring Harness, NO.4 |
| 82817D | Protector, Wiring Harness, NO.5 |
| 82817E | Protector, Wiring Harness, NO.6 |
| 82817G | Protector, Wiring Harness, NO.8 |
| 82817J | Protector, Wiring Harness, NO.9 |
| 82817K | Protector, Wiring Harness, NO.10 |
| 82817L | Protector, Wiring Harness, NO.11 |
| 82817M | Protector, Wiring Harness, NO.12 |
| 82817N | Protector, Wiring Harness, NO.13 |
| 82817P | Protector, Wiring Harness, NO.14 |
| 82817T | Protector, Wiring Harness, NO.15 |
| 82817U | Protector, Wiring Harness, NO.16 |
| 82817X | Protector, Wiring Harness, NO.17 |
| 82818 | Protector, Wiring Harness, NO.2 |
| 82818B | Protector, Wiring Harness, NO.3 |
| 82818C | Protector, Wiring Harness, NO.4 |
| 82818D | Protector, Wiring Harness, NO.5 |
| 82818E | Protector, Wiring Harness, NO.6 |
| 82818F | Protector, Wiring Harness, NO.7 |
| 82818G | Protector, Wiring Harness, NO.8 |
| 82818H | Protector, Wiring Harness, NO.9 |
| 82818K | Protector, Wiring Harness, NO.11 |
| 82818L | Protector, Wiring Harness, NO.12 |
| 82818M | Protector, Wiring Harness, NO.13 |
| 82818N | Protector, Wiring Harness, NO.14 |
| 82818S | Protector, Wiring Harness, NO.15 |
| 82821A | Cover, Connector |
| 82821E | Cover, Connector |
| 82821H | Cover, Connector |
| 82823 | Cap, Terminal, NO.1 |
| 82823S | Cap, Starter Terminal |
| 82823T | Cap, Alternator Terminal |
| 82824A | Connector, Wiring Harness |
| 82824D | Connector, Wiring Harness |
| 890C0 | Wire Assy, Parking Brake, NO.1 |
| 890C0A | Wire Assy, Parking Brake, NO.2 |
| G921D | Protector, Inverter Connector Cover |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
