Toyota Camry (JPP)

2001-07 → 2006-01 · chassis ACV30,MCV3# · catalogue 284470 · United States

Discontinued model Data version 2006-08

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

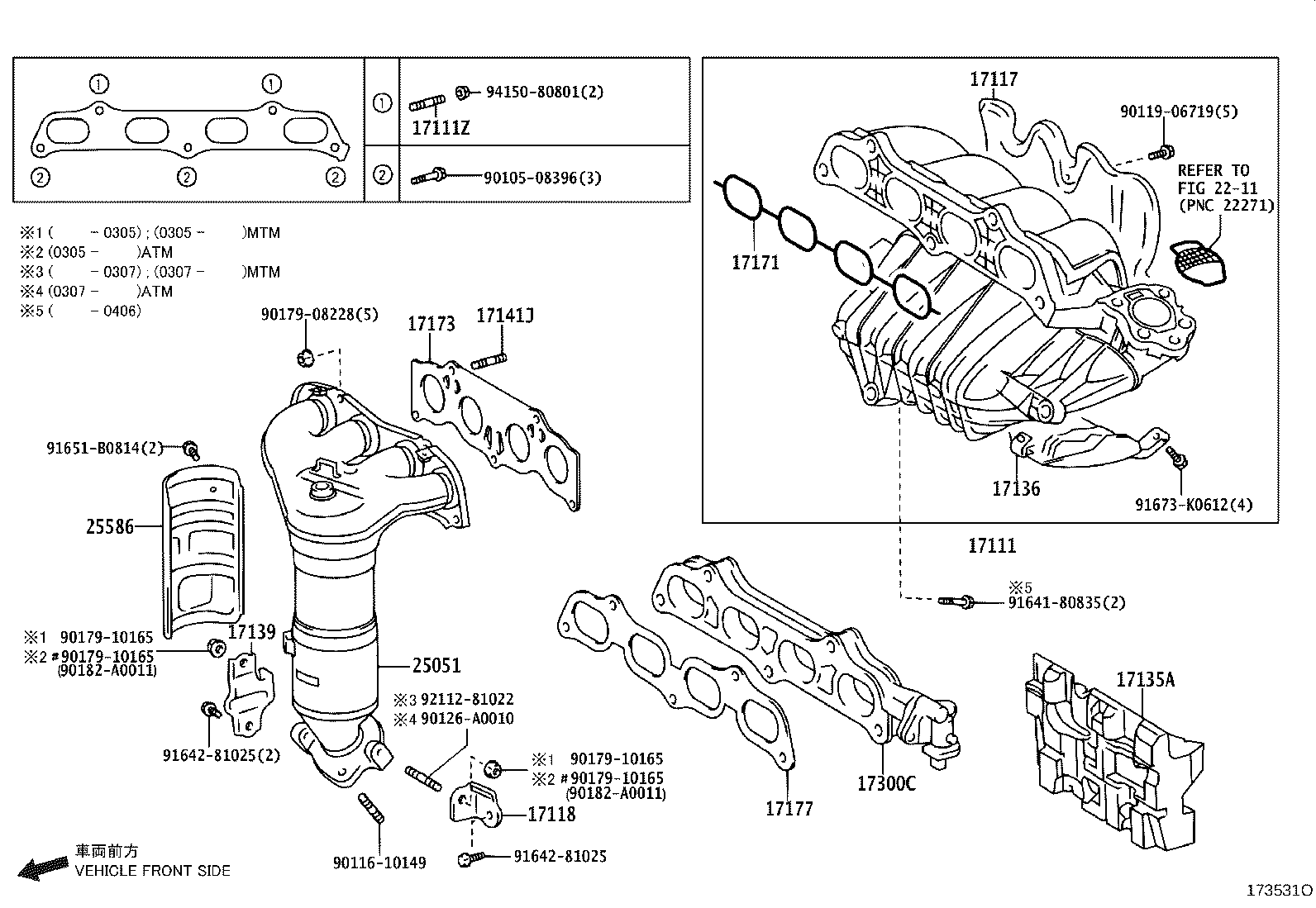

Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.

89 parts on this figure

Part number	Description	Fitment	Price
17111 — Manifold, Intake
17101-0A021 note	Manifold, Intake 2001-07 → 2003-01 ended	1MZFE MCV30 JPP	—
17101-20021 note	Manifold, Intake 2001-07 → 2003-01 ended	1MZFE MCV30 JPP	—
17101-20050	Manifold, Intake 2003-01 → 2003-07 ended	1MZFE MCV30 JPP SE	—
17101-20050	Manifold, Intake 2003-01 → 2004-06 ended	1MZFE MCV30 JPP (LE,XLE)	—
17101-20070	Manifold, Intake 2003-07 → 2004-06 ended	3MZFE MCV31 JPP	—
17120-28070	Manifold, Intake 2001-07 → 2004-06 ended	2AZFE ACV30 JPP	—
17120-28080 note	Manifold, Intake 2002-12 → 2004-06 ended	2AZFE ACV30 JPP 4FC	—
17101-20050	Manifold, Intake 2004-06 → —	1MZFE MCV30 JPP	—
17101-20070	Manifold, Intake 2004-06 → —	3MZFE MCV31 JPP	—
17120-28070	Manifold, Intake 2004-06 → —	2AZFE ACV30 JPP	—
17120-28080 note	Manifold, Intake 2004-06 → —	2AZFE ACV30 JPP 5FC	—
17111Z — Bolt, Stud(FOR INTAKE MANIFOLD TO CYLINDER HEAD)
90126-08021 note	Bolt, Stud(FOR INTAKE MANIFOLD TO CYLINDER HEAD) 2002-12 → 2004-06 ended	2AZFE ACV30 JPP 4FC	—
90126-08021 note	Bolt, Stud(FOR INTAKE MANIFOLD TO CYLINDER HEAD) 2003-05 → 2004-06 ended	2AZFE ACV30 JPP 4FC	—
90126-08026 note	Bolt, Stud(FOR INTAKE MANIFOLD TO CYLINDER HEAD) 2003-07 → 2004-06 ended	2AZFE ACV30 JPP 4FC	—
90126-08026	Bolt, Stud(FOR INTAKE MANIFOLD TO CYLINDER HEAD) 2001-07 → 2004-06 ended	2AZFE ACV30 JPP	—
90126-A0005 note	Bolt, Stud(FOR INTAKE MANIFOLD TO CYLINDER HEAD) 2003-05 → 2004-06 ended	2AZFE ACV30 JPP 4FC	—
90126-A0006 note	Bolt, Stud(FOR INTAKE MANIFOLD TO CYLINDER HEAD) 2003-07 → 2004-06 ended	2AZFE ACV30 JPP 4FC	—
90126-08021 note	Bolt, Stud(FOR INTAKE MANIFOLD TO CYLINDER HEAD) 2004-06 → —	2AZFE ACV30 JPP 5FC	—
90126-08026	Bolt, Stud(FOR INTAKE MANIFOLD TO CYLINDER HEAD) 2004-06 → —	2AZFE ACV30 JPP	—
90126-08026 note	Bolt, Stud(FOR INTAKE MANIFOLD TO CYLINDER HEAD) 2004-06 → —	2AZFE ACV30 JPP 5FC	—
90126-A0005 note	Bolt, Stud(FOR INTAKE MANIFOLD TO CYLINDER HEAD) 2004-06 → —	2AZFE ACV30 JPP 5FC	—
90126-A0006 note	Bolt, Stud(FOR INTAKE MANIFOLD TO CYLINDER HEAD) 2004-06 → —	2AZFE ACV30 JPP 5FC	—
17117 — Insulator, Intake Pipe
17117-28020	Insulator, Intake Pipe 2001-07 → 2004-06 ended	2AZFE ACV30 JPP	—
17117-28030 note	Insulator, Intake Pipe 2002-12 → 2004-06 ended	2AZFE ACV30 JPP 4FC	—
17117-28020	Insulator, Intake Pipe 2004-06 → —	2AZFE ACV30 JPP	—
17117-28030 note	Insulator, Intake Pipe 2004-06 → —	2AZFE ACV30 JPP 5FC	—
17118 — Stay, Manifold
17118-28060	Stay, Manifold 2001-07 → 2004-06 ended	2AZFE ACV30 JPP	—
17118-28060	Stay, Manifold 2004-06 → —	2AZFE ACV30 JPP	—
17135A — Insulator, Intake Manifold, NO.1
17135-28010	Insulator, Intake Manifold, NO.1 2001-07 → 2004-06 ended	2AZFE ACV30 JPP	—
17135-28010	Insulator, Intake Manifold, NO.1 2004-06 → 2005-06 ended	2AZFE ACV30 JPP	—
17135-28011	Insulator, Intake Manifold, NO.1 2005-06 → —	2AZFE ACV30 JPP	—
17136 — Insulator, Intake Manifold, NO.2
17136-28020	Insulator, Intake Manifold, NO.2 2001-07 → 2004-06 ended	2AZFE ACV30 JPP	—
17136-28020	Insulator, Intake Manifold, NO.2 2004-06 → —	2AZFE ACV30 JPP	—
17139 — Stay, Manifold, NO.2
17139-20040	Stay, Manifold, NO.2 2001-07 → 2003-01 ended	1MZFE MCV30 JPP	—
17139-20040	Stay, Manifold, NO.2 2001-07 → 2003-07 ended	1MZFE MCV30 JPP SE +1	—
17139-20040	Stay, Manifold, NO.2 2001-07 → 2004-06 ended	3MZFE MCV31 JPP;1MZFE MCV30 +3	—
17139-28030 note	Stay, Manifold, NO.2 2001-07 → 2002-08 ended	2AZFE ACV30 JPP 4FC	—
17139-28040 note	Stay, Manifold, NO.2 2001-07 → 2002-08 ended	2AZFE ACV30 JPP 4FC	—
17139-28040	Stay, Manifold, NO.2 2002-08 → 2004-06 ended	2AZFE ACV30 JPP 4FC	—
17139-28040	Stay, Manifold, NO.2 2001-07 → 2004-06 ended	2AZFE ACV30 JPP 5F	—
17139-20040	Stay, Manifold, NO.2 2004-06 → —	1MZFE,3MZFE MCV3# JPP	—
17139-28040	Stay, Manifold, NO.2 2004-06 → —	2AZFE ACV30 JPP	—
17141J — Bolt, Stud(FOR EXHAUST MANIFOLD, RH)
90126-08037	Bolt, Stud(FOR EXHAUST MANIFOLD, RH) 2001-07 → 2004-06 ended	2AZFE ACV30 JPP	—
90126-08037 note	Bolt, Stud(FOR EXHAUST MANIFOLD, RH) 2003-07 → 2004-06 ended	2AZFE ACV30 JPP 4FC	—
90126-A0007 note	Bolt, Stud(FOR EXHAUST MANIFOLD, RH) 2003-07 → 2004-06 ended	2AZFE ACV30 JPP 4FC	—
90126-08037 note	Bolt, Stud(FOR EXHAUST MANIFOLD, RH) 2004-06 → —	2AZFE ACV30 JPP 5FC	—
90126-08037	Bolt, Stud(FOR EXHAUST MANIFOLD, RH) 2004-06 → —	2AZFE ACV30 JPP	—
90126-A0007 note	Bolt, Stud(FOR EXHAUST MANIFOLD, RH) 2004-06 → —	2AZFE ACV30 JPP 5FC	—
17171 — Gasket, Intake TO Exhaust Manifold
17171-28020	Gasket, Intake TO Exhaust Manifold 2002-12 → 2004-06 ended	2AZFE ACV30 JPP 4FC	—
17171-28020	Gasket, Intake TO Exhaust Manifold 2004-06 → —	2AZFE ACV30 JPP 5FC	—
17173 — Gasket, Exhaust Manifold TO Head
17173-20020	Gasket, Exhaust Manifold TO Head 2001-07 → 2003-01 ended	1MZFE MCV30 JPP	—
17173-20020	Gasket, Exhaust Manifold TO Head 2001-07 → 2003-07 ended	1MZFE MCV30 JPP SE +1	—
17173-20020	Gasket, Exhaust Manifold TO Head 2001-07 → 2004-06 ended	1MZFE MCV30 JPP (LE,XLE) +1	—
17173-20030	Gasket, Exhaust Manifold TO Head 2003-07 → 2004-06 ended	3MZFE MCV31 JPP	—
17173-28010	Gasket, Exhaust Manifold TO Head 2001-07 → 2004-06 ended	2AZFE ACV30 JPP	—
17173-20020	Gasket, Exhaust Manifold TO Head 2004-06 → —	1MZFE MCV30 JPP	—
17173-20030	Gasket, Exhaust Manifold TO Head 2004-06 → —	3MZFE MCV31 JPP	—
17173-28010	Gasket, Exhaust Manifold TO Head 2004-06 → —	2AZFE ACV30 JPP	—
17177 — Gasket, Intake Manifold TO Head, NO.1
17177-20020	Gasket, Intake Manifold TO Head, NO.1 2001-07 → 2003-01 ended	1MZFE MCV30 JPP	—
17177-20020	Gasket, Intake Manifold TO Head, NO.1 2001-07 → 2003-07 ended	1MZFE MCV30 JPP SE +1	—
17177-20020	Gasket, Intake Manifold TO Head, NO.1 2001-07 → 2004-06 ended	3MZFE MCV31 JPP;1MZFE MCV30 +3	—
17177-28010	Gasket, Intake Manifold TO Head, NO.1 2001-07 → 2004-06 ended	2AZFE ACV30 JPP	—
17177-28040 note	Gasket, Intake Manifold TO Head, NO.1 2002-12 → 2004-06 ended	2AZFE ACV30 JPP 4FC	—
17177-20020	Gasket, Intake Manifold TO Head, NO.1 2004-06 → —	1MZFE,3MZFE MCV3# JPP	—
17177-28010	Gasket, Intake Manifold TO Head, NO.1 2004-06 → —	2AZFE ACV30 JPP	—
17177-28040 note	Gasket, Intake Manifold TO Head, NO.1 2004-06 → —	2AZFE ACV30 JPP 5FC	—
17300C — Valve Assy, Intake Manifold Runner
17300-28030	Valve Assy, Intake Manifold Runner 2002-12 → 2004-06 ended	2AZFE ACV30 JPP 4FC	—
17300-28030	Valve Assy, Intake Manifold Runner 2004-06 → —	2AZFE ACV30 JPP 5FC	—
25051 — Converter Sub-assy, Exhaust Manifold
25051-0H010 note	Converter Sub-assy, Exhaust Manifold 2001-07 → 2002-08 ended	2AZFE ACV30 JPP 4FC	—
25051-0H011 note	Converter Sub-assy, Exhaust Manifold 2002-08 → 2003-07 ended	2AZFE ACV30 JPP 4FC	—
25051-0H040 note	Converter Sub-assy, Exhaust Manifold 2003-07 → 2004-06 ended	2AZFE ACV30 JPP 4FC	—
25051-28101 note	Converter Sub-assy, Exhaust Manifold 2001-07 → 2003-07 ended	2AZFE ACV30 JPP	—
25051-28180 note	Converter Sub-assy, Exhaust Manifold 2002-12 → 2004-06 ended	2AZFE ACV30 JPP 4FC	—
25051-28240 note	Converter Sub-assy, Exhaust Manifold 2003-07 → 2004-06 ended	2AZFE ACV30 JPP	—
25051-0H040 note	Converter Sub-assy, Exhaust Manifold 2004-06 → —	2AZFE ACV30 JPP 5FC	—
25051-28180 note	Converter Sub-assy, Exhaust Manifold 2004-06 → —	2AZFE ACV30 JPP 5FC	—
25051-28240 note	Converter Sub-assy, Exhaust Manifold 2004-06 → —	2AZFE ACV30 JPP	—
25586 — Insulator, Manifold Converter, NO.1
25586-0H010 note	Insulator, Manifold Converter, NO.1 2001-07 → 2004-06 ended	2AZFE ACV30 JPP 4FC	—
25586-20070	Insulator, Manifold Converter, NO.1 2003-07 → 2004-06 ended	3MZFE MCV31 JPP	—
25586-28030	Insulator, Manifold Converter, NO.1 2001-07 → 2003-02 ended	2AZFE ACV30 JPP 5F	—
25586-28030 note	Insulator, Manifold Converter, NO.1 2001-07 → 2003-02 ended	2AZFE ACV30 JPP 4FC	—
25586-28031 note	Insulator, Manifold Converter, NO.1 2003-02 → 2004-06 ended	2AZFE ACV30 JPP 4FC	—
25586-28031	Insulator, Manifold Converter, NO.1 2003-02 → 2004-06 ended	2AZFE ACV30 JPP 5F	—
25586-28080 note	Insulator, Manifold Converter, NO.1 2002-12 → 2004-06 ended	2AZFE ACV30 JPP 4FC	—
25586-0H010 note	Insulator, Manifold Converter, NO.1 2004-06 → —	2AZFE ACV30 JPP 5FC	—
25586-20070	Insulator, Manifold Converter, NO.1 2004-06 → —	3MZFE MCV31 JPP	—
25586-28031	Insulator, Manifold Converter, NO.1 2004-06 → —	2AZFE ACV30 JPP 5F	—
25586-28031 note	Insulator, Manifold Converter, NO.1 2004-06 → —	2AZFE ACV30 JPP 5FC	—
25586-28080 note	Insulator, Manifold Converter, NO.1 2004-06 → —	2AZFE ACV30 JPP 5FC	—

No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
