Toyota Camry (JPP)

2001-07 → 2006-01 · chassis ACV30,MCV3# · catalogue 284470 · United States

Discontinued model Data version 2006-08

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

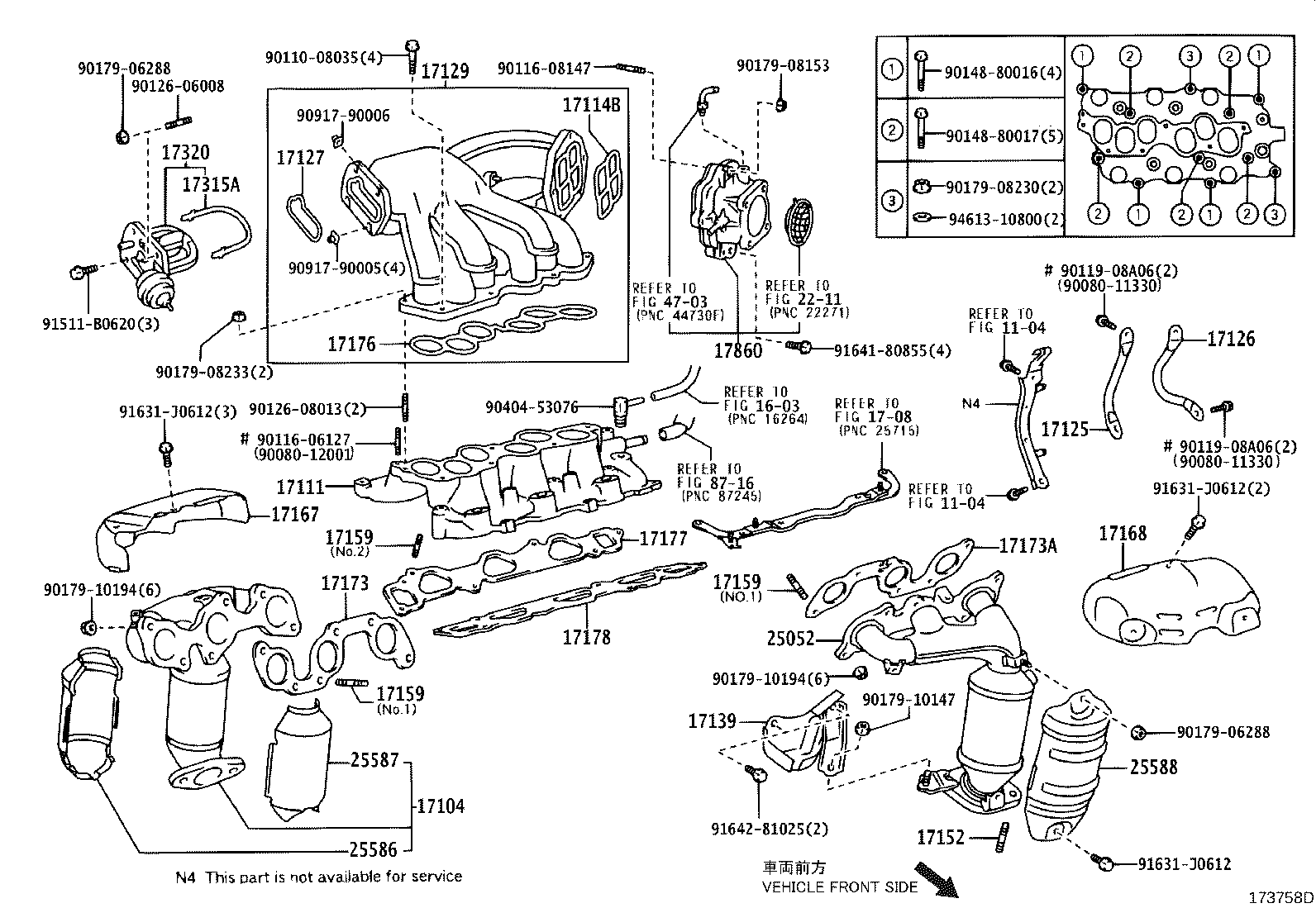

157 parts on this figure

Part number	Description	Fitment	Price
17104 — Manifold Sub-assy, Exhaust, RH
17140-20050	Manifold Sub-assy, Exhaust, RH 2003-07 → 2004-06 ended	3MZFE MCV31 JPP	—
17140-20070 note	Manifold Sub-assy, Exhaust, RH 2001-07 → 2004-06 ended	1MZFE MCV30 JPP	—
17140-20080	Manifold Sub-assy, Exhaust, RH 2003-01 → 2004-06 ended	1MZFE MCV30 JPP	—
17140-20100 note	Manifold Sub-assy, Exhaust, RH 2001-07 → 2003-01 ended	1MZFE MCV30 JPP	—
17140-20050	Manifold Sub-assy, Exhaust, RH 2004-06 → 2006-01 ended	3MZFE MCV31 JPP	—
17140-20070 note	Manifold Sub-assy, Exhaust, RH 2004-06 → 2006-01 ended	1MZFE MCV30 JPP	—
17140-20080 note	Manifold Sub-assy, Exhaust, RH 2004-06 → 2006-01 ended	1MZFE MCV30 JPP	—
17111 — Manifold, Intake
17101-0A021 note	Manifold, Intake 2001-07 → 2003-01 ended	1MZFE MCV30 JPP	—
17101-20021 note	Manifold, Intake 2001-07 → 2003-01 ended	1MZFE MCV30 JPP	—
17101-20050	Manifold, Intake 2003-01 → 2003-07 ended	1MZFE MCV30 JPP SE	—
17101-20050	Manifold, Intake 2003-01 → 2004-06 ended	1MZFE MCV30 JPP (LE,XLE)	—
17101-20070	Manifold, Intake 2003-07 → 2004-06 ended	3MZFE MCV31 JPP	—
17120-28070	Manifold, Intake 2001-07 → 2004-06 ended	2AZFE ACV30 JPP	—
17120-28080 note	Manifold, Intake 2002-12 → 2004-06 ended	2AZFE ACV30 JPP 4FC	—
17101-20050	Manifold, Intake 2004-06 → —	1MZFE MCV30 JPP	—
17101-20070	Manifold, Intake 2004-06 → —	3MZFE MCV31 JPP	—
17120-28070	Manifold, Intake 2004-06 → —	2AZFE ACV30 JPP	—
17120-28080 note	Manifold, Intake 2004-06 → —	2AZFE ACV30 JPP 5FC	—
17114B — Gasket, Intake Flange
17116-20010	Gasket, Intake Flange 2003-01 → 2004-06 ended	1MZFE,3MZFE MCV3# JPP	—
17116-20010	Gasket, Intake Flange 2004-06 → —	1MZFE,3MZFE MCV3# JPP	—
17125 — Stay, Surge Tank, NO.1
17125-0A010	Stay, Surge Tank, NO.1 2001-07 → 2003-01 ended	1MZFE MCV30 JPP	—
17125-20020	Stay, Surge Tank, NO.1 2003-01 → 2003-07 ended	1MZFE MCV30 JPP SE	—
17125-20020	Stay, Surge Tank, NO.1 2003-01 → 2004-06 ended	3MZFE MCV31 JPP;1MZFE MCV30 +2	—
17125-20020	Stay, Surge Tank, NO.1 2004-06 → —	1MZFE,3MZFE MCV3# JPP	—
17126 — Stay, Surge Tank, NO.2
17126-20010	Stay, Surge Tank, NO.2 2003-01 → 2004-06 ended	1MZFE MCV30 JPP	—
17126-20020	Stay, Surge Tank, NO.2 2003-07 → 2004-06 ended	3MZFE MCV31 JPP	—
17126-20010	Stay, Surge Tank, NO.2 2004-06 → —	1MZFE MCV30 JPP	—
17126-20020	Stay, Surge Tank, NO.2 2004-06 → —	3MZFE MCV31 JPP	—
17127 — Gasket, Surge Tank Cover
17127-0A010	Gasket, Surge Tank Cover 2001-07 → 2003-01 ended	1MZFE MCV30 JPP	—
17127-20010	Gasket, Surge Tank Cover 2003-01 → 2003-07 ended	1MZFE MCV30 JPP SE	—
17127-20010	Gasket, Surge Tank Cover 2003-01 → 2004-06 ended	3MZFE MCV31 JPP;1MZFE MCV30 +2	—
17127-20010	Gasket, Surge Tank Cover 2004-06 → —	1MZFE,3MZFE MCV3# JPP	—
17129 — Tank, Intake Air Surge
17109-0A050 note	Tank, Intake Air Surge 2001-07 → 2002-05 ended	1MZFE MCV30 JPP	—
17109-0A080 note	Tank, Intake Air Surge 2002-05 → 2003-01 ended	1MZFE MCV30 JPP	—
17109-20090 note	Tank, Intake Air Surge 2001-07 → 2002-05 ended	1MZFE MCV30 JPP	—
17109-20100	Tank, Intake Air Surge 2003-01 → 2003-07 ended	1MZFE MCV30 JPP SE	—
17109-20100	Tank, Intake Air Surge 2003-01 → 2004-06 ended	1MZFE MCV30 JPP (LE,XLE)	—
17109-20110 note	Tank, Intake Air Surge 2002-05 → 2003-01 ended	1MZFE MCV30 JPP	—
17109-20130	Tank, Intake Air Surge 2003-07 → 2004-06 ended	3MZFE MCV31 JPP	—
17109-20100	Tank, Intake Air Surge 2004-06 → —	1MZFE MCV30 JPP	—
17109-20130	Tank, Intake Air Surge 2004-06 → —	3MZFE MCV31 JPP	—
17139 — Stay, Manifold, NO.2
17139-20040	Stay, Manifold, NO.2 2001-07 → 2004-06 ended	3MZFE MCV31 JPP;1MZFE MCV30 +3	—
17139-20040	Stay, Manifold, NO.2 2001-07 → 2003-01 ended	1MZFE MCV30 JPP	—
17139-20040	Stay, Manifold, NO.2 2001-07 → 2003-07 ended	1MZFE MCV30 JPP SE +1	—
17139-28030 note	Stay, Manifold, NO.2 2001-07 → 2002-08 ended	2AZFE ACV30 JPP 4FC	—
17139-28040	Stay, Manifold, NO.2 2001-07 → 2004-06 ended	2AZFE ACV30 JPP 5F	—
17139-28040	Stay, Manifold, NO.2 2002-08 → 2004-06 ended	2AZFE ACV30 JPP 4FC	—
17139-28040 note	Stay, Manifold, NO.2 2001-07 → 2002-08 ended	2AZFE ACV30 JPP 4FC	—
17139-20040	Stay, Manifold, NO.2 2004-06 → —	1MZFE,3MZFE MCV3# JPP	—
17139-28040	Stay, Manifold, NO.2 2004-06 → —	2AZFE ACV30 JPP	—
17152 — Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE)
90116-10149	Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE) 2001-07 → 2003-01 ended	1MZFE MCV30 JPP	—
90116-10149	Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE) 2001-07 → 2003-07 ended	1MZFE MCV30 JPP SE +1	—
90116-10149	Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE) 2001-07 → 2004-06 ended	3MZFE MCV31 JPP;1MZFE MCV30 +3	—
90116-10149	Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE) 2004-06 → —	1MZFE,3MZFE MCV3# JPP	—
17159 — Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
90126-08013 note	Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD) 2001-07 → 2003-01 ended	1MZFE MCV30 JPP	—
90126-08013 note	Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD) 2003-01 → 2004-06 ended	1MZFE MCV30 JPP	—
90126-08013 note	Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD) 2003-07 → 2004-06 ended	3MZFE MCV31 JPP	—
90126-10030 note	Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD) 2001-07 → 2003-01 ended	1MZFE MCV30 JPP	—
90126-10030 note	Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD) 2003-07 → 2004-06 ended	3MZFE MCV31 JPP	—
90126-10030 note	Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD) 2003-01 → 2004-06 ended	1MZFE MCV30 JPP	—
90126-08013 note	Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD) 2004-06 → —	1MZFE,3MZFE MCV3# JPP	—
90126-10030 note	Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD) 2004-06 → —	1MZFE,3MZFE MCV3# JPP	—
17167 — Insulator, Exhaust Manifold Heat, NO.1
17167-0H010 note	Insulator, Exhaust Manifold Heat, NO.1 2002-02 → 2004-06 ended	2AZFE ACV30 JPP 4FC	—
17167-20110	Insulator, Exhaust Manifold Heat, NO.1 2003-07 → 2004-06 ended	3MZFE MCV31 JPP	—
17167-28040 note	Insulator, Exhaust Manifold Heat, NO.1 2001-07 → 2004-06 ended	2AZFE ACV30 JPP 4FC	—
17167-28040	Insulator, Exhaust Manifold Heat, NO.1 2001-07 → 2004-06 ended	2AZFE ACV30 JPP 5F	—
17167-0H010 note	Insulator, Exhaust Manifold Heat, NO.1 2004-06 → —	2AZFE ACV30 JPP 5FC	—
17167-20110	Insulator, Exhaust Manifold Heat, NO.1 2004-06 → —	3MZFE MCV31 JPP	—
17167-28040	Insulator, Exhaust Manifold Heat, NO.1 2004-06 → —	2AZFE ACV30 JPP 5F	—
17167-28040 note	Insulator, Exhaust Manifold Heat, NO.1 2004-06 → —	2AZFE ACV30 JPP 5FC	—
17168 — Insulator, Exhaust Manifold Heat, NO.2
17168-0H010 note	Insulator, Exhaust Manifold Heat, NO.2 2001-07 → 2004-06 ended	2AZFE ACV30 JPP 4FC	—
17168-20060	Insulator, Exhaust Manifold Heat, NO.2 2001-07 → 2003-01 ended	1MZFE MCV30 JPP	—
17168-20060	Insulator, Exhaust Manifold Heat, NO.2 2001-07 → 2003-07 ended	1MZFE MCV30 JPP SE +1	—
17168-20060	Insulator, Exhaust Manifold Heat, NO.2 2001-07 → 2004-06 ended	3MZFE MCV31 JPP;1MZFE MCV30 +3	—
17168-28010 note	Insulator, Exhaust Manifold Heat, NO.2 2001-07 → 2002-11 ended	2AZFE ACV30 JPP 4FC	—
17168-28010	Insulator, Exhaust Manifold Heat, NO.2 2001-07 → 2002-11 ended	2AZFE ACV30 JPP 5F	—
17168-28011 note	Insulator, Exhaust Manifold Heat, NO.2 2002-11 → 2004-06 ended	2AZFE ACV30 JPP 4FC	—
17168-28011	Insulator, Exhaust Manifold Heat, NO.2 2002-11 → 2004-06 ended	2AZFE ACV30 JPP 5F	—
17168-0H010 note	Insulator, Exhaust Manifold Heat, NO.2 2004-06 → —	2AZFE ACV30 JPP 5FC	—
17168-20060	Insulator, Exhaust Manifold Heat, NO.2 2004-06 → —	1MZFE,3MZFE MCV3# JPP	—
17168-28011	Insulator, Exhaust Manifold Heat, NO.2 2004-06 → —	2AZFE ACV30 JPP 5F	—
17168-28011 note	Insulator, Exhaust Manifold Heat, NO.2 2004-06 → —	2AZFE ACV30 JPP 5FC	—
17173 — Gasket, Exhaust Manifold TO Head
17173-20020	Gasket, Exhaust Manifold TO Head 2001-07 → 2003-01 ended	1MZFE MCV30 JPP	—
17173-20020	Gasket, Exhaust Manifold TO Head 2001-07 → 2004-06 ended	1MZFE MCV30 JPP (LE,XLE) +1	—
17173-20020	Gasket, Exhaust Manifold TO Head 2001-07 → 2003-07 ended	1MZFE MCV30 JPP SE +1	—
17173-20030	Gasket, Exhaust Manifold TO Head 2003-07 → 2004-06 ended	3MZFE MCV31 JPP	—
17173-28010	Gasket, Exhaust Manifold TO Head 2001-07 → 2004-06 ended	2AZFE ACV30 JPP	—
17173-20020	Gasket, Exhaust Manifold TO Head 2004-06 → —	1MZFE MCV30 JPP	—
17173-20030	Gasket, Exhaust Manifold TO Head 2004-06 → —	3MZFE MCV31 JPP	—
17173-28010	Gasket, Exhaust Manifold TO Head 2004-06 → —	2AZFE ACV30 JPP	—
17173A — Gasket, Exhaust Manifold TO Head, LH
17173-20020	Gasket, Exhaust Manifold TO Head, LH 2001-07 → 2004-06 ended	1MZFE MCV30 JPP (LE,XLE) +1	—
17173-20020	Gasket, Exhaust Manifold TO Head, LH 2001-07 → 2003-07 ended	1MZFE MCV30 JPP SE +1	—
17173-20020	Gasket, Exhaust Manifold TO Head, LH 2001-07 → 2003-01 ended	1MZFE MCV30 JPP	—
17173-20030	Gasket, Exhaust Manifold TO Head, LH 2003-07 → 2004-06 ended	3MZFE MCV31 JPP	—
17173-20020	Gasket, Exhaust Manifold TO Head, LH 2004-06 → —	1MZFE MCV30 JPP	—
17173-20030	Gasket, Exhaust Manifold TO Head, LH 2004-06 → —	3MZFE MCV31 JPP	—
17176 — Gasket, Air Surge Tank TO Intake Manifold
17176-20010	Gasket, Air Surge Tank TO Intake Manifold 2003-01 → 2003-07 ended	1MZFE MCV30 JPP SE	—
17176-20010	Gasket, Air Surge Tank TO Intake Manifold 2003-01 → 2004-06 ended	1MZFE MCV30 JPP (LE,XLE)	—
17176-20020	Gasket, Air Surge Tank TO Intake Manifold 2003-07 → 2004-06 ended	3MZFE MCV31 JPP	—
17176-62030	Gasket, Air Surge Tank TO Intake Manifold 2001-07 → 2003-01 ended	1MZFE MCV30 JPP	—
17176-20010	Gasket, Air Surge Tank TO Intake Manifold 2004-06 → —	1MZFE MCV30 JPP	—
17176-20020	Gasket, Air Surge Tank TO Intake Manifold 2004-06 → —	3MZFE MCV31 JPP	—
17177 — Gasket, Intake Manifold TO Head, NO.1
17177-20020	Gasket, Intake Manifold TO Head, NO.1 2001-07 → 2003-01 ended	1MZFE MCV30 JPP	—
17177-20020	Gasket, Intake Manifold TO Head, NO.1 2001-07 → 2003-07 ended	1MZFE MCV30 JPP SE +1	—
17177-20020	Gasket, Intake Manifold TO Head, NO.1 2001-07 → 2004-06 ended	3MZFE MCV31 JPP;1MZFE MCV30 +3	—
17177-28010	Gasket, Intake Manifold TO Head, NO.1 2001-07 → 2004-06 ended	2AZFE ACV30 JPP	—
17177-28040 note	Gasket, Intake Manifold TO Head, NO.1 2002-12 → 2004-06 ended	2AZFE ACV30 JPP 4FC	—
17177-20020	Gasket, Intake Manifold TO Head, NO.1 2004-06 → —	1MZFE,3MZFE MCV3# JPP	—
17177-28010	Gasket, Intake Manifold TO Head, NO.1 2004-06 → —	2AZFE ACV30 JPP	—
17177-28040 note	Gasket, Intake Manifold TO Head, NO.1 2004-06 → —	2AZFE ACV30 JPP 5FC	—
17178 — Gasket, Intake Manifold TO Head, NO.2
17178-20020	Gasket, Intake Manifold TO Head, NO.2 2001-07 → 2003-01 ended	1MZFE MCV30 JPP	—
17178-20020	Gasket, Intake Manifold TO Head, NO.2 2001-07 → 2004-06 ended	3MZFE MCV31 JPP;1MZFE MCV30 +3	—
17178-20020	Gasket, Intake Manifold TO Head, NO.2 2001-07 → 2003-07 ended	1MZFE MCV30 JPP SE +1	—
17178-20020	Gasket, Intake Manifold TO Head, NO.2 2004-06 → —	1MZFE,3MZFE MCV3# JPP	—
17315A — Gasket, Intake Air Control Valve
17315-20010	Gasket, Intake Air Control Valve 2003-01 → 2003-07 ended	1MZFE MCV30 JPP SE	—
17315-20010	Gasket, Intake Air Control Valve 2003-01 → 2004-06 ended	3MZFE MCV31 JPP;1MZFE MCV30 +2	—
17315-62020	Gasket, Intake Air Control Valve 2001-07 → 2003-01 ended	1MZFE MCV30 JPP	—
17315-20010	Gasket, Intake Air Control Valve 2004-06 → —	1MZFE,3MZFE MCV3# JPP	—
17320 — Valve Assy, Intake Air Control, NO.2
17320-0A010 note	Valve Assy, Intake Air Control, NO.2 2003-01 → 2003-07 ended	1MZFE MCV30 JPP	—
17320-20020 note	Valve Assy, Intake Air Control, NO.2 2003-01 → 2004-06 ended	1MZFE MCV30 JPP (LE,XLE)	—
17320-20020 note	Valve Assy, Intake Air Control, NO.2 2003-01 → 2003-07 ended	1MZFE MCV30 JPP SE	—
17320-20020	Valve Assy, Intake Air Control, NO.2 2003-07 → 2004-06 ended	3MZFE MCV31 JPP	—
17320-20020	Valve Assy, Intake Air Control, NO.2 2004-06 → —	1MZFE,3MZFE MCV3# JPP	—
17860 — Connector Assy, Intake Air
17860-20010	Connector Assy, Intake Air 2003-07 → 2004-06 ended	3MZFE MCV31 JPP	—
17860-20010	Connector Assy, Intake Air 2004-06 → —	3MZFE MCV31 JPP	—
25052 — Converter Sub-assy, Exhaust Manifold, NO.2
25052-20170	Converter Sub-assy, Exhaust Manifold, NO.2 2001-07 → 2004-06 ended	1MZFE MCV30 JPP	—
25052-20210	Converter Sub-assy, Exhaust Manifold, NO.2 2003-07 → 2004-06 ended	3MZFE MCV31 JPP	—
25052-20170	Converter Sub-assy, Exhaust Manifold, NO.2 2004-06 → 2006-01 ended	1MZFE MCV30 JPP	—
25052-20210	Converter Sub-assy, Exhaust Manifold, NO.2 2004-06 → 2006-01 ended	3MZFE MCV31 JPP	—
25586 — Insulator, Manifold Converter, NO.1
25586-0H010 note	Insulator, Manifold Converter, NO.1 2001-07 → 2004-06 ended	2AZFE ACV30 JPP 4FC	—
25586-20070	Insulator, Manifold Converter, NO.1 2003-07 → 2004-06 ended	3MZFE MCV31 JPP	—
25586-28030	Insulator, Manifold Converter, NO.1 2001-07 → 2003-02 ended	2AZFE ACV30 JPP 5F	—
25586-28030 note	Insulator, Manifold Converter, NO.1 2001-07 → 2003-02 ended	2AZFE ACV30 JPP 4FC	—
25586-28031 note	Insulator, Manifold Converter, NO.1 2003-02 → 2004-06 ended	2AZFE ACV30 JPP 4FC	—
25586-28031	Insulator, Manifold Converter, NO.1 2003-02 → 2004-06 ended	2AZFE ACV30 JPP 5F	—
25586-28080 note	Insulator, Manifold Converter, NO.1 2002-12 → 2004-06 ended	2AZFE ACV30 JPP 4FC	—
25586-0H010 note	Insulator, Manifold Converter, NO.1 2004-06 → —	2AZFE ACV30 JPP 5FC	—
25586-20070	Insulator, Manifold Converter, NO.1 2004-06 → —	3MZFE MCV31 JPP	—
25586-28031	Insulator, Manifold Converter, NO.1 2004-06 → —	2AZFE ACV30 JPP 5F	—
25586-28031 note	Insulator, Manifold Converter, NO.1 2004-06 → —	2AZFE ACV30 JPP 5FC	—
25586-28080 note	Insulator, Manifold Converter, NO.1 2004-06 → —	2AZFE ACV30 JPP 5FC	—
25587 — Insulator, Manifold Converter, NO.2
25587-0H010 note	Insulator, Manifold Converter, NO.2 2001-07 → 2004-06 ended	2AZFE ACV30 JPP 4FC	—
25587-20050	Insulator, Manifold Converter, NO.2 2003-07 → 2004-06 ended	3MZFE MCV31 JPP	—
25587-28040 note	Insulator, Manifold Converter, NO.2 2001-07 → 2003-02 ended	2AZFE ACV30 JPP 4FC	—
25587-28040	Insulator, Manifold Converter, NO.2 2001-07 → 2003-02 ended	2AZFE ACV30 JPP 5F	—
25587-28041 note	Insulator, Manifold Converter, NO.2 2003-02 → 2004-06 ended	2AZFE ACV30 JPP 4FC	—
25587-28041	Insulator, Manifold Converter, NO.2 2003-02 → 2004-06 ended	2AZFE ACV30 JPP 5F	—
25587-0H010 note	Insulator, Manifold Converter, NO.2 2004-06 → —	2AZFE ACV30 JPP 5FC	—
25587-20050	Insulator, Manifold Converter, NO.2 2004-06 → —	3MZFE MCV31 JPP	—
25587-28041	Insulator, Manifold Converter, NO.2 2004-06 → —	2AZFE ACV30 JPP 5F	—
25587-28041 note	Insulator, Manifold Converter, NO.2 2004-06 → —	2AZFE ACV30 JPP 5FC	—
25588 — Insulator, Manifold Converter, NO.3
25588-20010	Insulator, Manifold Converter, NO.3 2001-07 → 2003-01 ended	1MZFE MCV30 JPP	—
25588-20010	Insulator, Manifold Converter, NO.3 2001-07 → 2003-07 ended	1MZFE MCV30 JPP SE +1	—
25588-20010	Insulator, Manifold Converter, NO.3 2001-07 → 2004-06 ended	1MZFE MCV30 JPP (LE,XLE) +1	—
25588-20030	Insulator, Manifold Converter, NO.3 2003-07 → 2004-06 ended	3MZFE MCV31 JPP	—
25588-20010	Insulator, Manifold Converter, NO.3 2004-06 → —	1MZFE MCV30 JPP	—
25588-20030	Insulator, Manifold Converter, NO.3 2004-06 → —	3MZFE MCV31 JPP	—

No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
