Toyota Lexus SC430

2001-01 → 2010-07 · chassis UZZ40 · catalogue 321450 · United States

Discontinued model Data version 2011-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Instrument Panel & Glove Compartment

39 part groups · 4 illustrations

Illustrations

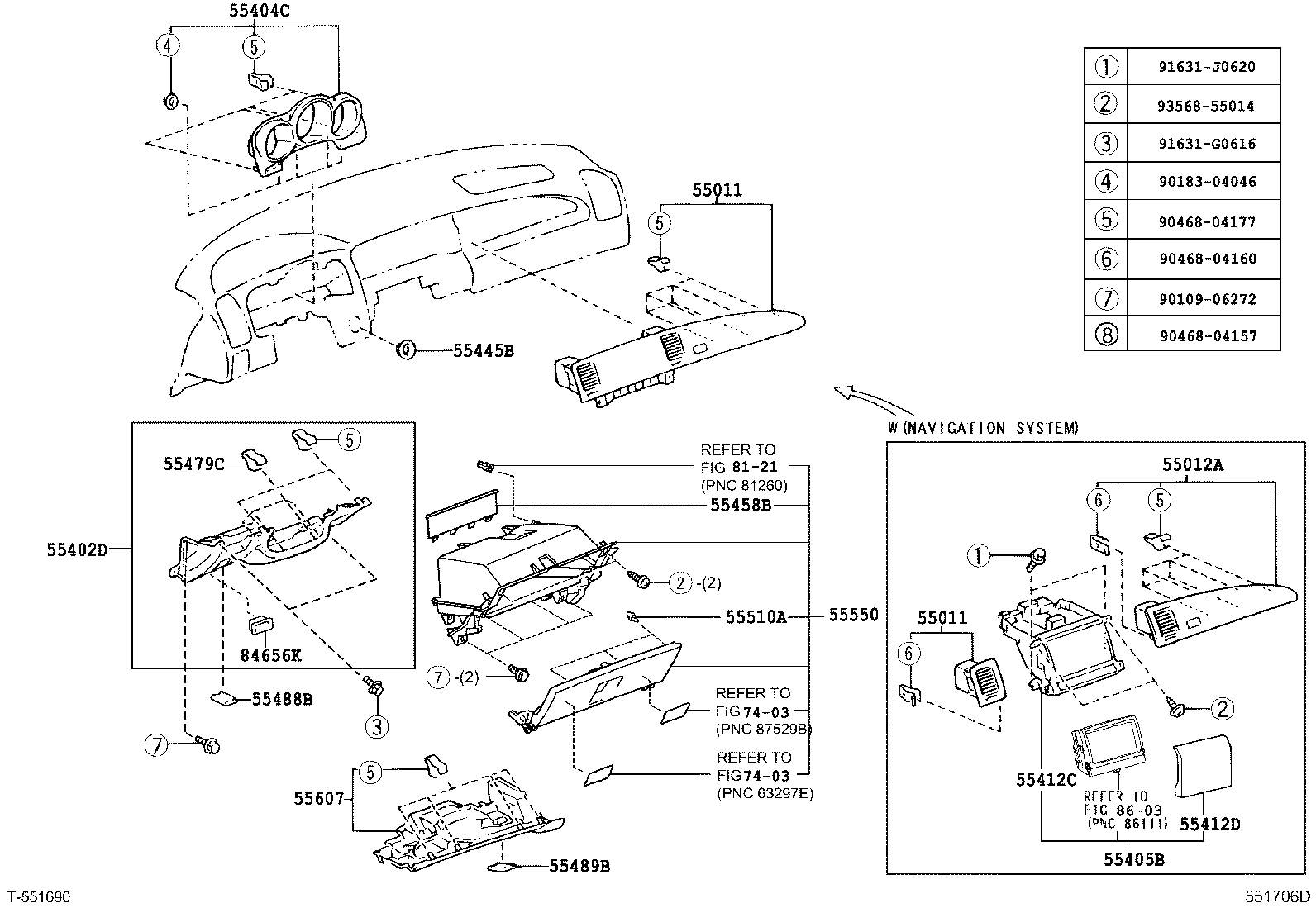

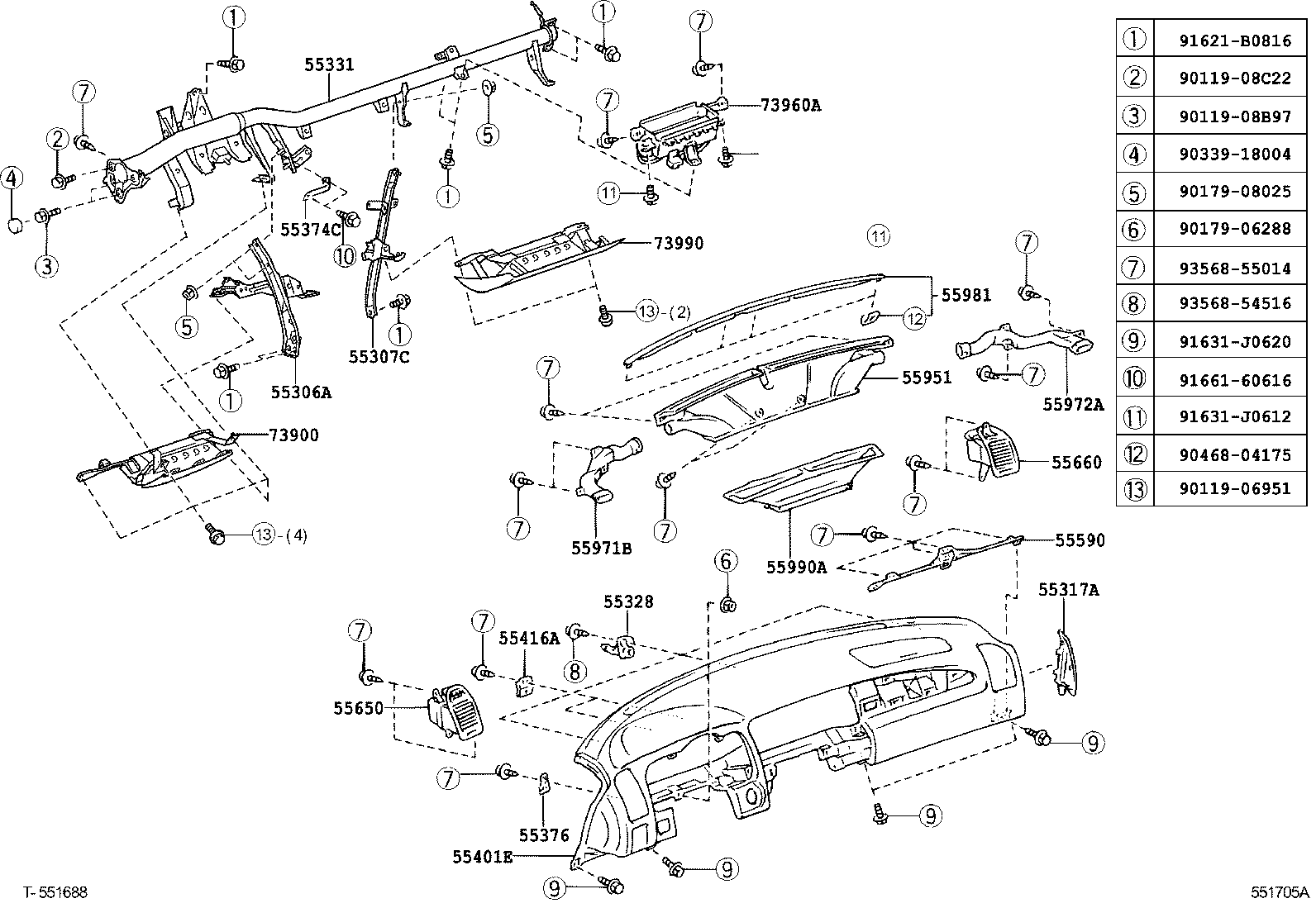

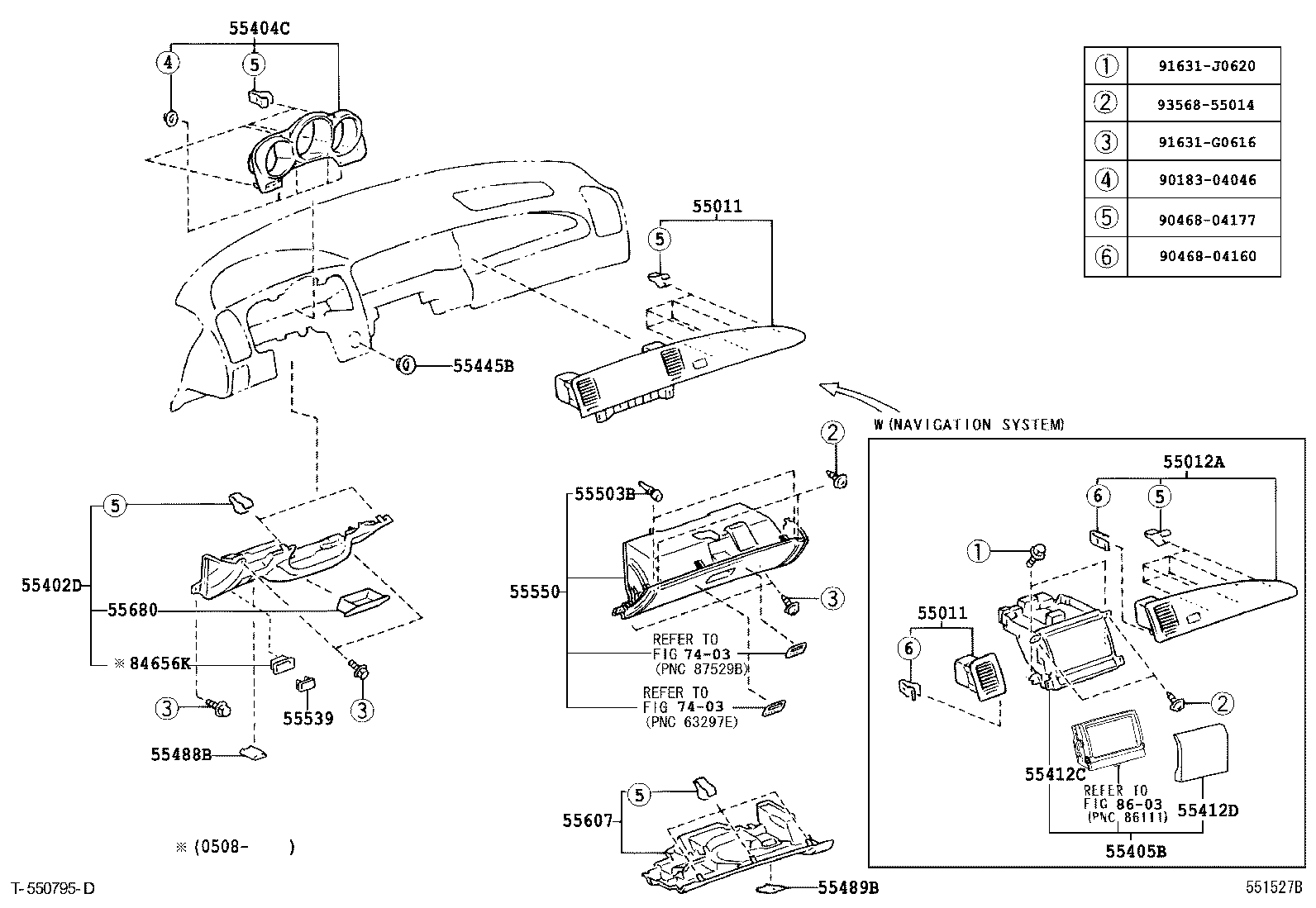

Figure 550794D 550794D 2001-01 → 2006-08 Figure 551705A 551705A 2006-08 → — Figure 551527B 551527B 2001-01 → 2006-08 Figure 551706D 551706D 2006-08 → —

Part groups

PNCDescription
55011 Garnish Sub-assy, Instrument Panel Safety Pad
55012A Garnish Sub-assy, Instrument Panel, NO.2
55306A Brace Sub-assy, Instrument Panel, NO.1
55307C Brace Sub-assy, Instrument Panel, NO.2
55317A Panel, Instrument Side, RH
55328 Pin, Instrument Panel, NO.1
55331 Reinforcement, Instrument Panel
55374C Bracket, Instrument Panel Lower Mounting, NO.1
55376 Bracket, Instrument Panel Mounting, NO.1
55401E Pad Sub-assy, Instrument Panel Safety
55402D Pad Sub-assy, Instrument Panel Safety, NO.1
55404C Panel Sub-assy, Instrument Cluster Finish, NO.2
55405B Panel Sub-assy, Instrument Cluster Finish, Center
55412C Panel, Instrument Cluster Finish, Center NO.1
55412D Panel, Instrument Cluster Finish, Center
55416A Retainer, Meter Hood, NO.1
55445B Plate, Instrument Panel Finish
55458B Cover, Instrument, Lwr
55479C Clip(FOR INSTRUMENT LOWER COVER)
55488B Lens, Front Foot Lamp, NO.1
55489B Lens, Front Foot Lamp, NO.2
55503B Cushion(FOR GLOVE COMPARTMENT)
55510A Cushion(FOR GLOVE COMPARTMENT DOOR)
55539 Cover, Spare Switch Hole
55550 Door Assy, Glove Compartment
55590 Plate Assy, Grove Compartment Door Lock Striker
55607 Cover Sub-assy, Instrument Panel Under, NO.2
55650 Register Assy, Instrument Panel, NO.1
55660 Register Assy, Instrument Panel, NO.2
55680 Register Assy, Instrument Panel, Lower NO.1
55951 Nozzle, Defroster, Front
55971B Duct, Side Defroster Nozzle, NO.1
55972A Duct, Side Defroster Nozzle, NO.2
55981 Garnish, Defroster Nozzle, NO.1
55990A Nozzle Assy, Defroster, Lower
73900 Airbag Assy, Instrument Panel, Lower NO.1
73960A Airbag Assy, Instrument Panel Passenger W/O Door
73990 Airbag Assy, Instrument Panel, Lower NO.2
84656K Bezel, Switch
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
