Toyota Lexus RX Series(Tmmc

2022-10 → present · chassis AALH15,TALA1#,TALH17 · catalogue 523440 · United States

Supported model Data version 2022-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

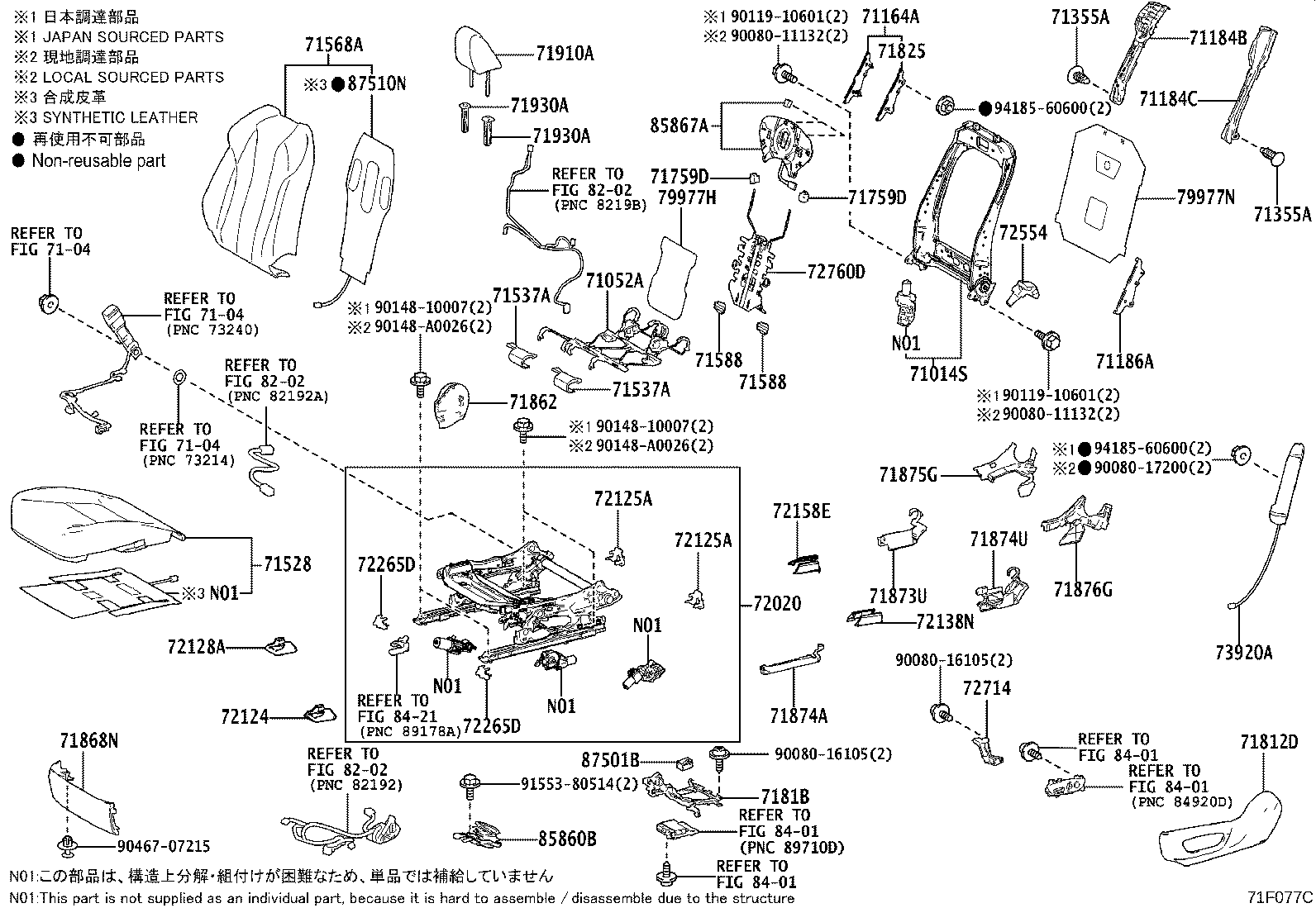

Exploded illustration 71F077C 7104 — not listed in this catalogue 8202 — not listed in this catalogue 8202 — not listed in this catalogue 8401 — not listed in this catalogue 8401 — not listed in this catalogue 7104 — not listed in this catalogue 8421 — not listed in this catalogue 7104 — not listed in this catalogue 8401 — not listed in this catalogue 8401 — not listed in this catalogue 71812D — SHIELD, FRONT SEAT CUSHION, LH (5 parts) 7181B — HOLDER, FRONT SEAT CUSHION WIRE HARNESS, LH (1 parts) 87501B — CONTROL SUB-ASSY, SEAT HEATER, LH (1 parts) 9008016105 — not listed in this catalogue 71862 — SHIELD, FRONT SEAT CUSHION, INNER LH (5 parts) 90148A0026 — not listed in this catalogue 9014810007 — not listed in this catalogue 71868N — SHIELD, FRONT SEAT CUSHION, FRONT LH (5 parts) 71873U — SHIELD, FRONT SEAT CUSHION, LOWER RH (1 parts) 72138N — COVER, SEAT TRACK BRACKET, OUTER REAR LH (1 parts) 72158E — COVER, SEAT TRACK BRACKET, INNER REAR LH (1 parts) 71874U — SHIELD, FRONT SEAT CUSHION, LOWER LH (1 parts) 71876G — COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT) (5 parts) 71875G — COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT) (5 parts) 71874A — SHIELD, FRONT SEAT CUSHION, LOWER LH (1 parts) 72714 — BRACKET, SEAT ADJUSTER SHIELD CLAMP, LH (1 parts) 71052A — SPRING SUB-ASSY, FRONT SEAT CUSHION, LH (1 parts) 71759D — HOOK, FRONT SEATBACK, NO.2 (1 parts) 79977N — FELT, SEATBACK (2 parts) 71164A — BRACKET, FRONT SEATBACK SUPPORT, LH (4 parts) 71825 — BRACKET, FRONT SEAT SIDE, NO.1 LH (4 parts) 72554 — PROTECTOR, RECLINING COVER, LH (1 parts) 71186A — BRACKET, FRONT SEAT SIDE SUPPORT, LH (4 parts) 71014S — FRAME SUB-ASSY, FRONT SEATBACK, LH (12 parts) 73920A — AIRBAG ASSY, FRONT SEAT, LH (1 parts) 9008011132 — not listed in this catalogue 9011910601 — not listed in this catalogue 9008011132 — not listed in this catalogue 9011910601 — not listed in this catalogue 9008017200 — not listed in this catalogue 9418560600 — not listed in this catalogue 71588 — PROTECTOR, FRONT SEATBACK EDGE, NO.2 (1 parts) 71759D — HOOK, FRONT SEATBACK, NO.2 (1 parts) 72760D — ADJUSTER ASSY, LUMBAR SUPPORT, LH (12 parts) 79977H — FELT, FRONT SEATBACK, LH (1 parts) 71588 — PROTECTOR, FRONT SEATBACK EDGE, NO.2 (1 parts) 71355A — CLIP (4 parts) 71355A — CLIP (4 parts) 71184B — SUPPORT, FRONT SEATBACK, LH (8 parts) 71184C — SUPPORT, FRONT SEATBACK, LH NO.2 (8 parts) 72125A — COVER, SEAT TRACK, UPPER REAR (1 parts) 72265D — COVER, SEAT TRACK UPPER RAIL (1 parts) 72128A — COVER, SEAT TRACK BRACKET, INNER FRONT LH (1 parts) 8202 — not listed in this catalogue 72124 — COVER, SEAT TRACK BRACKET, OUTER FRONT LH (1 parts) 72265D — COVER, SEAT TRACK UPPER RAIL (1 parts) 85860B — BLOWER ASSY, SEAT CUSHION CLIMATE CONTROL, LH (11 parts) 71528 — PAD, FRONT SEAT CUSHION W/COVER, LH (8 parts) 71910A — HEADREST ASSY, FRONT SEAT (34 parts) 71930A — SUPPORT ASSY, FRONT SEAT HEADREST (10 parts) 87510N — HEATER ASSY, FRONT SEATBACK, LH (1 parts) 71568A — PAD, FRONT SEATBACK W/COVER, LH (8 parts) 71930A — SUPPORT ASSY, FRONT SEAT HEADREST (10 parts) 9008016105 — not listed in this catalogue 9046707215 — not listed in this catalogue 72125A — COVER, SEAT TRACK, UPPER REAR (1 parts) 9155380514 — not listed in this catalogue 9014810007 — not listed in this catalogue 90148A0026 — not listed in this catalogue 9418560600 — not listed in this catalogue 72020 — ADJUSTER ASSY, FRONT SEAT, LH (12 parts) 71537A — PROTECTOR, FRONT SEAT CUSHION (1 parts) 71537A — PROTECTOR, FRONT SEAT CUSHION (1 parts) 85867A — BLOWER, SEATBACK CLIMATE CONTROL, LH (4 parts)
71F077C · 48 callouts, 26 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
190 parts on this figure
Part number Description Fitment Price
71014S — Frame Sub-assy, Front Seatback, LH
71014-0E090 Frame Sub-assy, Front Seatback, LH
2022-10 → —
AALH15,TALA1# —
71014-0E100 Frame Sub-assy, Front Seatback, LH
2022-10 → —
TALH17 —
71014-0E100 note Frame Sub-assy, Front Seatback, LH
2022-10 → —
AALH15,TALA1# —
71014-0E100 note Frame Sub-assy, Front Seatback, LH
2022-10 → —
AALH15,TALA1# —
71014-0E100 note Frame Sub-assy, Front Seatback, LH
2022-10 → —
TALA15 —
71014-0E100 note Frame Sub-assy, Front Seatback, LH
2022-10 → —
TALA15 —
71014-0E100 note Frame Sub-assy, Front Seatback, LH
2022-10 → —
TALA15 —
71014-0E100 note Frame Sub-assy, Front Seatback, LH
2022-10 → —
AALH15,TALA1# —
71014-0E100 note Frame Sub-assy, Front Seatback, LH
2023-09 → —
AALH15,TALA1# —
71014-0E100 note Frame Sub-assy, Front Seatback, LH
2023-09 → —
AALH15,TALA1# —
71014-0E250 note Frame Sub-assy, Front Seatback, LH
2022-10 → 2024-11 ended
AALH15,TALA1# —
71014-0E250 note Frame Sub-assy, Front Seatback, LH
2022-10 → —
AALH15,TALA1# —
71052A — Spring Sub-assy, Front Seat Cushion, LH
71051-02360 Spring Sub-assy, Front Seat Cushion, LH
2022-10 → —
AALH15,TALA1#,TALH17 —
71164A — Bracket, Front Seatback Support, LH
71163-11010 note Bracket, Front Seatback Support, LH
2022-10 → —
TALA15 —
71163-11010 note Bracket, Front Seatback Support, LH
2022-10 → —
TALA15 —
71163-11010 note Bracket, Front Seatback Support, LH
2022-10 → —
TALA15 —
71163-11010 Bracket, Front Seatback Support, LH
2022-10 → —
TALH17 —
71184B — Support, Front Seatback, LH
71183-78010 Support, Front Seatback, LH
2022-10 → 2024-01 ended
TALH17 —
71183-78010 note Support, Front Seatback, LH
2022-10 → 2024-01 ended
TALA15 —
71183-78010 note Support, Front Seatback, LH
2022-10 → 2024-01 ended
TALA15 —
71183-78010 note Support, Front Seatback, LH
2022-10 → 2024-01 ended
TALA15 —
71183-F6010 note Support, Front Seatback, LH
2024-01 → —
TALA15 —
71183-F6010 note Support, Front Seatback, LH
2024-01 → —
TALA15 —
71183-F6010 note Support, Front Seatback, LH
2024-01 → —
TALA15 —
71183-F6010 Support, Front Seatback, LH
2024-01 → —
TALH17 —
71184C — Support, Front Seatback, LH NO.2
71184-78010 Support, Front Seatback, LH NO.2
2022-10 → 2024-01 ended
TALH17 —
71184-78010 note Support, Front Seatback, LH NO.2
2022-10 → 2024-01 ended
TALA15 —
71184-78010 note Support, Front Seatback, LH NO.2
2022-10 → 2024-01 ended
TALA15 —
71184-78010 note Support, Front Seatback, LH NO.2
2022-10 → 2024-01 ended
TALA15 —
71184-F6010 Support, Front Seatback, LH NO.2
2024-01 → —
TALH17 —
71184-F6010 note Support, Front Seatback, LH NO.2
2024-01 → —
TALA15 —
71184-F6010 note Support, Front Seatback, LH NO.2
2024-01 → —
TALA15 —
71184-F6010 note Support, Front Seatback, LH NO.2
2024-01 → —
TALA15 —
71186A — Bracket, Front Seat Side Support, LH
71186-78020 note Bracket, Front Seat Side Support, LH
2022-10 → —
TALA15 —
71186-78020 note Bracket, Front Seat Side Support, LH
2022-10 → —
TALA15 —
71186-78020 Bracket, Front Seat Side Support, LH
2022-10 → —
TALH17 —
71186-78020 note Bracket, Front Seat Side Support, LH
2022-10 → —
TALA15 —
71355A — Clip
90467-06020-C4 note Clip
2022-10 → —
TALH17 —
90467-06020-C4 note Clip
2022-10 → —
TALA15 —
90467-06020-C4 note Clip
2022-10 → —
TALA15 —
90467-06020-C4 note Clip
2022-10 → —
TALA15 —
71528 — Pad, Front Seat Cushion W/Cover, LH
71102-0E140-C0 note Pad, Front Seat Cushion W/Cover, LH
2022-10 → —
TALA15 —
71102-0E140-D0 note Pad, Front Seat Cushion W/Cover, LH
2022-10 → —
TALA15 —
71102-0E150-C0 note Pad, Front Seat Cushion W/Cover, LH
2022-10 → —
TALH17 —
71102-0E150-C0 note Pad, Front Seat Cushion W/Cover, LH
2022-10 → —
TALA15 —
71102-0E150-C0 note Pad, Front Seat Cushion W/Cover, LH
2022-10 → —
TALA15 —
71102-0E150-D0 note Pad, Front Seat Cushion W/Cover, LH
2022-10 → —
TALA15 —
71102-0E150-D0 note Pad, Front Seat Cushion W/Cover, LH
2022-10 → —
TALA15 —
71102-0E150-D0 note Pad, Front Seat Cushion W/Cover, LH
2022-10 → —
TALH17 —
71537A — Protector, Front Seat Cushion
71537-48060 Protector, Front Seat Cushion
2022-10 → —
AALH15,TALA1#,TALH17 —
71568A — Pad, Front Seatback W/Cover, LH
71402-0E050-C0 note Pad, Front Seatback W/Cover, LH
2022-10 → —
TALA15 —
71402-0E050-D0 note Pad, Front Seatback W/Cover, LH
2022-10 → —
TALA15 —
71402-0E060-C0 note Pad, Front Seatback W/Cover, LH
2022-10 → —
TALH17 —
71402-0E060-C0 note Pad, Front Seatback W/Cover, LH
2022-10 → —
TALA15 —
71402-0E060-C0 note Pad, Front Seatback W/Cover, LH
2022-10 → —
TALA15 —
71402-0E060-D0 note Pad, Front Seatback W/Cover, LH
2022-10 → —
TALH17 —
71402-0E060-D0 note Pad, Front Seatback W/Cover, LH
2022-10 → —
TALA15 —
71402-0E060-D0 note Pad, Front Seatback W/Cover, LH
2022-10 → —
TALA15 —
71588 — Protector, Front Seatback Edge, NO.2
71587-0R010 Protector, Front Seatback Edge, NO.2
2022-10 → —
AALH15,TALA1#,TALH17 —
71759D — Hook, Front Seatback, NO.2
71759-0R020 Hook, Front Seatback, NO.2
2022-10 → —
AALH15,TALA1#,TALH17 —
71812D — Shield, Front Seat Cushion, LH
71812-F6010-C0 note Shield, Front Seat Cushion, LH
2022-10 → 2024-11 ended
AALH15,TALA1# —
71812-F6010-C0 note Shield, Front Seat Cushion, LH
2022-10 → —
TALH17 —
71812-F6010-C0 note Shield, Front Seat Cushion, LH
2022-10 → —
TALA15 —
71812-F6010-C0 note Shield, Front Seat Cushion, LH
2022-10 → —
AALH15,TALA10 —
71812-F6010-C0 note Shield, Front Seat Cushion, LH
2022-10 → —
AALH15,TALA1# —
7181B — Holder, Front Seat Cushion Wire Harness, LH
7181B-0R010 Holder, Front Seat Cushion Wire Harness, LH
2022-10 → —
AALH15,TALA1#,TALH17 —
71825 — Bracket, Front Seat Side, NO.1 LH
71186-11010 Bracket, Front Seat Side, NO.1 LH
2022-10 → —
TALH17 —
71186-11010 note Bracket, Front Seat Side, NO.1 LH
2022-10 → —
TALA15 —
71186-11010 note Bracket, Front Seat Side, NO.1 LH
2022-10 → —
TALA15 —
71186-11010 note Bracket, Front Seat Side, NO.1 LH
2022-10 → —
TALA15 —
71862 — Shield, Front Seat Cushion, Inner LH
71862-0R100-C0 note Shield, Front Seat Cushion, Inner LH
2022-10 → —
TALA15 —
71862-0R100-C0 note Shield, Front Seat Cushion, Inner LH
2022-10 → —
AALH15,TALA1# —
71862-0R100-C0 note Shield, Front Seat Cushion, Inner LH
2022-10 → —
AALH15,TALA10 —
71862-0R100-C0 note Shield, Front Seat Cushion, Inner LH
2022-10 → —
TALH17 —
71862-0R100-C0 note Shield, Front Seat Cushion, Inner LH
2022-10 → 2024-11 ended
AALH15,TALA1# —
71868N — Shield, Front Seat Cushion, Front LH
71868-0E160-C0 note Shield, Front Seat Cushion, Front LH
2022-10 → 2024-11 ended
AALH15,TALA1# —
71868-0E160-C0 note Shield, Front Seat Cushion, Front LH
2022-10 → —
AALH15,TALA1# —
71868-F6010-C0 note Shield, Front Seat Cushion, Front LH
2022-10 → —
TALH17 —
71868-F6010-C0 note Shield, Front Seat Cushion, Front LH
2022-10 → —
TALA15 —
71868-F6010-C0 note Shield, Front Seat Cushion, Front LH
2022-10 → —
AALH15,TALA10 —
71873U — Shield, Front Seat Cushion, Lower RH
71874-0E210 Shield, Front Seat Cushion, Lower RH
2022-10 → —
AALH15,TALA1#,TALH17 —
71874A — Shield, Front Seat Cushion, Lower LH
71874-F6010 Shield, Front Seat Cushion, Lower LH
2022-10 → —
AALH15,TALA1#,TALH17 —
71874U — Shield, Front Seat Cushion, Lower LH
71874-0E230 Shield, Front Seat Cushion, Lower LH
2022-10 → —
AALH15,TALA1#,TALH17 —
71875G — Cover, Reclining Adjuster Inside, RH (FOR LH SEAT)
71876-0E250-C0 note Cover, Reclining Adjuster Inside, RH (FOR LH SEAT)
2022-10 → —
AALH15,TALA1# —
71876-0E250-C0 note Cover, Reclining Adjuster Inside, RH (FOR LH SEAT)
2022-10 → —
AALH15,TALA10 —
71876-0E250-C0 note Cover, Reclining Adjuster Inside, RH (FOR LH SEAT)
2022-10 → —
TALH17 —
71876-0E250-C0 note Cover, Reclining Adjuster Inside, RH (FOR LH SEAT)
2022-10 → 2024-11 ended
AALH15,TALA1# —
71876-0E250-C0 note Cover, Reclining Adjuster Inside, RH (FOR LH SEAT)
2022-10 → —
TALA15 —
71876G — Cover, Reclining Adjuster Inside, LH (FOR LH SEAT)
71876-0R030-C0 note Cover, Reclining Adjuster Inside, LH (FOR LH SEAT)
2022-10 → 2024-11 ended
AALH15,TALA1# —
71876-0R030-C0 note Cover, Reclining Adjuster Inside, LH (FOR LH SEAT)
2022-10 → —
TALH17 —
71876-0R030-C0 note Cover, Reclining Adjuster Inside, LH (FOR LH SEAT)
2022-10 → —
TALA15 —
71876-0R030-C0 note Cover, Reclining Adjuster Inside, LH (FOR LH SEAT)
2022-10 → —
AALH15,TALA10 —
71876-0R030-C0 note Cover, Reclining Adjuster Inside, LH (FOR LH SEAT)
2022-10 → —
AALH15,TALA1# —
71910A — Headrest Assy, Front Seat
71910-0E560-A1 note Headrest Assy, Front Seat
2022-10 → 2024-11 ended
AALH15,TALA1# —
71910-0E560-B1 note Headrest Assy, Front Seat
2022-10 → —
AALH15,TALA1# —
71910-0E560-C1 note Headrest Assy, Front Seat
2022-10 → —
AALH15,TALA1# —
71910-0E560-E2 note Headrest Assy, Front Seat
2022-10 → —
AALH15,TALA1# —
71910-0E570-A2 note Headrest Assy, Front Seat
2023-09 → —
AALH15,TALA1# —
71910-0E570-A2 note Headrest Assy, Front Seat
2023-09 → —
AALH15,TALA1# —
71910-0E570-A2 note Headrest Assy, Front Seat
2022-10 → —
AALH15,TALA1# —
71910-0E570-A2 note Headrest Assy, Front Seat
2022-10 → —
AALH15,TALA1# —
71910-0E570-B1 note Headrest Assy, Front Seat
2022-10 → —
AALH15,TALA1# —
71910-0E570-B1 note Headrest Assy, Front Seat
2022-10 → —
AALH15,TALA1# —
71910-0E570-B1 note Headrest Assy, Front Seat
2023-09 → —
AALH15,TALA1# —
71910-0E570-B1 note Headrest Assy, Front Seat
2023-09 → —
AALH15,TALA1# —
71910-0E570-C1 note Headrest Assy, Front Seat
2022-10 → —
AALH15,TALA1# —
71910-0E570-C1 note Headrest Assy, Front Seat
2022-10 → —
AALH15,TALA1# —
71910-0E570-C1 note Headrest Assy, Front Seat
2023-09 → —
AALH15,TALA1# —
71910-0E570-C1 note Headrest Assy, Front Seat
2023-09 → —
AALH15,TALA1# —
71910-0E570-E1 note Headrest Assy, Front Seat
2023-09 → —
AALH15,TALA1# —
71910-0E570-E1 note Headrest Assy, Front Seat
2022-10 → —
AALH15,TALA1# —
71910-0E570-E1 note Headrest Assy, Front Seat
2022-10 → —
AALH15,TALA1# —
71910-0E570-E1 note Headrest Assy, Front Seat
2023-09 → —
AALH15,TALA1# —
71910-0E580-A1 note Headrest Assy, Front Seat
2022-10 → —
AALH15,TALA1# —
71910-0E580-A1 note Headrest Assy, Front Seat
2022-10 → 2024-11 ended
AALH15,TALA1# —
71910-0E580-C0 note Headrest Assy, Front Seat
2022-10 → 2024-11 ended
AALH15,TALA1# —
71910-0E580-C0 note Headrest Assy, Front Seat
2022-10 → —
AALH15,TALA1# —
71910-0E580-E0 note Headrest Assy, Front Seat
2022-10 → 2024-11 ended
AALH15,TALA1# —
71910-0E580-E0 note Headrest Assy, Front Seat
2022-10 → —
AALH15,TALA1# —
71910-0E590-C4 note Headrest Assy, Front Seat
2022-10 → —
TALA15 —
71910-0E590-D3 note Headrest Assy, Front Seat
2022-10 → —
TALA15 —
71910-0E600-C1 note Headrest Assy, Front Seat
2022-10 → —
TALA15 —
71910-0E600-C1 note Headrest Assy, Front Seat
2022-10 → —
TALA15 —
71910-0E600-C1 note Headrest Assy, Front Seat
2022-10 → —
TALH17 —
71910-0E600-D2 note Headrest Assy, Front Seat
2022-10 → —
TALA15 —
71910-0E600-D2 note Headrest Assy, Front Seat
2022-10 → —
TALH17 —
71910-0E600-D2 note Headrest Assy, Front Seat
2022-10 → —
TALA15 —
71930A — Support Assy, Front Seat Headrest
71930-0R070-C0 note Support Assy, Front Seat Headrest
2022-10 → 2024-11 ended
AALH15,TALA1# —
71930-0R070-C0 note Support Assy, Front Seat Headrest
2022-10 → —
TALH17 —
71930-0R070-C0 note Support Assy, Front Seat Headrest
2022-10 → —
TALA15 —
71930-0R070-C0 note Support Assy, Front Seat Headrest
2022-10 → —
AALH15,TALA10 —
71930-0R070-C0 note Support Assy, Front Seat Headrest
2022-10 → —
AALH15,TALA1# —
71931-0R050-C0 note Support Assy, Front Seat Headrest
2022-10 → —
AALH15,TALA10 —
71931-0R050-C0 note Support Assy, Front Seat Headrest
2022-10 → —
AALH15,TALA1# —
71931-0R050-C0 note Support Assy, Front Seat Headrest
2022-10 → —
TALA15 —
71931-0R050-C0 note Support Assy, Front Seat Headrest
2022-10 → —
TALH17 —
71931-0R050-C0 note Support Assy, Front Seat Headrest
2022-10 → 2024-11 ended
AALH15,TALA1# —
72020 — Adjuster Assy, Front Seat, LH
72020-0E340 note Adjuster Assy, Front Seat, LH
2022-10 → 2024-11 ended
AALH15,TALA1# —
72020-0E340 note Adjuster Assy, Front Seat, LH
2022-10 → —
AALH15,TALA1# —
72020-0E350 Adjuster Assy, Front Seat, LH
2022-10 → —
AALH15,TALA1# —
72020-0E360 Adjuster Assy, Front Seat, LH
2022-10 → —
TALH17 —
72020-0E360 note Adjuster Assy, Front Seat, LH
2023-09 → —
AALH15,TALA1# —
72020-0E360 note Adjuster Assy, Front Seat, LH
2023-09 → —
AALH15,TALA1# —
72020-0E360 note Adjuster Assy, Front Seat, LH
2022-10 → —
AALH15,TALA1# —
72020-0E360 note Adjuster Assy, Front Seat, LH
2022-10 → —
TALA15 —
72020-0E360 note Adjuster Assy, Front Seat, LH
2022-10 → —
TALA15 —
72020-0E360 note Adjuster Assy, Front Seat, LH
2022-10 → —
TALA15 —
72020-0E360 note Adjuster Assy, Front Seat, LH
2022-10 → —
AALH15,TALA1# —
72020-0E360 note Adjuster Assy, Front Seat, LH
2022-10 → —
AALH15,TALA1# —
72124 — Cover, Seat Track Bracket, Outer Front LH
72123-0E230 Cover, Seat Track Bracket, Outer Front LH
2022-10 → —
AALH15,TALA1#,TALH17 —
72125A — Cover, Seat Track, Upper Rear
72125-0R020 Cover, Seat Track, Upper Rear
2022-10 → —
AALH15,TALA1#,TALH17 —
72128A — Cover, Seat Track Bracket, Inner Front LH
72123-0E230 Cover, Seat Track Bracket, Inner Front LH
2022-10 → —
AALH15,TALA1#,TALH17 —
72138N — Cover, Seat Track Bracket, Outer Rear LH
72137-02370 Cover, Seat Track Bracket, Outer Rear LH
2022-10 → —
AALH15,TALA1#,TALH17 —
72158E — Cover, Seat Track Bracket, Inner Rear LH
72158-02230 Cover, Seat Track Bracket, Inner Rear LH
2022-10 → —
AALH15,TALA1#,TALH17 —
72265D — Cover, Seat Track Upper Rail
72265-0R020 Cover, Seat Track Upper Rail
2022-10 → —
AALH15,TALA1#,TALH17 —
72554 — Protector, Reclining Cover, LH
71876-08230-C0 note Protector, Reclining Cover, LH
2022-10 → —
AALH15,TALA1#,TALH17 —
72714 — Bracket, Seat Adjuster Shield Clamp, LH
72714-F6010 Bracket, Seat Adjuster Shield Clamp, LH
2022-10 → —
AALH15,TALA1#,TALH17 —
72760D — Adjuster Assy, Lumbar Support, LH
72750-08020 note Adjuster Assy, Lumbar Support, LH
2022-10 → 2024-11 ended
AALH15,TALA1# —
72750-08020 note Adjuster Assy, Lumbar Support, LH
2022-10 → —
AALH15,TALA1# —
72760-0R040 Adjuster Assy, Lumbar Support, LH
2022-10 → —
AALH15,TALA1# —
72760-0R050 note Adjuster Assy, Lumbar Support, LH
2022-10 → —
TALA15 —
72760-0R050 note Adjuster Assy, Lumbar Support, LH
2023-09 → —
AALH15,TALA1# —
72760-0R050 note Adjuster Assy, Lumbar Support, LH
2023-09 → —
AALH15,TALA1# —
72760-0R050 note Adjuster Assy, Lumbar Support, LH
2022-10 → —
AALH15,TALA1# —
72760-0R050 note Adjuster Assy, Lumbar Support, LH
2022-10 → —
TALA15 —
72760-0R050 note Adjuster Assy, Lumbar Support, LH
2022-10 → —
TALA15 —
72760-0R050 note Adjuster Assy, Lumbar Support, LH
2022-10 → —
AALH15,TALA1# —
72760-0R050 note Adjuster Assy, Lumbar Support, LH
2022-10 → —
AALH15,TALA1# —
72760-0R050 Adjuster Assy, Lumbar Support, LH
2022-10 → —
TALH17 —
73920A — Airbag Assy, Front Seat, LH
73920-0R080 Airbag Assy, Front Seat, LH
2022-10 → —
AALH15,TALA1#,TALH17 —
79977H — Felt, Front Seatback, LH
79977-0R070 Felt, Front Seatback, LH
2022-10 → —
AALH15,TALA1#,TALH17 —
79977N — Felt, Seatback
79977-F6010 note Felt, Seatback
2022-10 → —
AALH15,TALA1#,TALH17 —
79977-F6020 note Felt, Seatback
2022-10 → —
AALH15,TALA1#,TALH17 —
85860B — Blower Assy, Seat Cushion Climate Control, LH
85801-0E070 note Blower Assy, Seat Cushion Climate Control, LH
2022-10 → —
AALH15,TALA1# —
85801-0E070 note Blower Assy, Seat Cushion Climate Control, LH
2022-10 → 2024-11 ended
AALH15,TALA1# —
85802-0R010 note Blower Assy, Seat Cushion Climate Control, LH
2022-10 → —
AALH15,TALA1# —
85802-0R010 note Blower Assy, Seat Cushion Climate Control, LH
2023-09 → —
AALH15,TALA1# —
85802-0R010 note Blower Assy, Seat Cushion Climate Control, LH
2023-09 → —
AALH15,TALA1# —
85802-0R010 note Blower Assy, Seat Cushion Climate Control, LH
2022-10 → —
TALA15 —
85802-0R010 note Blower Assy, Seat Cushion Climate Control, LH
2022-10 → —
TALA15 —
85802-0R010 note Blower Assy, Seat Cushion Climate Control, LH
2022-10 → —
TALA15 —
85802-0R010 note Blower Assy, Seat Cushion Climate Control, LH
2022-10 → —
AALH15,TALA1# —
85802-0R010 note Blower Assy, Seat Cushion Climate Control, LH
2022-10 → —
AALH15,TALA1# —
85802-0R010 Blower Assy, Seat Cushion Climate Control, LH
2022-10 → —
TALH17 —
85867A — Blower, Seatback Climate Control, LH
85867-0E110 note Blower, Seatback Climate Control, LH
2022-10 → 2024-11 ended
AALH15,TALA1# —
85867-0E110 Blower, Seatback Climate Control, LH
2022-10 → —
TALH17 —
85867-0E110 note Blower, Seatback Climate Control, LH
2022-10 → —
AALH15,TALA1# —
85867-0E110 note Blower, Seatback Climate Control, LH
2024-11 → —
AALH15,TALA1# —
87501B — Control Sub-assy, Seat Heater, LH
87501-0R030 Control Sub-assy, Seat Heater, LH
2022-10 → —
AALH15,TALA1#,TALH17 —
87510N — Heater Assy, Front Seatback, LH
87530-F6010 Heater Assy, Front Seatback, LH
2022-10 → —
AALH15,TALA1# —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
