Toyota Lexus RX Series(Tmmc

2022-10 → present · chassis AALH15,TALA1#,TALH17 · catalogue 523440 · United States

Supported model Data version 2022-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

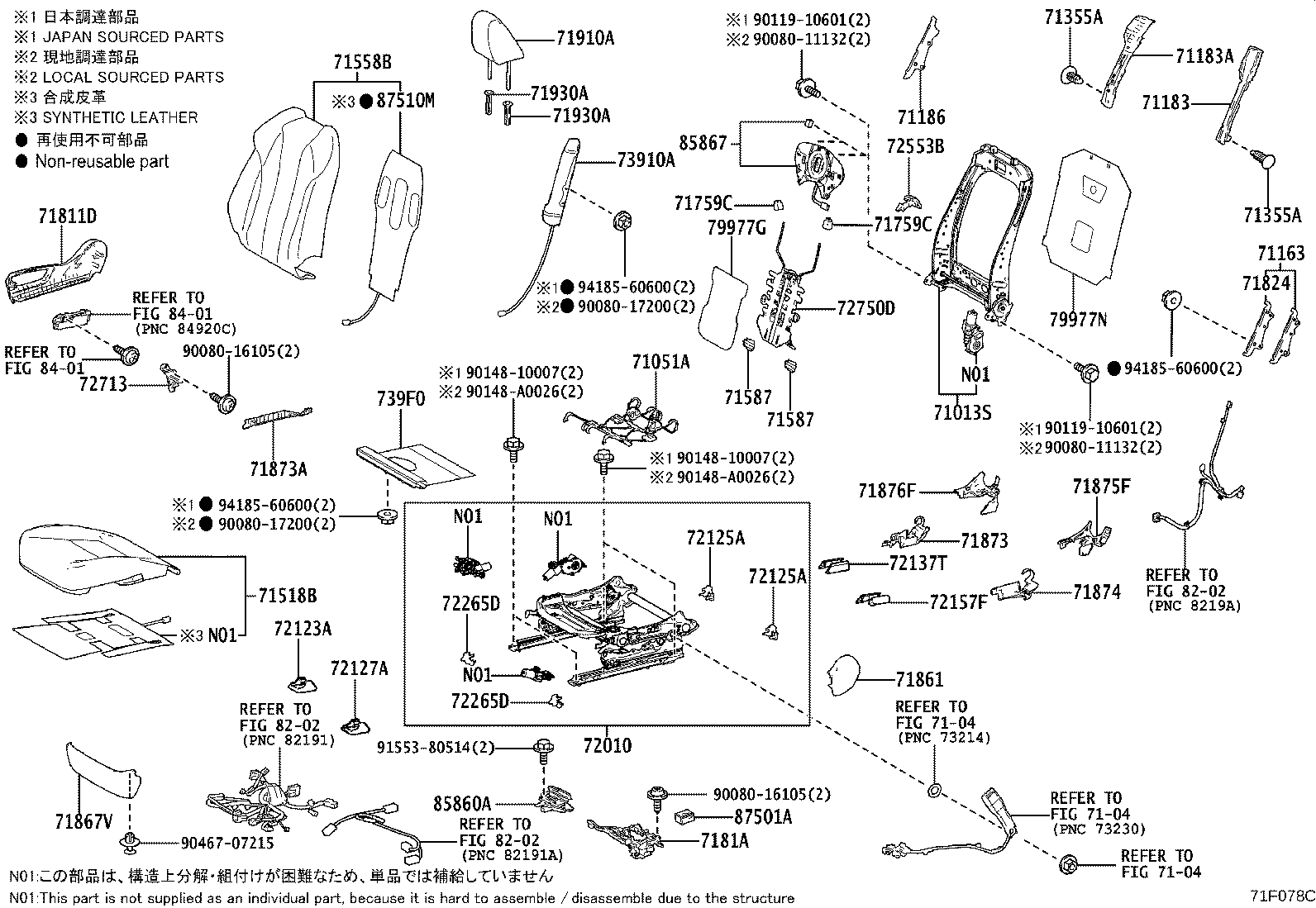

Exploded illustration 71F078C 79977N — FELT, SEATBACK (2 parts) 71186 — BRACKET, FRONT SEAT SIDE SUPPORT, RH (4 parts) 71355A — CLIP (4 parts) 71355A — CLIP (4 parts) 71183A — SUPPORT, FRONT SEATBACK, RH NO.2 (8 parts) 71183 — SUPPORT, FRONT SEATBACK, RH (8 parts) 71910A — HEADREST ASSY, FRONT SEAT (34 parts) 87510M — HEATER ASSY, FRONT SEATBACK, RH (1 parts) 71558B — PAD, FRONT SEATBACK W/COVER, RH (8 parts) 71930A — SUPPORT ASSY, FRONT SEAT HEADREST (10 parts) 71930A — SUPPORT ASSY, FRONT SEAT HEADREST (10 parts) 71811D — SHIELD, FRONT SEAT CUSHION, RH (5 parts) 71518B — PAD, FRONT SEAT CUSHION W/COVER, RH (8 parts) 739F0 — AIRBAG ASSY, FRONT SEAT CUSHION, RH (12 parts) 7181A — HOLDER, FRONT SEAT CUSHION WIRE HARNESS, RH (1 parts) 87501A — CONTROL SUB-ASSY, SEAT HEATER, RH (1 parts) 85860A — BLOWER ASSY, SEAT CUSHION CLIMATE CONTROL, RH (11 parts) 71867V — SHIELD, FRONT SEAT CUSHION, FRONT RH (5 parts) 71861 — SHIELD, FRONT SEAT CUSHION, INNER RH (5 parts) 71874 — SHIELD, FRONT SEAT CUSHION, LOWER LH (1 parts) 71875F — COVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT) (5 parts) 71876F — COVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT) (5 parts) 71873 — SHIELD, FRONT SEAT CUSHION, LOWER RH (1 parts) 72137T — COVER, SEAT TRACK BRACKET, OUTER REAR RH (1 parts) 72157F — COVER, SEAT TRACK BRACKET, INNER REAR RH (1 parts) 71051A — SPRING SUB-ASSY, FRONT SEAT CUSHION, RH (1 parts) 90148A0026 — not listed in this catalogue 9014810007 — not listed in this catalogue 71587 — PROTECTOR, FRONT SEATBACK EDGE (1 parts) 72750D — ADJUSTER ASSY, LUMBAR SUPPORT, RH (12 parts) 73910A — AIRBAG ASSY, FRONT SEAT, RH (1 parts) 79977G — FELT, FRONT SEATBACK, RH (1 parts) 71759C — HOOK, FRONT SEATBACK, NO.1 (1 parts) 71759C — HOOK, FRONT SEATBACK, NO.1 (1 parts) 71587 — PROTECTOR, FRONT SEATBACK EDGE (1 parts) 72125A — COVER, SEAT TRACK, UPPER REAR (1 parts) 72125A — COVER, SEAT TRACK, UPPER REAR (1 parts) 72265D — COVER, SEAT TRACK UPPER RAIL (1 parts) 72123A — COVER, SEAT TRACK BRACKET, OUTER FRONT RH (1 parts) 72127A — COVER, SEAT TRACK BRACKET, INNER FRONT RH (1 parts) 72265D — COVER, SEAT TRACK UPPER RAIL (1 parts) 72553B — PROTECTOR, RECLINING COVER, RH (1 parts) 71824 — BRACKET, FRONT SEAT SIDE, NO.1 RH (4 parts) 71163 — BRACKET, FRONT SEATBACK SUPPORT, RH (4 parts) 71013S — FRAME SUB-ASSY, FRONT SEATBACK, RH (3 parts) 71873A — SHIELD, FRONT SEAT CUSHION, LOWER (1 parts) 72713 — BRACKET, SEAT ADJUSTER SHIELD CLAMP, RH (1 parts) 9008016105 — not listed in this catalogue 9046707215 — not listed in this catalogue 9155380514 — not listed in this catalogue 9008011132 — not listed in this catalogue 9011910601 — not listed in this catalogue 9418560600 — not listed in this catalogue 9008017200 — not listed in this catalogue 9418560600 — not listed in this catalogue 90148A0026 — not listed in this catalogue 9014810007 — not listed in this catalogue 8202 — not listed in this catalogue 8202 — not listed in this catalogue 8202 — not listed in this catalogue 8401 — not listed in this catalogue 8401 — not listed in this catalogue 7104 — not listed in this catalogue 7104 — not listed in this catalogue 7104 — not listed in this catalogue 9008011132 — not listed in this catalogue 9011910601 — not listed in this catalogue 9008017200 — not listed in this catalogue 9418560600 — not listed in this catalogue 72010 — ADJUSTER ASSY, FRONT SEAT, RH (3 parts) 9008016105 — not listed in this catalogue 85867 — BLOWER, SEATBACK CLIMATE CONTROL, RH (4 parts)
71F078C · 47 callouts, 25 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
183 parts on this figure
Part number Description Fitment Price
71013S — Frame Sub-assy, Front Seatback, RH
71013-0E070 Frame Sub-assy, Front Seatback, RH
2022-10 → —
AALH15,TALA1#,TALH17 —
71013-0E220 note Frame Sub-assy, Front Seatback, RH
2022-10 → —
AALH15,TALA1# —
71013-0E220 note Frame Sub-assy, Front Seatback, RH
2022-10 → 2024-11 ended
AALH15,TALA1# —
71051A — Spring Sub-assy, Front Seat Cushion, RH
71051-02360 Spring Sub-assy, Front Seat Cushion, RH
2022-10 → —
AALH15,TALA1#,TALH17 —
71163 — Bracket, Front Seatback Support, RH
71164-11010 Bracket, Front Seatback Support, RH
2022-10 → —
TALH17 —
71164-11010 note Bracket, Front Seatback Support, RH
2022-10 → —
TALA15 —
71164-11010 note Bracket, Front Seatback Support, RH
2022-10 → —
TALA15 —
71164-11010 note Bracket, Front Seatback Support, RH
2022-10 → —
TALA15 —
71183 — Support, Front Seatback, RH
71184-78010 note Support, Front Seatback, RH
2022-10 → 2024-01 ended
TALA15 —
71184-78010 note Support, Front Seatback, RH
2022-10 → 2024-01 ended
TALA15 —
71184-78010 note Support, Front Seatback, RH
2022-10 → 2024-01 ended
TALA15 —
71184-78010 Support, Front Seatback, RH
2022-10 → 2024-01 ended
TALH17 —
71184-F6010 Support, Front Seatback, RH
2024-01 → —
TALH17 —
71184-F6010 note Support, Front Seatback, RH
2024-01 → —
TALA15 —
71184-F6010 note Support, Front Seatback, RH
2024-01 → —
TALA15 —
71184-F6010 note Support, Front Seatback, RH
2024-01 → —
TALA15 —
71183A — Support, Front Seatback, RH NO.2
71183-78010 Support, Front Seatback, RH NO.2
2022-10 → 2024-01 ended
TALH17 —
71183-78010 note Support, Front Seatback, RH NO.2
2022-10 → 2024-01 ended
TALA15 —
71183-78010 note Support, Front Seatback, RH NO.2
2022-10 → 2024-01 ended
TALA15 —
71183-78010 note Support, Front Seatback, RH NO.2
2022-10 → 2024-01 ended
TALA15 —
71183-F6010 note Support, Front Seatback, RH NO.2
2024-01 → —
TALA15 —
71183-F6010 note Support, Front Seatback, RH NO.2
2024-01 → —
TALA15 —
71183-F6010 note Support, Front Seatback, RH NO.2
2024-01 → —
TALA15 —
71183-F6010 Support, Front Seatback, RH NO.2
2024-01 → —
TALH17 —
71186 — Bracket, Front Seat Side Support, RH
71186-78010 note Bracket, Front Seat Side Support, RH
2022-10 → —
TALA15 —
71186-78010 note Bracket, Front Seat Side Support, RH
2022-10 → —
TALA15 —
71186-78010 note Bracket, Front Seat Side Support, RH
2022-10 → —
TALA15 —
71186-78010 Bracket, Front Seat Side Support, RH
2022-10 → —
TALH17 —
71355A — Clip
90467-06020-C4 note Clip
2022-10 → —
TALH17 —
90467-06020-C4 note Clip
2022-10 → —
TALA15 —
90467-06020-C4 note Clip
2022-10 → —
TALA15 —
90467-06020-C4 note Clip
2022-10 → —
TALA15 —
71518B — Pad, Front Seat Cushion W/Cover, RH
71101-0E150-C0 note Pad, Front Seat Cushion W/Cover, RH
2022-10 → —
TALA15 —
71101-0E150-D0 note Pad, Front Seat Cushion W/Cover, RH
2022-10 → —
TALA15 —
71101-0E160-C0 note Pad, Front Seat Cushion W/Cover, RH
2022-10 → —
TALA15 —
71101-0E160-C0 note Pad, Front Seat Cushion W/Cover, RH
2022-10 → —
TALA15 —
71101-0E160-C0 note Pad, Front Seat Cushion W/Cover, RH
2022-10 → —
TALH17 —
71101-0E160-D0 note Pad, Front Seat Cushion W/Cover, RH
2022-10 → —
TALH17 —
71101-0E160-D0 note Pad, Front Seat Cushion W/Cover, RH
2022-10 → —
TALA15 —
71101-0E160-D0 note Pad, Front Seat Cushion W/Cover, RH
2022-10 → —
TALA15 —
71558B — Pad, Front Seatback W/Cover, RH
71401-0E050-C0 note Pad, Front Seatback W/Cover, RH
2022-10 → —
TALA15 —
71401-0E050-D0 note Pad, Front Seatback W/Cover, RH
2022-10 → —
TALA15 —
71401-0E060-C0 note Pad, Front Seatback W/Cover, RH
2022-10 → —
TALH17 —
71401-0E060-C0 note Pad, Front Seatback W/Cover, RH
2022-10 → —
TALA15 —
71401-0E060-C0 note Pad, Front Seatback W/Cover, RH
2022-10 → —
TALA15 —
71401-0E060-D0 note Pad, Front Seatback W/Cover, RH
2022-10 → —
TALA15 —
71401-0E060-D0 note Pad, Front Seatback W/Cover, RH
2022-10 → —
TALH17 —
71401-0E060-D0 note Pad, Front Seatback W/Cover, RH
2022-10 → —
TALA15 —
71587 — Protector, Front Seatback Edge
71587-0R010 Protector, Front Seatback Edge
2022-10 → —
AALH15,TALA1#,TALH17 —
71759C — Hook, Front Seatback, NO.1
71759-0R020 Hook, Front Seatback, NO.1
2022-10 → —
AALH15,TALA1#,TALH17 —
71811D — Shield, Front Seat Cushion, RH
71811-F6010-C0 note Shield, Front Seat Cushion, RH
2022-10 → 2024-11 ended
AALH15,TALA1# —
71811-F6010-C0 note Shield, Front Seat Cushion, RH
2022-10 → —
TALH17 —
71811-F6010-C0 note Shield, Front Seat Cushion, RH
2022-10 → —
TALA15 —
71811-F6010-C0 note Shield, Front Seat Cushion, RH
2022-10 → —
AALH15,TALA10 —
71811-F6010-C0 note Shield, Front Seat Cushion, RH
2022-10 → —
AALH15,TALA1# —
7181A — Holder, Front Seat Cushion Wire Harness, RH
7181A-0E010 Holder, Front Seat Cushion Wire Harness, RH
2022-10 → —
AALH15,TALA1#,TALH17 —
71824 — Bracket, Front Seat Side, NO.1 RH
71186-11020 note Bracket, Front Seat Side, NO.1 RH
2022-10 → —
TALA15 —
71186-11020 note Bracket, Front Seat Side, NO.1 RH
2022-10 → —
TALA15 —
71186-11020 note Bracket, Front Seat Side, NO.1 RH
2022-10 → —
TALA15 —
71186-11020 Bracket, Front Seat Side, NO.1 RH
2022-10 → —
TALH17 —
71861 — Shield, Front Seat Cushion, Inner RH
71861-0E120-C0 note Shield, Front Seat Cushion, Inner RH
2022-10 → 2024-11 ended
AALH15,TALA1# —
71861-0E120-C0 note Shield, Front Seat Cushion, Inner RH
2022-10 → —
TALH17 —
71861-0E120-C0 note Shield, Front Seat Cushion, Inner RH
2022-10 → —
TALA15 —
71861-0E120-C0 note Shield, Front Seat Cushion, Inner RH
2022-10 → —
AALH15,TALA10 —
71861-0E120-C0 note Shield, Front Seat Cushion, Inner RH
2022-10 → —
AALH15,TALA1# —
71867V — Shield, Front Seat Cushion, Front RH
71867-0E170-C0 note Shield, Front Seat Cushion, Front RH
2022-10 → 2024-11 ended
AALH15,TALA1# —
71867-0E170-C0 note Shield, Front Seat Cushion, Front RH
2022-10 → —
AALH15,TALA1# —
71867-F6010-C0 note Shield, Front Seat Cushion, Front RH
2022-10 → —
AALH15,TALA10 —
71867-F6010-C0 note Shield, Front Seat Cushion, Front RH
2022-10 → —
TALA15 —
71867-F6010-C0 note Shield, Front Seat Cushion, Front RH
2022-10 → —
TALH17 —
71873 — Shield, Front Seat Cushion, Lower RH
71873-0E230 Shield, Front Seat Cushion, Lower RH
2022-10 → —
AALH15,TALA1#,TALH17 —
71873A — Shield, Front Seat Cushion, Lower
71873-F6010 Shield, Front Seat Cushion, Lower
2022-10 → —
AALH15,TALA1#,TALH17 —
71874 — Shield, Front Seat Cushion, Lower LH
71873-0E220 Shield, Front Seat Cushion, Lower LH
2022-10 → —
AALH15,TALA1#,TALH17 —
71875F — Cover, Reclining Adjuster Inside, RH (FOR RH SEAT)
71875-0E210-C0 note Cover, Reclining Adjuster Inside, RH (FOR RH SEAT)
2022-10 → 2024-11 ended
AALH15,TALA1# —
71875-0E210-C0 note Cover, Reclining Adjuster Inside, RH (FOR RH SEAT)
2022-10 → —
TALH17 —
71875-0E210-C0 note Cover, Reclining Adjuster Inside, RH (FOR RH SEAT)
2022-10 → —
TALA15 —
71875-0E210-C0 note Cover, Reclining Adjuster Inside, RH (FOR RH SEAT)
2022-10 → —
AALH15,TALA10 —
71875-0E210-C0 note Cover, Reclining Adjuster Inside, RH (FOR RH SEAT)
2022-10 → —
AALH15,TALA1# —
71876F — Cover, Reclining Adjuster Inside, LH (FOR RH SEAT)
71875-0E090-C0 note Cover, Reclining Adjuster Inside, LH (FOR RH SEAT)
2022-10 → —
TALH17 —
71875-0E090-C0 note Cover, Reclining Adjuster Inside, LH (FOR RH SEAT)
2022-10 → —
AALH15,TALA1# —
71875-0E090-C0 note Cover, Reclining Adjuster Inside, LH (FOR RH SEAT)
2022-10 → —
AALH15,TALA10 —
71875-0E090-C0 note Cover, Reclining Adjuster Inside, LH (FOR RH SEAT)
2022-10 → —
TALA15 —
71875-0E090-C0 note Cover, Reclining Adjuster Inside, LH (FOR RH SEAT)
2022-10 → 2024-11 ended
AALH15,TALA1# —
71910A — Headrest Assy, Front Seat
71910-0E560-A1 note Headrest Assy, Front Seat
2022-10 → 2024-11 ended
AALH15,TALA1# —
71910-0E560-B1 note Headrest Assy, Front Seat
2022-10 → —
AALH15,TALA1# —
71910-0E560-C1 note Headrest Assy, Front Seat
2022-10 → —
AALH15,TALA1# —
71910-0E560-E2 note Headrest Assy, Front Seat
2022-10 → —
AALH15,TALA1# —
71910-0E570-A2 note Headrest Assy, Front Seat
2023-09 → —
AALH15,TALA1# —
71910-0E570-A2 note Headrest Assy, Front Seat
2023-09 → —
AALH15,TALA1# —
71910-0E570-A2 note Headrest Assy, Front Seat
2022-10 → —
AALH15,TALA1# —
71910-0E570-A2 note Headrest Assy, Front Seat
2022-10 → —
AALH15,TALA1# —
71910-0E570-B1 note Headrest Assy, Front Seat
2022-10 → —
AALH15,TALA1# —
71910-0E570-B1 note Headrest Assy, Front Seat
2022-10 → —
AALH15,TALA1# —
71910-0E570-B1 note Headrest Assy, Front Seat
2023-09 → —
AALH15,TALA1# —
71910-0E570-B1 note Headrest Assy, Front Seat
2023-09 → —
AALH15,TALA1# —
71910-0E570-C1 note Headrest Assy, Front Seat
2023-09 → —
AALH15,TALA1# —
71910-0E570-C1 note Headrest Assy, Front Seat
2023-09 → —
AALH15,TALA1# —
71910-0E570-C1 note Headrest Assy, Front Seat
2022-10 → —
AALH15,TALA1# —
71910-0E570-C1 note Headrest Assy, Front Seat
2022-10 → —
AALH15,TALA1# —
71910-0E570-E1 note Headrest Assy, Front Seat
2022-10 → —
AALH15,TALA1# —
71910-0E570-E1 note Headrest Assy, Front Seat
2023-09 → —
AALH15,TALA1# —
71910-0E570-E1 note Headrest Assy, Front Seat
2023-09 → —
AALH15,TALA1# —
71910-0E570-E1 note Headrest Assy, Front Seat
2022-10 → —
AALH15,TALA1# —
71910-0E580-A1 note Headrest Assy, Front Seat
2022-10 → —
AALH15,TALA1# —
71910-0E580-A1 note Headrest Assy, Front Seat
2022-10 → 2024-11 ended
AALH15,TALA1# —
71910-0E580-C0 note Headrest Assy, Front Seat
2022-10 → —
AALH15,TALA1# —
71910-0E580-C0 note Headrest Assy, Front Seat
2022-10 → 2024-11 ended
AALH15,TALA1# —
71910-0E580-E0 note Headrest Assy, Front Seat
2022-10 → 2024-11 ended
AALH15,TALA1# —
71910-0E580-E0 note Headrest Assy, Front Seat
2022-10 → —
AALH15,TALA1# —
71910-0E590-C4 note Headrest Assy, Front Seat
2022-10 → —
TALA15 —
71910-0E590-D3 note Headrest Assy, Front Seat
2022-10 → —
TALA15 —
71910-0E600-C1 note Headrest Assy, Front Seat
2022-10 → —
TALA15 —
71910-0E600-C1 note Headrest Assy, Front Seat
2022-10 → —
TALA15 —
71910-0E600-C1 note Headrest Assy, Front Seat
2022-10 → —
TALH17 —
71910-0E600-D2 note Headrest Assy, Front Seat
2022-10 → —
TALA15 —
71910-0E600-D2 note Headrest Assy, Front Seat
2022-10 → —
TALH17 —
71910-0E600-D2 note Headrest Assy, Front Seat
2022-10 → —
TALA15 —
71930A — Support Assy, Front Seat Headrest
71930-0R070-C0 note Support Assy, Front Seat Headrest
2022-10 → —
TALH17 —
71930-0R070-C0 note Support Assy, Front Seat Headrest
2022-10 → —
TALA15 —
71930-0R070-C0 note Support Assy, Front Seat Headrest
2022-10 → —
AALH15,TALA10 —
71930-0R070-C0 note Support Assy, Front Seat Headrest
2022-10 → —
AALH15,TALA1# —
71930-0R070-C0 note Support Assy, Front Seat Headrest
2022-10 → 2024-11 ended
AALH15,TALA1# —
71931-0R050-C0 note Support Assy, Front Seat Headrest
2022-10 → 2024-11 ended
AALH15,TALA1# —
71931-0R050-C0 note Support Assy, Front Seat Headrest
2022-10 → —
TALH17 —
71931-0R050-C0 note Support Assy, Front Seat Headrest
2022-10 → —
TALA15 —
71931-0R050-C0 note Support Assy, Front Seat Headrest
2022-10 → —
AALH15,TALA10 —
71931-0R050-C0 note Support Assy, Front Seat Headrest
2022-10 → —
AALH15,TALA1# —
72010 — Adjuster Assy, Front Seat, RH
72010-0E230 Adjuster Assy, Front Seat, RH
2022-10 → —
AALH15,TALA1#,TALH17 —
72010-0E330 note Adjuster Assy, Front Seat, RH
2022-10 → 2024-11 ended
AALH15,TALA1# —
72010-0E330 note Adjuster Assy, Front Seat, RH
2022-10 → —
AALH15,TALA1# —
72123A — Cover, Seat Track Bracket, Outer Front RH
72123-0E230 Cover, Seat Track Bracket, Outer Front RH
2022-10 → —
AALH15,TALA1#,TALH17 —
72125A — Cover, Seat Track, Upper Rear
72125-0R020 Cover, Seat Track, Upper Rear
2022-10 → —
AALH15,TALA1#,TALH17 —
72127A — Cover, Seat Track Bracket, Inner Front RH
72123-0E230 Cover, Seat Track Bracket, Inner Front RH
2022-10 → —
AALH15,TALA1#,TALH17 —
72137T — Cover, Seat Track Bracket, Outer Rear RH
72137-02370 Cover, Seat Track Bracket, Outer Rear RH
2022-10 → —
AALH15,TALA1#,TALH17 —
72157F — Cover, Seat Track Bracket, Inner Rear RH
72157-02350 Cover, Seat Track Bracket, Inner Rear RH
2022-10 → —
AALH15,TALA1#,TALH17 —
72265D — Cover, Seat Track Upper Rail
72265-0R020 Cover, Seat Track Upper Rail
2022-10 → —
AALH15,TALA1#,TALH17 —
72553B — Protector, Reclining Cover, RH
71875-08240-C0 note Protector, Reclining Cover, RH
2022-10 → —
AALH15,TALA1#,TALH17 —
72713 — Bracket, Seat Adjuster Shield Clamp, RH
72713-F6010 Bracket, Seat Adjuster Shield Clamp, RH
2022-10 → —
AALH15,TALA1#,TALH17 —
72750D — Adjuster Assy, Lumbar Support, RH
72750-08020 note Adjuster Assy, Lumbar Support, RH
2022-10 → 2024-11 ended
AALH15,TALA1# —
72750-08020 note Adjuster Assy, Lumbar Support, RH
2022-10 → —
AALH15,TALA1# —
72760-0R040 Adjuster Assy, Lumbar Support, RH
2022-10 → —
AALH15,TALA1# —
72760-0R050 note Adjuster Assy, Lumbar Support, RH
2022-10 → —
AALH15,TALA1# —
72760-0R050 note Adjuster Assy, Lumbar Support, RH
2023-09 → —
AALH15,TALA1# —
72760-0R050 note Adjuster Assy, Lumbar Support, RH
2023-09 → —
AALH15,TALA1# —
72760-0R050 note Adjuster Assy, Lumbar Support, RH
2022-10 → —
TALA15 —
72760-0R050 note Adjuster Assy, Lumbar Support, RH
2022-10 → —
TALA15 —
72760-0R050 note Adjuster Assy, Lumbar Support, RH
2022-10 → —
TALA15 —
72760-0R050 note Adjuster Assy, Lumbar Support, RH
2022-10 → —
AALH15,TALA1# —
72760-0R050 note Adjuster Assy, Lumbar Support, RH
2022-10 → —
AALH15,TALA1# —
72760-0R050 Adjuster Assy, Lumbar Support, RH
2022-10 → —
TALH17 —
73910A — Airbag Assy, Front Seat, RH
73910-0R080 Airbag Assy, Front Seat, RH
2022-10 → —
AALH15,TALA1#,TALH17 —
739F0 — Airbag Assy, Front Seat Cushion, RH
739F0-02030 Airbag Assy, Front Seat Cushion, RH
2022-10 → —
AALH15,TALA1# —
739F0-0E020 note Airbag Assy, Front Seat Cushion, RH
2022-10 → 2024-11 ended
AALH15,TALA1# —
739F0-0E020 note Airbag Assy, Front Seat Cushion, RH
2022-10 → —
AALH15,TALA1# —
739F0-F6030 note Airbag Assy, Front Seat Cushion, RH
2022-10 → —
AALH15,TALA1# —
739F0-F6030 note Airbag Assy, Front Seat Cushion, RH
2023-09 → —
AALH15,TALA1# —
739F0-F6030 note Airbag Assy, Front Seat Cushion, RH
2023-09 → —
AALH15,TALA1# —
739F0-F6030 note Airbag Assy, Front Seat Cushion, RH
2022-10 → —
TALA15 —
739F0-F6030 note Airbag Assy, Front Seat Cushion, RH
2022-10 → —
TALA15 —
739F0-F6030 note Airbag Assy, Front Seat Cushion, RH
2022-10 → —
AALH15,TALA1# —
739F0-F6030 note Airbag Assy, Front Seat Cushion, RH
2022-10 → —
AALH15,TALA1# —
739F0-F6030 Airbag Assy, Front Seat Cushion, RH
2022-10 → —
TALH17 —
739F0-F6030 note Airbag Assy, Front Seat Cushion, RH
2022-10 → —
TALA15 —
79977G — Felt, Front Seatback, RH
79977-0R070 Felt, Front Seatback, RH
2022-10 → —
AALH15,TALA1#,TALH17 —
79977N — Felt, Seatback
79977-F6010 note Felt, Seatback
2022-10 → —
AALH15,TALA1#,TALH17 —
79977-F6020 note Felt, Seatback
2022-10 → —
AALH15,TALA1#,TALH17 —
85860A — Blower Assy, Seat Cushion Climate Control, RH
85801-0E070 note Blower Assy, Seat Cushion Climate Control, RH
2022-10 → 2024-11 ended
AALH15,TALA1# —
85801-0E070 note Blower Assy, Seat Cushion Climate Control, RH
2022-10 → —
AALH15,TALA1# —
85801-F6010 note Blower Assy, Seat Cushion Climate Control, RH
2022-10 → —
AALH15,TALA1# —
85801-F6010 note Blower Assy, Seat Cushion Climate Control, RH
2023-09 → —
AALH15,TALA1# —
85801-F6010 note Blower Assy, Seat Cushion Climate Control, RH
2023-09 → —
AALH15,TALA1# —
85801-F6010 note Blower Assy, Seat Cushion Climate Control, RH
2022-10 → —
AALH15,TALA1# —
85801-F6010 note Blower Assy, Seat Cushion Climate Control, RH
2022-10 → —
TALA15 —
85801-F6010 note Blower Assy, Seat Cushion Climate Control, RH
2022-10 → —
TALA15 —
85801-F6010 note Blower Assy, Seat Cushion Climate Control, RH
2022-10 → —
TALA15 —
85801-F6010 note Blower Assy, Seat Cushion Climate Control, RH
2022-10 → —
AALH15,TALA1# —
85801-F6010 Blower Assy, Seat Cushion Climate Control, RH
2022-10 → —
TALH17 —
85867 — Blower, Seatback Climate Control, RH
85867-0E110 note Blower, Seatback Climate Control, RH
2022-10 → 2024-11 ended
AALH15,TALA1# —
85867-0E110 Blower, Seatback Climate Control, RH
2022-10 → —
TALH17 —
85867-0E110 note Blower, Seatback Climate Control, RH
2022-10 → —
AALH15,TALA1# —
85867-0E110 note Blower, Seatback Climate Control, RH
2024-11 → —
AALH15,TALA1# —
87501A — Control Sub-assy, Seat Heater, RH
87501-0R030 Control Sub-assy, Seat Heater, RH
2022-10 → —
AALH15,TALA1#,TALH17 —
87510M — Heater Assy, Front Seatback, RH
87530-F6010 Heater Assy, Front Seatback, RH
2022-10 → —
AALH15,TALA1# —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
