Toyota C-hr

2016-10 → present · chassis MAXH10,NGX10,50,ZGX10,ZYX1# · catalogue 528510 · United States

Supported model Data version 2019-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cowl Panel & Windshield Glass

24 part groups · 2 illustrations

Illustrations

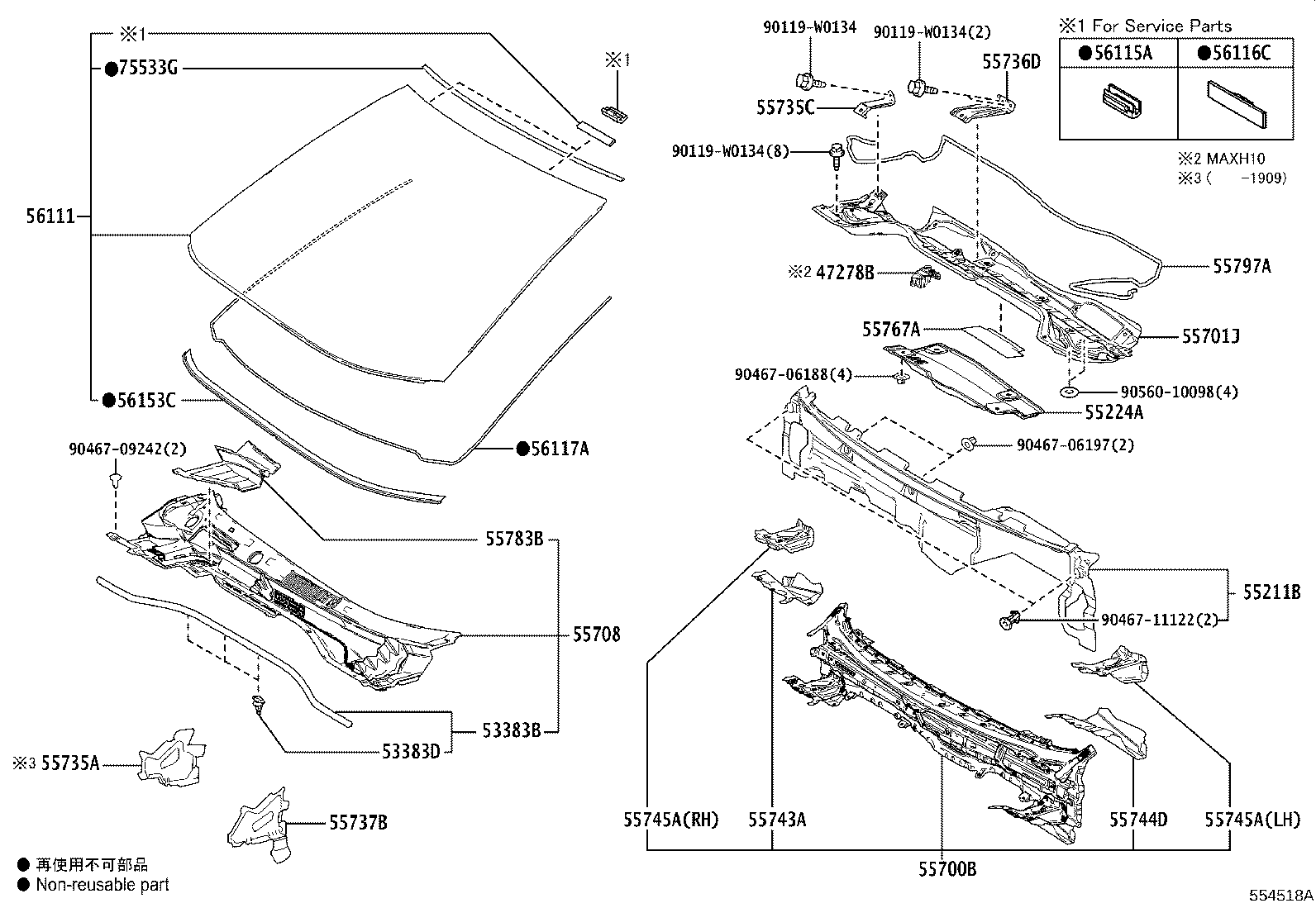

Figure 554516B 554516B 2016-10 → — Figure 554518A 554518A 2016-10 → —

Part groups

PNCDescription
47278B Cover, Brake Master Cylinder
53383B Seal, Hood TO Cowl Top
53383D Clip(FOR HOOD TO COWL TOP SEAL)
55211B Silencer, Front Panel
55224A Insulator, Dash Panel, Outer NO.2
55700B Cowl Assy
55701J Panel Sub-assy, Cowl Top, Outer
55708 Louver Sub-assy, Cowl Top Ventilator
55735A Plate, Water Guard, LH
55735C Reinforcement, Cowl Body Mounting, RH
55736D Reinforcement, Cowl Body Mounting, LH
55737B Seal, Heater Air Duct Splash Shield, NO.1
55743A Extension, Cowl TO Cowl Side, RH
55744D Extension, Cowl TO Cowl Side, LH
55745A Reinforcement, Cowl Top, Inner
55767A Sheet, Cowl Top Insulator, NO.5
55783B Louver, Cowl Top Ventilator, Center NO.1
55797A Seal, Cowl Water Extract
56111 Glass, Windshield
56115A Stopper, Windshield Glass, NO.1
56116C Stopper, Windshield Glass, NO.2
56117A Dam, Window Glass Adhesive
56153C Moulding, Front Window, Inner Center
75533G Moulding, Windshield, Outside
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
