Toyota Lexus TX Series
2023-09 → present · chassis GYU15,TAUA1#,TAUH15 · catalogue 557410 · United States
Supported model
Data version 2024-08
Front Door Panel & Glass
47 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 67001 | Panel Sub-assy, Front Door, RH |
| 67001A | Cushion, Front Door Panel |
| 67002 | Panel Sub-assy, Front Door, LH |
| 67111 | Panel, Front Door, Outer RH |
| 67112 | Panel, Front Door, Outer LH |
| 67403F | Frame Sub-assy, Front Door, Rear Lower RH |
| 67404F | Frame Sub-assy, Front Door, Rear Lower LH |
| 67491A | Garnish, Front Door Lower Frame Bracket, RH |
| 67492A | Garnish, Front Door Lower Frame Bracket, LH |

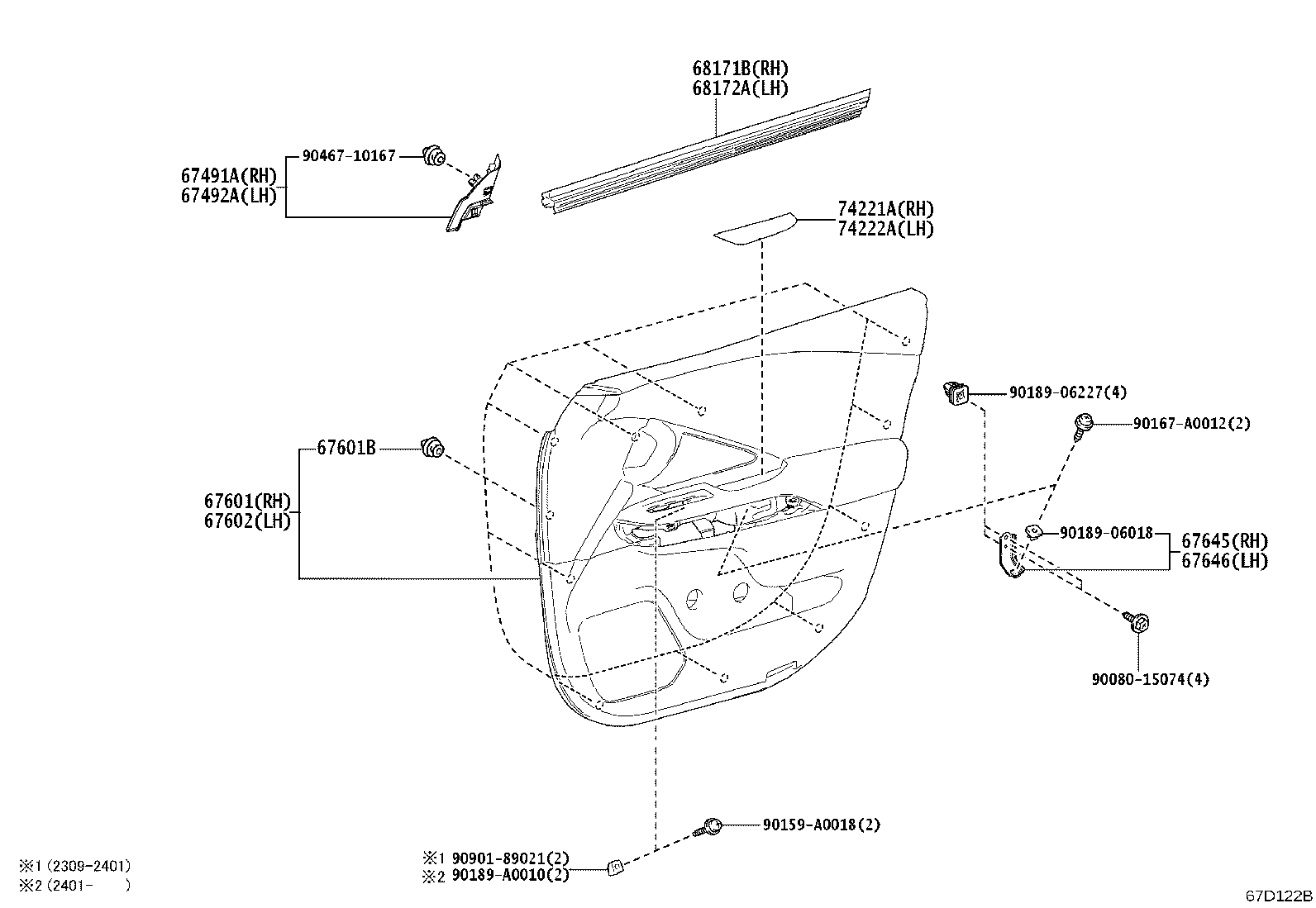

| 67601 | Board Sub-assy, Front Door Trim, RH |
| 67601B | Clip(FOR FRONT DOOR TRIM BOARD) |
| 67602 | Board Sub-assy, Front Door Trim, LH |
| 67645 | Bracket, Front Door Armrest Set, RH |
| 67646 | Bracket, Front Door Armrest Set, LH |
| 67663D | Garnish, Door Frame, RH |
| 67664C | Garnish, Door Frame, LH |
| 67811 | Pad, Front Door Silencer |
| 67831 | Cover, Front Door Service Hole, RH |
| 67831D | Clip(FOR FRONT DOOR SERVICE HOLE COVER) |
| 67832 | Cover, Front Door Service Hole, LH |
| 67837A | Seal, Front Door Vent, RH |
| 67837B | Seal, Front Door Dust Proof |
| 67838A | Seal, Front Door Vent, LH |
| 67855B | Protector, Front Door Panel, RH |
| 67856B | Protector, Front Door Panel, LH |
| 67861 | Weatherstrip, Front Door, RH |
| 67862 | Weatherstrip, Front Door, LH |
| 67867C | Retainer, Front Door Weatherstrip, RH |
| 67869B | Clip, Front Door Weatherstrip |
| 67869J | Clip, Front Door Weatherstrip |
| 67923 | Cushion, Front Door Stiffener, NO.1 |
| 68101 | Glass Sub-assy, Front Door, RH |
| 68102 | Glass Sub-assy, Front Door, LH |
| 68141E | Run, Front Door Glass, RH |
| 68151D | Run, Front Door Glass, LH |
| 68171B | Weatherstrip, Front Door Glass, Inner RH |
| 68172A | Weatherstrip, Front Door Glass, Inner LH |
| 68610B | Check Assy, Front Door, RH |
| 68620 | Check Assy, Front Door, LH |
| 74221A | Cover, Front Door Armrest, RH |
| 74222A | Cover, Front Door Armrest, LH |
| 75965B | Stripe, Front Door NO.4 RH |
| 75966B | Stripe, Front Door NO.4 LH |
| 75985G | Stripe, Front Door Outside, RH |
| 75986G | Stripe, Front Door Outside, LH |
| 87963 | Cover, Outer Mirror Install Hole, RH |
| 87964 | Cover, Outer Mirror Install Hole, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
